Quick Details
- Temperature:
-
-25℃ ~ +15℃
- Cooling Capacity:
-
1ton
- Panel Thickness:
-
50mm
- Applicable Industries:
-
Retail
- After Warranty Service:
-
Online support
- Local Service Location:
-
None
- Showroom Location:
-
None
- Condition:
-
New
- Place of Origin:
-
Hubei, China
- Voltage:
-
220V, 220V/50HZ
- Dimension(L*W*H):
-
10-10*10
- Weight:
-
15KGS
- Certification:
-
CE ROHS
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Online support, No overseas service provided
- Key Selling Points:
-
Sustainable
- Machinery Test Report:
-
Not Availabl
- Video outgoing-inspection:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor
- Color:
-
Balck

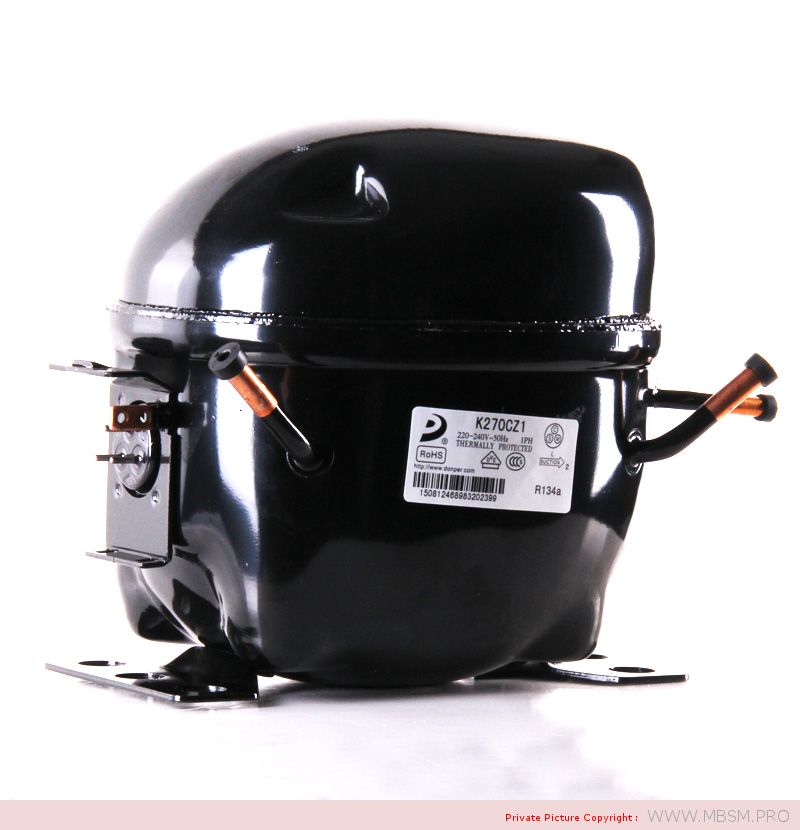

- Product name:
-
Refrigerator Compressor
- Refrigerant:
-
R134a

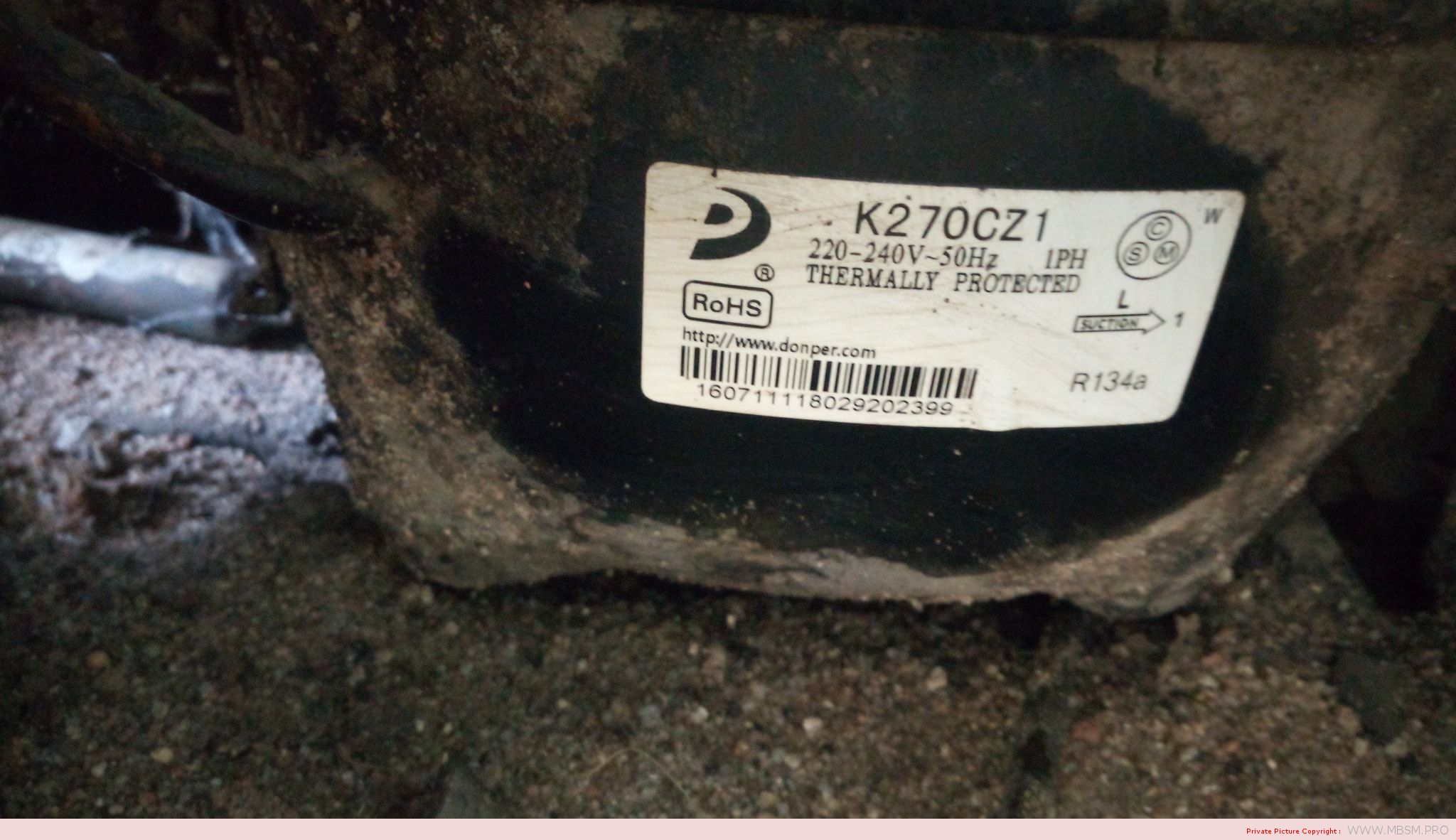

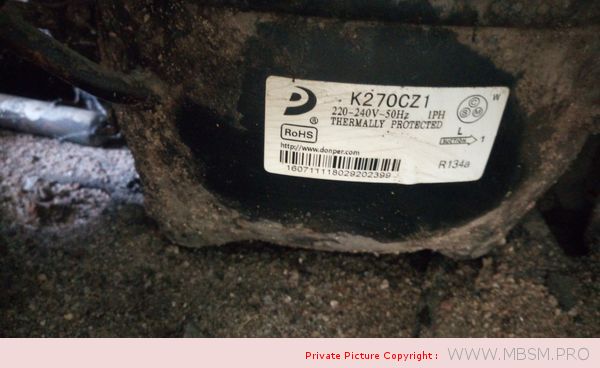

- model:
-
K270CZ1
- Cooling capacity:
-
230W

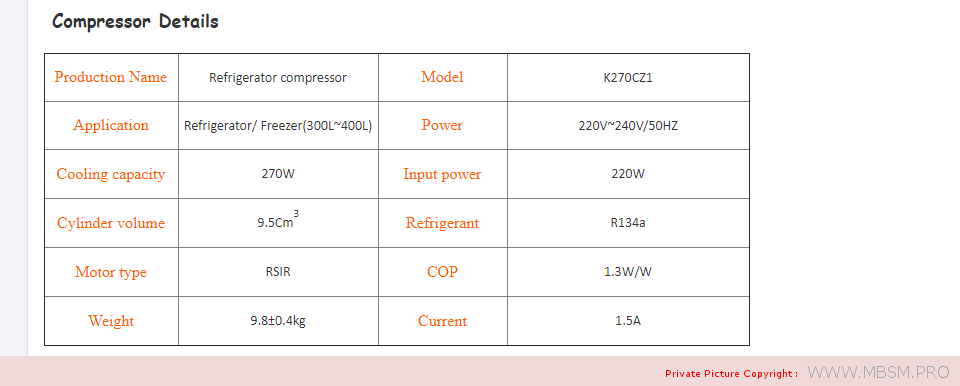

Product Description
|
Refrigerant
|
R134a
|
Cooling capicity
|
270W
|
|
Input power
|
220W
|
Hose Power
|
220W
|
|
Temperature application
|
L/MBP
|
Displacement
|
9.5cm³
|
|
Working Current
|
1.5A
|
Voltage
|
220V~240V/50Hz
|
|
COP
|
1.3W/W
|
Motor type
|
RSIR
|
|
Cylinder capacity
|
9.5cm³
|
Weight
|
9.8±0.4kg
|
Structure
Product Specification
| Capacity | 500 L |
| Type | Top Open |
| Temperature Range | -18 degrees to +10 degrees |
| Model Number | HIK-BD-500 |
| Model Number/Name | HIK-BD-500 |
| Energy Consumption | 2.02 kWh/24hr |
| Product Dimensions | 1650 x 755 x 830mm |
| Door Type | Top Open Door |
| Color | White |
| Door No. | 2 |
| Features | Adjustable Temperature Control,Digital Display,75mm Insulation Wall Thickness,Defrost Water Drain |
| Usage/Application | Freezer/Chiller |
| Weight | 73kg |
| Depth | 755mm |
| Refrigerant Used | R134a |
| Number Of Basket | 2 |
| Height | 830 mm |
| Power Source | Electric |
| Energy Efficiency | 2.02 kWh/24hr |
| Compressor Brand | Donper |
| Compressor Model | K270CZ1 |
| Power | 255 W |
| Width | 1650 mm |
| Colour | White |
| Refrigerant | R134a |
| No of Doors | 1 |
| Number of Baskets | 2 |

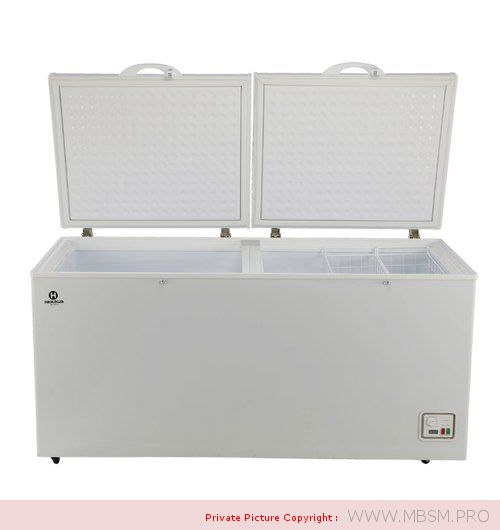

Product Description
Haikawa now launches its latest range of Chest Freezers in 200 L, 300 L, 400 L and 500 L variants. The freezers come with an Adjustable Temperature Comtrol, enabling its use as a freezer (-18 degrees to 0 degrees) or as a chiller (0 degrees to 10 degrees), depending on requirement. The 75mm Insulation Wall Thickness helps improve energy efficiency, while the unique digital display brings in a whole new level of convenience. The Chest freezers come with removable baskets and a defrost water drain. The Inner PP lining improves hygiene while a lock and key mechanism ensures maximum safety. Insulation: Cyclopentane. Refrigerant: R134a. The HIK-BD-500 model has a rated current of 1.5A, thus lowering the power consumption. The Chest Freezer is packed with the following features:
- Adjustable Temperature Control

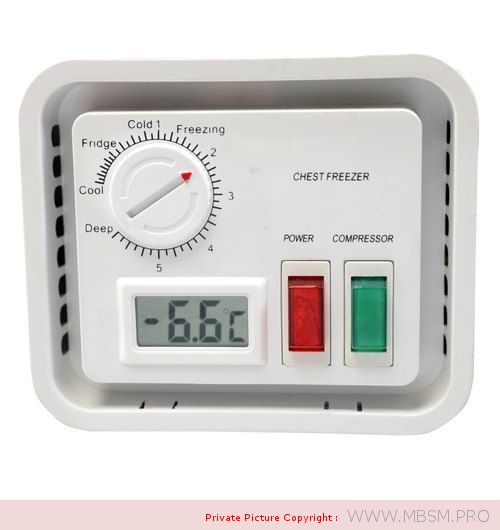

- Electronic Controller with Digital Display
- 75mm Insulation Wall Thickness
- Low Power Consumption
- Inner PP Lining for Improved Hygiene
- Store-More Removable Basket
- Defrost Water Drain
- Lid Handle
- Lock and Key Safety Mechanism
Additional Information
| Packaging Details | Box Dimensions: 1695 x 760 x 880mm Included:1 Chest Freezer/ 1 Instruction Manual/ 2 Keys/ 2 Inner Metal Trays |
Compresseur de réfrigérant R134a Donper K375CZ1 220-240V 50Hz SC-SD-388Y
Description
Compresseur de réfrigérant R134a Donper K375CZ1 220-240V 50Hz SC-SD-388Y
Réfrigérant: R134a
Tension: 220 V ~ 240 V / 50 HZ
Puissance en chevaux: 1/2 ph
Puissance d’entrée: 235 W
Capacité de refroidissement: 325 W
Cylindre de capacité: 11,4 centimètres cubes
Courant de travail: 1.6A
Type de moteur: CSIR
Poids: 9,9 ± 0 4 kg
