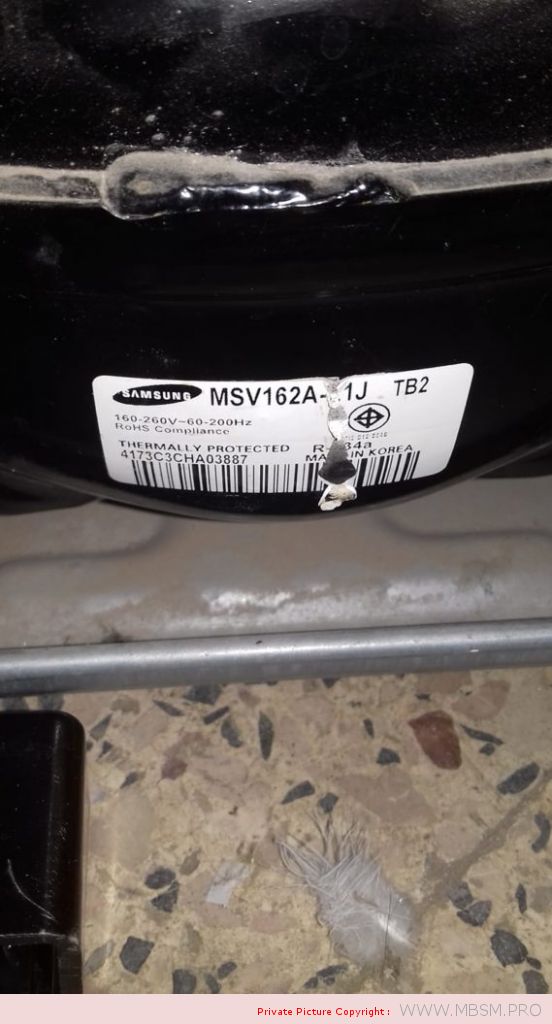

Mbsm.pro, Compressor, Samsung, MSV162AL1J/TS, MSV162, MSV162A-L1B, Compressor Inverter, Block DC, 1200/4000 RPM, 70/244 W, 238/834 BTU, Lnb, 1/3 hp, R134A, Blcd

written by Lilianne | 30 January 2022

famous brand

Our company is the agent of eminent brand compressor which includes GMCC, LG, SAMSUNG, SANYO, DAIKIN, providing the best performance compressors.

Variety model

In order to offer you a range of different products of air conditioning compressor and refrigeration compressor, our range covers single, twin, two stage rotary compressor and low pressure and high pressure of scroll compressor.It enables to provide you with complete support in every application of your needs.

Quality

With product quality and safety evaluation system that implements basic quality and safety evaluation of products at every production stage. Under the quality gate system, all of our products are subject to safety checks in each quality section on the basis of reference, to prevent shipments of products with quality and safety issues.

We have also achieved quality and sustainability recognition from Europe, North America, China and Japan.

Customer Support

We promise to deliver a satisfactory level to all phases of your business that exceeds our customers’ expectations, and strive to provide the highest value to our customers through prompt, accurate and outstanding service and solution as your business partner.

Rated
voltage		 Model Effort Run
RPM		 ASHRAE  cooling
type
Cooling capacity  Enter efficiency
CLEAR policeman HONOR
[V-Hertz] kcal/hour watt BTU/h IN kcal/watt hour W / W BTU/watt-hour
BLDC
115V ~ 60HZ		 MKV172C-L2J 115-60 1800 110 128 437 72 1.53 1.78 6.07 heart rate
2200 135 157 536 90 1.5 1.74 5.96
2880 176 205 699 120 1.47 1.71 5.82
3480 212 247 842 151 1.4 1.63 5.57
3600 223 259 885 160 1.39 1.62 5.53
MKV190C-L2B 115-60 1800 146 170 580 89 1.64 1.91 6.51 heart rate
2200 174 202 691 107 1.63 1.89 6.46
2880 227 264 901 145 1.57 1.82 6.22
3480 274 319 1088 186 1.47 1.71 5.85
3600 294 342 1167 200 1.47 1.71 5.84
MKV190C-L2J 115-60 1800 146 170 580 93 1.57 1.83 6.23 heart rate
2200 174 202 691 113 1.54 1.79 6.11
2880 227 264 901 152 1.49 1.74 5.93
3480 274 319 1088 195 1.41 1.63 5.58
3600 294 342 1167 210 1.4 1.63 5.56
BLDC
220-240V ~ 50HZ،
220V ~ 60HZ		 MKV172G-L2J 220-60 1800 110 128 437 72 1.53 1.78 6.07 heart rate
2200 135 157 536 90 1.5 1.74 5.96
2880 176 205 699 120 1.47 1.71 5.82
3480 212 247 842 151 1.4 1.63 5.57
3600 223 259 885 160 1.39 1.62 5.53
MKV190G-L2B 220-60 1800 146 170 580 89 1.64 1.91 6.51 heart rate
2200 174 202 691 107 1.63 1.89 6.46
2880 227 264 901 145 1.57 1.82 6.22
3480 274 319 1088 186 1.47 1.71 5.85
3600 294 342 1167 200 1.47 1.71 5.84
MKV190G-L2J 220-60 1800 146 170 580 93 1.57 1.83 6.23 heart rate
2200 174 202 691 113 1.54 1.79 6.11
2880 227 264 901 152 1.49 1.74 5.93
3480 274 319 1088 195 1.41 1.63 5.58
3600 294 342 1167 210 1.4 1.63 5.56
BLDC
200-240V ~ 50HZ،
220V ~ 60HZ		 * NC1MV43ALP 220-60 1200 45 52 179 31 1.45 1.69 5.76 ST
2000 76 88 302 50 1.52 1.77 6.03
3000 112 130 445 76 1.47 1.71 5.85
4300 146 170 580 110 1.33 1.54 5.27
* NC1MV43ALR 220-60 1200 45 52 179 32 1.41 1.64 5.58 ST
2000 76 88 302 51 1.49 1.73 5.92
3000 112 130 445 78 1.44 1.67 5.7
4300 146 170 580 112 1.3 1.52 5.18
* NC1MV60ALP 220-60 1200 65 76 258 41 1.59 1.84 6.29 ST
2000 111 129 441 69 1.61 1.87 6.39
3000 158 184 627 102 1.55 1.8 6.15
4300 211 245 838 143 1.48 1.72 5.86
* NC1MV60ALR 220-60 1200 65 76 258 42 1.55 1.8 6.14 ST
2000 111 129 441 71 1.56 1.82 6.21
3000 158 184 627 104 1.52 1.77 6.03
4300 211 245 838 145 1.46 1.69 5.78
BLDC
200-240V ~ 50HZ،
220V ~ 60HZ
MSV162A-L1J 220-60 1400 80 93 318 56 1.43 1.66 5.67 ST
2000 105 122 417 70 1.5 1.74 5.96
3000 155 180 615 105 1.48 1.72 5.86
4000 210 244 834 143 1.47 1.71 5.83
MSV162A-L1B 220-60 1200 60 70 238 43 1.4 1.62 5.54 ST
2000 105 122 417 68 1.54 1.8 6.13
3000 155 180 615 103 1.5 1.75 5.97
4300 225 262 893 160 1.41 1.64 5.58
NC1MV72ALP 220-60 1200 80 93 318 51 1.57 1.82 6.23 ST
2000 137 159 544 84 1.63 1.9 6.47
3000 193 224 766 125 1.54 1.8 6.13
4300 270 314 1072 182 1.48 1.73 5.89
* NC1MV72ALR 220-60 1200 80 93 318 52 1.54 1.79 6.11 ST
2000 137 159 544 86 1.59 1.85 6.32
3000 193 224 766 127 1.52 1.77 6.03
4300 270 314 1072 185 1.46 1.7 5.79
MSV172A-L1B 220-60 1200 67 78 266 50 1.34 1.56 5.32 ST
2000 123 143 488 79 1.56 1.81 6.18
3000 192 223 762 125 1.54 1.79 6.1
4300 256 298 1016 188 1.36 1.58 5.41
NC1MV82ALP 220-60 1200 90 105 357 59 1.53 1.77 6.06 ST
1700 135 157 536 83 1.63 1.89 6.46
3000 221 257 877 143 1.55 1.8 6.14
4300 307 357 1219 209 1.47 1.71 5.83
* NC1MV82ALR 220-60 1200 90 105 357 61 1.48 1.72 5.86 ST
1700 135 157 536 85 1.59 1.85 6.31
3000 221 257 877 146 1.51 1.76 6.01
4300 307 357 1219 213 1.44 1.68 5.72

Note: * It is under advanced model


FC cooling type
: OC cooling fan:
ST cooling oil: constant

ASHRAE conditions (LBP)
receding temperature. : -23.3 ℃ (-10 ℉ )
condensing heat. : 54.4 ℃ (130 ℉ )
gas roasted to: 32.2 ℃ (90 ℉ )
liquid to sub-cool is: 32.2 ℃ (90 ℉ )
ambient temperature. : 32.2 ℃ (90 ℉ )

UNIT Convert Table
1 watt = 3.41 Btu/hr
1 watt = 0.86 kcal/hr
1 kcal/hr = 3.97 Btu/hr
