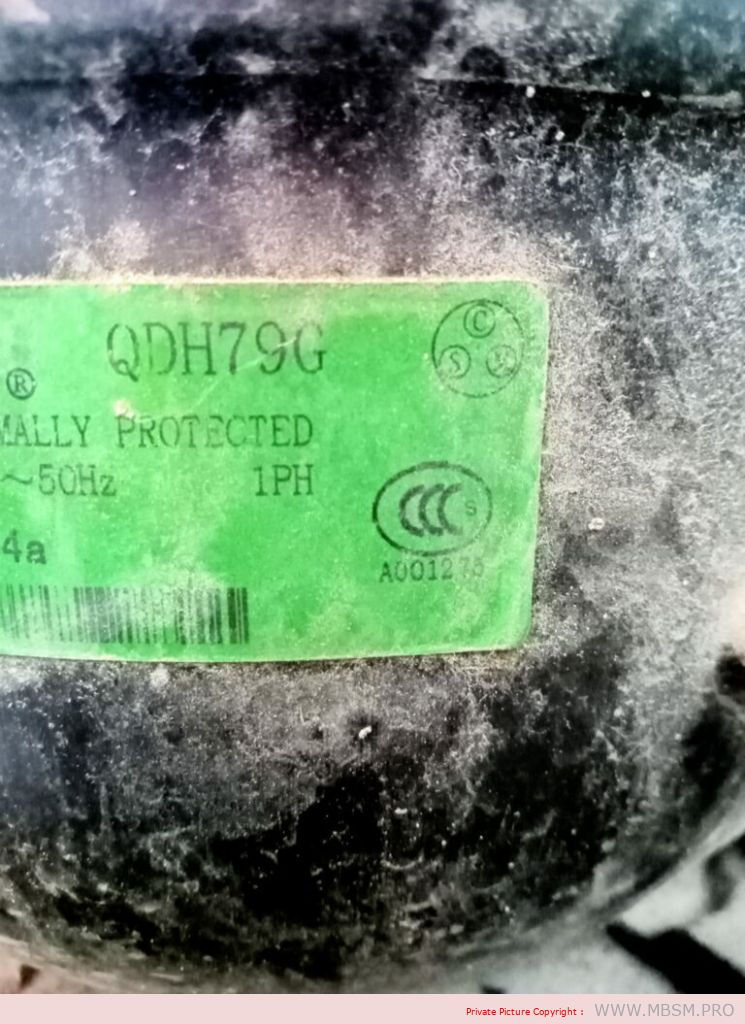

Mbsm.pro, Compressor, Qdh79g, 1/4 Hp, 205 w, Lbp, R134a, 220v, 1 phase 50 hz, QDH79G Refrigerator, 7.9 cm3

2 December 2023
 |  No Comments

Download Attachments

image_pdfimage_print

The compressor of QDH79G is 205W.
The following are the powers of various compressors:
R134A-LBP COMPRESSOR TECHNOLOGY DATA
Model- Power supply Displacement Cooing capacity- COP
V/HZ cm3 W W/W

QDH43G 220~240V/50HZ 4.30 118 1.18
QDH51G 220~240V/50HZ 5.10 132 1.22

QDH79G 220~240V/50HZ 7.90 205 1.30
QDH92G 220~240V/50HZ 9.20 245 1.31

Lanhai company can supply refriegrator compressor, freezer compressor, R134a, R600A, R12.

R134a refrigerator compressor and freezer compressor.

R134A-LBP COMPRESSOR TECHNOLOGY DATA
Model  Power supply Displacement Cooing capacity  COP
V/HZ cm3 W

QDH28G 220~240V/50HZ 2.80 68 1.00
QDH35G 220~240V/50HZ 3.50 92 1.16
QDH43G 220~240V/50HZ 4.30 118 1.18
QDH51G 220~240V/50HZ 5.10 132 1.22

QDH79G 220~240V/50HZ 7.90 205 1.30
QDH92G 220~240V/50HZ 9.20 245 1.31
QDH112G 220~240V/50HZ 11.20 290 1.32
QDH126G 220~240V/50HZ 12.60 330 1.33

QDH2511G 110-120/60 2.50 68 0.93
QDH2811G 110-120/60 2.80 77 1.00
QDH3511G 110-120/60 3.50 99 1.10
QDH4311G 110-120/60 4.30 130 1.19
SH43C56B 110-120/60 4.30 138 1.38
SH48C56B 110-120/60 4.80 150 1.38
QDH25G        220~240V/50HZ   2.50                   59                       0.85
QDH2822G 220/60 2.80 77 1.00
QDH4322G 220/60 4.30 130 1.18
