Refrigeration, Compressor, 1/10 HP, R-134A, Samsung, CD130C-L1Z2
Mbsm.pro, D40CY1, compressor, Donper, R600a, 40cc, 1/10 HP
The D40CY1 is a hermetic reciprocating compressor that is used in refrigerators and freezers. It is a single-phase compressor that runs on R600a refrigerant. The compressor has a displacement of 40cc and a power rating of 1/10 HP. It is a relatively small and efficient compressor that is suitable for use in small appliances.
The D40CY1 compressor is manufactured by Donper, a Chinese company that specializes in compressors for refrigeration and air conditioning applications. The compressor is available from a variety of online retailers and distributors.
Here are some of the features of the D40CY1 compressor:
- Single-phase compressor
- R600a refrigerant
- 40cc displacement
- 1/10 HP power rating
- Relatively small and efficient
- Manufactured by Donper
If you are looking for a replacement compressor for your refrigerator or freezer, the D40CY1 is a good option to consider. It is a reliable and efficient compressor that is available from a variety of sources.
Here are some of the places where you can buy a D40CY1 compressor:
- Online retailers like Amazon and eBay
- Local appliance repair shops
- Refrigeration and air conditioning wholesalers
When buying a D40CY1 compressor, it is important to make sure that it is compatible with your appliance. You can check the compatibility with your appliance’s manual or by contacting the manufacturer.

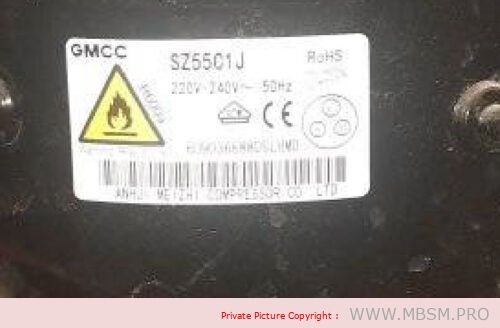

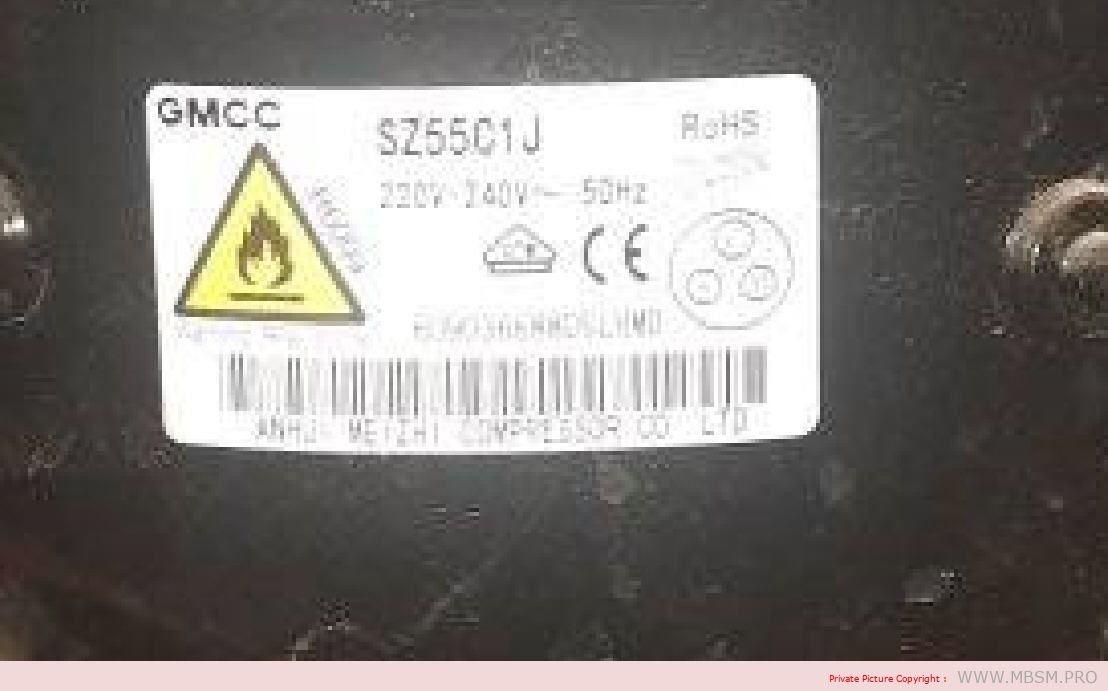

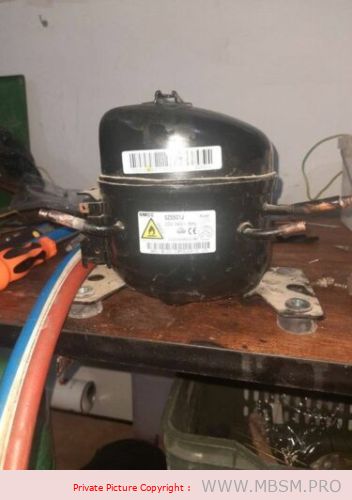

Mbsm.pro, Refrigerator, Mini compressor, GMCC, C Series, TOSHIBA, SZ55C1J, 75 w, 1/10 hp, LBP, r600a, Refrigerator-Freezer, HRD-071S, 64 L
Parameter
| Series | C Series |
| Application Type | LBP |
| Refrigerant | R600a |
| Displacement | 5.5 cc |
| Cooling Type | ST |
| Motor Type | RSIR |
| Voltage | 220V |
| Frequency | 50Hz |
| Cooling Capacity (W) | 85 |
| Cooling Capacity (Kcal/h ) | 73 |
| Cooling Capacity (Btu/h) | 290 |
| COP (W/W ) | 1.37 |
| COP (Btu/Wh) | 4.67 |

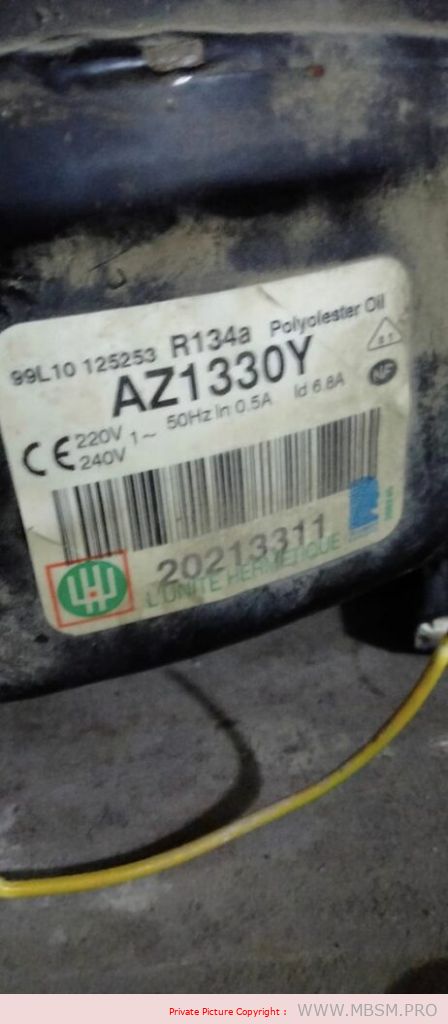

Mbsm.pro, Tecumseh, AZ1330Y, Compressor, 1/10 hp, lbp, R134a, 90w
| Marque | Modèle | Puissance | Réfrigérant | Huile | Volume Huile | Puissance Frigo à -25°C |
| Aspera | B1116A | 1/4 CV | R12 | Minérale | N/A | 186 W |
| Aspera | B1116B | 1/5 CV | R12 | Minérale | N/A | 170 W |
| Aspera | B1134A | 1/2 CV | R12 | Minérale | 600 mL | 393 W |
| Aspera | E1118A | 1/4 CV | R12 | Minérale | 440 mL | 209 W |
| Danfoss | NL6F | 1/5 CV | R134a | Polyolester | N/A | 109 W |
| Danfoss | NL7F | 1/4 CV | R134a | Polyolester | N/A | 134 W |
| Danfoss | PW11K22 | 1/4 CV | R12 | Minérale | 475 mL | 195 W |
| Danfoss | TL4F | 1/8 CV | R134a | Polyolester | N/A | 61 W |
| Danfoss | TL5A | 1/6 CV | R12 | Minérale | 280 mL | 96 W |
| Danfoss | TLS5F | 1/6 CV | R134a | Polyolester | N/A | 93 W |
| Danfoss | TLS7F | 1/4 CV | R134a | Polyolester | N/A | 134 W |
| Danfoss | TSL6F | 1/5 CV | R134a | Polyolester | N/A | 105 W |
| Electrolux (ZEM) | GL90AA | 1/4 CV | R134a | Polyolester | 345 mL | 193 W |
| L’Unité Hermétique | AE1410A RH | 1/3 CV | R12 | Minérale | N/A | 255 W |
| L’Unité Hermétique | AE1410Y | 1/3 CV | R134a | Polyolester | N/A | 294 W |
| L’Unité Hermétique | AE4ZF | 1/4 CV | R12 | Minérale | N/A | 165 W |
| L’Unité Hermétique | AEZ1365Y | 1/5 CV | R134a | Polyolester | N/A | 165 W |
| L’Unité Hermétique | AEZ1380A | 1/4 CV | R12 | Minérale | 420 mL | 185 W |
| L’Unité Hermétique | AEZ1380Y | 1/4 CV | R134a | Polyolester | N/A | 195 W |
| L’Unité Hermétique | AZ1320Y | 1/12 CV | R134a | Polyolester | N/A | 60 W |
| L’Unité Hermétique | AZ1330Y | 1/10 CV | R134a | Polyolester | N/A | 90 W |
| L’Unité Hermétique | AZ1335Y | 1/8 CV | R134a | Polyolester | N/A | 98 W |
| L’Unité Hermétique | AZ1350Y | 1/6 CV | R134a | Polyolester | N/A | 115 W |
| Matsushita | FN73F13S | 1/5 CV | R12 | Minérale | 250 mL | 160 W |
| AZ1335Y1/8HP ,317BTU./93W. ,4.00CCข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a Specification : 1/8HP ,317BTU./93W. ,4.00CC Power supply : 1PH-220V-50Hz. Dimension : mm. A: 172 B: 126 C: 155 D: 165 E: 102 |
| AZ1330Y1/10HP ,270BTU./79W. ,3.59CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a Specification : 1/10HP ,270BTU./79W. ,3.59CC. Power supply : 1PH-220V-50Hz. Dimension : mm. A: 168 B: 126 C: 155 D: 165 E: 102 |
| AZ1327Y1/12HP ,229BTU./67W. ,3.28.CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a Specification : 1/12HP ,229BTU./67W. ,3.28.CC. Power supply : 1PH-220V-50Hz. Dimension : mm. A: 168 B: 126 C: 155 D: 165 E: 102 |
| AZ1320Y1/15HP ,194BTU./57W. ,2.73CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a Specification : 1/15HP ,194BTU./57W. ,2.73CC. Power supply : 1PH-220V-50Hz. Dimension : mm. A: 162 B: 126 C: 155 D: 165 E: 102 |
Mbsm.pro, Compressor, qd30h, 1/10 Hp, Lbp, 75 w
R134a Refrigeration Compressor 1 hp (QD43H)
QD30H 3.0 1/10 RSIR S 35 49 63 70 90 112 152 170 188 210 0.85 1.9 82 89
QD35H 3.5 1/8 RSIR S 40 56 72 80 105 128 176 220 242 275 0.9 1.98 89 111
QD43H 4.3 1/7 RSIR S 47 65 83 110 121 149 216 270 297 338 0.95 2.01 116 134
QD52H 5.5 1/7 RSIR S 70 95 123 136 177 218 280 350 385 438 1.15 2.01 118 174
QD59H 6.2 1/6 RSIR S 85 115 149 165 215 265 312 390 430 488 1.2 2 138 195
QD65H 6.6 1/5 RSIR S 95 129 167 185 241 297 350 430 473 538 1.25 2.02 148 193
QD75H 7.6 1/5+ RSIR S/F 105 147 190 210 273 337 387 495 545 618 1.25 2.1 168 236
QD91H 8.8 1/5+ RSIR S/F 115 160 207 230 300 368 425 530 583 655 1.37 2.12 168 250
QD110H 10.6 1/4+ RSIR F 135 189 243 285 370 456 520 650 715 813 1.41 2.12 202 307
QD120H 11.6 1/3 RSIR F 165 231 297 330 430 528 576 720 792 900 1.41 2.12 234 340
QD128H 12.3 3/8 RSIR F 180 252 324 360 468 576 740 925 1018 1156 1.31 2 275 463
QD142H 13.5 3/8+ CSIR F 195 273 351 390 507 624 800 1000 1100 1250 1.3 2 300 500
QD158H 15.3 3/8+ CSIR F 215 300 387 430 560 690 890 1120 1230 1400 1.3 2 331 560
QD168H 16.3 1/2 CSIR F 230 322 415 460 598 736 976 1220 1340 1530 1.3 2 354 610
GQR60AA 6.0 1/6 RSIR 140 116 1.21 220V/50Hz
GQR70AA 6.6 1/5 RSIR 165 136 1.21 220V/50Hz
GQR80AA 8.1 1/4 RSIR 198 166 1.19 220V/50Hz
GQR90AA 9.1 1/4 RSIR 220 184 1.19 220V/50Hz
GQY99AA 9.9 1/4 RSIR/RSCR 270 203 1.33 220V/50Hz
GPY12AF 11.8 1/3 CSIR 325 244 1.33 220V/50Hz
GPY16AF 16.2 3/8 CSIR 380 292 1.30 220V/50Hz
GQR60TG 6.0 1/5 CSIR
520 260 2.00 220V/50Hz
600 290 2.10 220V/60Hz
GQR80TG 8.1 1/4 CSIR
730 340 2.15 220V/50Hz
800 380 2.10 220V/60Hz
GQR90TG 9.1 1/4 CSIR
830 370 2.24 220V/50Hz
920 436 2.24 220V/60Hz
GP12TG 11.8 3/8 CSIR 1140 520 2.19 220V/50Hz
Product Description
| Product | R134a Refrigeration Compressor 1 hp (QD43H) |
| Model | QD43H |
| Brand | SANHENG |
Standard Specifications
Technical Data Of R134a Series Refrigeration Compressor (LBP)
| Model | Displ.(cm3) | MotorType | Cooling | Capacity(W) | Input Power(W) | Rated Current(A) | COP(W/W) | VOL/FREV/Hz |
| QD30H | 3.0 | RSIR | S | 76 | 76 | 0.63 | 1.00 | 220/50 |
| QD-36H | 3.6 | RSIR | S | 89 | 83 | 0.64 | 1.07 | 220/50 |
| QD43H | 4.3 | RSIR | S | 112 | 102 | 0.81 | 1.10 | 220/50 |
| QD52H | 5.2 | RSIR | S | 127 | 115 | 0.87 | 1.10 | 220/50 |
| FN57H | 5.70 | RSIR | S | 138 | 114 | 0.90 | 1.22 | 220/50 |
| FN66H | 6.60 | RSIR | S | 165 | 135 | 1.15 | 1.23 | 220/50 |
| FN77H | 7.70 | RSIR | S | 190 | 154 | 1.30 | 1.24 | 220/50 |
| FN91H | 9.10 | RSIR | S/F | 212 | 180 | 1.40 | 1.26 | 220/50 |
| FN110H | 11.00 | RSIR | F | 284 | 230 | 1.60 | 1.23 | 220/50 |
| FN128H | 12.80 | RSIR | F | 320 | 256 | 2.00 | 1.25 | 220/50 |
| FN142H | 14.20 | CSIR | F | 348 | 276 | 2.20 | 1.26 | 220/50 |
| Test Conditions:(1)Evaporating Temp.= -23.3℃ (-10F)(2)Ambient Temp.=32.2℃(90F)(3)Condensing Temp.=54.4℃(130F)(4)Suction Temp.=32.2℃(90F)(5)Sub-cooling Temp.=32.2℃(90F) | Conversion Table:1. 1watt=3.41BTU/h2. 1watt=0.86Kcal/h3.1Kcal/h=3.97BTU/h | |||||||
| Tolerance of performance data:(1)Capacity≥95%(2)Input Power≤115%(3)Current≤110%(4)COP≥93% | Cooling Type:S——Static CoolingF——Fan CoolingH:R134a RefrigerantL:LBP | |||||||
| The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: light compact, high efficiency, good reliability, low noise vibration. |
Test Conditions
Evap.Temp.:-23.3ºC
Cond.Temp.:54.4ºC
Amb.Temp.:32.2ºC
Suction.Temp.:32.2ºC
Subcooling Temp.:32.2ºC
LBP ASHRAE
Model:QD30H
Power Supply:220-240V/50Hz
Displacement (cm³):3.0
Cooling Capacity (W):75
Rated Power (W):75
Nominal power (HP):1/10
COP (W/W):1.0
Rated Current (A):0.62
Motor Type:RSIR
Capacitor (μF):
Starting Relay:PTC
Cooling Type:S
Packing (PCS/pallet):120
1×20’FCL (PCS):2400
Characteristics
1.Small size
2.High efficiency & reliability
3.Reliable starting performance
4.Low sound & vibration
Application
LBP, used for drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other medium and small sized refrigeration machines.
Mbsm.pro, FW-16vcd, FRESH WATER, DISPENSER, 3 SPIGOTS, COLD/HOT/WARM, Compressor, 1/10 hp, r134a, 28 g
Mbsm.pro, FW-16vcd, FRESH WATER, DISPENSER, 3 SPIGOTS, COLD/HOT/WARM, Compressor, 1/10 hp, r134a, 28 g
FRESH WATER DISPENSER 3 SPIGOTS COLD/HOT/WARM WITH CABINET GRAY COLOR FW-16VCD-10482
Model FW-16VCD-10482
Brand Name: Fresh
Model Name: FW-16VCD
With Cabinet: Yes
Cold Water Faucet: Yes
Hot Water Tap: Yes
Regular Water Faucet: Yes
Tank Material: Stainless Steel
Safety Hot Water: Yes
Heating Power: Heating Up To 95°C
Dimensions : (W*D*H) 322*330*933 mm
Color: Dark Gray
Mbsm.pro, small office, refrigerator, compressor, aes25ds, 1/10 hp, r134a
compressor
AES25DS
1/10 HP
AMPS 1.3A
MAX AMPs 5.3A
High Pressure 300 PSIG
Low Pressure 88 PSIG
R134A
Compressor 1/10 HP R-134A Samsung CD130
Mbsm.pro, Refrigeration, Compressor, 1/10 HP, R-134A, 220V, Samsung
Mbsm.pro, PDF, 1/10 hp, mini Refrigeration Refrigerator Compressor, D53CY1 , r600a, 80 w, rcir, Donper Fridge Compressor , lbp, Model HS-130RN
Mbsm.pro, R600a 1/10 hp mini Refrigeration Refrigerator Compressor, D53CY1 , r600a, 80 w, rcir, Donper Fridge Compressor , lbp, Model HS-130RN
Mbsm.pro, PDF, Compressor, EGM35AF, 1/10 HP, ZMC, R134A, LNB
Mbsm.pro, PDF, Compressor, EGM35AF, 1/10 HP, ZMC, R134A, LNB
