NE2134Z Compressor Specifications

Applications: Refrigerators, small freezers, and small refrigeration units

Brand: Often manufactured by Embraco (Aspera).

Type: Hermetic

Refrigerant: R134a

Voltage: 220-240V

Frequency: 50 Hz

Displacement: 14.3 cm³

Temperature Range: -35°C to -5°C

Compressor Embraco Aspera NE2134Z, LBP – R134a, 220 – 240V/1/50Hz, 1,/2 HP, discharge 14.28 cm3, LRA 17.00 A, motor type CSIR, lubricant type POE 22, lubricant charge 350 ml, 364 W at -23.3 / 54.4 °, expansion device: capillary or valve, cooling: fan cooling, weight 11.65 kg

Refrigerant:	R134a
Power range(W):	301 – 400 W
Working area:	LBP
Design type:	Hermetic
Model series:	NE
Use with:	Expansion/Capillary
Power range(HP):	0-2
Power supply:	230 V
Oil type:	POE22
Engine type:	CSIR
Article condition:	New
Info:	Oil filled
Shipping weight:	13,70 kg
Content:	1,00 Pieces
Dimensions ( Length × Width × Height ):	24,20 × 17,80 × 20,60 cm
customs tariff number:	84143081
Cooling capacity condition:	-23,3 / +54,4
Manufacturer:	Embraco Aspera
Model:	NE2134Z
Stroke volume (cm3):	14,28
Cooling capacity (W):	364
Power (HP):	0,5
Max. Starting current (A):	17
Engine type:	CSIR
Note:	Fan cooling necessary
Oil quantity (l):	0,35
Compressor type:	Piston
Alternative:	GP16FB

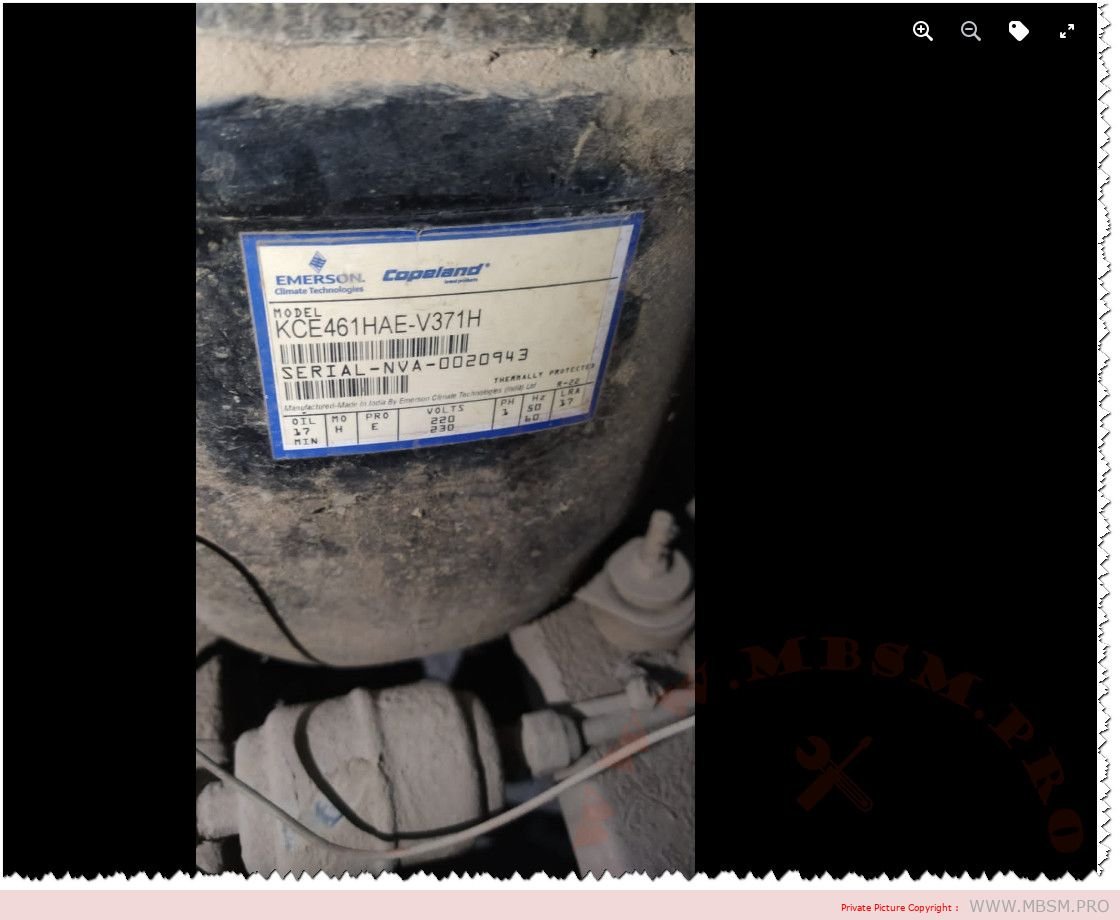

Description:Kce461Hae R22 Mh 1/2Hp 1Ph S/T

Brand:Copeland

Product Category:Compressors

Type:Reciprocating

Application:HBP

Refrigerant:R22

Displacement:2.001

Cooling Capacity EN 12900 Rating:1.46

Voltage / Frequency:220V

Max operating Current:3.1

Oil Type:MIN

Oil Volume L:0.59

Suction Connection:0.375

Discharge Connection:0.25

Connection Discharge Type:Sweat on

Connection Suction Type:Sweat on

Dimensions (L*W*H):189.99*145.42*248.24

Tags:Refrigeration, Compressors, HBP

CHARACTERISTICS	MAGNITUDE
Type	Industrial pack
Net weight	14.87 Kg
Gross weight	14.87 Kg
Type designation	Industrial packaging
Packaging type: industrial packaging	Industrial packaging code number
• Compressor	104L2848
• Compressor Description	SC15CM COMP. 220V
• Lid	103N2009
• Cover Description	Cover SC 220B
• Mounting accessories	118-1917
• Mounting accessories Description	Mounting accessories
• Start capacitor	117U5017
• Start capacitor Description	Start capacitor 80 µF
• Cable strain relief	103N1004
• Cable strain relief Description	SC cable strain relief
• Relay	117U6019
• Relay Description	Start relay SC

This compressor has been replaced by the Tecumseh AE4470Z, HBP – R404A, 220-240V/50Hz supercharger/compressor Tecumseh CAE9470Z Ö ltyp (POE), HBP – R404A, Voltage 220-240V/1/50Hz, Starting current LRA 20A, Motor type CSR, Cap. Connections OD: 3/8“ x 1/4“ m measured for condensation temperature 54,5° C, suction gas temperature 46° C, measuring conditions: CECOMAF

Compressor type:	Reciprocating piston
Condensation temperature:	54.5 °C
Condensing units Compressors:	Compressor
Connection Size:	Connection Size
Content:	1,00 pcs.
Cooling capacity (W):	803
Cooling capacity (W) at To -5°C:	1663
Cooling capacity (W) at To -25°C:	383
Cooling capacity (W) at To 5°C:	1109
Design:	Design, Hermetic
Dimensions ( height ):	21,50 cm
Displacement (cm3):	13,3
Engine type:	CSR
Equipment:	Equipment
Info:	Oil prefilled
Manufacturer:	Tecumseh, Tecumseh L` Unite
Measuring conditions:	CECOMAF
Oil quantity (l):	0,35
Oil type:	POE
Power (W):	1637
Power condition:	+5 / +50 °C
Power range (C):	-25 C to +15 C
Power range (W):	701 – 1000 W 1.5 – 2 kW
Power supply:	230 V
Pressure line (inch):	1/4
Refrigerant:	R404A, R407B, R507A
Scope of application:	HBP
Series:	CAE
Suction line (inch):	3/8
Suction side:	3/8″
To be used with:	Capillary/Expansion
Voltage:	220-240V
cooling capacity (W) at To -10°C:	869
cooling capacity (W) at To -15°C:	669
cooling capacity (W) at To -20°C:	508
cooling capacity (W) at To 0°C:	1392
cooling capacity (W) at To 15°C:	2514

Tecumseh Compressor CAJ4461A

Product Description:

Type: Reciprocating Compressors

Application: HBP – High Back Pressure

ProductDescription: R-12

Voltage/Frequency: 220-240V ~ 50Hz

Version: N/A

Product Specifications

Performance:

Refrigeration Capacity

Input  Power

(E)Efficiency

EVAP TEMP

Condition

AMBIENT TEMP

RETURN GAS

LIQUID TEMP

Condition

Test  Voltage

(R)Btu/ h

(R)kcal/ h

(R) W

(I) W

(E)Btu/Wh

(E)kcal/ Wh

W/W

EN12900

220V ~ 50HZ

4629

1166

1356

657

7.04

1.77

2.06

5°C ( 41°F)

50°C  ( 122°F)

32°C ( 90°F)

20°C ( 68°F)

50°C  ( 122°F)

General

Evaporating Temp. Range: -15°C to 15°C (5°F to 59°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Mechanical

Weight: 18

Weight Unit of Measure: KG

Displacement (cc): 18.3

Oil Type: Mineral

Viscosity(cSt): 68

Oil Charge (cc): 475

Electrical

Voltage Range (50 Hz): 198-253

Voltage Range (60 Hz):

Locked Rotor Amps (LRA): 20

Rated Load Amps (RLA 50 Hz): 3.8

Rated Load Amps (RLA 60 Hz): 0

Max. Continuous Current (MCCin Amps): 0

Motor Resistance (Ohm) – Main: 3.9

Motor Resistance (Ohm) – Start: 20.6

MotorType: CSIR

Tecumseh Reciprocating Compressor CAJ9510T-F1 F VATC

Tecumseh Reciprocating Compressor,

1,Model :CAJ9510T-F1 F VATC,MBP/HBP
2,Refrigerant: R22
3,Voltage:220~240V/50HZ,1Hp
4Datas as follow:

		Refrigeration Capacity			Input Power
Condition	Test Voltage	Btu/h	kcal/h	W	W
EN12900 ASERCOM	230V ~ 50HZ	4307	1085	1262	749

Efficiency			EVAP TEMP	COND TEMP	AMBIENT TEMP	RETURN GAS	LIQUID TEMP
Btu/Wh	kcal/Wh	W/W
5.75	1.45	1.68	-10°C (14°F)	45°C (113°F)	32°C (90°F)	0°C (32°F)	45°C (113°F)

Evaporating Temp. Range:	-23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque:	High Start Torque (HST)
Compressor Cooling:	Fan

Weight:	22.922
Weight Unit of Measure:	N/A
Displacement (cc):	18.3
Oil Type:	Mineral
Viscosity (cSt):	68
Oil Charge (cc):	887
Sound Power dB(A):	N/A

Voltage Range (50 Hz):	198-253
Voltage Range (60 Hz):	N/A
Locked Rotor Amps (LRA):	29
Rated Load Amps (RLA 50 Hz):	4.7
Rated Load Amps (RLA 60 Hz):	4.7
Max. Continuous Current (MCC in Amps):	7.5
Motor Resitance (Ohm) – Main:	2.4
Motor Resitance (Ohm) – Start:	10.3
Motor Type:	CSR
Overload Type:	EXTERNAL
Relay Type:	Potential Relay

Specifications:

Tecumseh compressor:

Reciprocating for commercial and domestic refrigeration and air conditioning applications.

Rotary for air conditioning and commercial refrigeration applications.

We can supply more models as follow:

L’ UNITE HERMETIQUE  HERMETIC COMPRESSORS
MODEL	HP	TEMP	REFRIGERANT
AEZ2415Z	7/16	L	R404
CAE2417Z	7/16
CAE2420Z	1/2
CAE2424Z	5/8
CAJ2428Z	3/4
TAJ2428Z	3/4
CAJ2432Z	3/4
CAJ2440Z	1
CAJ2446Z	1
TAJ2446Z	1
CAJ2464Z	1-1/2
TAJ2464Z	1-1/2
CAJ2480Z	2
TAJ2480Z	2
FH2511Z	3
TFH2511Z	3
TAG/TAGP 2516Z	4
TAG/TAGP 2522Z	6
TAGD2532Z	8
TAGD2544Z	12
AEZ4440Z	1/3	M/H
AEZ9440Z	1/3
AE3450Z	3/7
CAE4450Z	3/7
CAE9450Z	3/7
CAE9460Z	1/2
CAE9470Z	9/16
CAJ9480Z	5/8
TAJ9480Z	5/8
CAJ9510Z	1
TAJ9510Z	1
CAJ9513Z	1-1/8
TAJ9513Z	1-1/8
CAJ4517Z	1-1/4
TAJ4517Z	1-1/4
CAJ4519Z	1-3/4
TAJ4519Z	1-3/4
FH4522Z	2
TFH4522Z	2
FH4524Z	2
TFH4524Z	2
FH4531Z	2-3/4
TFH4531Z	2-3/4
FH4540Z	3-1/2
TFH4540Z	3-1/2
AEZ4430Y	1/4	M/H	R134a
AE3440Y	1/3
CAE4440Y	1/3
CAE4448Y	3/7
CAE4456Y	7/16
CAJ4452Y	3/7
CAJ4461Y	1/2
TAJ4461Y	1/2
CAJ4476Y	5/8
CAJ4492Y	3/4
TAJ4492Y	3/4
CAJ4511Y	1
TAJ4511Y	1
FH4518Y	1-1/2
TFH4518Y	1-1/2
FH4525Y	2
TFH4525Y	2
CAE2417L	1/2	L	R502
CAJ2428L	5/8
TAJ2428L	5/8
CAJ2432L	3/4
CAJ2446L	1
TAJ2446L	1
CAJ2464L	1-1/2
TAJ2464L	1-1/2
TAH2480J	2
TAH2511K	3
TAHD2516J	4
TAHD2522K	6
TAG2516K	4
TAG2522K	6
AEZ4430E	1/4	M/H	R22
AEZ3430E	1/4
AEZ3440E	1/3
AEZ4440E	1/3
AEZ9440T	1/3
AE3450E	3/7
CAE4450E	3/7
CAE9450E	3/7
CAE9460E	1/2
CAJ9480T	5/8
TAJ9480T	5/8
CAJ9510T	1
TAJ9510T	1
CAJ9513T	1-1/8
TAJ9513T	1-1/8
CAJ4517E	1-1/4
CAJ4519T	1-3/4
TAJ4519T	1-3/4
FH4522F	2
TFH4522F	2
FH4524F	2
TFH4524F	2
FH4531F	2-3/4
TFH4531F	2-3/4
TFH4538E	3
TFH4540F	3-1/2
TAG/TAGP 4546T	4
TAG/TAGP 4553T	4-1/2
TAG/TAGP 4561T	5
TAG/TAGP 4568T	6
TAG/TAGP 4573T	6
TAGD4590T	7-1/2
TAGD4610T	9
TAGD4612T	10
TAGD4614T	12

NO	Model	Refrigerant	Horse Power
1	CAJ4461A-F1 G VA TC	R12	1/2 HP
2	CAJ4492A-F1 G VA TC	R12	3/4 HP
3	CAJ4511A-F1 G VA TC	R12	1 HP
4	CAE4440Y-F1 FTU	R134A	3/8 HP
5	CAE4456Y-F2 FTU	R134A	7/16 HP
6	CAJ4492Y-F1 TU	R134A	3/4 HP
7	CAJ4511Y-F1 F VA TC	R134A	1 HP
8	CAJ4461Y-F1 TU	R134A	1/2 HP
9	CAJ4511Y-F1 TU	R134A	1 HP
10	CAJ4476Y-F1 F TU	R134A	5/8 HP
11	CAJ4461Y-F1 F VA TC	R134A	1/2 HP
12	AEZ3440E-F2 FTU	R22	1/3 HP
13	CAE9460T-F2 FTU	R22	1/2 HP
14	AJ5510F-F1 F PSC TU	R22	3/4 HP
15	AJ5518E-F1 F CSR TU	R22	1-1/4 HP
16	CAE2420E-F2 GTU	R22	1/2 HP
17	CAJ9480T-F1 F VATC	R22	5/8 HP
18	CAJ9510T-F1 F VATC	R22	1 HP
19	CAJ9513T-F1 F VATC	R22	1-1/8 HP
20	CAJ9513T-F1 TU	R22	1-1/8 HP
21	CAJ4517E-F1 F VA TC	R22	1-1/4 HP
22	TAJ9510T-F1 F TU	R22	1 HP
23	CAJ4519T-F1 G VA TC	R22	1-3/4 HP
24	CAJ4519T-F1 G TU	R22	1-3/4 HP
25	CAJ2427E-F1 G TU	R22	3/4 HP
26	CAJ2439E-F1 G TU	R22	1 HP
27	TAJ9510T-F1 F VA TC	R22	1 HP
28	CAJ9480T-F1 F TU	R22	5/8 HP
29	CAJ9510T-F1 F TU	R22	1 HP
30	AJ5512E-F1 G PSC TU	R22	1 HP
31	AJ5515E-F1 G PSC TU	R22	1-1/4 HP
32	CAJ9510Z-F1 FTU	R404A	1HP
33	TAJ2446Z-F1TVATC	R404A	1HP
34	TAJ2464Z-F1 TTU	R404A	1.5HP
35	CAE2420Z-F2 FTU	R404A	1/2 HP
36	CAE2424Z-F2 FTU	R404A	5/8 HP
37	CAE9460Z-F2 FTU	R404A	1/2 HP
38	CAJ4519Z-F1 F VA TC	R404A	1-3/4 HP
39	CAJ2446Z-F1 F TU	R404A	1 HP
40	CAJ2464Z-F1 F VA TC	R404A	1-1/2 HP
41	CAJ2440Z-F1 F VA TC	R404A	1 HP
42	CAJ4517Z-F1 F TU	R404A	1-1/4 HP
43	CAJ4519Z-F1 F TU	R404A	1-3/4 HP
44	CAJ9510Z-F1 F VA TC	R404A	1 HP
45	CAJ9513Z-F1 F VA TC	R404A	1-1/8 HP
46	CAJ4517Z-F1 F VA TC	R404A	1-1/4 HP
47	CAJ9513Z-F1 F TU	R404A	1-1/8 HP
48	CAJ2428Z-F1 F TU	R404A	3/4 HP
49	CAJ2432Z-F1 F VA TC	R404A	3/4 HP
50	CAJ2446Z-F1 F VA TC	R404A	1 HP

Refrigerants: R404A; R507

Gross weight	13.48 Kg
Net weight	13.48 Kg
Oil	POE
Height total [mm]	219 mm
Applications	LBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]	13.7 Ohm
Amount of oil	550 cm3
Capacity of capacitor B	80 uF
Capacity control	Fixed speed
Refrigerant charge [kg] [Max]	1.3 kg
Color	Black
Comments on the suction connection	Cover of The
Comments on the discharge connection	Cover of The
Comments on the process connection	Cover of The
Current connection HST [A]	20.4 To
Configuration code	Individual
Description	SC15CL
Description	SC
Discharge connection height [mm]	110 mm
Diameter of the suction connection [mm]	10.2 mm
Diameter discharge connection [mm]	6.2 mm
Economizer	Not
Packaging format	Industrial package
Frequency [Hz]	Fifty
Height from baseplate [mm]	213 mm
LRA HST [A]	20.4 To
Material of the discharge connection	Steel-plated Cu
Material of the process connection	Steel-plated Cu
Merged Approval standard and	CE en 60335-2-34 with Annex AA
N. º of phases (compressor)	One
N. º of phases (fan)	One
Energy level of the application	Compressor LBP standard
Number of scheme	Eight thousand two hundred fifty eight
Model number	SC15CL
Oil charge [L]	550 L
Phase	One
Process connection diameter [mm]	6.2 mm
Refrigerants	R404A R507
Resistance of the primary winding for compressors in single-phase [Ohm]	3.7 Ohm
RLA	3.9 To
Start capacitor capacitance	80 µF
Suction connection height [mm]	193 mm
Swept volume [cm3]	15.28 cm3
Technology	Alternative
Temperature of the winding, the short-term [°C] [Max]	135 °C
Winding temperature, stable [°C] [Max]	125 °C
Voltage, 50 Hz [V]	220 V
Voltage, 50 Hz [V] [max.]	240 V
Engine type	CSIR
Type of motherboard	Universal
Type designation	Compressor
Technique of the brand	Reciprocating compressors, type
Units of packing	Eighty
Use of segment	Refrigeration LT
High value of nominal voltage at 50 Hz [V]	230 V
High value of the nominal voltage at 60 Hz [V]	0 V
High value of voltage range at 50hz [V]	254 V
High value of the voltage range at 60 Hz [V]	0 V
Low value of the rated voltage at 50 Hz [V]	220 V
Low value of the nominal voltage at 60 Hz [V]	0 V
Low value of voltage range at 50hz [V]	198 V
Low value of the voltage range at 60 Hz [V]	0 V
Rotation speed at 50 Hz [rpm]	2900 rpm
Rotation speed at 60 Hz [rpm]	0 rpm
Volume of free gas [cm3]	1510 cm3
Angle of the connection suction [°]	37 °
Angle of the discharge connection [°]	37 °
Angle of the connection process	37 °

Application:	Refrigerator
	Cooling table
	Warming display cabinet
	rapid chiller
	Fridge/freezer
	Freezer
	Freezer table
Design type:	fully hermetic
CODE:	104L2853
Type of use:	LBP
Frequency:	50Hz
Displacement:	15.28 cm³
Height:	219mm
Refrigerant:	R404a/R507
Perfomance:	1/2 HP
Performance at -10°C:	1,251W
Performance at -15°C:	1,017W
Performance at -20°C:	813W
Performance at -25°C:	637W
Performance at -30°C:	486W
Performance at -35°C:	358W
Performance at -40°C:	175W
Performance at -5°C:	1,699W
Engine system:	CSIR
Tension:	220-240V
Test procedure:	ASHRAE

Application:

• laboratory and medical equipment
• compressed air dryers
• glass door merchandisers
• display cabinets
• freezers and fridge
• ice cream cabinets
• vending machines
• drinks dispensers
• ice making machines
• bottle coolers
• heat pumps
• milk cooling tanks
• wine cellars

Description:

hermetic, piston, refrigeration compressor type LBP / MBP, for R404A / R507 refrigerant p>

Specification:

• application: LBP/MBP compressor
• refrigerants: R404A, R507
• power: 220-240V, 50Hz
• displacement: 15.28 cm³
• oil quantity: 550 ml
• oil type: polyolester
• winding resistance (main): 3.7 Ohm
• winding resistance (start): 14.4 Ohm
• evaporating temperature: -40°C to -5°C
• cooling capacity range: 151 – 1458 W
• cooling capacity depending on the evaporation temperature (EN 12900, 50Hz):

  • -40°C: 151 W
  • -35°C: 299 W
  • -30°C: 452 W
  • -25°C: 615 W
  • -23.3°C: 673 W
  • -20°C: 792 W
  • -15°C: 988 W
  • -10°C: 1208 W
  • -6.7°C: 1370 W
  • -5°C: 1458 W

• compressor weight: 13.8 kg
• singlepack kit weight: 14.4 kg

Additional information:

kit includes:

• compressor: [104L2853]
• starting device: [117U6019]
• cover: [103N2009]
• run capacitor: 80μF [117U5017]
• cord relief: [103N1004]
• mounting accessories: [118-1917]

NL10FT 105G6829 105G6839 3/8 113 158 213 235 281 361 455 217 327 10.10

SC12FT 104G8205 104G8215 3/8 103 163 233 259 314 408 517 645 265 380 12.87

SC15FT 104G8505 1/2 126 197 280 311 376 489 620 772 311 451 15.28

SC18FTX 104G8805 5/8 144 229 325 361 437 567 719 896 365 517 17.68

SC21FTX 104G8105 3/4 192 296 415 460 553 713 901 1119 428 613 20.95

60 Hz

PL35G 101G0250 1/16 34 39 48 64 82 104 52 79 2.00

TL2.5G 102G4251 1/16 14 27 42 48 60 80 105 134 67 96 2.61

TL3G 102G4350 1/12 30 47 54 69 95 125 70 111 3.13

TL4G 102G4452 1/10 48 70 78 96 127 166 87 135 3.86

TL5G 102G4550 1/8 65 92 102 123 162 207 106 170 5.08

FR6G 103G6660 1/6 51 93 108 141 199 266 119 197 6.23

FR7.5G 103G6680 103G6690 1/5 67 112 130 166 228 300 138 229 6.93

FR8.5G 103G6780 103G6790 1/4 92 138 156 195 263 345 164 273 7.95

FR10G 103G6880 103G6890 1/3 99 153 173 217 292 381 194 314 9.05

SC12FT 104G8205 104G8215 1/2 125 192 272 302 366 477 608 761 298 458 12.87

SC15FT 104G8505 5/8 154 235 330 365 441 571 724 904 356 537 15.28

SC18FTX 104G8805 3/4 187 280 390 432 520 675 857 1071 420 622 17.68

SC21FTX 104G8106 7/8 240 345 470 518 620 800 1012 1262 475 707 20.95

R404A/R507

50 Hz

TL4CL 102U2071 1/8 52 65 84 110 142 155 182 230 286 352 140 198 3.86

FR6CL 103U2670 1/6 77 108 145 189 243 263 307 383 473 578 242 353 6.23

FR7.5CL 103U2790 1/5 86 114 154 202 262 285 333 418 515 630 267 395 6.93

FR8.5CL 103U2890 1/4 99 126 168 222 290 317 372 468 577 315 472 7.95

NL7CLX 105F3710 1/3 102 146 199 263 340 369 430 536 657 796 274 381 7.27

SC10CLX 104L2533 1/3 166 255 360 400 483 625 789 977 352 508 10.29

SC12CL 104L2623 3/8 58 140 237 353 490 541 650 835 1048 1292 445 654 12.87

SC12CLX.2 104L2697 1/2 130 205 294 399 522 569 666 834 1026 475 659 12.87

SC15CL 104L2853 1/2 151 299 452 615 673 792 988 1208 1458 560 790 15.28

SC15CLX.2 104L2896 1/2 159 250 358 486 637 694 813 1017 1251 1519 565 783 15.28

SC18CL 104L2123 5/8 167 271 395 542 715 781 918 1154 1425 1735 615 894 17.68

SC18CLX.2 104L2197 3/4 194 306 439 595 780 849 995 1245 1532 680 949 17.68

SC21CL 104L2322 7/8 226 325 455 617 813 887 1042 1306 1606 702 989 20.95

GS26CLX 107B0500 1 325 497 703 949 1240 1348 1580 1974 2427 888 1285 26.30

GS34CLX 107B0501 1 1/4 729 1003 1330 1715 1857 2165 2687 3289 1196 1721 33.80

60 Hz

SC10CLX 104L2533 3/8 224 335 455 499 588 738 906 1096 430 623 10.29

SC12CLX 104L2695 1/2 146 282 429 590 649 770 972 1200 540 748 12.87

SC12CLX.2 104L2697 1/2 155 233 343 473 626 683 804 1011 1248 541 777 12.87

SC15CLX 104L2854 5/8 179 351 530 720 788 928 1158 1417 610 864 15.28

SC15CLX.2 104L2897 5/8 194 305 437 593 776 846 991 1239 1525 611 848 15.28

SC18CLX.2 104L2195 7/8 113 338 542 737 938 1010 1157 1410 1708 752 990 17.68

GS21CLX  107B0506 1 475 674 905 1172 1270 1480 1873 2246 868 1180 21.20

R290

50 Hz

TL3CN  102H4380 1/10 106 200 106 140 3.13

TL4CN  102H4490 1/8 56 126 255 128 155 3.86

TL5CN 102H4590 1/6 81 109 143 183 198 230 283 345 416 162 211 5.08

NL7CN 105H6756 1/4 118 166 223 290 315 368 458 561 679 221 291 7.27

NL9CN 105H6856 1/3 138 194 259 335 364 423 526 643 778 250 334 8.35

SC10CNX 104H8065 1/3 126 179 245 325 355 420 531 660 809 274 362 10.29

SC12CNX 104H8265 3/8 178 250 331 426 462 540 678 846 1050 344 456 12.87

SC12CNX.2 104H8266 3/8 186 258 346 453 493 578 725 895 379 502 12.87

SC15CNX 104H8565 1/2 195 297 415 550 601 707 887 1093 1328 420 560 15.28

SC15CNX.2 104H8566 1/2 252 332 434 560 609 714 900 1120 445 610 15.28

Data Sheet

Power supply	220/240 V-50 Hz-1 Ph
Horsepower	1/2 hp
Displacement	8,78 cm3
Application	LBP
Cooling capacity at ASHRAE LT conditions, R404A/R507	0,46 kW
Cooling capacity at EN12900 LT conditions, R404A/R507	0,25 kW
Refrigerant	R404A, R452A, R507A
Suction pipe	3/8″
Discharge pipe	1/4″
Weight	11 kg
Max height	200 mm
LRA	16,10 A
Recharge oil	350 cm3
Type of oil	POE 22 ester
Other remarks	Electrical components are included
Technology	Fixed speed
Type of motor cooling	Fan
Motor type	CSIR
Motor protection type	External

Huayi R134a Refrigerator Compressor

Product parameters

Model	Voltage(V)	Frequency (Hz)	Cooling Type	Displacement.(cm3)	Cooling Capacity(W)	COP (W/W)	Motor Type
HY69Y63	220-240~	50-60	FC	6.9	195	1.12	RSIR
HY69YH	220-240~	50	ST	6.9	195	1.35	RSIR
HY81Y	220-240~	50	FC	8.1	235	1.25	RSIR
HY90Y	220-240~	50	FC	9.0	265	1.30	RSIR
HY69YG	220-240~	50	ST	6.9	195	1.45	RSCR
HY81YG	220-240~	50	ST	8.1	235	1.45	RSCR
HY90YG	220-240~	50	FC	9.0	270	1.45	RSCR
HY69Y42	115~	60	FC	6.9	225	1.25	RSIR
HY113Y	220-240~	50	FC	11.3	315	1.30	CSR
HY131Y	220-240~	50	FC	13.1	370	1.30	CSR
HYE55Y63	220-240~	50-60	ST	5.5	150	1.28	RSIR
HYE60Y63	220-240~	50-60	ST	6.0	170	1.28	RSIR
HYE60YG	220-240~	50	ST	6.0	170	1.43	RSCR
HYE60YK	220-240~	50	ST	6.0	175	1.52	RSCR
HYE69YK	220-240~	50	ST	6.6	195	1.52	RSCR
HYE55Y42	115~	60	ST	5.5	175	1.28	RSIR
HYE60Y42	115~	60	ST	6.0	200	1.28	RSIR
HYE51YG42	115~	60	ST	5.1	165	1.43	RSCR

Mbsm_dot_pro_private_PDF_hy131y Mbsm_dot_pro_private_PDF__hy131y Mbsm_dot_pro_private_PDF___hy131y Mbsm_dot_pro_private_PDF____hy131y
