Mbsm.pro, Compressor, EMBRACO COMPRESSOR, emys80hsp, emys-80hsp, Em Family compressor, 4eme Generation, Kit mecánico estándar, 1/4 hp++, hbp, r134a

written by Lilianne | 14 March 2024

EMYS80HSP is a refrigerator compressor model made by Embraco, a company known for manufacturing reliable and energy-efficient compressors. Here’s a breakdown of the code:

  • EMYS – Likely a designation specific to Embraco compressors
  • 80 – Possibly refers to the size or power rating of the compressor (e.g., 1/4 horsepower)
  • HSP – Could indicate specific features of the compressor, although the exact meaning depends on Embraco’s coding system

Here are some key specifications you might find relevant about the EMYS80HSP compressor:

  • Refrigerant type: R-134a
  • Voltage: 220-240V
  • Frequency: 50Hz
  • Oil type: Mineral, polyolester, or alkyl benzene (depending on manufacturer)
  • Application: Commonly used in refrigerators and freezers



Mbsm.pro, Compressor, ASF852HG, ROHS, 850 w, R134a, 1/4 hp++, 1/3 hp–, Hbp, relative, Aspera NEK6170Z

written by Lilianne | 14 March 2024

Compressor / Compressor ASF852HG HBP – R134a 208 – 230 V, 1Ph, 50 Hz.
Type of engine: CSIR.
displacement: 8.4 cm3.
Temperature range: HBP.
Suction pipe connection size: 8.10 mm.
Connection size pressure line: 6.10 mm. Weight: 10.4 kg.
Maximum height: 187.0 mm.
Power: 1/4 + hp. Efficiency: 2.07kcal / Wh.
Oil Type: ISO22.
Oil quantity: 350ml.
Starting torque: HST.

Compressor type: Reciprocating piston
Cooling capacity (W): 850
Design: Hermetic
Dimensions ( length × width × height ): 24.20 × 17.80 × 20.00 cm
Displacement (cm3): 8,39
Engine type: CSIR
Info: Oil prefilled
Manufacturer:
Max. Starting current (A): 12,4
Model series: ROHS
Oil quantity (l): 0,35
Oil type: ISO22, POE22
Power range (W): 852 w
Power range (hp): 0-2
Power supply: 400 V
Rated power (hp): 0.25++/0.3–
Refrigerant: R134a
Scope of application: HBP
Start-up torque: Start-up torque
To be used with: Capillary/Expansion
Type / Series: ASF852HG
Voltage: 230V/50Hz


Mbsm.pro, Replaced, Jiaxipera, NS1121Y, 1/4 hp++, 1/3 hp–, 214Kcal, R600a, 220V, with, Compressor, hys69yq, 1/4 hp, lbp, r134a, HiTech, refrigerator, HSA 47542/1, SN-T, C467 – HC, Beko, 451 L, R600a, 64G

written by Lilianne | 14 March 2024

Frozen Beko. 1/4″ compressor replacement..NS1121y R600a gas
With another compressor 1/4 HYS69CA..cubigel..operates with R134a gas.

Mbsm.pro, Jiaxipera, NS1121Y, 1/4 hp++, 1/3 hp–, 214Kcal, R600a, 220V

Mbsm.pro, Compressor, hys69yq, 1/4 hp, lbp, HiTech, r134a



Mbsm.pro, Jiaxipera, NS1121Y, 1/4 hp++, 1/3 hp–, 214Kcal, R600a, 220V

written by Lilianne | 14 March 2024

Compressor JIAXIPERA NS1121Y, LBP – R600a, 220-240V, 14.2 cm3. & nbsp;

220-240V, 50Hz, R600, LBP, 14.20cm3. Without capacitor.Condensing units Compressors : Compressor Manufacturer : JIAXIPERA Scope of application : LBPVoltage :220-240V



COMPTEK, Compressor, HALQD91HHR, HQD91H, 1/4 hp++, 1/3 hp–, m/hbp, 250 w, 8.8 cm3, r134a

written by Amina | 14 March 2024

Technical Data ：

Download Link Pdf

https://www.mbsm.pro/wp-content/uploads/_Comptek.pdf

R22 L/MBP (220V-240V/50Hz) Application

Model Compressor Model Displ. (cm3) Power
HP		 Capacity(W)54.4℃/ 130℉ Condensing  Temp.  COP W/W
-35℃ -30℃ -25℃ -23.3℃ -20℃ -15℃ -10℃ -6.7℃ -5℃ 0℃ -23.3℃ -6.7℃
LUCT-M030E MAMQD30EHY 3.00  1/8 76  85  117  129  161  181  245  258  284  310  1.25 1.75
LUCT-M035E MAMQD35EHY 3.50  1/6 89  99  137  151  188  211  286  301  331  361  1.25 1.75
LUCT-M043E MAFQD43EHY 4.30  1/5 109  122  168  185  231  259  351  370  407  444  1.2 1.7
LUCT-M052E MAFQD52EHY 4.90  1/5 124  139  192  211  263  295  400  421  464  506  1.2 1.7
LUCT-M059E MALQD59EHM 5.50  1/5+ 140  156  215  237  296  331  449  473  520  568  1.25 1.75
LUCT-M065E MALQD65EHM 6.20  1/4 157  176  243  267  333  373  507  533  587  640  1.23 1.7
LUCT-M075E MALQD75EHM 7.20  1/4+ 183  204  282  310  387  433  588  619  681  743  1.23 1.7
LUCT-M091E MAQQD91EHM 8.80  3/8 202  227  312  343  429  480  652  686  755  824  1.2 1.7
LUCT-M110E MAQQD110EHM 10.60  3/8+ 219  245  338  371  464  519  705  742  816  890  1.2 1.7
LUCT-M128E MATQD128EHM 12.12  9/16 250  280  386  424  530  594  806  848  933  1018  1.24 1.7
LUCT-M158E MATQD158EHM 14.50  5/8 299  335  462  508  634  711  964  1015  1117  1218  1.18 1.68
LUCT-M168E MATQD168EHM 16.80  3/4 347  388  535  588  735  823  1117  1176  1294  1411  1.26 1.72
LUCT-M180E MATQD180EHM 17.40  3/4 359  402  554  609  761  853  1157  1218  1340  1462  1.24 1.74
LUCT-M210E MATQD210EHM 20.40  3/4 421  471  650  714  893  1000  1357  1428  1571  1714  1.34 1.8

R134a L/MBP (220V-240V/50Hz) Application

Model Compressor Model Displ. (cm3) Power
HP		 Capacity(W)54.4℃/ 130℉ Condensing  Temp. COP W/W
-35℃ -30℃ -25℃ -23.3℃ -20℃ -15℃ -10℃ -6.7℃ -5℃ 0℃ -23.3℃ -6.7℃
LUCT-M030H MAWQD30HHP 3.0  1/10 35 49 63 70 90 112 152 170 188 210 0.85 1.9
LUCT-M035H MAMQD35HHP 3.5  1/8 40 56 72 80 105 128 176 220 242 275 0.9 1.98
LUCT-M043H MAMQD43HHP 4.3  1/7 47 65 83 110 121 149 216 270 297 338 0.95 2.01
LUCT-M052H MAFQD52HHP 5.5  1/7 70 95 123 136 177 218 280 350 385 438 1.15 2.01
LUCT-M059H MAFQD59HHP 6.2  1/6 85 115 149 165 215 265 312 390 430 488 1.2 2
LUCT-M065H MAFQD65HHP 6.6  1/5 95 129 167 185 241 297 350 430 473 538 1.25 2.02
LUCT-M075H MAFQD75HHP 7.6  1/5+ 105 147 190 210 273 337 387 495 545 618 1.25 2.1
LUCT-M091H MALQD91HHR 8.8  1/5+ 115 160 207 245 300 368 425 530 583 655 1.37 2.12
LUCT-M110H MALQD110HHR 10.6  1/4+ 135  189  243  295  370  456  520  650  715  813  1.41 2.12
LUCT-M120H MALQD120HHR 11.6  1/3 165 231 297 330 430 528 576 720 792 900 1.41 2.12
LUCT-M128H MAQQD128HHR 12.3  3/8 180  252  324  360  468  576  740  925  1018  1156  1.31 2
LUCT-M142H MAQQD142HHM 13.5  3/8+ 195  273  351  390  507  624  800  1000  1100  1250  1.3 2
LUCT-M158H MAQQD158HHM 15.3 3/8+ 215 300 387 430  560 690 890 1120 1230 1400 1.3 2
LUCT-M168H MAQQD168HHM 16.3 1/2 230 322 415 460  598 736 976 1220 1340 1530 1.3 2

R134a M/HBP (220V-240V/50Hz) Application

Model Compressor Model Displ. (cm3) Power
HP		 Capacity(W)54.4℃/ 130℉ Condensing  Temp.  COPW/W
-20℃ -15℃ -10℃ -6.7℃ -5℃ 0℃ 5℃ 7.2℃ 10℃ 15℃ -6.7℃ 7.2℃
LUCT-H030H HAMQD30HHP 3.0  1/8 90 120 150 190 210 225 273 300 345 420 1.90  2.18
LUCT-H035H HAMQD35HHP 3.5  1/7 105 140 175 220 245 263 318 350 403 490 1.98  2.31
LUCT-H043H HAMQD43HHP 4.3  1/6 130 172 215 270 300 323 391 430 495 600 2.01  2.36
LUCT-H052H HAFQD52HHP 4.9  1/6+ 145 196 245 310 343 368 446 490 563 686 2.01  2.37
LUCT-H059H HAFQD59HHP 5.5  1/5 165 220 275 345 385 413 500 550 633 770 2.00  2.35
LUCT-H065H HAFQD65HHR 6.2  1/5+ 190 252 315 390 441 473 573 630 725 882 2.05  2.41
LUCT-H075H HALQD75HHR 7.2  1/4 205 276 345 430 483 518 628 690 628 965 2.10  2.51
LUCT-H091H HALQD91HHR 8.8  1/4+ 250 332 415 530 580 623 747 830 955 1160 2.12  2.51
LUCT-H110H HALQD110HHM 10.6  1/3+ 305 411 515 650 720 771 935 1028 1182 1439 2.12  2.52
LUCT-H120H HALQD120HHM 11.6  3/8+ 385 516 645 730 900 960 1170 1290 1480 1170 2.10  2.50
LUCT-H128H HAQQD128HHM 12.3  3/8+ 395 528 660 830 924 990 1200 1320 1518 1848 2.02  2.36
LUCT-H142H HAQQD142HHM 13.6  1/2 440 586  733  920  1026  1099  1333  1465  1685  1978  2.02  2.37
LUCT-H158H HAQQD158HHM 15.3 1/2+ 480 640  800  1008  1120  1200  1456  1600  1840  2160  2.02  2.37

R404A M/HBP (220V-240V/50Hz) Application

Model Compressor Model Displ. (cm3) Power
HP		 Capacity(W)54.4℃/ 130℉ Condensing  Temp.  COPW/W
-20℃ -15℃ -10℃ -6.7℃ -5℃ 0℃ 5℃ 7.2℃ 10℃ 15℃ -6.7℃ 7.2℃
LUCT-H030K HAMQD30KHY 3.00  1/8 203  226  236  273  292  358  433  471  518  612  1.9 2.2
LUCT-H035K HAMQD35KHY 3.50  1/6 236  264  275  319  341  418  506  550  604  714  1.95 2.25
LUCT-H043K HAFQD43KHY 4.30  1/5 290  324  338  392  419  513  621  675  743  878  1.95 2.25
LUCT-H052K HAFQD52KHY 4.90  1/5 331  369  385  446  477  585  708  769  846  1000  1.95 2.25
LUCT-H059K HALQD59KHM 5.50  1/5+ 371  414  432  501  535  656  794  864  950  1123  2 2.3
LUCT-H065K HALQD65KHM 6.20  1/4 419  467  487  565  604  740  896  973  1071  1265  2 2.3
LUCT-H075K HALQD75KHM 7.20  1/4+ 486  543  565  656  701  859  1040  1130  1243  1470  2 2.3
LUCT-H091K HAQQD91KHM 8.80  3/8 594  663  691  801  857  1050  1271  1382  1520  1796  1.9 2.2
LUCT-H110K HAQQD110KHM 10.60  3/8+ 716  799  832  965  1032  1265  1531  1664  1831  2163  1.9 2.2
LUCT-H128K HATQD128KHM 12.12  9/16 745  831  866  1005  1074  1316  1593  1732  1905  2252  1.95 2.26
LUCT-H158K HATQD158KHM 14.50  5/8 914  1020  1063  1233  1318  1616  1956  2126  2339  2764  1.9 2.2
LUCT-H180K HATQD180KHM 17.40  3/4 1032  1152  1200  1392  1488  1824  2208  2400  2640  3120  1.9 2.17
LUCT-H210K HATQD210KHM 20.40  3/4 1245  1390  1448  1679  1795  2200  2663  2895  3185  3764  1.9 2.2

R404A L/MBP (220V-240V/50Hz) Application

Model Compressor Model Displ. (cm3) Power
HP		 Capacity(W)54.4℃/ 130℉ Condensing  Temp. COP W/W
-35℃ -30℃ -25℃ -23.3℃ -20℃ -15℃ -10℃ -6.7℃ -5℃ 0℃ -23.3℃ -6.7℃
LUCT-M030K MAMQD30KHY 3.00  1/8 96  107  147  162  193  243  300  324  356  389  1.25 1.75
LUCT-M035K MAMQD35KHY 3.50  1/6 112  125  172  189  225  284  350  378  416  454  1.25 1.75
LUCT-M043K MAFQD43KHY 4.30  1/5 134  150  207  228  271  342  422  456  501  547  1.3 1.8
LUCT-M052K MAFQD52KHY 4.90  1/5 153  171  236  260  309  390  480  519  571  623  1.3 1.8
LUCT-M059K MALQD59KHM 5.50  1/5+ 178  200  275  303  360  454  560  605  666  726  1.35 2
LUCT-M065K MALQD65KHM 6.20  1/4 201  225  310  341  406  512  631  682  750  818  1.45 2
LUCT-M075K MALQD75KHM 7.20  1/4+ 234  261  360  396  471  594  733  792  871  950  1.5 2.05
LUCT-M091K MAQQD91KHM 8.80  3/8 275  308  424  466  555  700  863  933  1026  1119  1.45 2
LUCT-M110K MAQQD110KHM 10.60  3/8+ 331  371  511  562  669  843  1039  1124  1236  1348  1.45 2
LUCT-M128K MATQD128KHM 12.12  9/16 363  407  561  616  733  924  1140  1232  1355  1478  1.24 1.7
LUCT-M158K MATQD158KHM 14.50  5/8 346  387  533  586  697  879  1084  1172  1289  1406  1.28 1.72
LUCT-M168K MATQD168KHM 16.80  3/4 496  554  764  840  1000  1260  1554  1680  1848  2016  1.26 1.72
LUCT-M180K MATQD180KHM 17.40  3/4 466  521  718  789  939  1184  1460  1578  1736  1894  1.15 1.6
LUCT-M210K MATQD210KHM 20.40  3/4 537  601  828  910  1083  1365  1684  1820  2002  2184  1.34 1.8



Mbsm.pro, Compressor, hpk190A, 1/4 hp++, 1/3 hp–, R600, HMBP, 220/240V, 50Hz, 12.11 cc , unionaire, UR-350, 340 L, R600a/48g, 0.87 A

written by Lilianne | 14 March 2024

Mbsm.pro, Compressor, hpk190A, 1/4 hp++, 1/3 hp–,R600,HMBP, 220/240V, 50Hz, 12,11 cc , unionaire, UR-350, 340 L, R600a/48g, 0.87 A



Mbsm.pro, Compressors, Danfoss, R134a, FR11G, 1/4 hp++, 1/3 hp–, HBP, 103g6980, 103g 6980, 103 g 6980, 195B0028, 103G6980

written by Lilianne | 14 March 2024

Compressors Danfoss R134a FR11G 195B0028 / 103G6980

Mbsm_dot_pro_private_PDF__103g6980 Mbsm_dot_pro_private_PDF_103g6980



Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.

TECHNICAL DATA

Model Displacement Refrigerant Voltage Evaporating
temperature range		 Lubricant
(Charge/Type		 Weight Max. Height
FR11G 11,15 cm3 R-134a 187-254V / 50Hz -30°C~+5°C – /450 ml 11,1 kg 196 mm

Cooling Capacity



Model Evaporating Temp. / Cooling Capacity R-134a
Condensing Temp. -30ºC -25ºC -20ºC -15ºC -10ºC -5ºC 0ºC +5ºC
FR11G 55 ºC 115 W 170 W 233 W 307 W 395 W 501 W 628 W 780 W



103G6980, compressor Secop / Danfoss FR11G, LBP / HBP- R134, 220
– 240V/1/50 Hz, discharge 11.15 cm3, motor type RSIR/CSIR, oil
type POE, oil charge 450 cm3, 170 W at -25 / 55° C, LRA 10 A,
maximum refrigerant charge 900 g, height: 196 mm, weight 10.6 kg
Refrigerant:



R134a

Power range(W):



101 – 200 W

Working area:



HBP LBP

Design type:



Hermetic

Model series:



Fr

Use with:



Expansion/Capillary

Power supply:



230 V

Oil type:



POE

Engine type:



CSIR RSIR

Article condition:



New

Info:



Oil filled

Shipping weight:
12,60 kg
Content:
1,00 Pieces
Dimensions ( Height ):
19,60 cm
customs tariff number:
84143081
Cooling capacity condition:
-25 / +55 °C
Manufacturer:
Danfoss Secop
Model:
FR11G
Modelname:
103G6980
Modellname 3:
FR11GX
Stroke volume (cm3):
11,15
Cooling capacity (W):
170
Max. Starting current (A):
10
Engine type:
RSIR
Note:
Maximum refrigerant quantity 900 g
Oil quantity (l):
0,45
Compressor type:
Piston
Others also bought:


Mbsm.pro, compressor, Huaguang, R600a, ETA110L, 1/5 hp, ETA115L, 1/4 hp, ETA130L, 1/4 hp++, ETA150L, 1/3 hp

written by Lilianne | 14 March 2024

Mbsm.pro, compressor, Huaguang, R600a, ETA110L, 1/5 hp, ETA115L, 1/4 hp, ETA130L, 1/4 hp++, ETA150L, 1/3 hp



Mbsm.pro, Compressor, Aspera, Embraco, EMT6170Z, R134a, 1/4 hp++, hbp, 1/3 hp–, lbp

written by Lilianne | 14 March 2024

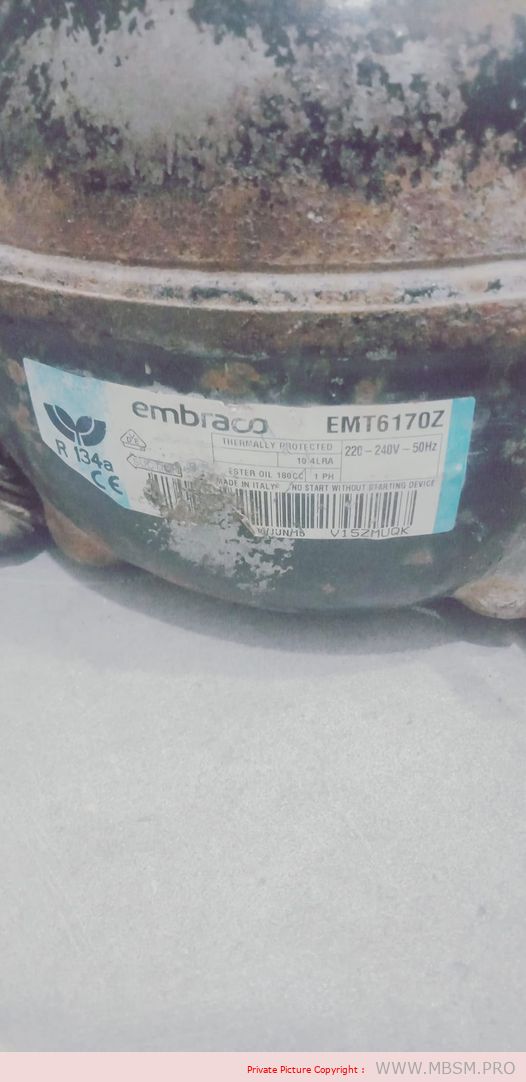

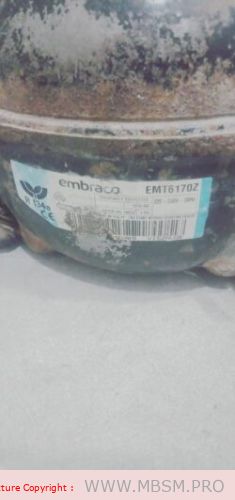

Compresseur hermetique de Aspera – Embraco EMT6170Z – R134a

1/4+ HP

220-240V 50 Hz

Cylindrée =  7.69 CM3

APPLICATIONS = HBP

Moteur type: CSIR

Mbsm_dot_pro_private_PDF_EMT



Mbsm.pro, Compressor, Tecumseh, R134a, AE4430Y, 1/4 HP++, hbp, 1/3 hp–

written by Lilianne | 14 March 2024

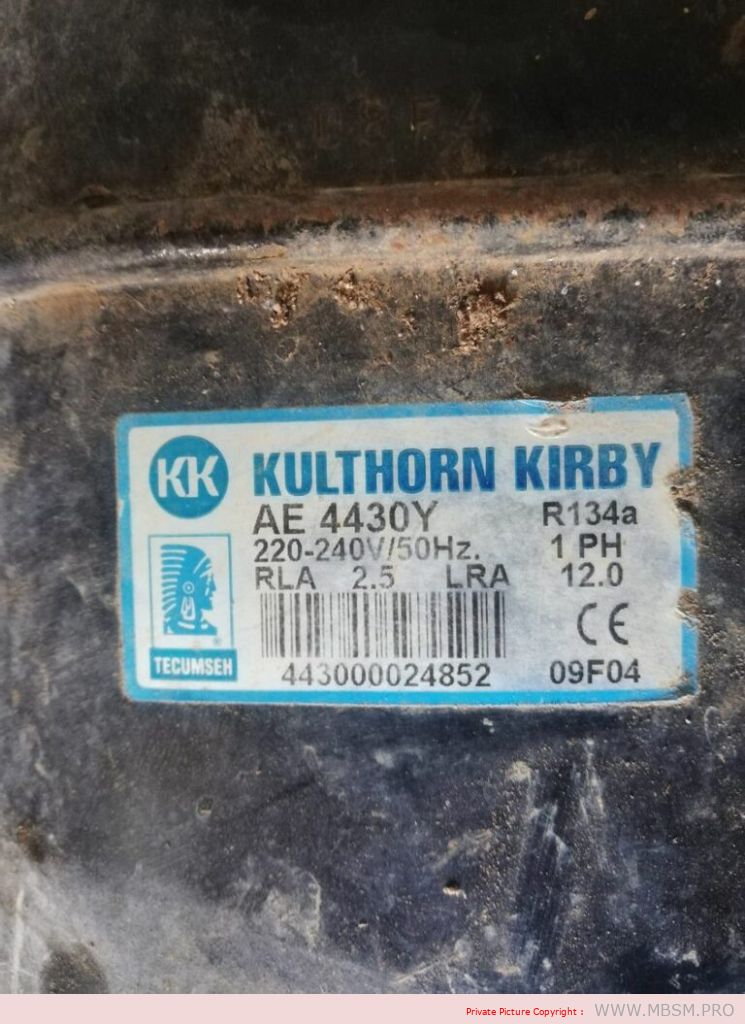

Compressor Tecumseh L` Unite AE4430Y-FZ1A, HBP – R134a, 220 – 240V, 50 Hz, 1 phase, discharge: 8.02 cm3, oil type: POE, oil charge: 280 cm3, electrical equipment CSIR, cooling power: 702 W at +5 / +50 °C, connection: suction: 1/4 inch, discharge: 3/16 inch, sound level: 56 dBA, start capacitor: 50uF/250V, expansion device: capillary or with expansion valve, cooling: forced, height: 200 mm, weight: 9.7 kg
Refrigerant:
R134a
Power range(W):
701 – 1000 W
Connecting size:
7/16″
Suction:
1/4″
Application Area:
Cooling
Design type:
Hermetic
Model series:
AE
Use with:
Expansion/Capillary
Power supply:
230 V
Oil type:
POE
Article condition:
New
Info:
Oil filled
Shipping weight:
10,70 kg
Dimensions ( Height ):
20,00 cm
customs tariff number:
84143081
Manufacturer:
Tecumseh L` Unite
Model:
AE4430Y-FZ1A
Max. Operating current (A):
2,05
Compressor type:
Piston

Mbsm_dot_pro_private_PDF__ae4430y

mde

Mbsm_dot_pro_private_PDF_ae4430y
