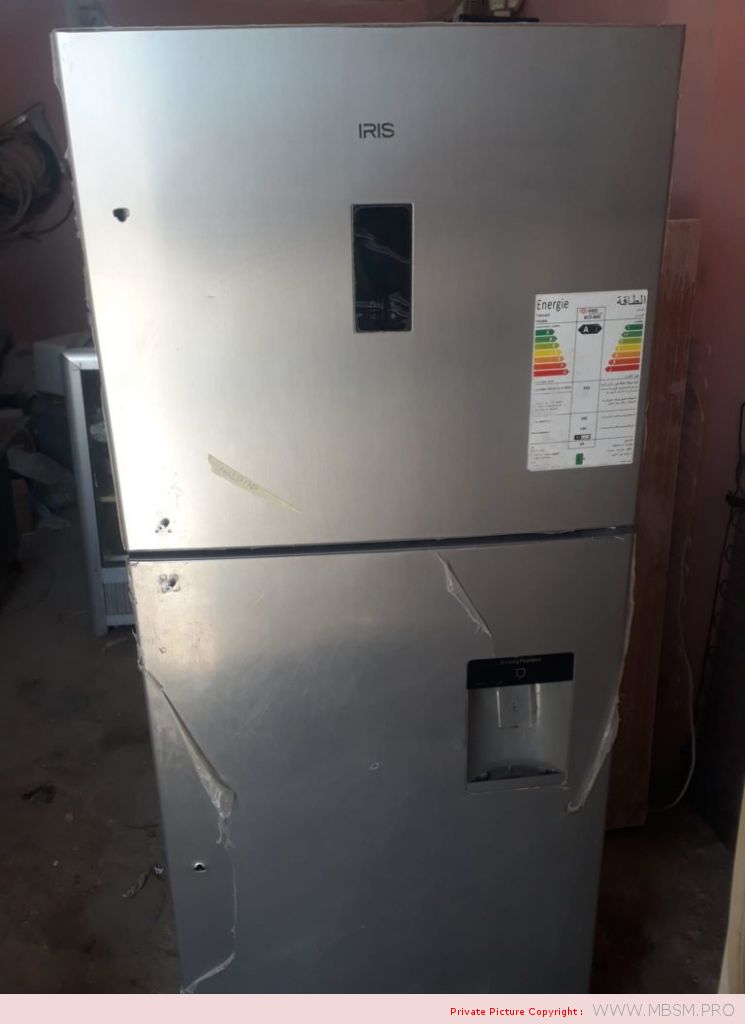

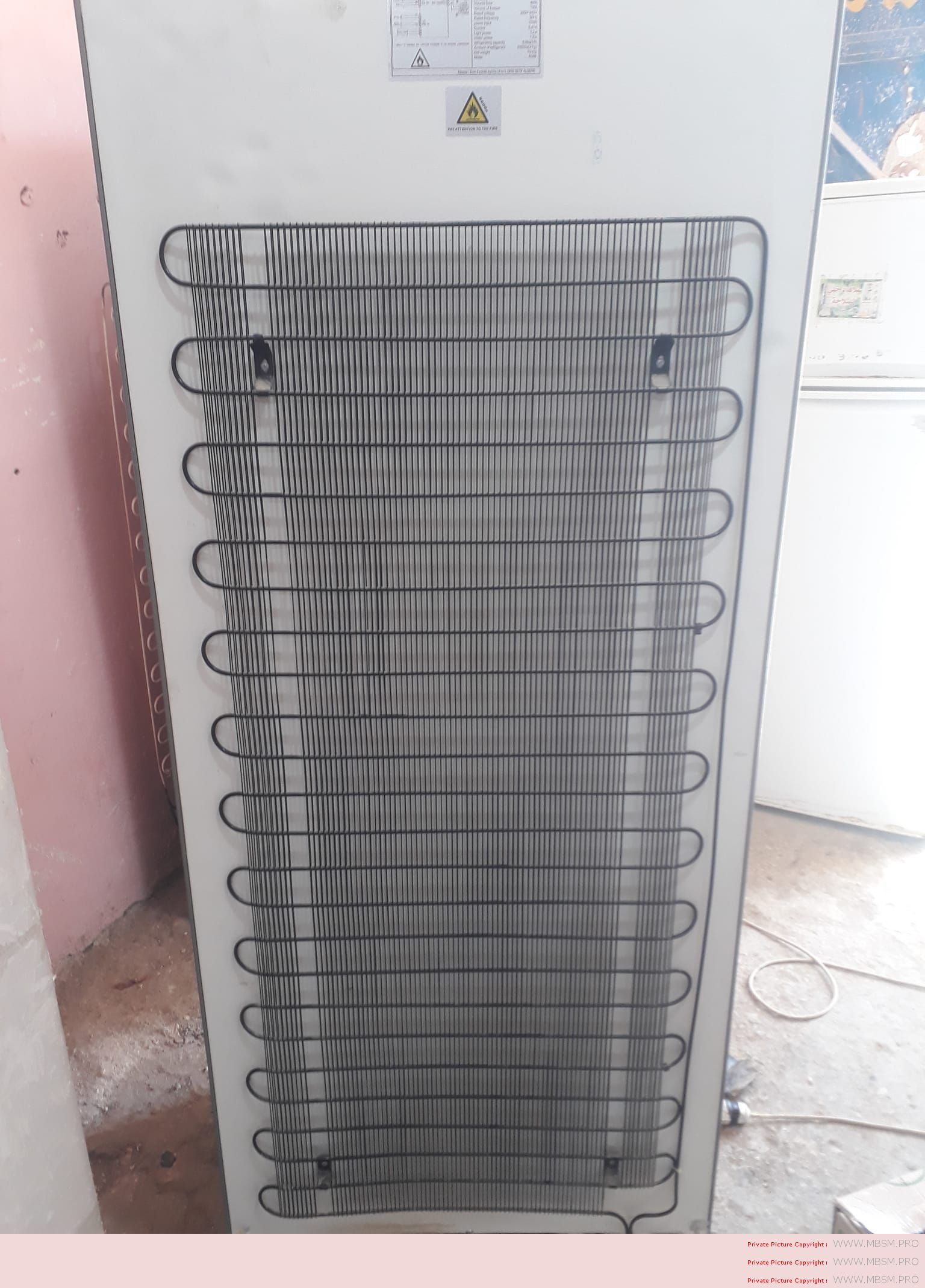

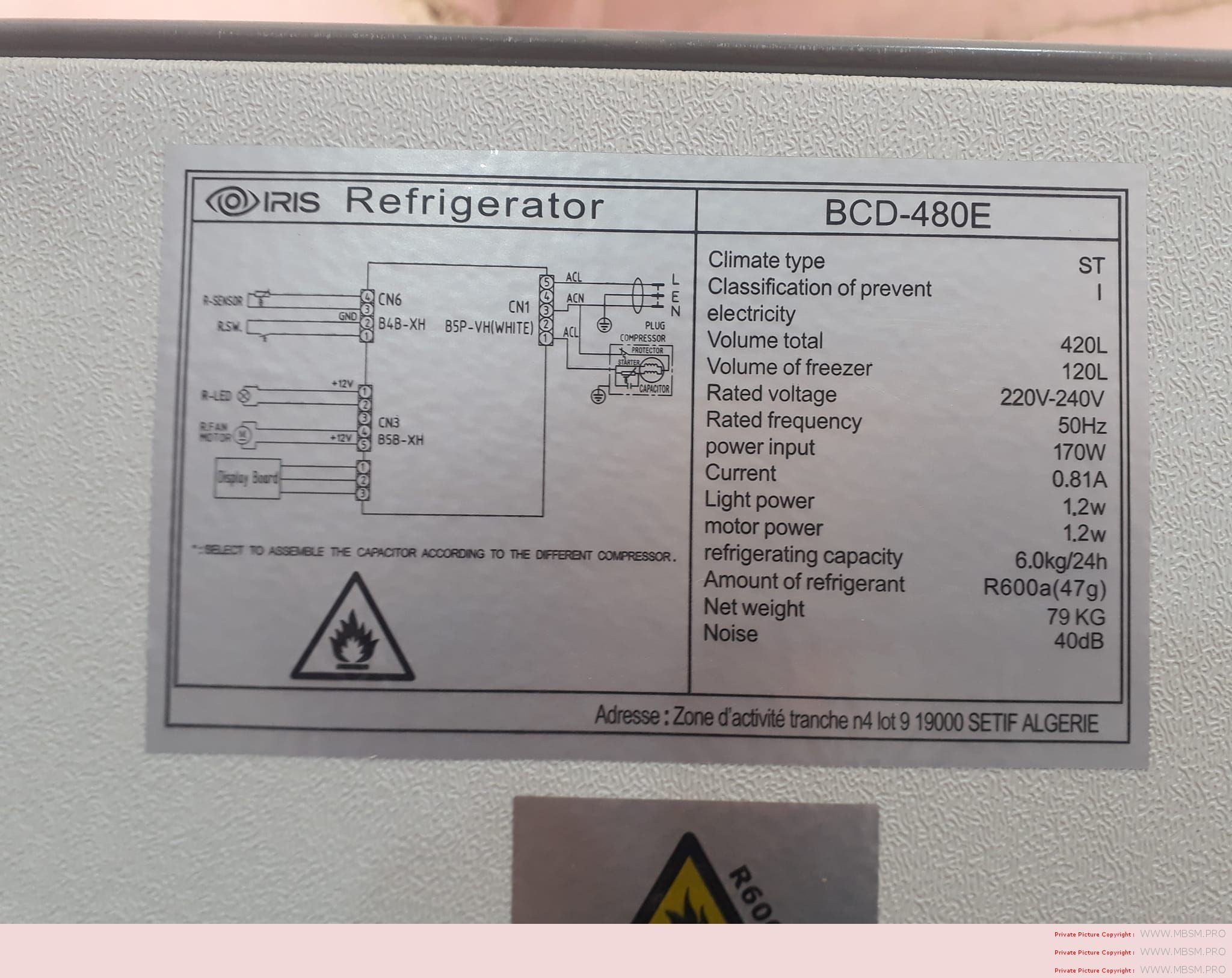

Mbsm.pro, Iris refrigerator, BCD-480E, 420 L, 0.81 A, 170 W, Compressor, 1/4 Hp, 220v-50hz, R600a, 47 G

Category: Archivation,Freezer
written by Lilianne | 23 April 2022

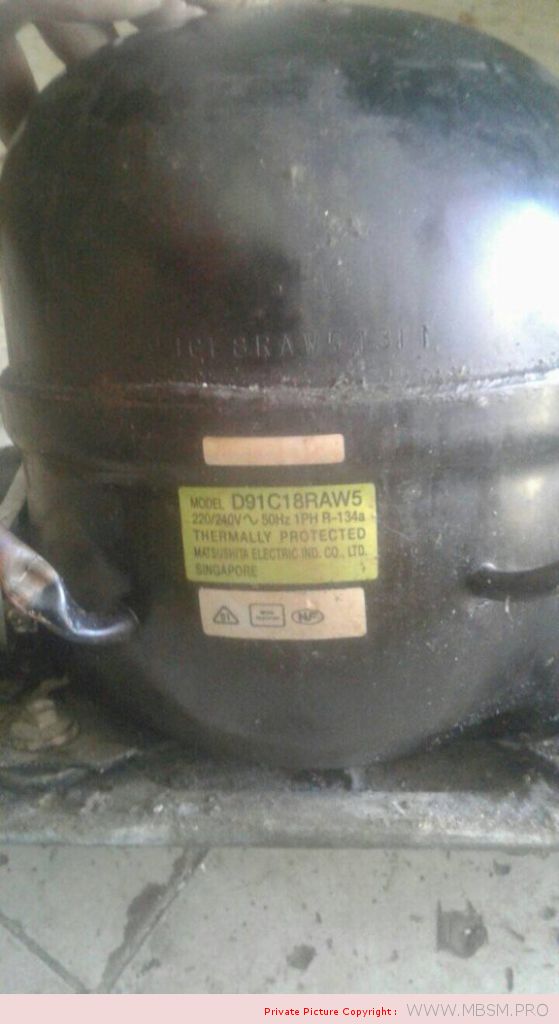

Mbsm.pro, Compressor, d91c18raws, 1/4 Hp, 227 W, Lbp, R134a, 220v, 1 phase 50 hz, Compressor AC Panasonic, D Series, 744 btu/h, 195 kcal/h

Category: Archivation,compressor
written by Lilianne | 23 April 2022

D91C18RAW5(RSIR) : Reciprocating Compressors (Fixed Speed)

Product
Reciprocating Compressors (Fixed Speed)
Series/Type
D Series (Reciprocating Fixed Speed, R134a, LBP)
Parts no
D91C18RAW5(RSIR)
Specification



Item Performance characteristics
Refrigerant R134a
Displacement (cm³) 9.1
Voltage (V) 220/240
Frequency (Hz) 50
Motor Type RSIR
Capacity@ASHRAE 227
COP@ASHRAE 1.29/1.24
Capacity@CECOMAF –
COP@CECOMAF –

Mbsm_dot_pro_private_picture_D91C23GAX6Télécharger
Mbsm_dot_pro_private_PDF_PDF_panasonic-compressor-Serie-DTélécharger



Mbsm.pro, Compressor, Kiriazi, refrigerator, Defrost, k350, 1/5 ++ Hp, 1/4 — Hp, embraco, ff17.5hak, tw146-gy-486, twb1374ygs, tles7ft.4, r134a

Category: Post
written by Lilianne | 23 April 2022

https://www.mbsm.pro/wp-content/uploads/2022/04/Mbsm_dot_pro_private_PDF_ff17.5hak.pdf



    Mbsm.pro, Compressor, Te195yt, 1/4 Hp, 226 W, Lbp, R134a, lra 14a, 220v, 1 phase 50 hz

    Category: Post
    written by Lilianne | 23 April 2022



    Mbsm.pro, Compressor, LG, FMA102NAMA, inverter, 1/4 hp, LBP, F: Linear, Medium, C Gereration, 10.2 cc/rev, Cuivre Wire, R600a, 220-240V, 50 / 60Hz, A-Control card

    Category: Archivation,compressor
    written by Lilianne | 23 April 2022

    Application : LBP (Low Back Pressure)
    SPECIFICATIONS
    Refrigerant Model Magnet
    R600a
    FLC150NAMA Ferrite 220~240 50/60 330 8.7 280 7.9 8.1 8.1 8.1 8.0 38.0
    FLD165NAMA Nd 220~240 50/60 350 9.4 230 8.4 8.5 8.5 8.4 8.3 37.5
    FLD165NBMA Nd 220~240 50/60 350 9.4 230 8.6 8.7 8.7 8.6 8.5 37.5
    FLE165NAMA Ferrite 220~240 50/60 350 9.1 240 8.2 8.2 8.2 8.1 8.0 37.5
    FMA088NBMA Nd 220~240 50/60 200 9.3 120 8.4 8.5 8.5 8.6 8.6 37.5
    FMA102NAMA Nd 220~240 50/60 220 9.1 150 8.3 8.4 8.4 8.5 8.4 37.5
    FMA102NBMA Nd 220~240 50/60 220 9.3 150 8.4 8.5 8.5 8.6 8.5 37.5
    FMC088NAMA Nd 220~240 50/60 180 8.2 180 7.6 7.7 7.7 7.6 7.5 37.5
    R134a FLD090LANA Nd 100~135 50/60 370 8.6 290 8.0 8.3 8.3 8.4 8.4 39.0
    * CCR (Cooling Capacity Ratio) : % Modulation comparing to maximum cooling capacity
    Note1 : Figures in the table are subject to change without prior ncoeti for performance improvem

    Mbsm_dot_pro_private_PDF_FMA102NAMATélécharger
    Mbsm_dot_pro_private_PDF_FMA102NAMA-1Télécharger


    Mbsm.pro, Compressor, SE-409-12, Pn2881, SE409-12, R12, 208-230/60/1, 896 BTtu/h, 1/4 Hp, LBp, 1.4 Fla, 8.6 Lra, tecumseh, competitive, cross

    Category: Archivation,compressor
    written by Lilianne | 23 April 2022

    Mbsm.pro, Compressor, SE-409-12, Pn2881, SE409-12, R12, 208-230/60/1, 896 BTtu/h, 1/4 Hp, LBp, 1.4 Fla, 8.6 Lra, tecumseh, competitive, cross

    Mbsm_dot_pro_private_PDF_SE-409-12Télécharger


    Mbsm.pro, Compressor, KONOR, GQR90AA, R134a, 220-240V 50Hz, 10,1kg, 1/4 ++ HP, Hbp, 1/3 — hp, 220W, cake showcase, 155 L, ROYAL1306C1144, R134a, 270 g, 3.97 A, 548 w, 220 50 hz, 1 ph

    Category: compressor
    written by Lilianne | 23 April 2022
    • Alimentation 230 V 50 Hz
    • Puissance 1/4 HP
    • Fréon R134a
    • Poids 10,1 kg
    • Cylindrée 9,1 cm³
    • Système de moteur RSIR
    • Hauteur 186 mm
    Model Displacement Height Motor Type Cooling capacity COP
         		 Power Supply
      cm 3  MM   W W/W V/Hz
    GQR90TG 9.1 186 CSIR 830 2.24 200-220/50
    186 CSIR 920 2.24 220-230/60

    Mbsm_dot_pro_private_PDF__gor90tgTélécharger


    Mbsm.pro, Compressors, LG, CMA series, CMA053LHEG, 1/6 HP, Cma069lhem, 1/4 HP, Lbp, 195W, 667BTU, 220-240V 50Hz, 1 ph, Refrigerator, 19 Cf, T wansa 530, WRTW-530-NFSSC5, 530 L, 200 w, R134a, 153 G

    Category: compressor
    written by Lilianne | 23 April 2022

    Information on Wansa Top Mount Refrigerator 19 Cft:

    Brand WANSA
    Article Number 125822
    Model Number WRTW-530-NFSSC5

    General

    Features Reversible Door
    Energy Efficiency Rating A+
    Size (Cubic Feet) 19 CFT
    Capacity Litres / Kilograms 530 Litre
    No. of Wired Shelves 3
    Mbsm_dot_pro_private_PDF_Refrigerator_Compressor_151207-2Télécharger
    Mbsm_dot_pro_private_PDF_CMA069LHEMTélécharger

    Compressor LG CMA053LHEG

    The LG CMA053LHEG 1 / 6HP Compressor is made of innovative, durable and highly efficient materials. The compressor uses pistons driven by a crankshaft to provide high-pressure refrigerant from the low to high side of a cooling system.

    • Manufacturer: LG
    • Model: CMA053LHEG
    • Cooling Capacity HP: 1 / 6HP
    • Cooling Capacity: 150W / 512BTU
    • Refrigerant Gas: R134A
    • Country of Manufacture: China

    The package includes:

    • Compressor LG CMA053LHEG
    • PTC Relay
    • Over Load Protector (OLP)
    • Capacitor (M)
    • Plastic protective cover for PTC, OLP
    • Mounting accessories (screws, washers, nuts, rubber bands)
    Mbsm_dot_pro_private_PDF_LG_Refrigerator_Compressor_CatalogueTélécharger

    Fixed-Frequency： ★ Series CMA R600a (Test Condition : Ashrae)

    Rating Series Model Eva/Cond＇=23.3℃/54.4℃
    PTC/*M～RSCR,*G～RSIR
    Cooling Capacity Power COP EER
    (kcal/hr) (W/hr) (Btu/hr)  (W) (W/W) (Btu/W.hr)
    220~240V 50Hz CMA LBP CMA053LAEM 127 148 504 93 1.59  5.42
    CMA057LAEM 141 163 558 102 1.61  5.50
    CMA069LAEM 165 192 655 119 1.61  5.50
    CMA075LAEM 188 219 746 130 1.68  5.74
    CMA053LHEG 129 150 512 106 1.42  4.83
    CMA053LHEM 129 150 512 102 1.48  5.05
    CMA057LHEG 140 163 556 115 1.42  4.83
    CMA057LHEM 138 160 548 110 1.46  4.98
    CMA062LHEM 153 178 607 117 1.52  5.19
    CMA062LHEG 153 178 607 122 1.46  4.98
    CMA069LHEM 168 195 667 128 1.52  5.20
    CMA069LBEM 168 195 667 116 1.68  5.75
    115V 60Hz CMA042LHCG 111 129 441 91 1.42  4.84
    CMA053LHCG 144 167 572 118 1.42  4.84
    CMA042LHCM 111 129 441 88 1.47  5.01
    CMA053LHCM 155 167 572 112 1.50  5.10
    220~240V  50/60Hz **CMA053LKTM 120 140 486 96 1.45  4.96
    **CMA057LKTM 129 150 512 102 1.47  5.02
    220~240V 50Hz **CMA062LKEM 140 163 556 109 1.49  5.10
    **CMA069LKTM 158 184 627 122 1.51  5.14
    220v 60Hz CMA HBP CMA042HHDM 405 471 1608 183 2.58  8.80
    220v 60Hz CMA053HHDM 514 598 2041 229 2.61  8.90
    220v 60Hz CMA062HHDM 615 715 2442 277 2.58  8.80
    220v 60Hz CMA075HADM 740 860 2938 334 2.58  8.80
    Model Ref App.  Voltage Cooling Capacity Power  Wire
    HP W/hr Btu/hr Input Type
    CMA042LHEG R134a LBP 220V/50HZ 1/10HP 107W 365Btu 79W Al-wire
    CMA053LHEG R134a LBP 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
    CMA057LHEG R134a LBP 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
    CMA069LHEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
    NS36LAEG R134a LBP 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
    MSA43LBEG R134a LBP 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
    CMA053LAEM R134a LBP 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
    CMA057LAEM R134a LBP 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
    CMA069LBEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
    CMA075LAEM R134a LBP 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
    MA98LAEM R134a LBP 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
    LX95LHBM R134a LBP 220V/50HZ 1/3HP 267W 910Btu 173W Cu-wire
    LX110LAJM R134a LBP 220~240V/50HZ 1/2HP 323W 1104Btu 232W Cu-wire
    Model Ref App.  Voltage Cooling Capacity Power COP Wire
    Hp W/hr  Input (W/W)  Type
    CSB057NJEG R600a LBP 220V/50HZ 1/10HP 100W 77W 1.30  Al-wire
    CSB069NJEG R600a LBP 220V/50HZ 1/8HP 126W 90W 1.40  Al-wire
    CSB075NJEG R600a LBP 220V/50HZ 1/6HP 139W 102W 1.36  Al-wire
    CSB089NJEG R600a LBP 220V/50HZ 1/5HP 160W 98W 1.64  Al-wire
    CMA098NJEG R600a LBP 220V/50HZ 1/5+HP 180W 112W 1.60  Al-wire
    CMA110NJEM R600a LBP 220V/50HZ 1/4HP 194W 122W 1.58  Al-wire
    CMA121NBEM R600a LBP 220V/50HZ 1/4+HP 220W 119W 1.85  Al-wire
    Model reference number application. energy Cooling capacity

    energy

    Input

    wire

    Type
    mobile phone W/hour Btu/hr
    CMA053LHEG R134a pulp 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
    CMA057LHEG R134a pulp 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
    CMA069LHEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
    NS36LAEG R134a pulp 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
    MSA43LBEG R134a pulp 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
    CMA053LAEM R134a pulp 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
    CMA057LAEM R134a pulp 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
    CMA069LBEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
    CMA075LAEM R134a pulp 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
    MA98LAEM R134a pulp 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
    LX110LAJM R134a pulp 220~240V/50HZ 1/2 HP 323W 1104Btu 232W Cu-wire


    Mbsm.pro, Compressor, LG Compressor, BMG089NHMV, R600a, Inverter, Variable speed, BDC, Lbp, 1/4 hp, 188.147.88.73 W, 641.501.300.250 Btu/h

    Category: compressor
    written by Lilianne | 23 April 2022
    Brand Name:
    LG
    Type:
    Refrigerator compressor, Inverter
    Application:
    Refrigeration Parts, LBP
    Product name:
    BMG089NHMV
    Voltage:
    240 V, 60-225 Hz
    Refrigerant:
    R600a


    Mbsm_dot_pro_private_PDF_BMg089NHMVTélécharger


    Mbsm.pro, FN Series, Commercial, Refrigerator, Compressor, R134A, fn73f17S, 1/5 hp, FN75H, 1/6HP, FN77H, 1/4 hp, R12, LBP, 220V-50/60HZ

    Category: compressor
    written by Lilianne | 23 April 2022

    R12-LBP COMPRESSOR PERFORMANCE PARAMETER

    Widely used for refrigerator systems.

    2.Feature:

    1)Reasonable structure and compact size

    2)High efficiency, energy saving

    3)Stable performance, high security

    4)Good adaptability of voltage

    5)Excellent refrigeration

    6)Wild range of refrigerant capacity

    3.Specification

    Series

    Model

    Displace ment(cm)

    Capacity(w)

    Input power(w)

    C.O.P

    Current(A)

    Cooling Type

    Motor Type

    HP

    FN Series 220V-50/60HZ

    FN43

    4.3

    96

    103

    0.93

    0.82

    ST

    RSIR

    1/6-

    FN51

    5.1

    123

    115

    1.07

    0.85

    ST

    RSIR

    1/6

    FN57

    5.7

    139

    127

    1.09

    0.97

    ST

    RSIR

    1/6+

    FN66

    6.6

    157

    148

    1.06

    1.1

    ST

    RSIR

    1/5

    FN77

    7.7

    185

    176

    1.05

    1.2

    ST

    RSIR

    1/4-

    FN86

    8.6

    195

    180

    1.08

    1.3

    ST

    RSIR

    1/4+

    FN91

    9.1

    215

    195

    1.10

    1.4

    ST/OC

    RSIR

    1/3

    FN110

    11.0

    265

    240

    1.1

    1.6

    ST/OC

    RSIR

    1/2

    FN Series 240V/50HZ

    FN43M

    4.3

    98

    104

    0.94

    0.83

    ST

    RSIR

    1/6-

    FN51M

    5.1

    120

    109

    1.1

    0.84

    ST

    RSIR

    1/6

    FN57M

    5.7

    140

    121

    1.11

    0.96

    ST

    RSIR

    1/6+

    FN66M

    6.6

    158

    149

    1.08

    1.05

    ST

    RSIR

    1/5

    FN77M

    7.7

    180

    163

    1.1

    1.25

    ST

    RSIR

    1/4-

    FN86M

    8.6

    190

    165

    1.15

    1.3

    ST

    RSIR

    1/4+

    FN91M

    9.1

    210

    182

    1.15

    1.32

    ST/OC

    RSIR

    1/3

    FN110M

    11.0

    260

    220

    1.18

    1.35

    ST/OC

    RSIR

    1/2

    FN Series 115V/60HZ

    FN43U6

    4.3

    110

    96

    1.15

    0.8

    ST

    RSIR

    1/6-

    FN51U6

    5.1

    140

    122

    1.15

    0.92

    ST

    RSIR

    1/6

    FN57U6

    5.7

    154

    131

    1.18

    1.02

    ST

    RSIR

    1/6+

    FN66U6

    6.6

    182

    152

    1.2

    1.15

    ST

    RSIR

    1/5

    FN77U6

    7.7

    205

    171

    1.2

    1.15

    ST

    RSIR

    1/4-

    FN86U6

    8.6

    216

    183

    1.18

    1.28

    ST

    RSIR

    1/4+

    FN91U6

    9.1

    237

    201

    1.18

    1.3

    ST/OC

    RSIR

    1/3

    FN110U6

    11.0

    290

    242

    1.2

    1.35

    ST/OC

    RSIR

    1/2

    FN Series 110V/60HZ

    FN43T6

    4.3

    122

    111

    1.1

    0.85

    ST

    RSIR

    1/6-

    FN51T6

    5.1

    145

    125

    1.16

    0.93

    ST

    RSIR

    1/6

    FN57T6

    5.7

    155

    131

    1.18

    1.03

    ST

    RSIR

    1/6+

    FN66T6

    6.6

    185

    154

    1.2

    1.25

    ST

    RSIR

    1/5

    FN77T6

    7.7

    210

    175

    1.2

    1.25

    ST

    RSIR

    1/4-

    FN86T6

    8.6

    220

    186

    1.18

    1.3

    ST

    RSIR

    1/4+

    FN91T6

    9.1

    240

    196

    1.22

    1.4

    ST/OC

    RSIR

    1/3

    FN110T6

    11.0

    193

    240

    1.22

    1.35

    ST/OC

    RSIR

    1/2



    Product Description

    FN Series Refrigerator Compressor 1/6HP R134A 130W
    AC Compressor: R134A Hermetic LBP Piston Reciprocationg Compressor
    Model: FN75H
    Power Supply: 220~240V/50Hz
    Displacement: 5.7CC
    Cooling Capacity: 133W
    Rated Power: 125W
    Nominal Power: 1/6HP
    COP: 1.04 W/W
    Motor Type: RSIR
    Starting relay: PTC
    Cooling Type: S
    Application: LBP
    Certification: CE
    1X20’FCL: 1920PCS

    Application:
    LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
    MBP: Medium Back Pressure; Air-conditioner, vending machine
    HBP: High Back Pressure: Air-conditioner, ice maker

    LBP ASHRAE Test Condition:
    Evapration Temperature: -23.3 º C
    Condensing Temperature: 54.4 º C
    Subcooling Temperature: 32.2 º C
    Ambient Temperature: 32.2 º C

    MBP ASHRAE Test condition:
    Evapration Temperature: -5 º C
    Condensing Temperature: 54.4 º C
    Ambient Temperature: 35 º C
    Subcooling Temperature: 46.1
    Suction Temperature: 35 º C

    HBP ASHRAETest condition:
    Evapration Temperature: 7.2º C
    Condensing Temperature: 54.4º C
    Ambient Temperature: 35º C
    Subcooling Temperature: 46.1º C
    Suction Temperature: 35º C

    Parameter Variation Range:
    Cooling Capacity: ≥ 95%
    Inpurt Power: ≤ 115%
    Current: ≤ 110%
    COP: ≥ 95%

    Cooling Type:
    S: Natural cooling
    F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
    F2: Fan cooling, 200mm fan diameter, 3m/s air speed
