Mbsm.pro, ADW compressor, R134a, ADW77, refrigerator compressor, 1/4 hp, 187 w, lbp

Category: compressor
written by Lilianne | 24 September 2023



Product Description

1.Product Performance
1)ADW77, MS series, use R134A refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: RSIR;
5)Cooling type: ST;
6)Starting device is PTC/current Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/4HP;
9)COP is 1.25 with the cooling capacity 185W.

Basing on Test Condition(ASHRAE)
Evaporating Temperature: -23.3 degree
Ambient Temperature: 32.2 degree
Subcooling Temperature: 32.2 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 32.2 degree

Compressor Specification

Serial Model HP V/Hz Dispt (cm3) Cooling Capacity (ASHRAE) Motor type Starting Device Starting capacitor (uF) Running capacitor (uF) Cooling Type
Test Conditions:-23.3℃(-10F)
Capacity (W) Capacity (Btu/h) lnput Power(W) Current  (A) COP EER
L QD25HG 1/12 220-240V/50-60Hz 2.5 55 188 52 0.55 1.05 3.61 RSIR PTC Starting Relay / / ST
QD30HG 1/12 3.0 65 222 62 0.63 1.05 3.58 RSIR / / ST
QD35HG 1/11 3.5 75 256 71 0.68 1.05 3.60 RSIR / / ST
ADW43 1/6- 4.3 110 375 100 1.0 1.1 3.75 RSIR / / ST
ADW51 1/6 5.1 125 427 104 1.1 1.2 4.10 RSIR / / ST
ADW57 1/5- 5.7 135 461 112 1.15 1.2 4.11 RSIR / / ST
MS ADW43 1/6- 4.3 110 375 100 1.0 1.1 3.75 RSIR PTC/Current Starting Relay / / ST
ADW51 1/6 5.1 125 427 104 1.1 1.2 4.10 RSIR / / ST
ADW57 1/5- 5.7 135 461 112 1.15 1.2 4.11 RSIR / / ST
ADW66 1/4- 6.6 165 563 132 1.2 1.25 4.27 RSIR / / ST
ADW77 1/4 7.7 185 631 148 1.4 1.25 4.27 RSIR / / ST
ADW86 1/4+ 8.6 200 682 160 1.45 1.25 4.27 RSIR / / ST
ADW91 1/3- 9.1 220 751 176 1.65 1.25 4.27 RSIR / / ST
LM ADW43 1/6- 4.3 110 375 100 1.0 1.1 3.75 RSIR / / ST
ADW51 1/6 5.1 125 427 104 1.1 1.2 4.10 RSIR / / ST
ADW57 1/5- 5.7 135 461 112 1.15 1.2 4.11 RSIR / / ST
ADW66 1/4- 6.6 165 563 132 1.2 1.25 4.27 RSIR / / ST
ADW77 1/4 7.7 185 631 148 1.4 1.25 4.27 RSIR / / ST
MK ADW66 1/4- 6.6 165 563 132 1.2 1.25 4.27 RSIR / / ST
ADW77 1/4 7.7 185 631 148 1.4 1.25 4.27 RSIR / / ST
ADW86 1/4+ 8.6 200 682 160 1.45 1.25 4.27 RSIR / / ST
ADW91 1/3- 9.1 220 751 176 1.65 1.25 4.27 RSIR / / ST
ADW110 3/8 11.0 270 921 215 2.05 1.25 4.28 RSIR / / F
WQ ADW91 1/3- 9.1 220 751 176 1.65 1.25 4.27 RSIR / / F
ADW110 3/8 11.0 270 921 215 2.05 1.25 4.28 RSIR / / F
ADW128 3/8+ 12.8 320 1092 256 2.3 1.25 4.27 CSIR Current  Starting Relay 80 / F
ADW142 1/2- 14.2 350 1194 280 2.6 1.25 4.27 CSIR 80 / F
ADW153 1/2 15.3 380 1297 304 2.8 1.25 4.27 CSIR 80 / F

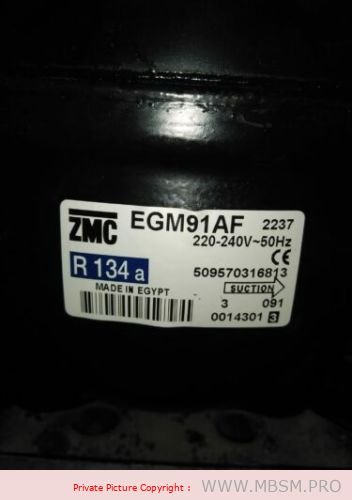

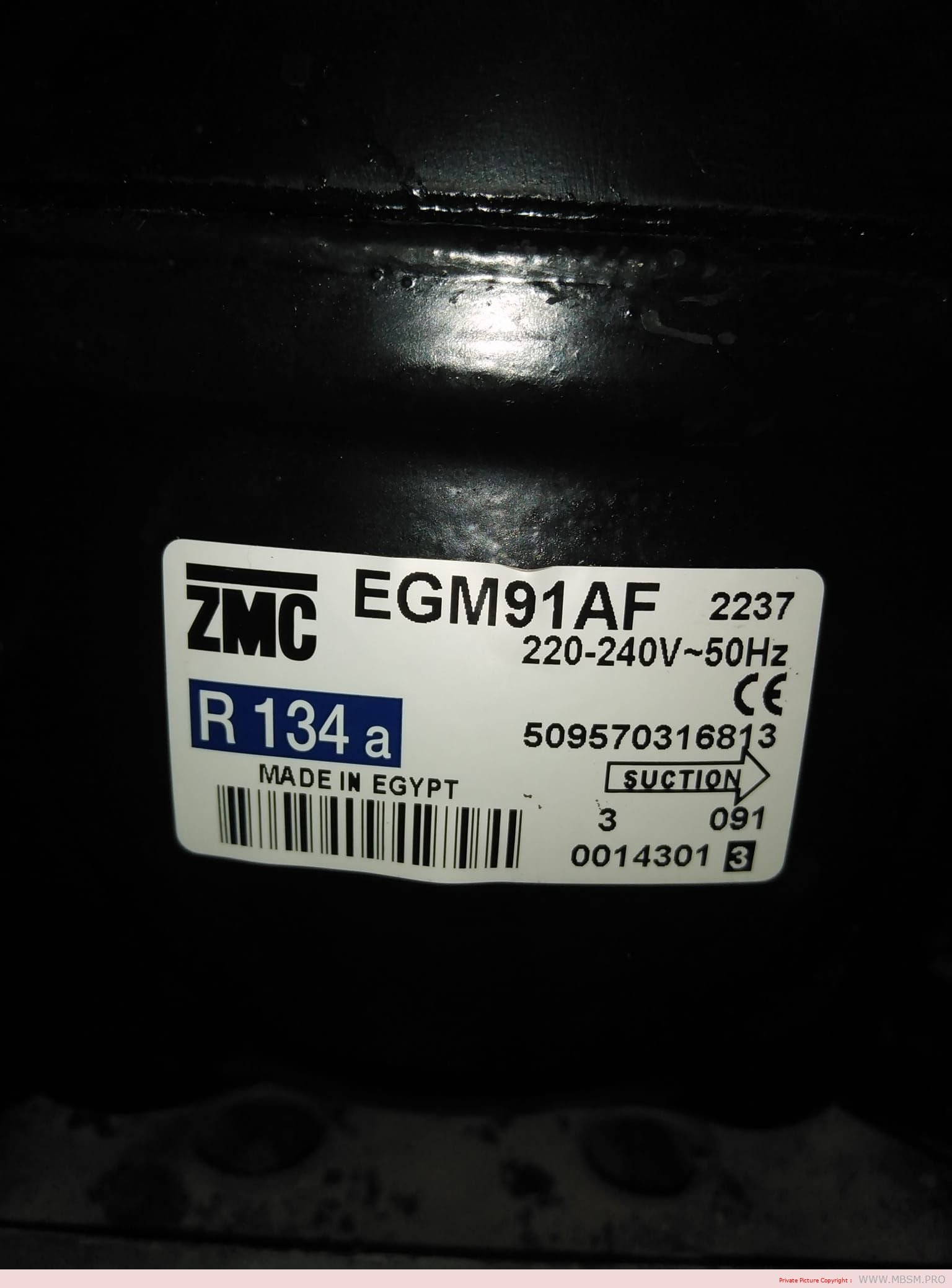

Mbsm.pro, Compressor, egm91af, 1/4 hp, LBP

Category: compressor
written by Lilianne | 24 September 2023

DONNÉES TECHNIQUES DU COMPRESSEUR

MODÈLE : EGM91AF

Données GENERALES

Réfrigérant: R134a
Application: LBP
Plage de température d’évaporation : -30°C à -10°C
Tension/Fréquence : 220/240 V/50 Hz
Refroidissement du compresseur : Statique
Périphérique d’extension : Tube capillaire
Quantité d’emballage : Multi-96:120 pièces
Approbations : CE

Données mécaniques

Charge d’huile : 180cm3
Configuration du type d’huile : Ester
Viscosité du type d’huile : 19 heures c.
Poids: 7,82 kg

Données électriques

Type de moteur : RSIR/CSIR
Plage de fonctionnement de tension à 50 Hz : 187-264V
Température maximale du moteur : 130°C
Courant du rotor verrouillé : 6,78 A
Résistance d’enroulement de démarrage : 11,60±5%Ω à 25°C
Exécuter la résistance d’enroulement : 11,00±5%Ω à 25°C
Phase: 1 ph

Caractéristiques externes

Diamètre intérieur (mm)
Connecteur d’aspiration 6.55
Connecteur de décharge 4.9
Connecteur de processus 6.55
Matériel Cuivre

Composants électriques

Appareil de démarrage : PTC QP2-15Ω
Protection du moteur : DRB28P61A1

The EGM91AF is a hermetic reciprocating compressor manufactured by ZMC. It is a 1/4 HP compressor that uses R134a refrigerant. The compressor has a voltage working range of 220-240V at 50Hz. It has a motor type of RSIR/CSIR and a starting device of PTC QP2-15Ω. The compressor has an oil charge of 180 cm3 and an oil type configuration of POE.

The EGM91AF is used in a variety of applications, including refrigerators, freezers, and air conditioners. It is a reliable and efficient compressor that can provide years of service.

Here are some of the features of the EGM91AF:

  • Hermetic reciprocating compressor
  • 1/4 HP
  • R134a refrigerant
  • Voltage working range of 220-240V at 50Hz
  • Motor type of RSIR/CSIR
  • Starting device of PTC QP2-15Ω
  • Oil charge of 180 cm3
  • Oil type configuration of POE

If you are looking for a reliable and efficient compressor for your refrigerator, freezer, or air conditioner, the EGM91AF is a good option to consider.



Mbsm.pro, compressor, Huaguang, R600a, ETA110L, 1/5 hp, ETA115L, 1/4 hp, ETA130L, 1/4 hp++, ETA150L, 1/3 hp

Category: compressor
written by Lilianne | 24 September 2023

Mbsm.pro, compressor, Huaguang, R600a, ETA110L, 1/5 hp, ETA115L, 1/4 hp, ETA130L, 1/4 hp++, ETA150L, 1/3 hp



Mbsm.pro, Compressor, Samsung, Nc4av80alr, 1/4 hp, Displacement 8.08cc, Inverter, type Nc, R600a, Lbp, serie AV, Blcd Control 9 slot

Category: compressor
written by Lilianne | 24 September 2023

Mbsm.pro, Compressor, Samsung, Nc4av80alr, 1/4 hp, Displacement 8.08cc, Inverter, type Nc, R600a, Lbp, serie AV, Blcd Control 9 slot

The NC4AV80ALR compressor is a  compressor manufactured by Samsung. It is used in refrigerators and other cooling systems. The compressor has the following specifications

  • Model: NC4AV80ALR
  • Displacement: 8.0 ST
  • Rated voltage and frequency: 220V~60Hz, 115V~60Hz, 115-127V~60Hz, 100V~50/60Hz, 110V~60Hz.
  • Refrigerant: R-600A
  • Weight: 70.6 kg
  • Courant : 1,40 A
  • Power consumption: 1.63 kW
  • COP : 5,55



Mbsm.pro, Compressor, Beko, LG, MB98NBEM, R600, 1/4 hp, 172 w

Category: compressor
written by Lilianne | 24 September 2023

Mbsm.pro, Compressor, Beko, LG, MB98NBEM, R600, 1/4 hp, 172 w

https://www.mbsm.pro/wp-content/uploads/2022/06/Mbsm_dot_pro_private_PDF_msa43lbeg.pdf







Mbsm.pro, Compressor, Jiaxipera, TT1117GY, R-600, 198w/-23.3°C, 1/4 hp

Category: compressor
written by Lilianne | 24 September 2023

Compressor TT 111 7GY

Refrigerant: R -600 a

Application: ( LBP ): Low Suction Pressure

Cooling capacity at -23.3°: 198 W

Cylinder volume: 11.3 cm³

Compressor nozzle diameter TT 1117 GY :

Suction: ¼

Discharge : ¼

Service: ¼

Weight: 8.4 kg

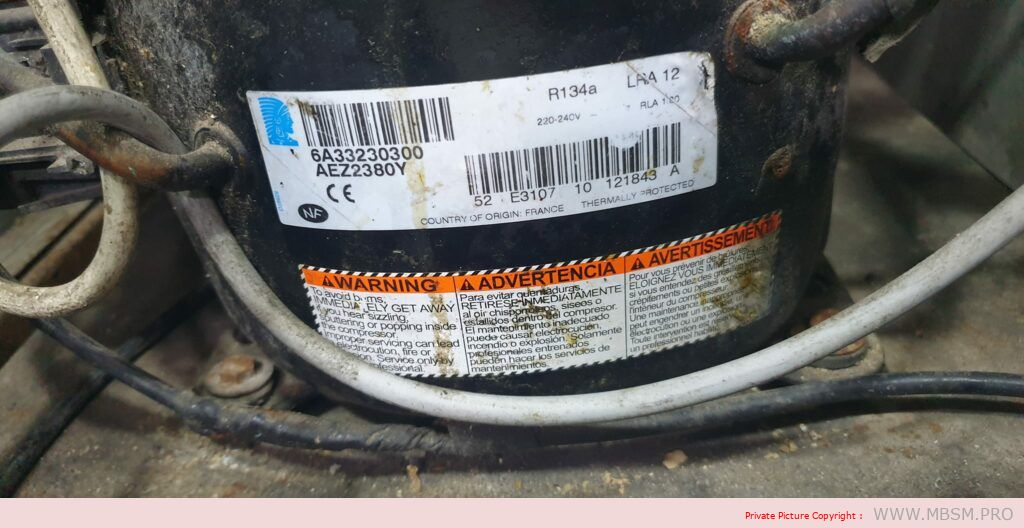

Mbsm.pro, COMPRESSOR, HERMETIC, 1/4 hp, lbp, r134a, UNIT-TECUMSEH, TECUMSEH, AEZ2380Y

Category: compressor
written by Lilianne | 24 September 2023
Refrigerant gas R134a
Electrical power of the motor-compressor (CV) 1/4
220V- 50Hz-1.8A- 3/16″-1/4″
Height length Width 208-263-155mm
Oil 0.350Litre
Polyolester-poe
Cooling capacity (W) 223
Scheme of measures Evaporation temperature: -23.3°C – Evaporation pressure: 1.15bar / Condensation temperature: 54.4°C – Condensation pressure: 14.7bar
Use Capacity refrigerator between 320 and 480 liters

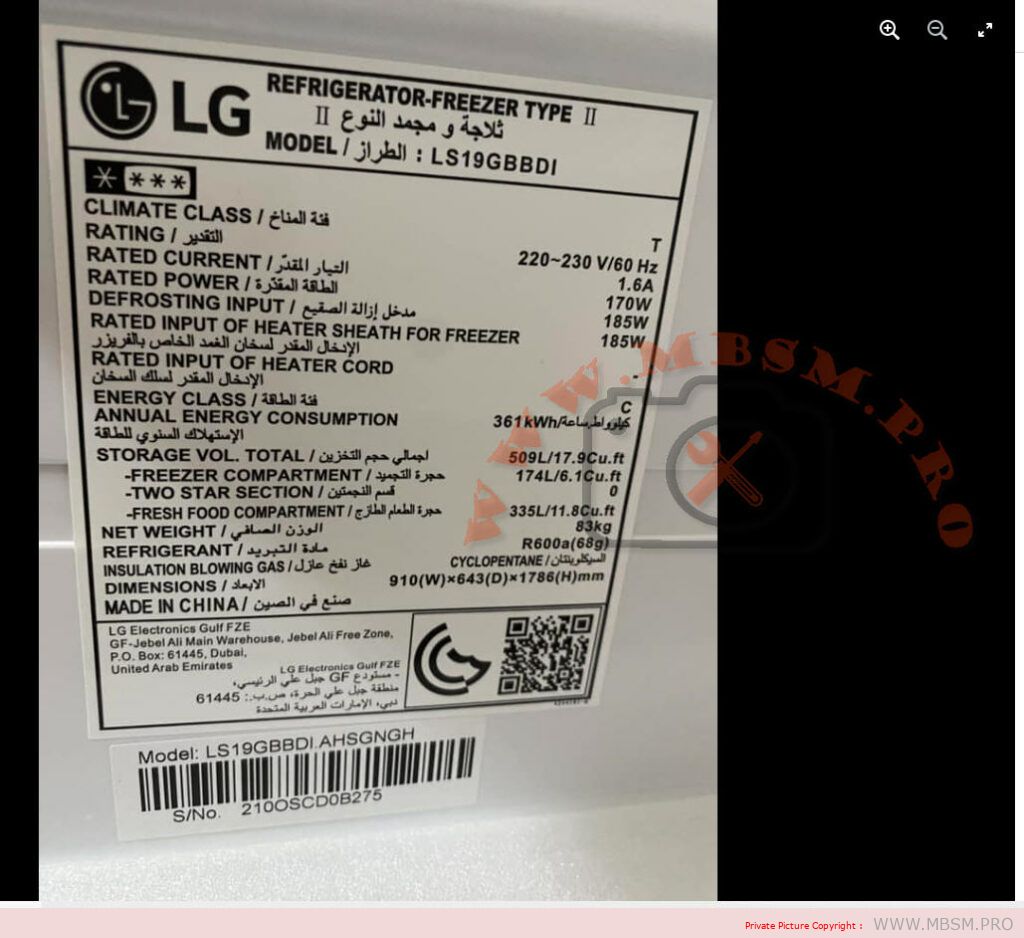

Mbsm.pro, LS19GBBDI, LG Refrigerator, 17.9 Cu.Ft , Silver PCM Color, Smart Inverter, Domper Compressor, vfl110cy1, 1/4 hp, r600a

Category: Refrigerator
written by rober us | 24 September 2023

Type： frequency conversion Model： VFL110CY1
Refrigerant： R600a Voltage：
Frequency： Application： LBP
HP： Displacement(cm³)： 11
Cooling： ST Lubricant Type：
Lubricant(ml)： Motor Type： BLDC
Starting Type： Starter：


Mbsm.pro, Files, Pdf, Compressor, HPY16AAa, 1/4 hp, Danfos

Category: compressor,Files
written by rober us | 24 September 2023
  • Compresseur hermétique Cubigel – Huayi Modèle HPY16AAA (LBP) R600 220-240V 50Hz 1/4HP Projection 6.5″ / 3(S) Capillaire d’expansion -35¼C -10¼C


Mbsm.pro, Compressor, Kulthorn, c-bz160l6z, 1/4 Hp, 200 w

Category: compressor
written by Jamila | 24 September 2023
Essential details
Place of Origin:
Thailand
Brand Name:
KK
Type:
Refrigerator compressor
Application:
Refrigeration Parts, LBP
Capacity(w)–C-BZN150L5:
180
Voltage:
220-240 V, 50 Hz
Color:
Black
Displa(cm/rev):
6.65
Refrigerant:
R134a
