PH360X3C-4KTS1:
COMPRESSOR | COMPRESSOR, REFRIGERATION;TYPE ROTARY, FLOW RATE 634CFM, POTENTIAL 220-240 VAC, COOLING CAPACITY 2 TON; REF: MODEL: PA240M2CS 4KU1;FFT: REFRIGERENT USED: 410A Make: Toshiba |
(cm3/rev) (±5%W) (±5% W) (±5%) (A) ±3dB(A) μF-V (ml) (kg) (kg)
1 PH108X1CY-8BG*2 10.8 1820 595 3.06 2.7 59 25/370 350 0.70 10.7
2 PH120X1CY-8BG*2 12.2 2090 675 3.10 3.1 59 25/370 350 0.70 10.7
3 PH135X1C-8DZ*2 13.6 2280 750 3.04 3.4 59 25/370 400 0.85 12.0
4 PH150X1C-8DZ*2 14.8 2500 820 3.05 3.8 60 25/370 400 0.85 12.0
5 PH150X1C-8DZ*2 14.8 2520 810 3.11 3.7 61 30/370 400 0.85 12.0
6 PH155X1C-8DZ*2 15.4 2600 850 3.06 4.0 59 25/370 400 0.85 12.0
7 PH160X1C-8DZ*2 16.1 2720 890 3.06 4.1 59 25/370 400 0.85 12.0
8 PH160X1C-8DZ*3 16.1 2720 875 3.11 4.0 61 30/370 400 0.85 12.0
9 PH165X1C-8DZ*2 16.5 2810 920 3.05 4.2 59 25/370 400 0.85 12.0
10 PH165X1C-8DZ*3 16.5 2795 895 3.12 4.1 61 30/370 400 0.85 12.0
11 PH170X1C-8DZ*2 17.1 2920 960 3.04 4.5 59 25/370 400 0.85 12.0
12 PH170X1C-8DZ*3 17.1 2920 935 3.12 4.3 61 30/370 400 0.85 12.0
13 PH180X1C-8DZ*2 17.8 3050 1025 2.98 4.8 59 25/370 400 0.85 12.0
14 PH180X1C-8DZ*3 17.8 3015 965 3.12 4.5 61 30/370 400 0.85 12.0
15 PH195X2C-8FTC 19.3 3330 1080 3.08 5.0 61 25/370 480 1.10 15.1
16 PH200X2C-8FTC 20.0 3470 1135 3.06 5.2 61 25/370 480 1.10 15.1
17 PH200X2C-8FTC1 20.0 3465 1100 3.15 5.2 64 30/370 480 1.20 15.8
18 PH215X2C-8FTC 21.6 3725 1210 3.08 5.6 61 35/370 480 1.20 15.8
19 PH225X2C-8FTC 22.4 3870 1250 3.10 5.7 61 35/370 480 1.20 15.8
20 PH225X2C-8FTC1 22.4 3870 1230 3.15 5.6 64 35/370 480 1.20 15.8
21 PH230X2C-8FTC 23.1 3990 1310 3.05 6.0 61 35/370 480 1.20 15.8
22 PH240X2C-8FTC 23.9 4140 1355 3.06 6.2 61 35/370 480 1.20 15.8
23 PH240X2C-8FTC1 23.9 4070 1285 3.17 5.8 65 35/370 480 1.20 16.5
24 PH260X2C-8FTC1 26.2 4600 1510 3.05 7.3 63 35/370 520 1.30 16.3
25 PH260X2C-8FTC3 26.2 4530 1440 3.15 6.8 63 35/400 520 1.30 17.1
26 PH280X2C-8FTC1 28.0 4900 1570 3.12 7.5 64 35/370 520 1.30 17.1
27 PH290X2C-8FTC1 29.0 5110 1650 3.10 8.0 64 35/370 520 1.30 17.1
28 PH295X2C-8FTC1 29.4 5180 1670 3.10 8.0 64 35/370 520 1.30 17.1
29 PH295XCS-8KUC1 29.4 5200 1700 3.06 8.0 65 35/370 750 1.80 17.7
30 PH310X2CS-8KUC1 30.8 5410 1815 2.98 9.5 64 40/370 750 1.80 17.7
31 PH330X2CS-8KUC3 32.8 5720 1920 2.98 10.0 64 40/370 750 1.80 17.7
32 PH340X3C-8KUC1 34.2 5950 1945 3.06 9.1 66 50/400 750 1.80 20.6
33 PH360X3C-8KUC1 35.7 6240 2045 3.05 9.6 66 50/400 750 1.80 20.6
34 PH400X3CS-8KUC1 40.2 6920 2245 3.08 10.5 66 50/400 950 2.10 23.3
35 PH420X3CS-8MUC1 42.0 7400 2370 3.12 11.1 66 50/400 950 2.10 23.3
36 PH440X3CS-8MUC1 43.5 7650 2510 3.05 12.3 66 50/400 950 2.10 23.3
37 PH460X3CS-8PUC1 45.9 8150 2590 3.15 12.4 67 55/400 1050 2.60 25.2
38 PH480X3CS-4MU1 47.9 8500 2700 3.15 12.8 67 55/400 1050 2.60 25.2
Model Name | Displ. (cm3/rev) | COOLING Capacity (±5%W) | Power (±5% W) | COP(±5%) | Current (A) | Noise±3dB(A) | Capacitor μF-V | R22 Max (kg) | Wt. (kg) |
PH225X2C-8FTC1 | 22.4 | 3870 | 1250 | 3.1 | 5.7 | 61 | 35/370 | 1.2 | 15.8 |
PH290X2C-4FT1 | 29 | 5110 | 1650 | 3.1 | 8 | 64 | 35/370 | 1.3 | 17.1 |
PH295X2C-8FTC1 | 29.4 | 5180 | 1670 | 3.1 | 8 | 64 | 35/370 | 1.3 | 17.1 |
PH420X3C-8KUC1 | 42 | 7400 | 2370 | 3.12 | 11.1 | 66 | 50/400 | 2.1 | 23.3 |
PH480X3C-8KUC1 | 47.9 | 8460 | 2730 | 3.1 | 13 | 67 | 55/400 | ||
TYPE | SPECIFICATION | HP |
PH135G1C-4DZDE1 | 2265W/220V/50HZ/R22 | 1HP |
PH165X1C-4DZDE2 | 2780W/220V/50HZ/R22 | 1HP |
PH180X1C-4DZDE3 | 3015W/220V/50HZ/R22 | 1.5HP |
PH225X2C-4FT | 3870W/220V/50HZ/R22 | 1.5HP |
PH240X2C-4FT1 | 4140W/220V/50HZ/R22 | 1.5HP |
PH290X2C-4FT1 | 5100W/220V/50HZ/R22 | 2HP |
PH310G2C-4KN1 | 5450W/220V/50HZ/R22 | 2HP |
PH340G2C-4KU1 | 6030W/220V/50HZ/R22 | 2.5HP |
PH370G2CS-4KU1 | 6605W/220V/50HZ/R22 | 2.5HP |
PH400G2CS-4KU1 | 7030W/220V/50HZ/R22 | 3HP |
PH420G2CS-4KU1 | 7505W/220V/50HZ/R22 | 3HP |
PH480X3CS-4MU1 | 8460W/220V/50HZ/R22 | 3HP |
YH480X3CS-4MUC1 | 8350W/380V/50HZ/R22 | 3HP |
PG180X1C-4DZDE3 | 3120W/220V/50HZ/R407C | 1HP |
PA118M1C-4FZ2 | 2770W/220V/50HZ/R410A | 1HP |
PA145G1C-4FT1 | 3530W/220V/50HZ/R410A | 1.5HP |
PA240X2CS-4KU1 | 5800W/220V/50HZ/R410A | 2HP |
PA270X3CS-4MU1 | 6670W/220V/50HZ/R410A | 2.5HP |
PA290G2CS-4MU1 | 7260W/220V/50HZ/R410A | 3HP |
PA290X3CS-4MU1 | 7180W/220V/50HZ/R410A | 3HP |
PA330X3CS-4MU1 | 8190W/220V/50HZ/R410A | 3HP |
Datos Técnicos
CRK3-0325-PFJ
HCFC, R-22, 50 Hz, 1 -phase, 220/240 V
The Copeland CRK3-0325-PFJ is a 3.25 horsepower hermetic compressor. It is designed for use in refrigeration and air conditioning applications. The compressor has a voltage rating of 200-230V and a phase rating of 1PH. It has a cooling capacity of 40,600 BTU.
Here is a summary of the key specifications of the Copeland CRK3-0325-PFJ compressor:
Horsepower: 3.25 HP
Voltage: 200-230V
Phase: 1PH
Cooling capacity: 40,600 BTU
This compressor is a popular choice for a variety of applications, including:
Commercial refrigeration
Industrial air conditioning
Residential central air conditioning
Heat pumps
Air Conditioning
Performance
Evaporator Temp(ºF) 45.00 45.00
Condensing Temp(ºF) 130.00 100.00
Return Gas (ºF) 65 65
Liquid Temp (ºF) 115 85
Capacity (Btu/hr) 35200 46700
Power (W): 3450 2810
EER (Btu/Wh): 10.20 16.60
Mass Flow (Ibs/hr): 515 600
Current (Amps): 16.90 13.70
Sound Data
Sound Power (dBA): 72 Avg 77 Max
Vibration (mils(peak-peak)): 2.500 Avg 3.500 Max
Record Date: 2004-08-19
Overall Length (in): 9.44
Mechanical
Displ(in^3/Rev): 4.49
Displ(ft^3/hr): 452.06
Overall Width (in): 9.00
Overall Height (in): 15.06
Mounting Length (in): 7.50
Mounting Width (in): 7.50
Mounting Height (in): 15.44*
Suction Size (in): 3/4 Stub
Discharge Size (In): 3/8 Stub
Initial Oil Charge (oz): 55
Oil Recharge (oz): 51
Net Weight (ibs): 70.00
Internal Free Volume (in^3): 405.00
Horse Power: NA
*Overall compressor height on Copeland Brand Product´s specified mounting grommets.
Electrical
LRA-High*: 96.0
LRA Low*: NA
LRA-Half Winding: NA
MCC (Amps): 27.5
Max Operating Current: 2900
RLA(=MCC/1.4;use for contactor selection): 19.
RLA(=MCC/1.56;use for breaker & wire size selection): 17.6
RPM: NA
UL File No: SA-2337
UL File Date: 28-Dec-1984
*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.
Capacitors
Type: Start Capacitor
Part No: 014-0008-65
Low MFD: 64.0
High MFD: 77.0
Volts: 330
User Description: LOW TORQUE
Type: Start Capacitor
Part No: 014-0008-71
Low MFD: 189.0
High MFD: 227.0
Volts: 220
User Description: HIGH TORQUE
Type: Run Capacitor
Part No: 014-0037-12
Low MFD: 40.0
High MFD: 0.0
Volts: 370
User Description: NA
Alternate Applications
Refrigerante: R-22 HCFC
Voltaje: 265
Fase: 1
Freq (Hz): 60
Aplicación: Air Conditioning
Refrigerante: R-22 HCFC
Voltaje: 265
Fase: 1
Freq (Hz): 60
Aplicación: High Temp
Refrigerante: R-22 HCFC
Voltaje: 220/240
Fase: 1
Freq (Hz): 50
Aplicación: High Temp
Compresor Copeland Hermetico CRK3-0325-PFJ
Applicable air conditioners: constant speed 1.5-2.0 hp, variable frequency 2.5-3.0HP; Utilizing various environmental friendly refrigerants like R22, R410A, R407C, With various power specification to be selected, Variable frequency utilizing R410A, dual spool structure, high efficency, enviormental friendness and small vibration.
Constant-Speed/R22 230V 50Hz
6400 w
21837 btu/h
Product number | SH307MV-C7HU |
Rated voltage: | 220-240V |
frequency: | 50Hz |
Phase: | 1PH |
use: | T3 working condition |
refrigerant: | R-22 |
Exhaust volume: | 30.7ml/rev |
Rated cooling capacity (W): | 5200 |
Allowable refrigerant charge: | 1650g |
net weight: | 17.5kg |
Motor form: | SHW33K2/SHW83K1A |
Voltage variation range: | Rated voltage Rated voltage ±11% |
Protector form: | Built-in protector |
Test conditions: | 220V |
Refrigeration capacity test conditions (R22) | |
Return air temperature | 35.0℃ |
condensation temperature | 54.4℃ |
Liquid temperature before expansion valve | 46.1℃ |
Evaporation temperature | 7.2℃ |
ambient temperature | 35.0℃ |
Highly/Hitachi H series R22 fixed speed compressor product list:
model | use | refrigerant | exhaust volume | power supply | Cooling capacity | Remark | |
W | BTU/h | ||||||
SH295UY-C7HU | T1 working condition | R-22 | 29.5ml/rev | 230V/50Hz/1PH | 5090 | 17356 | Certification in progress |
SH380MV-C7PU | T3 working condition | R-22 | 38.0ml/rev | 220-240V/50Hz/1PH | 6600 | 22506 | Certification in progress |
SH280MV-C7NQ | T3 working condition | R-22 | 28.0ml/rev | 220-240V/50Hz/1PH | 4815 | 16419 | Certification in progress |
SH410MV-C8LU | T3 working condition | R-22 | 41.0ml/rev | 220-240V/50Hz/1PH | 7165 | 24432 | Certification in progress |
SH315MV-C8LU | T3 working condition | R-22 | 31.5ml/rev | 220-240V/50Hz/1PH | 5470 | 18652 | Certification in progress |
TH380MV-C8FU | T3 working condition | R-22 | 38.0ml/rev | 220-240V/50Hz/1PH | 6590 | 22471 | Certification in progress |
TH380MV-C8FQ | T3 working condition | R-22 | 38.0ml/rev | 220-240V/50Hz/1PH | 6590 | 22471 | Certification in progress |
SH315MV-C8LG | T3 working condition | R-22 | 31.5ml/rev | 220-240V/50Hz/1PH | 5470 | 18652 | Certification in progress |
SH417GV-C8DUT | T1 working condition | R-22 | 41.7ml/rev | 220-240V/50Hz/1PH | 7200 | 24552 | Certification in progress |
SH380MV-C7PG | T3 working condition | R-22 | 38.0ml/rev | 220-240V/50Hz/1PH | 6600 | 22506 | Certification in progress |
SH370UY-C7PU1 | T1 working condition | R-22 | 37.0ml/rev | 230V/50Hz/1PH | 6440 | 21960 | Certification in progress |
SH410UV-C8DG | T1 working condition | R-22 | 41.0ml/rev | 220-240V/50Hz/1PH | 7050 | 24040 | Certification in progress |
SH380RY-C8DU1 IN | T1 working condition | R-22 | 38.0ml/rev | 230V/50Hz/1PH | 6530 | 22267 | Certification in progress |
SH336MV-C7AG2 | T3 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5810 | 19812 | Certification in progress |
SH307UV-C7HQ1 | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5230 | 17834 | Certification in progress |
SH417UV-C8DG | T1 working condition | R-22 | 41.7ml/rev | 220-240V/50Hz/1PH | 7140 | 24347 | Certification in progress |
SH325UV-C7HL | T1 working condition | R-22 | 32.5ml/rev | 220-240V/50Hz/1PH | 5600 | 19096 | Certification in progress |
SH310UV-C8DU | T1 working condition | R-22 | 31.0ml/rev | 220-240V/50Hz/1PH | 5300 | 18073 | Certification in progress |
SH286RY-C7PU2A | T1 working condition | R-22 | 28.6ml/rev | 230V/50Hz/1PH | 4880 | 16640 | Certification in progress |
TH454RV-C9EU | T1 working condition | R-22 | 45.4ml/rev | 220-240V/50Hz/1PH | 7630 | 26018 | Certification in progress |
TH508MV-C9EU1 | T3 working condition | R-22 | 50.8ml/rev | 220-240V/50Hz/1PH | 8750 | 29837 | Certification in progress |
SH290UY-C7HUA | T1 working condition | R-22 | 29.0ml/rev | 230V/50Hz/1PH | 4960 | 16913 | Certification in progress |
SH315UY-C7NU | T1 working condition | R-22 | 31.5ml/rev | 230V/50Hz/1PH | 5410 | 18448 | Certification in progress |
ASH244MV-C7HU | T3 working condition | R-410A | 24.4ml/rev | 220-240V/50Hz/1PH | 5930 | 20221 | Certification in progress |
SH300UY-C7PQA | T1 working condition | R-22 | 29.8ml/rev | 230V/50Hz/1PH | 5100 | 17391 | Certification in progress |
SH325UV-C8DU | T1 working condition | R-22 | 32.5ml/rev | 220-240V/50Hz/1PH | 5600 | 19096 | Certification in progress |
SH307DG-C8LUA | T3 working condition | R-22 | 30.5ml/rev | 230V/60Hz/1PH | 6400 | 21824 | Certification in progress |
SH370RY-C8LU | T1 working condition | R-22 | 37.1ml/rev | 230V/50Hz/1PH | 6395 | 21806 | Certification in progress |
SH255DG-C7HQ2 | T3 working condition | R-22 | 25.5ml/rev | 230V/60Hz/1PH | 5380 | 18345 | Certification in progress |
SH325DG-C8LQ | T3 working condition | R-22 | 32.5ml/rev | 230V/60Hz/1PH | 6860 | 23392 | Certification in progress |
SH401MY-C7NQH | T1 working condition | R-22 | 40.1ml/rev | 230V/50Hz/1PH | 6950 | 23699 | Certification in progress |
SHV73YC2GU | T1 working condition | R-22 | 41.7ml/rev | 208-230V/60Hz/1PH | 8520 | 29053 | Certification in progress |
SH356UV-C8LU | T1 working condition | R-22 | 35.6ml/rev | 220-240V/50Hz/1PH | 6090 | 20766 | Certification in progress |
SH264DG-C7HG2G | T3 working condition | R-22 | 26.4ml/rev | 230V/60Hz/1PH | 5550 | 18925 | Certification in progress |
SH300DG-C7HUA | T3 working condition | R-22 | 29.8ml/rev | 230V/60Hz/1PH | 6290 | 21448 | Certification in progress |
SH370UY-C8LU | T1 working condition | R-22 | 37.1ml/rev | 230V/50Hz/1PH | 6380 | 21755 | Certification in progress |
SH336MV-C7HG1 | T3 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5750 | 19607 | Certification in progress |
SH255DG-C7HQ1 | T3 working condition | R-22 | 25.5ml/rev | 230V/60Hz/1PH | 5350 | 18243 | Certification in progress |
SH264DG-C7HQ1 | T3 working condition | R-22 | 26.4ml/rev | 230V/60Hz/1PH | 5580 | 19027 | Certification in progress |
SH438MV-C8CU | T3 working condition | R-22 | 43.8ml/rev | 220-240V/50Hz/1PH | 7480 | 25506 | Certification in progress |
SH295GV-C7HQ1A | T1 working condition | R-22 | 29.5ml/rev | 220V/50Hz/1PH | 5180 | 17663 | Certification in progress |
SH330DG-C8LU | T3 working condition | R-22 | 33.0ml/rev | 230V/60Hz/1PH | 6950 | 23699 | Certification in progress |
SH325DG-C8LU | T3 working condition | R-22 | 32.5ml/rev | 230V/60Hz/1PH | 6860 | 23392 | Certification in progress |
SH336MV-C7PU1 | T3 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5750 | 19607 | Certification in progress |
SH300UY-C7HUA | T1 working condition | R-22 | 29.8ml/rev | 230V/50Hz/1PH | 5100 | 17391 | Certification in progress |
SH280UY-C7HUA | T1 working condition | R-22 | 28.0ml/rev | 230V/50Hz/1PH | 4810 | 16402 | Certification in progress |
SH356DG-C8DQ3 | T3 working condition | R-22 | 35.6ml/rev | 230V/60Hz/1PH | 7450 | 25404 | Certification in progress |
SH325DG-C7HQG | T3 working condition | R-22 | 32.5ml/rev | 230V/60Hz/1PH | 6860 | 23392 | Certification in progress |
SH307HV-C7HG1A | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5300 | 18073 | Certification in progress |
SH264DG-C7HU2G | T3 working condition | R-22 | 26.4ml/rev | 230V/60Hz/1PH | 5550 | 18925 | Certification in progress |
SH356DG-C8DU3 | T3 working condition | R-22 | 35.6ml/rev | 230V/60Hz/1PH | 7450 | 25404 | Certification in progress |
SH325DG-C7HQH | T3 working condition | R-22 | 32.5ml/rev | 230V/60Hz/1PH | 6860 | 23392 | Certification in progress |
SH286UY-C7HUA | T3 working condition | R-22 | 28.6ml/rev | 230V/50Hz/1PH | 4910 | 16743 | Certification in progress |
SH264DG-C7HQ1H | T3 working condition | R-22 | 26.4ml/rev | 230V/60Hz/1PH | 5580 | 19027 | Certification in progress |
SH295GV-C7HU1A | T1 working condition | R-22 | 29.5ml/rev | 220V/50Hz/1PH | 5180 | 17663 | Certification in progress |
SH255DG-C8LQ | T3 working condition | R-22 | 25.5ml/rev | 230V/60Hz/1PH | 5380 | 18345 | Certification in progress |
SHW33TC2-S2 | T1 working condition | R-22 | 35.6ml/rev | 220V/50Hz/1PH | 5380 | 18345 | Certification in progress |
SH370GV-C8LU | T1 working condition | R-22 | 37.1ml/rev | 220V/50Hz/1PH | 6370 | 21721 | Certification in progress |
SH370DG-C8LU | T3 working condition | R-22 | 37.1ml/rev | 220V/60Hz/1PH | 7780 | 26529 | Certification in progress |
SH356MV-C7HQ1 | T3 working condition | R-22 | 35.6ml/rev | 220-240V/50Hz/1PH | 6130 | 20903 | Certification in progress |
SH295GV-C7HUA | T1 working condition | R-22 | 29.5ml/rev | 220V/50Hz/1PH | 5155 | 17578 | Certification in progress |
SH264DG-C7HU1G | T3 working condition | R-22 | 26.4ml/rev | 220V/60Hz/1PH | 5520 | 18823 | Certification in progress |
SH370SV-C8LU | T1 working condition | R-22 | 37.1ml/rev | 220-240V/50Hz/1PH | 6410 | 21858 | Certification in progress |
SH336DG-C7PU1 | T3 working condition | R-22 | 33.6ml/rev | 220V/60Hz/1PH | 7125 | 24296 | Certification in progress |
SH295RY-C7PU1A | T1 working condition | R-22 | 29.5ml/rev | 230V/50Hz/1PH | 5050 | 17220 | Certification in progress |
THU33WC6-S1 | T1 working condition | R-22 | 48.09ml/rev | 220-240V/50Hz/1PH | 5050 | 17220 | Certification in progress |
SH356MV-C7NU | T3 working condition | R-22 | 35.6ml/rev | 220-240V/50Hz/1PH | 5050 | 17220 | Certification in progress |
SHW73TC2UP1 | null | R-22 | 35.6ml/rev | 208-230V/60Hz/1PH | 5050 | 17220 | Certification in progress |
SH307RV-C8LU | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5050 | 17220 | Certification in progress |
THK33XC6-G | null | R-22 | 45.4ml/rev | 200-240V/50Hz/1PH | 5050 | 17220 | Certification in progress |
SH356DG-C8LU | T3 working condition | R-22 | 35.6ml/rev | 220V/60Hz/1PH | 5050 | 17220 | Certification in progress |
SH336DG-C8LU | T3 working condition | R-22 | 33.6ml/rev | 220V/60Hz/1PH | 5050 | 17220 | Certification in progress |
SH286DG-C7HU | T3 working condition | R-22 | 28.6ml/rev | 220V/60Hz/1PH | 5895 | 20101 | Certification in progress |
SHV73YC1-E | T3 working condition | R-22 | 41.7ml/rev | 208-230V/60Hz/1PH | 8520 | 29053 | Certification in progress |
SH307MV-C7HU | T3 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5200 | 17732 | Certification in progress |
SHY33MC2US | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5200 | 17732 | Certification in progress |
SH336MV-C8LU | T3 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5655 | 19283 | Certification in progress |
SHX33SC2US | T1 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5710 | 19471 | Certification in progress |
SHY33MC2-S | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5200 | 17732 | Certification in progress |
SHX33SC2UU | T1 working condition | R-22 | 33.6ml/rev | 220-240V/50Hz/1PH | 5630 | 19198 | Certification in progress |
SHV33YC6-S | T1 working condition | R-22 | 41.7ml/rev | 220V/50Hz/1PH | 7020 | 23938 | Certification in progress |
SHV33ZC1-S | T1 working condition | R-22 | 40.0ml/rev | 220V/50Hz/1PH | 6770 | 23085 | Certification in progress |
SHZ33LC2-S | T1 working condition | R-22 | 28.6ml/rev | 220-240V/50Hz/1PH | 4820 | 16436 | Certification in progress |
SHW73TC2UU | T1 working condition | R-22 | 35.6ml/rev | 208-230V/60Hz/1PH | 7305 | 24910 | Certification in progress |
SHV73YC1-U | T1 working condition | R-22 | 41.7ml/rev | 208-230V/60Hz/1PH | 8520 | 29053 | Certification in progress |
SHW33TC4-S | T1 working condition | R-22 | 35.6ml/rev | 220V/50Hz/1PH | 6058 | 20657 | Certification in progress |
SHY33MC2UU | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5165 | 17612 | Certification in progress |
SHW73TC4-E | T3 working condition | R-22 | 35.6ml/rev | 208-230V/60Hz/1PH | 7330 | 24995 | Certification in progress |
SHW73TC9GU | T1 working condition | R-22 | 35.6ml/rev | 208-230V/60Hz/1PH | 7440 | 25370 | Certification in progress |
SHW83TC4-P1 | T3 working condition | R-22 | 35.6ml/rev | 220V/60Hz/1PH | 7330 | 24995 | Certification in progress |
SHV33ZC1-U | T1 working condition | R-22 | 40.0ml/rev | 220V/50Hz/1PH | 6740 | 22983 | Certification in progress |
SHV33YC1-E | T3 working condition | R-22 | 41.7ml/rev | 220-240V/50Hz/1PH | 6950 | 23699 | Certification in progress |
SHW33TC4-E | T3 working condition | R-22 | 35.6ml/rev | 220-240V/50Hz/1PH | 6090 | 20766 | Certification in progress |
SHZ33QC2-G | T1 working condition | R-22 | 27.5ml/rev | 220V/50Hz/1PH | 4620 | 15754 | Certification in progress |
SHV33YC6-U | T1 working condition | R-22 | 41.7ml/rev | 220-240V/50Hz/1PH | 7100 | 24211 | Certification in progress |
SHY33MC2-E | T3 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5200 | 17732 | Certification in progress |
SHY73MC4-U | T1 working condition | R-22 | 30.7ml/rev | 208-230V/60Hz/1PH | 6615 | 22557 | Certification in progress |
SHW73TC4-U | T1 working condition | R-22 | 35.6ml/rev | 208-230V/60Hz/1PH | 7440 | 25370 | Certification in progress |
SHV33YC6-G | T1 working condition | R-22 | 41.7ml/rev | 220V/50Hz/1PH | 7100 | 24211 | Certification in progress |
SHZ73LC2-U | T1 working condition | R-22 | 28.6ml/rev | 208-230V/60Hz/1PH | 5935 | 20238 | Certification in progress |
SHY33MC2-U | T1 working condition | R-22 | 30.7ml/rev | 220-240V/50Hz/1PH | 5165 | 17612 | Certification in progress |
SHZ33LC2-U | T1 working condition | R-22 | 28.6ml/rev | 220-240V/50Hz/1PH | 4820 | 16436 | Certification in progress |
SHW33TC2-U(invalid) | T1 working condition | R-22 | 35.6ml/rev | 220-240V/50Hz/1PH | 5990 | 20425 | Certification in progress |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The AB114JT compressor is a Tecumseh 2 HP, 208-230V, 1 PH, 24200 BTU, R22, Hermetic (Reciprocating) Compressor Replacement. It is available for purchase from AC Parts Distributors[1][2]. It is also listed in a compressor substitution guide[5]. However, it is not clear what the specific application of the compressor is or what equipment it is compatible with.
Citations:
[1] https://acpartsdistributors.com/products/ab114jt-004
[2] https://acpartsdistributors.com/products/ab114jt
[3] https://www.repairclinic.com/ProductDetail/1175862
[4] https://genemco.com/products/tecumseh-air-cooled-condensing-unit-3hp
[5] https://www.scribd.com/document/428623967/Source1CompressorSubstitutionGuide-0814
Citations:
[1] https://acpartsdistributors.com/products/ab114jt-004

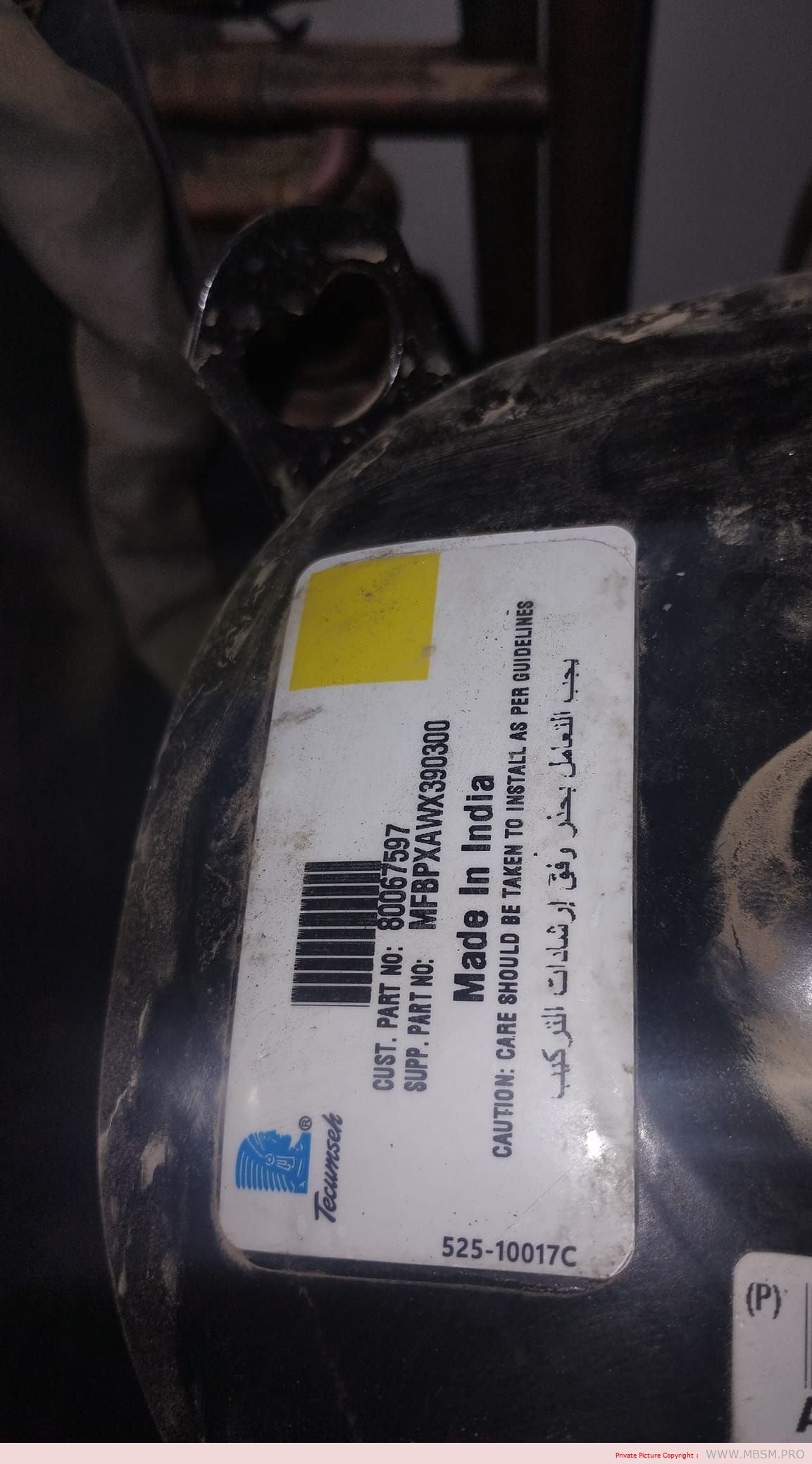

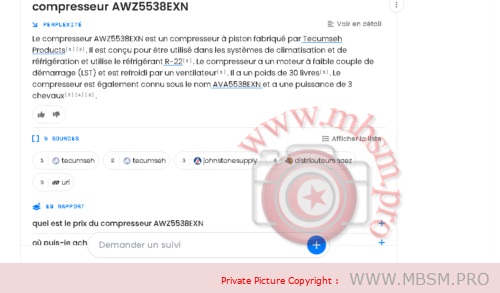

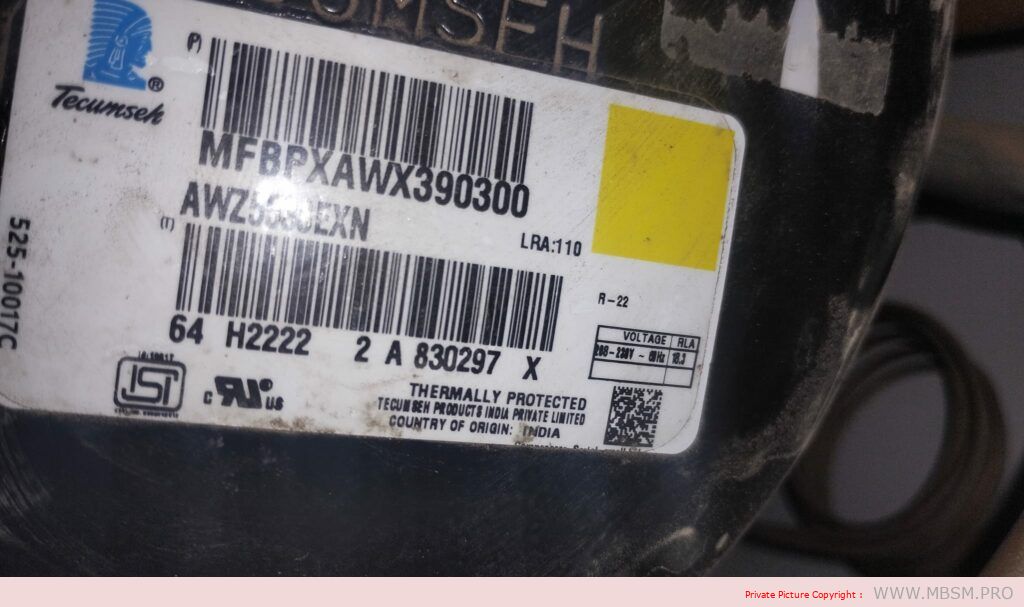

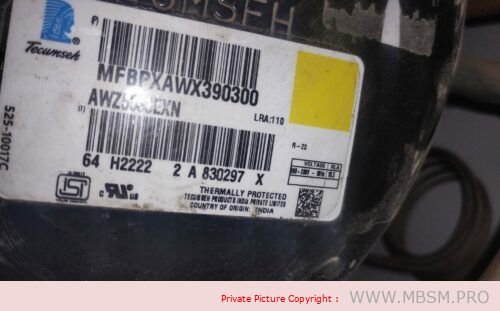

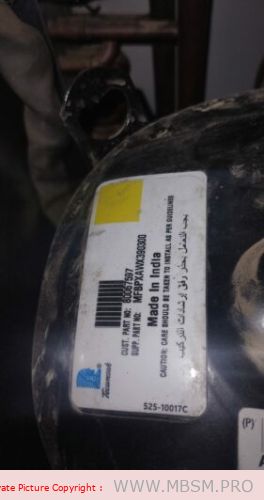

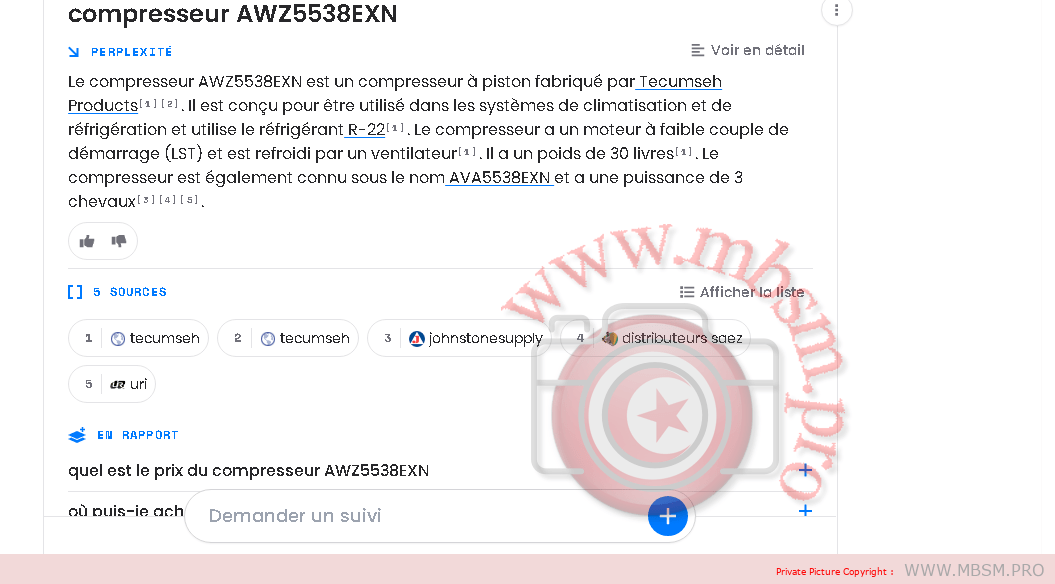

Mbsm_dot_pro_private_PDF_AWZ5538EXN
Condition | Test Voltage | (R) Btu/h | (R) kcal/h | (R) W | (I) W | (E) Btu/Wh | (E) kcal/Wh | W/W | EVAP TEMP | COND TEMP | AMBIENT TEMP | RETURN GAS | LIQUID TEMP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ASHRAE | 230V ~ 60HZ | 38000 | 9576 | 11137 | 3800 | 10 | 2.52 | 2.93 | 7.2?C (45?F) | 54?C (130?F) | 35?C (95?F) | 35?C (95?F) | 46?C (115?F) |
ASHRAE | 230V ~ 60HZ | 38000 | 9576 | 11137 | 3800 | 10 | 2.52 | 2.93 | 7.2?C (45?F) | 54?C (130?F) | 35?C (95?F) | 35?C (95?F) | 46?C (115?F) |
Evaporating Temp. Range: |
-23.3°C to 12.8°C (-10°F to 55°F) |
Motor Torque: |
Low Start Torque (LST) |
Compressor Cooling: |
Fan |
Weight: |
30 |
Weight Unit of Measure: |
KG |
Displacement (cc): |
63 |
Oil Type: |
Mineral |
Viscosity (cSt): |
37 |
Oil Charge (cc): |
1140 |
Voltage Range (50 Hz): |
N/A |
Voltage Range (60 Hz): |
197-254 |
Locked Rotor Amps (LRA): |
110 |
Rated Load Amps (RLA 50 Hz): |
0 |
Rated Load Amps (RLA 60 Hz): |
18.3 |
Max. Continuous Current (MCC in Amps): |
29.5 |
Motor Resistance (Ohm) – Main: |
0.52 |
Motor Resistance (Ohm) – Start: |
2.32 |
MotorType: |
PSC |
Overload Type: |
N/A |
Relay Type: |
N/A |
AC refrigeration compressor for Toshiba is famous for its reliable quality and high performance when using in the conditioning system.
Toshiba was the first company to incorporate inverter technology into air conditioning systems in 1981, and since then it has always maintained a technological advantage over its competitors. The development of the new and exclusive DC hybrid inverter system has reaffirmed this ability to innovate and maintain technological leadership in a fast-growing market.
Air treatment, low sound levels, guaranteed energy savings and easy installation of the indoor units make the Toshiba air conditioners compressor the top choice for any home and office. Solutions that are studied and verified in every tiny element are recognized universally by air conditioning professionals for their total reliability. Toshiba leads in technology and in applying technology to your greatest advantage!
R22 220~240V HZ 1PH | |||||||
Model |
Displ. (m3/rev) |
Capacity |
Power (W) |
COP(W/W) |
Capacitor (μ F/V) |
Height ( mm ) |
|
W |
Btu/h |
||||||
PH60G0C-4BZDE |
6 |
985 |
3361 |
345 |
2.86 |
20/370 |
241 |
PH104G0C-4BZDE |
10.4 |
1745 |
5954 |
580 |
3.01 |
25/370 |
259 |
PH108G0C-4BZDE |
10.8 |
1820 |
6214 |
590 |
3.1 |
25/370 |
270 |
HSM140V1UFZ |
13.9 |
2425 |
8274 |
735 |
3.3 |
25/370 |
292 |
HSM150V5UFZ |
15.1 |
2640 |
9008 |
800 |
3.3 |
25/370 |
292 |
HSM165V3UDZ |
16.4 |
2855 |
9741 |
915 |
3.12 |
30/370 |
292 |
HSM165V1UFZ |
16.4 |
2845 |
9741 |
915 |
3.12 |
30/370 |
292 |
HSM220V1UFT |
20.1 |
3480 |
11874 |
1070 |
3.25 |
35/370 |
300 |
HSM210V1UFT |
20.9 |
3650 |
12454 |
1170 |
3.12 |
35/370 |
300 |
HSM215V1UFT |
21.4 |
3710 |
12659 |
1215 |
3.05 |
35/370 |
300 |
HSM215V4UFTA |
21.4 |
3700 |
12624 |
1140 |
3.25 |
40/370 |
300 |
HSM190V1UFT |
19.2 |
3340 |
11396 |
1010 |
3.31 |
35/370 |
300 |
PH210M2A-4FTS1 |
20 |
3752 |
12830 |
1154 |
3.25 |
35/370 |
392 |
PH225X2C-4FT |
22.4 |
3890 |
13273 |
1205 |
3.23 |
35/370 |
292 |
PH240M2C-4FT1 |
24 |
4225 |
14416 |
1340 |
3.15 |
35/370 |
292 |
PH250M2C-4FT1 |
25 |
4310 |
14706 |
1370 |
3.15 |
30/370 |
292 |
PH290M2C-4FT1 |
28.8 |
5090 |
17367 |
1650 |
3.08 |
35/370 |
311 |
PH300G2C-4KU1 |
29.8 |
5340 |
18220 |
1645 |
3.25 |
55/400 |
297 |
PH310M2AS-4KTS1 |
31 |
5560 |
18971 |
1765 |
3.15 |
50/370 |
348 |
PH310G2C-4FT1 |
30.8 |
5440 |
18561 |
1635 |
3.33 |
55/400 |
310 |
PH320M2AS-4KUH |
31.8 |
5570 |
19005 |
1690 |
3.3 |
55/400 |
310 |
PH340G2C-4KU |
33.7 |
6050 |
20643 |
1805 |
3.35 |
60/400 |
324 |
PH340G2C-4KTS1 |
33.7 |
6050 |
20643 |
1915 |
3.16 |
60/400 |
310 |
PHPH360G2C-4FTS1 |
36 |
6455 |
22024 |
2015 |
3.2 |
60/400 |
324 |
PH370G2CS-4MU1 |
37 |
6650 |
22690 |
2065 |
3.22 |
50/400 |
324 |
PH400G2CS-4MU1 |
39.8 |
7100 |
24225 |
2255 |
3.15 |
50/400 |
354 |
PH420G2CS-4KU1 |
42.3 |
7420 |
25317 |
2390 |
3.1 |
50/400 |
354 |
PH440G2CS-4MU |
43.5 |
7810 |
26648 |
2390 |
3.27 |
50/400 |
345 |
PH440G2CS-4KTS1 |
43.5 |
7685 |
26221 |
2500 |
3.07 |
60/400 |
354 |
PH460X3CS-4MU1 |
45.9 |
8080 |
27569 |
2600 |
3.11 |
55/400 |
397 |
PH480X3CS-4MU1 |
47.9 |
8460 |
28866 |
2730 |
3.1 |
55/400 |
397 |
R22 220~240V HZ 1PH | |||||||
Model |
Displ. (m3/rev) |
Capacity |
Power (W) |
COP |
Capacitor (μ F/V) |
Height ( mm ) |
|
W |
Btu/h |
||||||
PH120M1C-3DZDU1 |
12.2 |
2490 |
8496 |
790 |
3.15 |
30/370 |
266 |
PH130M1C-3DZDU1 |
13.1 |
2660 |
9076 |
850 |
3.13 |
30/370 |
270 |
PH160G1C-3DZDU1 |
16 |
3280 |
11190 |
1040 |
3.15 |
35/370 |
285 |
PH180G1C-3FTU2 |
18.1 |
3795 |
12949 |
1225 |
3.1 |
35/370 |
294 |
PH195G1C-3FTU1 |
19.6 |
4155 |
14177 |
1310 |
3.17 |
40/370 |
294 |
PH225M2C-3FTU1 |
22.4 |
4770 |
16275 |
1505 |
3.17 |
40/370 |
292 |
PH240M2C-3FTU1 |
20 |
5140 |
17538 |
1580 |
3.25 |
40/370 |
292 |
PH250M2C-3KUU1 |
24.8 |
5285 |
18032 |
1625 |
3.25 |
40/370 |
292 |
PH260M2AS-3KUU1 |
26.1 |
5625 |
19193 |
1815 |
3.1 |
40/370 |
333 |
PH330G2C-3MUU1 |
32.8 |
7050 |
24055 |
2200 |
3.2 |
55/400 |
297 |
PH370G2CS-3KTS1 |
37 |
7885 |
26967 |
2540 |
3.1 |
55/400 |
354 |
PH401X3CS-3MTU |
40.2 |
8735 |
29804 |
2705 |
3.23 |
60/400 |
372 |
PH441X3CS-3MUU |
43.5 |
9470 |
32312 |
2915 |
3.25 |
60/400 |
372 |
R22 220~240V HZ 1P |
|||||||
Model |
Displ. (m3/rev) |
Capacity |
Power (W) |
COP(W/W) |
Capacitor (μ F/V) |
Height ( mm ) |
|
W |
Btu/h |
||||||
PA108M1C3FZDU |
10.8 |
3110 |
10611 |
1045 |
2.98 |
35/370 |
279 |
PA118M1C-3FZU |
11.8 |
3390 |
11567 |
1125 |
3.01 |
35/370 |
279 |
PA140G1C-3FTU1 |
13.9 |
4240 |
14458 |
1402 |
3.03 |
40/370 |
298 |
PA150G1C-3FTU1 |
15.1 |
4445 |
15157 |
1505 |
2.95 |
40/370 |
298 |
PA160X2CS-3KUU |
16 |
4785 |
16325 |
1570 |
3.05 |
40/370 |
303 |
PA160M3A-3ETU |
16 |
4785 |
16325 |
1570 |
3.05 |
40/370 |
303 |
PA170M2C-3ETU |
17 |
5800 |
19790 |
1940 |
2.99 |
50/370 |
303 |
PA200M2CS-3MUU1 |
19.8 |
5800 |
19790 |
1940 |
2.99 |
50/370 |
344 |
PA210M2CS-3KTU2 |
20.8 |
6155 |
21001 |
2015 |
3.05 |
50/370 |
344 |
PA240M2C-3MTU2 |
22 |
7160 |
24430 |
2365 |
3.03 |
55/370 |
322 |
PA250M2CS-3MUU1 |
25 |
7445 |
25402 |
2500 |
2.98 |
60/370 |
344 |
PA270X3CS-3MUU |
26.9 |
8155 |
27825 |
2640 |
3.09 |
55/400 |
382 |
PA291X3CS-3MTU |
28.8 |
8850 |
30196 |
2805 |
3.08 |
55/400 |
382 |
Mbsm.pro, Compressor, awa5520exd, Tecumseh, 2 HP, 208-230V, 1 PH, 18,800 BTU, R22, Hermetic (Reciprocating) Compressor Replacement
