Mbsm.pro, Compressor, SC12C, 104L2674, DANFOSS,104L 2674, SC12C 104L2674, R22/R502, 3/8HP, 315W, MLbp, 1ph/220-240V/50HZ

written by Lilianne | 17 March 2022

Refrigerant use R22/R502,

3/8HP, 315W.

Model	Gas	HP	Voltage	Code	Details
SC10C	R22	1/3	1ph/220V-240/50HZ	104L2516	MLBP HST
SC12C	R22	3/8	1ph/220-240V/50HZ	104L2674	MLBP HST
SC15CM	R22	1/2	1ph/220V-240V/50HZ	104L2848	MLBP HST
SC18CM	R22	5/8	1ph/220-240V/50HZ	104L2120	MLBP HST
SC10D	R22	3/8	1ph/220-240V/50HZ	104L2529	MHBP HST
SC12D	R22	1/2	1ph/220-240V/50HZ	104L2694	MHBP HST
SC15D	R22	5/8	1ph/220-240V/50HZ	104L2859	MHBP HST
SC10CL	R404A	1/3	1ph/220-240V/50HZ	104L2523	LMBP HST
SC12CL	R404A	3/8	1ph/220-240V/50HZ	104L2623	LMBP HST
SC15CL	R404a	1/2	1ph/220-240V/50HZ	104L2853	LMBP HST
SC18CL	R404a	5/8	1ph/220V-240V/50HZ	104L2123	LMBP HST
SC21CL	R404a	7/8	1ph/220-240V/50HZ	104L2322	LBP HST
SC10G	R134a	5/16	1ph/220-240V/50HZ	104G8000	LMHBP HST
SC12G	R134a	1/3	1ph/220-240V/50HZ	104G8240	LMHBP HST
SC15G	R134a	3/8	1ph/220V-240V/50HZ	104G8520	LMHBP HST
SC18G	R134a	1/2	1ph/220-240V/50HZ	104G8820	LMHBP HST
SC21G	R134a	5/8	1ph/220-240V/50HZ	104G8140	LMHBP HST

Product details

Gross weight	13.39 kg

Net weight	13.39 kg

Application energy level	Standard LBP compressor
Applications	LBP
Approval standard	CCC CE EN 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]	13.8 Ohm
Base plate type	Universal
Brand technique	Reciprocating compressor
Capacity control	Fixed speed
Colour	Black
Configuration code	Single
Cut in current HST [A]	14.8 A
Cut in current LST [A]	19.9 A
Description	SC12C
Discharge connection angle [°]	37 °
Discharge connection comments	Al-cap
Discharge connection diameter [mm]	6.2 mm
Discharge connection height [mm]	100 mm
Discharge connection material	Cu-plated steel
Drawing number	0
Free gas volume [cm3]	1510 cm³
Frequency [Hz]	50
Height from baseplate [mm]	203 mm
High value of nominal voltage at 50Hz [V]	230 V
High value of nominal voltage at 60Hz [V]	0 V
High value of voltage range at 50Hz [V]	254 V
High value of voltage range at 60Hz [V]	0 V
Low value of nominal voltage at 50Hz [V]	220 V
Low value of nominal voltage at 60Hz [V]	0 V
Low value of voltage range at 50Hz [V]	198 V
Low value of voltage range at 60Hz [V]	0 V
LRA HST [A]	14.8 A
LRA LST [A]	15.5 A
Main winding resistance for single-phase compressors [Ohm]	5.1 Ohm

Model number	SC12C
Motor type	CSIR
No. of phases (fan)	1
Oil quantity [cm3]	600 cm³
Oil type	AB
Packing format	Industrial pack
Packing quantity	80
Phase	1
Process connection angle [°]	37 °
Process connection comments	Al-cap
Process connection diameter [mm]	6.2 mm
Process connection material	Cu-plated steel
Refrigerant	R22
Refrigerant charge [kg] [Max]	1.3 kg
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	0 rpm
Segment usage	Refrigeration LT
Suction connection angle [°]	37 °
Suction connection comments	Al-cap
Suction connection diameter [mm]	8.2 mm
Suction connection height [mm]	183 mm
Suction connection material	Cu-plated steel
Swept volume [cm3]	12.87 cm³
Technology	Reciprocating
Total height [mm]	209 mm
Type	SC
Type designation	Compressor
Voltage 50Hz [V]	220 V
Voltage 50Hz [V] [Max]	240 V
Winding temperature short term [°C] [Max]	140 °C
Winding temperature stat [°C] [Max]	130 °C

1. compressor SC series, model number SC12CL

2. Refrigerant use R22/R502,

3.3/8HP, 315W.

4. We can supply more compressor models as below:

Model	Code	Voltage	Refrigerant
NL7CLX	105F3710	220-240V/50HZ	R404A
NL8.4CLX	105F3800	220-240V/50HZ	R404A
FR6CL	103U2670	220-240V/50HZ	R404A
FR8.5CLX	103U2890	220-240V/50HZ	R404A
NF5.5CLX	105F1621	115V/60HZ	R404A
NF7CLX	105F3720	115V/60HZ	R404A
TL4.5CLX	102U2111	220-240V/50HZ	R404A
TL4CLX	102U2071	220-240V/50HZ	R404A
TF4CLX	102U2102	115-127V/60HZ	R404A
FR6G	103G6660	220-240V/50HZ	R134A
FR7.5G	103G6680	220-240V/50HZ	R134A
FR8.5G	103G6780	220-240V/50HZ	R134A
FR10G	103G6890	220-240V/50HZ	R134A
FR11G	103G6980	220-240V/50HZ	R134A
NL6.1MF	105G6660	220-240V/50-60HZ	R134A
NL8.4MF	105G6879	220-240V/50-60HZ	R134A
NL10MF	105G6885	220-240V/50-60HZ	R134A
NL11MF	105G6151	220-240V/50-60HZ	R134A
NL10FT	105G6829	220-240V/50HZ	R134A
FR7GH	103G6683	220-240V/50HZ	R134A
FF6GK	103G5680	115V/60HZ	R134A
FF7.5GK	103G5780	115V/60HZ	R134A
FF8.5GX	103G5880	115V/60HZ	R134A
FF10GX	103G5980	115V/60HZ	R134A
NF5.5FX	105G5623	115-127V/60HZ	R134A
NF6.1FX.2	105G5631	115-127V/60HZ	R134A
NF7.3FX.2	105G5722	115-127V/60HZ	R134A
NF8.4FX.2	105G5631	115-127V/60HZ	R134A
NF11FX	105G5947	115-127V/60HZ	R134A
TL5G	102G4550	220-240V/50HZ	R134A
TL4G	102G4452	220-240V/50HZ	R134A
TL3G	102G4350	220-240V/50HZ	R134A
TL4GH	102G4455	220-240V/50-60HZ	R134A
NL7CNX	105H6756	220-240V/50HZ	R290
NL9CNX	105H6856	220-240V/50HZ	R290
TLSCNK	102H4590	220-240V/50HZ	R290
SC10C	104L2516	220-240V 50Hz	R22
SC12C	104L2674	220-240V 50Hz	R22
SC15CM	104L2848	220-240V 50Hz	R22
SC18CM	104L2120	220-240V 50Hz	R22
SC10D	104L2529	220-240V 50Hz	R22
SC12D	104L2694	220-240V 50Hz	R22
SC15D	104L2859	220-240V 50Hz	R22
SC10G	104G8000	220-240V 50/60Hz	R134a
SC12G	104G8240	220-240V 50Hz	R134a
SC15G	104G8520	220-240V 50Hz	R134a
SC18G	104G8820	220-240V 50Hz	R134a
SC21G	104G8140	220-240V 50Hz	R134a
SC10CL	104L2523	220-240V 50Hz	R404a
SC10MLX	104L2533	220-240V 50/60Hz	R404a
SC12CL	104L2623	220-240V 50Hz	R404a
SC15CL	104L2853	220-240V 50Hz	R404a
SC18CL	104L2123	220-240V 50Hz	R404a
SC21CL	104L2322	220-240V 50Hz	R404a

Mbsm_dot_pro_private_PDF_sc12c-104L2674 Télécharger

High, Efficiency, R134a, Hermetic, Compressor, GPY16AF, RoHS, 3/8hp, csir, lbp, 220v, 380w

written by Lilianne | 17 March 2022

R134a GPY16AF series sealed refrigeration compressor 220-240v/50Hz

The main feature:

strong loading capacity,
high efficiency,
low noise,
light vibration,
good reliability.

suitable for mid-size refrigerators, freezers, displayers, beer displayers and other mid-size refrigeration appliances. The structure form is hermetical crank connecting-rod reciprocating piston type.

They are the best selling high-tech compressors sold in the world. They are ideal for domestic refrigeration and also for small commercial applications. They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market for this category.

KONOR	Displ.	power	Motor type	V/Hz	Cooling capacity W	Net Weight KG
GQR60AA	6	1/6	RSIR	220-240V/50Hz	140	9.4
GQR70AA	6.6	1/5	RSIR	220-240V/50Hz	165	9.4
GQR80AA	8.1	1/4	RSIR	220-240V/50Hz	198	9.4
GQR90AA	9.1	1/4	RSIR	220-240V/50Hz	220	10.1
GQY99AA	9.9	1/4	RSIR	220-240V/50Hz	270	10.9
GQY12AF	11.8	1/3	CSIR	220-240V/50Hz	325	10.56
GQY16AF	16.2	3/8	CSIR	220-240V/50Hz	380	12.1
GP16MG	16.2	5/8	CSIR	220-240V/50Hz	870	12.5
GP12MG	11.8	5/8	CSIR	220-240V/50Hz	656	10.9
GP12TG	11.8	3/8	CSIR	220-240V/50Hz	1140	11.8
GQR80TG	8.1	1/4	CSIR	220-240V/50Hz	730	9.8
GQR90TG	9.1	1/4	CSIR	220-240V/50Hz	830	10.5
GQR60TG	6	1/5	CSIR	220-240V/50Hz	520	9.8

Specification

Hermetic motor driven the piston connecting rod type compressor. With relay start-up of hammer type, and equipped with overload protector.

Application

Widely used in homeand commercial refrigerator,air-curtain cabinet, display showcase, ice maker, chiller freezer, dehumidifier, etc.

R134a LBP Fan Cooling Compressor

Model:GPY16AF

Power:3/8HP

Displacement:16.2cm3

Capacity:380w

COP:1.3W

Voltage:200-240V/50HZ

Motor Way:CSIR

Application:LBP

Cooling Type:Fan Cooling

Height:210mm

Net Weight:12.9kg

Dimension:210*162*237.2(mm)

Test Conditions(ASHRAE)

Evaporating temperature -23.3ºC

Condensing temperature 54.4ºC

Subcooling temperature 32.2ºC

Suction temperature 32.2ºC

Ambient temperature 32.2ºC

Conversion:
1watt=3.41Btu/h=0.86kcal/h

Mbsm_dot_pro_private_PDF_gpy16f Télécharger

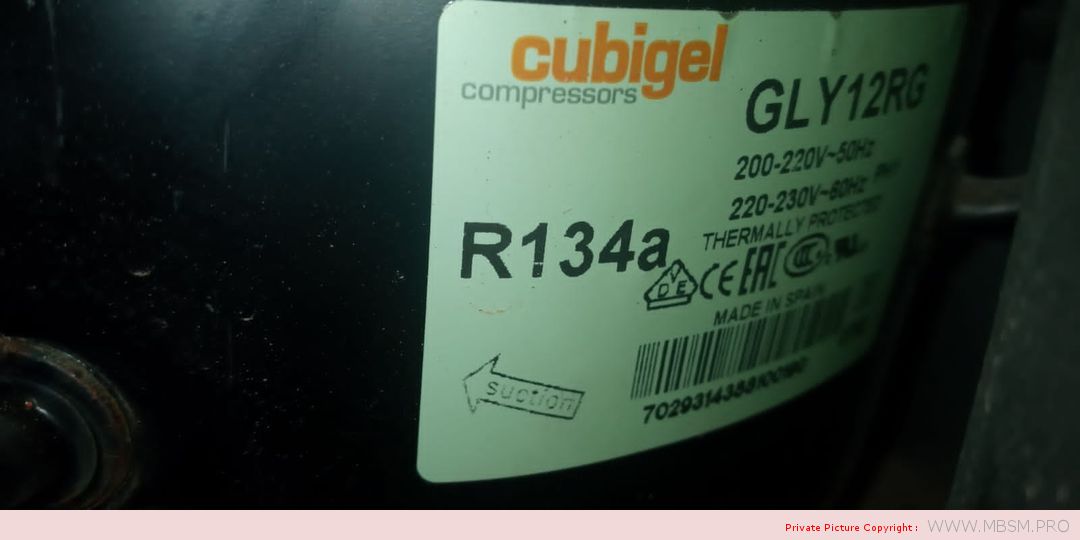

Compressor, R134A, GLY12RGA, 10,7cm³, HMBP, 230V, 3/8HP, CUBIGEL, HUAYI

written by Lilianne | 17 March 2022

Displacement (cm³)	Refrigerant	Application	Compressor Cooling	Voltage/Frequency	Frequency (Hz)	Motor Type	Cooling (kCal/h)	COP (W/W)	Cooling (W)	COP (W/W)	Technical Data Sheet (*)
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	352	1,95	340	1,67	GL45MG
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	412	1,92	398	1,65	GL45MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	520	2,02	499	1,73	GL60MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	445	1,99	427	1,70	GL60MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	702	2,15	674	1,84	GL80MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	600	2,10	576	1,78	GL80MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	685	2,10	661	1,79	GL90MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	800	2,11	772	1,83	GL90MG
GLY12RAa	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	900	2,30	867	1,97	GLY12RAa
GLY12RAb	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSR	900	2,57	867	2,20	GLY12RAb
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSIR	900	2,19	867	1,87	GLY12RGa
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSIR	1.038	2,22	1.007	1,90	GLY12RGa
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSR	900	2,32	867	1,98	GLY12RGb
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSR	1.038	2,40	1.007	2,07	GLY12RGb
GP14TB	14,17	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.030	2,03	998	1,76	GP14TB
GP16TB	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.240	2,09	1.204	1,80	GP16TB
GP16TE	16,15	R134a	HBP	F	115V 60Hz ~1	60	CSIR	1.450	1,96	1.408	1,69	GP16TE
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	50	CSIR	1.240	2,09	1.204	1,81	GP16TG
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	60	CSIR	1.450	2,00	1.408	1,74	GP16TG
GPM16RA	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.351	2,09	1.317	1,79	GPM16RA

(*) Under standard conditions

Additional information

Voltage (V)	230Vac
Frequency (hz)	50
Range	MBP
Displacement (cm3)	10,7 cm³
Cooling capacity (W)	608W
Conditions (°C)	-10 / +45C
Refrigerant	R134A
Suction line	8.1mm juotettava
Liquid line	6,5mm juotettava
Height (mm)	198mm
Weight (kg)	10,43kg
Oil	ISO VG 32 Ester

Technical data

Model: GLY12RAa
Refrigerant Gas: R-134a
Pression/temperature: HBP
Power: 3/8 HP
Voltage: 230 V
Current Type: Single-Phase
Frequency: 50 Hz
Compressor Type: Hermetic
Displacement: 10.7 cm³
Power Cons. -10°C: 293 W
Power Cons. -5°C: 322 W
Efficiency 0°C: 351 W
Power Cons. +5°C: 380 W
Power Cons. +7,2°C: 392 W
T° Condensation: 40 °C
Cooling Cap. -15°C: 408 Kcal/h
Cooling Cap. -10°C: 512 Kcal/h
Cooling Cap. -5°C: 642 Kcal/h
Cooling Cap. 0°C: 797 Kcal/h
Cooling Cap. 5°C: 977 Kcal/h
Cooling Cap. 7.2°C: 1065 Kcal/h
Cooling Cap. 10°C: 1184 Kcal/h
Test Type: Ashare 46

Mbsm_dot_pro_private_PDF_pdf-GLY12RAa Télécharger

Danfoss, secop, refrigerator, compressor, SC15G, 104G8520, R134a, 3/8HP, 1ph/220V-240/50HZ

written by Lilianne | 17 March 2022

3/8HP Danfoss secop refrigerator compressor SC15G 104G8520 for R134a

Main features:

1. Adopt high efficient rotary compressor and Japan made motors,

save power 10% or above.

2. The horizontal designed series can save much space.

3. Optimized design can be tightly built inside the equipment,

which can save installation time and labor cost.

4. Widely used in freezing storage, cold room, automatic

vendor machine, cold tanks on the ship, etc. as well as
in the home use, commercial, refrigerator,

refrigeration machine, dehumidifier,

low-temperature laboratory device and some special refrigeration equipment.

Available models and details for secop comrpessor:

Model	Gas	Qty/pallet	HP	Voltage	Code	Details
SC10C	R22	80	1/3	1ph/220V-240/50HZ	104L2516	MLBP HST
SC12C	R22	80	3/8	1ph/220-240V/50HZ	104L2674	MLBP HST
SC15CM	R22	80	1/2	1ph/220V-240V/50HZ	104L2848	MLBP HST
SC18CM	R22	80	5/8	1ph/220-240V/50HZ	104L2120	MLBP HST
SC10D	R22	80	3/8	1ph/220-240V/50HZ	104L2529	MHBP HST
SC12D	R22	80	1/2	1ph/220-240V/50HZ	104L2694	MHBP HST
SC15D	R22	80	5/8	1ph/220-240V/50HZ	104L2859	MHBP HST
SC10CL	R404A	80	1/3	1ph/220-240V/50HZ	104L2523	LMBP HST
SC12CL	R404A	80	3/8	1ph/220-240V/50HZ	104L2623	LMBP HST
SC15CL	R404a	80	1/2	1ph/220-240V/50HZ	104L2853	LMBP HST
SC18CL	R404a	80	5/8	1ph/220V-240V/50HZ	104L2123	LMBP HST
SC21CL	R404a	80	7/8	1ph/220-240V/50HZ	104L2322	LBP HST
SC10G	R134a	80	5/16	1ph/220-240V/50HZ	104G8000	LMHBP HST
SC12G	R134a	80	1/3	1ph/220-240V/50HZ	104G8240	LMHBP HST
SC15G	R134a	80	3/8	1ph/220V-240V/50HZ	104G8520	LMHBP HST
SC18G	R134a	80	1/2	1ph/220-240V/50HZ	104G8820	LMHBP HST
SC21G	R134a	80	5/8	1ph/220-240V/50HZ	104G8140	LMHBP HST

Mbsm_dot_pro_private_PDF_sc15g_104g8520_r134a_220v_50hz_60hz_01-2013_desd402k302 Télécharger

Compressor, NPT12FSC, CUBIGEL, R290, 12,10ccm, LBP, 3/8HP, 220 V 50/60 Hz

written by Lilianne | 17 March 2022

Technical Data Sheet
Compressor model NPT12FSC
Voltage 220-240V 50/60Hz ~1
Refrigerant R290
APPLICATION COMPRESSOR MOTOR
Application Low Back Pressure Displacement 12,10 cm³ Nominal Power 3/8 hp
Refrigerant R290 Diameter 27,00 mm Voltage/Frequency 220-240V 50/60Hz
Evaporating Temp. -40,0 ºC to -10,0 ºC Stroke 21,13 mm Voltage range 187-264 V
Expansion Capillar Net Weight 10,18 Kg Type ECM
Comp. Cooling Fan cooled Oil type ISO VG 32 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 520 cm³ Locked Rotor Amps (LRA) 5,00 A
Max. Cont. Current (MCC) 3,70 A
Main W. resist. at 25ºC 6,70 Ω
Start W. resist. at 25ºC 6,70 Ω
NOMINAL PERFORMANCE – 3.000 RPM
ASHRAE CECOMAF
Cooling Capacity 585 kCal/h 508 W
COP 1,57 W/W 1,22 W/W
EER 1,35 kCal/Wh 1,06 kCal/Wh
Input Power 433 W 415 W
Current 3,43 A 3,30 A
TEST CYCLE CONDITIONS
ASHRAE CECOMAF
LBP (B) LBP (A)
Evaporating temp. -23,3 ºC -25,0 ºC
Condensing temp. 55,0 ºC 55,0 ºC
Liquid temp. 32,0 ºC 55,0 ºC
Ambient temp. 32,0 ºC 32,0 ºC
Suction temp. 32,0 ºC 32,0 ºC
Voltage/Frequency 220 V 50/60 Hz 220 V 50/60 Hz

Mbsm_dot_pro_private_PDF_Technical-Notes-NPT12FSC-1 Télécharger

Mbsm_dot_pro_private_PDF_danfoss_NPT12FSC_R290_220_5060 Télécharger

Best quality Chinese Brand, 3/8HP, R134A compressor, refrigerator, QD128H, 260W, RSIR, copper wire compressor, LBP, 220-240V/50Hz, 325W cooling capacity

written by Lilianne | 17 March 2022

Description rapide

Point d’origine:: Zhejiang, China

Marque nom:: RETEKOOL

Numéro de Type:: QD128H

Type:: Compresseur frigorifique

Application:: Pièces de réfrigération

Certification:: CE

Item:: QD128H LMBP R134a cold room refrigeration compressor

coils:: pure copper coils or copper coated aluminium coils

rated power supply:: AC power

evaporation temperature range:: -35℃ ~ 0 ℃

advantage:: Low Medium back pressure commercial refrigeration compressor

Supply Ability

Supply Ability: 500000 Morceau/Morceaux per Year QD128H LMBP R134a compresseur de réfrigération de chambre froide

Description du produit

QD128H LMBP R134a compresseur de réfrigération de chambre froide

VOL/FRE V/Hz	Série	Modèle	Dépl. (Cm3)	Type De moteur	Refroidissement	Capacité (W) 54.4^{° C}/130 F température de condensation									Puissance d’entrée (W) -23.3 ℃
						-35	-30	-25	-23.3	-20	-15	-10	-5	0
220V/50Hz R134a	DS	QD43H	4.30	RSIR	S	65	76	98	110	142	188	245	320	402	105
		QD52H	5.20	RSIR	S	87	98	122	134	165	215	265	358	446	122
		QD59H	5.90	RSIR	S	95	105	135	145	180	240	295	415	480	125
		QD65H	6.50	RSIR	S	115	125	155	170	210	280	335	435	550	145
	DL	QD75H	7.50	RSIR	S	125	135	165	185	230	290	380	510	630	155
		QD91H	9.10	RSIR	S/F	135	155	205	220	270	380	475	625	750	175
		QD110H	11.00	RSIR	F	185	205	245	285	345	460	570	680	800	225
	DQ	QD128H	12.80	RSIR	F	205	235	320	360	445	550	695	830	1050	280
		QD142H	14.20	CSIR	F	240	270	350	395	485	590	755	890	1150	305
		QD158H	15.80	CSIR	F	275	310	405	450	540	680	855	980	1250	345

(2) avantage:

1. Basse pression arrière: la société produit le compresseur R134a (basse pression arrière), plage de température d’évaporation large (-35 ~ 0 ° c), non seulement pour répondre aux appareils de réfrigération à basse pression (réfrigérateurs domestiques, congélateurs) exigences d’utilisation (-35 ~ -15 ° c), plus d’attention sur le réfrigérateur commercial léger (réfrigérateur commercial, Comptoirs à la carte, armoires, vitrines, etc.) exigences (-20 ~ 0 ° c ).

2. Démarrage basse tension: tension d’alimentation aussi basse que 165V démarrage normal en cours d’exécution! (Gamme générale de tension d’alimentation du compresseur de 187 ~ 242V). Pays et régions plus adaptés à l’instabilité de la tension d’alimentation (inférieure).

3. L’utilisation de la température ambiante: à 43 ° cambient température, la pression de condensation atteint 18Kgf / cm2, encore du boulot! (Généralement le compresseur ne peut pas dépasser 16Kgf / cm2) par conséquent, si le système de réfrigération correspond au approprié (air, augmentation du condenseur), utilisez toujours la température ambiante augmentée à 50 ° c, particulièrement adapté aux pays à haute température ambiante.

4. Le moteur à couple de démarrage élevé (HST): moteur avec grand acier au silicium, pile élevée d’épaisseur, aluminium, couple de démarrage; Par conséquent, la taille du boîtier du compresseur est grande, le coût est relativement élevé.

5. Lanceur de marteau: l’intervalle de temps de démarrage répété est court, pour les applications nécessitant une ouverture fréquente et une machine fixe d’équipement de réfrigération commerciale, réfrigérateurs et autres exigences telles que les fluctuations de température de chambre médicale petit équipement de réfrigération.

6. Le compresseur réfrigérant R600a ayant une bonne performance à basse température, à faible bruit, la COP a atteint 1.5 ~ 1.7 (W / W)

Displace:12.8

type:RSIRInput

power:260W

Application:L/MBP

Refrigerant:R134

7°C
QD30H 3.0 1/10 RSIR S 35 49 63 70 90 112 152 170 188 210 0.85 1.9 82 89
QD35H 3.5 1/8 RSIR S 40 56 72 80 105 128 176 220 242 275 0.9 1.98 89 111
QD43H 4.3 1/7 RSIR S 47 65 83 110 121 149 216 270 297 338 0.95 2.01 116 134
QD52H 5.5 1/7 RSIR S 70 95 123 136 177 218 280 350 385 438 1.15 2.01 118 174
QD59H 6.2 1/6 RSIR S 85 115 149 165 215 265 312 390 430 488 1.2 2 138 195
QD65H 6.6 1/5 RSIR S 95 129 167 185 241 297 350 430 473 538 1.25 2.02 148 193
QD75H 7.6 1/5+ RSIR S/F 105 147 190 210 273 337 387 495 545 618 1.25 2.1 168 236
QD91H 8.8 1/5+ RSIR S/F 115 160 207 230 300 368 425 530 583 655 1.37 2.12 168 250
QD110H 10.6 1/4+ RSIR F 135 189 243 285 370 456 520 650 715 813 1.41 2.12 202 307
QD120H 11.6 1/3 RSIR F 165 231 297 330 430 528 576 720 792 900 1.41 2.12 234 340
QD128H 12.3 3/8 RSIR F 180 252 324 360 468 576 740 925 1018 1156 1.31 2 275 463
QD142H 13.5 3/8+ CSIR F 195 273 351 390 507 624 800 1000 1100 1250 1.3 2 300 500
QD158H 15.3 3/8+ CSIR F 215 300 387 430 560 690 890 1120 1230 1400 1.3 2 331 560
QD168H 16.3 1/2 CSIR F 230 322 415 460 598 736 976 1220 1340 1530 1.3 2 354 610
GQR60AA 6.0 1/6 RSIR 140 116 1.21 220V/50Hz
GQR70AA 6.6 1/5 RSIR 165 136 1.21 220V/50Hz
GQR80AA 8.1 1/4 RSIR 198 166 1.19 220V/50Hz
GQR90AA 9.1 1/4 RSIR 220 184 1.19 220V/50Hz
GQY99AA 9.9 1/4 RSIR/RSCR 270 203 1.33 220V/50Hz
GPY12AF 11.8 1/3 CSIR 325 244 1.33 220V/50Hz
GPY16AF 16.2 3/8 CSIR 380 292 1.30 220V/50Hz
GQR60TG 6.0 1/5 CSIR
520 260 2.00 220V/50Hz
600 290 2.10 220V/60Hz
GQR80TG 8.1 1/4 CSIR
730 340 2.15 220V/50Hz
800 380 2.10 220V/60Hz
GQR90TG 9.1 1/4 CSIR
830 370 2.24 220V/50Hz
920 436 2.24 220V/60Hz
GP12TG 11.8 3/8 CSIR 1140 520 2.19 220V/50Hz

Mbsm_dot_pro_private_PDF_QD128H Télécharger

Best Price for market demand

Model	Disp. (cm³)	Power Supply V/Hz	Horse Power HP	Cooling Capacity	COP W/W	Motor Type	Cooling	Refrigeratnt
Watt	Kcal/Hr.	Btu/Hr.
QD110H	11.00	220-240/50	1/3	280	251	989	1.20	RSIR	ST	R134a
QD128H	12.80	3/8	328	281	1109	1.35	CSIR	F
QD142H	14.20	1/2	360	311	1228	1.35	CSIR	F
QD153H	15.30	1/2	390	337	1331	1.35	CSIR	F
QD110H11G	11.00	110-115/60	1/3+	300	259	1024	1.21	RSIR	F

Refrigerator, compressor, E1134CZA, 1/2 hp, E1130CZA, E1121CZA, 3/8HP, commercial, freezer, R134a

written by Lilianne | 17 March 2022

Refrigerator Compressor mainly has the following three components: box, refrigeration system and control system. The most critical of these is the refrigeration system.

Specific process–After the power is turned on, the compressor works, and the low-pressure and low-temperature gaseous refrigerant that has absorbed heat in the evaporator is sucked in. After being compressed, the temperature is 55°C-58°C and the high pressure steam, enter the condenser. Due to throttling of the capillary, the pressure is drastically reduced. Since the pressure in the evaporator is lower than the pressure in the condenser, the liquid refrigerant boils and evaporates immediately, and the heat in the absorption box becomes low pressure and low temperature vapor. It is again inhaled by the compressor.

With this constant circulation, the internal heat of the refrigerator is continuously transferred to the outside of the box.

Compressor (compression)—condenser (heat dissipation)—capillary (throttle)—evaporator (cold cooling)

Refrigerator Compressor Model E1121CZA
Application	Refrigerator/ Freezer(320L~480L)	Power	3/8 HP
Voltage	220V~240V/50HZ	Pumping capacity	8.8 Cm3
Cooling capacity	270 W	COP	1.25W/W

E1134CZA R134A 1/2HP Refrigerator Compressor

Mbsm_dot_pro_private_PDF_e1121cza Télécharger
