Mbsm.pro, air conditioner, 42khrt24, 24000 btu, 2 t, 3 hp, r22

written by Lilianne | 24 January 2024

42khrt24 appears to be the indoor unit model number for a Carrier air conditioner system. Here’s what I can tell you about it:

Specifications:

  • Cooling capacity: 23,000 BTU/hr
  • Dehumidification rate: 2.6 liters/hour
  • Airflow rate: 560/590/620 cubic meters per hour (low/medium/high)
  • Sound pressure level: 42/45/48 dB(A) (low/medium/high)
  • Dimensions: 1030 x 313 x 221 mm (width x height x depth)
  • Weight: 17 kg

Features:

  • Split-type air conditioner
  • Carrier Optimax series
  • Wall-mounted unit
  • Remote control
  • Sleep mode
  • Turbo mode
  • Self-diagnosis function
  • Refrigerant type: R22

Additional information:

  • 42khrt24 is typically paired with the outdoor unit model 38khrt24.
  • This air conditioner system is designed for cooling rooms up to approximately 70 square meters (750 square feet).
  • It is available in some regions, but not all.



Mbsm.pro, compressor, Sanyo, Rotary, Split system air conditioner, Compressors, C-R221H5S, S6231526791, 24000 btu, R22, 3 hp, 2 ton

written by Lilianne | 24 January 2024
Compressor Type Refrigerant Type Typical HP Range
Scroll R-410A 1.5 – 2.5 HP
Reciprocating R-410A 2 – 3 HP
Rotary R-22 2.5 – 3.5 HP

drive_spreadsheetExport to Sheets

Power supply Ph-V-Hz 220-240V/50HZ
Cooling Capacity BTU 24000
Capacity  tolerance %
Input W 3100 3500
Rated current A 15 17
 EER 2,30 1,7
Heating Capacity BTU 24000
Capacity  tolerance %
 Input W 2900
Rated current A 14
COP 2,6
Max. input consumption W 4500
Max. current A 23
Starting current A 74
Compressor Model C-R221H5S
Type Rotary
Brand SANYO SANYO
Indoor unit Indoor fan motor Model GAL8P60A-KND
Brand GALANZ
Output Power W 60
Capacitor uF 4
Speed  (Hi/Mi/Lo) r/min 600/550/420
Indoor coil a.Number of row 2
Indoor air flow (Hi/Mi/Lo) m3/h 1000
Rated input Power(cooling/heating) W 140
Rated current  (cooling/heating) A 0,6
Moisture Removal (L/h) 3,2 0,8
Noise level(Hi/Mi/Lo) dB(A) 48/43
Unit dimension (W*H*D) mm 480x1680x255
Packing (W*H*D) mm 1795x585x345
Net weight Kg 37
Gross weight Kg 46
Outdoor unit  Outdoor fan motor Model GAL075H61225-K01/  YDK-075S62520-06 GAL075H61225-K01/ YDK-075S62520-06
Brand
Output Power W 75 75
Capacitor uF 4.0 4.0
Speed r/min 830±30 830±30
Outdoor coil a.Number of row 2
Noise level dB(A) 57
Unit dimension (W*H*D) mm 845x680x310
Packing   (W*H*D) mm 1010x765x430
Net weight Kg 51
Gross weight Kg 56
Refrigerant type R22
Refrigerant charge g 2130
Design pressure MPa 2,8
Refrigerant pipe Liquid side mm 9,52
Gas side mm 15,88
Max. refrigerant pipe length m 15
Max. difference in level m 8
Operation temperature range ℃ -7~51
Ambient temperature range ℃ -8~53
Application area m2 22~43
Qty’per 20’& 40’&40HQ Set 42/88/95


Mbsm.pro, Toshiba, Rotary, refrigerator ,compressor, PH360X3C-4KTS1, 1.5T++, 2,5 hp, 1 ph, r22

written by Lilianne | 24 January 2024

PH360X3C-4KTS1:

  • Cooling capacity: 30,299 BTU/h. This translates to approximately 3 HP (horsepower). However, it’s important to note that HP is not a perfect conversion for cooling capacity, and the actual cooling output can vary depending on various factors like operating conditions and refrigerant type.
  • Refrigerant gas: R22 (note that R22 is being phased out in some countries due to environmental concerns)
  • Input power: 2090W
  • Voltage: 220-240V, 50Hz, 1 Phase
  • Applications: air conditioners, dryers, refrigerators, chillers, etc.

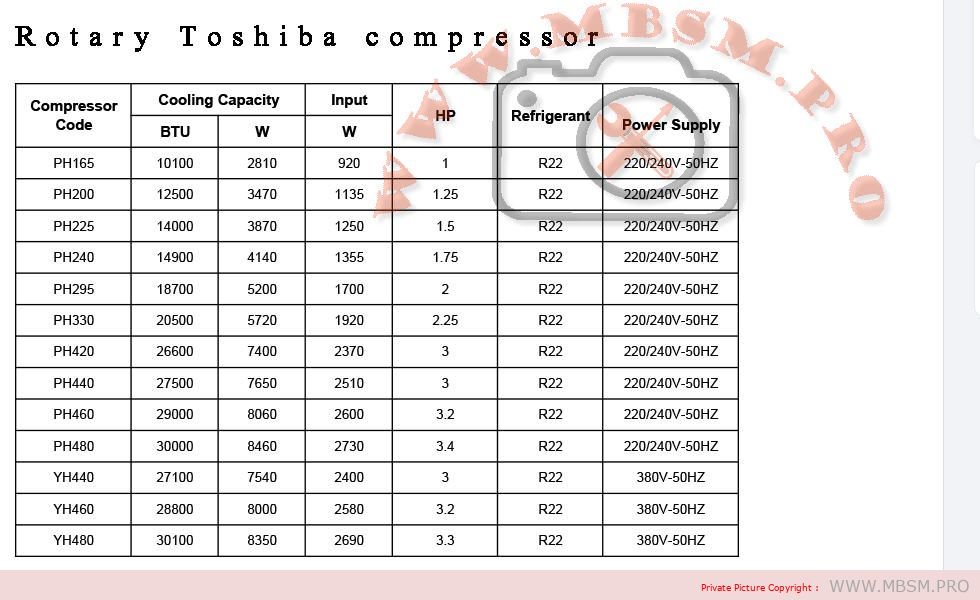

Model Number    BTU      Ton      Voltage

      PH165X1C      9582        0.5 Ton       220
      PH195X2C      11355         1 Ton       220
      PH225X2C      13196         1 Ton       220
      PH260X2C      15686        1+Ton       220
      PH290X2C      17425      1.5 Ton       220
      PH295X2C      17663      1.5 Ton       220
      PH310X2C      18448      1.5 Ton       220
      PH330X2C      19505      1.5 Ton       220
      PH360X3C      21210    1.5+ Ton       220
      PH420X3C      25234          2 Ton      220
      PH440X3C      26086          2 Ton      220
COMPRESSOR COMPRESSOR, REFRIGERATION;TYPE ROTARY, FLOW RATE 634CFM, POTENTIAL 220-240 VAC, COOLING CAPACITY 2 TON; REF: MODEL: PA240M2CS 4KU1;FFT: REFRIGERENT USED: 410A Make: Toshiba

(cm3/rev) (±5%W) (±5% W) (±5%) (A) ±3dB(A) μF-V (ml) (kg) (kg)
1 PH108X1CY-8BG*2 10.8 1820 595 3.06 2.7 59 25/370 350 0.70 10.7
2 PH120X1CY-8BG*2 12.2 2090 675 3.10 3.1 59 25/370 350 0.70 10.7
3 PH135X1C-8DZ*2 13.6 2280 750 3.04 3.4 59 25/370 400 0.85 12.0
4 PH150X1C-8DZ*2 14.8 2500 820 3.05 3.8 60 25/370 400 0.85 12.0
5 PH150X1C-8DZ*2 14.8 2520 810 3.11 3.7 61 30/370 400 0.85 12.0
6 PH155X1C-8DZ*2 15.4 2600 850 3.06 4.0 59 25/370 400 0.85 12.0
7 PH160X1C-8DZ*2 16.1 2720 890 3.06 4.1 59 25/370 400 0.85 12.0
8 PH160X1C-8DZ*3 16.1 2720 875 3.11 4.0 61 30/370 400 0.85 12.0
9 PH165X1C-8DZ*2 16.5 2810 920 3.05 4.2 59 25/370 400 0.85 12.0
10 PH165X1C-8DZ*3 16.5 2795 895 3.12 4.1 61 30/370 400 0.85 12.0
11 PH170X1C-8DZ*2 17.1 2920 960 3.04 4.5 59 25/370 400 0.85 12.0
12 PH170X1C-8DZ*3 17.1 2920 935 3.12 4.3 61 30/370 400 0.85 12.0
13 PH180X1C-8DZ*2 17.8 3050 1025 2.98 4.8 59 25/370 400 0.85 12.0
14 PH180X1C-8DZ*3 17.8 3015 965 3.12 4.5 61 30/370 400 0.85 12.0
15 PH195X2C-8FTC 19.3 3330 1080 3.08 5.0 61 25/370 480 1.10 15.1
16 PH200X2C-8FTC 20.0 3470 1135 3.06 5.2 61 25/370 480 1.10 15.1
17 PH200X2C-8FTC1 20.0 3465 1100 3.15 5.2 64 30/370 480 1.20 15.8
18 PH215X2C-8FTC 21.6 3725 1210 3.08 5.6 61 35/370 480 1.20 15.8
19 PH225X2C-8FTC 22.4 3870 1250 3.10 5.7 61 35/370 480 1.20 15.8
20 PH225X2C-8FTC1 22.4 3870 1230 3.15 5.6 64 35/370 480 1.20 15.8
21 PH230X2C-8FTC 23.1 3990 1310 3.05 6.0 61 35/370 480 1.20 15.8
22 PH240X2C-8FTC 23.9 4140 1355 3.06 6.2 61 35/370 480 1.20 15.8
23 PH240X2C-8FTC1 23.9 4070 1285 3.17 5.8 65 35/370 480 1.20 16.5
24 PH260X2C-8FTC1 26.2 4600 1510 3.05 7.3 63 35/370 520 1.30 16.3
25 PH260X2C-8FTC3 26.2 4530 1440 3.15 6.8 63 35/400 520 1.30 17.1
26 PH280X2C-8FTC1 28.0 4900 1570 3.12 7.5 64 35/370 520 1.30 17.1
27 PH290X2C-8FTC1 29.0 5110 1650 3.10 8.0 64 35/370 520 1.30 17.1
28 PH295X2C-8FTC1 29.4 5180 1670 3.10 8.0 64 35/370 520 1.30 17.1
29 PH295XCS-8KUC1 29.4 5200 1700 3.06 8.0 65 35/370 750 1.80 17.7
30 PH310X2CS-8KUC1 30.8 5410 1815 2.98 9.5 64 40/370 750 1.80 17.7
31 PH330X2CS-8KUC3 32.8 5720 1920 2.98 10.0 64 40/370 750 1.80 17.7
32 PH340X3C-8KUC1 34.2 5950 1945 3.06 9.1 66 50/400 750 1.80 20.6
33 PH360X3C-8KUC1 35.7 6240 2045 3.05 9.6 66 50/400 750 1.80 20.6
34 PH400X3CS-8KUC1 40.2 6920 2245 3.08 10.5 66 50/400 950 2.10 23.3
35 PH420X3CS-8MUC1 42.0 7400 2370 3.12 11.1 66 50/400 950 2.10 23.3
36 PH440X3CS-8MUC1 43.5 7650 2510 3.05 12.3 66 50/400 950 2.10 23.3
37 PH460X3CS-8PUC1 45.9 8150 2590 3.15 12.4 67 55/400 1050 2.60 25.2
38 PH480X3CS-4MU1 47.9 8500 2700 3.15 12.8 67 55/400 1050 2.60 25.2

Model Name Displ. (cm3/rev) COOLING Capacity (±5%W) Power (±5% W) COP(±5%) Current (A) Noise±3dB(A) Capacitor μF-V R22 Max (kg) Wt. (kg)
PH225X2C-8FTC1 22.4 3870 1250 3.1 5.7 61 35/370 1.2 15.8
PH290X2C-4FT1 29 5110 1650 3.1 8 64 35/370 1.3 17.1
PH295X2C-8FTC1 29.4 5180 1670 3.1 8 64 35/370 1.3 17.1
PH420X3C-8KUC1 42 7400 2370 3.12 11.1 66 50/400 2.1 23.3
PH480X3C-8KUC1 47.9 8460 2730 3.1 13 67 55/400

TYPE SPECIFICATION HP
PH135G1C-4DZDE1 2265W/220V/50HZ/R22 1HP
PH165X1C-4DZDE2 2780W/220V/50HZ/R22 1HP
PH180X1C-4DZDE3 3015W/220V/50HZ/R22 1.5HP
PH225X2C-4FT 3870W/220V/50HZ/R22 1.5HP
PH240X2C-4FT1 4140W/220V/50HZ/R22 1.5HP
PH290X2C-4FT1 5100W/220V/50HZ/R22 2HP
PH310G2C-4KN1 5450W/220V/50HZ/R22 2HP
PH340G2C-4KU1 6030W/220V/50HZ/R22 2.5HP
PH370G2CS-4KU1 6605W/220V/50HZ/R22 2.5HP
PH400G2CS-4KU1 7030W/220V/50HZ/R22 3HP
PH420G2CS-4KU1 7505W/220V/50HZ/R22 3HP
PH480X3CS-4MU1 8460W/220V/50HZ/R22 3HP
YH480X3CS-4MUC1 8350W/380V/50HZ/R22 3HP
PG180X1C-4DZDE3 3120W/220V/50HZ/R407C 1HP
PA118M1C-4FZ2 2770W/220V/50HZ/R410A 1HP
PA145G1C-4FT1 3530W/220V/50HZ/R410A 1.5HP
PA240X2CS-4KU1 5800W/220V/50HZ/R410A 2HP
PA270X3CS-4MU1 6670W/220V/50HZ/R410A 2.5HP
PA290G2CS-4MU1 7260W/220V/50HZ/R410A 3HP
PA290X3CS-4MU1 7180W/220V/50HZ/R410A 3HP
PA330X3CS-4MU1 8190W/220V/50HZ/R410A 3HP

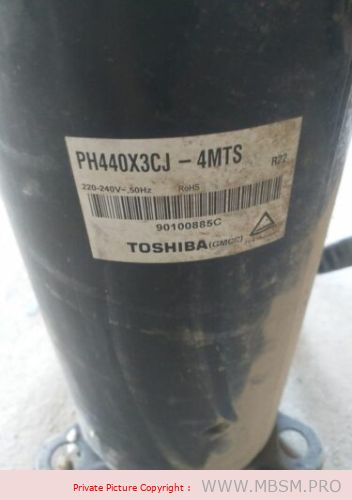

Mbsm.pro, Compressor, ph440x3cj-4mts, Rotary Compressor, 26000 Btu, R22, 3 hp, 2 Tonnes, 2500 w

written by Lilianne | 24 January 2024

Different types of inverter compressors and universal inverter circuit boards for sale

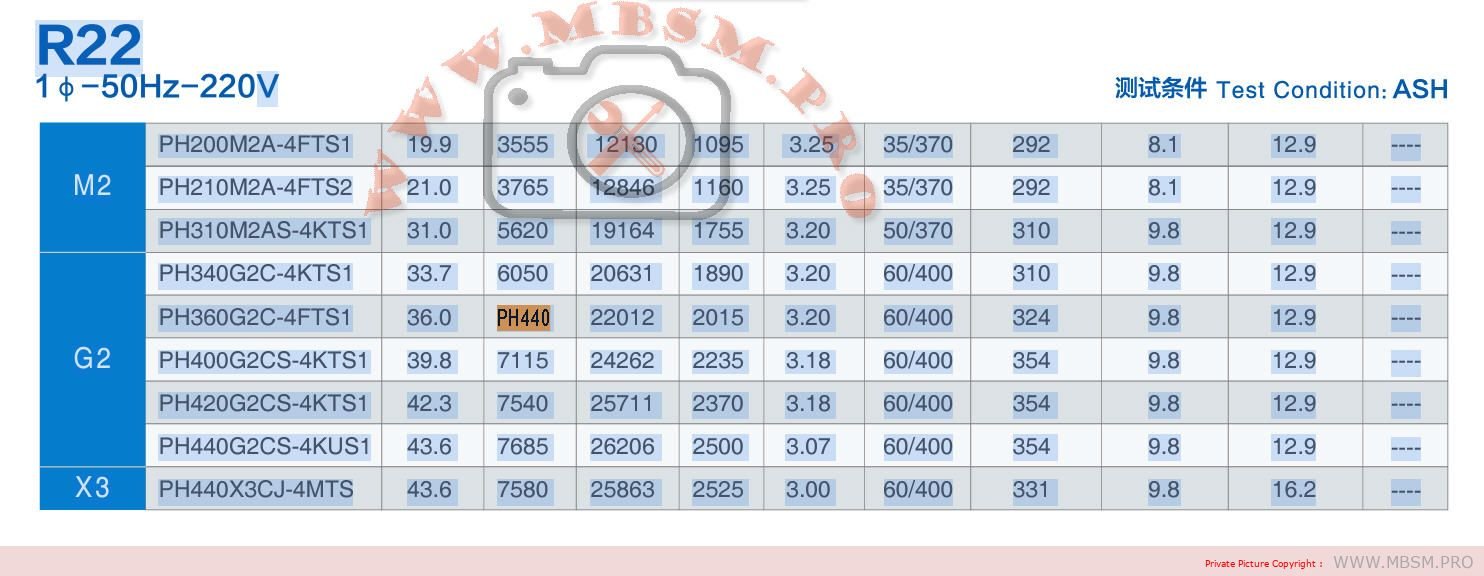

Representative models series refrigerant Power source Displacement
(cm3/rev)		 Cooling capacity
(W)		 Refrigeration capacity
(Btu/h)		 Power
(W)		 Energy efficiency ratio
(W/W)		 Capacitance
(μF/V)		 Attestation
PH371X3CJ-3MTS R22 1φ-60Hz-208/230V 37,0 8000 27280 2540 3.15 55/400
PH371X3C-3FTS1 R22 1φ-60Hz-208/230V 37,0 7930 26940 2520 3.15 55/400 TUV
PH331X3C-3FTS1 R22 1φ-60Hz-208/230V 32,6 7020 23870 2230 3.15 55/400 TUV
PH280X2CS-3KTS1 R22 1φ-60Hz-208/230V 28.1 5945 20205 1890 3.15 40/370 TUV
PH260X2C-3FTS1 R22 1φ-60Hz-208/230V 26.2 5570 18995 1770 3.15 40/370
PH185X2C-3FTS1 R22 1φ-60Hz-208/230V 18.4 3915 13350 1232 3.18 35/370
PH440X3CJ-4MTS R22 1φ-50Hz-220/240V 43,5 7580 25850 2525 3h00 60/400 TUV
PH441X3CS-4KUS1 R22 1φ-50Hz-220/240V 43,5 7660 26120 2470 3.10 60/450 TUV
PH441X3C-4FTS1 R22 1φ-50Hz-220/240V 43,5 7725 26345 2495 3.10 60/450 TUV
PH421X3C-4FTS1 R22 1φ-50Hz-220/240V 42,0 7475 25490 2395 3.12 60/400 TUV
PH401X3CS-4KUS1 R22 1φ-50Hz-220/240V 40.2 7100 24280 2275 3.12 55/450 TUV
PH401X3C-4FTS1 R22 1φ-50Hz-220/240V 40.2 7130 24245 2300 3.10 55/450 TUV
PH361X3C-4FTS1 R22 1φ-50Hz-220/240V 35,7 6315 21535 2040 3.10 50/400 TUV
PH341X3C-4FTS1 R22 1φ-50Hz-220/240V 33,6 5970 20360 1955 3.05 50/400 TUV
PH310X2CS-4KTS1 R22 1φ-50Hz-220/240V 30,8 5355 18315 1715 3.12 50/370 TUV
PH310X2C-4FTS1 R22 1φ-50Hz-220/240V  30,8 5355 18260 1715 3.12 50/370 TUV
PH210X2C-4FTS1 R22 1φ-50Hz-220/240V 20,8 3660 12480 1150 3.18 35/370
YH480X3CS-4MUC1 X3 R22 3φ-50Hz-380V 47,9 8350 28475 2690 3.10  / CCC, TUV
YH460X3CS-4MUC1 X3 R22 3φ-50Hz-380V 45,9 8000 27280 2580 3.10 / CCC, TUV
YH441X3CS-4MUC X3 R22 3φ-50Hz-380V 43,5 7650 26090 2355 3.25 / CCC
YH440X3CS-4KUC1 X3 R22 3φ-50Hz-380V 43,5 7455 25440 2405 3.10 / CCC





Mbsm_dot_pro_private_PDF_ph440x3cj-4mts Mbsm_dot_pro_private_PDFRotary_Compressor_2015



Mbsm.pro, compressor, AWZ5538EXN, 3 hp, 1 ph, TECUMSEH

written by Lilianne | 24 January 2024

Product Specifications

Mbsm_dot_pro_private_PDF_AWZ5538EXN

Performance

Condition Test Voltage (R) Btu/h (R) kcal/h (R) W (I) W (E) Btu/Wh (E) kcal/Wh W/W EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
ASHRAE 230V ~ 60HZ 38000 9576 11137 3800 10 2.52 2.93 7.2?C (45?F) 54?C (130?F) 35?C (95?F) 35?C (95?F) 46?C (115?F)
ASHRAE 230V ~ 60HZ 38000 9576 11137 3800 10 2.52 2.93 7.2?C (45?F) 54?C (130?F) 35?C (95?F) 35?C (95?F) 46?C (115?F)
(R) Refrigeration Capacity
(I) Input Power
(E) Efficiency

General

Evaporating Temp. Range:

 -23.3°C to 12.8°C (-10°F to 55°F)

Motor Torque:

 Low Start Torque (LST)

Compressor Cooling:

 Fan

Mechanical

Weight:

 30

Weight Unit of Measure:

 KG

Displacement (cc):

 63

Oil Type:

 Mineral

Viscosity (cSt):

 37

Oil Charge (cc):

 1140

Electrical

Voltage Range (50 Hz):

 N/A

Voltage Range (60 Hz):

 197-254

Locked Rotor Amps (LRA):

 110

Rated Load Amps (RLA 50 Hz):

 0

Rated Load Amps (RLA 60 Hz):

 18.3

Max. Continuous Current (MCC in Amps):

 29.5

Motor Resistance (Ohm) – Main:

 0.52

Motor Resistance (Ohm) – Start:

 2.32

MotorType:

 PSC

Overload Type:

 N/A

Relay Type:

 N/A

Agency Approval



Mbsm.pro, Copeland, Scroll Compressor, série ZB, CR37K6M PFZ-101, 3 hp, r22

written by rober us | 24 January 2024

Copeland Scroll Compressor série ZB – Modèle CR37K6M PFZ-101

Puissance (HP): 3,08

Ampères de charge nominaux (RLA) : 16

Ampères à rotor bloqué (LRA) : 90

Réfrigérant :  R22

Alimentation électrique : 220-240V/1P/50Hz

Mbsm_dot_pro_private_PDF__Cr37k6m Mbsm_dot_pro_private_PDF_Cr37k6m



Samsung 55A250JTAEM-SS 25300 btu Compressor

written by Lilianne | 24 January 2024

Mbsm.pro, Samsung, 55A250JTAEM-SS, 55A250JTAEM, 25300 btu, Compressor, 3 hp, r22

Mbsm_dot_pro_private_PDF_55A250JTAEM-SSTélécharger


Mbsm.pro, Compressor, Toshiba, ph441x3cs-4kts1, 3 hp, 1 PH, 50Hz-220V/240V, R22

written by Lilianne | 24 January 2024
Product Details

AC refrigeration compressor for Toshiba is famous for its reliable quality and high performance when using in the conditioning system.

Toshiba was the first company to incorporate inverter technology into air conditioning systems in 1981, and since then it has always maintained  a technological advantage over its competitors. The development of the new and exclusive DC hybrid inverter system has reaffirmed this ability to innovate and maintain technological leadership in a fast-growing market.

Air treatment, low sound levels, guaranteed energy savings and easy installation of the indoor units make the Toshiba air conditioners compressor the top choice for any home and office. Solutions that are studied and verified in every tiny element are recognized universally by air conditioning professionals for their total reliability. Toshiba leads in technology and in applying technology to your greatest advantage!

R22 220~240V HZ 1PH

Model

Displ. (m3/rev)

Capacity

Power (W)

COP(W/W)

Capacitor (μ F/V)

Height ( mm )


W

Btu/h



PH60G0C-4BZDE

6

985

3361

345

2.86

20/370

241

PH104G0C-4BZDE

10.4

1745

5954

580

3.01

25/370

259

PH108G0C-4BZDE

10.8

1820

6214

590

3.1

25/370

270

HSM140V1UFZ

13.9

2425

8274

735

3.3

25/370

292

HSM150V5UFZ

15.1

2640

9008

800

3.3

25/370

292

HSM165V3UDZ

16.4

2855

9741

915

3.12

30/370

292

HSM165V1UFZ

16.4

2845

9741

915

3.12

30/370

292

HSM220V1UFT

20.1

3480

11874

1070

3.25

35/370

300

HSM210V1UFT

20.9

3650

12454

1170

3.12

35/370

300

HSM215V1UFT

21.4

3710

12659

1215

3.05

35/370

300

HSM215V4UFTA

21.4

3700

12624

1140

3.25

40/370

300

HSM190V1UFT

19.2

3340

11396

1010

3.31

35/370

300

PH210M2A-4FTS1

20

3752

12830

1154

3.25

35/370

392

PH225X2C-4FT

22.4

3890

13273

1205

3.23

35/370

292

PH240M2C-4FT1

24

4225

14416

1340

3.15

35/370

292

PH250M2C-4FT1

25

4310

14706

1370

3.15

30/370

292

PH290M2C-4FT1

28.8

5090

17367

1650

3.08

35/370

311

PH300G2C-4KU1

29.8

5340

18220

1645

3.25

55/400

297

PH310M2AS-4KTS1

31

5560

18971

1765

3.15

50/370

348

PH310G2C-4FT1

30.8

5440

18561

1635

3.33

55/400

310

PH320M2AS-4KUH

31.8

5570

19005

1690

3.3

55/400

310

PH340G2C-4KU

33.7

6050

20643

1805

3.35

60/400

324

PH340G2C-4KTS1

33.7

6050

20643

1915

3.16

60/400

310

PHPH360G2C-4FTS1

36

6455

22024

2015

3.2

60/400

324

PH370G2CS-4MU1

37

6650

22690

2065

3.22

50/400

324

PH400G2CS-4MU1

39.8

7100

24225

2255

3.15

50/400

354

PH420G2CS-4KU1

42.3

7420

25317

2390

3.1

50/400

354

PH440G2CS-4MU

43.5

7810

26648

2390

3.27

50/400

345

PH440G2CS-4KTS1

43.5

7685

26221

2500

3.07

60/400

354

PH460X3CS-4MU1

45.9

8080

27569

2600

3.11

55/400

397

PH480X3CS-4MU1

47.9

8460

28866

2730

3.1

55/400

397
R22 220~240V HZ 1PH

Model

Displ. (m3/rev)

Capacity

Power (W)

COP
     (W/W)

Capacitor (μ F/V)

Height ( mm )

W

Btu/h

PH120M1C-3DZDU1

12.2

2490

8496

790

3.15

30/370

266

PH130M1C-3DZDU1

13.1

2660

9076

850

3.13

30/370

270

PH160G1C-3DZDU1

16

3280

11190

1040

3.15

35/370

285

PH180G1C-3FTU2

18.1

3795

12949

1225

3.1

35/370

294

PH195G1C-3FTU1

19.6

4155

14177

1310

3.17

40/370

294

PH225M2C-3FTU1

22.4

4770

16275

1505

3.17

40/370

292

PH240M2C-3FTU1

20

5140

17538

1580

3.25

40/370

292

PH250M2C-3KUU1

24.8

5285

18032

1625

3.25

40/370

292

PH260M2AS-3KUU1

26.1

5625

19193

1815

3.1

40/370

333

PH330G2C-3MUU1

32.8

7050

24055

2200

3.2

55/400

297

PH370G2CS-3KTS1

37

7885

26967

2540

3.1

55/400

354

PH401X3CS-3MTU

40.2

8735

29804

2705

3.23

60/400

372

PH441X3CS-3MUU

43.5

9470

32312

2915

3.25

60/400

372

R22 220~240V HZ 1P

Model

Displ. (m3/rev)

Capacity

Power (W)

COP(W/W)

Capacitor (μ F/V)

Height ( mm )

W

Btu/h

PA108M1C3FZDU

10.8

3110

10611

1045

2.98

35/370

279

PA118M1C-3FZU

11.8

3390

11567

1125

3.01

35/370

279

PA140G1C-3FTU1

13.9

4240

14458

1402

3.03

40/370

298

PA150G1C-3FTU1

15.1

4445

15157

1505

2.95

40/370

298

PA160X2CS-3KUU

16

4785

16325

1570

3.05

40/370

303

PA160M3A-3ETU

16

4785

16325

1570

3.05

40/370

303

PA170M2C-3ETU

17

5800

19790

1940

2.99

50/370

303

PA200M2CS-3MUU1

19.8

5800

19790

1940

2.99

50/370

344

PA210M2CS-3KTU2

20.8

6155

21001

2015

3.05

50/370

344

PA240M2C-3MTU2

22

7160

24430

2365

3.03

55/370

322

PA250M2CS-3MUU1

25

7445

25402

2500

2.98

60/370

344

PA270X3CS-3MUU

26.9

8155

27825

2640

3.09

55/400

382

PA291X3CS-3MTU

28.8

8850

30196

2805

3.08

55/400

382
Hot



Mbsm.pro, Compressor, Gree, Rotary Compressors, QXSH-F42E030, 24000 BTU/HR, 2 ton, 3 Hp, 1PH / 220 v, r22

written by Lilianne | 24 January 2024

Technical Features

Refrigerant: R22
Displacement: 42.0 Cm3/Rev
Capacity: 24000 BTU
Power Input: 2238 W
Application: Air Conditioning
Cop(W/W): 3.25
BRAND GREE
COMPRESSOR TYPE ROTARY
POWER SUPPLY 220-240V
REFRIGERANT R22
FREQUENCY (HZ) 50
APPLICATION ROOM AIR-CONDITIONER（T3 CONDITION)
REFRIGERANT CHARGE LIMIT 2000G MAX
VOLTAGE (RATED VOLTAGE)/FREQUENCY/PHASE 220-240 V~(230V)/50 HZ/1 PHASE
PUMP TYPE ROTARY
THE NUMBER OF CYLINDERS DOUBLE CYLINDER
CYLINDER NOMINAL VOLUME 42 CM3
BRAND OF REFRIGERANT OIL ATMOS-NM56EP OR EQUIVALENT
REFRIGERANT OIL CHARGE 850 ML
WEIGHT(REFRIGERANT OIL INCLUDED) 23 KG
SUCTION PIPE I.D. Φ15.6±0.05 MM
DISCHARGE PIPE I.D . Φ9.7±0.06 MM



Mbsm.pro, Compressor Lg, 26000 btu/h, QP442PBA, LG, AC Rotary Compressor, Rotary Scroll Compressor, 220-240V 50HZ, 2 ton, 3 Hp++, 1 PH, Cappilary 070 Two pieces, 45 cm long

written by Lilianne | 24 January 2024

26000bu QP442PBA LG AC Rotary Compressor , Rotary Scroll Compressor 220-240V 50HZProduct DescriptionBrief history of Tele

1991 Tele Group established
1997 Authorized to be the sole agent of Panasonic rotary compressor in China
1999 Authorized to be general agent of Daikin scroll compressor
2000 Authorized to be the agent of LG rotary compressor
2003 Authorized to be general agent of Daikin Refrigerant in China Agent of Panasonic Auto A/C Compressor
2010 Authorized to be Danfoss Agent Performance Compressor

Brand: LG
Specfication:

Model Voltage Cooling Capacity (W) Cooling Capacity(PTO) Exodus (c/review) power input (w) COP (w/s)
QJ208HCA 220 V 50 Hz 3546 12100 20.8 1110 3.19
QK222JBA 200-220V 50Hz 3810 12750 22.2 1280 2.97
QJ306PCB 220-240V 50Hz 5364 18300 30.6 1803 2.93
QJ330PAA 220-240V 51Hz 5832 19900 33 1877 3.11
QP376PBA 220-240V 52Hz 6594 22500 37.6 2143 3.08
QP407PAA 220-240V 53Hz 7063 24100 40.7 2317 3.05
QP442PBA 220-240V 54Hz 7620 26000 44.2 2549
