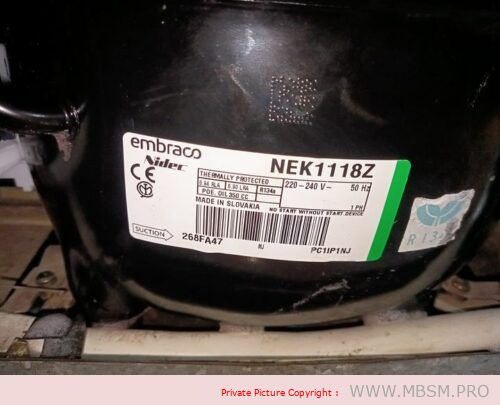

Mbsm.pro, Compresor, Embraco, NB, NEK1118Z, R134A, 220v, 1/4 hp, 8.4cm3, LBP

written by Lilianne | 29 September 2023
Product information “Compressor Aspera Embraco NEK1118Z, LBP – R134a, 220 – 240 V/50 Hz”
Aspera NEK1118Z is a HERMETIC compressor for low pressure range (LBP)• Engine type: RSIR, RSCR• Performance: 1/4 hp• Displacement: 8.4 cm3• LBP Evaporation temperature -35° C to -10° C• Temperature range -25° C•.
Compressor type: Reciprocating piston
Condensation temperature: 45 °C
Condensing units Compressors: Compressor
Connection: Connection
Connection Size: Connection Size
Cooling capacity (W): 225
Cooling capacity (W) at To -25°C: 195
Cooling capacity (W) at To 5°C: 519
Design: Design, Design
Dimensions ( length × width × height ): 24.20 × 17.80 × 20.00 cm
Displacement (cm3): 8,39
Engine type: RSIR, RSIR RSCR
Info: Oil prefilled
Manufacturer: Aspera, Embraco Aspera
Max. Starting current (A): 11
Measuring conditions: EN12900
Model series: NEK
Oil quantity (l): 0,35
Oil type: ISO22, POE22
Power range (W): 201 – 300 W
Power supply: 230 V
Refrigerant: R134a
Scope of application: LBP
Series: NEK
Start-up torque: Start-up torque
Suction side: 6.1 mm
To be used with: Capillary tube
Type / Series: NEK1118Z
Voltage: 220-240V
cooling capacity (W) at To -10°C: 417
cooling capacity (W) at To -15°C: 328
cooling capacity (W) at To -20°C: 256
cooling capacity (W) at To -30°C: 144

Mbsm_dot_pro_private_PDF_____NEK1118z Mbsm_dot_pro_private_PDF____NEK1118z Mbsm_dot_pro_private_PDF___NEK1118z Mbsm_dot_pro_private_PDF__NEK1118z Mbsm_dot_pro_private_PDF_NEK1118z

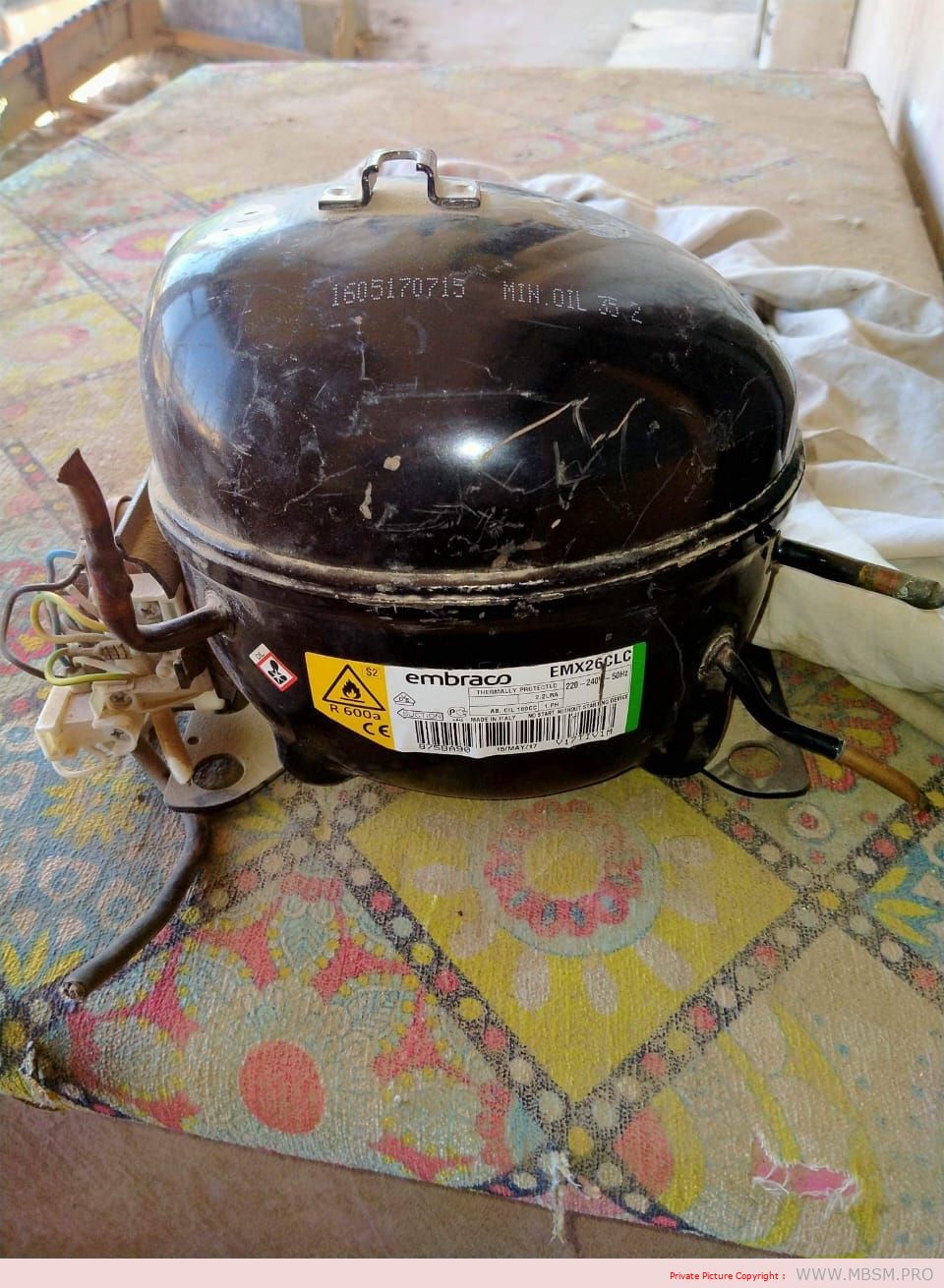

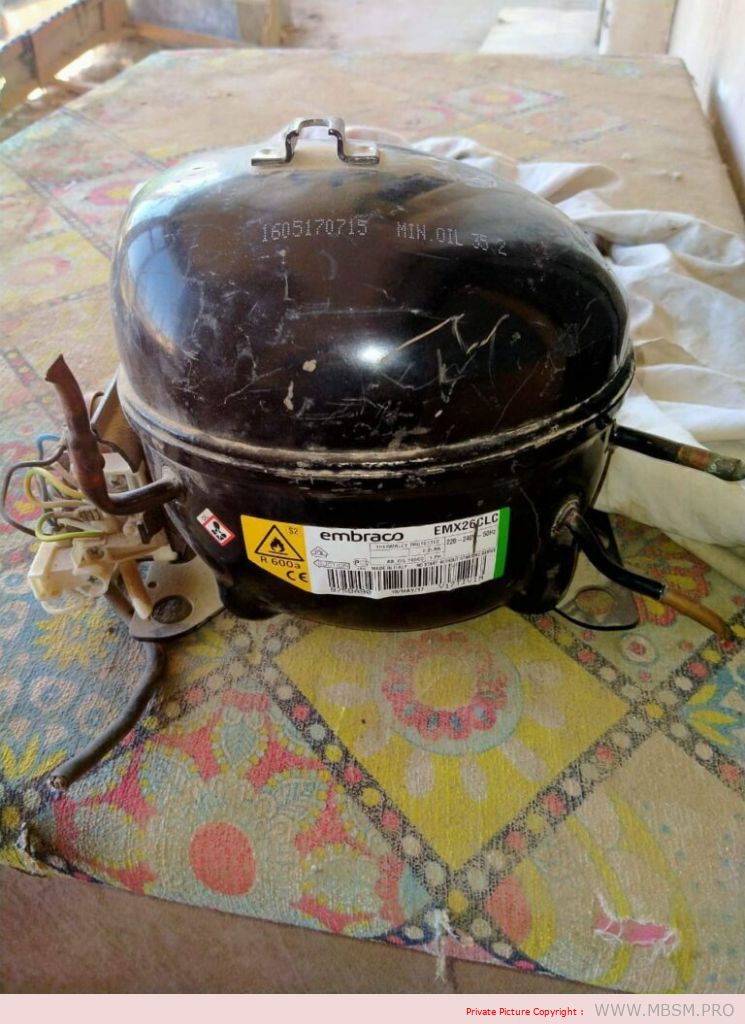

Mbsm.pro, Embraco, Aspera, EMX26CLC, EMX 26 CLC, 1/12 hp, single-phase, Compresor, freezing (LBP), 52 crn3, r600a

written by Lilianne | 29 September 2023

Mbsm_dot_pro_private_PDF_emx26clc



Mbsm.pro, Compresor, 1/2hp, Caj2t12, AJE2425AXA, Tecumseh, r12, mhbp, 64 uf, 260v, 3ARR18A-101B, Low Temperature R12

written by Lilianne | 29 September 2023

Product Description

Mbsm_dot_pro_private_PDF__AJE2425AXA (CAJ2T12) Mbsm_dot_pro_private_PDF_AJE2425AXA (CAJ2T12)

Tecumseh Hermetic R134A / R404a / R22 piston compressor

R22 Hermetique HBP
For air conditioning applications.
Features:
Supports anti vibration fourni
Charged with mineral oil and dry nitrogen
Crankcase heater on Beacon models
Fan cooling required on all models
Specifications:
Base rating capacity: 35°C ambient temperature, 11K gas return overheat, 54.5°C condensation, 46.2°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
= PSC permanent split capacitors, 1 phase, 50 Hz. 220-240 Volt
Phase 3Ø : 3, 50 Hz, 400 volts
Expansion device:
C = the capillary tube
C/V = capillary tube or expansion valve
R22 airtight
Model No. HP nominal Displ. cm³/rev Type of engine FLA rated current Exp. Device Oil charge cm³ Connections: inches
Cm³ Discharge Proc.
AE 5465E 1/2 12.05 Cfp 3.2 C 450 Tube 3/8 Tube 1/4 Tube 3/8
AJ 5510F 3/4 18.6 Cfp 5.2 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5512E 1 21,75 Cfp 5.9 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5513E 1 24.2 Cfp 6 C 887 Tube 3/8 Tube 1/4 Tube 1/4
AJ 5515E 1 1/4 25.95 Cfp 7.2 C 887 Tube 1/2 5/16 Tube Tube 1/4
AJ 5518E 1 1/2 32,7 Cfp 9.3 C 887 Tube 1/2 5/16 Tube Tube 1/4
AJ 5519E 1 1/2 34.45 Cfp 9.96 C 887 Tube 1/2 5/16 Tube Tube 1/4
FH 5522E 1 3/4 39.95 Cfp 9 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5522E 1 3/4 39.95 3Ø 3.8 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5524E 2 43,5 Cfp 10 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5524E 2 43,5 3Ø 4 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5527E 2 1/4 49.1 Cfp 12 C 1330 Tube 5/8 Tube 3/8 5/16 Tube
TFH 5527E 2 1/4 49.1 3Ø 4.2 C/V 1330 Tube 5/8 Tube 3/8 5/16 Tube
FH 5531E 2 1/2 56,65 Cfp 14.1 C 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5531E 2 1/2 56,65 3Ø 8 C/V 1330 Tube 3/4 Tube 3/8 5/16 Tube
FH5540E 3 74.25 Cfp 18.6 C 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 Tube 3/4 Tube 3/8 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 78 Distributor 1/2 5/16 Tube
TAG 5546E 3 3/4 90.2 3Ø 6.6 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5553E 4 100,7 3Ø 7.4 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5561E 5 112,5 3Ø 9 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5568E 6 124,4 3Ø 9.6 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
TAG 5573E 6 1/2 134,8 3Ø 11 C/V 1960 Tube 7/8 Tube 1/2 Tube 3/8
Hermetic R22 M/RAP
For medium/high temperature applications
Features:
Anti-vibration dampers provided
Charged with mineral oil and dry nitrogen
Rotalock suction valve on CAJ/TAJ models
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Fan cooling required on all models
All models fit capillary tube or regulator operation
Rotalock suction and discharge valves on FH/ESS and Beacon models
Specifications:
Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
CSIR: start capacitor, induction run } 1 phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
Phase 3Ø : 3, 50 Hz, 400 volts
Conversion : watts x = 3.412 BTU/hr Btu/hr x = 0.293 Watts
R22 airtight
Model No. HP nominal Displ. cm³/rev Type of engine FLA rated current Oil charge cm³ Connections: inches
L’aspiration Discharge
AEZ 4425E 1/5 4.5 The CSIR 1.75 450 Tube 1/4 3/16 Tube
AEZ 4430E 1/4 5.7 The CSIR 2.2 450 Tube 1/4 3/16 Tube
AEZ 4440E 1/3 7.55 The CSIR 2.6 450 Tube 1/4 3/16 Tube
AEZ 9440T 1/3 7.55 CSR 2.03 450 Tube 3/8 Tube 1/4
CAE 4450E 3/8 9.4 The CSIR 3.3 450 Tube 3/8 Tube 1/4
CAE 9450T 3/8 9.5 CSR 2.6 450 Tube 3/8 Tube 1/4
FIELD 9460T 1/2 11.3 CSR 3.2 450 Tube 3/8 Tube 1/4
Le CAJ 9408T 5/8 15.2 CSR 3.68 887 Distributor 1/2 5/16 Tube
The CAJ 9510T 1 18.3 CSR 4.8 887 Distributor 5/8 5/16 Tube
Le CAJ 9513T 1 1/8 24.2 CSR 5.9 887 Distributor 5/8 5/16 Tube
Le CAJ 4517E 1 1/4 25.95 CSR 6.1 887 Distributor 5/8 Tube 3/8
TAJ 4517T 1 1/2 25.95 3Ø 2.5 887 Distributor 5/8 Tube 3/8
TAJ 4519T 1 1/2 34.45 3Ø 3.5 887 Distributor 5/8 Distributor 1/2
FH 4524F 2 43,5 CSR 9.55 1480 Distributor 5/8 Distributor 1/2
TFH 4524F 2 4.35 3Ø 3.9 1480 Distributor 7/8 Distributor 1/2
FH 4531F 2 1/2 56,65 CSR 12.6 1480 Distributor 7/8 Distributor 1/2
TFH4531F 2 1/2 56,65 3Ø 4.75 1480 Distributor 7/8 Distributor 1/2
TFH 4540F 3 74.25 3Ø 6.08 1480 Distributor 7/8 Distributor 1/2
TAG 4546T 4 90.2 3Ø 6.6 1960 Distributor 7/8 Distributor 5/8
TAG 4553T 4 1/2 100,7 3Ø 7.4 1960 Distributor 7/8 Distributor 5/8
TAG 4561T 5 112,5 3Ø 9 1960 1 7/8 valve Distributor 5/8
TAG 4568T 6 124,4 3Ø 9.6 1960 1 7/8 valve Distributor 5/8
DAY 4573T 6 1/2 134,8 3Ø 11 1960 1 7/8 valve Distributor 5/8
Tecumseh Hermetique R134a
The world famous Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Loaded with polyolester oil and dry nitrogen
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Rotalock valves are included for all compressors valve connection
Supports anti-vibration fourni
Single phase – moderately high SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
Le CAJ4476Y 5/8 21,75 The fan 887
The CAJ4492Y 3/9 25.95 The fan 887
Le CAJ4511Y 1 32,7 The fan 887
FH4518Y 1 1/2 53,2 The fan 1480
FH4525Y 2 74.25 The fan 1480
Three Phase – Medium High SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ4511Y 1 32,7 The fan 887
TFH4518Y 1 1/2 53,2 The fan 1480
TFH4525Y 2 74.25 The fan 1480
TAG4528Y 2 1/2 90.2 The fan 1960
TAG4534Y 2 3/4 100,7 The fan 1960
TAG4537Y 3 112,5 The fan 1960
TAG4543Y 3 1/2 124,4 The fan 1960
Models replaced
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
Zae4425Y 1/5 7.55 The fan 450
AEZ4430/Y 1/4 8.85 The fan 450
CAE4440Y 3/8 12.05 The fan 450
CAE4448Y 1/3 14.15 The fan 450
And CAJ4452Y 1/3 15.2 The fan 887
CAE4456Y 1/2 16 The fan 450
The CAJ4461Y 1/2 18.3 The fan 887
Tecumseh Hermetique R404A
The world famous Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Loaded with polyolester oil and dry nitrogen
Crankcase heater on FH/ESS and Beacon models
Oil light on FH/ESS and Beacon models
Rotalock valves are included for all compressors valve connection
Supports anti-vibration fourni
Specifications:
Base rating of capacity: 35°C ambient temperature, 11K Overheat gas return, 54.5°C condensation, 46°C liquid entering expansion valve.
Current FLA are given at rated voltage, rated conditions and 7.2°C evaporating temperature.
Engine types:
CSIR: Start Capacitor, Induction Run 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
Phase 3Ø : 3, 50 Hz, 400 volts
All models are also suitable for operation with R507
Single phase – moderately high SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
The CAJ9480Z 5/8 15.2 The fan 887
The CAJ9510Z 1 18.3 The fan 887
The CAJ9513Z 1 1/8 24.2 The fan 887
The CAJ4517Z 1 1/4 25.95 The fan 887
And CAJ4519Z 1 1/2 34.45 The fan 887
FH4522Z 1 3/4 39.95 The fan 1480
FH4524Z 2 43,5 The fan 1480
FH4531Z 2 1/2 56,65 The fan 1480
FH4540Z 3 74.25 The fan 1480
Three Phase – Medium High SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ9480Z 5/8 15.2 The fan 887
TAJ9510Z 1 18.3 The fan 887
TAJ9513Z 1 1/8 24.2 The fan 887
TAJ4517Z 1 1/4 25.95 The fan 887
TAJ4519Z 1 1/2 34.45 The fan 887
TFH4522Z 1 3/4 39.95 The fan 1480
TFH4524Z 2 43,5 The fan 1480
TFH4531Z 2 1/2 56,65 The fan 1480
TFH4540Z 3 74.25 The fan 1480
TAG4546Z 4 90.2 The fan 1960
TAG4553Z 4 1/2 100,7 The fan 1960
TAG4561Z 5 112,5 The fan 1960
TAG4568Z 6 124,4 The fan 1960
TAG4573Z 6 1/2 134,8 The fan 1960
Single Phase – Low SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
CAE2417Z 1/3 11.3 The fan 450
CAE2420Z 1/2 12.54 The fan 450
CAE2424Z 5/8 15 The fan 450
The CAJ2428Z 1/2 15.2 The fan 887
The CAJ2432Z 5/8 18.3 The fan 887
The CAJ2446Z 3/4 26,15 The fan 887
The CAJ2464Z 1 1/2 34.45 The fan 887
FH2480Z 2 53,2 The fan 1625
FH2511Z 2 1/2 74.25 The fan 1625
Three Phase – Low SST
Model No. HP nominal Displacement: cm3/rev The recooling : Ml charging oil
TAJ2464Z 1 1/2 34.45 The fan 887
TFH2480Z 2 53,2 The fan 1625
TFH2511Z 2 1/2 74.25 The fan 1625
TAG2516Z 4 112,5 The fan 1960
TAG2522Z 5 1/2 134,8 The fan 1960
Three Phase – Parallel Applications
Model No. HP nominal Displacement: cm3/rev Application : SST The recooling : Ml charging oil
TAGP4546Z 4 90.2 Averages The fan 1960
TAGP4553Z 4 1/2 100,7 Averages The fan 1960
TAGP4561Z 5 112,5 Averages The fan 1960
TAGP4568Z 6 124,4 Averages The fan 1960
TAGP4573Z 6 1/2 134,8 Averages The fan 1960
TAGP2516Z 4 112,5 Weak The fan 1960
TAGP2522Z 5 1/2 134,8 Weak The fan 1960


Mbsm.pro, Compresor, cubigel, gl11tb, csir, 1/3 hp, Hbp, r134a

written by Lilianne | 29 September 2023
  • Marque : CUBIGEL ELECTOLUX ACC
  • Modèle : GL11TB

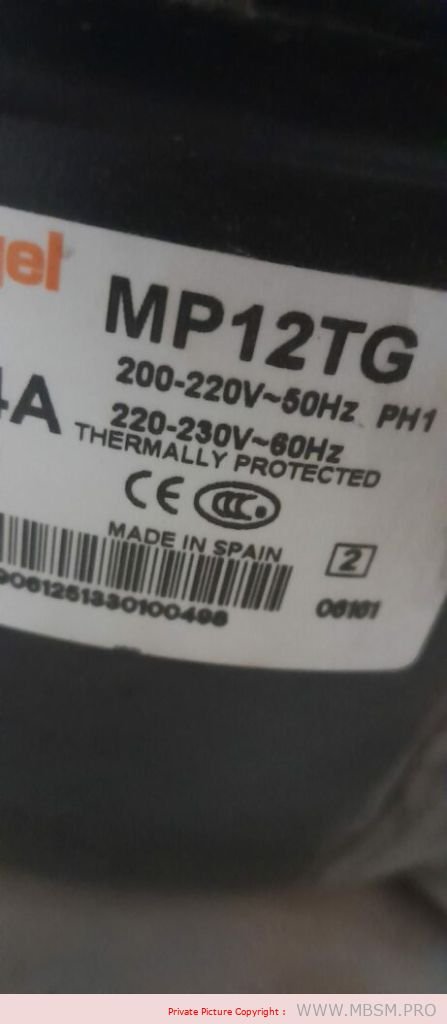

Mbsm.pro, COMPRESOR, SELLADO, 1/2 HP, 6269 BTU/h, R-404a, 220V, PH1, CSR, HMBP, CUBIGEL, MP12TG

written by Lilianne | 29 September 2023

Mbsm_dot_pro_private_PDF_mp12tg

Descriptif : Mp12Tg 1/2 Hp R507 Mbp Comp

Marque:Cubigel

Product category: compressors

Stock code: CUB4012T

Application: HMBP

Displacement: 12.05

Cooling capacity EN 12900 Rating: 1536

Maximum operating current: 7.5

Oil type: ISO VG 32 ESTER

Oil volume L: 400

Connexion d’aspiration : 8.1

Discharge connection: 6.5

Connection Discharge Type: Tube – Copper

Suction connection type: Tube – Copper

Dimensions (L*W*H):192X162X210.5

Tags:Refrigeration, Compressors, LBP

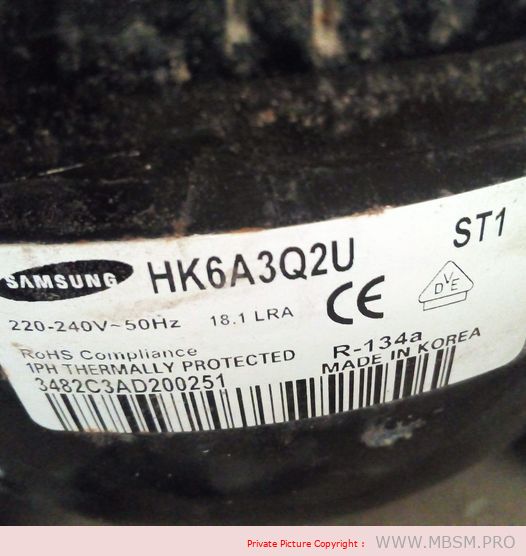

Mbsm.pro, Compresor, Samsung, HK6A3C2W, R134a, 1/3 hp++, 690 w , hbp, SDxx-SKxx-HKxx Series

written by Lilianne | 29 September 2023

Condensation temperature: 54.4 degrees Celsius

Liquid temperature: 32.2 Celsius

        Model        Type Cooling capacity BTU/H refrigeration capacity W Input power W EER efficiency current RLA
SD643Q-H222 RSIR 1469 430 197 746 1.01
SD652Q-H222 RSIR 1787 523 220 812 1.30
SK670Q-H2S CSIR 2383 698 310 768 1.84
SK670Q-H2Z RSIR 2362 692 310 762 1.84
SK682Q-H2Z RSIR 2779 814 365 761 2.16
SK6A1Q-S2S CSIR 4573 1047 480 744 2.85
HK672Q2Z RSIR 2422 709 305 794 1.81
HK680Q2Z RSIR 2779 814 three hundred fifty 794 2.07
HK690Q2Z RSIR 3097 907 380 815 2.25
HK6A1Q2Z RSIR 3613 1058 465 777 2.76
HK6A3Q2U RSCR 4169 1221 535 779 3.17

Mbsm_dot_pro_private_PDF_HK6A3Q2U



Mbsm.pro, COMPRESOR, Domper, SK65CY, R600A, 1/8 HP

written by Lilianne | 29 September 2023

Mbsm_dot_pro_private_PDF_sk65cy1a

This product is compatible with the following models:

ALASKA

F28012A

BENAVENT

BCV85 BCV85W

CLAYTON

F260CLWA

ECRON

2FV144A 2FV144ARS 2FV160A 2FV160ARS CVV85A

ESVAM

FSV144AA FSV160AA

EUREKA

COEU085PLUS FEU144PLUS FEU160PLUS

FAIRLINE

FFL280113A

FAR

F150A

GELTRON

GL260

PRINCESS

RP260LCA RP280CLA

SCHAUB LORENZ

DTF14454PLUS

TECHWOOD

TW144A TW160A

TEGRAN

TG13 TG144A

TELEFUNKEN

TLK144A TLK85A

THOR

TF2142BLANCO

UREKA

COEU085PLUS FEU170PLUS

VESTEL

VC230 VC256

WHITE WESTINGHOUSE

FW144 FW160


Compresor LG 1/6HP MA53LAUG r134

written by Lilianne | 29 September 2023

Mbsm.pro, Compresor, LG, 1/6HP, MA53LAUG, r134, lbn

LG Hermetic Compressor (Refrigerant:R134a)LBP
Part No. Displ. Motor Cooling Capacity Kcal/Hr Btu/h Input power COP Power Weight
(cm3) Type Type (W)-23.3? (w) W/W Supply (kg)
NS24LAEG 2.4 RSIR ST 44 38 150 76 0.58 220-240V/50Hz 5.8
NS24LBEG 2.4 RSIR ST 42 36 143 64 0.66 220-240V/50Hz 6.4
NS30LAEG 3.0 RSIR ST 63 54 214 84 0.75 220-240V/50Hz 6.4
NS36LAEG 3.6 RSIR ST 77 66 261 89 0.87 220-240V/50Hz 6.4
MSA43LBEG 4.3 RSIR ST 116 100 396 106 1.09 220-240V/50Hz 6.3
MSA43LBEM 4.3 RSCR ST 116 100 396 97 1.20 220-240V/50Hz 6.3
MSA53LAEG 5.3 RSIR ST 143 120 478 117 1.22 220-240V/50Hz 6.3
MSA53LAEM 5.3 RSCR ST 143 120 478 105 1.36 220-240V/50Hz 6.3
MSA53LBEG 5.3 RSIR ST 143 120 478 130 1.10 220-240V/50Hz 6.3
MSA53LBEM 5.3 RSIR ST 143 120 478 119 1.20 220-240V/50Hz 6.3
MSA53LCEG 4.23 RSIR ST 153 103 409 124 1.23 220-240V/50Hz 6.3
MSA63LDEG 4.23 RSIR ST 153 103 409 124 1.23 220-240V/50Hz 6.6
MA53LAEG 5.3 RSIR ST 142 122 484 106 1.34 220-240V/50Hz 8.4
MA53LAEM 5.3 RSCR ST 142 122 484 99 1.43 220-240V/50Hz 8.4
MSA53LCEM 5.3 RSIR ST 140 120 478 124 1.13 220-240V/50Hz 6.3
MA57LAEG 5.7 RSIR ST 160 138 548 119 1.34 220-240V/50Hz 8.6
MA57LAEM 5.7 RSCR ST 160 138 548 110 1.45 220-240V/50Hz 8.6
MA62LCEG 6.2 RSIR ST 174 150 596 127 1.37 220-240V/50Hz 8.8
MA62LCEM 6.2 RSIR ST 174 150 596 119 1.46 220-240V/50Hz 8.9
MA69LCEG 6.9 RSIR ST 200 172 683 142 1.41 220-240V/50Hz 9.3
MA69LCEM 6.9 RSCR ST 200 172 683 131 1.53 220-240V/50Hz 9
MA98LAEM 9.8 RSCR ST 279 240 953 183 1.52 220-240V/50Hz 9.5
Mbsm_dot_pro_private_PDF_lg-1Télécharger


Mbsm.pro, Compresor, ZMC, 1/5 hp++, 1/4 hp–, High-Medium Back Pressure, GL80TB, GL80AA, cooling and freezing

written by Lilianne | 29 September 2023

Mbsm.pro, Compresor, ZMC, 1/5 hp++, 1/4 hp–, High-Medium Back Pressure, GL80TB, GL80AA

Mbsm_dot_pro_private_PDF_GL80TBTélécharger



Mbsm.pro, Compressor, Danfoss, 1/4hp++, mhbp, Gl90an, R134a, 220-230v, 1ph, 50hz , Csir

written by Lilianne | 29 September 2023

Technical data

  • Model: GL90TB
  • Refrigerant Gas: R-134a
  • Pression/temperature: MHBP
  • Power: 1/4 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 8.85 cm³
  • Power Cons. -25°C: 165 W
  • Power Cons. -10°C: 230 W
  • Power Cons. -5°C: 252 W
  • Efficiency 0°C: 276 W
  • Power Cons. +5°C: 299 W
  • Power Cons. +10°C: 324 W
  • T° Condensation: 40 °C
  • Cooling Cap. -25°C: 175 Kcal/h
  • Cooling Cap. -20°C: 242 Kcal/h
  • Cooling Cap. -15°C: 322 Kcal/h
  • Cooling Cap. -10°C: 416 Kcal/h
  • Cooling Cap. -5°C: 523 Kcal/h
  • Cooling Cap. 0°C: 643 Kcal/h
  • Cooling Cap. 5°C: 777 Kcal/h
  • Cooling Cap. 7.2°C: 840 Kcal/h
  • Cooling Cap. 10°C: 924 Kcal/h
  • Test Type: Ashare 46

Extra data

Length (L): 240mm
Length (L1): 192mm
Width (W): 162mm
Height (h): 191mm

Mbsm_dot_pro_private_PDF_GL90ANTélécharger
