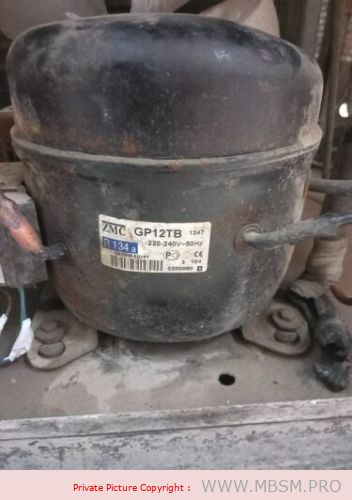

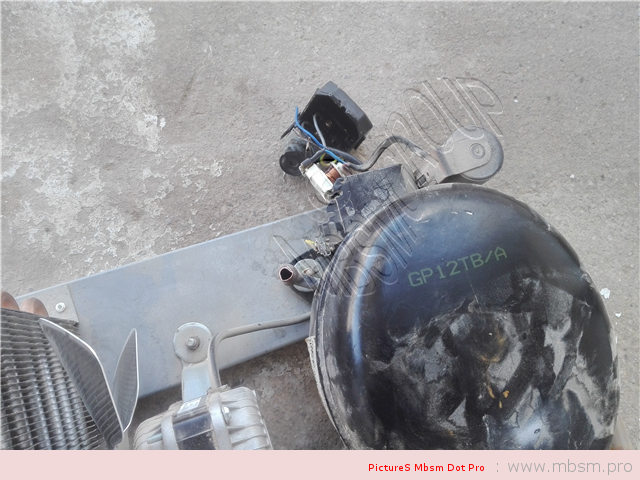

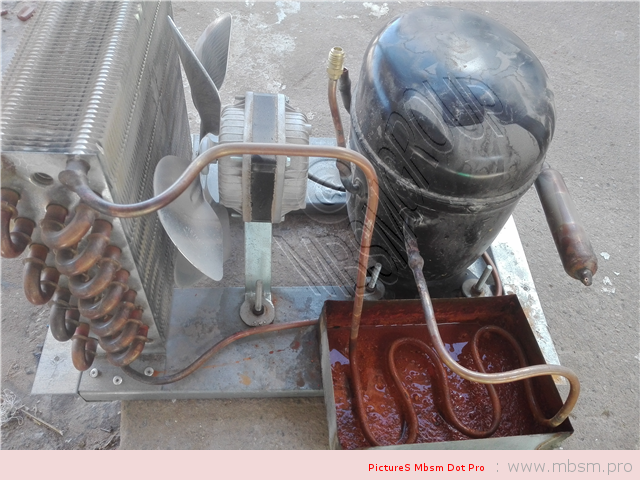

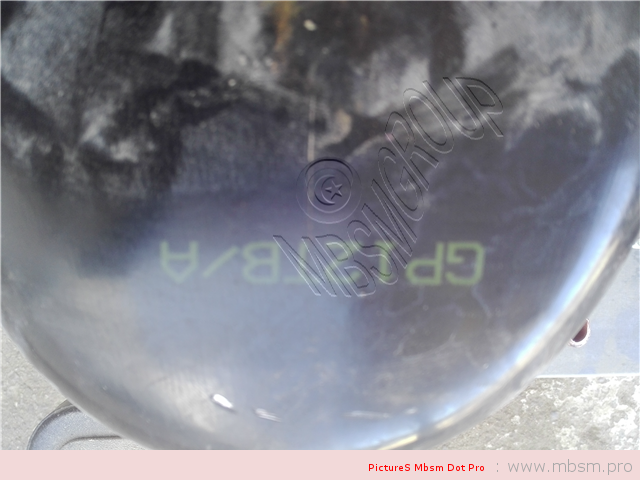

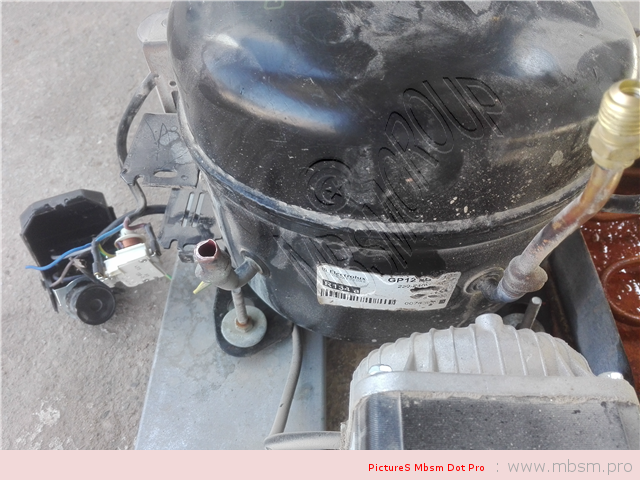

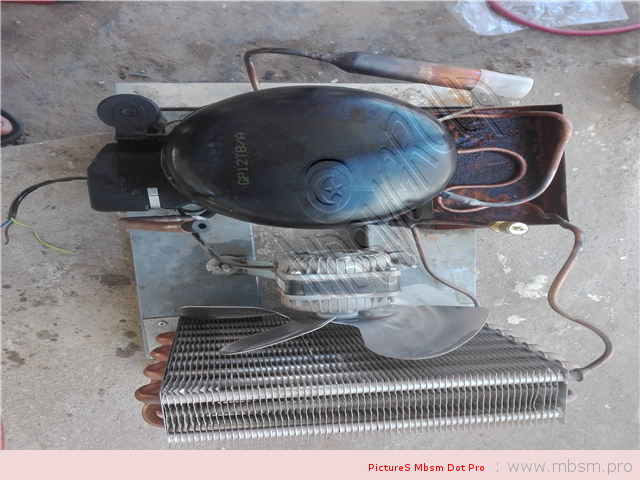

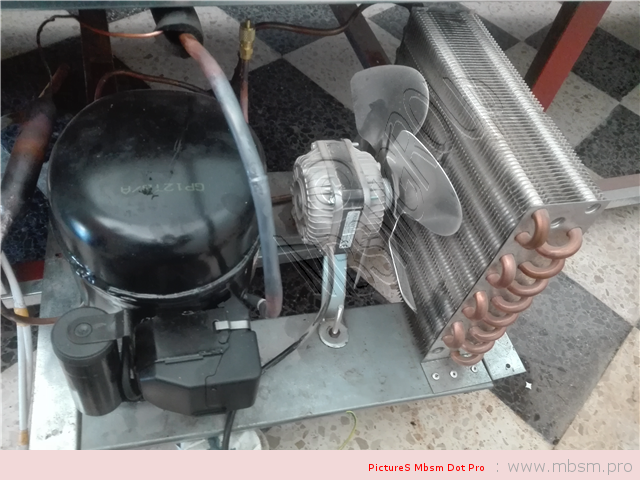

Danfoss ,Fridge Compressor ,NL7FT , 1/4 HP ,R134a



Type: Hermetic piston compressors Producer: ACCSeries: HMBP, cooling

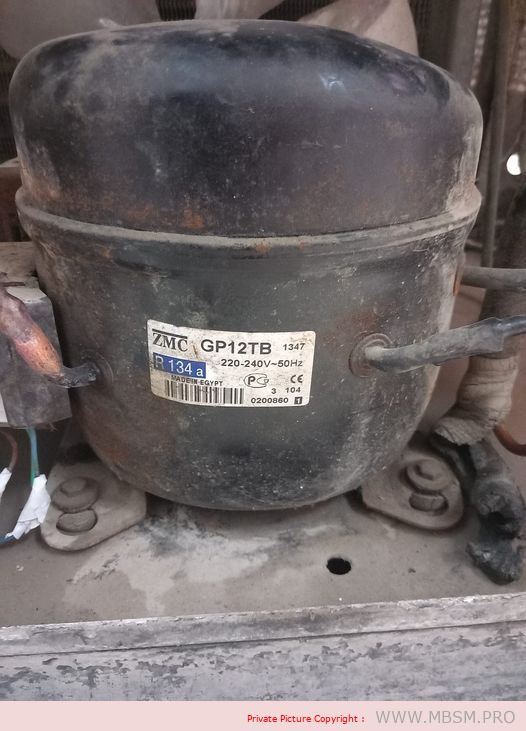

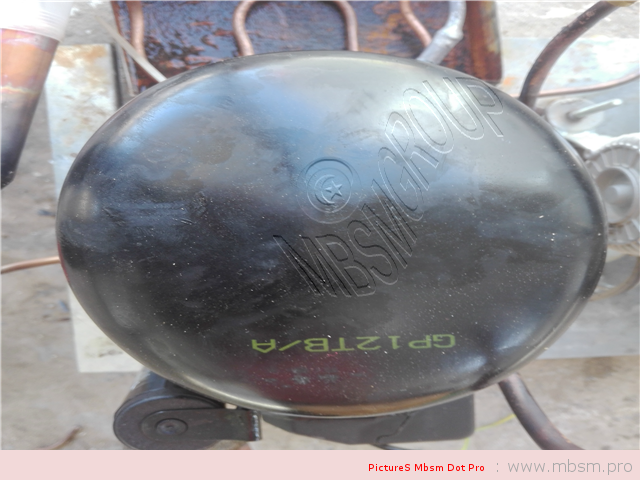

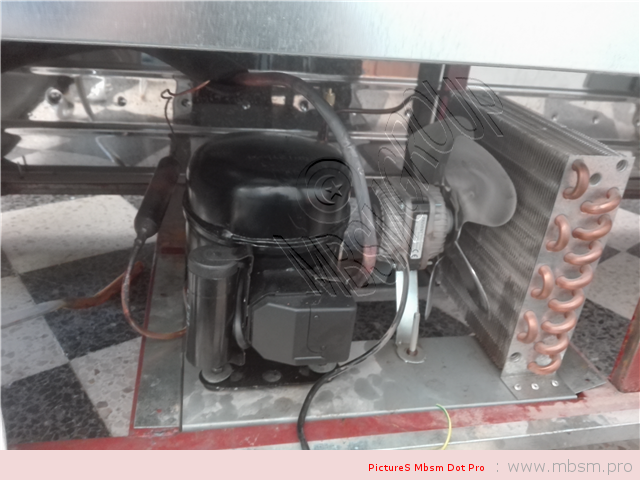

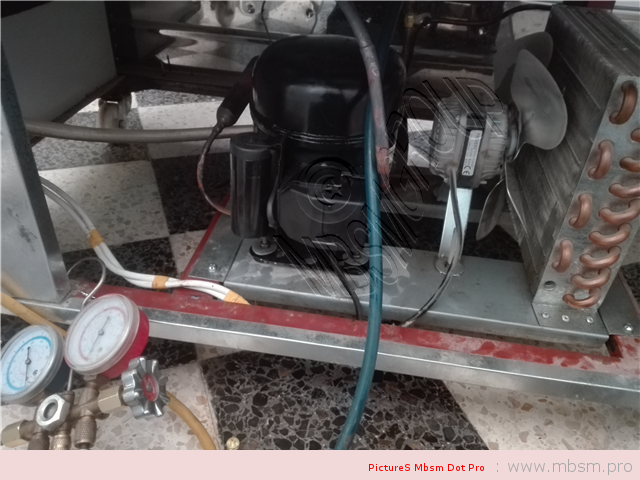

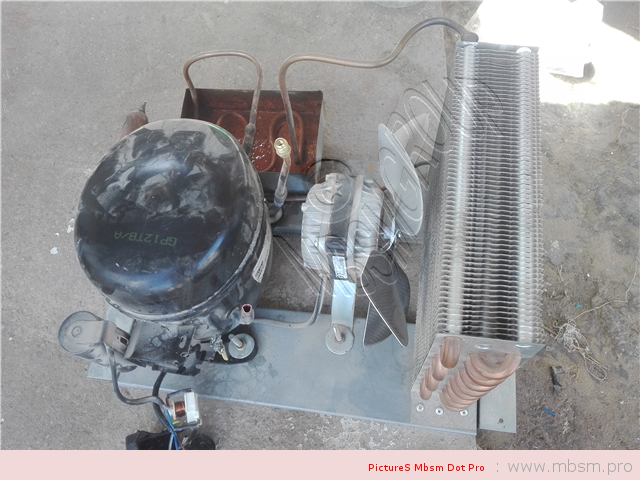

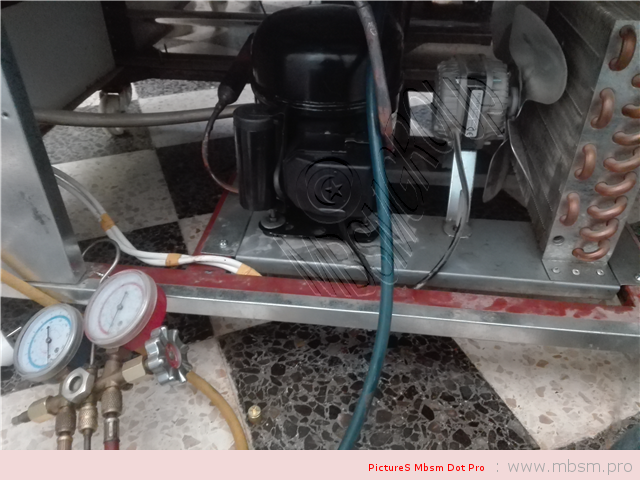

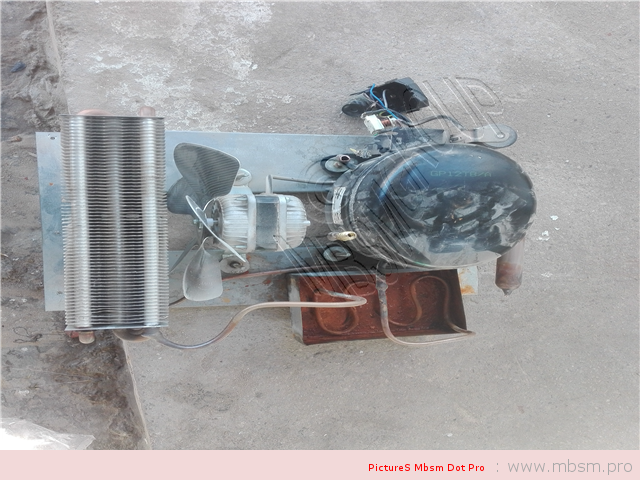

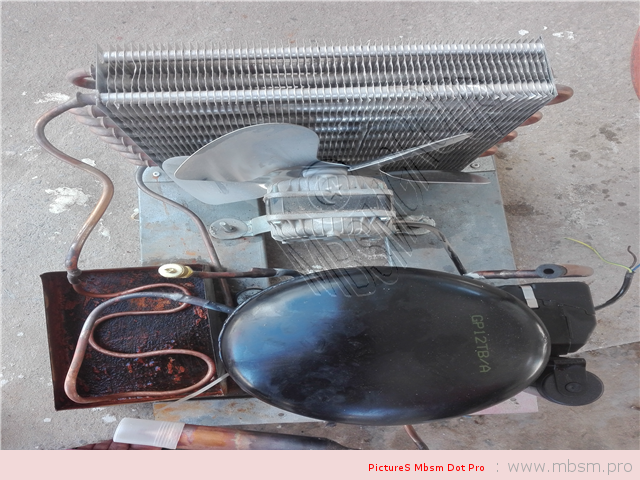

Model: GP12TB
General data

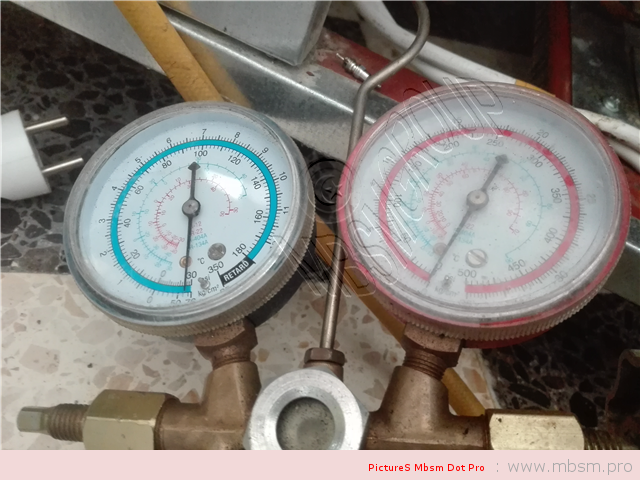

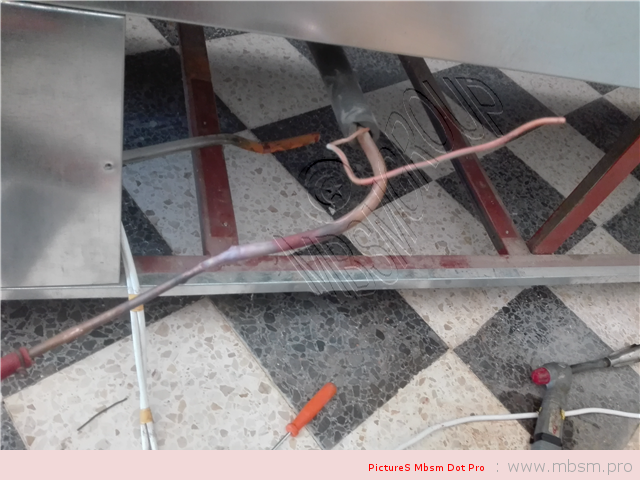

Capillary : | 0.42 , 0.32 180 psi |
100mm |
Refrigerant: | R134a | |
Discharge element: | C-V | |
Cooling: | F | |
Maximum ambient temperature [ºC]: | 43 |
Compressor’s data
Cylinder capacity [cm³]: | 12,1 | |
Displacement [m³/h]: | 2,1 | |
Weight [kg]: | 11,2 | |
Oil charge [cm³]: | 350 | |
Oil type: | ISO VG 22 ESTER |
Engine’s data
Engine type: | CSIR | |
Power [KM]: | 3/8 | |
Starting element: | HST | |
Power supply: | 220V 50Hz | |
Voltage range: | 187-264 | |
Locked rotor current [A]: | 13,5 | |
Running winding resistance (25ºC) [Ω]: | 5,75 | |
Starting winding resistance (25ºC) [Ω]: | 20,3 |
Electrical data
Relays: | 9660 A 138, MTRP 43 | |
Shielding element: | MRT26AMK, T0181 | |
Starting capacitor volume [μF]: |
Connections
Type: Hermetic piston compressorsProducer: ACCSeries: HMBP
Model: GP12TB
General data
Refrigerant: | R134a | |
Discharge element: | C-V | |
Cooling: | F | |
Maximum ambient temperature [ºC]: | 43 |
Compressor’s data
Cylinder capacity [cm³]: | 12,1 | |
Displacement [m³/h]: | 2,1 | |
Weight [kg]: | 11,2 | |
Oil charge [cm³]: | 350 | |
Oil type: | ISO VG 22 ESTER |
Engine’s data
Engine type: | CSIR | |
Power [KM]: | 3/8 | |
Starting element: | HST | |
Power supply: | 220V 50Hz | |
Voltage range: | 187-264 | |
Locked rotor current [A]: | 13,5 | |
Running winding resistance (25ºC) [Ω]: | 5,75 | |
Starting winding resistance (25ºC) [Ω]: | 20,3 |
Electrical data
Relays: | 9660 A 138, MTRP 43 | |
Shielding element: | MRT26AMK, T0181 | |
Starting capacitor volume [μF]: |
Connections
milimeters | inches | ||
Suction/service tube: | 8,1 | ||
Service/suction tube: | 8,1 | ||
Discharge tube: | 6,5 |
https://www.mbsm.pro/wp-content/uploads/2020/04/Mbsm_dot_pro_private_picture_qb66c13gpx5.pdf
An Khang Company est le fournisseur et le grossiste de Panasonic de petite capacité pour les réfrigérateurs, réfrigérateurs, congélateurs, etc. à l’échelle nationale. Avec la bonne qualité de modèle, le bon modèle, une capacité diversifiée adaptée à chacun.
>> Panasonic SFJ39C72RLW Refrigerator – 1 / 9HP – 220 ~ 240V – R134.
>> Panasonic SFJ48C87RLW Tornado – 1 / 7HP – 2240VAC – R134.
>> Panasonic refrigerator QBH57C10GPX – 1 / 6HP – 2240VAC – R134.
>> Panasonic refrigerators QBH66C13GPX – 1 / 5HP – 2240VAC – R134.
>> Panasonic refrigerators QBH73C16GPX – 1 / 5HP – 2240VAC – R134.
>> Panasonic refrigerator QBH86C19RPX – 1 / 4HP – 2240VAC – R134.
>> Panasonic refrigerator QB110C19GAW5–1 / 3HP – 220 ~ 240V – R134.
Electrical : 220-240 V/50 Hz. 1 Phase
Nominal Performance
Capacity 6,140 / – Watts
20,950 / – BTU/Hr
5,280 / – Kcal/Hr
Power Input 2,089 / – Watts
Locked Rotor Amps 51.30 / – Amps
Max Continuous Current – / – Amps
Rated Load Amps 9.64 / – Amps
COP 2.94 / – Watts / Watts
EER 10.03 / – BTU/W-Hr
Testing Conditions
Condensing Temperature 54.40 °C 129.9 °F
Evaporating Temperature 7.20 / – °C 45.0 / – °F
Liquid Temperature 46.10 °C 115.0 °F
Return Gas Temperature 35.00 °C 95.0 °F
Ambient Temperature 35.00 °C 95.0 °F
Application
Evaporating Temp. Range HBP, A/C @ 0.00 ° C to 13.00 ° C
(32.0° F to 55.4° F)
Heat Pump -23.30 ° C to 13.00 ° C
(-9.9° F to 55.4° F)
Refrigerant R22
Refrigerant Flow Control Capillary Tube
Compressor Cooling Fan
Compressor and Motor data
Compressor Type Reciprocating
Displacement 43.10 cc.
Oil Type Mineral Oil
Oil Charge 964 cc.
Motor Type P.S.C ; 2 Pole 2,850 / – r/m
Voltage Range 198-264/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start 2.52 Ohms
Run 1.24 Ohms
Weight with Oil 27.72 Kg.
Weight with Oil and Accessories 28.05 Kg.
Electrical Components
Motor Protector
Type Internal Overload
Model Number 4042KGE661-2
Open / Close 125-135 / 50-70 ° C
1st Cycle trip at 25 ° C 50.00 Amps(main) 30.00 Amps(start)
Motor Starter
Type Potential Relay
Model Number 4043KGE681-4(RVA3G6D)
Pick Up (max.) 180.00-195.00 Volts
Drop Out (min.) 40.00-90.00 Volts
Terminal Cover KGM 901-3
Start Capacitor 88-106 µF 330 VAC.
Disch Resistor for Start Cap –
Run Capacitor 45 µF 370/440 VAC.
Mounting Kit
Rubber Grommet 4007KGM905-2
Sleeve Grommet 4023KGM903-2
Washer –
Since we are constantly improving our product , the
specification are subject to change without notice.
REV. DATE C / N No.
ECN 01-04-14 ECN 0515/13

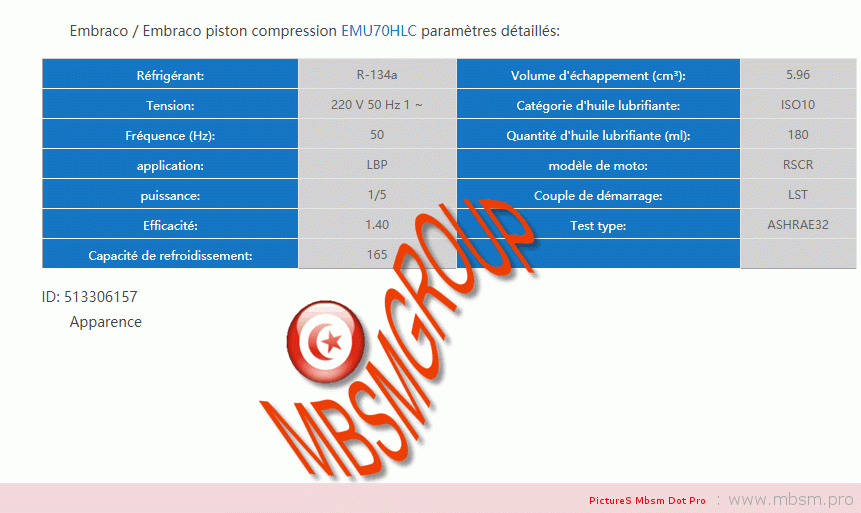

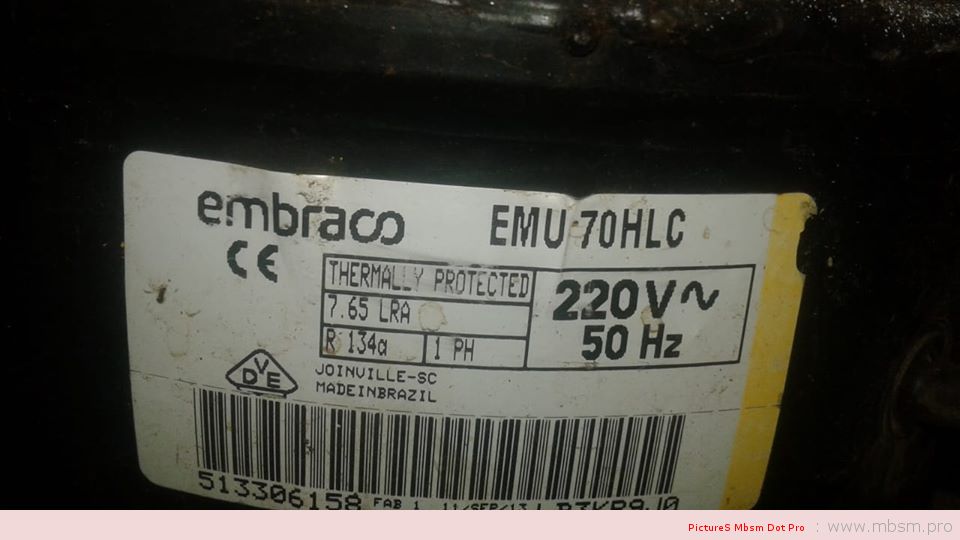

Embraco / Embraco piston compression EMU70HLC detailed parameters:
Refrigerant: | R-134a | Exhaust volume (cm³): | 5.96 |
Voltage: | 220 V 50Hz 1 ~ | Lubricating oil category: | ISO10 |
Frequency (Hz): | 50 | Lubricating oil amount (ml): | 180 |
application: | LBP | motor model: | RSCR |
horsepower: | 1/5 | Starting torque: | LST |
efficiency: | 1.40 | Test type: | ASHRAE32 |
Cooling capacity: | 165 |
ID: 513306157

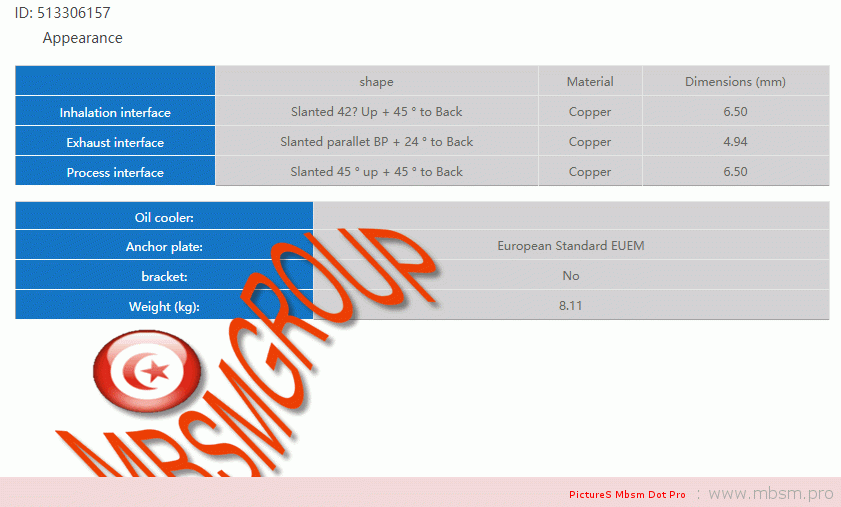

Appearance
shape | Material | Dimensions (mm) | |
Inhalation interface | Slanted 42? Up + 45 ° to Back | Copper | 6.50 |
Exhaust interface | Slanted parallet BP + 24 ° to Back | Copper | 4.94 |
Process interface | Slanted 45 ° up + 45 ° to Back | Copper | 6.50 |
Oil cooler: | |
Anchor plate: | European Standard EUEM |
bracket: | No |
Weight (kg): | 8.11 |
application
Maximum ambient temperature (° C): | 43 |
Expansion device: | Capillary |
cool down: | Direct cooling |
Air flow rate: |
Mechanical data
Bill of materials: | 513306157 |
Starting torque: | Low starting torque |
Bore (mm): | 22.50 |
Stroke (mm): | 7.50 |
Weight (kg): | 8.11 |
digital data
motor model: | RSCR |
Wire group resistance (25 ° C)-start (25 ° C)-start: | 14.95 |
Wire group resistance (26 ° C)-operation (25 ° C)-operation: | 17.98 |
Checkpoint-Condensation temperature 54.4 ° C
Evaporation temperature | Cooling capacity +/- 5% | Energy consumption +/- 5% | Now energy efficiency +/- 5% | Energy efficiency +/- 7% | ||||
° C | (kcal / h) | (W) | (Btu / h) | (W) | (A) | (kcal / Wh) | (W / W) | (Btu / Wh) |
-23.3 | 142 | 165 | 563 | 118 | 0.69 | 1.21 | 1.40 | 4.79 |
Condensation temperature 35 ° C
Evaporation temperature | Cooling capacity +/- 5% | Energy consumption +/- 5% | Now energy efficiency +/- 5% | Gas flow rate +/- 5% | Energy efficiency +/- 7% | ||||
° C | (kcal / h) | (W) | (Btu / h) | (W) | (A) | (kg / h) | (kcal / Wh) | (W / W) | (Btu / Wh) |
-35 | 77 | 89 | 304 | 83 | 0.57 | 1.72 | 0.93 | 1.08 | 3.68 |
-30 | 115 | 133 | 455 | 97 | 0.62 | 2.58 | 1.18 | 1.37 | 4.67 |
-25 | 157 | 182 | 622 | 111 | 0.67 | 3.53 | 1.42 | 1.65 | 5.62 |
-20 | 203 | 236 | 804 | 123 | 0.70 | 4.57 | 1.65 | 1.92 | 6.56 |
-15 | 252 | 293 | 1.000 | 133 | 0.73 | 5.71 | 1.89 | 2.20 | 7.52 |
-10 | 305 | 354 | 1.210 | 142 | 0.75 | 6.93 | 2.14 | 2.49 | 8.50 |
Condensation temperature 45 ° C
Evaporation temperature | Cooling capacity +/- 5% | Energy consumption +/- 5% | Now energy efficiency +/- 5% | Gas flow rate +/- 5% | Energy efficiency +/- 7% | ||||
° C | (kcal / h) | (W) | (Btu / h) | (W) | (A) | (kg / h) | (kcal / Wh) | (W / W) | (Btu / Wh) |
-35 | 63 | 74 | 252 | 82 | 0.57 | 1.42 | 0.77 | 0.90 | 3.06 |
-30 | 101 | 117 | 399 | 98 | 0.62 | 2.26 | 1.03 | 1.20 | 4.08 |
-25 | 144 | 168 | 573 | 113 | 0.67 | 3.26 | 1.28 | 1.49 | 5.08 |
-20 | 195 | 227 | 773 | 128 | 0.72 | 4.40 | 1.52 | 1.77 | 6.05 |
-15 | 251 | 292 | 998 | 143 | 0.77 | 5.70 | 1.76 | 2.05 | 7.00 |
-10 | 314 | 365 | 1.247 | 158 | 0.82 | 7.14 | 1.99 | 2.32 | 7.91 |
Condensation temperature 55 ° C
Evaporation temperature | Cooling capacity +/- 5% | Energy consumption +/- 5% | Now energy efficiency +/- 5% | Gas flow rate +/- 5% | Energy efficiency +/- 7% | ||||
° C | (kcal / h) | (W) | (Btu / h) | (W) | (A) | (kg / h) | (kcal / Wh) | (W / W) | (Btu / Wh) |
-35 | 55 | 64 | 217 | 80 | 0.57 | 1.23 | 0.68 | 0.79 | 2.71 |
-30 | 85 | 99 | 337 | 96 | 0.62 | 1.91 | 0.89 | 1.03 | 3.53 |
-25 | 125 | 145 | 495 | 112 | 0.67 | 2.81 | 1.12 | 1.30 | 4.43 |
-20 | 174 | 202 | 690 | 129 | 0.72 | 3.93 | 1.35 | 1.56 | 5.34 |
-15 | 232 | 270 | 920 | 148 | 0.79 | 5.25 | 1.57 | 1.83 | 6.23 |
-10 | 299 | 347 | 1.185 | 168 | 0.86 | 6.79 | 1.78 | 2.07 | 7.07 |
Cooling capacity (W)
Condensing temperature 45 ° C Condensing temperature 55 ° C Condensing temperature 65 ° C
Energy consumption (W)
Condensing temperature 45 ° C Condensing temperature 55 ° C Condensing temperature 65 ° C
Energy efficiency now (A)
Condensing temperature 45 ° C Condensing temperature 55 ° C Condensing temperature 65 ° C
Gas flow rate (kg / h)
Condensing temperature 45 ° C Condensing temperature 55 ° C Condensing temperature 65 ° C
Rubber pad
Engineering code: | 13146411 |
Dimensions: | mm (Inch) |
The grommets are made of special rubber and used in the nut and bolt type or in the snap on type assembly. The rummer grommet. The dimensions of which are shown in the figure below. Was developed for installation in compressors with 16 and 19 mm diameters holes in the base plate.
