Compressor Type | Refrigerant Type | Typical HP Range |
---|---|---|
Scroll | R-410A | 1.5 – 2.5 HP |
Reciprocating | R-410A | 2 – 3 HP |
Rotary | R-22 | 2.5 – 3.5 HP |
drive_spreadsheetExport to Sheets

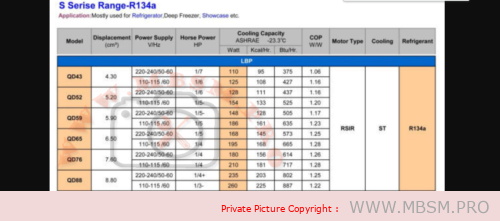

Power supply | Ph-V-Hz | 220-240V/50HZ | |||
Cooling | Capacity | BTU | 24000 | ||
Capacity tolerance | % | ||||
Input | W | 3100 | 3500 | ||
Rated current | A | 15 | 17 | ||
EER | 2,30 | 1,7 | |||
Heating | Capacity | BTU | 24000 | ||
Capacity tolerance | % | ||||
Input | W | 2900 | |||
Rated current | A | 14 | |||
COP | 2,6 | ||||
Max. input consumption | W | 4500 | |||
Max. current | A | 23 | |||
Starting current | A | 74 | |||
Compressor | Model | C-R221H5S | |||
Type | Rotary | ||||
Brand | SANYO | SANYO | |||
Indoor unit | Indoor fan motor | Model | GAL8P60A-KND | ||
Brand | GALANZ | ||||
Output Power | W | 60 | |||
Capacitor | uF | 4 | |||
Speed (Hi/Mi/Lo) | r/min | 600/550/420 | |||
Indoor coil | a.Number of row | 2 | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 1000 | |||
Rated input Power(cooling/heating) | W | 140 | |||
Rated current (cooling/heating) | A | 0,6 | |||
Moisture Removal | (L/h) | 3,2 | 0,8 | ||
Noise level(Hi/Mi/Lo) | dB(A) | 48/43 | |||
Unit dimension (W*H*D) | mm | 480x1680x255 | |||
Packing (W*H*D) | mm | 1795x585x345 | |||
Net weight | Kg | 37 | |||
Gross weight | Kg | 46 | |||
Outdoor unit | Outdoor fan motor | Model | GAL075H61225-K01/ YDK-075S62520-06 | GAL075H61225-K01/ YDK-075S62520-06 | |
Brand | |||||
Output Power | W | 75 | 75 | ||
Capacitor | uF | 4.0 | 4.0 | ||
Speed | r/min | 830±30 | 830±30 | ||
Outdoor coil | a.Number of row | 2 | |||
Noise level | dB(A) | 57 | |||
Unit dimension (W*H*D) | mm | 845x680x310 | |||
Packing (W*H*D) | mm | 1010x765x430 | |||
Net weight | Kg | 51 | |||
Gross weight | Kg | 56 | |||
Refrigerant type | R22 | ||||
Refrigerant charge | g | 2130 | |||
Design pressure | MPa | 2,8 | |||
Refrigerant pipe | Liquid side | mm | 9,52 | ||
Gas side | mm | 15,88 | |||
Max. refrigerant pipe length | m | 15 | |||
Max. difference in level | m | 8 | |||
Operation temperature range | ℃ | -7~51 | |||
Ambient temperature range | ℃ | -8~53 | |||
Application area | m2 | 22~43 | |||
Qty’per 20’& 40’&40HQ | Set | 42/88/95 |
R600a LBP DC Inverter | ||||||||||
100V/220~240V/50~60Hz | ||||||||||
Model | Displ(cm3) | Cooling Type | Motor Type | rpm | ASHRAE (-23.3/54.4/32.2ºC) |
Shell Height | ||||
Cooling Capacity | COP | |||||||||
w | Kcal/h | Btu/h | W/W | Btu/Wh | ||||||
DZ90V1C | 9 | ST | BLDC | 1320 | 69 | 59 | 235 | 1.85 | 6.31 | 127 |
1620 | 88 | 76 | 300 | 1.9 | 6.48 | |||||
3000 | 172 | 148 | 587 | 1.8 | 6.14 | |||||
4320 | 220 | 189 | 751 | 1.69 | 5.77 | |||||
DZ90V1Q | 9 | ST | BLDC | 1320 | 69 | 59 | 235 | 2 | 6.82 | 141 |
1620 | 88 | 76 | 300 | 2.05 | 6.99 | |||||
3000 | 172 | 148 | 587 | 1.95 | 6.65 | |||||
4320 | 220 | 189 | 751 | 1.65 | 5.63 | |||||
DZ100V1C | 10 | ST | BLDC | 1320 | 82 | 71 | 280 | 1.88 | 6.41 | 127 |
1620 | 101 | 87 | 345 | 1.9 | 6.48 | |||||
3000 | 180 | 155 | 614 | 1.85 | 6.31 | |||||
4320 | 250 | 215 | 853 | 1.69 | 5.77 | |||||
DZ120V1C | 12 | ST | BLDC | 1320 | 86 | 74 | 293 | 1.76 | 6.01 | 127 |
1620 | 108 | 93 | 368 | 1.81 | 6.18 | |||||
3000 | 210 | 181 | 717 | 1.78 | 6.07 | |||||
4320 | 265 | 228 | 904 | 1.65 | 5.63 | |||||
DZ150V1Z | 15 | ST | BLDC | 1320 | 110 | 95 | 375 | 1.83 | 6.24 | 145 |
4620 | 145 | 125 | 495 | 1.88 | 6.41 | |||||
3000 | 270 | 232 | 921 | 1.75 | 5.97 | |||||
4320 | 340 | 292 | 1160 | 1.6 | 5.46 |

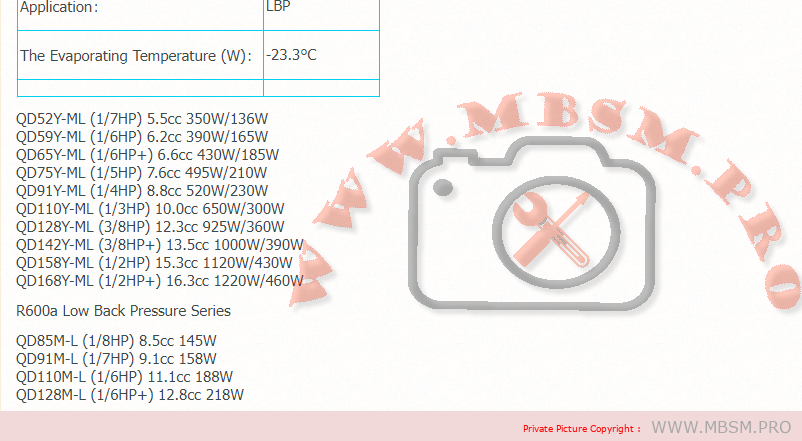

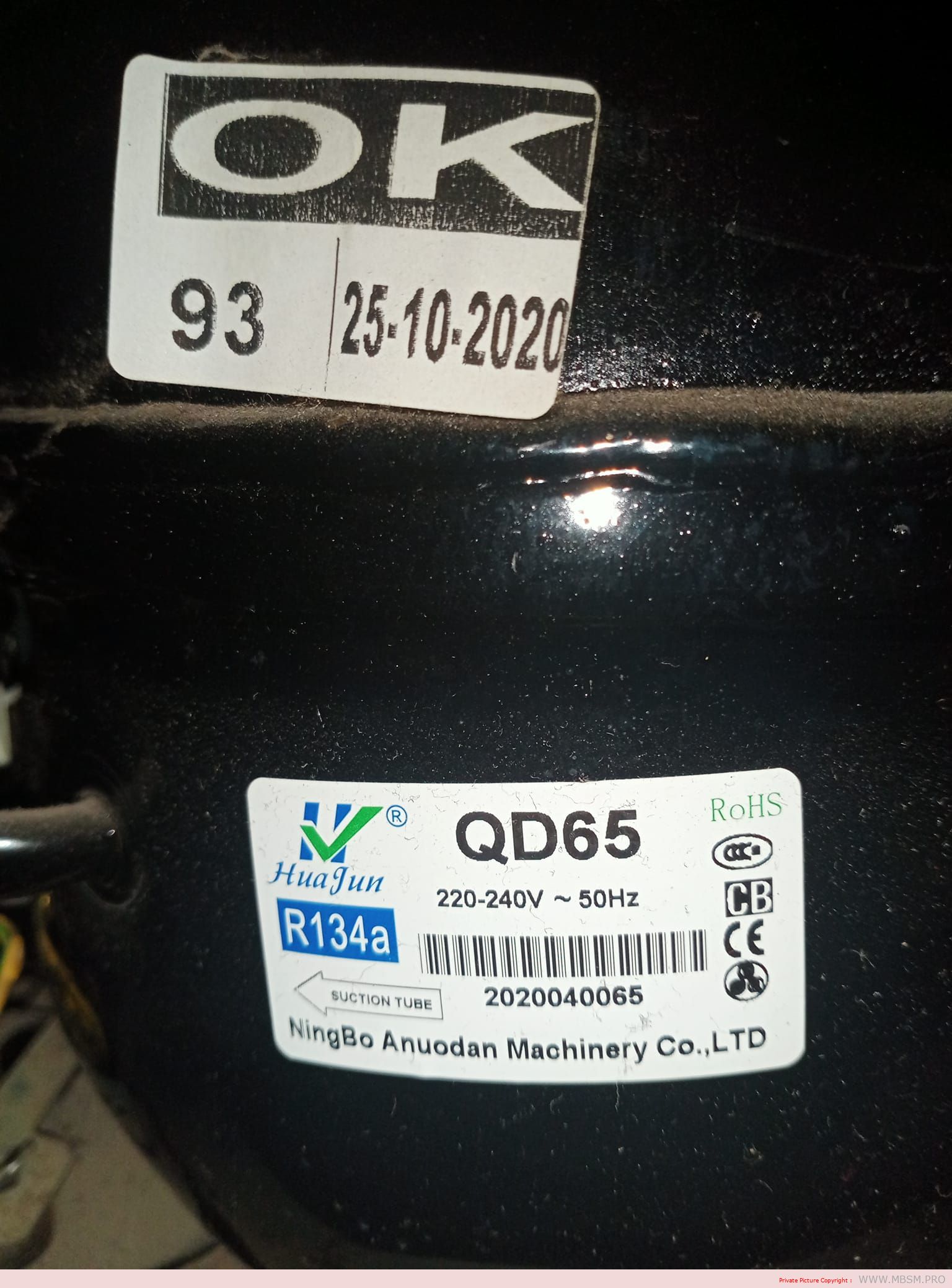

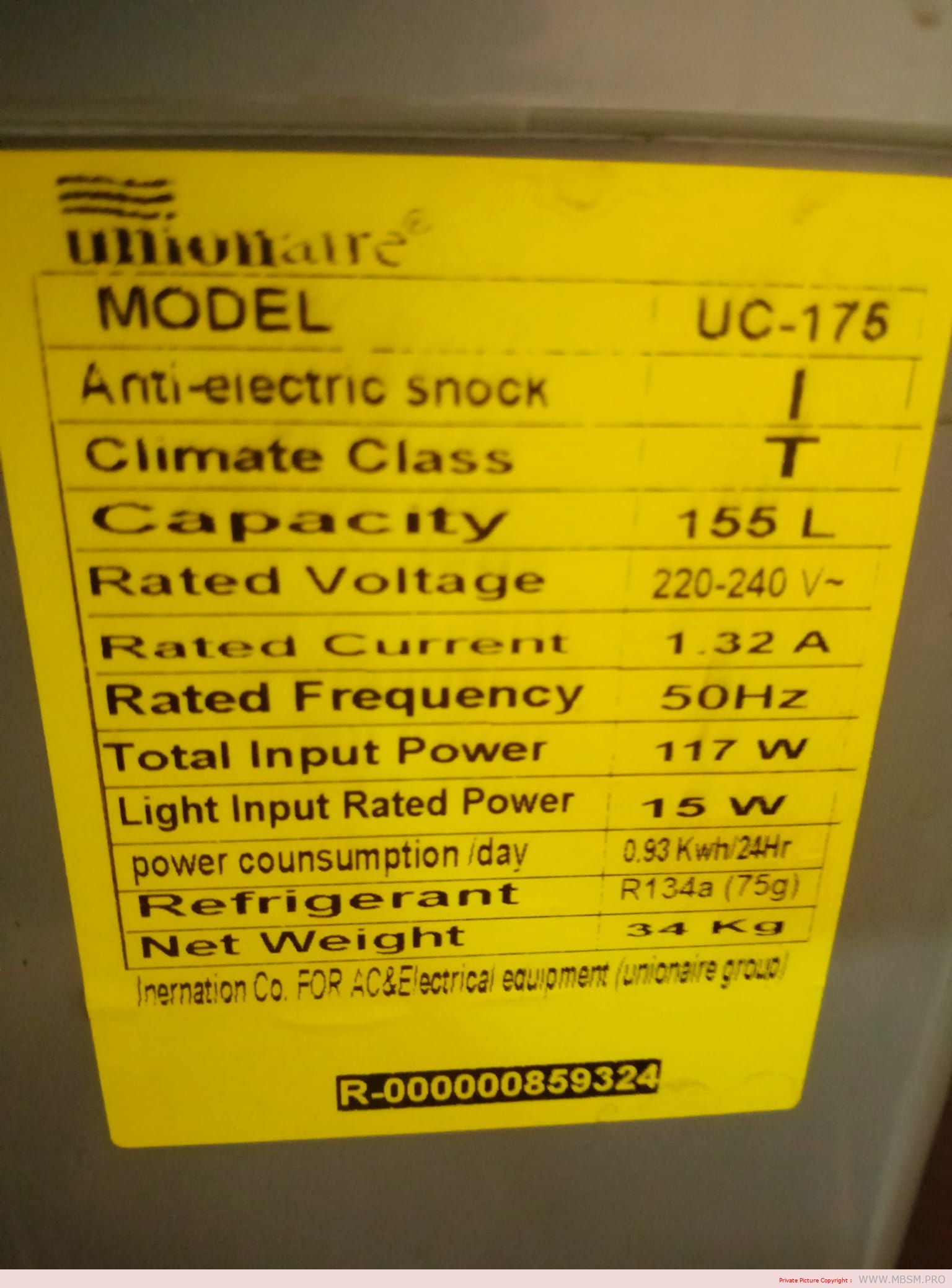

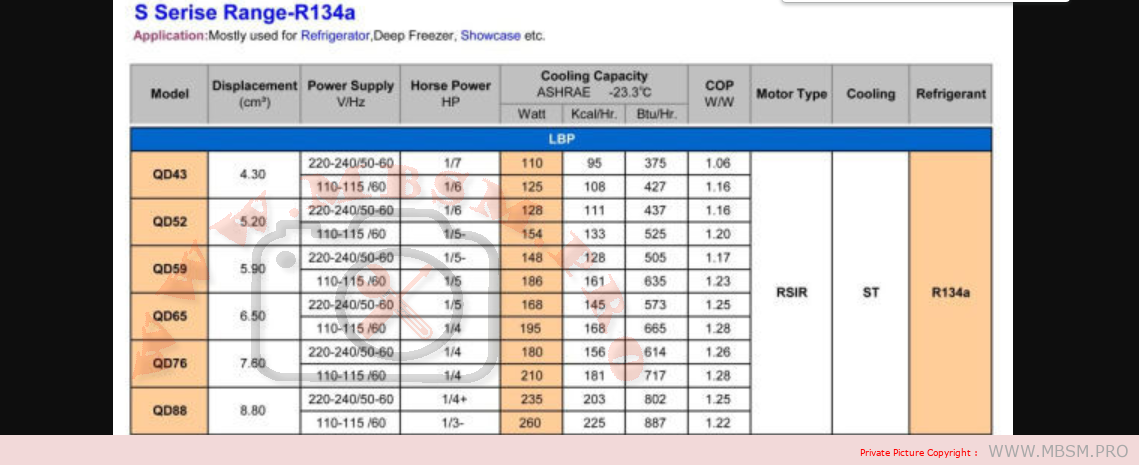

R134a LBP | ||||||||||
220V-240V~50/60Hz | ||||||||||
Model | Displ(cm3) | Cooling Type | Motor Type | Power Frequency | ASHRAE (-23.3/54.4/32.2ºC) |
Shell Height | ||||
Cooling Capacity | COP | |||||||||
w | Kcal/h | Btu/h | W/W | Btu/Wh | ||||||
PE40E1J-4 | 4 | ST | RSCR | 220V-240V~50Hz | 110 | 95 | 375 | 1.2 | 4.09 | 164 |
220V-240V~60Hz | 130 | 112 | 444 | 1.35 | 4.61 | |||||
PE40E1H-4 | 4 | ST | RSCR | 220V-240V~50Hz | 110 | 95 | 375 | 1.4 | 4.78 | 170 |
220V-240V~60Hz | 130 | 112 | 444 | 1.5 | 5.12 | |||||
SE45E1J-4 | 4.5 | ST | RSCR | 220V-240V~50Hz | 120 | 103 | 409 | 1.2 | 4.09 | 175 |
220V-240V~60Hz | 145 | 125 | 495 | 1.35 | 4.61 | |||||
PE50E1F-4 | 4.5 | ST | RSCR | 220V-240V~50Hz | 138 | 119 | 471 | 1.42 | 4.85 | 175 |
220V-240V~60Hz | 162 | 139 | 553 | 1.54 | 5.25 | |||||
PE50H1F-4 | 5 | ST | RSCR | 220V-240V-50Az | 155 | 133 | 529 | 1.6 | 5.46 | 178 |
220V-240V~60Hz | 180 | 155 | 614 | 1.63 | 5.56 | |||||
PE55H1C-4 | 5.5 | ST | RSCR | 220V-240V~50Hz | 170 | 146 | 580 | 1.55 | 5.29 | 178 |
220V-240V~60Hz | 198 | 170 | 676 | 1.65 | 5.63 | |||||
PE65H1D-4 | 6.5 | ST | RSCR | 220V-240V~50Hz | 195 | 168 | 665 | 1.45 | 4.95 | 178 |
220V-240V~60Hz | 220 | 189 | 751 | 1.55 | 5.29 | |||||
PE65H1C-4 | 6.5 | ST | RSCR | 220V-240V~50Hz | 195 | 168 | 665 | 1.55 | 5.29 | 178 |
220V-240V~60Hz | 220 | 189 | 751 | 1.65 | 5.63 | |||||
PE75H1F-4 | 7.5 | ST | RSCR | 220V-240V~50Hz | 220 | 189 | 751 | 1.4 | 4.78 | 178 |
220V-240V~60Hz | 250 | 215 | 853 | 1.5 | 5.12 | |||||
PE75H1D-4 | 7.5 | ST | RSCR | 220V-240V~50Hz | 220 | 189 | 751 | 1.5 | 5.12 | 178 |
220V-240V~60Hz | 250 | 215 | 853 | 1.6 | 5.46 | |||||
R290 LBP | ||||||||||
220V-240V~50Hz | ||||||||||
SA30E1J | 3 | ST | RSIR | 220V-240V~50Hz | 130 | 112 | 444 | 1.3 | 4.44 | 178 |
PA30E1C | 3 | ST | RSCR | 220V-240V~50Hz | 135 | 116 | 461 | 1.65 | 5.63 | 178 |
PA35E1E | 3.5 | ST | RSCR | 220V-240V~50Hz | 162 | 139 | 553 | 1.52 | 5.19 | 178 |
PA35E1D | 3.5 | ST | RSCR | 220V-240V~50Hz | 165 | 142 | 563 | 1.6 | 5.46 | 178 |
PA35E1C | 3.5 | ST | RSCR | 220V-240V~50Hz | 170 | 146 | 580 | 1.65 | 5.63 | 178 |
PA45E1E | 4.5 | ST | RSCR | 220V-240V~50Hz | 205 | 176 | 699 | 1.55 | 5.29 | 178 |
PA45E1D | 4.5 | ST | RSCR | 220V-240V~50Hz | 205 | 176 | 699 | 1.6 | 5.46 | 178 |
PA45E1C | 4.5 | ST | RSCR | 220V-240V~50Hz | 205 | 176 | 699 | 1.65 | 5.63 | 178 |
PA50H1E | 5 | ST | RSCR | 220V-240V~50Hz | 240 | 206 | 819 | 1.55 | 5.29 | 178 |
PA50H1B | 5 | ST | RSCR | 220V-240V~50Hz | 240 | 206 | 819 | 1.7 | 5.8 | 178 |
PA59H1B | 5.9 | FC | RSCR | 220V-240V~50Hz | 290 | 249 | 989 | 1.7 | 5.8 | 178 |

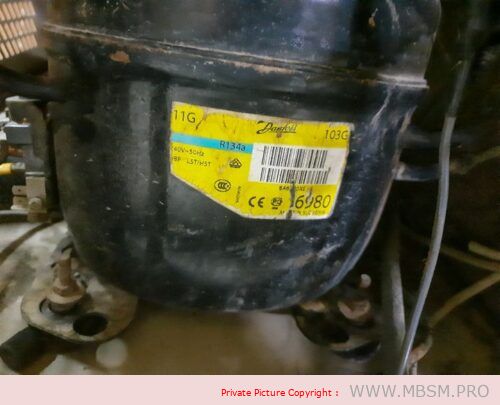

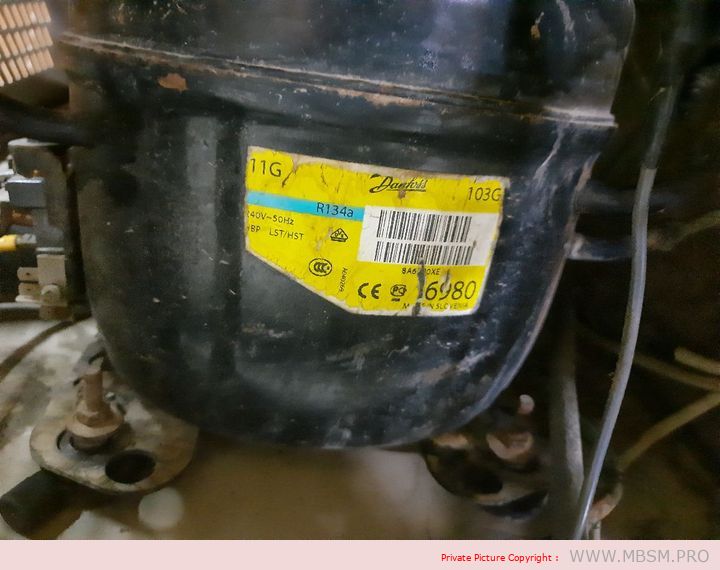

Compressors Danfoss R134a FR11G 195B0028 / 103G6980
Mbsm_dot_pro_private_PDF__103g6980 Mbsm_dot_pro_private_PDF_103g6980
Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.

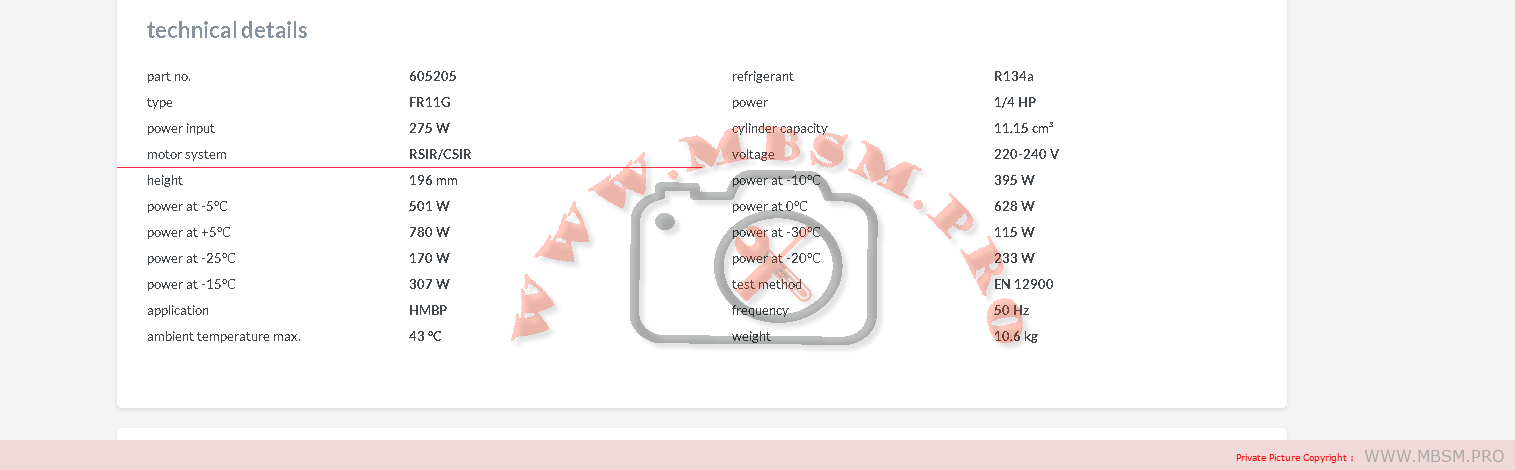

TECHNICAL DATA
Model | Displacement | Refrigerant | Voltage | Evaporating temperature range |
Lubricant (Charge/Type |
Weight | Max. Height |
FR11G | 11,15 cm3 | R-134a | 187-254V / 50Hz | -30°C~+5°C | – /450 ml | 11,1 kg | 196 mm |
Cooling Capacity
Model | Evaporating Temp. / Cooling Capacity R-134a | ||||||||
Condensing Temp. | -30ºC | -25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | |
FR11G | 55 ºC | 115 W | 170 W | 233 W | 307 W | 395 W | 501 W | 628 W | 780 W |
R134a
101 – 200 W
HBP LBP
Hermetic
Fr
Expansion/Capillary
230 V
POE
CSIR RSIR
New
Oil filled
Norme d’approbation | CE -UL |
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour les compresseurs monophasés [Ohm] | 1,02 ohm |
Technique de la marque | Compresseur scroll |
Contrôle de capacité | Vitesse fixe |
Capacité du condensateur A | 55 µF |
Capacité du condensateur B | 88-108 µF |
Couleur | Noir |
Alimentation du compresseur [V/Ph/Hz] | 220-240/1/50 |
Code de configuration | Seul |
Type de connexion | Brasé |
La description | HLJ083T5 |
Diamètre [mm] | 184 millimètres |
Hauteur de raccordement de refoulement [mm] | 422 millimètres |
Taille du tuyau de raccordement de décharge [po] | 1/2 po |
Taille de la connexion de décharge [po] | 1/2 po |
Numéro de dessin | 0XR6002B-2 |
Économiseur | Non |
Norme de montage | FDAL |
Fréquence [Hz] | 50 |
Orifice manomètre HP | Aucun |
Orifice de jauge LP | Aucun |
Égalisation gaz | Aucun |
Montage sur verre | Aucun |
Pression max côté haut (Ps) | 46,1 bars |
Valeur haute de la tension nominale à 50Hz [V] | 230V |
Valeur haute de la tension nominale à 60Hz [V] | 0V |
Valeur élevée de la plage de tension à 50 Hz [V] | 253V |
Valeur élevée de la plage de tension à 60 Hz [V] | 0V |
Classe de protection IP | IP22 |
Longueur [mm] | 239 millimètres |
Pression max côté bas (Ps) | 31,1 bars |
Basse valeur de la tension nominale à 50Hz [V] | 230V |
Basse valeur de la tension nominale à 60Hz [V] | 0V |
Valeur basse de la plage de tension à 50 Hz [V] | 207V |
Valeur basse de la plage de tension à 60 Hz [V] | 0V |
LRA | 130 A |
Résistance de l’enroulement principal pour les compresseurs monophasés [Ohm] | 0,39 ohm |
CMC | 50 A |

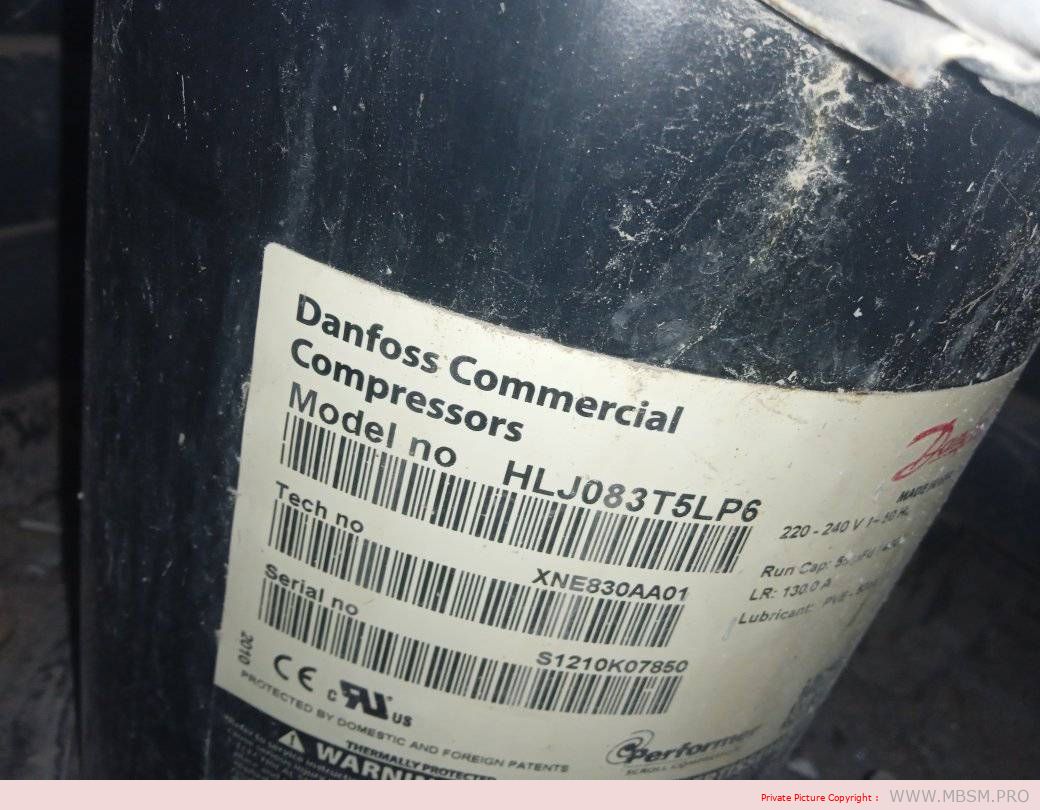

Numéro de modèle | HLJ083T5LP6 |
Protection moteur | Protecteur de surcharge interne |
Puissance frigorifique nominale à 50Hz | 17,3kW |
Puissance calorifique nominale à 50Hz | 11,3kW |
Charge d’huile [L] | 1,57L |
Vidange d’huile | Aucun |
Égalisation d’huile | Aucun |
Référence huile | 320HV |
Type d’huile | PVE |
Forme d’emballage | Paquet individuel/palette |
Quantité d’emballage | 16 |
Phase | 1 |
Connexions électriques | Bêche |
Réfrigérant | R410A |
Charge de réfrigérant [kg] [Max] | 5,44 kilogrammes |
Modèle de relais | 3ARR3*25AS* |
Soupape de décharge | Oui |
RLA | 32 A |
Vitesse de rotation à 50 Hz [tr/min] | 2900 tr/min |
Vitesse de rotation à 60 Hz [tr/min] | 0 tr/min |
Utilisation des segments | Climatisation |
Instructions expédiées | Instructions d’installation |
Montage livré | Kit de montage avec œillets et manchons |
Pétrole expédié | Charge d’huile initiale |
Hauteur du raccord d’aspiration [mm] | 280 millimètres |
Taille du tuyau de raccordement d’aspiration [po] | 7/8 po |
Taille du raccord d’aspiration [in] | 7/8 po |
Volume balayé [cm3] | 78,08 cm³ |
Technologie | Faire défiler |
Hauteur totale [mm] | 455 millimètres |
Taper | HLJ |
Désignation de type | Compresseur |
Viscosité [cP] | 68 cP |
Tension du condensateur A [V] | 440V |
Tension du condensateur B [V] | 330V |
Largeur [mm] | 239 millimètres |
Danfoss Scroll Compressors HRH, HLH, HLJ
MODEL DANFOSS | CODE DANFOSS
M-PACK |
REFRI-GERANT |
VOLTAGE |
Cond. tº +45°C and Nominal capacity at 50Hz | POWER INPUT
(Kw) |
Swept Volume DISPL.
sm³/r |
Displ.
m³/h
|
R410 EVAPORATING TEMPERATURE °C | |||||||
(BTU/HR) 7,2ºC 50Hz | |||||||
HRH031U4LP6 | 120U1191 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 29484 | 2,67 | 29,8 | 5,19 |
HRH031U5LP6 | 120U1166 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 29484 | |||
HRH032U4LP6 | 120U1196 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 29942 | 2,75 | 30,6 | 5,33 |
HRH032U5LP6 | 120U1171 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 29942 | |||
HRH036U4LP6 | 120U1201 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 34493 | 3,13 | 34,7 | 6,04 |
HRH036U5LP6 | 120U1176 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 34493 | |||
HRH038U4LP6 | 120U1206 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 36353 | 3,35 | 36,5 | 6,36 |
HRH038U5LP6 | 120U1181 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 36353 | |||
HRH040U4LP6 | 120U1211 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 39789 | 3,58 | _ | |
HRH040U5LP6 | 120U1186 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 39789 | |||
HRH041U4LP6 | 120U1356 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 39077 | |||
HRH044U4LP6 | 120U1361 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 42309 | 3,92 | 42,6 | 7,41 |
HRH049U4LP6 | 120U1366 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 47079 | 4,04 | 47,4 | 8,24 |
HRH051U4LP6 | 120U1371 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 50057 | 4,21 | 49,3 | 8,58 |
HRH051U5LP6 | 120U1326 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 50057 | |||
HRH054U4LP6 | 120U1376 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 52103 | 4,41 | 52,1 | 9,07 |
HRH054U5LP6 | 120U1331 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 52103 | |||
HRH056U4LP6 | 120U1381 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 53997 | 4,58 | 54,1 | 9,42 |
HRH056U5LP6 | 120U1336 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 53997 | |||
HLH061T4LC6 | 120U2052 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 57408 | 4,89 | 57,8 | 10,10 |
HLH068T4LC6 | 120U1391 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 65244 | 5,26 | 64,4 | 11,21 |
HLH068T5LP6 | 120U1341 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 65244 | |||
HLJ072T4LC6 | 120U1396 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 68892 | |||
HLJ072T5LP6 | 120U1346 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 68028 | 6,09 | _ | |
HLJ083T4LC6 | 120U1401 | R410A | 380-400V/3~/50Hz & 460V/3~/60Hz | 79393 | |||
HLJ083T5LP6 | 120U1351 | R410A | 220-240V/1~/50Hz & 265V/1~/60Hz | 77059 | 7,02 | _ |
Mbsm.pro, Compressor, Donper, s72cz1, 1/4 hp, LBP, r134a,195 w
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() ![]() ![]() |
Tecumseh® Reciprocating Compressor, Series: AJ, Model: AJA4461AXA, 6100 BTU/hr, 115 VAC, 9.1 Amp, 60 Hz, 1 PH, 1/2 hp, 900 Watt, R-12 Refrigerant, Synthetic Alkylate Oil, 3/4 inch suction, 5/16 inch discharge, 45 degree F evaporator, 130 degree F condensing, 95 degree F return gas, ambient temperature, 115 degree F liquid, 11.774 inch length x 6.594 inches x 10.219 inches tall
NL | Compressor type |
---|---|
8,4 | Compressor size |
MF | Refrigerant type GX, FX, MF = R134a CL, DL = R404A/R50 |
Condensing temperature = +55°C R134a
Code | Type | Power (hp) |
Cooling capacity (Watt) | Height (mm) |
||||
---|---|---|---|---|---|---|---|---|
-15 | -10 | -5 | 0 | 7,2 | ||||
R134a | ||||||||
7096103 | TL4G | 1/10 | 107 | 140 | 180 | 226 | 306 | 173 |
7096104 | TL5G | 1/8 | 139 | 178 | 224 | 278 | 372 | 173 |
7096141 | NL6.1MF | 1/6 | 189 | 245 | 312 | 390 | 527 | 190 |
7096142 | NL7.3MF | 1/5 | 236 | 304 | 385 | 480 | 645 | 197 |
7096143 | NL8.4MF | 1/4 | 277 | 353 | 445 | 553 | 735 | 197 |
7096145 | NL10MF | 1/3 | 346 | 441 | 554 | 687 | 919 | 203 |
7096110 | SC12G | 1/3 | 348 | 464 | 603 | 768 | 1054 | 209 |
7096111 | SC15G | 3/8 | 424 | 568 | 728 | 908 | 1207 | 209 |
7096112 | SC18G | 1/2 | 526 | 684 | 870 | 1087 | 1459 | 219 |
7096113 | SC21G | 5/8 | 606 | 793 | 1013 | 1269 | 1700 | 219 |
Item | Performance characteristics |
---|---|
Refrigerant | R134a |
Displacement (cm³) | 6.8 |
Voltage (V) | 100 |
Frequency (Hz) | 50 |
Speed (s⁻¹) | 25 |
Capacity@ASHRAE | – |
COP@ASHRAE | – |
Capacity@PREF | 78 |
COP@PREF | 1.70 |
