Hermetic, compressor, Embraco, Aspera, NEK2134GK-A, CSIR, R404A, R507, 1/2 Hp, 8.7 cm3, NEK2134GK, lbp, NEK 2134 U

written by Amina | 22 October 2023

Data Sheet

Power supply 220/240 V-50 Hz-1 Ph
Horsepower 1/2 hp
Displacement 8,78 cm3
Application LBP
Cooling capacity at ASHRAE LT conditions, R404A/R507 0,46 kW
Cooling capacity at EN12900 LT conditions, R404A/R507 0,25 kW
Refrigerant R404A, R452A, R507A
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 11 kg
Max height 200 mm
LRA 16,10 A
Recharge oil 350 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

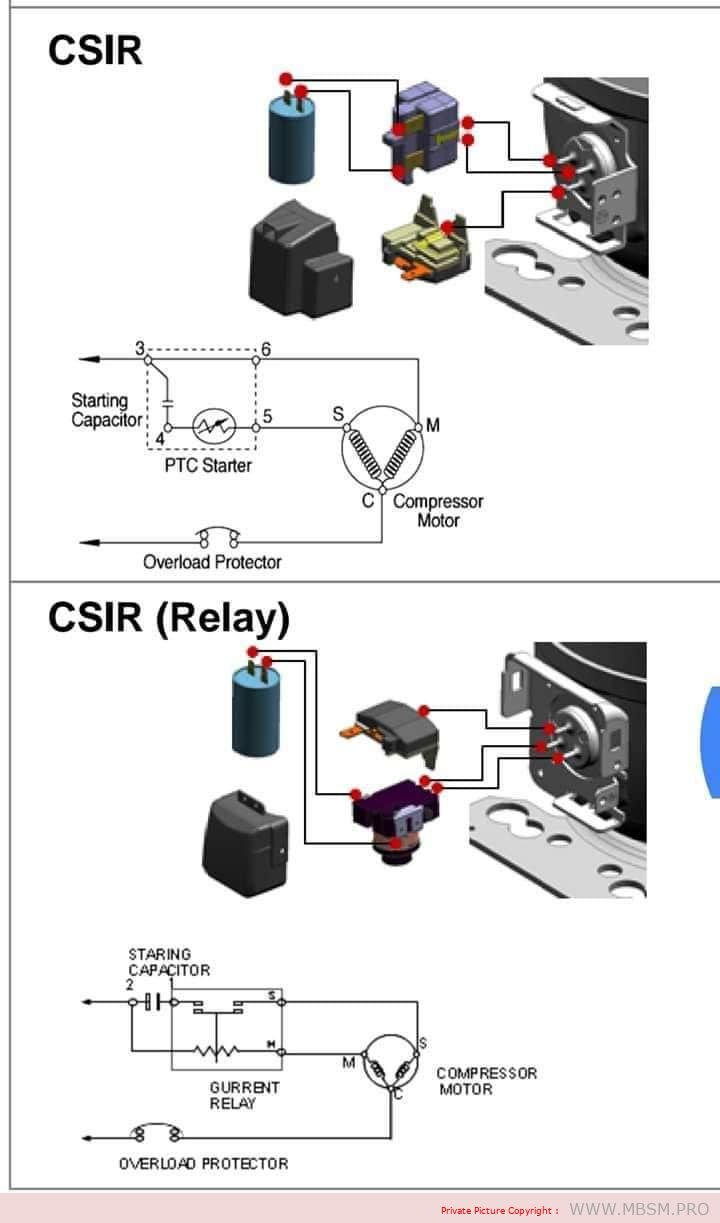

CSIR, CSIR(relay)

written by Lilianne | 22 October 2023

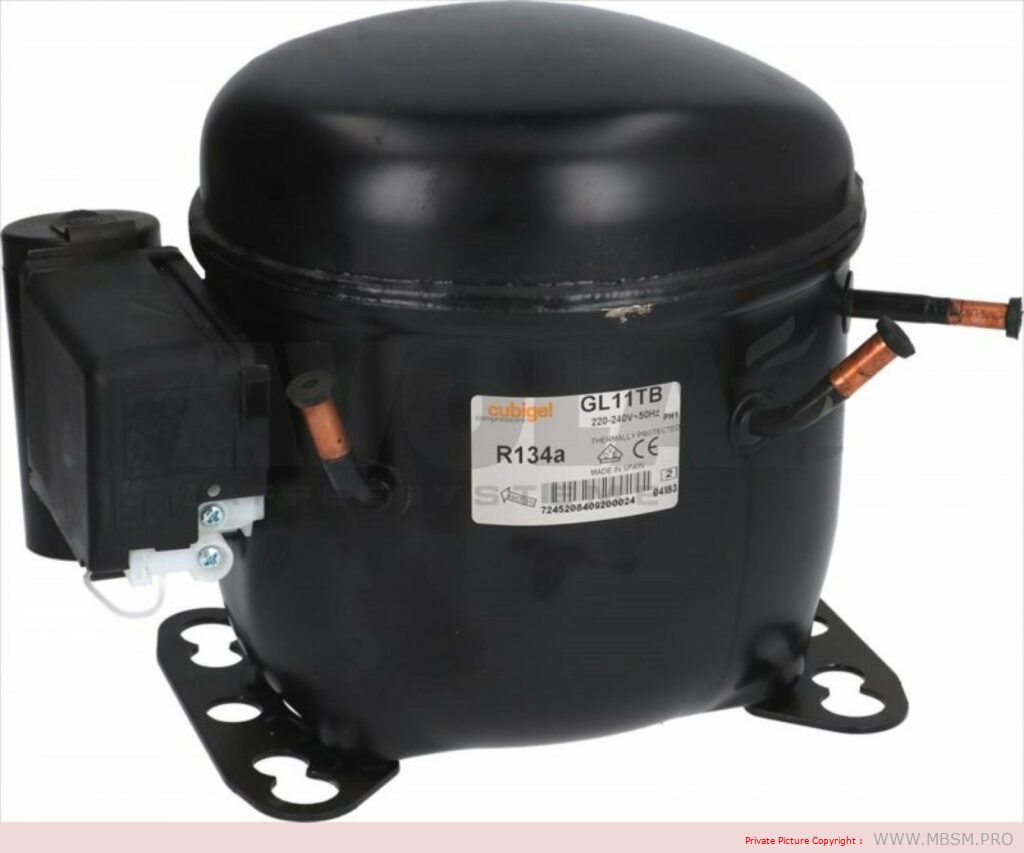

Mbsm.pro, Compresor, cubigel, gl11tb, csir, 1/3 hp, Hbp, r134a

written by Lilianne | 22 October 2023
  • Marque : CUBIGEL ELECTOLUX ACC
  • Modèle : GL11TB


Mbsm.pro, Compressor, Tecumseh, AJA4492YXA, High Back Pressure, 3/4 hp, R-134a/R-12++, 9000 BTU, CSIR

written by mahdi miled | 22 October 2023

Type: Reciprocating

Application: HBP – High Back Pressure

Voltage/Frequency: 115V ~60Hz 100V ~50Hz

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Oil Type: Polyolester

Viscosity (cSt): 32

Oil Charge (cc): 782

Voltage Range (50Hz): 90-110

Voltage Range (60Hz): 103-127

Locked Rotor Amps (LRA): 69

Rated Load Amps (RLA 50Hz): 0

Rated Load Amps (RLA 60Hz): 13

Max. Continuous Current (MCC in Amps): 17.9

Motor Resistance (Ohm) – Main: .433

Motor Resistance (Ohm) – Start: 3.085

Motor Type: CSIR

cURus Recognized

Refrigerant: R-134a

SPECIFICATIONS

More Information
Capacity air conditioning @ 45 °F BTU/H 8800
Application High temperature
Compressor type Reciprocating
Discharge size type 5/16″ sweat
Motor power range 0.75 (3/4) HP
Suction size type 1″ rotolock
Brand Tecumseh
Origin country United States – US
Package Weight 49
Product Weight 49
Manufacturer part number AJ4YL1AF643J70
MASTER part number AJA4492YXA
Characteristics Capacity air conditioning @ 45 °F BTU/H: 8800
Supply Voltage 115VAC
Nominal Capacity 9 000 BTU
Product Family Compressors
Capacity: 9000 BTU


Mbsm.pro, Cubigel, GP16TB, hermetic, compressor, 3/8 hp++, 1/2 hp–, HBP, R134a, R1234yf, CSIR,

written by Lilianne | 22 October 2023

Description

Cubigel GP16TB hermetic compressor – HBP – R134a, R1234yf – T0 > -15°C / +10°C – TK > 43°C 220-240/1/50 – CSIR Swept volume: 16.15 cm³ – Expansion: capillary – expansion valve

Technical characteristics

  • Marque : CUBIGEL ELECTOLUX ACC
  • Model: GP16TB
  • DISPLACEMENT (CM³)16,15
  • FLUIDR134a, R1234yf
  • APPLICATIONHBP
  • APPLICATION RANGE-15/+10
  • POWER (W)690
  • COOLING CAPACITY (TK+40°C)10/622 5/582 -5/495 -15/400
  • TENSION (V)240/1/50
  • STARTUPCSIR
  • I.MAX (A)4
  • Ø ASPIRATION8,1
  • Ø DISCHARGE6,5
  • DIMENSIONS (MM)240x162x210,5Mbsm_dot_pro_private_PDF_danfoss_GP16TB_R134a_220_50

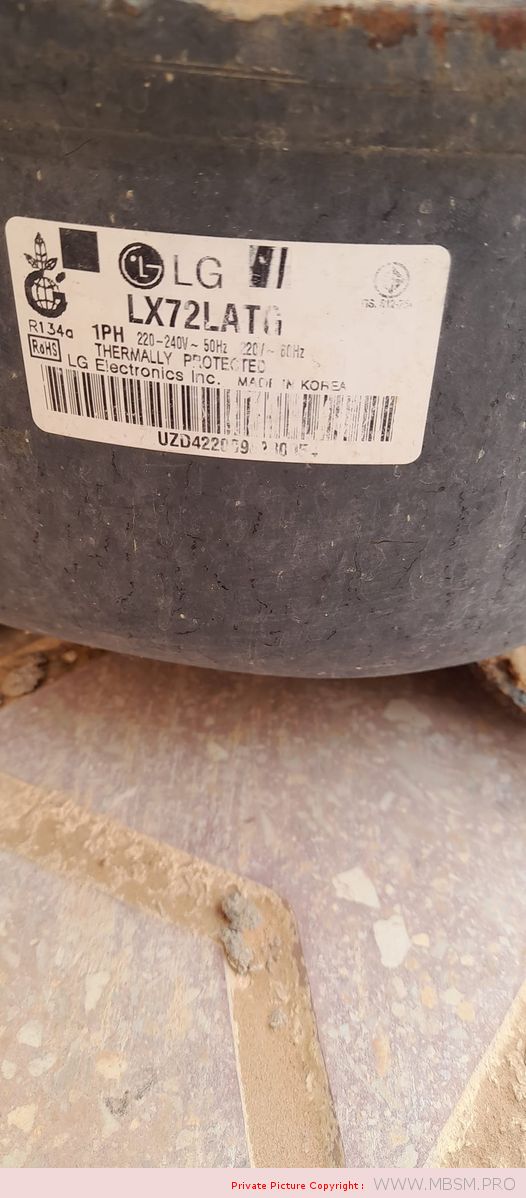

Mbsm.pro, Compressor, LX72LAT, 1/4 hp, LX Capacity, 7.2 cc, R134a, LBP, 220-240V,50Hz 220V,60Hz, CSIR, PTC

written by Lilianne | 22 October 2023

Series: LX Capacity [cc/rev]: 7.2 Application category: R134a, LBP Rated voltage & frequency: 220-240V,50Hz 220V,60Hz Motor type: CSIR, PTC Dimension[mm]: 220 x 171 x 203

Mbsm_dot_pro_private_PDF_LX72LATTélécharger


Mbsm.pro, Compressor, Embraco, aspera, ne6187z, 1/3 hp++, big, CSIR, HMBP, r134a, 230/1/50

written by Lilianne | 22 October 2023

Product Description

Supplied with a capillary tube or expansion valve device, the Whirlpool Embraco Aspera 1/3HP, single phase hermetic reciprocating compressor is designed for refrigeration applications, offering quiet operation, reliable use and a compact design. This single phase model is supplied with the necessary electrical components.

Product Features

  • Single phase
  • Suitable for R134A refrigerant
  • High back pressure
Brand: Whirlpool
Connection: Tube
Connection Type: Tube
Model Number: NE6187Z
Range: Embraco Aspera
Range Name: Embraco Aspera
Range Type: Hermetic Compressors
Voltage (V): 220 to 240
Weight: 10.45 kg
Phase: 1
Refrigerant Suitability: R-134A
Horse Power: 1.3 HP
Expansion Device: C/V
Application Range: HBP – High Back Pressure
Displacement: 12.11
Starting Torque: High
Model Power Voltage
R22 LBP
NE2134E 9/16HP 220-240V,50HZ
T2140E 3/4HP 220-240V,50HZ
T2155E 1HP 200-220V,50HZ/230V,60HZ
T2168E 1.25HP 200-220V,50HZ/230V,60HZ
NJ2190E 1.5HP 230V,50HZ
R22 M/HBP
NB6152E 1/4HP 220-240V,50HZ
NB6165E 1/3HP 220-240V,50HZ
NE6210E 3/8HP 220-240V,50HZ
NE6211E 1/2HP 208-230V,60HZ
NE9213E 9/16HP 220-240V,50HZ
T6220E 3/4HP 200-220V,50HZ/230V,60HZ
NJ9226E 1HP 220-240V,50HZ
NJ9232E 1.5HP 200-220V,50HZ
NJ9238E 1.75HP 230V,50HZ
R134a M/HBP
EM65HHR 1/6HP+ 220V,50-60HZ
NE6170Z 1/3HP 200-240V,50HZ/230V,60HZ
NE6187Z 3/8HP 200-240V,50HZ/230V,60HZ
NEK6212Z 1/2HP 200-230V,50HZ/208-230V,60HZ
NEK6214Z 3/4HP- 220-240V,50HZ
T6215Z 3/4HP 200-240V,50HZ/230V,60HZ
R134a LBP
NE2130Z 1/2HP 200-220V,50HZ/230V,60HZ
NE2134Z 9/16HP 220-240V,50HZ
NEK2140Z 1/2HP 220-240V,50HZ
N81121Z 1/4HP 200-220V,50HZ/230V,60HZ
NE1130Z 1/3HP 200-220V,50HZ/230V,60HZ
FFI17.5HAK 1/4HP 220-240V,50-60HZ
FFI10HAK 1/3HP 220-230V,50-60HZ
FF8.5HBK 1/4HP 220-240V,50HZ
FFI12 HBK 1/3HP 220-240V,50HZ
Refrigerant R404a Low Back Pressure
NEK2125GK 7/16HP
NEK2134GK 1/2HP
NEK2150GK 1/2HP
NEK2168GK 1/2HP
T2155GK 3/4HP
T2168GK 3/4HP
T2178GK 1HP
NT2192GK 1HP
NJ2192GK 1.5HP
NJ2212GK 1.25HP
Refrigerant R404a Medium/High Back Pressure
NEK6210GK 1/2HP
NE9213GK 3/4HP
T6220GK 7/8HP
T6222GK 3/4HP
NJ9226GK 1HP
NJ9232GK 1.5HP
NJ9238GK 1.75HP
Mbsm_dot_pro_private_PDF_NE6187zTélécharger
Mbsm_dot_pro_private_PDF_NE6187z-1Télécharger

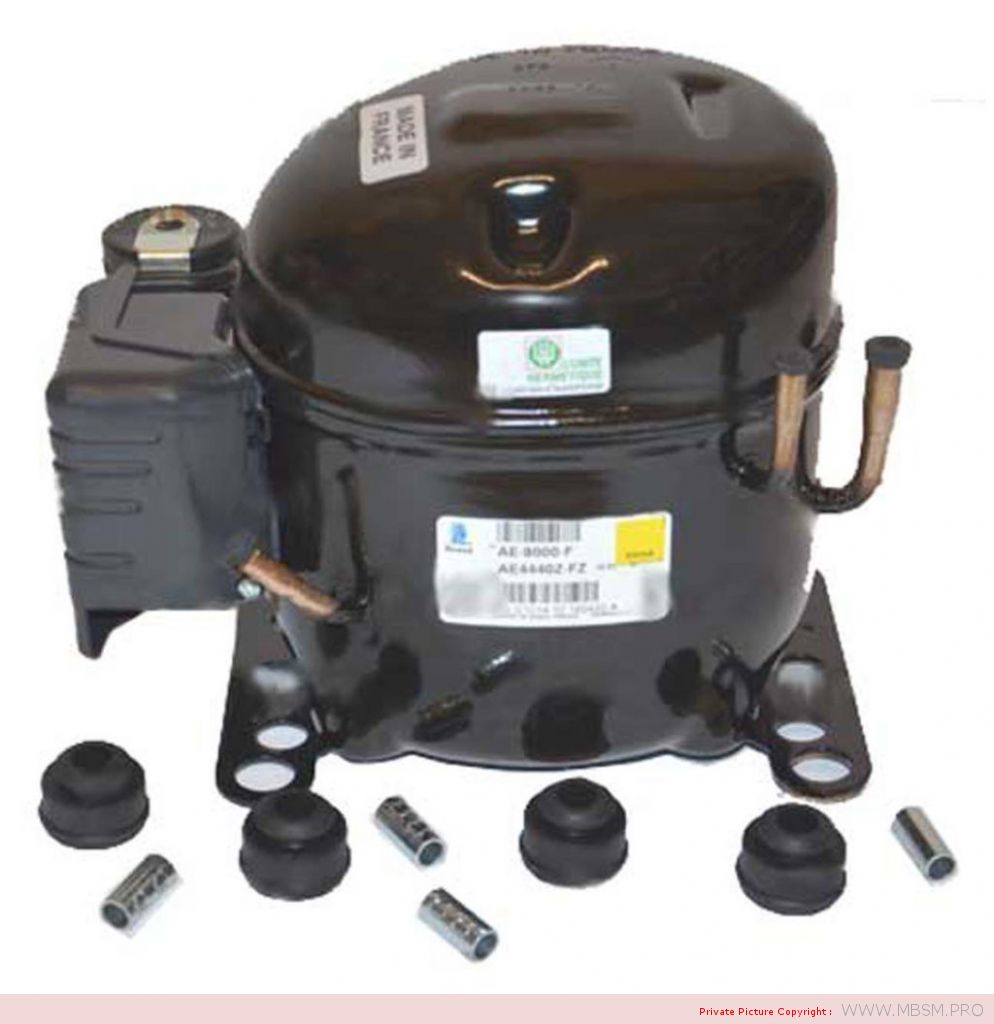

Mbsm.pro, Compressor, Tecumseh, AEZ4440Z, 1/3 hp ++, BIG++, HBP, R404A, 220 – 240V, 50 Hz, 1 phase, discharge: 6.69 cm3, oil type: POE, oil charge: 280 cm3, CSIR, 876 W, start capacitor: 125 uF/250V

written by Lilianne | 22 October 2023

Compressor Tecumseh L` Unite AEZ4440Z, HBP – R404A, 220 – 240V, 50 Hz, 1 phase, discharge: 6.69 cm3, oil type: POE, oil charge: 280 cm3, electrical equipment: CSIR, cooling power 876 W at +5 / +50 °C, connection: suction: 3/8 inch, discharge: 1/4 inch, sound level: 59 dBA, start capacitor: 125 uF/250V, expansion device: capillary or expansion valve, height: 206 mm, weight: 11.3 kg

Refrigerant: R404A
Power range(W): 301 – 400 W 701 – 1000 W
Connecting size: 1/4″
Suction: 3/8″
Working area: HBP
Application Area: Cooling
Design type: Hermetic
Model series: AE
Use with: Expansion/Capillary
Power supply: 230 V
Oil type: POE
Engine type: CSIR
Article condition: New
Info: Oil filled
Shipping weight: 13,30 Kg
Dimensions ( height ): 20,60 cm
customs tariff number: 84143081
Cooling capacity condition: EN12900, NK, R404, T0 -10 C
Manufacturer: Tecumseh L` Unite
Model: AEZ4440Z
Stroke volume (cm3): 6,69
Performance condition: +5 / +50 °C
Power (W): 876
Cooling capacity (W): 341
Engine type: CSIR
dbA @ 1m: 59
Equipment: Start-Capacitor 125 uF / 250V
Oil quantity (l): 0,28
Compressor type: Piston
Suction (inch): 3/8
Discharge (inch): 1/4
Alternative: AEZ4440Z, AEZ3440Z, AE9440Z

Mbsm_dot_pro_private_PDF_aez4440zTélécharger


Mbsm.pro, Compressor, Tecumseh, AE4460E-FZ1B, 1/2 hp++, (big), r22, 220-240V / 50-60Hz, cold-room, chiller, AE-8137-br, 1421 w, 1222 kcal/h, 4846 btu/h, csir, hbp

written by Lilianne | 22 October 2023

Tecumseh Compressor – Model AE4460E-FZ1B

 Horsepower: 1/2HP

 Refrigerant: R22

 Voltage/Frequency: 220-240V / 50-60Hz

 Evaporating Temp.: -5°C

 Original: France

 Manufacturer: Tecumseh

 Application: compressor for refrigeration, A/C, cold-room, chiller.

Tecumseh Reciprocating Model Compressors :

MODEL DIPLACEMENT (Cm3) CURRENT AMPS DIAMETER CONNECTION (INCH) BERAT (KG)
I NOM I MAX SUCTION DISCHARGE
AE1390Y-FZ 8.02 1.4 1.7 1/4 3/16 9.5
AE2390Y-FZ 8.02 1.3 1.7 1/4 3/16 9.5
AE2410Y-FZ 9.39 1.4 1.7 5/16 1/4 9.5
AE2413Y-FZ 12.01 1.8 2.8 5/16 1/4 11.2
AE2415Y-GH 12.48 1.8 3 5/16 1/4 12.1
AE4425Z-FZ 4.24 1.8 2.8 1/4 3/16 9.9
AE4430Z-FZ 5.16 2.1 2.9 1/4 3/16 10.2
AE4440Z-FZ 6.69 2.7 3.7 3/8 1/4 10.5
AE4450Z-FZ 8.85 3.4 5.1 3/8 1/4 10.8
AE4460Z-FZ 10.33 4.3 5.9 3/8 1/4 11.6
AE4470Z-FZ 12.01 3.7 5.3 3/8 1/4 12.4
AE4425Y-FZ 6.69 1.6 2.4 1/4 3/16 9.2
AE4430Y-FZ 8.02 2.1 3.1 1/4 3/16 9.7
AE4440Y-FZ 10.33 2.5 3.7 5/16 1/4 9.8
AE4450Y-FZ 13.24 3.1 4.6 3/8 1/4 11.5
AE4456Y-FZ 14.51 3.6 8 3/8 1/4 11.5
AE4460Y-FZ 15.09 3 4.7 3/8 1/4 12.2
AE4425E-FZ 4.24 1.7 2.7 1/4 3/16 9.6
AE4430E-FZ 5.16 2 2.8 1/4 3/16 10
AE4440E-FZ 6.69 2.4 3.4 3/8 1/4 10.2
AE4450E-FZ 8.02 3 4.7 3/8 1/4 11.2
AE4460E-FZ 10.33 3.7 5.3 3/8 1/4 11.2
AE4470E-FZ 12.01 3.8 5.4 3/8 1/4 11.1

Mbsm_dot_pro_private_PDF_AE4460E-FZ1BTélécharger


Mbsm.pro, COMPRESSOR, SECOP, FR10G, R134a, 1/4 Hp++, 1/3 Hp–, HMBP, 103G6880-HST, DANFOSS, CSIR,  730 BTU, 9.05 cc

written by Lilianne | 22 October 2023

Technical data

  • Model: FR10G
  • Refrigerant Gas: R-134a
  • Pression/temperature: MHBP
  • Power: 1/4 HP
  • Frequency: 50/60 Hz
  • Compressor Type: Hermetic
  • Displacement: 9.05 cm³
  • Power Cons. -25°C: 179 W
  • Power Cons. -10°C: 265 W
  • Power Cons. -5°C: 296 W
  • Efficiency 0°C: 329 W
  • Power Cons. +5°C: 362 W
  • Power Cons. +7,2°C: 376 W
  • T° Condensation: 55 °C
  • Cooling Cap. -30°C: 97 Kcal/h
  • Cooling Cap. -25°C: 144 Kcal/h
  • Cooling Cap. -20°C: 199 Kcal/h
  • Cooling Cap. -15°C: 265 Kcal/h
  • Cooling Cap. -10°C: 344 Kcal/h
  • Cooling Cap. -5°C: 439 Kcal/h
  • Cooling Cap. 0°C: 549 Kcal/h
  • Cooling Cap. 5°C: 680 Kcal/h
  • Cooling Cap. 7.2°C: 745 Kcal/h
  • Cooling Cap. 10°C: 832 Kcal/h
  • Test Type: Ashare 32
Mbsm_dot_pro_private_PDF_FR10GTélécharger

Specs

Capacity (BTU): 730
Voltage:  220/240V
Phase: 1
Horse Power:  1/4
Refrigerant Type: R-134A
Hertz: 50/60
