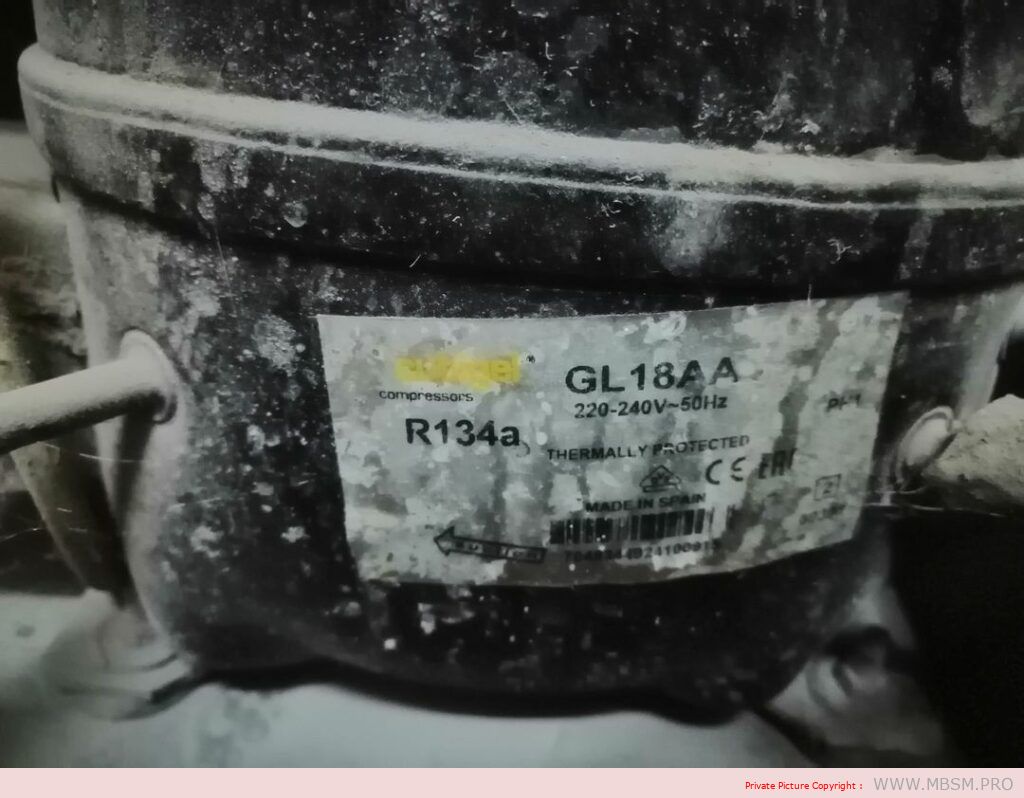

Mbsm.pro, Compressor, coolant, Cubigel, R134a, GL18AA, 220-240V, 50Hz, 3/8 hp++, 1/2HP–

Category: expertise
written by Lilianne | 5 May 2023

Technical data

refrigerant R134a
Type GL18AA
Performance 1/2 CV
power consumption 1.390W
displacement 18,39cm³
Engine system CSIR
Application HMBP
Frequency 50Hz
ambient temperature max. 0.00 °C
Tension 220-240V
test procedure ASHRAE
Up to +10°C 2.068W
Down to -15°C 734W
Down to -20°C 553W
Down to -25°C 401W
Up to +5°C 1.744W
Down to 0°C 1.449W
Down to -5°C 1.182W
Down to -10°C 944W
Height 215 millimeters
Weight 16 kg



Mbsm.pro, Cubigel, GP16TB, hermetic, compressor, 3/8 hp++, 1/2 hp–, HBP, R134a, R1234yf, CSIR,

Category: compressor
written by Lilianne | 5 May 2023

Description

Cubigel GP16TB hermetic compressor – HBP – R134a, R1234yf – T0 > -15°C / +10°C – TK > 43°C 220-240/1/50 – CSIR Swept volume: 16.15 cm³ – Expansion: capillary – expansion valve

Technical characteristics

  • Marque : CUBIGEL ELECTOLUX ACC
  • Model: GP16TB
  • DISPLACEMENT (CM³)16,15
  • FLUIDR134a, R1234yf
  • APPLICATIONHBP
  • APPLICATION RANGE-15/+10
  • POWER (W)690
  • COOLING CAPACITY (TK+40°C)10/622 5/582 -5/495 -15/400
  • TENSION (V)240/1/50
  • STARTUPCSIR
  • I.MAX (A)4
  • Ø ASPIRATION8,1
  • Ø DISCHARGE6,5
  • DIMENSIONS (MM)240x162x210,5


Mbsm.pro, pdf, files, Cubigel , by Huayi, Compressor

Category: Files
written by Lilianne | 5 May 2023
Mbsm_dot_pro_private_PDF_Mbsm.pro-pdf-files-Cubigel-by-Huayi-CompressorTélécharger



Mbsm.pro, Electrolux, Hermetic, Compressor, r600, LBP, CubiGel, Zem

Category: compressor
written by Lilianne | 5 May 2023

Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP600AC HQM55AA 1/9 5,46 C/v 83 62
CMP601AC HQM70AA 1/8 6,64 C/v 106 79
CMP602AC HQM75AA 1/7 7,39 C/v 116 87
CMP603AC HQM80AA 1/7 8,10 C/v 130 99
CMP604AC HQM90AA 1/6 9,08 C/V 144 110
CMP605AC HQM99AA 1/6 9,93 C/V 156 119
CMP606AC HQM11AA 1/5 10,70 C/v 169 127
CMP607AC HQM12AA 1/5 12,09 C/v 187 140
CMP608AC HSR050AA 1/14 3,67 C/v 57 42
CMP609AC HSR065AA 1/12 4,56 C/V 74 55
CMP610AC HSR080AA 1/9 5,45 C/V 90 67
CMP611AC HSR100AA 1/8 6,64 C/v 110 83
CMP612AC HSR115AA 1/7 8,09 C/v 133 99
CMP613AC HVY44AA 1/5 4,38 C/v 71 53
CMP614AC HVY57AA 1/9 5,73 C/V 88 65
CMP615AC HVY67AA 1/8 6,75 C/V 107 80
CMP616AC HVY75AA 1/7 7,52 C/V 117 88
CMP617AC HQY45AA 1/12 4,56 C/V 70 52
CMP618AC HQY55AA 1/9 5,46 C/V 84 62
CMP619AC HQY70AA 1/8 6,64 C/V 107 80
CMP620AC HQY75AA 1/7 7,39 C/V 119 89
CMP621AC HQY80AA 1/7 8,10 C/V 131 99
CMP622AC HQY90AA 1/6 9,05 C/V 145 110
CMP623AC HQY99AA 1/6 9,93 C/V 158 119
CMP624AC HQY11AA 1/6 10,70 C/V 117 128
CMP625AC HQY12AA 1/5 12,09 C/V 190 142
CMP626AC HSH050AA 1/14 3,67 C/V 57 42
CMP627AC HSH065AA 1/12 4,56 C/V 74 55
CMP628AC HSH080AA 1/9 5,45 C/V 90 67
CMP629AC HSH100AA 1/8 6,64 C/V 114 85
CMP630AC HSH115AA 1/7 8,09 C/V 134 100
CMP631AC HMK80AA 1/7 8,10 C/V 136 102
CMP632AC HMK95AA 1/6 9,60 C/V 167 125
CMP633AC HMK12AA 1/5 11,20 C/V 198 149
CMP634AC HLY45AAa 1/12 4,55 C/V 60 52
CMP635AC HLY55AAa 1/9 5,46 C/V 72 62

Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP636AC HLY70AAa 1/8 6,64 C/V 92 80
CMP637AC HLY75AAa 1/7 7,39 C/V 102 89
CMP638AC HLY80AAa 1/7 8,10 C/V 113 99
CMP639AC HLY90AAa 1/6 9,08 C/V 125 109
CMP640AC HLY99AAa 1/6 9,93 C/V 136 119
CMP641AC HPY11AAa
CMP642AC HPY12AAa 1/5 12,10 C/V 165 144
CMP643AC HPY14AAa 1/5 14,31 C/V 190 166
CMP644AC HPY16AAa 1/4 6,14 C/V 208 181
CMP645AC HST050AA 1/14 3,67 C/V 57 42
CMP646AC HST065AA 1/12 4,56 C/V 74 55
CMP647AC HST080AA 1/9 5,45 C/V 91 68
CMP648AC HST100AA 1/8 6,64 C/V 114 85
CMP649AC HST115AA 1/7 8,09 C/V 134 100
CMP650AC HYK55AA 1/9 5,60 C/V 93 69
CMP651AC HYK70AA 1/8 6,60 C/V 117 87
CMP652AC HYK80AA 1/7 8,10 C/V 136 101
CMP653AC HYK95AA 1/5 9,60 C/V 167 126
CMP654AC HYK12AA 1/5 11,20 C/V 198 149
CMP655AC HYK11AA
CMP656AC HTK55AA 1/9 5,60 C/V 93 69
CMP657AC HTK70AA 1/8 6,60 C/V 117 87
CMP658AC HTK80AA 1/7 8,10 C/V 136 102
CMP659AC HTK95AA 1/6 9,60 C/V 167 126
CMP660AC HTK12AA 1/5 11,20 C/V 198 149
CMP661AC HKK55AA 1/9 5,60 C/V 93 69
CMP662AC HKK70AA 1/8 6,60 C/V 117 87
CMP663AC HKK80AA 1/7 8,10 C/V 136 102
CMP664AC HKK95AA 1/6 9,60 C/V 167 126
CMP665AC HKK12AA 1/5 11,20 C/V 198 149
CMP666AC HXK55AA 1/9 5,60 C/V 97 72
CMP667AC HXK70AA 1/8 6,60 C/V 118 88
CMP668AC HXK80AA 1/7 8,10 C/V 140 105
CMP669AC HXK95AA 1/6 9,60 C/V 171 129
CMP670AC HXK12AA 1/5 11,20 C/V 202 152

Mbsm_dot_pro_private_PDF_Electrolux-Hermetic-Compressor-r600-LBP-CubiGelTélécharger



Mbsm_dot_pro_private_PDF__Electrolux-Hermetic-Compressor-r600-LBP-CubiGelTélécharger


Mbsm.pro, compressor, ACC, CUBIGEL, Zem, GL70Ah, 1/5 hp, lbp

Category: compressor
written by Lilianne | 5 May 2023

Mbsm.pro, compressor, ACC, CUBIGEL, Zem, GL70Ah, 1/5 hp, lbp

Mbsm_dot_pro_private_PDF_Comparati-DANFOSSTélécharger



Mbsm.pro, Cubigel, MLY90LA, CAE44/9450Z, SC10DL, NEK6210GK, professional, refrigeration, compressor, 3/8 Hp++, 1/2 hp–, R404A / R507, freezer, Ae1420zf, 625 L

Category: compressor
written by Lilianne | 5 May 2023

Compressor Embraco Aspera NEK6210GK, MBP – R404A, R507, 220 – 240V/1/50Hz, 1/2 HP, discharge 8.77 cm3, motor type CSIR, lubricant type POE 22, lubricant charge 350 ml.1318 W at +7.2 / +54.4 °, expansion device: capillary or valve, cooling: fan cooling, weight 11 kg

COMPRESSOR: MLY90LA
Refrigerant R404A/R507A
Power supply 220 – 240V 1~ 50 Hz

Mbsm.pro, COMPRESSOR, Tecumseh, 1/2 hp ++, 7/16 HP, CAE4456Y, CSIR, HMBP, ++Big, R134A, 1396 W, 1201 KCal, 4760 Btu, P.frigorifique 436 W -25

Mbsm.pro, SC10DL, Compressor, R-404A, R-507A, 3/8 HP++, 1/2 hp–, MHBP

Characteristics

  • Cylinder volume9.09 cm³
  • The weight10.3 kg
  • Suction line connection6.5 mm
  • Pressure line connection4.9 mm
  • Power consumption V/Hz/ph200-230V / 50 / 1
  • Starting current11.5 A
  • Oil filling0.40 dm3
  • Application typelow temperature
  • Compressor SeriesL
  • RefrigerantR404A/R507A
  • Maximum operating current3.2 A
Cooling capacity [W]
t c  \ t e -40 -35 -30 -25 -20 -15 -10
40 180 263 358 465 585 716 860
45 160 233 317 414 523 644 777
50 141 202 276 363 461 527 595
55 121 172 236 311 399 500 612
60 101 142 195 260 338 427 529
Operating conditions: CECOMAF
t c  – Condensing temperature [ºC]
t e  – Boiling point [ºC]
Mbsm_dot_pro_private_PDF_MLY90LATélécharger



Mbsm.pro, Compressor, Cubigel, MP12FB, MPT12LA, SC12CL, 3/8 hp, R404A / R507, lbp

Category: compressor
written by Lilianne | 5 May 2023

Compressor coolant R404a/R507 type MP12FB 220-240V 50Hz refrigeration 12kg 3/8HP power input 431W

Compressor ACC Cubigel Huayi Electrolux ZEM MP12FB / MPT12LA, LBP – R404A, R507, 220 – 240V/1/50Hz, 3/8 HP, discharge 12.05 cm3, motor type CSIR, oil type ISO VG 46 ester, oil charge 400 cm3, 351 W at -25 / +55 °, input power, current 429 W, 2.67 A, expansion device: capillar or valve, cooling: fan, weight 12 kg

MP12FB Cubigel Compressor 3/8 Hp

3/8 HP R404 LBP Compressor

  • Height: 216 mm
  • Width: 240 mm
  • Depth: 170 mm
  • Weight: 13.2 Kg
  • Weight: 13.2 kg
  • Application: R404A LBP
  • Displacement 12 cc
  • Suction Connector 3/8
  • Discharge Connector 1/4
  • Capacitor 47-56 mfd
  • Displacement : 12 cc

Mbsm_dot_pro_private_PDF_MP12FBTélécharger


Mbsm.pro, compressor, nly12ng, 1/2 hp–, 3/8 hp++, r290, 12,55cm³, LBP, 230V, Secop, Danfoss, CUBIGEL

Category: compressor
written by Lilianne | 5 May 2023

Mbsm.pro, compressor, nly12ng, 1/2 hp–, 3/8 hp++, r290, 12,55cm³, LBP, 230V, Secop, Danfoss

Mbsm_dot_pro_private_PDF___cubigel-katalogTélécharger
Mbsm_dot_pro_private_PDF_nly12ngTélécharger


Mbsm.pro, compressor, 1/4 hp++,NL80FB, NL 80 FB, CUBIGEL, NL 80FB, HMBP, R290, 220-240V / 50HZ

Category: compressor
written by Lilianne | 5 May 2023

NL80FB; Cubigel / Huayi NL80FB compressor, HMBP – R290, 220 – 240V / 1 / 50Hz, 1/4 [HP], discharge 8.10 [cm3], engine type CSIR, oil type ISO VG 46 mineral, oil volume 400 [cm3] , 232 [W] at -25 / +55 [°], power 274 [W], 1.87 [A], use with capillary or valve, fan cooling, weight: 10.00 [kg]

Mbsm_dot_pro_private_PDF_NL80FBTélécharger


Mbsm.pro, compressor, CUBIGEL, ELECTOLUX, ACC, R404a, R507, MP14FB, 220-240V 50Hz, LBP, 1/2HP

Category: compressor
written by Lilianne | 5 May 2023

Description

Compresseur hermétique Cubigel MP14FB – LBP – R404A – T0 > -40°C / -10°C – TK > 43°C 220-240/1/50 – CSIR Volume balayé : 14.17 cm³ – Détente : capillaire – détendeur

Caractéristiques techniques

  • Marque : CUBIGEL ELECTOLUX ACC
  • Modèle : MP14FB
  • CYLINDRÉE (CM³)14,17
  • FLUIDER404A , R448A , R449A, R452A
  • APPLICATIONLBP
  • PLAGE D’APPLICATION-40/-10
  • PUISSANCE (W)560
  • PUISSANCE FRIGORIFIQUE (TK+40°C)-10/710 -20/573 -30/445 -40/325
  • TENSION (V)240/1/50
  • DÉMARRAGECSIR
  • I.MAX (A)3,4
  • Ø ASPIRATION8,1
  • Ø REFOULEMENT6,5
  • DIMENSIONS (MM)240x162x210,5
