Mbsm.pro, Compressor Necchi, Esm5, 1/5 Hp, R12, Replaced by , COMPRESSOR, DANFOSS,TL 5G, 1/6++ (1/5 hp) HP, MBP / HBP -R134a, 220-240V/1/50/60Hz, displacement 5.08 cm3, motor type RSCR

written by Lilianne | 6 January 2022
COMPRESSOR TL 5G 1/5 HP 1/6++ R134 230/1/50 DANFOSS
CV Watt 1 Porte 2 Portes Conge-lateur ASPERA DANFOSS EMBRACO IRE NECCHI PRESCOLD UH ZEM ELUX
1/ 12 45 160 l 120 l 90 l BP 1058 A TL 2.5 ATL 2.5 B PW 3.5 K7 AS 14AM 55 ZF AZ 1320 AAE 12 Z7 E 30101 D 36 ASL 33 AU
1/ 10 56 200 l 160 l 120 l BP 1072 A TL 3 ATL 3 B PW 4.5 F86 B 5A 42PB 6AF 86 ESM 3 AS 12 AE 10 Z7AZ 1328 AAEZ 1332 A E 36101 L 40 AWL 40 ASL 40 AU
1/ 8 73 220 l 240 l 200 l BP 1084 A TL 4 ATL 4 B PW 4.5 K9 B 8A 43PB 86PB 9AF 88 ESM 4 AS 8 AE 8Z A7AZ 1333 AAZ 1335 AAEZ 1336 A E 44101 A L 45 AUL 45 AW
1/ 6 96 400 l 325 l 270 l BP 1111 ABP 1112 B TL 5 A PW 5.5 K11 B 9A 30L 10A 02L 10A 16L 10A 46PB 12AF 90 ESM 5 AS 6AS 66 AE 6Z A7AE 66 ZD7AZ 1340 AAEZ 1343 AAZ 1345 A  E 59101 L 55 AUL 55 AT
1/ 5 127 500 l 410 l 350 l B 1116 BB 2116 BB 3117 A FR 7.5 AFR 7.5 BNL 6 A FF 7.5 BK L 13A 17L 13A 18L 13A 26L 13B 20L 13A 47 ESM 7 AM 55 ZFAM 5 ZF AE 5Z F9AZ 1355 DAEZ 1355 DAEZ 1360 AAEZ 1367 A E 80101 A L 76 ATL 76 AWL 76 BW
1/ 4 146 600 l 480 l 400 l B 1118 BB 2118 BB 3119 AE 1121 AE 3121 A FR 8.5 AFR 8.5 BNL 7 A FF 8.5 BK L 16A 01L 16A 25L 16B 22L 17A 34 ESM 8 AM 4C AE 4Z F11AEZ 1380 AAEZ 1380 B E 88101 A L 88 AVL 88 BWL 88 FW
1/ 4 158 800 l 600 l 500 l FR 10 AFR 10 B ESM 9 QM 43
1/ 3 230 1200 l 800 l 600 l FR 11 AFR 11 B
1/ 3 230 1200 l 800 l 600 l E 1130 BE 2130 BE 3130 BE 4130 B SC 12 A ESM 11 AE 1410 AAEZ 1410 DCAE 2410 A P 12 BWP 12 FW
DANFOSS
223101 1/ 12 CV TL 2.5 A
223102 1/ 10 CV TL 3 A
223103 1/ 8 CV TL 4 A
223104 1/ 6 CV TL 5 A
223105 1/ 5 CV TL 7.5 A
223106 1/ 4 CV TL 8.5 A
223107 1/ 4 CV FR 10 A
223108 1/ 3 CV FR 11 A
223109 1/ 3 CV SC 12 A

101GL4550, compressor Secop / Danfoss TL5G, MBP / HBP -R134a, 220-240V/1/50/60Hz, discharge 5.08 cm3, motor type RSCR / CSIR, oil type POE, oil charge 280 cm3, 79 W at -25 / 55° C, LRA 5.7 A, maximum refrigerant charge 400 g, height: 173 mm, weight 7.5 kg

Refrigerant: R134a
Power range(W): 0 – 100 W
Working area: HBP MBP
Design type: Hermetic
Model series: TL
Power supply: 230 V
Oil type: POE
Engine type: CSIR RSCR
Article condition: New
Info: Oil filled
Shipping weight: 9,50 Kg
Contents: 1,00 Pieces
Dimensions ( height ): 17,30 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Danfoss Secop
Model: TL5G
Modelname: 101G4550
Modellname 3: TL5GX
Stroke volume (cm3): 5,08
Cooling capacity (W): 79
Max. Starting current (A): 5,7
Engine type: RSCR
Note: Maximum refrigerant amount 400 g
Oil quantity (l): 0,28
Compressor type: Piston
Alternative: BP5132Z, B5132Z, PW4.5HK11

Compressor Danfoss FR7.5G 1/5HP

Mbsm_dot_pro_private_PDF_tl5-Danfoss_LC_Compressors_CatalogueTélécharger
Mbsm_dot_pro_private_PDF_tl5-Danfoss_LC_Compressors_Catalogue-1Télécharger
Mbsm_dot_pro_private_PDFMbsm.pro-Compressor-ESC-8.5-R134a-Necchi-530591-15-Hp-159-wTélécharger
Sr Material Material Description Capacity Cons. Watts -25
R134a
1 103G6660 Danfoss Compressor FR 6G 1/6 HP 119 W
2 103G6680 Danfoss compressor FR 7.5G 1/5 HP 138 W
3 103G6780 Danfoss compressor FR 8.5G 1/4 HP 164 W
4 103G6880 Danfoss compressor FR 10G 1/3 HP 194 W
R12a
5 103G2630 Danfoss compressor FR 6S 1/6 HP 119 W
6 103U2730 Danfoss compressor FR 7.5S 1/5 HP 138 W
7 103U2830 Danfoss compressor FR 8.5S 1/4 HP 164 W
8 103U2930 Danfoss compressor FR 10S 1/3 HP 194 W
R134a
9 104G8240 Danfoss compressor SC 12G 3/8 HP 298 W
10 104G8520 Danfoss compressor SC 15G 1/2 HP 356 W
11 104G8820 Danfoss compressor SC 18G 5/8 HP 615 W
12 104G8140 Danfoss compressor SC 21G 7/8 HP 702 W
R404a / R507a
13 104L2523 Danfoss Compressor SC 10CL 1/3 HP 352 W
14 104L2623 Danfoss Compressor SC 12CL 3/8 HP 445 W
15 104L2853 Danfoss Compressor SC 15CL 1/2 HP 560 W
16 104L2123 Danfoss Compressor SC 18CL 5/8 HP 615 W
17 104L2322 Danfoss Compressor SC 21CL 7/8 HP 702 W


Mbsm.pro, Scroll, Danfoss, HRP051T4LP6, compressors, Hermetic, 49.15 kBtu/h, R22, R407C, 4 1/4Hp, 3Ph, POE, Lra 60A

written by Lilianne | 6 January 2022

Product details

Gross weight 39.75 kg
Hp 4 1/4
Net weight 37.08 kg
EAN 5702428224598



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 380-415/3/50 460/3/60
Configuration code Single
Connection type Brazed
Description HRP051T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6002B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 60 A
MCC 13 A
Model number HRP051T4LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 49.15 kBtu/h
Nominal cooling capacity at 50Hz 10.8 kW
Nominal cooling capacity at 60Hz 14.4 kW
Nominal heating capacity at 50Hz 7 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil drain None
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Industrial pack
Packing quantity 16
Phase 3
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve Yes
RLA 8.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 68.83 cm³
Technology Scroll
Total height [mm] 455 mm
Type HRP
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-Series-1Télécharger
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-SeriesTélécharger

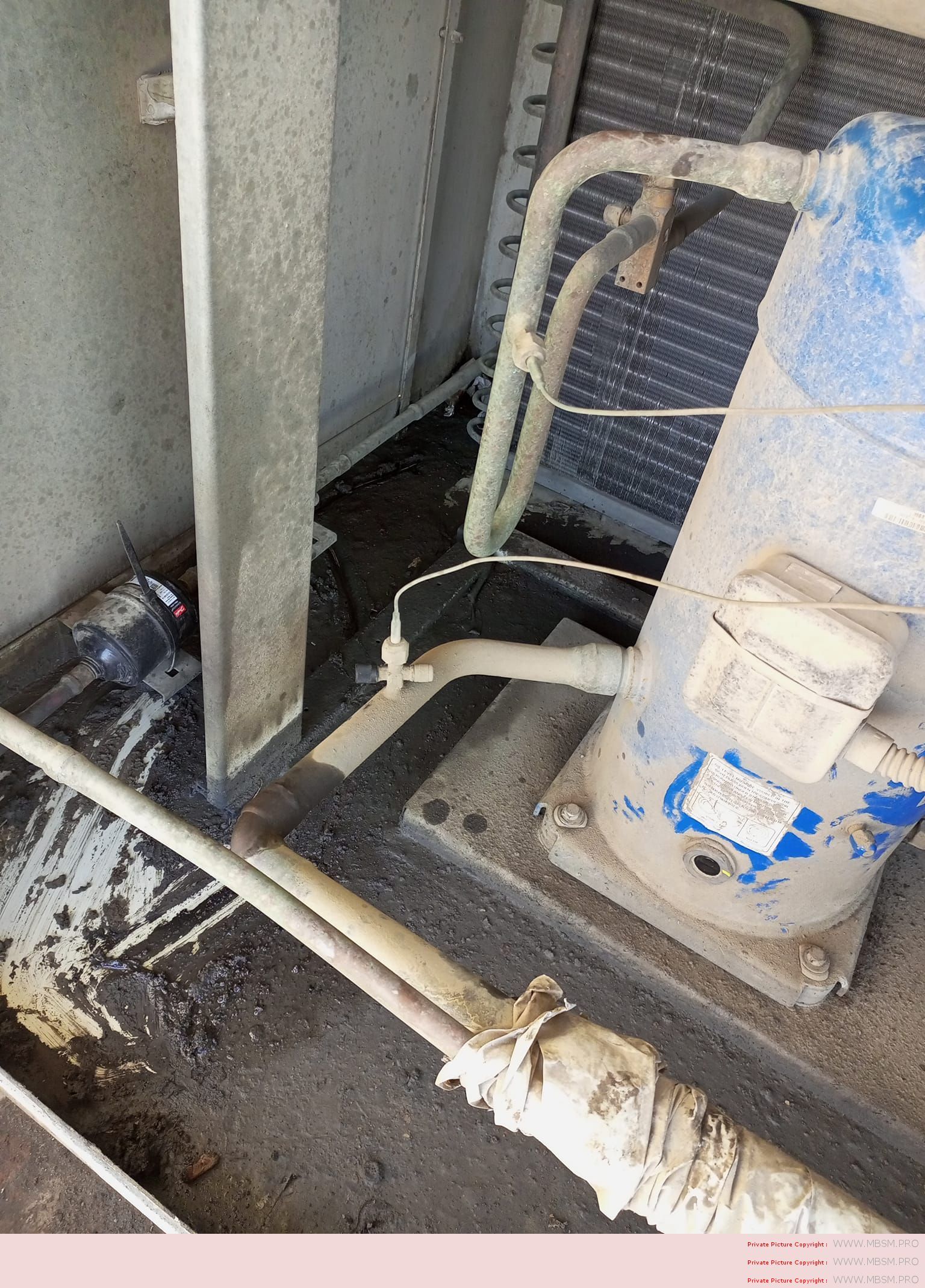

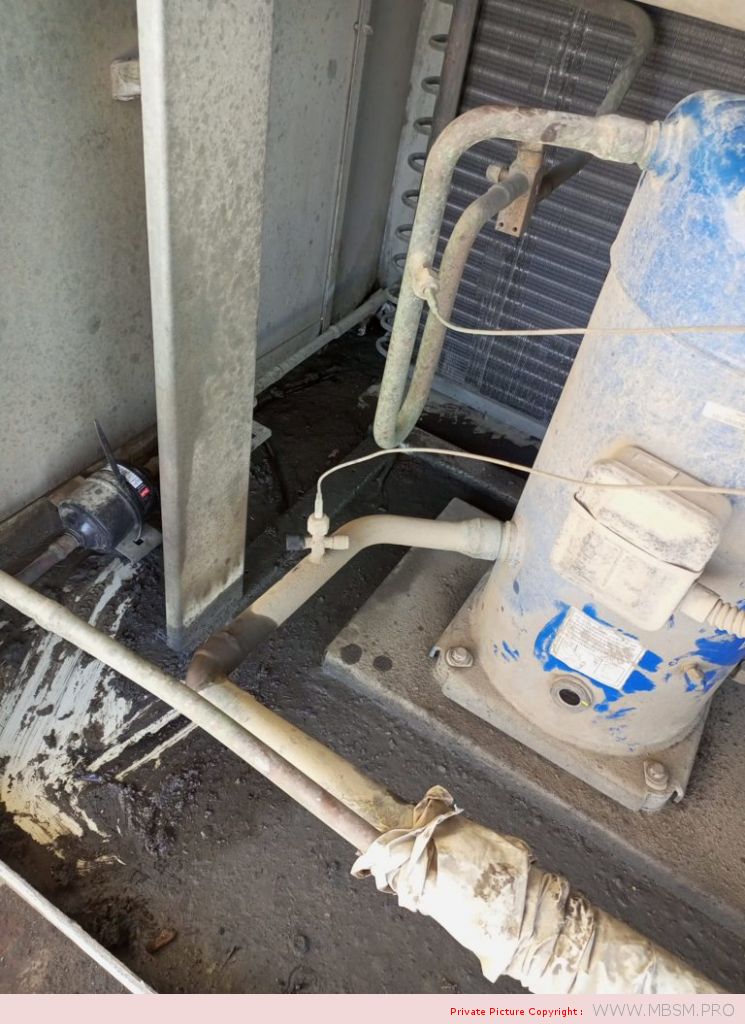

Mbsm.pro, Danfoss, Compressor, SM160T4RC, SM-160, 13hp, 3ph, R22, 133500BTU

written by Lilianne | 6 January 2022
SM160T4RC

Basic Info.

Model NO.Sm160N.W.90kgTransport PackagePackage: Wooden Case/Pallet or as Your RequirmentSpecificationSM series SM090TrademarkperfomerOriginFranceHS Code8414301300Production Capacity50000 Sets/Year

Product Description

SM-160 Performer Scroll compressor for R22
13HP Performer Scroll Compressor SM160

 SPECIFICATIONS FOR  SM160

Products Details		 Models: SM160 Type Hermetic
Power Phase 3
Horse Power HP 13

Main performance parameters		 Input Power W 380-420/3/60
REFRIGRANT   R22
SIZE   54.0/35.0

Physcial parameters		 Hight MM 353
Weight KG 90
Q’ty / Pallet PIECE 6

Product Description
5.Techincal sheet as below:

50Hz Data
 Model  Nominal Cap.60HZ Nominal cooling capacity Power input Cop E.E.R. Swept Volume Displacement Oil charge N.W.
TR W Btu/h KW W/W Btu/h/W cm/rew m/h dm kg
SM084 7 20400 69600 6.12 3.33 11.4 114.5 19.92 3.3 64
SM090 7.5 21800 74400 6.54 3.33 11.4 120.5 20.97 3.3 65
SM100 8 23100 79000 6.96 3.33 11.3 127.2 22.13 3.3 65
SM110 9 25900 88600 7.82 3.32 11.3 144.2 25.09 3.3 73
SM112 9.5 27600 94400 7.92 3.49 11.9 151.5 26.36 3.3 64
SM115 9.5 28000 95600 8.31 3.37 11.5 155 26.97 3.8 78
SM120 10 30100 102800 8.96 3.36 11.5 166.6 28.99 3.3 73
SM124 10 31200 106300 8.75 3.56 12.2 169.5 29.5 3.3 64
SM125 10 30100 102800 8.93 3.37 11.5 166.6 28.99 3.8 78
SM147 12 36000 123000 10.08 3.58 12.2 193.5 33.7 3.3 67
SM148 12 36100 123100 10.8 3.34 11.4 199 34.6 3.6 88
SM160 13 39100 133500 11.6 3.37 11.5 216.6 37.69 4 90
SM161 13 39000 133200 11.59 3.37 11.5 216.6 37.69 3.6 88
SM175 14 42000 143400 12.46 3.37 11.5 233 40.54 6.2 100

Product details

Gross weight 102 kg
Net weight 90 kg
EAN 5702428980432



Approval standard CE
UL
Brand technique After sale
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Description SM160-4
Diameter [mm] 266 mm
Discharge connection height [mm] 596 mm
Discharge connection mounting torque [Nm] 110 Nm
Discharge connection pipe size [in] 7/8 in
Discharge connection rotolock size [in] 1 3/4 in
Discharge connection size [in] 1 3/4 in
Discharge connection sleeve pipe size [in] 7/8 in
Drawing number 8551120b
Economizer No
Factory HP [bar] 33 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code C
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 30.2 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.7 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 440 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 25 bar
Low Side TS Max 63 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 150 A
Maximum Operating Current [MOC] 29 A
MMT 29 A
Model number SM160T4RC
Motor protection Internal thermostat, ext. overload protector needed
Mounting torque [Nm] 21 Nm
Nominal cooling capacity 60 kBTU/h 163.14 kBtu/h
Nominal cooling capacity at 50Hz 35.3 kW
Nominal cooling capacity at 60Hz 47.8 kW
Number of starts per hour [Max] 12
Oil charge [L] 4 L
Oil drain 1/4” flare
Oil drain torque [Nm] 35 Nm
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 48 Nm
Oil reference 160P
Oil type Mineral
Packaging height [mm] 671 mm
Packaging length [mm] 470 mm
Packaging weight [Kg] 671 kg
Packaging width [mm] 370 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R22
Refrigerant charge [kg] [Max] 12.5 kg
Relief valve None
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 180 mm
Suction connection mounting torque [Nm] 130 Nm
Suction connection pipe size [in] 1 3/8 in
Suction connection rotolock size [in] 2 1/4 in
Suction connection size [in] 2 1/4 in
Suction connection sleeve pipe size [in] 1 3/8 in
Swept volume [cm3] 216.6 cm³
Technology Scroll
Test dif [bar] [Max] 24 bar
Test HP [bar] [Max] 32 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 2 Nm
Torque Ebox cover [Nm] 2.3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 631 mm
Type SM
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.94 Ohm
Mbsm_dot_pro_private_PDF_Sm160TArc-meituo_en_made_in_china_com_product_ENYJSPnUTrkR_China_Sm_16Télécharger
Mbsm_dot_pro_private_PDF_SM-160-10993_danfossTélécharger


COMPRESSoR, DANFOSS, NL8.4MF, R134A, 1/4HP, 8.35CM3, Compressor Danfoss Secop NL8.4MF, 105G6879, MBP -R134a, 220-240V/1/50Hz, discharge 8.35 cm3, motor type RSIR / CSIR, oil type POE, oil charge 320 cm3, 741 W at +7.2 / +55° C, LRA 11.7 A, maximum refrigerant charge 600 g, height: 197 mm, weight 10.5 kg

written by Lilianne | 6 January 2022

230V 50/60HZ

FICHE TECHNIQUE COMPRESSEUR DANFOSS NL8.4MF AU R134A 1/4HP 8.35CM3

Puissance HP 1/4
Tension (V) 230
Fréquence (Hz) 50/60
Marque pie DANFOSS
Cylindré 8.35
Référence marque NL8.4MF
Mbsm_dot_pro_private_PDF_NL8.4MFTélécharger


SC18G, 104G8820, Universal, Compressor, R134a, 220-240V 50/60Hz, DANFOSS, SECOP, R134a, HMBP, 1/2 Hp++, displacement 17.70 cc, CSIR, SC18G 104G8820

written by Lilianne | 6 January 2022

Détails du produit

Poids brut 13.8 kg
Poids Net 13.8 kg



Applications HBP
LBP
MBP
Charge en fluide frigorigène [kg] [Max] 1.3 kg
Charge en huile [L] 600 L
Code de configuration Simple
Couleur Noir
Courant d’appel HST [A] 18.6 A
Description SC18G
Diamètre de raccordement à l’aspiration [mm] 10.2 mm
Diamètre du raccord au refoulement [mm] 6.2 mm
Diamètre du raccordement du traitement [mm] 6.2 mm
Désignation du modèle Compresseur
Emballage (format) Emballage industriel
Faible valeur de plage de tension à 50 Hz [V] 187 V
Faible valeur de plage de tension à 60 Hz [V] 198 V
Faible valeur de tension nominale à 50 Hz [V] 208 V
Faible valeur de tension nominale à 60 Hz [V] 220 V
Fluides R134a
Fréquence [Hz] 50/60
Hauteur de la base [mm] 213 mm
Hauteur du raccordement de refoulement [mm] 110 mm
Hauteur raccordement aspiration [mm] 193 mm
Hauteur totale [mm] 219 mm
LRA HST [A] 18.6 A
Matériel du raccord au process Acier cuivré
Matériel du raccord d’aspiration Acier cuivré
Matériel du raccord de refoulement Acier cuivré
Niveau d’énergie de l’application Compresseur universel
Nombre de phases (compresseur) 1
Nombre de phases (ventilateur) 1
Norme d’approbation CE EN 60335-2-34 avec Annexe AA
Notes concernant le raccord de refoulement Capuchon en aluminium
Notes concernant le raccordement au process Capuchon en aluminium
Notes concernant le raccordement à l’aspiration Capuchon en aluminium
N° de modèle SC18G
N° de schéma 8258
Oil type POE
Phase 1
Puissance frigorifique nominale 60 kBTU/h 6.06 kBtu/h
Puissance frigorifique nominale à 60 Hz 1.8 kW
Quantité d’huile [cm³] 600 cm³
Quantité par emballage 80
raccord de refoulement équerre [°] 37 °
raccord d’aspiration équerre [°] 37 °
Raccordement de process équerre 37 °
Régulation de la puissance Vitesse fixe
Résistance de l’enroulement auxiliaire (enroulement de démarrage) pour compresseurs monophasés [ohm] 14.1 Ohm
Résistance de l’enroulement principal pour compresseurs monophasés [Ohm] 3.7 Ohm
Technique de la marque Compresseur à pistons
Technologie Piston
Température d’enroulement max. continue [°C] [Max] 125 °C
Température de l’enroulement à court terme [°C] [Max] 135 °C
Tension 50 Hz [V] 220 V
Tension 50 Hz [V] [max.] 240 V
Tension 60 Hz [V] 220 V
Tension 60 Hz [V] [max.] 240 V
Type SC
Type de moteur CSIR
Type de socle Universel
Utilisation de tronçon Réfrigération LT
Réfrigération MT
Valeur du condensateur A 10 µF
Valeur du condensateur B 80 uF
Valeur élevée de plage de tension à 50 Hz [V] 254 V
Valeur élevée de plage de tension à 60 Hz [V] 254 V
Valeur élevée de tension nominale à 50 Hz [V] 230 V
Valeur élevée de tension nominale à 60 Hz [V] 230 V
Vitesse de rotation à 50 Hz [rpm] 2900 rpm
Vitesse de rotation à 60 Hz [rpm] 3500 rpm
Volume balayé [cm³] 17.69 cm³
Volume de gaz libre [cm3] 1460 cm³
Économiseur No

Documents

  Type de document  Catalogue  Fiche technique  Warranty  Matériel promotionnel  Guide d’installation  EAC Declaration  Brochure  Article  UA Declaration  Manuel d’utilisation  Electrical Safety Certificate    Country  France  Afrique du Sud  Allemagne  Australie  Autriche  Belarus  Belgique  Brazil  Bulgarie  Canada  Chili  Chine (continentale)  Colombie  Corée du Sud  Croatie  Danemark  Emir.arab.unis  Espagne  Estonia  Finlande  Grande Bretagne  Grèce  Hongrie  Inde + Sikkim  Indonésie  Ireland  Islande  Israël  Italie  Japon  Kazakhstan  Lettonie  Lithuania  Macedonia  Malaisie  Mexique  N. Zélande  Norvège  Pays-Bas  Philippines  Pologne  Portugal  Roumanie  Russian Federation  Rép. tchèque  Saudi Arabia  Serbia  Singapour  Slovaquie  Slovénie  Suisse  Suède  Taiwan, Chine  Thailand  Tunisie  Turquie  Ukraine  USA  Viêt Nam  Vénézuéla    Langue  Français   Allemand   Anglais   Arabe   Bulgare   Chinois   Coréen   Croate   Danois   Espagnol   Estonien   Finnois   Grec   Hindi   Hongrois   Hébreu   Indonésien   Islandais   Italien   Japonais   Kazakh   Letton   Lituanien   Norvégien   Néerlandais   Polonais   Portugais   Roumain   Russe   Serbe   Slovaque   Slovène   Suédois   Tchèque   Thaï   Turc   Ukrainien   Vietnamien   Titre
Fiche technique France Français 220V Hermetic Compressors – R12 – R22 – R205
AI32443441788901-FR0101
1984 KB
Fiche technique France Français Listing Compresseur Secop
AI302136056984fr-FR0101
253 KB
Guide d’installation France Français Instructions SC Compressors (external Protector)
AN00008643706001-000401
124 KB
Guide d’installation France Français Instructions SC Twin Compressors
AN00008643707201-000101
183 KB
Matériel promotionnel France Français Refrigerant Circuit
AV00008642183800-000402
463 KB

Visuels

Mbsm_dot_pro_private_PDF_SC18GTélécharger


Danfoss, secop, refrigerator, compressor, SC15G, 104G8520, R134a, 3/8HP, 1ph/220V-240/50HZ

written by Lilianne | 6 January 2022

3/8HP Danfoss secop refrigerator compressor SC15G 104G8520 for R134a

Main features:

1. Adopt high efficient rotary compressor and Japan made motors,

 save power 10% or above.

2. The horizontal designed series can save much space.

3. Optimized design can be tightly built inside the equipment,

which can save installation time and labor cost.

4. Widely used in freezing storage, cold room, automatic

vendor machine, cold tanks on the ship, etc. as well as
in the home use, commercial, refrigerator,

 refrigeration machine, dehumidifier,

 low-temperature laboratory device and some special refrigeration equipment.


Available models and details for secop comrpessor:

Model Gas Qty/pallet HP Voltage Code Details
SC10C R22 80 1/3 1ph/220V-240/50HZ 104L2516 MLBP HST

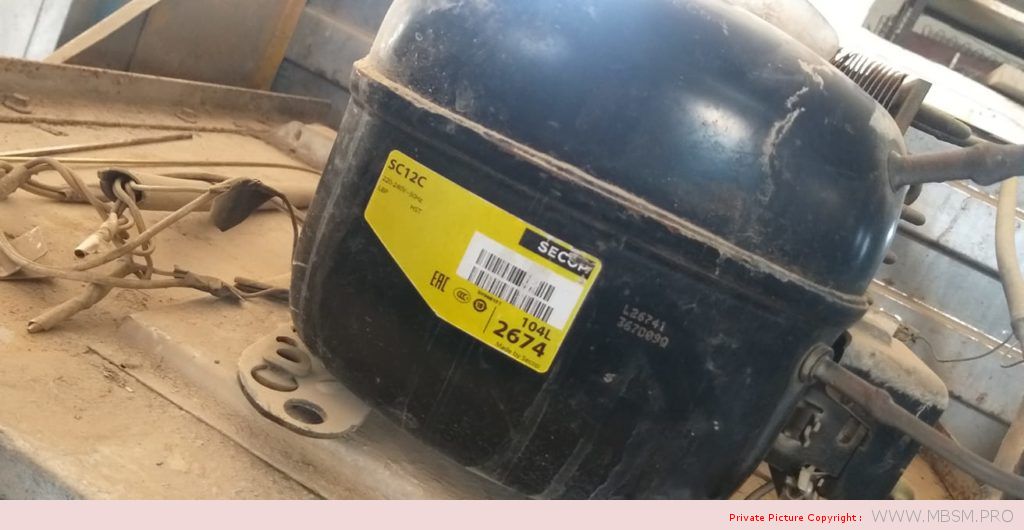

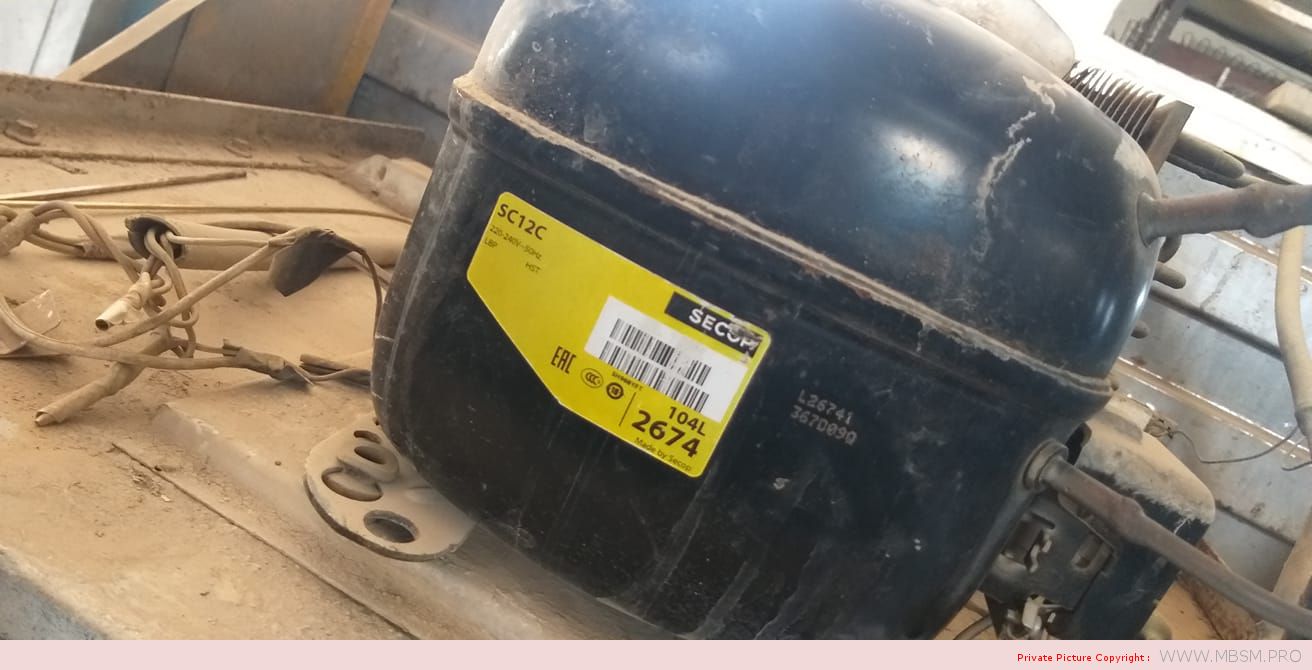

SC12C R22 80 3/8 1ph/220-240V/50HZ 104L2674 MLBP HST
SC15CM R22 80 1/2 1ph/220V-240V/50HZ 104L2848 MLBP HST
SC18CM R22 80 5/8 1ph/220-240V/50HZ 104L2120 MLBP HST
SC10D  R22 80 3/8 1ph/220-240V/50HZ 104L2529 MHBP HST
SC12D R22 80 1/2 1ph/220-240V/50HZ 104L2694 MHBP HST
SC15D R22 80 5/8 1ph/220-240V/50HZ 104L2859 MHBP HST
SC10CL R404A 80 1/3 1ph/220-240V/50HZ 104L2523 LMBP HST
SC12CL R404A 80 3/8 1ph/220-240V/50HZ 104L2623 LMBP HST
SC15CL R404a 80 1/2 1ph/220-240V/50HZ 104L2853 LMBP HST
SC18CL R404a 80 5/8 1ph/220V-240V/50HZ 104L2123 LMBP HST
SC21CL R404a 80 7/8 1ph/220-240V/50HZ 104L2322 LBP HST
SC10G R134a 80 5/16 1ph/220-240V/50HZ 104G8000 LMHBP HST
SC12G R134a 80 1/3 1ph/220-240V/50HZ 104G8240 LMHBP HST
SC15G R134a 80 3/8 1ph/220V-240V/50HZ 104G8520 LMHBP HST
SC18G  R134a 80 1/2 1ph/220-240V/50HZ 104G8820 LMHBP HST
SC21G  R134a 80 5/8 1ph/220-240V/50HZ 104G8140 LMHBP HST
Mbsm_dot_pro_private_PDF_sc15g_104g8520_r134a_220v_50hz_60hz_01-2013_desd402k302Télécharger


Compressor, Danfoss, Secop, SC18G, 104g8822,1/2HP, R134A, 685 Litres, Presentoire cokacolla, LBP/HBP

written by Lilianne | 6 January 2022

OverviewQuick detailsType :compressorBrand Name :SECOPModel Number : ASC18GCertification :CE, CCCAfter-sales service provided :No overseas service provided.Gas :R134aType :PistonPower Source :AC PowerLubrication Style :LubricatedMute :YesPackage :wooden case or cartonApplication :Danfoss Freezer CompressorDelivery time :7-20 DaysSpecial period :1 monthSupply AbilitySupply Ability3000 Piece / Pieces per MonthPackaging and shippingPackaging Details1.For small order quantity: packed with a wooden case or carton.
2.For full container: packed with pallet, 24 pallets in one 20ft container.postureGuangZhou, huangpu portProcessing time:: A.7-30 days

1.Product name:

1, Danfoss refrigeration / refrigeration compressor SC18G

2.Type: LBP 3.Voltage
: 220 ~ 240V / 50Hz, 1 / 2HP

4.Gas consumption: R134a

Mbsm_dot_pro_private_PDF_104g8822Télécharger



Compressor, 103U2954, Danfoss, fr10B, 103u, 2954, 1/3 HP, lbp, r12, FR10B COMPRESSOR 220V, 103U2954FR10B, FR11B Compressor R-12 3/8 HP 230V, fr21b Compressor R134a 3/4 HP++/ 1 hp–, 230V, hbp++

written by Lilianne | 6 January 2022

This article was edited by the director to adjust the horsepower value of the compressor. Thank you for your understanding

TL2.5B 2.61 A C-A 1-6 102U2021 20 45 80 102 126 182 248 112
TL3B 3.13 A C-A 1-6 102U2023 27 56 96 120 148 215 296 141
TL4B 3.86 A C 1-6 102U2016 39 73 116 145 182 264 364 157
FR6B 6.24 A C-A 1-6 103U2654 55 110 190 235 295 438 620 243
FR7.5B 6.93 B-A C-B 1-6 103U2754 103U2764 65 127 210 275 340 495 695 280
FR8.5B 7.95 B-A C-B 1-6 103U2854 103U2864 72 146 240 300 375 555 770 326
FR10B 9.05 B-A C-B 1-6 103U2954 103U2964 85 158 268 340 420 620 860 375
FR11B 11.15 C C 1 103U2154 110 205 340 420 520 758 1050 485
SC10B 10.3 C-B C-B 1-6 104L2510 104L2511 70 170 310 400 490 760 1080 390
SC12B 12.9 C-B C-B 1-6 104L2670 104L2671 95 230 410 520 630 950 1330 500
SC15B 15.3 C-B C-B 1-6 104L2830 104L2831 130 275 490 615 760 1090 1590 595
SC18B 17.7 C C 1-6 104L2110 170 340 575 715 870 1280 1820 720
SC21B 20.95 C C 1 104L2310 220 400 670 840 1010 1450 2080 730
SC12/12B* 2 x 12.9 C 1 104L4072 190 460 820 1040 1260 1900 2660 1000
SC15/15B* 2 x 15.3 C 1 104L4073 260 550 980 1230 1520 2180 3180 1190
SC18/18B* 2 x 17.7 C 1 104L4074 340 680 1150 1430 1740 2560 3640 1440
SC21/21B* 2 x 20.95 C 1 104L4075 440 800 1340 1680 2020 2900 4160 1460

Mbsm_dot_pro_private_PDF_danfossr12r22r502compressorpdf_compressTélécharger
Mbsm_dot_pro_private_PDF_103U2954Télécharger



COMPRESSOR, DANFOSS, SECOP, HMK95AA, R600, 145W, 1/5CV, réfrigéteur , congélateur, LBP, Equivalent: EMBRACO NBM1114Y – NBM1116Y, DANFOSS NLE11KK – NL10K – NL11K – NLE15K, DANFOSS NLE11KK – NL10K – NL11K – NLE15K, DANFOSS NLE11KK – NL10K – NL11K – NLE15K, ELECTROLUX HP14AH – HP12AH, SECOP TLES8.7KK.3 – HMK95AA

written by Lilianne | 6 January 2022

Tech Notes:

220/240V 50Hz 167W, power supply 1/5+ Hp, capacity 9.5 cc
gas R600 LBP

Description

Compresseur Danfoss-SECOP HMK95AA – LBP – R600 Réfrigération LT 230/1/50 – RSIR Volume balayé : 9.5 cm³

Caractéristiques techniques

  • Marque : DANFOSS SECOP
  • Modèle : HMK95AA
  • CYLINDRÉE (CM³)9,6
  • FLUIDER-600a
  • APPLICATIONLBP
  • PLAGE D’APPLICATION-35/-5
  • PUISSANCE (W)313
  • PUISSANCE FRIGORIFIQUE (TK+40°C)-5/381 -15/252 -25/152 -35/81
  • TENSION (V)240/1/50
  • DÉMARRAGERSIR
  • I.MAX (A)1,03
  • Ø ASPIRATION6,15
  • Ø REFOULEMENT5,15
  • DIMENSIONS (MM)239x151x159
Mbsm_dot_pro_private_PDF_HMK95AATélécharger


COMPROSSOR, DANFOSS, NLE15KTK2, NLE15KTK2 105H6966, 105H6966, 105H, 6966, 253W, 1/3Hp, LBP, R600, 220V/50, Indesit, Ariston

written by Lilianne | 6 January 2022

Product details

Gross weight 11.97 kg
Net weight 11.97 kg
Application energy level High Energy-optimized
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 21.3 Ohm
Base plate type EU small
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 220-240/1/50
Configuration code Single
Cut in current LST [A] 9.3 A
Description NLX15KK.2
Discharge connection angle [°] 21 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 5 mm
Discharge connection material Cu-plated steel
Economizer No
Free gas volume [cm3] 2360 cm³
Frequency [Hz] 50
Height from baseplate [mm] 197 mm
High value of nominal voltage at 50Hz [V] 240 V
High value of voltage range at 50Hz [V] 255 V
Length [mm] 252 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of voltage range at 50Hz [V] 187 V
LRA LST [A] 5.6 A
Main winding resistance for single-phase compressors [Ohm] 11.3 Ohm
Model number NLX15KK.2
Motor type RSCR
No. of phases (compressor) 1
Nominal cooling capacity 60 kBTU/h 5.18 kBtu/h
Nominal cooling capacity at 60Hz 1.5 kW
Oil quantity [cm3] 270 cm³
Oil type POE
Packing format Single pack
Packing quantity 1
Process connection angle [°] 25 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Refrigerant R600a
Refrigerant charge [kg] [Max] 0.15 kg
RLA 1.10 A
Rotational speed at 50Hz [rpm] 3000 rpm
Run capacitor capacitance 4 µF
Segment usage Refrigeration LT
Speed Platform Fixed-speed
Suction connection angle [°] 2 °
Suction connection comments Al-cap
Suction connection diameter [mm] 6.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 14.65 cm³
Technology Reciprocating
Total height [mm] 203 mm
Type NL
Type designation Compressor
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Width [mm] 166 mm
Winding temperature short term [°C] [Max] 110 °C
Winding temperature stat [°C] [Max] 95 °C



Mbsm_dot_pro_private_PDF_NLE15KTK2Télécharger
