Compressor ,DANFOSS , 2123 104L,coolant R404a/R507,SC18CL ,220-240V 50Hz, LBP/MBP (csr),hermetic ,13,7kg ,5/8HP (Big),781W

Category: Tester ok
written by Lilianne | 22 May 2020

Mbsm_dot_pro_private_PDF_SC18CL-1Télécharger


Mbsm_dot_pro_private_PDF_SC18CLTélécharger

SECOP Commercial Freezer Compressor SC18CL 104L2123 5/8HP R404aProduct Description:

1.Easy to install ,low cost

2.Low noise and high performance

3.Strong and durable

4.Adapt to unstable power source

5.High reliability, long service life

Key Features:

1. Adopt high efficient rotary compressor and Japan made motors, save power 10% or above.

2. The horizontal designed series can save much space.

3. Optimized design can be tightly built inside the equipment, which can save installation time and labor cost.

4. Widely used in freezing storage, cold room, automatic vendor machine, cold tanks on the ship, etc. as well as in the home use, commercial,

 refrigerator, refrigeration machine, dehumidifier, low-temperature laboratory device and some special refrigeration equipment.

Danfoss Refrigerator Compressor Models and Parameter:

Model Gas Qty/pallet HP Voltage Code Details
SC10C R22 80 1/3 1ph/220V-240/50HZ 104L2516 MLBP HST
SC12C R22 80 3/8 1ph/220-240V/50HZ 104L2674 MLBP HST
SC15CM R22 80 1/2 1ph/220V-240V/50HZ 104L2848 MLBP HST
SC18CM R22 80 5/8 1ph/220-240V/50HZ 104L2120 MLBP HST
SC10D  R22 80 3/8 1ph/220-240V/50HZ 104L2529 MHBP HST
SC12D R22 80 1/2 1ph/220-240V/50HZ 104L2694 MHBP HST
SC15D R22 80 5/8 1ph/220-240V/50HZ 104L2859 MHBP HST
SC10CL R404A 80 1/3 1ph/220-240V/50HZ 104L2523 LMBP HST
SC12CL R404A 80 3/8 1ph/220-240V/50HZ 104L2623 LMBP HST
SC15CL R404a 80 1/2 1ph/220-240V/50HZ 104L2853 LMBP HST
SC18CL R404a 80 5/8 1ph/220V-240V/50HZ 104L2123 LMBP HST
SC21CL R404a 80 7/8 1ph/220-240V/50HZ 104L2322 LBP HST
SC10G R134a 80 5/16 1ph/220-240V/50HZ 104G8000 LMHBP HST
SC12G R134a 80 1/3 1ph/220-240V/50HZ 104G8240 LMHBP HST
SC15G R134a 80 3/8 1ph/220V-240V/50HZ 104G8520 LMHBP HST
SC18G  R134a 80 1/2 1ph/220-240V/50HZ 104G8820 LMHBP HST
SC21G  R134a 80 5/8 1ph/220-240V/50HZ 104G8140 LMHBP HST


NL10MF ,1/3 HP ,10,5kg 1/3HP ,Hermétique,Compressor , DANFOSS ,SECOP ,R134a ,220-240V 50Hz , 208-230V 60Hz ,MBP (Medium Back Pressure) ,CSIR – RSIR (Resistance Start – Capacitor Run)

Category: Technologie,Tester ok
written by Lilianne | 22 May 2020

Mbsm_dot_pro_private_PDF_NL10MFTélécharger
  • Puissance frigorifique à -10°C 441 W
  • Puissance électrique à -10°C 323 W
  • Puissance en cheval 1/3 CV
  • 220-240 V 50 Hz
  • Gaz R134a
  • Tropicalisé
  • Complet avec starter, condensateur, boitier et système de fixation

La photo montre l’aspect du compresseur, pas son étiquette réelle

Codes fabricants

  • CELLI-52402
  • COSMETAL-1581176
  • FRIULINOX-996355
  • MTH-18456
  • SECOP-NL10MF-HST
  • TECO-NL10MF-CSIR

Données techniques

  • Modèle: NL10MF
  • Gaz: R-134a
  • Température/Pression: Moyenne / Haute
  • Puissance: 1/3 HP
  • Voltage: 230 V
  • Type De Courant: Monophasé
  • Fréquence: 50/60 Hz
  • Type De Compresseur: Hermétique
  • Décalage: 10.10 cm³
  • Cons.Énergie -10ºC: 323 W
  • Cons.Énergie -5ºC: 360 W
  • Cons.Énergie 0ºC: 397 W
  • Cons.Énergie +5ºC: 435 W
  • Cons.Énergie +7,2ºC: 451 W
  • T° De Condensation: 55 °C
  • Capacidad Frigorífica -20°C: 229 Kcal/h
  • Capacidad Frigorífica -15°C: 297 Kcal/h
  • Capacidad Frigorífica -10°C: 379 Kcal/h
  • Capacidad Frigorífica -5°C: 476 Kcal/h
  • Capacidad Frigorífica 0°C: 591 Kcal/h
  • Capacidad Frigorífica 5°C: 725 Kcal/h
  • Capacidad Frigorífica 7.2°C: 790 Kcal/h
  • Capacidad Frigorífica 10°C: 880 Kcal/h
  • Tipo Test: EN.12900

Compresseur Danfoss SECOP NL10MF – MP – R134a Réfrigération MT 230/1/50 – CSIR – RSIR Volume balayé : 10.09 cm³

Caractéristiques techniques

  • Marque : DANFOSS SECOP
  • Modèle : NL10MF
  • CYLINDRÉE (CM³)10,1
  • FLUIDE R-134a
  • APPLICATION MBP
  • PLAGE D’APPLICATION -20/+15
  • PUISSANCE ( W)567
  • PUISSANCE FRIGORIFIQUE (TK+40°C)15/1359 5/930 -10/487 -20/293
  • TENSION (V)240/1/50
  • DÉMARRAGE RSIR/CSIR
  • I.MAX (A)2,9
  • Ø ASPIRATION9,7
  • Ø REFOULEMENT6,5
  • DIMENSIONS (MM)254x166x203


230V ,compressor, Danfoss ,SC15MFX , made by Secop, R134a ,refrigeration, CSIR , Moteur HP , R134a ,3 / 8HP ,HMBP ,1PH

Category: Technologie,Tester ok
written by Lilianne | 22 May 2020

DANFOSS COMPRESSOR SECOP SC15MFX CSIR

Compressor for refrigeration suitable for a wide range of commercial applications such as cold rooms, display counters, machines for the production of ice, refrigerated display cases, etc..

Pdf : documentation
Mbsm_dot_pro_private_picture_sc15mfx_secop_compressorTélécharger

SC15MFX, 104L8501, compressor Secop / Danfoss SC15MFX, HBP – R134a, 220-240V / 1/50 Hz, discharge 15.28 [cm3], engine type CSIR, oil type POE, oil volume 500 [cm3], 1311 [W] at +7.5 / 55 [°], LRA 14.8 [A], max. refrigerant charge 1300 [g], compressor height 209 [mm], weight 13.1 [kg]

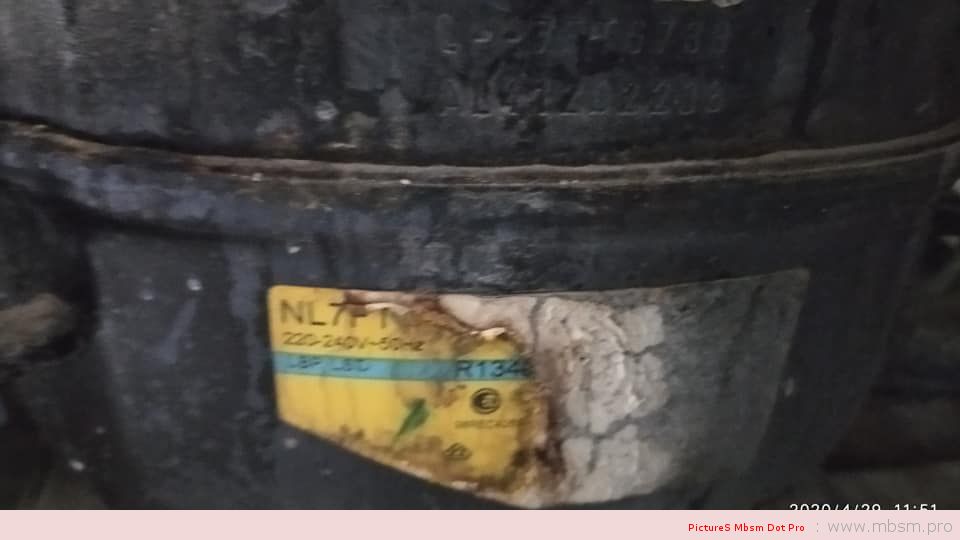

Danfoss ,Fridge Compressor ,NL7FT , 1/4 HP ,R134a

Category: Non classé,Technologie,Tester ok
written by Lilianne | 22 May 2020
   R404A/R507 • R134a • R290

Danfoss Compressors

R404A/R507 • R134a • R290

REFRIGERATION & AIR CONDITIONING DIVISION

——–

Refrigerant
Frequency

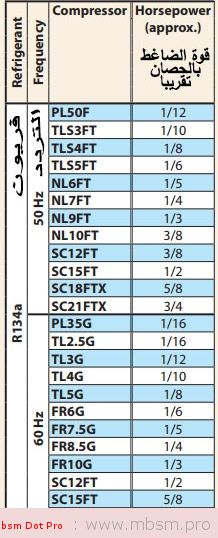

Compressor Code numbers Horsepower EN 12900 (CECOMAF) EN 12900 (CECOMAF) DisplaceCompressor
Compressor (approx.) Capacity [W] Power consumption ment
with [W]
oil
cooling Evaporating temperature [°C] Evporating temp. [°C]
-45 -40 -35 -30 -25 -23.3 -20 -15 -10 -5 -25 -10 [cm3
]
R134a
50 Hz
101G0220 1/12 14 26 40 45 56 74 95 60 86 2.50 PL50F
TLS3FT 102G4324 1/10 21 34 50 56 69 92 120 62 92 3.13
TLS4FT 102G4424 1/8 27 43 63 71 88 117 152 87 123 3.86
TLS5FT 102G4524 1/6 48 71 98 109 131 170 216 114 165 5.08
NL6FT 105G6628 1/5 60 84 115 127 152 198 253 123 184 6.13
NL7FT 105G6728 105G6738 1/4 71 100 136 150 181 235 299 145 220 7.27

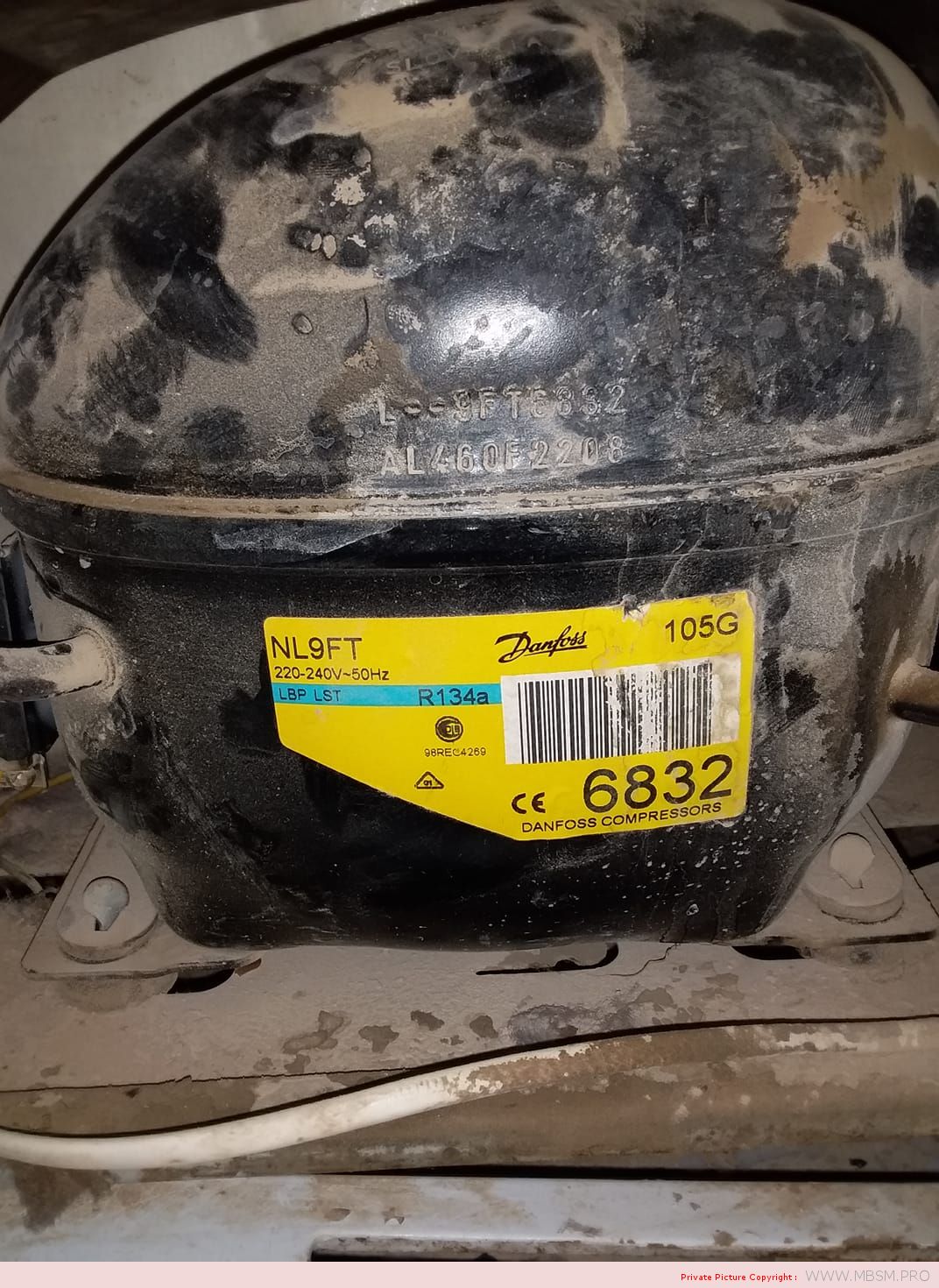

NL9FT 105G6828 105G6838 1/3 87 120 162 178 213 275 350 169 252 8.35





NL10FT 105G6829 105G6839 3/8 113 158 213 235 281 361 455 217 327 10.10
SC12FT 104G8205 104G8215 3/8 103 163 233 259 314 408 517 645 265 380 12.87
SC15FT 104G8505 1/2 126 197 280 311 376 489 620 772 311 451 15.28
SC18FTX 104G8805 5/8 144 229 325 361 437 567 719 896 365 517 17.68
SC21FTX 104G8105 3/4 192 296 415 460 553 713 901 1119 428 613 20.95
60 Hz
PL35G 101G0250 1/16 34 39 48 64 82 104 52 79 2.00
TL2.5G 102G4251 1/16 14 27 42 48 60 80 105 134 67 96 2.61
TL3G 102G4350 1/12 30 47 54 69 95 125 70 111 3.13
TL4G 102G4452 1/10 48 70 78 96 127 166 87 135 3.86
TL5G 102G4550 1/8 65 92 102 123 162 207 106 170 5.08
FR6G 103G6660 1/6 51 93 108 141 199 266 119 197 6.23
FR7.5G 103G6680 103G6690 1/5 67 112 130 166 228 300 138 229 6.93
FR8.5G 103G6780 103G6790 1/4 92 138 156 195 263 345 164 273 7.95
FR10G 103G6880 103G6890 1/3 99 153 173 217 292 381 194 314 9.05
SC12FT 104G8205 104G8215 1/2 125 192 272 302 366 477 608 761 298 458 12.87
SC15FT 104G8505 5/8 154 235 330 365 441 571 724 904 356 537 15.28
SC18FTX 104G8805 3/4 187 280 390 432 520 675 857 1071 420 622 17.68
SC21FTX 104G8106 7/8 240 345 470 518 620 800 1012 1262 475 707 20.95

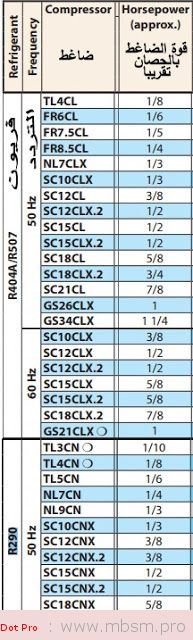

R404A/R507
50 Hz
TL4CL 102U2071 1/8 52 65 84 110 142 155 182 230 286 352 140 198 3.86
FR6CL 103U2670 1/6 77 108 145 189 243 263 307 383 473 578 242 353 6.23
FR7.5CL 103U2790 1/5 86 114 154 202 262 285 333 418 515 630 267 395 6.93
FR8.5CL 103U2890 1/4 99 126 168 222 290 317 372 468 577 315 472 7.95
NL7CLX 105F3710 1/3 102 146 199 263 340 369 430 536 657 796 274 381 7.27
SC10CLX 104L2533 1/3 166 255 360 400 483 625 789 977 352 508 10.29
SC12CL 104L2623 3/8 58 140 237 353 490 541 650 835 1048 1292 445 654 12.87
SC12CLX.2 104L2697 1/2 130 205 294 399 522 569 666 834 1026 475 659 12.87
SC15CL 104L2853 1/2 151 299 452 615 673 792 988 1208 1458 560 790 15.28
SC15CLX.2 104L2896 1/2 159 250 358 486 637 694 813 1017 1251 1519 565 783 15.28
SC18CL 104L2123 5/8 167 271 395 542 715 781 918 1154 1425 1735 615 894 17.68
SC18CLX.2 104L2197 3/4 194 306 439 595 780 849 995 1245 1532 680 949 17.68
SC21CL 104L2322 7/8 226 325 455 617 813 887 1042 1306 1606 702 989 20.95
GS26CLX 107B0500 1 325 497 703 949 1240 1348 1580 1974 2427 888 1285 26.30
GS34CLX 107B0501 1 1/4 729 1003 1330 1715 1857 2165 2687 3289 1196 1721 33.80
60 Hz
SC10CLX 104L2533 3/8 224 335 455 499 588 738 906 1096 430 623 10.29
SC12CLX 104L2695 1/2 146 282 429 590 649 770 972 1200 540 748 12.87
SC12CLX.2 104L2697 1/2 155 233 343 473 626 683 804 1011 1248 541 777 12.87
SC15CLX 104L2854 5/8 179 351 530 720 788 928 1158 1417 610 864 15.28
SC15CLX.2 104L2897 5/8 194 305 437 593 776 846 991 1239 1525 611 848 15.28
SC18CLX.2 104L2195 7/8 113 338 542 737 938 1010 1157 1410 1708 752 990 17.68
GS21CLX  107B0506 1 475 674 905 1172 1270 1480 1873 2246 868 1180 21.20
R290
50 Hz
TL3CN  102H4380 1/10 106 200 106 140 3.13
TL4CN  102H4490 1/8 56 126 255 128 155 3.86
TL5CN 102H4590 1/6 81 109 143 183 198 230 283 345 416 162 211 5.08
NL7CN 105H6756 1/4 118 166 223 290 315 368 458 561 679 221 291 7.27
NL9CN 105H6856 1/3 138 194 259 335 364 423 526 643 778 250 334 8.35
SC10CNX 104H8065 1/3 126 179 245 325 355 420 531 660 809 274 362 10.29
SC12CNX 104H8265 3/8 178 250 331 426 462 540 678 846 1050 344 456 12.87
SC12CNX.2 104H8266 3/8 186 258 346 453 493 578 725 895 379 502 12.87
SC15CNX 104H8565 1/2 195 297 415 550 601 707 887 1093 1328 420 560 15.28
SC15CNX.2 104H8566 1/2 252 332 434 560 609 714 900 1120 445 610 15.28
SC18CNX 104H8865 5/8 219 341 480 640 700 824 1033 1272 1543 500 707 17.68
SC18CNX.2 104H8866 5/8 244 384 531 689 747 863 1057 1273 541 682 17.68
SC21CNX.2


www.mbsm.pro , TLES7FT.4 , COMPRESSORE SECOP ,TLES7FT.4 4707, R134a , LBP ,1/4 hp/60hz, 1/5 hp/50hz , 1ph ,Danfoss,4707, compressors ,medium temperature, Kiriazi 335l

Category: Technologie,Tester ok
written by Lilianne | 22 May 2020

Tableau des spécifications techniques des compresseurs Scap :

Type de gaz

App

HP

Watt

Modèle









GS









R404A

MBP

1

2200

GS21MLX

R404A

MBP

1/2 * 1

2866

GS26MLX

R404A

MBP

7/10 * 1

3726

GS34MLX

R404A

LBP

1/2 * 1

1430

GS26CLX

R404A

LBP

7/10 * 1

2072

GS34CLX

R134A

MBP

1

1592

GS26MLX

R134A

RAP

1

2664

GS26GHX

R134A

MBP

1/2 * 1

2079

GS34MFX

R134A

LBP / MBP / HBP



33

BD35FHD (12 V / 24 V)







BD







R134A

LBP / MBP / HBP



72

BD50F (12 V / 24 V)

R134A

LBP / MBP / HBP



87

BD250GH.2 (12 V / 24 V)

R134A

LBP / MBP / HBP



91

BD250GH.2 (48 V)

R134A

LBP



108

BD80F (12 / 24V)

R134A

LBP / MBP / HBP



167

BD350GH (48 V)

R404A

LBP



270

BD220CL (12 V)

R600A

LBP

1/4

198

NKU12AA





KAPPA





R600A

LBP

1/5

167

NKU95AA

R600A

LBP

1/6

136

NKU80AA

R600A

LBP

1/7

117

NKU70AA

R600A

LBP

1/8

94

NKU55AA

Type de gaz

App

HP

Watt

Modèle



TL



R134A

LBP

1/6

134

TLY5.1FK

R134A

LBP

1/4

183

TLES7FT.4

R134A

LBP

1/5

156

NL6FT.2





NL



























R134A

LBP

1/4

185

NL7.3FT (RSIR)

R134A

LBP

+ 1/4

219

NL9FT.2 (RSIR)

R134A

LBP

1/4

185

NL7.3FT (CSIR)

R134A

LBP

+ 1/4

219

NL9FT.2 (CSIR)

R134A

LBP

1/3

284

NL10FT

R134A

MBP

1/3

621

NL11MF

R404A

LBP

1/3

433

NL7CLX

R404A

LBP

1/3

471

NL8.4CLX

R134A

LBP

1/4

187

NLY6F

R134A

LBP

+ 4 / (1)

213

NLY7F

R134A

LBP

1/3

237

NLY9FK

R600A

LBP

+ 1/4

227

NLE13KTK.2

R600A

LBP

1/3

253

NLE15KTK.2

R600A

LBP

+ 1/4

225

NLX13KK.3

R600A

LBP

1/3

254

NLX15KK.3

R134A

LBP / MBP / HBP

1/3

264

SC12G





SC













R134A

LBP / MBP / HBP

1/2

392

SC18G

R134A

LBP / MBP / HBP

3/4

456

SC21G

R134A

MBP

3/4

1073

SC21MFX

R134A

LBP

3/4

567

SC21FTX

R404A

LBP

1

1033

ST21CL

R404A

LBP

1

986

SC18CLX.2

R404A

MBP

1/2

359/650

SC15MLX

R404A

MBP

7/8

762/1584

SC18MLX
