Mbsm.pro, Compressor, Embraco, ASK75HG, 1/6 Hp++, Big, 1/5 Hp–, HMBP, R134a, 416 W, 220-240 V 50 Hz

written by Lilianne | 3 March 2022

Compresseur hermétique Embraco EM55HHR – HMBP – R134a 220-240/1/50 – RSIR Volume balayé : 4.60 cm³

Caractéristiques techniques

  • Marque : EMBRACO ASPERA
  • Modèle : EM55HHR
  • CYLINDRÉE (CM³)4,6
  • FLUIDER-134a
  • APPLICATIONHBP
  • PLAGE D’APPLICATION-5/+15
  • PUISSANCE (W)402
  • PUISSANCE FRIGORIFIQUE (TK+40°C)15/874 +5/601 0/492 -5/402
  • TENSION (V)240/1/50
  • DÉMARRAGERSIR
  • I.MAX (A)1,39
  • Ø ASPIRATION8,2
  • Ø REFOULEMENT6,5

Mbsm_dot_pro_private_PDF_ASK75HGTélécharger


Mbsm.pro, Compressor, EMBRACO, EMI30ER1, R-12, 350 BTU, 115 v, 1/10 HP, Lbp, compressor PW3.5K7-PW3

written by Lilianne | 3 March 2022


Description350 BTU Compressor Refrigeration 1/10 HP (115V)

Features:

  • Applications: Refrigerators, frozen food cabinets, frozen food display cases, display windows, etc.

Replaces:

  • Tecumseh – AZ1328D
  • Embraco – EM30SC, EM40NR, EM40SC, EMB30ER, EMI30ER
  • Sub Zero – 4201420, 4201430, 4201670, 4201860

SpecsProduct Type:Compressor

Capacity (BTU):350

 Horse Power:   1/10

 Voltage:   115v

Phase:1 Hertz:60

Refrigerant Type:R-12

Mbsm_dot_pro_private_PDF_embraco-emi30Télécharger


Mbsm.pro, COMPRESSOR, PW3,5K7-PW3, PW3,5K7-PW3, 220 V, EMBRACO, 1/10 hp, Lbp, r12, Compressor EMI30ER

written by Lilianne | 3 March 2022

Mbsm_dot_pro_private_PDF_pw3.5-k7-1Télécharger
Mbsm_dot_pro_private_PDF_pw3.5-k7Télécharger


Mbsm.pro, COMPRESSOR, EMBRACO, 1/5+ HP, EGAS 70HLR, R134a, egas70hlr, 695 btu, R134a

written by Lilianne | 3 March 2022

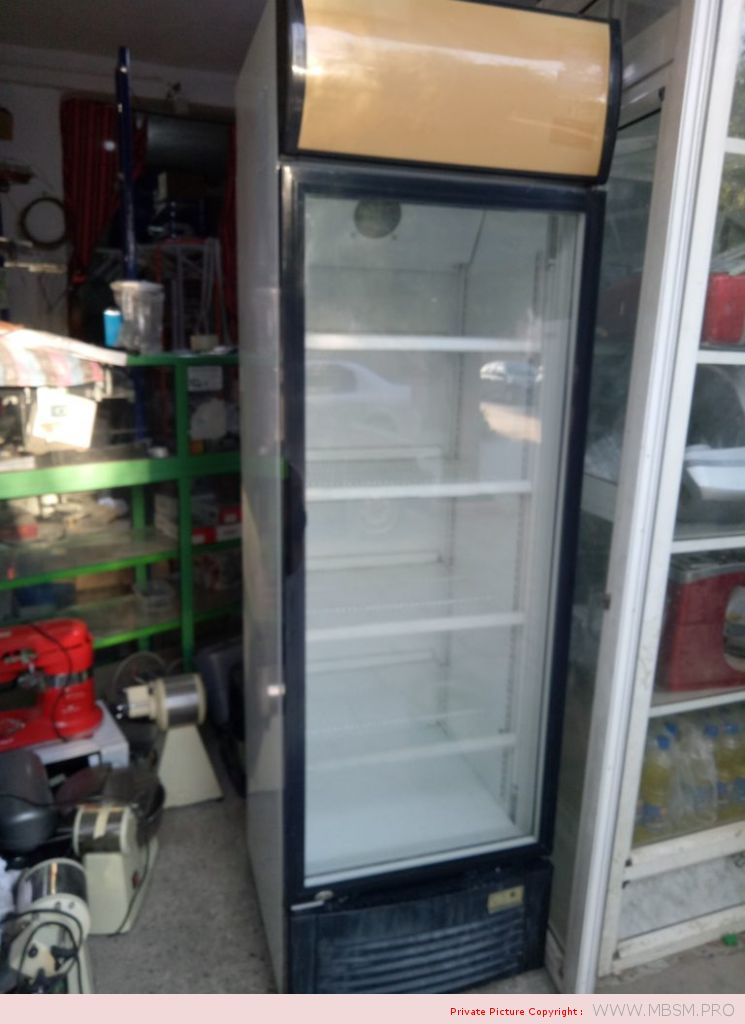

Refrigerators and freezer from 380 to 470 liters

REFRIGERATOR AND FREEZER ENGINE – COMPRESSOR EMBRACO 1/5+ HP – EGAS 70HLR – R134a (220v or 110v)

GENERAL DATA
Application: LBP
Refrigerant: R134a
Evaporating Temperature Range: -35°C to -10°C
Compressor Cooling: Static
Type: Hermetic reciprocating
Technology Type: On-Off
Expansion Device: Capillary Tube
Packing Quantity: 72
Displacement: 5.56 cm3
Horse power: 1/5+ hp

Mbsm_dot_pro_private_PDF_38-EGAS70HLR_techTélécharger
Mbsm_dot_pro_private_PDF_Catalogo-Embraco-2015Télécharger
Mbsm_dot_pro_private_PDF_compresseur-embraco-aspera-EGAS70HLRTélécharger


Mbsm.pro, COMPRESSOR, EMBRACO, HERMETIC, FREEZE, ICE CREAM, NT2192GK, 1.2 HP, 1v2 HP , 220-240V, LBP, 1262 W, R404A/R507, CSR

written by Lilianne | 3 March 2022
Compressor Aspera NT2192GK


TECHNICAL DATA


Model

Displacement

 Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

 Weight Max. Height
NT2192GK 22,4 cm3 R404A/R507 230V/50Hz -40°C~-10°C

POE 22 /450 ml

17,5 kg

 234 mm

Cooling Capacity


Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

-40ºC

 -35ºC -30ºC -25ºC -20ºC -15ºC -10ºC
NT2192GK 55 ºC – – 518 W 675 W 860 W 1074 W 1321 W
45 ºC 373 W 506 W 669 W 865 W 1100 W 1375 W 1693 W






Mbsm_dot_pro_private_PDF_Katalog_Sprarek_2012_GBTélécharger
Mbsm_dot_pro_private_PDF_NT2192GKTélécharger


Mbsm.pro, Compressor, Embraco, Aspera, MA8DCV04, NT6220GK, Hermetic reciprocating compressor , R404a, MHBP, 17.4CC, 3/4Hp, ++big, 240V~50Hz

written by Lilianne | 3 March 2022

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 3/4 hp
Displacement 14,50 cm3
Application MHBP ++
Cooling capacity at ASHRAE conditions, R404A/R507 2,12 kW
Cooling capacity at EN12900 MT conditions, R404A/R507 1,10 kW
Refrigerant R404A, R452A, R507A
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 220 mm
LRA 29,50 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

Télécharger


Mbsm.pro, PDF, File, Embraco, Catalogue, r134a, Embraco Condensing Units

written by Lilianne | 3 March 2022

Mbsm_dot_pro_private_PDF_EmbracoTélécharger



Mbsm.pro, Compressor, Embraco, Refrigeration, NT6215Z, 1/2 Hp, MHBP, Big ++, R134A, CSIR, 115 V

written by Lilianne | 3 March 2022

This is an EMBRACO Refrigeration Compressor NT6215Z1 1/2 HP that can be used as as replacement for a True Part# 842405.  This compressor comes with a start capacitor, relay, and overloard and comes pre-charged with oil.
H.P.  1/2
Volts  115
Phase  1
Hertz  60
Refrigeration  R-134

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 1/2 hp
Displacement 17,39 cm3
Application MHBP
Cooling capacity at ASHRAE conditions, R134a 1,62 kW
Cooling capacity at EN12900 HT conditions, R134a 1,25 kW
Cooling capacity at EN12900 MT conditions, R134a 0,80 kW
Refrigerant R134a
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 207 mm
LRA 21,00 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

Mbsm_dot_pro_private_PDF_compresseur-embraco-aspera-NT6215ZTélécharger


Mbsm.pro, Compressor, Embraco, Aspera, NEK6214Z, HBP, R134a, 220 – 240V/1/50Hz, 1/2 HP, CSIR, HBP, Big ++

written by Lilianne | 3 March 2022
Compressor Embraco Aspera NEK6214Z, HBP – R134a, 220 – 240V/1/50Hz, 1/2 HP, discharge 16.8 cm3, LRA 21.2 A, motor type CSIR, lubricant type POE 22, lubricant charge 350 ml, 1310 W at +5 / +54.4 °, expansion device: capillary or valve, cooling: fan cooling, weight 11.6 kg substitution for T6213Z.
Refrigerant: R134a
Power range(W): 701 – 1000 W 1 – 1,5 kW
Performance range (C): -15 C to +10 C
Working area: HBP
Design type: Hermetic
Model series: NEK
Use with: Expansion/Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: POE22
Engine type: CSIR
Article condition: New
Info: Oil filled
Shipping weight: 13,60 Kg
Dimensions ( length × width × height ): 24,20 × 17,80 × 20,60 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Embraco Aspera
Model: NEK6214Z
Stroke volume (cm3): 16,8
Performance condition: +5°C tk +54,4 °C
Power (W): 1310
Cooling capacity (W): 745
Power (HP): 0,5
Max. Starting current (A): 21,2
Engine type: CSIR
Note: Fan cooling necessary
Oil quantity (l): 0,35
Compressor type: Piston
Power range: -15 C to +10 C
Alternative: T6213Z



Mbsm_dot_pro_private_PDF_NEK6214ZTélécharger


Mbsm.pro, Compressor, BP1072Z, 221CA32, 1/10 Hp, 66W, EMBRACO, ASPERA, r134A, Lbp, HERMETIC COMPRESSORS, Oil 200 cc, 220 V/ 60 Hz

written by Lilianne | 3 March 2022
Compressor EMBRACO
Template BP1072Z
Height (mm)
Gas R134a
Voltage 220-240V 50Hz
Application LBP (Low Back Pressure)
Test Condition ASHRAE LBP 32
Displacement 4.15 of the Italian Civil Code
Motor RSIR
