Mbsm.pro, Compressor, Cubigel, Huayi, Electrolux, ZEM, Freezer, ML45TB, HMBP, R404A, R507, 220 – 240V/1/50Hz, 1/5 HP, ++ Big, 1/4 Hp –, CSIR

written by Lilianne | 11 February 2022

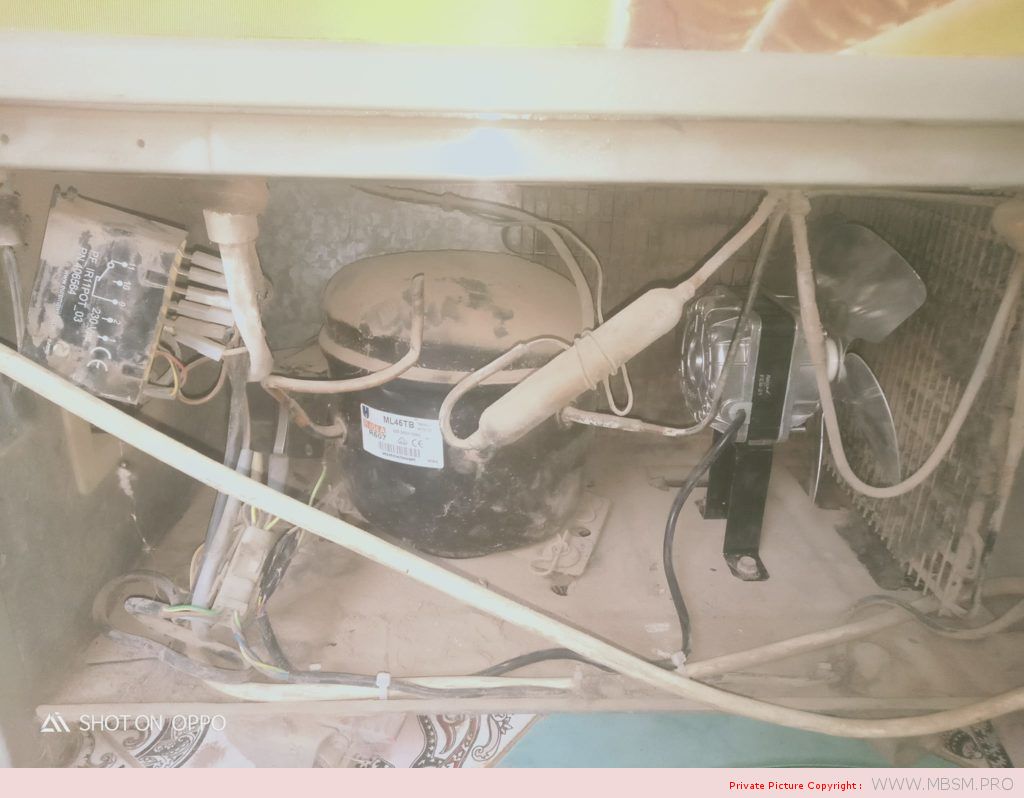

Compressor ACC Cubigel Huayi Electrolux ZEM ML45TB, HMBP – R404A, R507, 220 – 240V/1/50Hz, 1/5 HP, discharge 4.5 cm3, motor type CSIR, oil type ISO VG46 ester, oil charge 300 cm3, 528 W at +5 / +55 °, input power, current 352 W, 2.04A, expansion device: capillar or valve, cooling: fan, weight 10.1 kg

Refrigerant: R507a R404A
Power range(W): 501 – 700 W
Performance range (C): +5 C to +55 C
Connecting size: 4,9 mm
Suction: 6,5 mm
Working area: HMBP
Design type: Hermetic
Model series: ML
Use with: Expansion/Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: ISO VG 46 Ester
Engine type: CSIR
Article condition: New
Info: Oil filled
Shipping weight: 12,10 Kg
Dimensions ( length × width × height ): 23,10 × 16,20 × 18,60 cm
customs tariff number: 84143081
Cooling capacity condition: +5 / +55 C
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: ML45TB
Stroke volume (cm3): 4,5
Cooling capacity (W): 528
Power (HP): 0,25
Max. Starting current (A): 9,5
Max. Operating current (A): 2,04
Engine type: CSIR
COP: 1,49
Note: Fan cooling necessary
Oil quantity (l): 0,3
Compressor type: Piston
Power range: +5 / +55
Alternative: NEK6144GK
Pressure line (mm): 4,9
Suction line (mm): 6,5



Tecumseh, Compressor, 5/8HP, HMBP – R404A , R448A , R449A, MBP, CAJ9480Z, 230V

written by Lilianne | 11 February 2022

Caractéristiques techniques

  • Marque : TECUMSEH UNITÉ HERMÉTIQUE
  • Modèle : CAJ9480Z-R
  • CYLINDRÉE (CM³)15,2
  • FLUIDER404A , R448A , R449A
  • APPLICATIONHMBP
  • PLAGE D’APPLICATION-25/+15
  • PUISSANCE (W)1159
  • PUISSANCE FRIGORIFIQUE (TK+40°C)15/3350 5/2355 -10/1294 -25/609
  • TENSION (V)240/1/50
  • DÉMARRAGECSR
  • I.MAX (A)6,7
  • Ø ASPIRATION1/2
  • Ø REFOULEMENT5/16
  • DIMENSIONS (MM)235x178x280
  • Gaz: R-404a
  • Température/Pression: Haute Pression
  • Puissance: 5/8 HP
  • Voltage: 230 V
  • Type De Courant: Monophasé
  • Fréquence: 50 Hz
  • Type De Compresseur: Hermétique
  • Décalage: 15.2 cm³
  • Cons.Énergie -25ºC: 496 W
  • Cons.Énergie -10ºC: 669 W
  • Cons.Énergie -5ºC: 718 W
  • Cons.Énergie 0ºC: 762 W
  • Cons.Énergie +5ºC: 798 W
  • Cons.Énergie +10ºC: 828 W
  • T° De Condensation: 40 °C
  • Capacidad Frigorífica -25°C: 524 Kcal/h
  • Capacidad Frigorífica -20°C: 692 Kcal/h
  • Capacidad Frigorífica -15°C: 887 Kcal/h
  • Capacidad Frigorífica -10°C: 1113 Kcal/h
  • Capacidad Frigorífica -5°C: 1374 Kcal/h
  • Capacidad Frigorífica 0°C: 1677 Kcal/h
  • Capacidad Frigorífica 5°C: 2025 Kcal/h
  • Capacidad Frigorífica 10°C: 2425 Kcal/h
  • Tipo Test: EN.12900

Compresseur L’unité Hermetique – Tecumseh CAJ9480Z – R404A, R449A, R407A, R452A

220 – 240V 1~ 50 Hz

Cylindrée =  15.2 CM3

APPLICATIONS = HBP / MHBP

Moteur type: CSR

Mbsm_dot_pro_private_PDF_caj9480Z_2494-speceTélécharger

Compresseur AJ = Le produit de référence associant silence, fiabilité et efficacité du froid commercial.



Product Code Model Number Compressor Horsepower Compressor Displacement Cooling Oil Charge
  CAJ9480Z-FZ 5/8 HP 15.2 cm3/rev Fan 475 ml
  CAJ9510Z-FZ 1 HP 18.3 cm3/rev Fan 475 ml
  CAJ9513Z-FZ 1 1/8 HP 24.2 cm3/rev Fan 475 ml
  CAJ4517Z-FZ 1.25 HP 25.95 cm3/rev Fan 475 ml
  TAJ4517Z-TZ 1.25 HP 25.95 cm3/rev Fan 475 ml
  CAJ4519Z-FZ 1.5 HP 34.45 cm3/rev Fan 475 ml
  TAJ4519Z-TZ 1.5 HP 34.45 cm3/rev Fan 475 ml
