Mbsm.pro, Compressor, zel, M1260T, 155 w, 1/5 hp, lbp ,r12, Haier refrigerator
Mbsm.pro, Compressor, zel, M1260T, 155 w, 1/5 hp, lbp ,r12, Haier refrigerator
Embraco, Compressor, Fridge, Refrigerator, 1/5HP, LBP, 1/6++, mbp, R134a, FFI 7.5HAK, FFI7.5HAK, FFi 7.5HAK, FFI 7.5 HAK, FFI 7.5HAK, 220-240V/50HZ
Mbsm.pro, Electrolux, Hermetic, Compressor, r600, LBP, CubiGel, Zem
Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP600AC HQM55AA 1/9 5,46 C/v 83 62
CMP601AC HQM70AA 1/8 6,64 C/v 106 79
CMP602AC HQM75AA 1/7 7,39 C/v 116 87
CMP603AC HQM80AA 1/7 8,10 C/v 130 99
CMP604AC HQM90AA 1/6 9,08 C/V 144 110
CMP605AC HQM99AA 1/6 9,93 C/V 156 119
CMP606AC HQM11AA 1/5 10,70 C/v 169 127
CMP607AC HQM12AA 1/5 12,09 C/v 187 140
CMP608AC HSR050AA 1/14 3,67 C/v 57 42
CMP609AC HSR065AA 1/12 4,56 C/V 74 55
CMP610AC HSR080AA 1/9 5,45 C/V 90 67
CMP611AC HSR100AA 1/8 6,64 C/v 110 83
CMP612AC HSR115AA 1/7 8,09 C/v 133 99
CMP613AC HVY44AA 1/5 4,38 C/v 71 53
CMP614AC HVY57AA 1/9 5,73 C/V 88 65
CMP615AC HVY67AA 1/8 6,75 C/V 107 80
CMP616AC HVY75AA 1/7 7,52 C/V 117 88
CMP617AC HQY45AA 1/12 4,56 C/V 70 52
CMP618AC HQY55AA 1/9 5,46 C/V 84 62
CMP619AC HQY70AA 1/8 6,64 C/V 107 80
CMP620AC HQY75AA 1/7 7,39 C/V 119 89
CMP621AC HQY80AA 1/7 8,10 C/V 131 99
CMP622AC HQY90AA 1/6 9,05 C/V 145 110
CMP623AC HQY99AA 1/6 9,93 C/V 158 119
CMP624AC HQY11AA 1/6 10,70 C/V 117 128
CMP625AC HQY12AA 1/5 12,09 C/V 190 142
CMP626AC HSH050AA 1/14 3,67 C/V 57 42
CMP627AC HSH065AA 1/12 4,56 C/V 74 55
CMP628AC HSH080AA 1/9 5,45 C/V 90 67
CMP629AC HSH100AA 1/8 6,64 C/V 114 85
CMP630AC HSH115AA 1/7 8,09 C/V 134 100
CMP631AC HMK80AA 1/7 8,10 C/V 136 102
CMP632AC HMK95AA 1/6 9,60 C/V 167 125
CMP633AC HMK12AA 1/5 11,20 C/V 198 149
CMP634AC HLY45AAa 1/12 4,55 C/V 60 52
CMP635AC HLY55AAa 1/9 5,46 C/V 72 62
Code Model Nom. Displacem. Expansion Ashrae Cecomaf
hp cc -23,3C° -25C°
kcal/h W
CMP636AC HLY70AAa 1/8 6,64 C/V 92 80
CMP637AC HLY75AAa 1/7 7,39 C/V 102 89
CMP638AC HLY80AAa 1/7 8,10 C/V 113 99
CMP639AC HLY90AAa 1/6 9,08 C/V 125 109
CMP640AC HLY99AAa 1/6 9,93 C/V 136 119
CMP641AC HPY11AAa
CMP642AC HPY12AAa 1/5 12,10 C/V 165 144

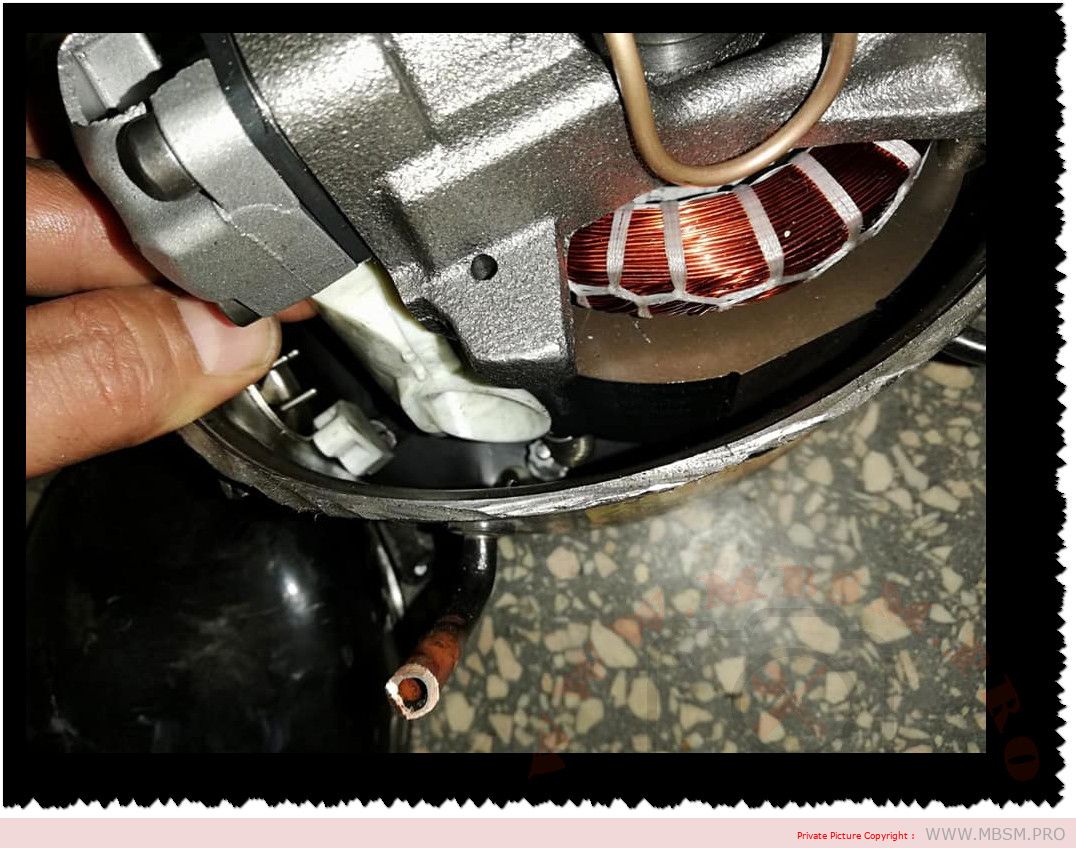

CMP643AC HPY14AAa 1/5 14,31 C/V 190 166
CMP644AC HPY16AAa 1/4 6,14 C/V 208 181
CMP645AC HST050AA 1/14 3,67 C/V 57 42
CMP646AC HST065AA 1/12 4,56 C/V 74 55
CMP647AC HST080AA 1/9 5,45 C/V 91 68
CMP648AC HST100AA 1/8 6,64 C/V 114 85
CMP649AC HST115AA 1/7 8,09 C/V 134 100
CMP650AC HYK55AA 1/9 5,60 C/V 93 69
CMP651AC HYK70AA 1/8 6,60 C/V 117 87
CMP652AC HYK80AA 1/7 8,10 C/V 136 101
CMP653AC HYK95AA 1/5 9,60 C/V 167 126
CMP654AC HYK12AA 1/5 11,20 C/V 198 149
CMP655AC HYK11AA
CMP656AC HTK55AA 1/9 5,60 C/V 93 69
CMP657AC HTK70AA 1/8 6,60 C/V 117 87
CMP658AC HTK80AA 1/7 8,10 C/V 136 102
CMP659AC HTK95AA 1/6 9,60 C/V 167 126
CMP660AC HTK12AA 1/5 11,20 C/V 198 149
CMP661AC HKK55AA 1/9 5,60 C/V 93 69
CMP662AC HKK70AA 1/8 6,60 C/V 117 87
CMP663AC HKK80AA 1/7 8,10 C/V 136 102
CMP664AC HKK95AA 1/6 9,60 C/V 167 126
CMP665AC HKK12AA 1/5 11,20 C/V 198 149
CMP666AC HXK55AA 1/9 5,60 C/V 97 72
CMP667AC HXK70AA 1/8 6,60 C/V 118 88
CMP668AC HXK80AA 1/7 8,10 C/V 140 105
CMP669AC HXK95AA 1/6 9,60 C/V 171 129
CMP670AC HXK12AA 1/5 11,20 C/V 202 152

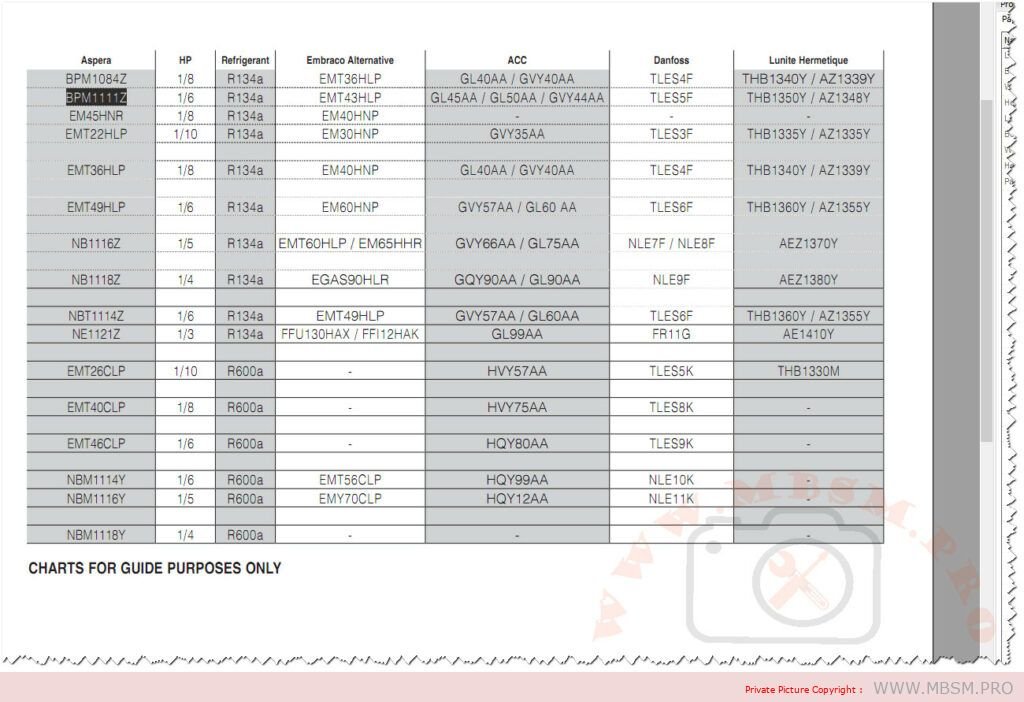

Mbsm.pro, Compressor, 1/3 hp, LBP, R134a, NE1121Z, NLE9F, FGV110HA, FGS90AH, FGS100HA
Mbsm.pro, Compressor, 1/3 hp, LBP, R134a, NE1121Z, NLE9F, FGV110HA, FGS90AH, FGS100HA
Mbsm.pro, Compressor, qd30h, 1/10 Hp, Lbp, 75 w
R134a Refrigeration Compressor 1 hp (QD43H)
QD30H 3.0 1/10 RSIR S 35 49 63 70 90 112 152 170 188 210 0.85 1.9 82 89
QD35H 3.5 1/8 RSIR S 40 56 72 80 105 128 176 220 242 275 0.9 1.98 89 111
QD43H 4.3 1/7 RSIR S 47 65 83 110 121 149 216 270 297 338 0.95 2.01 116 134
QD52H 5.5 1/7 RSIR S 70 95 123 136 177 218 280 350 385 438 1.15 2.01 118 174
QD59H 6.2 1/6 RSIR S 85 115 149 165 215 265 312 390 430 488 1.2 2 138 195
QD65H 6.6 1/5 RSIR S 95 129 167 185 241 297 350 430 473 538 1.25 2.02 148 193
QD75H 7.6 1/5+ RSIR S/F 105 147 190 210 273 337 387 495 545 618 1.25 2.1 168 236
QD91H 8.8 1/5+ RSIR S/F 115 160 207 230 300 368 425 530 583 655 1.37 2.12 168 250
QD110H 10.6 1/4+ RSIR F 135 189 243 285 370 456 520 650 715 813 1.41 2.12 202 307
QD120H 11.6 1/3 RSIR F 165 231 297 330 430 528 576 720 792 900 1.41 2.12 234 340
QD128H 12.3 3/8 RSIR F 180 252 324 360 468 576 740 925 1018 1156 1.31 2 275 463
QD142H 13.5 3/8+ CSIR F 195 273 351 390 507 624 800 1000 1100 1250 1.3 2 300 500
QD158H 15.3 3/8+ CSIR F 215 300 387 430 560 690 890 1120 1230 1400 1.3 2 331 560
QD168H 16.3 1/2 CSIR F 230 322 415 460 598 736 976 1220 1340 1530 1.3 2 354 610
GQR60AA 6.0 1/6 RSIR 140 116 1.21 220V/50Hz
GQR70AA 6.6 1/5 RSIR 165 136 1.21 220V/50Hz
GQR80AA 8.1 1/4 RSIR 198 166 1.19 220V/50Hz
GQR90AA 9.1 1/4 RSIR 220 184 1.19 220V/50Hz
GQY99AA 9.9 1/4 RSIR/RSCR 270 203 1.33 220V/50Hz
GPY12AF 11.8 1/3 CSIR 325 244 1.33 220V/50Hz
GPY16AF 16.2 3/8 CSIR 380 292 1.30 220V/50Hz
GQR60TG 6.0 1/5 CSIR
520 260 2.00 220V/50Hz
600 290 2.10 220V/60Hz
GQR80TG 8.1 1/4 CSIR
730 340 2.15 220V/50Hz
800 380 2.10 220V/60Hz
GQR90TG 9.1 1/4 CSIR
830 370 2.24 220V/50Hz
920 436 2.24 220V/60Hz
GP12TG 11.8 3/8 CSIR 1140 520 2.19 220V/50Hz
Product Description
| Product | R134a Refrigeration Compressor 1 hp (QD43H) |
| Model | QD43H |
| Brand | SANHENG |
Standard Specifications
Technical Data Of R134a Series Refrigeration Compressor (LBP)
| Model | Displ.(cm3) | MotorType | Cooling | Capacity(W) | Input Power(W) | Rated Current(A) | COP(W/W) | VOL/FREV/Hz |
| QD30H | 3.0 | RSIR | S | 76 | 76 | 0.63 | 1.00 | 220/50 |
| QD-36H | 3.6 | RSIR | S | 89 | 83 | 0.64 | 1.07 | 220/50 |
| QD43H | 4.3 | RSIR | S | 112 | 102 | 0.81 | 1.10 | 220/50 |
| QD52H | 5.2 | RSIR | S | 127 | 115 | 0.87 | 1.10 | 220/50 |
| FN57H | 5.70 | RSIR | S | 138 | 114 | 0.90 | 1.22 | 220/50 |
| FN66H | 6.60 | RSIR | S | 165 | 135 | 1.15 | 1.23 | 220/50 |
| FN77H | 7.70 | RSIR | S | 190 | 154 | 1.30 | 1.24 | 220/50 |
| FN91H | 9.10 | RSIR | S/F | 212 | 180 | 1.40 | 1.26 | 220/50 |
| FN110H | 11.00 | RSIR | F | 284 | 230 | 1.60 | 1.23 | 220/50 |
| FN128H | 12.80 | RSIR | F | 320 | 256 | 2.00 | 1.25 | 220/50 |
| FN142H | 14.20 | CSIR | F | 348 | 276 | 2.20 | 1.26 | 220/50 |
| Test Conditions:(1)Evaporating Temp.= -23.3℃ (-10F)(2)Ambient Temp.=32.2℃(90F)(3)Condensing Temp.=54.4℃(130F)(4)Suction Temp.=32.2℃(90F)(5)Sub-cooling Temp.=32.2℃(90F) | Conversion Table:1. 1watt=3.41BTU/h2. 1watt=0.86Kcal/h3.1Kcal/h=3.97BTU/h | |||||||
| Tolerance of performance data:(1)Capacity≥95%(2)Input Power≤115%(3)Current≤110%(4)COP≥93% | Cooling Type:S——Static CoolingF——Fan CoolingH:R134a RefrigerantL:LBP | |||||||
| The compressor is the same with refrigeration implement which usually include refrigerator, refrigeration deepfreeze, kitchen refrigeration, display case, revelation tank, dehumidify appliance etc. The main feature: light compact, high efficiency, good reliability, low noise vibration. |
Test Conditions
Evap.Temp.:-23.3ºC
Cond.Temp.:54.4ºC
Amb.Temp.:32.2ºC
Suction.Temp.:32.2ºC
Subcooling Temp.:32.2ºC
LBP ASHRAE
Model:QD30H
Power Supply:220-240V/50Hz
Displacement (cm³):3.0
Cooling Capacity (W):75
Rated Power (W):75
Nominal power (HP):1/10
COP (W/W):1.0
Rated Current (A):0.62
Motor Type:RSIR
Capacitor (μF):
Starting Relay:PTC
Cooling Type:S
Packing (PCS/pallet):120
1×20’FCL (PCS):2400
Characteristics
1.Small size
2.High efficiency & reliability
3.Reliable starting performance
4.Low sound & vibration
Application
LBP, used for drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other medium and small sized refrigeration machines.
Mbsm.pro, Compresseur, Secop, GTK70AT, 204W, R134, LBP, 1/4 HP, RSIR, 699 BTU
Mbsm.info, Compresseur, Secop, GTK70AT, 204W, R134, LBP, 1/4 HP, RSIR, 699 BTU
Technical Features
| BRAND | SECOP |
| COMPRESSOR TYPE | HERMETIC RECIPROCATING |
| APPLICATION | LBP (-23,3°C / +54,4°C) |
| POWER SUPPLY | 200-240V/50HZ 1~ |
| REFRIGERANT | R134A |
| FREQUENCY (HZ) | 50 |
| OIL TYPE | POLYOLESTER |
| OIL VISCOSITY | 15CST |
| OIL QUANTITY | 156CM³ / 5,3FL.OZ |
| FREE GAS VOLUME COMP. | 1560CM³ / 52,7FL.OZ |
| WEIGHT | 8,6KG / 19LBS |
| MOTOR PROTECTION | EXTERNAL |
| WINDING RESISTANCE MAIN | 11,9Ω (AT 25°C) |
| WINDING RESISTANCE AUX | 11,8Ω (AT 25°C) |
| MAX. WINDING TEMP. | 130°C / 266°F |
| MAX. DISCHARGE TEMP. 1 | 130°C / 266°F |
| DISPLACEMENT | 6,64CM³ / 0,41CU.IN |
| COMPRESSORS ON PALLET | 100 |
Mbsm.pro, Compressor, EGM75AF, 1/5 hp, Lbp, 155 w, ZMC
General Data
| Refrigerant: | R134a |
| Application: | LBP |
| Evaporating Temperature Range: | -30°C to -10°C |
| Voltage/Frequency: | 220/240V/50 HZ |
| Compressor Cooling: | Static |
| Expansion Device: | Capillary Tube |
| Packaging Quantity: | Multi – 96:120 pcs |
| Approvals: | CE-VDE-GOST |
Mechanical Data
| Oil Charge: | 350 cm3 |
| Oil Type Configuration: | ester |
| Oil Type Viscosity: | 19 cSt |
| Weight: | 9.20 kg |
Electrical Data
| Motor Type: | RSIR / RSCR* |
| Voltage working range at 50 Hz: | 187-264V |
| Maximum Motor Temperature: | 130°C |
| Locked Rotor Current: | 13.45 / 7.39 A |
| Start Winding Resistance: | 14.20 Ω at 25°C |
| Run Winding Resistance: | 12.10 Ω at 25°C |
| Phase: | 1 ph |
External Characteristics
| Internal Diameter | (mm) |
| Suction Connector | 6.5 |
| Discharge Connector | 4.9 |
| Process Connector | 6.5 |
| Material | Copper |
Electrical Components
| Starting Device: | PTC 14Ω |
| Motor Protection: | T0502/xx |
Mbsm.pro, Compressor, Hitachi, WL16H10DAN, 1/5 hp, lbp, 180 w, inverter, refrigerator, r-v720puk1k, r-v600ps3k, 4 doors, 24 feet, 698 liters
Samsung SR-40RMB Refrigerator compressor sk170h-l1u 1/4 hp
Mbsm.pro, Samsung, SR-40RMB, Refrigerator, compressor, sk170h-l1u, 1/4 hp, r134, lbp, 195 w
Compressor DANFOSS NL8.4CLX 105F3800 0.25 hp
Mbsm.pro, compressor, DANFOSS, 1/4 hp, R404a/R507, NL8.4CLX, LBP, 105F3800
- 220/230V 50Hz power 1/4 Hp – displacement 8,35 cc
- gas R404a/R507 LBP 105F3800-HST DANFOSS
Technical data
| Kältemittel | R404a/R507 |
| Typ | NL8.4CLX |
| Leistung | 1/4 HP |
| Hubraum | 8,35 cm³ |
| Motorsystem | RSIR/CSIR |
| Spannung | 220-240 V |
| Frequenz | 50 Hz |
| Anwendung | LBP |
| Testverfahren | ASHRAE |
| Leistung bei -15°C | 683 W |
| Leistung bei -20°C | 549 W |
| Leistung bei -25°C | 434 W |
| Leistung bei -30°C | 254 W |
| Leistung bei -5°C | 1.015 W |
| Leistung bei -10°C | 838 W |
| Gewicht | 10,51 kg |
