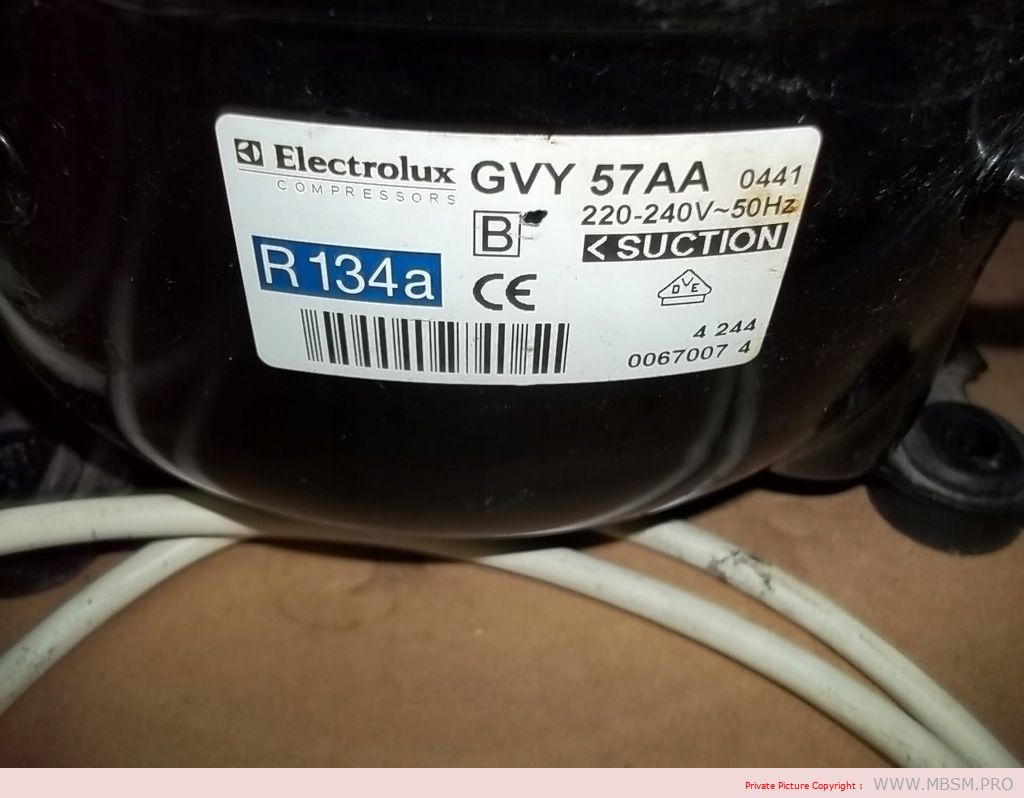

Mbsm.pro, Compressor, ZEL, GVY57AA, 1/5 hp, Acc, r134a

Category: compressor
written by mahdi miled | 22 March 2023


Mbsm.pro, Compressor, esd65a, 100 w, 1/8 hp, r600a

Category: compressor
written by Lilianne | 22 March 2023

Product Description

Low-Back-Pressure Compressor
Model: ESD65A;
Voltage: 220V/50Hz;
Refrigerant: R600a;
Displacement: 6.5cm3;
Capacity: 100W;
COP: 1.40W/W;
Cooling type: Static cooling;
Engine Type: RSCR;
Dimensions: A172.8xB70.9/95.8xC60.8/90.8mm;



CRC-NT460DV01

Category: Refrigerator
written by Jamila | 22 March 2023

Mbsm.pro, Réfrigérateur, CRC-NT460DV01, Condor

Fiche Technique Réfrigérateur Condor CRC-NT460DV01
Marque Condor
Réfrigérateur CRC-NT460DV01
Catégorie Combiné
Capacité Totale 358 Litres
Capacité Réfrigérateur 268 L Litres
Capacité Congélateur 90 L Litres
Capacité de congélation 0
Autonomie du congélateur
Largeur 60 Cm
Hauteur 200 Cm
Profondeur 65.8 Cm
Poids 75
Nombre de tiroirs Réfrigérateur 1
Nombre d’étagères Réfrigérateur 2
Nombre de tiroirs Congélateur 1
Nombre d’étagères Congélateur 1
Accessoires inclus
Réfrigérant R134a
Caractéristiques particulières
Nombre de portes Combiné
Position du congélateur Absent
Couleur Blanc / Noir
Dégivrage Automatique 18
Congélation rapide 19
Alimentation électrique
Classe énergétique A
Consommation d’énergie 1.09 kWh/24h, 400 kWh/an
Courant nominal
Classe climatique N
Niveau de bruit maximum 43


Mbsm.pro, Compressor, Lg, bsa057nbmv, BLCD, Inverter, serie BS, 540 L, ENIEM, TN2000, Nofrost, r600a, 1/5 hp

Category: compressor
written by Jamila | 22 March 2023

Fréquence fixe : ★ Autres séries BMG/BMA R600a (condition de test : Ashrae)

Taper Série Modèle Notation Plage de vitesse Vitesse Des conditions de fonctionnement
Eva/Cond’=-23.3℃/54.4℃
Capacité de refroidissement Pouvoir FLIC EER
(tr/min) (tr/min) (kcal/h) (w/h) (Btu/h) (w) (p/p) (Btu/w.hr)
BLDC
R600a		 BMA BMA121NAMV 220~240V 50/60HZ 1200~4500 4500 271 316 1077 180 1,75 5,97
3900 235 273 934 148 1,85 6.32
2520 159 185 632 97 1,90 6.49
1500 105 122 417 63 1,95 6,66
1200 84 98 333 51 1,93 6,59
GMB BMG110NAMV 220~240V 50/60HZ 1200~4500 4500 225 262 894 144 1,82 6.22
3000 172 200 683 103 1,93 6,60
1800 108 125 427 66 1,90 6.48
1500 88 102 349 53 1,94 6,64
1200 70 82 279 43 1,92 6,55
BMG110NHMV 220~240V 50/60HZ 1200~4500 4500 225 262 894 146 1,79 6.11
3000 172 200 683 108 1,85 6.32
1800 108 125 427 72 1,75 5,97
1500 88 102 349 59 1,74 5,95
1200 70 82 279 48 1,72 5,87
BMG089NAMV 220~240V 50/60HZ 1200~4500 4500 187 217 741 119 1,83 6.24
3000 136 158 540 85 1,85 6.32
1800 84 98 335 51 1,92 6,55
1500 68 80 271 42 1,89 6.47
1200 55 64 217 34 1,87 6.38
BMG089NHMV 220~240V 50/60HZ 1200~4500 4500 187 217 741 126 1,72 5,88
3000 136 158 540 90 1,76 6.01
1800 84 98 335 57 1,72 5,86
1500 68 80 271 46 1,72 5,87
1200 55 64 217 37 1,70 5,80
BSA **BSA075NAMV 220~240V 50/60HZ 1380~4500 4500 129 150 512 90,9 1,65 5.63
3000 87 101 345 57,7 1,75 5,97
1800 52 61 208 33,0 1,85 6.32
1500 43 50 171 27,8 1,80 6.15
1380 39 45 154 25,7 1,75 5,97
**BSA075NHMV 220~240V 50/60HZ 1380~4500 4500 129 150 512 93,8 1,60 5.46
3000 87 101 345 59,4 1,70 5,80
1800 52 61 208 34,9 1,75 5,97
1500 43 50 171 29.4 1,70 6.32
1380 39 45 154 27.3 1,65 6.15
**BSA057NAMV 220~240V 50/60HZ 1380~4500 4500 123 143 488 86,7 1,65 5,97
3000 87 101 345 57,7 1,75 5.46
1800 51 59 201 31,9 1,85 5,80
1500 41 48 164 26,7 1,80 5.63
1380 39 45 154 25,7 1,75 5,97
**BSA057NHMV 220~240V 50/60HZ 1380~4500 4500 123 143 488 89,4 1,60 5.46
3000 87 101 345 59,4 1,70 5,80
1800 51 59 201 33,7 1,75 5,97
1500 41 48 164 28.2 1,70 5,80
1380 39 45 154 27.3 1,65 5.63

Caractéristique des produits

1.BLDC
2.Hi-efficiency
3.Low noise & Vibration
4.Hi-reliability







Mbsm.pro, Compressor, EMT6160Z, Aspera, 1/4 hp++, 1/3 hp–, Embraco, r134a

Category: compressor
written by Jamila | 22 March 2023
Technical specifications
Place of manufacture
Brazil
Brand
Embraco
compressor type
Hermetic piston
Working regime
PH (+7,2°C / +54,4°C)
Compressor power (Hp)
1/3-
Electrical supply
220-240V
Coolant
R134a
Cooling capacity (watts)
781
Type of engine
1 Phase – CSIR
BOOM.
51330621097ZA
Compressor model
EMT6170Z
Scan volume (cm3/rev)
7,69
Frequency (Hz)
50
Suction line
1/4″
Squeeze line
3/16″


Mbsm.pro, Compressor, Kulthorn, c-bz160l6z, 1/4 Hp, 200 w

Category: compressor
written by Jamila | 22 March 2023
Essential details
Place of Origin:
Thailand
Brand Name:
KK
Type:
Refrigerator compressor
Application:
Refrigeration Parts, LBP
Capacity(w)–C-BZN150L5:
180
Voltage:
220-240 V, 50 Hz
Color:
Black
Displa(cm/rev):
6.65
Refrigerant:
R134a


Mbsm.pro, Compressor, Ma serie, MA62HAEG, 1/5 hp++, Lg compressor, r1234a, 174 w

Category: compressor
written by Jamila | 22 March 2023

Série : MA Capacité [cc/tour] : 6,24 Catégorie d’application : R134a, LBP Tension et fréquence nominales : 220-240 V, 50 Hz Type de moteur : RSIR, PTC Dimension [mm] : 204 x 161 x 180

Fréquence Tension Modèle Déplacement Capacité de refroidissement Saisir FLIC EER
kcal/h O Btu/h CV
50Hz 220 MA42LFJM 4.2 92 107 365 0,144 97 1.1 3,77
50Hz 220 MA42LBJG 4.2 96 112 381 0,150 96 1.2 3,97
50Hz 220 MA42LJJG 4.2 92 107 365 0,144 96 1.1 3,80
50Hz 220 MA42LMJG 4.2 92 107 365 0,144 96 1.1 3,80
50Hz 220 MA42LKJG 4.2 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA42LHJM 4.2 92 107 365 0,144 97 1.1 3,77
50Hz 220 MA45LDJG 4.5 99 115 393 0,154 104 1.1 3,78
50Hz 220 MA45LCJM 4.5 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA45LCJG 4.5 99 115 393 0,154 104 1.1 3,78
50Hz 220 MA45LDJM 4.5 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA45LFJM 4.5 102 119 405 0,159 94 1.3 4.31
50Hz 220 MA45LHJM 4.5 102 119 405 0,159 94 1.3 4.31
50Hz 220 MA45LAJM 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA45LIJG 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA53LBJG 5.3 125 145 496 0,195 118 1.2 4.10
50Hz 220 MA53LHJG 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA57LBJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LAJM 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LIJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LHJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LDJM 5.7 145 169 576 0,226 125 1.3 4.61
50Hz 220 MA62LBJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220 MA62LIJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220 MA62LDJM 6.2 150 174 596 0,234 122 1.4 4,88
50Hz 220-240 MA62LBEG 6.2 150 174 596 0,234 127 1.4 4,69
50Hz 220 MA62LHJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220-240 MA62LCEG 6.2 150 174 596 0,234 127 1.4 4,69
50Hz 220-240 MA69LAEM 6.9 172 200 683 0,268 148 1.4 4.61
50Hz 220-240 MA69LHEP 6.9 170 198 675 0,265 159 1.2 4.24
50Hz 220-240 MA69LAEP 6.9 170 198 675 0,265 159 1.2 4.24
50Hz 220 MA69LCJM 6.9 172 200 683 0,268 145 1.4 4.71
50Hz 220-240 MA69LHEG 6.9 169 197 671 0,264 152 1.3 4.41
50Hz 220 MA72LBJG 7.2 180 209 715 0,281 162 1.3 4.41
50Hz 220 MA72LHEG 7.2 180 209 715 0,281 162 1.3 4.41
50Hz 220 MA88LAEP 8.8 235 173 933 0,367 227 1.2 4.11
50Hz / 60Hz 220 MA53LATG 5.3 124 144 492 0,193 123 1.2 4.00
50Hz / 60Hz 220 MA57LATG 5.7 138 160 548 0,215 134 1.2 4.09
50Hz / 60Hz 220 MA62LATG 6.2 150 174 596 0,234 150 1.2 3,97
50Hz / 60Hz 220 MA69LATG 6.9 172 200 683 0,268 163 1.2 4.19
50Hz / 60Hz 220 MA88LATP 8.8 235 273 933 0,367 241 1.1 3,87
60Hz 127 MA53LBFH 5.3
50Hz 220-240 MA53LAEM 5.3 140 163 556 0,218 104 1.6 5.34
50Hz 220-240 MA53LHEM 5.3 140 163 556 0,218 104 1.6 5.34
50Hz 220 MA57LBJM 5.7 145 169 576 0,226 109 1.5 5.28
50Hz 220-240 MA42HAEG 4.2 355 413 1409 0,554 188 2.2 7,50
50Hz 220-240 MA53HAEF 5.3 440 512 1747 0,686 233 2.2 7,50
50Hz 220-240 MA53HAEG 5.3 440 512 1747 0,687 233 2.2 7,50
50Hz 220-240 MA62HAEG 6.2 520 605 2064 0,811 275 2.2 7.51
50Hz 220-240 MA62HAEF 6.2 520 605 2064 0,811 275 2.2 7.51
50Hz 220-240 MA72HAEP 7.2 630 733 2501 0,983 355 2.1 7.05

LG Hermetic Compressor (Refrigerant:R134a)LBP
Part No. Displ. Motor Cooling Capacity Kcal/Hr Btu/h Input power COP Power Weight
(cm3) Type Type (W)-23.3? (w) W/W Supply (kg)
NS24LAEG 2.4 RSIR ST 44 38 150 76 0.58 220-240V/50Hz 5.8
NS24LBEG 2.4 RSIR ST 42 36 143 64 0.66 220-240V/50Hz 6.4
NS30LAEG 3.0 RSIR ST 63 54 214 84 0.75 220-240V/50Hz 6.4
NS36LAEG 3.6 RSIR ST 77 66 261 89 0.87 220-240V/50Hz 6.4
MSA43LBEG 4.3 RSIR ST 116 100 396 106 1.09 220-240V/50Hz 6.3
MSA43LBEM 4.3 RSCR ST 116 100 396 97 1.20 220-240V/50Hz 6.3
MSA53LAEG 5.3 RSIR ST 143 120 478 117 1.22 220-240V/50Hz 6.3
MSA53LAEM 5.3 RSCR ST 143 120 478 105 1.36 220-240V/50Hz 6.3
MSA53LBEG 5.3 RSIR ST 143 120 478 130 1.10 220-240V/50Hz 6.3
MSA53LBEM 5.3 RSIR ST 143 120 478 119 1.20 220-240V/50Hz 6.3
MSA53LCEG 4.23 RSIR ST 153 103 409 124 1.23 220-240V/50Hz 6.3
MSA63LDEG 4.23 RSIR ST 153 103 409 124 1.23 220-240V/50Hz 6.6
MA53LAEG 5.3 RSIR ST 142 122 484 106 1.34 220-240V/50Hz 8.4
MA53LAEM 5.3 RSCR ST 142 122 484 99 1.43 220-240V/50Hz 8.4
MSA53LCEM 5.3 RSIR ST 140 120 478 124 1.13 220-240V/50Hz 6.3
MA57LAEG 5.7 RSIR ST 160 138 548 119 1.34 220-240V/50Hz 8.6
MA57LAEM 5.7 RSCR ST 160 138 548 110 1.45 220-240V/50Hz 8.6
MA62LCEG 6.2 RSIR ST 174 150 596 127 1.37 220-240V/50Hz 8.8
MA62LCEM 6.2 RSIR ST 174 150 596 119 1.46 220-240V/50Hz 8.9
MA69LCEG 6.9 RSIR ST 200 172 683 142 1.41 220-240V/50Hz 9.3
MA69LCEM 6.9 RSCR ST 200 172 683 131 1.53 220-240V/50Hz 9
MA98LAEM 9.8 RSCR ST 279 240 953 183 1.52 220-240V/50Hz 9.5


Mbsm.pro, Compressor, ZEL, Mini, HDZ140, R600a, 1/8 hp, input 87 w, 492 btu, 124 kcal, lbp

Category: compressor
written by Jamila | 22 March 2023



https://www.mbsm.pro/wp-content/uploads/2022/09/Mbsm_dot_pro_private_PDF_catalog_zel.pdf


MODEL   OF605 OF700 OF789 OF1033A OF1350A GVY35AA GVY40AA GVY44AA GVY44AG GVY53AA GVY53AG GVY57AA GVY57AG GVY61AA GVY75AA GVY75AG GTH86AA GTH93AA GTT66AA GTT75AA GKD86AA GKD93AA GXL140F GXL200F   MODEL   GML70A GML90A GML110A GML125A GML140A GML140A/I GML160A GML180A GML200A GML200A/I GTM26AA GTM75AA GDL160A GDL200A GXL100A GXL125A GXL140A GXL160A GXL200A GXL240A GL60TP GL80TP GL90TP GL90TP/I GL10TP GL12TP GHP16AA GHP18AA GHP21AA   MODEL   HML100A HML125A HML140A HML155A HML170A HML190A HML200A HDL100A HDL125A HDL140A HDL155A HDL170A HDL200A HXL100A HXL125A HXL140A HXL155A HXL170A HXL190A HPL100A HPL125A HPL140A HML125A(T) HML140A(T) HML170A(T) HMK12AA    MODEL   HDL125F HDL140F HDL160F HDL180F HDL190F HXL140F HXL160F HXL190F  HML125G  HML140G  HML170G  HDL140G  HDL170G  HXL155G  HXL185G     MODEL   GML70A GML80A GML90A GML110A GML125A GML140A GML180A GML200A(M) GML200A GDL140A GDL160A GDL200A(M) GDL200A GXL125A GXL140A GXL160A GXL200A    MODEL   GML70G  GML80G  GML90G  GML125G  GML140G  GML160G  GXL125G  GXL140G  GXL160G   GML110A(T) GML140A(T) GML200A(T)   MODEL   HDZ100A(M) HDZ100A HDZ125A HDZ140A HDZ155A HDZ170A HXZ100A HXZ125A HXZ140A HXZ155A HXZ170A HPZ100A HPZ125A HPZ140A HPZ155A HPZ170A HDZ100F HDZ125F HDZ140F HDZ160F HDZ190F    MODEL   HMM70A HMM80A HMM90A HMM100A HDM80A HDM90A HDM100A HDM110A    MODEL   GL90TB GL90TB(B) GL10TB GL12TB  GL60TG  GL90TG   GTM93AA GTM10AA GTM12AA   GTM93AG   GMM70A GMM80A GMM90A GMM110A     MODEL   NLT44AA NLT53AA NLT57AA NLT61AA NLT66AA NLT75AA NLT80AA NLT86AA NLT93AA NLT44AA(I) NLT53AA(I) NLT57AA(I) NLT61AA(I) NLT66AA(I) NLT75AA(I NLT80AA(I) NLL160A NLL200A NLL200A(I) NMT53AA NMT57AA NMT66AA NMT75AA     MODEL   HTT11AA HPKD190A HPKX190A HTH14AA HTH14AA(I) HKD14AA HYV67AA.02 HTK12AA.02  HPKD180G  HPKD200G     MODEL   GVY57AA GVY61AA GVY66AA GVY75AA GTH86AA GTH93AA GTM93AA GTT66AA GTT75AA GKD86AA GKD86AA(I) GKD93AA  GVY53AG  GVY57AG  GVY75AG  GKD86AG  GKD93AG





Mbsm.pro, Compressor, inverter, VTZ121AGNR1B, 60000 btu, air conditioning

Category: air conditioner,compressor
written by Jamila | 22 March 2023

Description

Product details

Gross weight 43.5 kg
Net weight 40 kg
EAN 5702428666145
Gross weight 43.5 kg
Net weight 40 kg
EAN 5702428666145

Approval standard CE certified
UL certified when connected to frequency converter
Brand technique Reciprocating compressor
Capacity control Inverter
Colour Blue
Compressor power supply [V/Ph/Hz] 380-480/3/50-60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description VTZ121-G
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502016a
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 30 – 85
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 480 V
High value of voltage range at 60Hz [V] 480 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 22.6 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 380 V
Low value of voltage range at 60Hz [V] 380 V
LRA 139 A
MMT 29 A
Model number VTZ121AGNR1B
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 15 N-m
Nominal cooling capacity at 50Hz 6.7 kW
Nominal cooling capacity at 60Hz 14.4 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160PZ
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R134a
R404A
R407C
R507A
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
RLA 23.2 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning
Refrigeration LT
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 165 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 120.94 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type VTZ
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.59 Ohm
Approval standard CE certified
UL certified when connected to frequency converter
Brand technique Reciprocating compressor
Capacity control Inverter
Colour Blue
Compressor power supply [V/Ph/Hz] 380-480/3/50-60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description VTZ121-G
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502016a
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 30 – 85
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 480 V
High value of voltage range at 60Hz [V] 480 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 22.6 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 380 V
Low value of voltage range at 60Hz [V] 380 V
LRA 139 A
MMT 29 A
Model number VTZ121AGNR1B
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 15 N-m
Nominal cooling capacity at 50Hz 6.7 kW
Nominal cooling capacity at 60Hz 14.4 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160PZ
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R134a
R404A
R407C
R507A
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
RLA 23.2 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning
Refrigeration LT
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 165 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 120.94 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type VTZ
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.59 Ohm

Refrigerant: R134a; R404A; R407C; R507A, Segment usage: Air conditioning;Refrigeration LT;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 380-480/3/50-60

Product details

Gross weight 43.5 kg
Net weight 40 kg
EAN 5702428666145
Gross weight 43.5 kg
Net weight 40 kg
EAN 5702428666145

Approval standard CE certified
UL certified when connected to frequency converter
Brand technique Reciprocating compressor
Capacity control Inverter
Colour Blue
Compressor power supply [V/Ph/Hz] 380-480/3/50-60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description VTZ121-G
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502016a
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 30 – 85
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 480 V
High value of voltage range at 60Hz [V] 480 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 22.6 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 380 V
Low value of voltage range at 60Hz [V] 380 V
LRA 139 A
MMT 29 A
Model number VTZ121AGNR1B
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 15 N-m
Nominal cooling capacity at 50Hz 6.7 kW
Nominal cooling capacity at 60Hz 14.4 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160PZ
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R134a
R404A
R407C
R507A
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
RLA 23.2 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning
Refrigeration LT
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 165 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 120.94 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type VTZ
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.59 Ohm
Approval standard CE certified
UL certified when connected to frequency converter
Brand technique Reciprocating compressor
Capacity control Inverter
Colour Blue
Compressor power supply [V/Ph/Hz] 380-480/3/50-60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description VTZ121-G
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502016a
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 30 – 85
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 29.4 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 480 V
High value of voltage range at 60Hz [V] 480 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 22.6 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 380 V
Low value of voltage range at 60Hz [V] 380 V
LRA 139 A
MMT 29 A
Model number VTZ121AGNR1B
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 15 N-m
Nominal cooling capacity at 50Hz 6.7 kW
Nominal cooling capacity at 60Hz 14.4 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160PZ
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Refrigerant R134a
R404A
R407C
R507A
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
RLA 23.2 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning
Refrigeration LT
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 165 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 120.94 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type VTZ
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.59 Ohm


Mbsm.pro, Compressor, 600a, SÉRIE T, LBP, Jiaxipera, TG 1116 Y , 1/5hp, TG 1112 Y, 1/6 hp

Category: compressor
written by Jamila | 22 March 2023

FICHE TECHNIQUE DU COMPRESSEUR FRIGORIFIQUE R600a SÉRIE T ( LBP )


compresseur Afficheur Moteur Vol./Fré. ??? Capacité de refroidissement DÉCHETS   ????
 Condensateur
de fonctionnement (µF)
Modèle   Taper   ASHRAE CECOMAF ASHRAE CECOMAF
???? ???? ???? ?? / ?? O BTU/heure kcal O W/W BTU/Wh W/W
  (cm 3 )   ( V~/Hz )
T1090Y 6.0 RSIR 220~240/50 cent 341 86 75 1.42 4,85 1.11   –
T1110Y 6.7 RSIR 220~240/50 115 392 99 86 1,45 4,95 1.13   –
T1111Y 7.2 RSIR 220~240/51 126 430 108 95 1.4 4,78 1.09   –
T1112Y 8.1 RSIR 220~240/50 140 478 120 105 1.42 4,85 1.11   –
T1113Y 8.9 RSIR 220~240/50 152 519 131 114 1.42 4,85 1.11   –
T1114Y 9.6 RSIR 220~240/50 168 573 144 126 1.42 4,85 1.11   –
T1116Y 10.5 RSIR 220~240/50 184 628 158 138 1.4 4,78 1.09   –
TT1110GY 6.7 RSIR 220~240/50 114 389 98 85,5 1,55 5.29 1.21   –
RSCR 1.62 5.53 1.26   2.0
TT1111Y 7.2 RSIR 220~240/50 126 430 108 95 1,55 5.29 1.21   –
TT1112GY 8.1 RSIR 220~240/50 140 478 120 105 1.52 5.19 1.19   –
RSCR 1,60 5.46 1.25   4.0
TT1113GY 8.9 RSIR 220~240/50 155 529 133 116,25 1,55 5.29 1.21   –
RSCR 1.62 5.53 1.26   4.0
TT1114GY 9.6 RSIR 220~240/50 168 573 144 126 1.52 5.19 1.19   –
RSCR 1,60 5.46 1.25   4.0
TT1117GY 11.3 RSIR 220~240/50 198 676 170 148,5 1.52 5.19 1.19   –
RSCR 1,60 5.46 1.25   4.0
TU1080Y 5.5 RSCR 220~240/50 92 314 79 69 1,58 5.39 1.23   3.0
TU1090Y 6.0 RSCR 220~240/50 102 348 88 77 1,60 5.46 1.25   3.0
TU1110Y 6.7 RSCR 220~240/50 115 392 99 86 1,60 5.46 1.25   3.0
TU1111Y 7.2 RSCR 220~240/50 126 430 108 95 1,60 5.46 1.25   4.0
TU1112Y 8.1 RSCR 220~240/50 140 478 120 105 1.62 5.53 1.26   4.0
TU1113Y 8.9 RSCR 220~240/50 152 519 131 114 1.62 5.53 1.26   4.0
TU1114Y 9.6 RSCR 220~240/50 168 573 144 126 1.62 5.53 1.26   4.0
TG1080Y 5.5 RSCR 220~240/50 92 314 79 69 1,65 5.63 1.29   3.0
TG1090Y 6.0 RSCR 220~240/50 102 348 88 77 1,66 5.66 1.29   3.0
TG1110Y 6.7 RSCR 220~240/50 115 392 99 86 1,66 5.66 1.29   3.0
TG1111Y 7.2 RSCR 220~240/50 126 430 108 95 1,66 5.66 1.29   3.0
TG1112Y 8.1 RSCR 220~240/50 140 478 120 105 1,68 5.73 1.31   3.5
TG1113Y 8.9 RSCR 220~240/50 152 519 131 114 1,68 5.73 1.31   4.0
TG1114Y 9.6 RSCR 220~240/50 168 573 144 126 1,68 5.73 1.31   4.0
TG1116Y 10.5 RSCR 220~240/50 184 628 158 138 1,68 5.73 1.31   4.0
TG1117Y 11.3 RSCR 220~240/50 196 669 169 147 1,68 5.73 1.31   4.0
TH1080Y 5.5 RSCR 220~240/50 92 314 79 69 1,73 5,90 1,35   2.0
TH1090Y 6.0 RSCR 220~240/50 102 348 88 77 1,75 5,97 1.37   2.0
TH1110Y 6.7 RSCR 220~240/50 115 392 99 86 1,75 5,97 1.37   3.0
TH1111Y 7.2 RSCR 220~240/50 126 430 108 95 1,75 5,97 1.37   3.0
TH1112Y 8.1 RSCR 220~240/50 140 478 120 105 1,75 5,97 1.37   3.0
TH1113Y 8.9 RSCR 220~240/50 152 519 131 114 1,75 5,97 1.37   3.0
TH1114Y 9.6 RSCR 220~240/50 168 573 144 126 1,75 5,97 1.37   4.0
TH1116Y 10.5 RSCR 220~240/50 184 628 158 138 1,75 5,97 1.37   4.0
TX1070Y 5.0 RSCR 220~240/50 82 280 71 62 1,80 6.14 1.40   2.0
TX1080Y 5.5 RSCR 220~240/50 92 314 79 69 1,80 6.14 1.40   2.0
TX1090Y 6.0 RSCR 220~240/50 102 348 88 77 1,80 6.14 1.40   2.0
TX1110Y 6.7 RSCR 220~240/50 115 392 99 86 1,80 6.14 1.40   2.5
TX1111Y 7.2 RSCR 220~240/50 126 430 108 95 1,80 6.14 1.40   3.0
TX1112Y 8.1 RSCR 220~240/50 140 478 120 105 1,80 6.14 1.40   3.0
TX1113Y 8.9 RSCR 220~240/50 152 519 131 114 1,80 6.14 1.40   3.0
TX1114Y 9.6 RSCR 220~240/50 168 573 144 126 1,80 6.14 1.40   3.5
TB1080Y 5.5 RSCR
(ePTC)		 220~240/50 92 314 79 69 1,86 6.35 1,45   2.0
TB1090Y 6.0 RSCR
(ePTC)		 220~240/50 102 348 88 77 1,86 6.35 1,45   2.0
TB1110Y 6.7 RSCR
(ePTC)		 220~240/50 115 392 99 86 1,86 6.35 1,45   2.5
TB1111Y 7.2 RSCR
(ePTC)		 220~240/50 126 430 108 95 1,88 6.41 1,47   3.0
TB1112Y 8.1 RSCR
(ePTC)		 220~240/50 145 495 125 109 1,88 6.41 1,47   3.0
TB1113Y 8.9 RSCR
(ePTC)		 220~240/50 155 529 133 116 1,88 6.41 1,47   3.5
TB1114Y 9.6 RSCR
(ePTC)		 220~240/50 168 573 144 126 1,88 6.41 1,47   3.5
TE1070Y 5.0 RSCR
(ePTC)		 220~240/50 82 280 71 62 1,93 6,59 1.51   2.0
TE1080Y 5.5 RSCR
(ePTC)		 220~240/50 92 314 79 69 1,93 6,59 1.51   2.0
TE1090Y 6.0 RSCR
(ePTC)		 220~240/50 102 348 88 77 1,93 6,59 1.51   2.0
TE1110Y 6.7 RSCR
(ePTC)		 220~240/50 115 392 99 86 1,93 6,59 1.51   2.0
TE1111Y 7.2 RSCR
(ePTC)		 220~240/50 126 430 108 95 1,93 6,59 1.51   2.0
TE1112Y 8.1 RSCR
(ePTC)		 220~240/50 140 478 120 105 1,93 6,59 1.51   3.0
TE1114Y 9.6 RSCR
(ePTC)		 220~240/50 168 573 144 126 1,93 6,59 1.51   4.0


Jiaxipera Compresseur TG 1116 Y

Modèle de compresseur : TG 1116 Y
Type de moteur : 1 PHASE – RSCR
Nombre de Palettes : 90 PIÈCES
Marque : JIAXIPERA
Lieu de fabrication : CHINOIS
Type de compresseur : PISTON HERMÉTIQUE
Capacité de refroidissement (watts) : 184
Diamètre du piston (cm3/tour) : 10.5
Code nomenclature : –
Fourniture électrique : 200-240V
Régime de travail : PSL (-23.3°C / +54.4°C)
Gaz réfrigérant : R600A
Puissance du compresseur (Hp): 1/5
Fréquence (Hz): 50
Mbsm_dot_pro_private_PDF_TG1116YTélécharger
