High, Efficiency, R134a, Hermetic, Compressor, GPY16AF, RoHS, 3/8hp, csir, lbp, 220v, 380w

written by Lilianne | 21 December 2021

R134a GPY16AF series sealed refrigeration compressor 220-240v/50Hz

The main feature:

strong loading capacity,
high efficiency,
low noise,
light vibration,
good reliability.

suitable for mid-size refrigerators, freezers, displayers, beer displayers and other mid-size refrigeration appliances. The structure form is hermetical crank connecting-rod reciprocating piston type.

They are the best selling high-tech compressors sold in the world. They are ideal for domestic refrigeration and also for small commercial applications. They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market for this category.

KONOR	Displ.	power	Motor type	V/Hz	Cooling capacity W	Net Weight KG
GQR60AA	6	1/6	RSIR	220-240V/50Hz	140	9.4
GQR70AA	6.6	1/5	RSIR	220-240V/50Hz	165	9.4
GQR80AA	8.1	1/4	RSIR	220-240V/50Hz	198	9.4
GQR90AA	9.1	1/4	RSIR	220-240V/50Hz	220	10.1
GQY99AA	9.9	1/4	RSIR	220-240V/50Hz	270	10.9
GQY12AF	11.8	1/3	CSIR	220-240V/50Hz	325	10.56
GQY16AF	16.2	3/8	CSIR	220-240V/50Hz	380	12.1
GP16MG	16.2	5/8	CSIR	220-240V/50Hz	870	12.5
GP12MG	11.8	5/8	CSIR	220-240V/50Hz	656	10.9
GP12TG	11.8	3/8	CSIR	220-240V/50Hz	1140	11.8
GQR80TG	8.1	1/4	CSIR	220-240V/50Hz	730	9.8
GQR90TG	9.1	1/4	CSIR	220-240V/50Hz	830	10.5
GQR60TG	6	1/5	CSIR	220-240V/50Hz	520	9.8

Specification

Hermetic motor driven the piston connecting rod type compressor. With relay start-up of hammer type, and equipped with overload protector.

Application

Widely used in homeand commercial refrigerator,air-curtain cabinet, display showcase, ice maker, chiller freezer, dehumidifier, etc.

R134a LBP Fan Cooling Compressor

Model:GPY16AF

Power:3/8HP

Displacement:16.2cm3

Capacity:380w

COP:1.3W

Voltage:200-240V/50HZ

Motor Way:CSIR

Application:LBP

Cooling Type:Fan Cooling

Height:210mm

Net Weight:12.9kg

Dimension:210*162*237.2(mm)

Test Conditions(ASHRAE)

Evaporating temperature -23.3ºC

Condensing temperature 54.4ºC

Subcooling temperature 32.2ºC

Suction temperature 32.2ºC

Ambient temperature 32.2ºC

Conversion:
1watt=3.41Btu/h=0.86kcal/h

Mbsm_dot_pro_private_PDF_gpy16f Télécharger

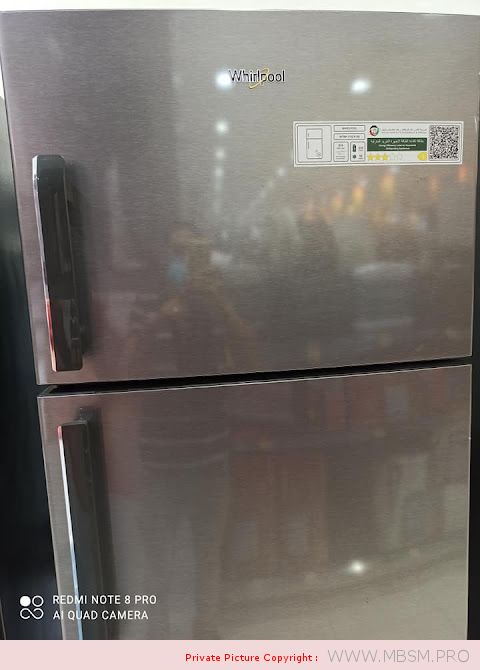

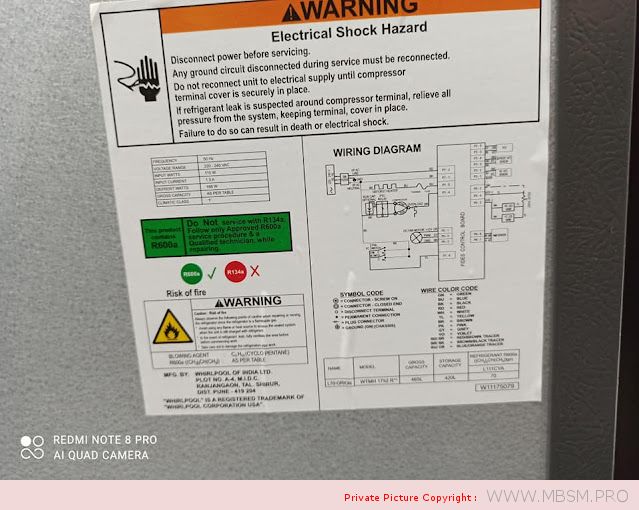

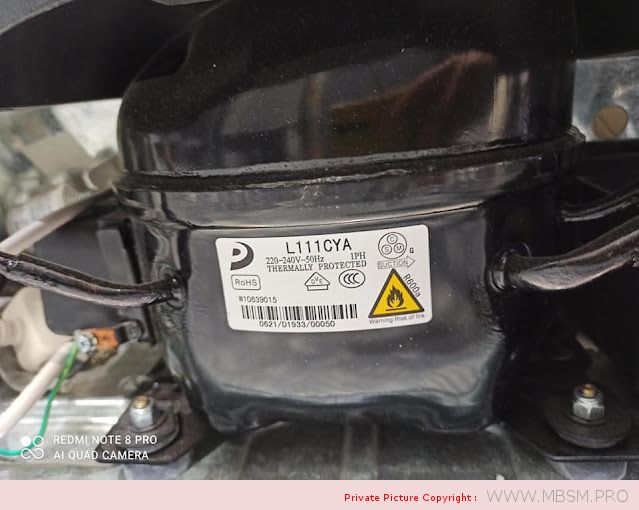

L111CYA, COMPRESSOR, ASSY, Indesit , Ariston, whirlpool, 1/5hp, lbp, 180W, r600a

written by Lilianne | 21 December 2021

Mbsm_dot_pro_private_PDF_L111CYA Télécharger

Hermetic compressors, Cubigel Compressors, LBP , L55BV, 1/6hp, r12

written by Lilianne | 21 December 2021

Mbsm_dot_pro_private_PDF_l55bv Télécharger

Type: Hermetic piston compressorsProducer: ACCSeries: HMBP
Model: L55BV
General data


Refrigerant:	R12
Discharge element:	C
Cooling:	OC
Maximum ambient temperature [ºC]:	43

Compressor’s data


Cylinder capacity [cm³]:	5,5
Displacement [m³/h]:	0,9
Weight [kg]:	9,5
Oil charge [cm³]:	470
Oil type:	ISO VG 46 MINERAL

Engine’s data


Engine type:	RSIR
Power [KM]:	1/6
Starting element:	LST
Power supply:	200V 50Hz
Voltage range:	180-242
Locked rotor current [A]:	10,9
Running winding resistance (25ºC) [Ω]:	10,81
Starting winding resistance (25ºC) [Ω]:	34,36

Electrical data


Relays:	9660 B 118, MTRP 33
Shielding element:	MRP63AMK, T0069
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction/service tube:	6,5
Service/suction tube:	6,5
Discharge tube:	4,9
Oil cooler tube:		4,9

HGX12P/75-4, R410A, compressor, semi-hermétique, BOCK, 25,0 hp

written by Lilianne | 21 December 2021

HGX12P/75-4 R410A

Data Sheet

Power supply	220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y
Horsepower	25,0 hp
Displacement	6,70 m3
Cooling capacity at Refrigeration conditions, R407C	3,39 kW
Cooling capacity at Refrigeration conditions, R404A	3,97 kW
Refrigerant	R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A
Suction pipe	5/8″
Discharge pipe	1/2″
Weight	49 kg
LRA (Δ/y)	43/25 A
MCC (Δ/y)	8,0/4,6 A
Type of oil	FUCHS Reniso Triton SE 55
Other remarks	Available in ATEX version, Electronic frequency control (30-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch
Accessories	Control Capacity 50/100%, Crankcase heater 50-120 W, Thermal protection thermostat (PTC sensor)
Application	MHBP
Technology	Fixed speed
Lubrication mode	Oil pump
Low pressure design	19 bar
High pressure design	28 bar
Type of motor cooling	Suction gas
Protection type	IP 66
Motor protection type	INT69 G
Speed	1450 rpm

Number of cylinders / Bore / Stroke	2 / 38 mm / 34 mm
Displacement 50/60 Hz (1450/1740 ¹/min)	6,70 / 8,10 m³/h
Voltage ¹⁾	220-240V Δ / 380-420V Y -3- 50Hz
	265-290V Δ / 440-480V Y -3- 60Hz
Max. working current ²⁾	7.1 / 4.1 A
Max. power consumption ²⁾	2.3 kW
Starting current (rotor blocked) ²⁾	40.0 / 23.0 A
Motor protection	INT69 G
Protection terminal box	IP 66
Weight	49 kg
Max. permissible pressure (LP/HP) ³⁾	19 / 28 bar
Connection suction line SV	16 mm – 5/8 “
Connection discharge line DV	12 mm – 1/2 “
Lubrication	Oil pump
Oil type R290, R600a, R1270	FUCHS Reniso SYNTH 68
Oil charge	0,8 Ltr.
Dimensions Length / Width / Height	411 / 223 / 280 mm

¹⁾

Mbsm_dot_pro_private_PDF_HGX12P Télécharger

Compressor, R134A, GLY12RGA, 10,7cm³, HMBP, 230V, 3/8HP, CUBIGEL, HUAYI

written by Lilianne | 21 December 2021

Displacement (cm³)	Refrigerant	Application	Compressor Cooling	Voltage/Frequency	Frequency (Hz)	Motor Type	Cooling (kCal/h)	COP (W/W)	Cooling (W)	COP (W/W)	Technical Data Sheet (*)
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	352	1,95	340	1,67	GL45MG
GL45MG	4,56	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	412	1,92	398	1,65	GL45MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	520	2,02	499	1,73	GL60MG
GL60MG	5,98	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	445	1,99	427	1,70	GL60MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	702	2,15	674	1,84	GL80MG
GL80MG	7,57	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	600	2,10	576	1,78	GL80MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	50	CSIR	685	2,10	661	1,79	GL90MG
GL90MG	8,85	R134a	HBP	S	230V 50/60Hz ~1	60	CSIR	800	2,11	772	1,83	GL90MG
GLY12RAa	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	900	2,30	867	1,97	GLY12RAa
GLY12RAb	10,70	R134a	HBP	F	220-240V 50Hz ~1	50	CSR	900	2,57	867	2,20	GLY12RAb
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSIR	900	2,19	867	1,87	GLY12RGa
GLY12RGa	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSIR	1.038	2,22	1.007	1,90	GLY12RGa
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	50	CSR	900	2,32	867	1,98	GLY12RGb
GLY12RGb	10,70	R134a	HBP	F	200-220/220-230V 50/60Hz ~1	60	CSR	1.038	2,40	1.007	2,07	GLY12RGb
GP14TB	14,17	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.030	2,03	998	1,76	GP14TB
GP16TB	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.240	2,09	1.204	1,80	GP16TB
GP16TE	16,15	R134a	HBP	F	115V 60Hz ~1	60	CSIR	1.450	1,96	1.408	1,69	GP16TE
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	50	CSIR	1.240	2,09	1.204	1,81	GP16TG
GP16TG	16,15	R134a	HBP	F	200-220/230V 50/60Hz ~1	60	CSIR	1.450	2,00	1.408	1,74	GP16TG
GPM16RA	16,15	R134a	HBP	F	220-240V 50Hz ~1	50	CSIR	1.351	2,09	1.317	1,79	GPM16RA

(*) Under standard conditions

Additional information

Voltage (V)	230Vac
Frequency (hz)	50
Range	MBP
Displacement (cm3)	10,7 cm³
Cooling capacity (W)	608W
Conditions (°C)	-10 / +45C
Refrigerant	R134A
Suction line	8.1mm juotettava
Liquid line	6,5mm juotettava
Height (mm)	198mm
Weight (kg)	10,43kg
Oil	ISO VG 32 Ester

Technical data

Model: GLY12RAa
Refrigerant Gas: R-134a
Pression/temperature: HBP
Power: 3/8 HP
Voltage: 230 V
Current Type: Single-Phase
Frequency: 50 Hz
Compressor Type: Hermetic
Displacement: 10.7 cm³
Power Cons. -10°C: 293 W
Power Cons. -5°C: 322 W
Efficiency 0°C: 351 W
Power Cons. +5°C: 380 W
Power Cons. +7,2°C: 392 W
T° Condensation: 40 °C
Cooling Cap. -15°C: 408 Kcal/h
Cooling Cap. -10°C: 512 Kcal/h
Cooling Cap. -5°C: 642 Kcal/h
Cooling Cap. 0°C: 797 Kcal/h
Cooling Cap. 5°C: 977 Kcal/h
Cooling Cap. 7.2°C: 1065 Kcal/h
Cooling Cap. 10°C: 1184 Kcal/h
Test Type: Ashare 46

Mbsm_dot_pro_private_PDF_pdf-GLY12RAa Télécharger

Neon compressor, QD128H(360W), 1/3Hp, QD158H(450W), 3/8+, QD142H(395W), 3/8+, QD168H (322W), 1/2Hp, R134a

written by Lilianne | 21 December 2021

Refrigerant：R22, R134a, R406a ,R600a

Refrigerant	Model	Power Supply	Displacement (cm³)	Cooling Capacity (W)	Rated Power(W)	Nominal power(HP)	COP (W/W)
R134a	QD110H	220-240V/50Hz	11.0	280	233	1/3	1.2
R134a	QD128H	220-240V/50Hz	12.8	325	240	1/3	1.35
R134a	QD142H	220-240V/50Hz	14.2	360	266	1/3	1.35
R134a	QD150H	220-240V/50Hz	15.0	255	259	1/3	0.98
R134a	QD153H	220-240V/50Hz	15.3	390	288.8	2/5	1.35
R134a	QD168H	220-240V/50Hz	16.8	323	310	2/5	1.04
R134a	QD180H	220-240V/50Hz	18.0	392	351	1/2	1.11
R134a	QD210H	220-240V/50Hz	21.0	456	404	1/2	1.12
R134a	QD2511H	115V/60HZ	2.5	70	67	1/11	1.05
R134a	QD25H	220V/50-60HZ	2.5	65/78	62/72	1/12*1/10	1.05/1.08
R134a	QD65H	220V/50HZ	6.5	168	140	1/5	1.2
R134a	QD75H	220V/50HZ	7.5	180	150	1/5+	1.2
R134a	QD91H	220V/50HZ	9.1	208	173	1/4	1.2
R134a	QV10H	220V/50-60HZ	1	35/43	46/53	1/16*1/14	0.76/0.8
R134a	QV15H	220V/50-60HZ	1.5	48/57	53/60	1/14*1/12	0.9/0.95
R134a	QV20H	220V/50-60HZ	2	56/64	56/62	1/13*1/12	1/1.03
R134a	QV3011H	115V/60HZ	3	90	86	1/9	1.05
R134a	QV30H	220V/50-60HZ	3	75/88	71/81	1/11*1/9	1.05/1.08
R134a	WS103H	220V/50HZ	10.3	260	186	1/4	1.4
R134a	WS3911H	115V/60HZ	3.9	120	80	1/9	1.5
R134a	WS50H	220V/50HZ	5.0	152	97	1/8	1.57
R134a	WS5211H	115V/60HZ	5.2	180	115	1/7	1.57
R134a	WS52H	220V/50HZ	5.2	160	100	1/7-	1.6
R134a	WS5711H	115V/60HZ	5.7	195	126	1/6	1.55
R134a	WS57H	220V/50HZ	5.7	170	120	1/6	1.42
R134a	WS60H	220V/50HZ	6.0	180	109	1/7+	1.65
R134a	WS7011H	115V/60HZ	7	245	181	1/4	1.35
R134a	WS70H	220V/50HZ	7.0	197	131	1/6	1.42
R134a	WS70H	220V/50HZ	7.0	197	138.7	1/6	1.42
R134a	WS75H	220V/50HZ	7.5	200	144	1/5	1.4
R134a	WT52H	220V/50HZ	5.2	130	108	1/7	1.2
R134a	WV4311H	115V/60HZ	4.3	130	118	1/6	1.1
R134a	WV5211H	115V/60HZ	5.2	160	133	1/6	1.2
R134a	WS45H	220V/50-60HZ	4.5	130/150	97/105	1/7	1.34/1.43
R134a	WS57H	220V/50-60HZ	5.7	170/195	120/130	1/6	1.42/1.50
R134a	WS75H	220V/50-60HZ	7.5	200/232	144/157	1/5	1.39/1.48
R134a	QV30H	220V/50-60HZ	3	75/88	71/81	1/11*1/9	1.05/1.08
R134a	QD52H	220-240V/50Hz	5.2	130	113	1/7	1.15
R134a	QD43H	220-240V/50Hz	4.3	111	97	1/8	1.15

Model	Displ. (cm3)	商业标称 POWER HP	Motor Type	Cooling	Capacity(W)54.4℃/ 130℉ Condensing Temp. 制冷量	COP W/W	Input Power (W)	Oil Charge
型号	气缸容积	电机类型	冷却方式	能效比	输入功率
					一35℃	一30℃	一25℃	一23.3℃	一20℃	一15℃	一10℃	一6.7℃	一5℃	0℃	一23.3℃	一6.7℃	一23.3℃	一6.7℃
DW	MAWQD25HHP	2.5	1/12	RSIR	S	30	40	52	58	75	93	126	140	156	175	0.85	1.9	68	74	140
MAWQD30HHP	3.0	1/10	RSIR	S	35	49	63	70	90	112	152	170	188	210	0.85	1.9	82	89	140
MAWQD35HHP	3.5	1/8	RSIR	S	40	56	72	80	105	128	176	220	242	275	0.9	1.98	89	111	140
DM	MAMQD43HHP	4.3	1/7	RSIR	S	47	65	83	110	121	149	216	270	297	338	0.95	2.01	116	134	160
DF	MAFQD52HHP	5.5	1/7	RSIR	S	70	95	123	136	177	218	280	350	385	438	1.15	2.01	118	174	180
MAFQD59HHP	6.2	1/6	RSIR	S	85	115	149	165	215	265	312	390	430	488	1.16	2.01	142	194	180
MAFQD65HHP	6.6	1/5	RSIR	S	95	129	167	185	241	297	350	430	473	538	1.18	2.02	157	193	180
MAFQD75HHP	7.6	1/5+	RSIR	S/F	105	147	190	210	273	337	387	495	545	618	1.2	2.05	175	241	180
MAFQD91HHR	8.8	1/5+	RSIR	S/F	112	155	200	230	285	350	405	520	570	642	1.22	2.06	189	252	180
DL	MALQD75HHR	7.2	1/5+	RSIR	S/F	100	140	160	200	260	320	366	470	518	588	1.3	2.06	154	228	220
MALQD75HGR	7.6	1/5+	RSIR	S/F	105	147	190	220	273	337	387	495	545	618	1.36	2.11	162	235	220
MALQD91HHR	8.8	1/5+	RSIR	S/F	115	160	207	245	300	368	425	530	583	655	1.37	2.12	179	250	220
MALQD91HGR	9.3	1/4-	RSIR	S/F	127	176	228	270	330	405	468	580	640	720	1.41	2.15	191	270	220
MALQD110HHR	10.0	1/4	RSIR	F	136	190	245	300	375	460	470	650	718	820	1.37	2.12	219	307	220
MALQD110HGR	11.1	1/4+	RSIR	F	150	210	270	330	410	510	520	725	790	905	1.41	2.15	234	337	220
DQ	MAQQD128HHR	12.3	3/8	RSIR	F	180	252	324	360	468	576	740	925	1018	1156	1.31	2	275	463	250
MAQQD142HHM	13.5	3/8+	CSIR	F	195	273	351	390	507	624	800	1000	1100	1250	1.3	2	300	500	250
MAQQD158HHM	15.3	3/8+	CSIR	F	215	300	387	430	560	690	890	1120	1230	1400	1.3	2	331	560	250
MAQQD168HHM	16.3	1/2	CSIR	F	230	322	415	460	598	736	976	1220	1340	1530	1.3	2	354	610	250

Qd52h power 120w cold capacity 134w
Qd59h power 145w cooling capacity 145wQd59h power 145w cooling capacity 145w
Qd91h power 189w cooling capacity 220wQd91h power 189w cooling capacity 220w
Qd110h power 240w cooling capacity 285wQd110h power 240w cooling capacity 285w
Qd158h power 330w cooling capacity 450wQd158h power 330w cooling capacity 450w
Qd168h power 360w cooling capacity 500wQd168h power 360w cooling capacity 500w
Qd65h power 157w cooling capacity 170wQd65h power 157w cooling capacity 170w
Qd142h power 290w cooling capacity 395wQd142h power 290w cooling capacity 395w
Qd128h power 260w cooling capacity 360wQd128h power 260w cooling capacity 360w
Qd59 (r406a refrigerant)Qd59 (r406a refrigerant)
Qd75h power 175w cooling capacity 185wQd75h power 175w cooling capacity 185w

Mbsm_dot_pro_private_PDF_QD168H Télécharger

Neon compressor, QD128H(360W), 1/3Hp, QD158H(450W), 3/8+, QD142H(395W), 3/8+, QD168H (322W), 1/2Hp, R134a

NE2125GK, NEK2130GK, NEK6181GK, EMT6165GK, ML90FB, KB2416ZK2, R404a/R507, 1/3HP, LBP, All COMPRESSEURS, GAZ R404A – R507, EMBRACO

written by Lilianne | 21 December 2021

Compressor coolant R404a/R507 type NE2125GK 220-240V 50Hz LBP fully hermetic 10,45kg 1/3HP

Compressor coolant R404a/R507 type NEK2130GK 220-240V 50Hz LBP 10,9kg 1/3HP

NEK6181GK ASPERA EMBRACO COMPRESSOR 1/3HP R404A / R507

DESCRIPTION

NEK6181GK Aspera Embraco compressor 1/3HP

Refrigerant: R507a R404A
Power range(W): 1 – 1,5 kW
Working area: MBP
Design type: Hermetic
Use with: Expansion/Capillary
Power range(HP):0-2
Power supply: 220 – 240V/1/50Hz
Oil type: POE22
Engine type: CSIR
Article condition:New

EMT6165GK ASPERA EMBRACO COMPRESSOR 1/3HP R404A / R507

DESCRIPTION

Aspera Embraco EMT6165GK compressor 1/3HP

high evaporation temperature
Refrigerant: R507a R404A
Power range(W): 401 – 500 W 701 – 1000 W
Performance range:-20 C to +10 C
Connecting size:4,9 mm
Working area: MBP
Design type: Hermetic
Model series: EMT
Use with: Expansion/Capillary
Power range(HP):0-2
Power supply: 240V/1/50Hz
Oil type: POE22
Engine type: CSIR
Article condition:New

Compressor ACC – ML90FB, LBP – R404A, R507,1/3HP, 220-240V

Compressor ACC – ML90FB, LBP – R404A, 220-240/50Hz Injection: capillary tube / expansion valve Power: 1/3 HP Refrigerating capacity at -25 / +55°C: 276 W, power consumption: 333 W Max Ambient temperature: 43 ºC Displacement: 8.85 cm3 Engine type: CSIR Oil filling: 400 cm3 Oil type: ISO VG 46 ESTER Starting element: HST Start capacitor: 47- 56 / 330 µF/V Voltage range: 187-264 V Starting current: 12.2 A Weight: 11 kg Connections: 6.5 x 4.9 mm Main winding resistance: 8.42 (25ºC) Ohm Winding resistance: 29.75 (25ºC) Ohm. cooling capacity measured for condensation temperature of: 45°C, measuring conditions: ASHRAECooling capacity

–10 °C	–15 °C	–20 °C	–25 °C	–30 °C	–35 °C	–40 °C
729	606	495	394	305	227	161

Shipping Class	Standard
Scope Of Application	LBP
Lieferzeit	2-3 Wochen
Type Of Construction	Piston
Condensation Temperature	45°C
Maker	ACC
Manufacturer No.	ML90FB
Displacement In Cm3	8.85
Measuring Requirements	Ashrae
Refrigerants	R404A, R507
Series	ML
Condensing Units Compressors	Compressors
Suspense	220-240V
Weight In Kg	12.1

Supco KB2416ZK2 – Compressor LBP HST 1/3HP 1580/1696 BTU 208/230V – R404a / R507 Refrigerant – 1580 / 1696 BTU @ -10°F – 0.32″ I.D. Suction Size – 0.19″ I.D. Discharge

Stock Code	KB2416ZK2
Brand	Supco
Voltage (V)	208 / 230 VAC
Phase	Single Phase
HP Rating:	1 / 3 HP
Oil Charge (oz.)	507 cc.
Motor	High Start Torque
Operates	Icemakers; Refrigerators
Cross Refefence	Replacement Part:NEK2134GK ; Manufacturer :Embraco

Mbsm_dot_pro_private_PDF_KB2416ZK2_prd_001_1_Télécharger

FREON R404a/R507 220-240V 50HZ

Code	Prix	Type	Marque	Puissance HP	Cylindrée CM3	Pression	Schéma électrique	Capacité frigorifique en watt-10°C-5°C0°C+5°C
SEQ616	89.51€	EMT6144GK	EMBRACO	1/5	3.97	HMBP	CSIR	360	438	530	630
SEQ608	85.02€	NEK6181GK	EMBRACO	1/3	7.28	HMBP	CSIR	565	689	836	1006
SEQ690	86.26€	NEK6210GK	EMBRACO	3/8	8.78	HMBP	CSIR	669	821	999	1205
SEQ709	122.29€	AEZ4425Z	UNITE HERMETIQUE	1/5	4.50	HMBP	CSIR	263	341	432	587
VNQ6987	114.69€	NEK2125GK	EMBRACO	1/4	6.20	LBP	CSIR	243	314	398	494
VASQ6276	112.12€	NEK6144GK	EMBRACO	1/4L	4.52	HMBP	CSIR	368	451	549	660
SEQ703	132.23€	NEK6213GK	EMBRACO	1/2	12.12	HMBP	CSIR	919	1120	1350	1610
CYQ6367	155.22€	NEK2168GK	EMBRACO	5/8	14.30	LBP	CSR	500	650	828	1030
FQQ6559	144.34€	NEK6217GK	EMBRACO	5/8	14.30	HMBP	CSR	1120	1360	1630	1932
VGQ6677	192.44€	AE4470Z	UNITE HERMETIQUE	1/2	12.00	HMBP	CSIR
VGQ6676	180.64€	AE4450Z	UNITE HERMETIQUE	3/8	8.80	HMBP	CSIR
SEQ912	198.59€	NJ2212GK	EMBRACO	1.7	34.37	LBP	CSR	945	1333	1775	2273
SEQ617	191.35€	NEK2150GK	EMBRACO	5/8	12.12	LBP	CSIR	445	570	716	888
SEQ902	175.39€	NT6222GK	EMBRACO	3/4	17.40	HMBP	CSR	1280	1590	1930	2308
SEQ609	221.62€	NJ2192GK	EMBRACO	1.2	26.00	LBP	CSR	752	1120	1345	1725
VNQ6902	198.45€	NT6226GK	EMBRACO	1	22.40	HMBP	CSR	1744	2144	2598	3095
VNQ6916	223.47€	NJ9232GK	EMBRACO	1.2	26.20	HMBP	CSR	1953	2458	3182	4070
SEQ674	256.69€	CAJ2432Z	UNITE HERMETIQUE	3/4	18.30	LBP	CSR	510	792	865	1560
CYQ6239	276.42€	CAJ2446Z	UNITE HERMETIQUE	1.2	26.10	LBP	CSR	797	1194	1423	2290
CYQ6236	287.60€	CAJ2428Z	UNITE HERMETIQUE	5/8	15.20	LBP	CSR	394	628	762	1261
IQ1517	307.80€	CAJ9480Z	UNITE HERMETIQUE	5/8	15.20	HMBP	CSR	1009	1284	1607	2172
SEQ990	354.18€	CAJ4517Z	UNITE HERMETIQUE	1.2	25.90	HMBP	CSR	1776	2273	2857	3860
SEQ999	284.58€	CAJ9510Z	UNITE HERMETIQUE	1	18.30	HMBP	CSR	1252	1583	1972	2650
ZNEQ6572	360.83€	CAJ2464Z	UNITE HERMETIQUE	1.5	34.40	LBP	CSR	1076	1605	1902	3012
VASQ6285	348.56€	NJ9238GK	EMBRACO	1.5	32.70	HMBP	CSR	2485	2956	3509	4563
SEQ601	367.83€	NT6220GK	EMBRACO	5/8	14.50	HMBP	CSR	1126	1395	1700
SEQ921	394.30€	CAJ9513Z	UNITE HERMETIQUE	1.1	24.20	HMBP	CSR	1501	1955	2485	3406
VASQ7698	392.13€	CAJ4519Z	UNITE HERMETIQUE	1.5	34.40	HMBP	CSR	2353	3009	3756	5030
ZRQ7716	441.16€	CAJ2440Z	UNITE HERMETIQUE	1	22.80	LBP	CSR	647	945	1166	1876

HMP: Haute moyenne pression
HP: Haute pression
LBP: Basse pression

FREON R404a/R507 220-240V 50HZ

Code	Prix	Type	Marque	Puissance HP	Cylindrée CM3	Pression	Schéma électrique	Capacité frigorifique en watt-10°C-5°C0°C+5°C
SEQ616	89.51€	EMT6144GK	EMBRACO	1/5	3.97	HMBP	CSIR	360	438	530	630
SEQ608	85.02€	NEK6181GK	EMBRACO	1/3	7.28	HMBP	CSIR	565	689	836	1006
SEQ690	86.26€	NEK6210GK	EMBRACO	3/8	8.78	HMBP	CSIR	669	821	999	1205
SEQ709	122.29€	AEZ4425Z	UNITE HERMETIQUE	1/5	4.50	HMBP	CSIR	263	341	432	587
VNQ6987	114.69€	NEK2125GK	EMBRACO	1/4	6.20	LBP	CSIR	243	314	398	494
VASQ6276	112.12€	NEK6144GK	EMBRACO	1/4L	4.52	HMBP	CSIR	368	451	549	660
SEQ703	132.23€	NEK6213GK	EMBRACO	1/2	12.12	HMBP	CSIR	919	1120	1350	1610
CYQ6367	155.22€	NEK2168GK	EMBRACO	5/8	14.30	LBP	CSR	500	650	828	1030
FQQ6559	144.34€	NEK6217GK	EMBRACO	5/8	14.30	HMBP	CSR	1120	1360	1630	1932
VGQ6677	192.44€	AE4470Z	UNITE HERMETIQUE	1/2	12.00	HMBP	CSIR
VGQ6676	180.64€	AE4450Z	UNITE HERMETIQUE	3/8	8.80	HMBP	CSIR
SEQ912	198.59€	NJ2212GK	EMBRACO	1.7	34.37	LBP	CSR	945	1333	1775	2273
SEQ617	191.35€	NEK2150GK	EMBRACO	5/8	12.12	LBP	CSIR	445	570	716	888
SEQ902	175.39€	NT6222GK	EMBRACO	3/4	17.40	HMBP	CSR	1280	1590	1930	2308
SEQ609	221.62€	NJ2192GK	EMBRACO	1.2	26.00	LBP	CSR	752	1120	1345	1725
VNQ6902	198.45€	NT6226GK	EMBRACO	1	22.40	HMBP	CSR	1744	2144	2598	3095
VNQ6916	223.47€	NJ9232GK	EMBRACO	1.2	26.20	HMBP	CSR	1953	2458	3182	4070
SEQ674	256.69€	CAJ2432Z	UNITE HERMETIQUE	3/4	18.30	LBP	CSR	510	792	865	1560
CYQ6239	276.42€	CAJ2446Z	UNITE HERMETIQUE	1.2	26.10	LBP	CSR	797	1194	1423	2290
CYQ6236	287.60€	CAJ2428Z	UNITE HERMETIQUE	5/8	15.20	LBP	CSR	394	628	762	1261
IQ1517	307.80€	CAJ9480Z	UNITE HERMETIQUE	5/8	15.20	HMBP	CSR	1009	1284	1607	2172
SEQ990	354.18€	CAJ4517Z	UNITE HERMETIQUE	1.2	25.90	HMBP	CSR	1776	2273	2857	3860
SEQ999	284.58€	CAJ9510Z	UNITE HERMETIQUE	1	18.30	HMBP	CSR	1252	1583	1972	2650
ZNEQ6572	360.83€	CAJ2464Z	UNITE HERMETIQUE	1.5	34.40	LBP	CSR	1076	1605	1902	3012
VASQ6285	348.56€	NJ9238GK	EMBRACO	1.5	32.70	HMBP	CSR	2485	2956	3509	4563
SEQ601	367.83€	NT6220GK	EMBRACO	5/8	14.50	HMBP	CSR	1126	1395	1700
SEQ921	394.30€	CAJ9513Z	UNITE HERMETIQUE	1.1	24.20	HMBP	CSR	1501	1955	2485	3406
VASQ7698	392.13€	CAJ4519Z	UNITE HERMETIQUE	1.5	34.40	HMBP	CSR	2353	3009	3756	5030
ZRQ7716	441.16€	CAJ2440Z	UNITE HERMETIQUE	1	22.80	LBP	CSR	647	945	1166	1876

HMP: Haute moyenne pression
HP: Haute pression
LBP: Basse pression

Mbsm_dot_pro_private_PDF_Embaraco-compressor-Gesamtliste Télécharger

Mbsm_dot_pro_private_PDF_compressor-tecumseh Télécharger

Mbsm_dot_pro_private_PDF_REFRIGERATION-COMPRESSORS-EAVB021ECAV Télécharger

COMPRESSOR, ASPERA, NJ2192GK, 1.1/4 HP, 220V, 1PH, R404A, LBP, 1199w

written by Lilianne | 21 December 2021

Compressor ASPERA NJ2192GJ | NJ 2192 GJ

Product replaced the old model NJ2192GK

Refigerant		R404A
Working range[stC] LBP		-40 do -10
Nominal capacity [W] (evaporating temperature -23,3C, Condensing temperatur +54,4C)		1199
Power supply		220-240V 50Hz
Engine type		CSR
Displacement [cm³]		26,10
Weight [kg]		22

Condensing temperature +55 C

Evaporating Temperature	Cooling Capacity +/-5%			Power Consumption +/-5%	Current Consumption +/-5%
°C	(kcal/h)	(W)	(Btu/h)	(W)	(A)
-40
-35
-30		797		773	4,37
-25		1084		908	4,92
-20		1413		1045	5,49
-15		1784		1181	6,10
-10		2196		1317	6,72

Refrigerant:

R404A

Mbsm_dot_pro_private_PDF_pdf_NJ219GJ Télécharger

Compresseur, Mitsubishi, Electric MITSUBISHI, RH174VHAC, 9000 BTU/heure (2,6 kW), 220-240V 50Hz, R22

written by Lilianne | 21 December 2021

Modèle – Mitsubishi Electric RH 174 VHAC (9000Btu)
Productivité – 9000 BTU/heure (2,6 kW)
Alimentation – 220-240V 50Hz
Réfrigérant (fréon) – R22
Entre vannes – 15 cm
Hauteur compresseur – 22 cm
Diamètre compresseur – 13 cm

#mbsmpro

Mbsm_dot_pro_private_PDF_pdf_RH174VHAC Télécharger

Mbsm_dot_pro_private_picture_RH174VHAC Télécharger
