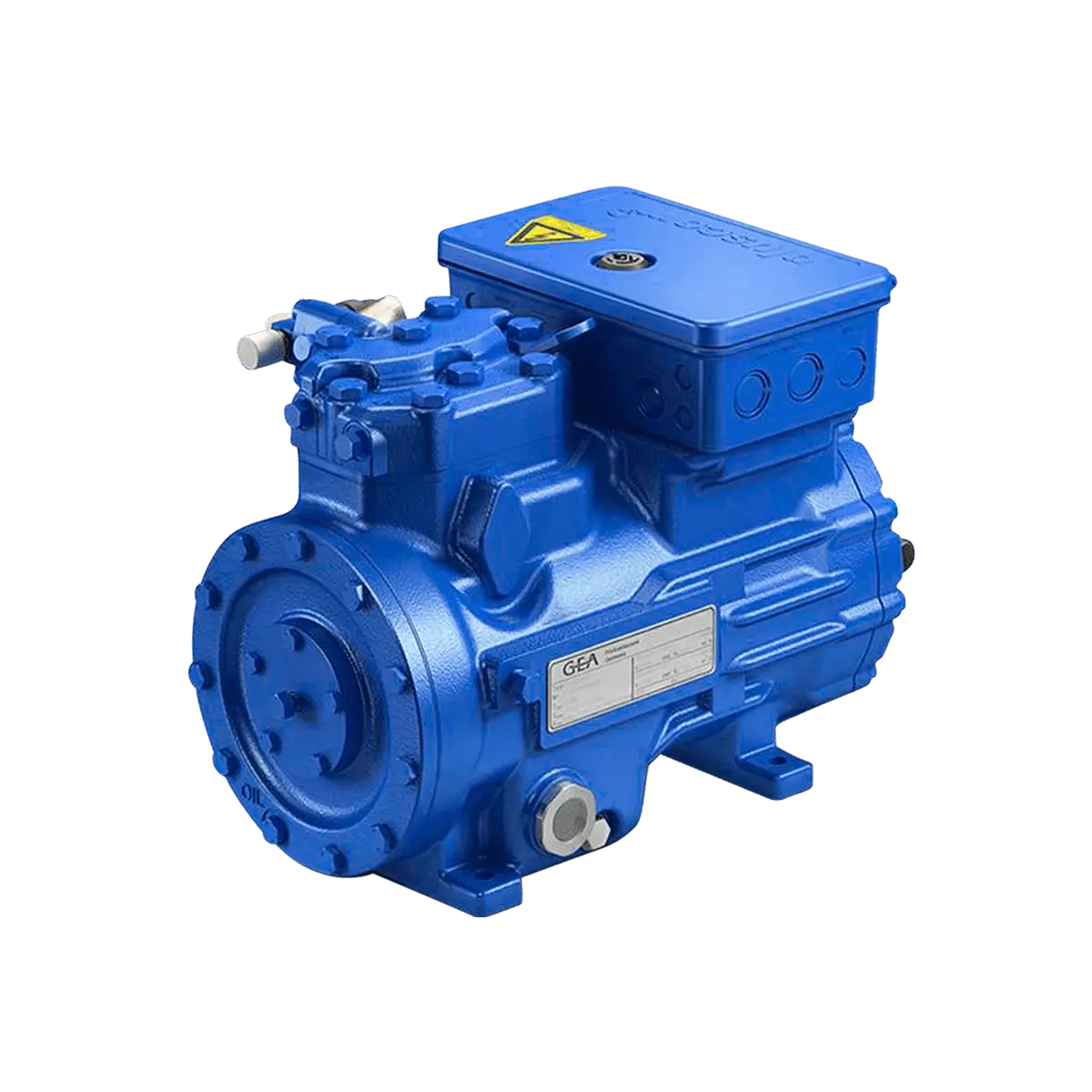

HGX12P/75-4, R410A, compressor, semi-hermétique, BOCK, 25,0 hp

written by Lilianne | 20 December 2021

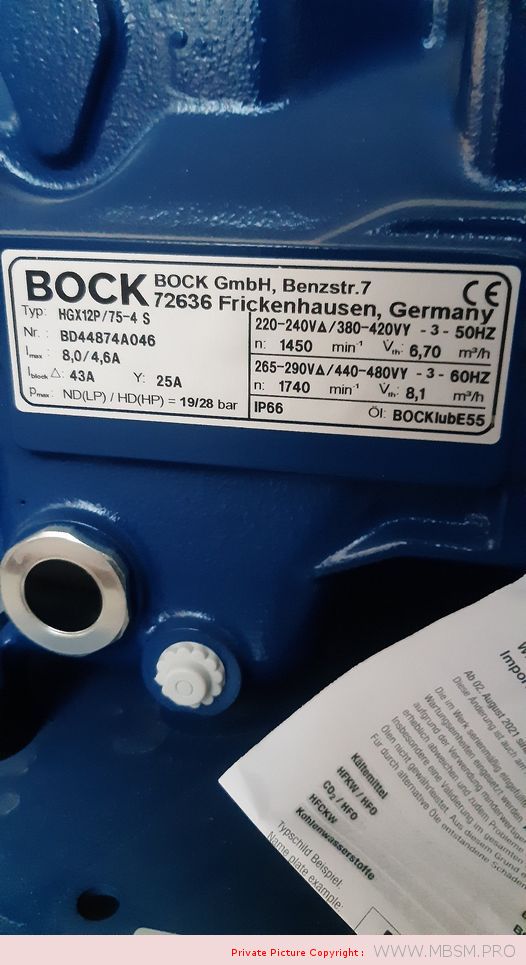

HGX12P/75-4 R410A

Data Sheet

Power supply 220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y
Horsepower 25,0 hp
Displacement 6,70 m3
Cooling capacity at Refrigeration conditions, R407C 3,39 kW
Cooling capacity at Refrigeration conditions, R404A 3,97 kW
Refrigerant R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A
Suction pipe 5/8″
Discharge pipe 1/2″
Weight 49 kg
LRA (Δ/y) 43/25 A
MCC (Δ/y) 8,0/4,6 A
Type of oil FUCHS Reniso Triton SE 55
Other remarks Available in ATEX version, Electronic frequency control (30-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch
Accessories Control Capacity 50/100%, Crankcase heater 50-120 W, Thermal protection thermostat (PTC sensor)
Application MHBP
Technology Fixed speed
Lubrication mode Oil pump
Low pressure design 19 bar
High pressure design 28 bar
Type of motor cooling Suction gas
Protection type IP 66
Motor protection type INT69 G
Speed 1450 rpm
Number of cylinders / Bore / Stroke  2 / 38 mm / 34 mm
Displacement 50/60 Hz (1450/1740 ¹/min)  6,70 / 8,10 m³/h
Voltage 1) 220-240V Δ / 380-420V Y -3- 50Hz
  265-290V Δ / 440-480V Y -3- 60Hz
Max. working current 2) 7.1 / 4.1 A
Max. power consumption 2) 2.3 kW
Starting current (rotor blocked) 2) 40.0 / 23.0 A
Motor protection  INT69 G
Protection terminal box  IP 66
Weight  49 kg
Max. permissible pressure (LP/HP) 3) 19 / 28 bar
Connection suction line SV  16 mm – 5/8 “
Connection discharge line DV  12 mm – 1/2 “
Lubrication  Oil pump
Oil type R290, R600a, R1270  FUCHS Reniso SYNTH 68
Oil charge  0,8 Ltr.
Dimensions Length / Width / Height  411 / 223 / 280 mm
1)
Mbsm_dot_pro_private_PDF_HGX12PTélécharger


Compressor, R134A, GLY12RGA, 10,7cm³, HMBP, 230V, 3/8HP, CUBIGEL, HUAYI

written by Lilianne | 20 December 2021
Model Displacement (cm³) Refrigerant Application Compressor Cooling     Voltage/Frequency     Frequency (Hz) Motor Type Cooling (kCal/h) COP (W/W) Cooling (W) COP (W/W) Technical Data Sheet (*)
Green Cooling logo GL45MG 4,56 R134a HBP S 230V 50/60Hz ~1     50 CSIR 352 1,95 340 1,67 GL45MG
Green Cooling logo GL45MG 4,56 R134a HBP S 230V 50/60Hz ~1     60 CSIR 412 1,92 398 1,65 GL45MG
Green Cooling logo GL60MG 5,98 R134a HBP S 230V 50/60Hz ~1     60 CSIR 520 2,02 499 1,73 GL60MG
Green Cooling logo GL60MG 5,98 R134a HBP S 230V 50/60Hz ~1     50 CSIR 445 1,99 427 1,70 GL60MG
Green Cooling logo GL80MG 7,57 R134a HBP S 230V 50/60Hz ~1     60 CSIR 702 2,15 674 1,84 GL80MG
Green Cooling logo GL80MG 7,57 R134a HBP S 230V 50/60Hz ~1     50 CSIR 600 2,10 576 1,78 GL80MG
Green Cooling logo GL90MG 8,85 R134a HBP S 230V 50/60Hz ~1     50 CSIR 685 2,10 661 1,79 GL90MG
Green Cooling logo GL90MG 8,85 R134a HBP S 230V 50/60Hz ~1     60 CSIR 800 2,11 772 1,83 GL90MG
Green Cooling logo GLY12RAa 10,70 R134a HBP F 220-240V 50Hz ~1     50 CSIR 900 2,30 867 1,97 GLY12RAa
Green Cooling logo GLY12RAb 10,70 R134a HBP F 220-240V 50Hz ~1     50 CSR 900 2,57 867 2,20 GLY12RAb
Green Cooling logo GLY12RGa 10,70 R134a HBP F 200-220/220-230V 50/60Hz ~1     50 CSIR 900 2,19 867 1,87 GLY12RGa
Green Cooling logo GLY12RGa 10,70 R134a HBP F 200-220/220-230V 50/60Hz ~1     60 CSIR 1.038 2,22 1.007 1,90 GLY12RGa
Green Cooling logo GLY12RGb 10,70 R134a HBP F 200-220/220-230V 50/60Hz ~1     50 CSR 900 2,32 867 1,98 GLY12RGb
Green Cooling logo GLY12RGb 10,70 R134a HBP F 200-220/220-230V 50/60Hz ~1     60 CSR 1.038 2,40 1.007 2,07 GLY12RGb
Green Cooling logo GP14TB 14,17 R134a HBP F 220-240V 50Hz ~1     50 CSIR 1.030 2,03 998 1,76 GP14TB
Green Cooling logo GP16TB 16,15 R134a HBP F 220-240V 50Hz ~1     50 CSIR 1.240 2,09 1.204 1,80 GP16TB
Green Cooling logo GP16TE 16,15 R134a HBP F 115V 60Hz ~1     60 CSIR 1.450 1,96 1.408 1,69 GP16TE
Green Cooling logo GP16TG 16,15 R134a HBP F 200-220/230V 50/60Hz ~1     50 CSIR 1.240 2,09 1.204 1,81 GP16TG
Green Cooling logo GP16TG 16,15 R134a HBP F 200-220/230V 50/60Hz ~1     60 CSIR 1.450 2,00 1.408 1,74 GP16TG
Green Cooling logo GPM16RA 16,15 R134a HBP F 220-240V 50Hz ~1     50 CSIR 1.351 2,09 1.317 1,79 GPM16RA

(*) Under standard conditions

Additional information

Voltage (V) 230Vac
Frequency (hz) 50
Range MBP
Displacement (cm3) 10,7 cm³
Cooling capacity (W) 608W
Conditions (°C) -10 / +45C
Refrigerant R134A
Suction line 8.1mm juotettava
Liquid line 6,5mm juotettava
Height (mm) 198mm
Weight (kg) 10,43kg
Oil ISO VG 32 Ester

Technical data

  • Model: GLY12RAa
  • Refrigerant Gas: R-134a
  • Pression/temperature: HBP
  • Power: 3/8 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 10.7 cm³
  • Power Cons. -10°C: 293 W
  • Power Cons. -5°C: 322 W
  • Efficiency 0°C: 351 W
  • Power Cons. +5°C: 380 W
  • Power Cons. +7,2°C: 392 W
  • T° Condensation: 40 °C
  • Cooling Cap. -15°C: 408 Kcal/h
  • Cooling Cap. -10°C: 512 Kcal/h
  • Cooling Cap. -5°C: 642 Kcal/h
  • Cooling Cap. 0°C: 797 Kcal/h
  • Cooling Cap. 5°C: 977 Kcal/h
  • Cooling Cap. 7.2°C: 1065 Kcal/h
  • Cooling Cap. 10°C: 1184 Kcal/h
  • Test Type: Ashare 46
Mbsm_dot_pro_private_PDF_pdf-GLY12RAaTélécharger


REFRIGERATOR, Samsung refrigerator, CoolTech, Model, SR-38NMB, Capacity: 13 cubic feet, Compressor, SD162P-L1W2 , 1/5 Hp, Lbp, R134A, 198W, input 145 w

written by Lilianne | 20 December 2021

Samsung 2 door Fridge, SR-38NMB,67*63*167cm

Motor: 1/5 HP, 10.6 cc/rev, 220-240 V/50 Hz, copper coil

the SD162P-L1W2 is a Chinese compressor manufactured by Samsung. Samsung has manufacturing facilities in several countries, including China, and some of their compressor models are made there. The “L1W2” suffix likely indicates specific manufacturing details or variations within the SD162P model line.

While it’s made in China, the SD162P-L1W2 is generally considered a reliable and efficient compressor. It’s commonly used in refrigerators and freezers.

Here are some of the key specifications of the SD162P-L1W2 compressor:

  • Type: Reciprocating
  • Refrigerant: R404A or R600a
  • Horsepower (HP): 1/5
  • Displacement: 10.6 cc/rev
  • Voltage/Frequency: 220-240V/50Hz

If you’re looking for a replacement compressor for your refrigerator or freezer, the SD162P-L1W2 could be a good option. However, it’s always important to check the specifications of your old compressor to make sure that the new one is compatible.

Mbsm_dot_pro_private_PDF_SD162P-L1W2-1Télécharger
Mbsm_dot_pro_private_PDF_SD162P-L1U2-2Télécharger
Mbsm_dot_pro_private_PDF_compressor-catalogue-2015Télécharger


NE2125GK, NEK2130GK, NEK6181GK, EMT6165GK, ML90FB, KB2416ZK2, R404a/R507, 1/3HP, LBP, All COMPRESSEURS, GAZ R404A – R507, EMBRACO

written by Lilianne | 20 December 2021

Compressor coolant R404a/R507 type NE2125GK 220-240V 50Hz LBP fully hermetic 10,45kg 1/3HP

Compressor coolant R404a/R507 type NEK2130GK 220-240V 50Hz LBP 10,9kg 1/3HP

NEK6181GK ASPERA EMBRACO COMPRESSOR 1/3HP R404A / R507

DESCRIPTION

NEK6181GK Aspera Embraco compressor 1/3HP

  • Refrigerant: R507a R404A
  • Power range(W): 1 – 1,5 kW
  • Working area: MBP
  • Design type: Hermetic
  • Use with: Expansion/Capillary
  • Power range(HP):0-2
  • Power supply: 220 – 240V/1/50Hz
  • Oil type: POE22
  • Engine type: CSIR
  • Article condition:New

EMT6165GK ASPERA EMBRACO COMPRESSOR 1/3HP R404A / R507

DESCRIPTION

Aspera Embraco EMT6165GK compressor 1/3HP

  • high evaporation temperature
  • Refrigerant: R507a R404A
  • Power range(W): 401 – 500 W 701 – 1000 W
  • Performance range:-20 C to +10 C
  • Connecting size:4,9 mm
  • Working area: MBP
  • Design type: Hermetic
  • Model series: EMT
  • Use with: Expansion/Capillary
  • Power range(HP):0-2
  • Power supply: 240V/1/50Hz
  • Oil type: POE22
  • Engine type: CSIR
  • Article condition:New

Compressor ACC – ML90FB, LBP – R404A, R507,1/3HP, 220-240V

Compressor ACC – ML90FB, LBP – R404A, 220-240/50Hz Injection: capillary tube / expansion valve Power: 1/3 HP Refrigerating capacity at -25 / +55°C: 276 W, power consumption: 333 W Max Ambient temperature: 43 ºC Displacement: 8.85 cm3 Engine type: CSIR Oil filling: 400 cm3 Oil type: ISO VG 46 ESTER Starting element: HST Start capacitor: 47- 56 / 330 µF/V Voltage range: 187-264 V Starting current: 12.2 A Weight: 11 kg Connections: 6.5 x 4.9 mm Main winding resistance: 8.42 (25ºC) Ohm Winding resistance: 29.75 (25ºC) Ohm. cooling capacity measured for condensation temperature of: 45°C, measuring conditions: ASHRAECooling capacity

–10 °C –15 °C –20 °C –25 °C –30 °C –35 °C –40 °C
729 606 495 394 305 227 161
Shipping Class Standard
Scope Of Application LBP
Lieferzeit 2-3 Wochen
Type Of Construction Piston
Condensation Temperature 45°C
Maker ACC
Manufacturer No. ML90FB
Displacement In Cm3 8.85
Measuring Requirements Ashrae
Refrigerants R404A, R507
Series ML
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 12.1

Supco KB2416ZK2 – Compressor LBP HST 1/3HP 1580/1696 BTU 208/230V – R404a / R507 Refrigerant – 1580 / 1696 BTU @ -10°F – 0.32″ I.D. Suction Size – 0.19″ I.D. Discharge

Stock Code KB2416ZK2
Brand Supco
Voltage (V) 208 / 230 VAC
Phase Single Phase
HP Rating: 1 / 3 HP
Oil Charge (oz.) 507 cc.
Motor High Start Torque
Operates Icemakers; Refrigerators
Cross Refefence Replacement Part:NEK2134GK ; Manufacturer :Embraco
Mbsm_dot_pro_private_PDF_KB2416ZK2_prd_001_1_Télécharger

FREON R404a/R507 220-240V 50HZ

Code Prix Type Marque Puissance HP Cylindrée CM3 Pression Schéma électrique Capacité frigorifique en watt-10°C-5°C0°C+5°C
SEQ616 89.51€ EMT6144GK EMBRACO 1/5 3.97 HMBP CSIR 360 438 530 630
SEQ608 85.02€ NEK6181GK EMBRACO 1/3 7.28 HMBP CSIR 565 689 836 1006
SEQ690 86.26€ NEK6210GK EMBRACO 3/8 8.78 HMBP CSIR 669 821 999 1205
SEQ709 122.29€ AEZ4425Z UNITE HERMETIQUE 1/5 4.50 HMBP CSIR 263 341 432 587
VNQ6987 114.69€ NEK2125GK EMBRACO 1/4 6.20 LBP CSIR 243 314 398 494
VASQ6276 112.12€ NEK6144GK EMBRACO 1/4L 4.52 HMBP CSIR 368 451 549 660
SEQ703 132.23€ NEK6213GK EMBRACO 1/2 12.12 HMBP CSIR 919 1120 1350 1610
CYQ6367 155.22€ NEK2168GK EMBRACO 5/8 14.30 LBP CSR 500 650 828 1030
FQQ6559 144.34€ NEK6217GK EMBRACO 5/8 14.30 HMBP CSR 1120 1360 1630 1932
VGQ6677 192.44€ AE4470Z UNITE HERMETIQUE 1/2 12.00 HMBP CSIR
VGQ6676 180.64€ AE4450Z UNITE HERMETIQUE 3/8 8.80 HMBP CSIR
SEQ912 198.59€ NJ2212GK EMBRACO 1.7 34.37 LBP CSR 945 1333 1775 2273
SEQ617 191.35€ NEK2150GK EMBRACO 5/8 12.12 LBP CSIR 445 570 716 888
SEQ902 175.39€ NT6222GK EMBRACO 3/4 17.40 HMBP CSR 1280 1590 1930 2308

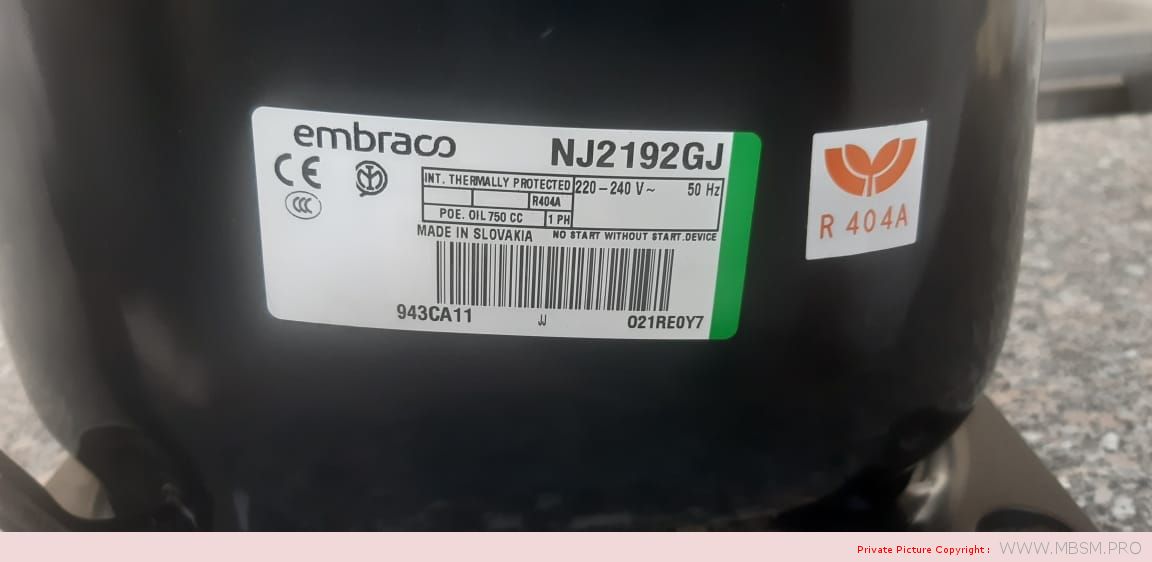

SEQ609 221.62€ NJ2192GK EMBRACO 1.2 26.00 LBP CSR 752 1120 1345 1725
VNQ6902 198.45€ NT6226GK EMBRACO 1 22.40 HMBP CSR 1744 2144 2598 3095
VNQ6916 223.47€ NJ9232GK EMBRACO 1.2 26.20 HMBP CSR 1953 2458 3182 4070
SEQ674 256.69€ CAJ2432Z UNITE HERMETIQUE 3/4 18.30 LBP CSR 510 792 865 1560
CYQ6239 276.42€ CAJ2446Z UNITE HERMETIQUE 1.2 26.10 LBP CSR 797 1194 1423 2290
CYQ6236 287.60€ CAJ2428Z UNITE HERMETIQUE 5/8 15.20 LBP CSR 394 628 762 1261
IQ1517 307.80€ CAJ9480Z UNITE HERMETIQUE 5/8 15.20 HMBP CSR 1009 1284 1607 2172
SEQ990 354.18€ CAJ4517Z UNITE HERMETIQUE 1.2 25.90 HMBP CSR 1776 2273 2857 3860
SEQ999 284.58€ CAJ9510Z UNITE HERMETIQUE 1 18.30 HMBP CSR 1252 1583 1972 2650
ZNEQ6572 360.83€ CAJ2464Z UNITE HERMETIQUE 1.5 34.40 LBP CSR 1076 1605 1902 3012
VASQ6285 348.56€ NJ9238GK EMBRACO 1.5 32.70 HMBP CSR 2485 2956 3509 4563
SEQ601 367.83€ NT6220GK EMBRACO 5/8 14.50 HMBP CSR 1126 1395 1700
SEQ921 394.30€ CAJ9513Z UNITE HERMETIQUE 1.1 24.20 HMBP CSR 1501 1955 2485 3406
VASQ7698 392.13€ CAJ4519Z UNITE HERMETIQUE 1.5 34.40 HMBP CSR 2353 3009 3756 5030
ZRQ7716 441.16€ CAJ2440Z UNITE HERMETIQUE 1 22.80 LBP CSR 647 945 1166 1876

HMP: Haute moyenne pression
HP: Haute pression
LBP: Basse pression

FREON R404a/R507 220-240V 50HZ

Code Prix Type Marque Puissance HP Cylindrée CM3 Pression Schéma électrique Capacité frigorifique en watt-10°C-5°C0°C+5°C
SEQ616 89.51€ EMT6144GK EMBRACO 1/5 3.97 HMBP CSIR 360 438 530 630
SEQ608 85.02€ NEK6181GK EMBRACO 1/3 7.28 HMBP CSIR 565 689 836 1006
SEQ690 86.26€ NEK6210GK EMBRACO 3/8 8.78 HMBP CSIR 669 821 999 1205
SEQ709 122.29€ AEZ4425Z UNITE HERMETIQUE 1/5 4.50 HMBP CSIR 263 341 432 587
VNQ6987 114.69€ NEK2125GK EMBRACO 1/4 6.20 LBP CSIR 243 314 398 494
VASQ6276 112.12€ NEK6144GK EMBRACO 1/4L 4.52 HMBP CSIR 368 451 549 660
SEQ703 132.23€ NEK6213GK EMBRACO 1/2 12.12 HMBP CSIR 919 1120 1350 1610
CYQ6367 155.22€ NEK2168GK EMBRACO 5/8 14.30 LBP CSR 500 650 828 1030
FQQ6559 144.34€ NEK6217GK EMBRACO 5/8 14.30 HMBP CSR 1120 1360 1630 1932
VGQ6677 192.44€ AE4470Z UNITE HERMETIQUE 1/2 12.00 HMBP CSIR
VGQ6676 180.64€ AE4450Z UNITE HERMETIQUE 3/8 8.80 HMBP CSIR
SEQ912 198.59€ NJ2212GK EMBRACO 1.7 34.37 LBP CSR 945 1333 1775 2273
SEQ617 191.35€ NEK2150GK EMBRACO 5/8 12.12 LBP CSIR 445 570 716 888
SEQ902 175.39€ NT6222GK EMBRACO 3/4 17.40 HMBP CSR 1280 1590 1930 2308
SEQ609 221.62€ NJ2192GK EMBRACO 1.2 26.00 LBP CSR 752 1120 1345 1725
VNQ6902 198.45€ NT6226GK EMBRACO 1 22.40 HMBP CSR 1744 2144 2598 3095
VNQ6916 223.47€ NJ9232GK EMBRACO 1.2 26.20 HMBP CSR 1953 2458 3182 4070
SEQ674 256.69€ CAJ2432Z UNITE HERMETIQUE 3/4 18.30 LBP CSR 510 792 865 1560
CYQ6239 276.42€ CAJ2446Z UNITE HERMETIQUE 1.2 26.10 LBP CSR 797 1194 1423 2290
CYQ6236 287.60€ CAJ2428Z UNITE HERMETIQUE 5/8 15.20 LBP CSR 394 628 762 1261
IQ1517 307.80€ CAJ9480Z UNITE HERMETIQUE 5/8 15.20 HMBP CSR 1009 1284 1607 2172
SEQ990 354.18€ CAJ4517Z UNITE HERMETIQUE 1.2 25.90 HMBP CSR 1776 2273 2857 3860
SEQ999 284.58€ CAJ9510Z UNITE HERMETIQUE 1 18.30 HMBP CSR 1252 1583 1972 2650
ZNEQ6572 360.83€ CAJ2464Z UNITE HERMETIQUE 1.5 34.40 LBP CSR 1076 1605 1902 3012
VASQ6285 348.56€ NJ9238GK EMBRACO 1.5 32.70 HMBP CSR 2485 2956 3509 4563
SEQ601 367.83€ NT6220GK EMBRACO 5/8 14.50 HMBP CSR 1126 1395 1700
SEQ921 394.30€ CAJ9513Z UNITE HERMETIQUE 1.1 24.20 HMBP CSR 1501 1955 2485 3406
VASQ7698 392.13€ CAJ4519Z UNITE HERMETIQUE 1.5 34.40 HMBP CSR 2353 3009 3756 5030
ZRQ7716 441.16€ CAJ2440Z UNITE HERMETIQUE 1 22.80 LBP CSR 647 945 1166 1876

HMP: Haute moyenne pression
HP: Haute pression
LBP: Basse pression

Mbsm_dot_pro_private_PDF_Embaraco-compressor-GesamtlisteTélécharger
Mbsm_dot_pro_private_PDF_compressor-tecumsehTélécharger
Mbsm_dot_pro_private_PDF_REFRIGERATION-COMPRESSORS-EAVB021ECAVTélécharger


COMPRESSOR, ASPERA, NJ2192GK, 1.1/4 HP, 220V, 1PH, R404A, LBP, 1199w

written by Lilianne | 20 December 2021

Compressor ASPERA NJ2192GJ | NJ 2192 GJ

Product replaced the old model NJ2192GK

Refigerant R404A
Working range[stC] LBP -40 do -10
Nominal capacity [W]  (evaporating temperature -23,3C, Condensing temperatur +54,4C) 1199
Power supply 220-240V 50Hz
Engine type CSR
Displacement [cm³] 26,10
Weight [kg] 22

Condensing temperature +55 C

Evaporating Temperature Cooling Capacity +/-5% Power Consumption +/-5% Current Consumption +/-5%
°C (kcal/h) (W) (Btu/h) (W) (A)
-40
-35
-30   797   773 4,37
-25   1084   908 4,92
-20   1413   1045 5,49
-15   1784   1181 6,10
-10   2196   1317 6,72
Refrigerant:
R404A
Mbsm_dot_pro_private_PDF_pdf_NJ219GJTélécharger


All, Aspera, R12, Compressor, 240V~50hZ, EMBRACO, j2170, Compressor Motor, CC 34.37, 1HP

written by Lilianne | 20 December 2021

Aspera R12 Compressors

All Aspera compressors are developed for quite operation, high reliability & compact dimensions. All single phase models are supplied with their respective electrical components. The ‘J’ family come complete with a 1′ rotalock threaded spud connection, except those categorised as air conditioning versions, these like all other compressor families are supplied with brazed connections.

Key Product Features:

Compressor Model Motor (HP) Motor Type Displacement
        (CC)		 Capacity
 (Watts)		    FLC
(Amps)		    LRA
(Amps)		 Cooling
   Type		 Weight
   (kg)		 Height
 (mm)
R12 LPB
NB1116B 1/3 RSIR 8.0 134 1.1 9.5 S 9.8 187
NB2118B 1/4 CSIR 8.9/ 160 0.9 9.3 S 10.4 187
NE2121A 1/4 CSIR 12.0 192 1.8 11.0 F 10.6 200
T2134A 1/2 CSIR 17.4 306 2.4 30.0 F 13.1 191
T2140A 1/2 CSIR 20.4 340 3.0 20.0 F 14.0 221

Related Products

Mbsm_dot_pro_private_PDF_pdf_j2170a-1Télécharger
Mbsm_dot_pro_private_PDF_pdf_j2170a-1-1Télécharger




Codice Descrizione HP Cilindrata Gas Volt Marca
A1116A Compressore Aspera LBP 1/5 8,00 R12 220 ASPERA
A11RV Compressore Necchi LBP 1/2 11,11 R502 220 NECCHI
A11V Compressore Necchi LBP 1/4 11,11 R12 220 NECCHI
A13R Compressore Necchi LBP 5/8 13,34 R502 220 NECCHI
A13RV Compressore Necchi LBP 5/8 13/34 R502 220 NECCHI
A13V Compressore Necchi LBP 1/3 13,35 R12 220 NECCHI
A2116A Compressore Aspera LBP 1/5 8,00 R12 220 ASPERA
A2118A Compressore Aspera LBP 1/4 8,85 R12 220 ASPERA
A2121A Compressore Aspera LBP 1/4 12,00 R12 220 ASPERA
A5160A Compressore Aspera HBP 1/4 8,00 R12 220 ASPERA
A6170A Compressore Aspera HBP 1/4 8,85 R12 220 ASPERA
A9RV Compressore Necchi LBP 1/3 9,29 R502 220 NECCHI
AE41ZF11 Compressore Tecumseh 1/4 8,85 R12 220 Tecumseh
AE4450Z 3/8 8,85 R404A 220 AEZ2411Z 1/3 7,60 R404A 220 AEZ2415Z 1/3 8,10 R404A 220 AEZ4425Y 1/4 7,55 R134A 220 AEZ4425Z 1/5 4,50 R404A 220 AEZ4430Y 1/4 8,85 R134A 220 AEZ4430Z 1/4 5,70 R404A 220 AEZ4440Z 1/3 7,55 R404A 220 AS75AA Compressore Electrolux LBP 1/5 6,64 R134A 220 ELECTROLUX
B6144GK Compressore Aspera HBP 1/5 4,39 R404A 220 ASPERA
BP1046Z Compressore Aspera LBP 1/15 2,85 R134A 220 ASPERA
BP1058Z Compressore Aspera LBP 1/12 3,44 R134A 220 ASPERA
BP1111Z Compressore Aspera LBP 1/6 5,93 R134A 220 ASPERA
BP5125H Compressore Aspera MBP/HBP 1/10 3,40 R134A 220 ASPERA
BP5128H Compressore Embraco HBP 1/10 4,60 R134A 220 EMBRACO
BPM1072Z Compressore Embraco LBP   3,43 R134A 220 EMBRACO
CAE2417Z 3/8 11,30 R404A 220 CAE2420Z 1/2 12,54 R404A 220 CAE2424Z 5/8 15 R404A 220 CAE4440Y 1/3 12,05 R134A 220 CAE4448Y 3/8 14,15 R134A 220 CAE4450Z 3/8 9,40 R404A 220 CAE4456Y 1/2 16,00 R134A 220 CAE9450Z 3/8 9,40 R404A 220 CAE9460Z 1/2 11,30 R404A 220 CAE9470Z 5/8 13,30 R404A 220 CAJ2428Z 5/8 15,20 R404A 220 CAJ2432Z 3/4 18,30 R404A 220 CAJ2440Z 1   R404A 220 CAJ2446Z 1,2 26,15 R404A 220 CAJ2464Z 1,7 34,45 R404A 220 CAJ2T12A 1,2   R404A 220 CAJ4461Y 1/2 18,30 R134A 220 CAJ4476Y 3/4 21,75 R134A 220 CAJ4492Y 3/4 25,95 R134A 220 CAJ4511Y 1 32,70 R134A 220 CAJ4519T 1,5 34,45 R22 220 CAJ4519Z 1,5 34,45 R404A 220 CAJ9480Z 5/8   R404A 220 CAJ9510T 3/4 18,30 R22 220 CAJ9510Z 3/4   R404A 220 CAJ9513T 1,1 24,20 R22 220 CAJ9513Z 1,1   R404A 220 CAJ9517Z 1,2   R404A 220 E2121A Compressore Aspera LBP 1/4 12,00 R12 220 ASPERA
E6187A Compressore Aspera HBP 1/3 12,00 R12 220 ASPERA
E7213F Compressore Aspera AC !/2 12,12 R22 220 ASPERA
E7215F Compressore Aspera AC 1/2 13,25 R22 220 ASPERA
EGL45AA Compressore Electrolux LBP 1/8 4,56 R134A 220 ELECTROLUX
EGL60AA Compressore Electrolux LBP 1/6   R134A 220 ELECTROLUX
EGL80AA Compressore Electrolux LBP 1/5 8,10 R134A 220 ELECTROLUX
EGL80TB Compressore Electrolux M-HBP 1/5   R134A 220 ELECTROLUX
EGL90AA Compressore Electrolux LBP 1/4 9,08 R134A 220 ELECTROLUX
EGL90TB Compressore Electrolux M-HBP 1/4   R134A 220 ELECTROLUX
EGP12FB Compressore Electrolux LBP 1/3   R134A 220 ELECTROLUX
EGP12TB Compressore Electrolux M-HBP 3/8   R134A 220 ELECTROLUX
EM60HNP Compressore Embraco LBP 1/6 5,54 R134A 220 EMBRACO
EMT2117GK Compressore Embraco LBP 1/4 4,50 R404A 220 EMBRACO
EMT2117U Compressore Embraco LBP 1/5 3,97 R290 220 EMBRACO
EMT2121GK Compressore Embraco LBP 1/3 5,19 R404A 220 EMBRACO
EMT2121U Compressore Embraco LBP 1/4 5,57 R290 220 EMBRACO
EMT2125GK Compressore Embraco LBP 1/3 5,96 R404A 220 EMBRACO
EMT2125U Compressore Embraco LBP 1/3 5,96 R290 220 EMBRACO
EMT2130U Compressore Embraco LBP 1/3 6,76 R290 220 EMBRACO
EMT22HLP Compressore Embraco LBP 1/12 3 R134A 220 EMBRACO
EMT36HLP Compressore Embraco LBP 1/8 3,97 R134A 220 EMBRACO
EMT37HDP Compressore Aspera MBP/HBP 1/10 3,30 R134A 220 ASPERA
EMT43HLP Compressore Embraco LBP 1/6 4,85 R134A 220 EMBRACO
EMT45HDR Compressore Aspera MBP/HBP 1/8 3,77 R134A 220 ASPERA
EMT49HLP Compressore Aspera LBP 1/6 6,84 R134A 220 ASPERA
EMT50HDP Compressore Aspera MBP/HBP 1/6 4,99 R134A 220 ASPERA
EMT60HLP Compressore Aspera LBP 1/5 7,87 R134A 220 ASPERA
EMT6144GK Compressore Aspera HBP 1/6 4 R404A 220 ASPERA
EMT6144U Compressore Embraco HMBP 1/5 4,50 R290 220 EMBRACO
EMT6152U Compressore Embraco HMBP 1/4 5,20 R290 220 EMBRACO
EMT6160Z Compressore Embraco HMBP 1/4 6,76 R134A 220 EMBRACO
EMT6165GK Compressore Aspera HBP 1/5 5,20 R404A 220 ASPERA
EMT6165U Compressore Embraco HMBP 1/4 5,96 R290 220 EMBRACO
EMT6170Z Compressore Embraco HMBP 1/4 7,69 R134A 220 EMBRACO
EMT6187Z Compressore Embraco HMBP 1/3 12 R134A 220 EMBRACO
ESM11 Compressore Necchi LBP 1/4 10,63 R12 220 NECCHI
ESM11K Compressore Necchi LBP 1/4 10,63 R12 220 NECCHI
ESM3.5 Compressore Necchi LBP 1/10 3,50 R12 220 NECCHI
ESM4 Compressore Necchi LBP 1/8 4,10 R12 220 NECCHI
ESM5 Compressore Necchi LBP 1/6 5,11 R12 220 NECCHI
ESM8 Compressore Necchi LBP 1/5 7,75 R12 220 NECCHI
ESM8K Compressore Necchi LBP 1/5 7,75 R12 220 NECCHI
ESM9 Compressore Necchi LBP 1/4 9,07 R12 220 NECCHI
FR10G Compressore Danfoss 1/4 9,05 R134A 220 0
FR8 5G Compressore Danfoss 1/4 7,95 R134A 220 0
GD24AA Compressore Electrolux LBP 1/20 2,42 R134A 220 ELECTROLUX
GD30MBA Compressore Electrolux HBP 1/12 3,00 R134A 220 ELECTROLUX
GD36AA Compressore Electrolux LBP 1/12 3,58 R134A 220 ELECTROLUX
GD36MBA Compressore Electrolux HBP 1/10 3,60 R134A 220 ELECTROLUX
GD40AA Compressore Electrolux LBP 1/20 4,03 R134A 220 ELECTROLUX
GL45AA Compressore Electrolux LBP 1/8 4,56 R134A 220 ELECTROLUX
GL45TB 1/6 4,50 R134A 220 ELECTROLUX
GL60TB 1/5 5,70 R134A 220 ELECTROLUX
GL60TG Compressore HBP 1/5 5,67 R134A 220 ELECTROLUX
GL80AA Compressore Electrolux LBP 1/5 8,10 R134A 220 ELECTROLUX
GL80TB 1/4 7,60 R134A 220 ELECTROLUX
GL90AA Compressore Electrolux LBP 1/4 9,08 R134A 220 ELECTROLUX
GL90TB 1/4 8,80 R134A 220 ELECTROLUX
GP12AB Compressore Electrolux LBP 1/3 12,00 R134A 220 ELECTROLUX
GP12TB 1/3 12,00 R134A 220 ELECTROLUX
GP14TB 3/8 14,00 R134A 220 ELECTROLUX
GQR80TG Compressore 1/4 8,1 R134A 220
GR18TB-T 1/2 18,12 R134A 220 ELECTROLUX
GR22TB-T 5/8 21,74 R134A 220 ELECTROLUX
GS26TB-T 3/4 25,95 R134A 220 ELECTROLUX
GS30TB-T 3/4 29,93 R134A 220 ELECTROLUX
GS34TB-T 1 34,25 R134A 220 ELECTROLUX
HGA2426Z   9,5 R404 220
HGA2432Z   11,5 R404 220
HGA2436Z   12,7 R404 220
HGA2446Z   16,1 R404 220
HGA4445Y   9,5 R134 220
HGA4450Y   11,5 R134 220
HGA4460Y   12,7 R134 220
HGA4467Z   9,5 R404 220
HGA4476Y   16,1 R134 220
HGA4480Z   11,5 R404 220
HGA4492Z   12,7 R404 220
HGA4512Z   16,1 R404 220
HMK12AA Compressore ACC LBP   11,20 R600A 220
HTK12AA Compressore ACC LBP   11,14 R600A 220
J2152A Compressore Aspera LBP 5/8 26,00 R12 220 ASPERA
J2152M Compressore Aspera LBP 5/8 26,00 R12 220 ASPERA
J2152Z Compressore Aspera LBP 3/4 27,12 R134A 220 ASPERA
J2170A Compressore Aspera LBP 1 34,37 R12 220 ASPERA
J2170M Compressore Aspera LBP 1 34,37 R12 380 ASPERA
J2178E Compressore Aspera LBP 1 23,50 R22 220 ASPERA
J2190E Compressore Aspera LBP 1,2 27,10 R22 220 ASPERA
J2192GK Compressore Aspera LBP 1,2 26,00 R404A 220 ASPERA
J2192GS Compressore Aspera LBP 1,2 26,00 R404A 380 ASPERA
J2212GK Compressore Aspera LBP 1,7 34,37 R404A 220 ASPERA
J2212GS Compressore Aspera LBP 1,7 34,37 R404A 380 ASPERA
J6220A Compressore Aspera HBP 3/4 25,80 R12 220 ASPERA
J6220Z Compressore Aspera MBP/HBP 3/4 25,80 R134A 220 ASPERA
J6220ZX Compressore Aspera MHP/HBP 3/4 25,80 R134A 380 ASPERA
J6226A Compressore Aspera HBP 1 34,37 R12 220 ASPERA
J6226M Compressore Aspera HBP 1 34,37 R12 380 ASPERA
J6226Z Compressore Aspera MBP/HBP 1 34,37 R134A 220 ASPERA
J6226ZX Compressore Aspera MBP/HBP 1 34,37 R134A 380 ASPERA
J7225F Compressore Aspera AC 1 21,70 R22 220 ASPERA
J7228F Compressore Aspera AC 1,1 23,80 R22 220 ASPERA
J7228P Compressore Aspera AC 1,1 23,80 R22 380 ASPERA
J7231F Compressore Aspera AC 1,2 26,20 R22 220 ASPERA
J7231P Compressore Aspera AC 1,2 26,20 R22 380 ASPERA
J7238E Compressore Aspera AC 1,5 32,65 R22 220
J7238P Compressore Aspera AC 1,5 32,65 R22 380
J7240F Compressore Aspera AC 1,75 34,37 R22 220
J7240P Compressore Aspera AC 1,75 34,37 R22 380
J9226E Compressore Aspera MBP/HBP 1 21,70 R22 220
J9226GK Compressore Aspera HBP 1 21,70 R404A 220
J9226GS Compressore Aspera HBP 1 21,70 R404A 380
J9226P Compressore Aspera MBP/HBP 1 21,70 R22 380
J9232E Compressore Aspera MBP/HBP 1,2 26,20 R22 220
J9232GK Compressore Aspera HBP 1,2 26,14 R404A 220
J9232GS Compressore Aspera HBP 1,2 26,14 R404A 220
J9232P Compressore Aspera MBP/HBP 1,2 26,20 R22 380
J9238E Compressore Aspera MBP/HBP 1,5 32,70 R22 220
J9238GK Compressore Aspera HBP 1,5 32,70 R404A 220
J9238GS Compressore Aspera HBP 1,5 32,70 R404A 380
J9238P Compressore Aspera MBP/HBP 1,5 32,70 R22 380
L40TN 1/6 4,04 R22 220
L45TN 1/5 4,50 R22 220
L57TN 1/4 5,67 R22 220
L76TN 1/4 7,57 R22 220
L88TN 1/3 8,85 R22 220
MK16TB 3/4 15 220
ML40TB 1/6 4 220
ML45TB 1/5 4,5 220
ML60FB Compressore Electrolux LBP 1/5 6,00 220
ML60TB 1/4 5,67 220
ML80TB 1/4 7,57 220
ML90FB Compressore Electrolux LBP 1/4 8,80 220
ML90TB 1/3 8,85 220
MP12FB Compressore Electrolux LBP 1/3 12 220
MP12TB 1/2 12 220
MP14FB Compressore Electrolux LBP 1/2 14 220
MP14TB 5/8 14 220
MR18FB Compressore Electrolux LBP 3/4 18,20 220
MR18TB 1 18,12 220
MR22FB-T Compressore Electrolux LBP 1 21,80 220
MR22TB 1.1 21,74 220
MR26FB-T Compressore Electrolux LBP 1.2 26,15 220
MS26TB 1.2 25,95 220
MS34FB-T Compressore Electrolux LBP 1.5 34,25 220
MX21FB Compressore Cubigel LBP 3/4 20,72 R404A 220
N17RV Compressore Necchi LBP 3/4 17,52 R502 220
N17V Compressore Necchi LBP 1/2 17,52 R12 220
N21RV Compressore Necchi LBP 1 20,68 R502 220
N21V Compressore Necchi LBP 3/4 20,68 R12 220
NB1112Z Compressore Aspera LBP 1/6 6,72 R134A 220
NB1116Z Compressore Aspera LBP 1/5 8,38 R134A 220
NB1118Z Compressore Aspera LBP 1/4 8,00 R134A 220
NB2117GK Compressore Aspera LBP 1/5 4,39 R404A 220
NB2118Z Compressore Aspera LBP 1/4 8,00 R134A 220
NB2121GK Compressore Aspera LBP 1/4 6,06 R404A 220
NB5132Z Compressore Aspera MBP/HBP 1/6 4,85 R134A 220
NB5144Z Compressore Aspera MBP/HBP 1/5 5,90 R134A 220
NB5160Z Compressore Aspera MBP/HBP 1/4 8,00 R134A 220
NB5170Z Compressore Aspera MBP/HBP 1/4 8,85 R134A 220
NB6144E Compressore Aspera MBP/HBP 1/5 5,90 R22 220
NB6144GK Compressore Aspera HBP 1/5 4,39 R404A 220
NB6144Z Compressore Aspera MBP/HBP 1/5 5,90 R134A 220
NB6152E Compressore Aspera MBP/HBP 1/4 4,85 R22 220
NB6152GK Compressore Aspera MBP/HBP 1/4 4,88 R404A 220
NB6160Z Compressore Aspera MBP/HBP 1/4 8,00 R134A 220
NB6165E Compressore Aspera MBP/HBP 1/4 6,00 R22 220
NB6165GK Compressore Aspera HBP 1/4 6,06 R404A 220
NB6170Z Compressore Aspera MBP/HBP 1/4 8,85 R134A 220
NBT1116Y Compressore Embraco LBP   12,12 R600A 220
NE1130Z Compressore Aspera LBP 1/3 12,12 R134A 220
NE2121Z Compressore Aspera LBP 1/4 13,60 R134A 220
NE2125E Compressore Aspera LBP 1/4 8,90 R22 220
NE2125GK Compressore Aspera LBP 1/3 8,90 R404A 220
NE2130Z Compressore Aspera LBP 1/3 15,28 R134A 220
NE2134E Compressore Aspera LBP 1/2 12,00 R22 220
NE2134GK Compressore Aspera LBP 1/2 12,00 R404A 220
NE5187Z Compressore Aspera MBP/HBP 1/3 12,00 R134A 220
NE6144GK Compressore Aspera HBP 1/5 4,39 R404A 220
NE6181E Compressore Aspera MBP/HBP 1/3 7,40 R22 220
NE6181GK Compressore Aspera HBP 1/3 7,38 R404A 220
NE6187Z Compressore Aspera MBP/HBP 1/3 12,00 R134A 220
NE6210E Compressore Aspera MBP/HBP 3/8 8,90 R22 220
NE6210GK Compressore Aspera HBP 3/8 8,90 R404A 220
NE6210Z Compressore Aspera MBP/HBP 1/2 13,60 R134A 220
NE6217GK Compressore Aspera HBP 5/8 14,28 R404A 220
NE9213E Compressore Aspera MBP/HBP 1/2 12,00 R22 220
NE9213GK Compressore Aspera HBP 1/2 12,00 R404A 220
NEK2116Z Compressore Embraco LBP 1/5   R404A 220
NEK2125GK Compressore Embraco LBP 1/3 6,20 R404A 220
NEK2125U Compressore Embraco LBP 1/3 7,28 R290 220
NEK2130GK Compressore Embraco LBP 1/2 7,38 R404A 220
NEK2134GK Compressore Embraco LBP 1/2 8,78 R404A 220
NEK2134U Compressore Embraco LBP 1/2 10,00 R290 220
NEK2140Z Compressore Embraco LBP 1/2 16,80 R134A 220
NEK2150GK Compressore Embraco LBP 5/8 12,12 R404A 220 EMBRACO
NEK2150U Compressore Embraco LBP 1/2 13,54 R290 220
NEK2160U Compressore Embraco LBP 3/4 16,80 R290 220
NEK2168GK Compressore Embraco LBP 3/4 14,28 R404A 220
NEK6144GK Compressore Aspera HBP 1/5 4,39 R404A 220
NEK6160Z Compressore Aspera MBP/HBP 1/4 8,00 R134A 220
NEK6165GK Compressore Aspera HBP 1/4 6,06 R404A 220
NEK6170Y Compressore Aspera MBP/HBP 1/4 14,28 R600A 220
NEK6170Z Compressore Aspera MBP/HBP 1/4 8,85 R134A 220
NEK6181GK Compressore Aspera HBP 1/3 7,38 R404A 220
NEK6181U Compressore Embraco HMBP 1/3 7,28 R290 220
NEK6187Z Compressore Embraco Aspera M-HBP 1/3 10 R134A 220
NEK6210GK Compressore Embraco HBP 3/8 8,90 R404A 220
NEK6210U Compressore Embraco HMBP 3/8 8,78 R290 220
NEK6212Z 1/2 14,30 R134A 220
NEK6213GK Compressore Embraco HBP 1/2 12,12 R404A 220V EMBRACO
NEK6213U Compressore Embraco HMBP 1/2 12,12 R290 220
NEK6214Z Compressore Embraco M-HBP 5/8 16,80 R134A 220
NEK6217GK Compressore Embraco MBP 5/8 14,28 R404A 220
NEK6217U Compressore Embraco HMBP 5/8 14,30 R290 220
NEU2178GK Compressore Aspera 1 16,80 R404A 220 0
NJ2152Z Compressore Aspera LBP 3/4 27,12 R134A 220
NJ2192GK Compressore Aspera LBP 1,2 26 R404A 220
NJ2192GS Compressore Aspera LBP 1,2 26 R404A 380
NJ2212GK Compressore Aspera LBP 1,7 34,37 R404A 220
NJ6226Z Compressore Embraco M-HP 1 34,37 R134A 220
NJ9226GK Compressore Embraco M-HP 1 21,70 R404A 220
NJ9226GS Compressore Embraco M-HP 1 21,70 R404A 380
NJ9232GK Compressore Embraco HBP 1,2 26,14 R404A 220
NJ9232GS Compressore Embraco HBP 1,2 26,14 R404A 380 EMBRACO
NJ9238GK Compressore Embraco HBP 1,5 32,70 R404A 220
NJ9238GS Compressore Embraco HBP 1,5 32,70 R404A 380
NL7F Compressore Danfoss LBP 1/5 7,27 R134A 220
NL8.4MF Compressore Secop LBP-HBP   8,3 R134A 220 0
NLE11KK4 Compressore Secop LBP   11,15 R600A 220 0
NT2160U Compressore Embraco LBP 3/4 17,40 R290 220
NT2168GK Compressore Embraco LBP 3/4 14,50 R404A 220
NT2168GS Compressore Embraco LBP 3/4 14,50 R404A 380
NT2170U Compressore Embraco LBP 3/4 20,44 R290 220
NT2178GK Compressore Embraco LBP 1 17,40 R404A 220
NT2180GK Compressore Embraco LBP 1,1 20,40 R404A 220
NT2180U Compressore Embraco LBP 1 22,40 R290 220
NT2192GK Compressore Embraco LBP 1,2 22,40 R404A 220
NT2192GS Compressore Embraco LBP 1,2 22,40 R404A 380
NT2210U Compressore Embraco LBP 1 1/4 27,80 R290 220
NT2212GK Compressore Embraco LBP 1,7 27,80 R404A 220
NT2212GS Compressore Embraco LBP 1,7 27,80 R404A 380
NT6217U Compressore Embraco HMBP 5/8 14,50 R290 220
NT6220GK Compressore Embraco HBP 3/4 14,50 R404A 220
NT6220U Compressore Embraco HMBP 3/4 17,40 R290 220
NT6222GK Compressore Embraco HBP 1 17,40 R404A 220
NT6222U Compressore Embraco HMBP 1 20,44 R290 220
NT6224U Compressore Embraco HMBP 1 1/4 17,40 R290 220
NT6226GK Compressore Embraco HBP 1 22,40 R404A 220
OF1033A Compressore ACC LBP   5,73 R134A 220
P12TN 1/2 12 R22 220
R18TN 7/8 18,12 R22 220
R18TN-T 3/4 18,12 R22 220
S19UN Compressore Electrolux AC 7/8 18,64 R22 220
S22TN 7/8 21,78 R22 220
S22TN-T 1 21,78 R22 220
S26TN 1,1/4 25,95 R22 220
S26TN-T 1,1 25,95 R22 220
SC15G Compressore Secop 3/8 15,28 R134A 220 0
SC18CL Compressore Danfoss LBP 1 17,69 R404A 220 DANFOSS
SC21CL Compressore Danfoss LBP 1.1 20,95 R404A 220 DANFOSS
T2124A Compressore Aspera LBP 1/4 12,58 R12 220
T2128A Compressore Aspera LBP 1/3 14,50 R12 220
T2134A Compressore Aspera LBP 1/2 17,40 R12 220
T2134Z Compressore Aspera LBP 1/2 19,04 R134A 220
T2140A Compressore Aspera LBP 1/2 20,40 R12 220
T2140E Compressore Aspera LBP 1/2 14,50 R22 220
T2140GK Compressore Aspera LBP 1/2 12,58 R404A 220
T2140Z Compressore Aspera LBP 1/2 22,40 R134A 220
T2155E Compressore Aspera LBP 5/8 17,40 R22 220
T2155GK Compressore Aspera LBP 5/8 14,50 R404A 220
T2168E Compressore Aspera LBP 3/4 20,40 R22 220
T2168GK Compressore Aspera LBP 3/4 17,40 R404A 220
T2178GK Compressore Aspera LBP 1 20,40 R404A 220
T6185A Compressore Aspera HBP 1/3 12,58 R12 220
T6213A Compressore Aspera HBP 1/2 17,40 R12 220
T6213Z Compressore Aspera MBP/HBP 1/2 17,40 R134A 220
T6215A Compressore Aspera HBP 1/2 20,40 R12 220
T6215Z Compressore Aspera MBP/HBP 5/8 20,40 R134A 220
T6217E Compressore Aspera MBP/HBP 5/8 14,50 R22 220
T6217GK Compressore Embraco HBP 5/8 14,51 R404A 220
T6217Z Compressore Aspera MBP/HBP 5/8 22,40 R134A 220
T6220E Compressore Aspera MBP/HBP 3/4 17,40 R22 220
T6220GK Compressore Aspera HBP 3/4 17,40 R404A 220
T6222GK Compressore Aspera HBP 1 20,40 R404A 220
T7220E Compressore Aspera AC 3/4 17,40 R22 220
T7223E Compressore Aspera AC 1 20,40 R22 220
TAJ2428Z 5/8 15,20 R404A 380
TAJ2446Z 1,2 26,15 R404A 380
TAJ2464Z 1,7 34,45 R404A 380
TAJ4461Y 1/2 18,30 R134A 380
TAJ4492Y 3/4 25,95 R134A 380
TAJ4511Y 1 32,70 R134A 380
TAJ4517T 1,2 25,95 R22 380
TAJ4517Z 1,2 25,95 R404A 380
TAJ4519T 1,5 34,45 R22 380
TAJ4519Z 1,5 34,45 R404A 380
TAJ5515E   25,95 R22 380
TAJ9480T 5/8 15,20 R22 380
TAJ9480Z 5/8 15,20 R404A 380
TAJ9510T 3/4 18,30 R22 380
TAJ9510Z 3/4 18,30 R404A 380
TAJ9513T 1/1 24,20 R22 380
TAJ9513Z 1/1 24,20 R404A 380
TL4DL Compressore Danfoss HBP 1/5 3,86 R404A 220
TL4F Compressore Danfoss LBP   3,86 R134A 220
TL5G Compressore Danfoss LBP-HBP   5,08 R134A 220
ZBS1114CY Compressore Aspera 1/5 11,20 R600A 220 0


mbsm.pro, Refrigereation, Compressor, GFF57AA, SEBERIA, Hermetic, Compressor GFF57AA, LBP, R134a, Disp.5.7cc, 1/5HP, Series, LBP

written by Lilianne | 20 December 2021

SEBERIA Hermetic Compressor GFF57AA  LBP  R134a  Disp.5.7cc 1/5HP

#mbsmpro

Description

Detailed Product Description

1.low noise,low power consumption
2.reliable security,high efficiency
3.excellent start performance
4.pass 3C,CE,CB,RoHS
Specifications

Refrigeration Compressor main features: light, compact, high efficiency,good reliability, low noise,light vibration.

Certificate

3C,CE,CB,RoHS


Attractive Function

R134a compressor, evaporating temperature -35 ºC to -15 ºC is suitable for LBP, MBP. With strong overloading ability, good performance ,rapid-speed and strong cooling in low temperature.

Widely use in commercial freezer, commercial ice cream machine, commercial kitchen refrigerator.

Performance Data for GFF Series Refrigeration Compressor

  Model Displ.
(cm3)		 Power
   HP		 Motor Type Volt.-
Frequency		 Cooling
Capacity		    Input
  Power		 Rated
Current  (A)		      COP Oil Charge
Volume
GFF57AA    5.7   1/5 RSIR/RSCR 220-240V~50HZ     166 122/112 0.86/0.62 1.36/1.48 200
GFF66AA    6.6   1/4 RSIR/RSCR 220-240V~50HZ     195 143/132 0.92/0.74 1.36/1.48 200
GFF75AA    7.5  + 1/4 RSIR/RSCR 220-240V~50HZ     215 156/147 1.15/0.83 1.38/1.46 200
GFF86AA    8.6   1/3 RSIR/RSCR 220-240V~50HZ     250 156/148 1.24/0.90 1.40/1.52 200
GFF93AA    9.3   1/3 RSIR/RSCR 220-240V~50HZ     270 156/149 1.25/0.95 1.46/1.54 230
Model Power Hp Displacement Cooling Capacity Motor Type Input Power Rated Current COP
GFM44AA 1/6 4.6 120 RSIR 100 0.70 1.20
GFM53AA 1/6+ 5.3 145 RSIR 114 0.88 1.27
GFM57AA 1/5 5.7 165 RSIR 132 0.97 1.25
GFM75AA 1/4+ 7.5 215 RSIR 159 1.20 1.35
GFM10AA 1/3+ 10.0 295 RSIR 220 1.55 1.34
GFM12AA 1/2- 12.0 330 RSIR 235 1.85 1.40
GFM12AA_S 1/2- 12.0 330 RSIR 235 1.85 1.40

F(F) Series 220-240V/50Hz

GFF44AA 1/6 4.6 130 RSIR/RSCR 99/93 0.65/0.53 1.31/1.40
GFF57AA 1/5 5.7 165 RSIR/RSCR 115/110 0.77/0.57 1.43/1.50
GFF66AA 1/4 6.6 195 RSIR/RSCR 143/129 0.92/0.74 1.36/1.51
GFF75AA 1/4+ 7.5 215 RSIR/RSCR 156/147 1.15/0.83 1.38/1.46
GFF86AA 1/3 8.6 250 RSIR/RSCR 179/164 1.24/0.90 1.40/1.52
GFF93AA 1/3+ 9.3 270 RSIR/RSCR 185/175 1.25/0.95 1.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA 1/7 3.6 110 RSCR 68 0.32 1.62
GFT44AA 1/6 4.4 130 RSCR 81 0.43 1.60
GFT53AA 1/5- 5.3 145 RSCR 96 0.53 1.50
GFT57AA 1/5 5.7 165/168 RSCR 104/98 0.55/0.49 1.60/1.70
GFT61AA 1/5+ 6.1 182 RSCR 107 0.53 1.70
GFT66AA 1/4 6.6 195 RSCR 115/113 0.58/0.55 1.68/1.72
GFT75AA 1/4+ 7.5 220 RSCR 129 0.69 1.70
GFT86AA 1/3 8.6 250 RSCR 148 0.73 1.70
GFT93AA 1/3+ 9.3 270 RSCR 166 0.84 1.65

F Series 115V/60Hz

GFM44AD 1/6+ 4.6 145 RSIR 111 1.62 1.30
GFM53AD 1/4 5.3 185 RSIR 131 1.75 1.30
GFM57AD 1/4 5.7 195 RSIR 138 1.85 1.30
GFM61AD 1/4+ 6.1 210 RSIR 168/150 2.75/1.90 1.25/1.40
GFR40AD 1/6 3.6 120 RSCR 84.6 7/8 1.42
GFR57AD 1/4 5.7 195 RSCR 116 1.2/7 1.55
GFM93AD 1/4 9.3 305 RSIR 218 3.2 1.40

F Series 200-220V/50Hz

GFF53AT 1/6+ 5.3 150 RSCR 106 0.67 1.42
GFF57AT 1/5 5.7 165 RSCR 118 0.86 1.40
GFF66AT 1/4 6.6 196 RSCR 138 1.02 1.42
GFF75AT 1/4+ 7.5 218 RSCR 147 1.07 1.48
GFF86AT 1/3 8.6 250 RSCR 168 1.14 1.49
GFF93AT 1/3+ 9.3 275 RSCR 185 1.23 1.49

F Series 100V-50/60Hz

GFF66AJ 1/4 6.6 195/233 RSCR 135/152 2.15/1.95 1.44/1.53
GFF93AJ 1/3 9.3 270/305 RSCR 190/205 2.95/2.58 1.42/1.49

F Series Compressor M/HBP R134a

220-240V 50/60Hz

GFL60AG_AL 3/4 5.3 550/650 CSIR 245/265 1.88/1.69 2.24/2.45

220-240V 50Hz

GFL80AA 1 7.5 720 CSIR 317 1.96 2.27
GFL10AA 1.2 9.3 880 CSIR 430 2.50 2.0


F Series Compressor LBP R600a

F(M/F) Series 220-240V/50Hz

BFM86AA 1/6+ 8.6 142 RSIR 101 0.82 1.40
BFF86AA 1/6 8.6 142 RSIR/RSCR 93/90 0.65/0.51 1.53/1.58
BFM93AA 1/5 9.3 155 RSIR 108 0.85 1.43
BFF93AA 1/5 9.3 160 RSIR/RSCR 103/98 0.73/0.58 1.55/1.63
BFM10AA 1/5+ 10.0 168 RSIR 122 1.01 1.38
BFF11AA 1/4 10.5 185 RSIR 121 0.70 1.45
BFM12AA 1/4+ 12.0 202 RSIR 144 1.10 1.40
BFF12AA 1/4+ 12.0 202 RSIR/RSCR 130/123 1.04/0.75 1.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA 1/7- 5.7 95 RSCR 53/50 0.28/0.24 1.80/1.90
BFT75AA 1/6 7.5 130 RSCR 75/72 0.35 1.73/1.80
BFT86AA 1/5 8.6 142 RSCR 82/74 0.43/0.36 1.73/1.92
BFT93AA 1/5 9.3 155 RSCR 82 0.50 1.90
BFT10AA 1/5+ 10.0 175 RSCR 100/92 0.60/0.43 1.72/1.90
BFT11AA 1/4 10.0 180 RSCR 100 0.54 1.80
BFT12AA 1/4- 11.5 200/210 RSCR 116/114 0.54/0.52 1.72/1.86

F Series 200-220V/50Hz

BFF75AT 1/6 7.5 130 RSCR 80 0.46 1.63
BFF86AT 1/5 8.6 142 RSCR 91.5 0.65 1.55
BFM93AT 1/5 9.3 158 RSIR 112 0.93 1.41
BFF93AT 1/5 9.3 160 RSCR 100 0.66 1.60
BFF11AT 1/4 11 175 RSCR 110 0.76 1.60
BFT12AT 1/4 11.5 200 RSCR 130 1.0 1.50

F Series 115/60Hz

BFR57AD 1/6 5.7 120 RSCR 75 0.73 1.60
BFR75AD 1/5- 7.5 156 RSCR 92 0.90 1.70
BFM10AD 2/7 10.0 200 RSCR 133 1.55 1.50
BFR10AD 2/7 10.0 195 RSCR 116 1.32 1.65
BFM12AD 1/3 11.0 230 RSCR 153 1.65 1.50

F Series Compressor LBP R290a

220-240V/50Hz

PFT61AA 3/8 6.1 285 RSCR 183 1.55
PFT66AA 3/8 6.6 310 RSCR 200 1.56
PFT66AA© 3/8 6.6 310 RSCR 190 1.65
PFT75AA 1/2- 7.5 350 RSCR 216 1.62
PFT75AA© 1/2- 7.5 350 RSCR 206 1.70
PFT86AA 1/2 8.6 388 RSCR 258 1.50
PFT86AA© 1/2 8.6 421 RSCR 263 1.60
PFT93AA© 3/5 9.3 455 RSCR 284 1.60


F Series Compressor L/MBP R290

220-240V/50Hz

PFL57AA 1/3 5.7 255/490 CSIR 170/235 1.50/2.09
PFL75AA 1/2- 7.5 350/657 CSIR 248/324 1.41/2.03

R134aOil-less Refrigeration Compressor Series,LBP

Model Displ.
(cm3)		 Power
HP		 Motor Type Voltage Cooling
Capacity		 Input
Power		 Rated
Current(A)		 COP Oil Charge
Volume
GFF57AA 5.7 1/5 RSIR/RSCR 220-240V~50HZ 166 122/112 0.86/0.62 1.36/1.48 200
Test Conditions(ASHRAE)
Evaporating temperature -23.3ºC
Condensing temperature 54.4ºC
Subcooling temperature 32.2ºC
Suction temperature 32.2ºC
Ambient temperature 32.2ºC

Attractive Specifications

1.light, compact structure

2.low noise,light vibration

3. adoptable lowtemperature

4. high efficiency,good reliability

Usages

freezing equipment,family ice cream machine,drinking founation etc.

Product Notes

1. Compressor doesn’t be allowed to skew more than 5 degrees while working.

2. The rubber cypriots is allowed be uprooted only when the compressor is in use. Once the rubber cypriots uprooted, compressor must be used immediately not allowing to be stored in the air.

3. The stocking period must be less than half year after the date of production, if longer, you have to recheck and if qualified, it could be shipped.

4. Compressor should install thermal protection, not allowing to change the thermal protection.

5. R134a refrigerant R134a system should be used in line with the dry filter.

6. Compressor should be stored at water proof and aeration warehouse, and it shouldn’t have the rust air.

Mbsm_dot_pro_private_PDF_pdf_GFF57AATélécharger


Compressor, hermetic, medium temperature, 7 HP, r22, POE, MT80HP4, MT80 HP4, 400/3/50, 460/3/60 volt, 1-3/4″ RL – 1-1/8″ x 1-1/4″ RL – 3/4″

written by Lilianne | 20 December 2021

Product details

Gross weight 41.58 kg
Net weight 39.1 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 Nm
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 Nm
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 Nm
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm

Description

Product details

Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525
Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm

Refrigerant: R22, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Product details

Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525
Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Mbsm_dot_pro_private_PDF_MTZ80HP4-1Télécharger
Mbsm_dot_pro_private_PDF_MTZ80HP4Télécharger

Compresseur à piston Danfoss Maneurop MT22JC5PVE (2.0HP / 1PH) Compresseur à piston Danfoss Maneurop MT22JC4AVE (2.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT28JC5PVE (2.3HP / 1PH) Compresseur à piston Danfoss Maneurop MT22JC4AVE (2.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT28JC5PVE (2.3HP / 1PH) Compresseur à piston Danfoss Maneurop 3PH (2.3HP / 1PH) 2.6HP / 1PH) Compresseur à piston Danfoss Maneurop MT32JF4DVE (2.6HP / 3PH); Compresseur à piston Danfoss Maneurop MT36JG5CVE (3.0HP / 1PH) Compresseur à piston Danfoss Maneurop MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Danfoss Maneurop Compresseur à piston MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Danfoss Maneurop Compresseur à piston MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Compresseur à piston Danfoss Maneurop 3KFHB4 (3.6PH) 4.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT56HL4BVE (4. 6HP / 3PH) Compresseur à piston Danfoss Maneurop MT64HM4DVE (5.3HP / 3PH) Compresseur à piston Danfoss Maneurop MT72HN4AVE (6.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT80HP4AVE (6.6HP / 3PH) Compresseur à piston Danfoss Maneurop MT72HN4AVE (6.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT80HP4AVE (6.6HP / 3PH) Compresseur à piston Danfoss Maneurop4.0 Compresseur à piston MT144HV4AVE (12,0HP / 3PH) Compresseur à piston Danfoss Maneurop MT160HW4EVE (13.3HP / 3PH) Compresseur à piston Danfoss Maneurop MTZ22JC5VE (2.0HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ22JC4AVE (2.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ28JE5AVE (2,3 HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ28JE4AVE (2,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ32JF5AVE (2,6 CV / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ32JF4BVE (2.6HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ36JG5AVE (3.0HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ36JG4BVE (3.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ40JH4AVE (3,3 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ50HK4CVE (4,0 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ56HL4BVE (4,6 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ64HM4CVE (5,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ72HN4AVE (6,0 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ80HP4AVE (6,6 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ100HS4VE (8,3 CV / 3 PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ125HU4VE (10.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ144HV4AVE (12,0 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ160HE4AVE (13,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop NTZ048A4LR1A (2.0HP / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ068A4LR1A (3,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ096A4LR1A (4,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ108A4LR1A (5,0 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ136A4LR1A (6,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ215A4LR1A (10,0 HP / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ271A4LR1A (13.0HP / 3PH); [R134A, R404, R507] COMPRESSEUR MANEUROP 2.0HP MT22 MANEUROPE 2.0HP MT22 COMPRESSEUR MANEUROP COMPRESSEUR MTZ-22JE-4VE R404A MANEUROPE 2.30HP MT28JE-5PVE MT28-5VI / MT28-5VM COMPRESSEUR MANEUROP 2.30HP MT28JE-5PVE MT28-5VI / MT28-5VM COMPRESSEUR MANEUROPEUR 2.30H5 / R404A) COMPRESSEUR MANEUROP 2.8HP MTZ32-5VM (R134a / R404A / R507) COMPRESSEUR MANEUROP MT32JF5MVE 2-3 / 4HP ((R22) COMPRESSEUR MANEUROP 3.0HP MT36JG4FVE (MT36-4VI / MT36-4VM) (R22) COMPRESSEUR 3.0HP COMPRESSEUR MT36 MANEUROP 3.3HP MT40JH4EVE COMPRESSEUR MANEUROP 3.3HP MTZ40-JH4AVE COMPRESSEUR (R407A / C / F / R134A / R404A / R507) Compresseur MANEUROP MTZ-36-JG4AVE (R407C / R134a / R404A-R407C / R134a / R404A) -Compresseur JH4AVE (R134a / R404A) – Compresseur 3.3HP 3PH MANEUROP MTZ-44-HJ4AVE (R134a / R404A) – 3. 5HP 3PH MANEUROP 4HP MTZ-50HK-4CVE (MTZ50-4VI / MTZ50-4VM) COMPRESSEUR (R134A / R404A) MANEUROP MTZ56HL3BVE R407c, R134a, R507a, R404a compresseur MANEUROP MT-64-4VM COMPRESSEUR MANEUR 64-4VM COMPRESSEUR MANEUR COMPRESSEUR MT72-4VM COMPRESSEUR MANEUROP MT-80-4VM (6.5HP) Compresseur MANEUROP 6.6HP MT81HP4AVE COMPRESSEUR MANEUROP MTZ80HM4DVE COMPRESSEUR MANEUROP 8.5HP MT100-4VM COMPRESSEUR MANEUROPE 10HP MT100-4VM (MT100HS4DVE) COMPRESSEUR 10HP MT100-4VM (MT100HS4DVE) COMPRESSEUR MT12M10 MANHOP 4-COMPRESSEUR 10HP R22) COMPRESSEUR MANEUROP 10HP MTZ125HW4AVE (R404A / R134A / R507 / R407C) COMPRESSEUR MANEUROPE 12HP MT144-4VM COMPRESSEUR MANEUROPE 13.3HP MT160-4VM (MT160HW4DVE) COMPRESSEUR MANZVMER 10 COMPRESSEUR MANZVM4 (MT160HW4DVE) / 2 ‘) SER. KIT POUR MT-28 MANEUROP 7703009 (1-1 / 8 ‘& 3/4’) SER.



Réfrigerator, Freezer, GR-B562YLC, 420L, 20 Feet, Compressor,1/3HP, R134A, 135G , LG GR-B562YLC, Bio Shield, Vitamin Plus, Carbon deodorizer

written by Lilianne | 20 December 2021

BRAND TYPE Rp (000) FEATURES
ELECTROLUX ERM-1500 Rp.1588 154lt, Semi Auto Defrost, Low Voltage
LG GC-051SA 1220 46 lt Portable refrigerator
LG GN-V191RL Rp.1551 190lt, Semi Auto Defrost, vertical handle
LG GN-V191RLK Rp.- 190lt, Semi Auto Defrost, XL freezer, Door Lock
LG GN-V191SL Rp.1561 190lt, Semi Auto Defrost, horizontal handle
LG GN-V191SLT Rp.1531 190lt, Semi Auto Defrost, Direct Cooling, Magic Crisper
LG GN-V231RL Rp.1721 230lt, Semi Auto Defrost, vertical handle
LG GN-V231SL Rp.1671 230lt, Semi Auto Defrost, horizontal handle
PANASONIC NR-A172D-ST Rp.1539 155 Lt, Alowa +, Colour: Stainless
PANASONIC NR-A172M Rp.1429 155 Lt, Alowa +, Colour: Orange, Night Blue & Savanna

Green
PANASONIC NR-A172S Rp.1399 155 Lt, Alowa +, Colour: Moccachino, Black coffee

hairline
PANASONIC NR-A192D-ST Rp.1639 164 Lt, Alowa +, Colour: Stainless
PANASONIC NR-A192M Rp.1499 164 Lt, Alowa +, Colour: Orange, Night Blue & Savanna

Green
PANASONIC NR-A192S Rp.1499 164 Lt, Alowa +, Colour: Moccachino, Black coffee

hairline
SAMSUNG RA-19PTMU Rp.- 190Lt, Direct cooling, Anti Bacterial Gasket
SAMSUNG RA-19PTPG Rp.- 190Lt, Direct cooling, Anti Bacterial Gasket
SAMSUNG RA-19PTTS Rp.- 190Lt, Door Alarm: 2 min, Anti bacterial gasket
SAMSUNG RA-21PTTS Rp.- 210Lt, Direct cooling, Anti Bacterial Gasket
SANYO SR-D167SB Rp.1290 Semi Auto Defrost, Direct Cooling System
SANYO SR-D182SB Rp.1430 160 lt, Semi auto defrost, 505x510x1160, colour: batik red
SANYO SR-D187SB Rp.1339 Semi Auto Defrost, Direct Cooling System
SANYO SR-D188SB Rp.1490 160 lt, Semi auto defrost, 505x510x1160
SANYO SR-D216SB Rp.1490 Semi auto defrost, 505 x 510 x 1310
SANYO SR-D50 Rp.- 50 lt, 22w, Super silent compressor
SANYO SR-D75 Rp.- 75 lt, 24w, Super silent compressor
SHARP SJ-S170T-RD Rp.1627 SAMURAI series, 160 lt, Anti Bacteria, Semi Auto Defrost
SHARP SJ-S190T-RD Rp.1697 SAMURAI series, 170 lt, Anti Bacteria, Semi Auto Defrost
SHARP SJ-S200T-RD Rp.1747 SAMURAI series, 170 lt, Anti Bacteria, Semi Auto Defrost
SHARP SJ-D17T-SL Rp.1919 Knight series, 150 Lt, Semi Auto Defrost
SHARP SJ-17MKII Rp.1437 170lt, Low voltage, Gripless Handle
SHARP SJ-19MKII Rp.1527 170lt, Low voltage, Gripless Handle
SHARP SJ-22SE Rp.- 180lt, Extra Big Freezer, Semi Auto Defrost
SHARP SJ-G191T Rp.1627 170 Lt, Lemon Series Refrigerator, Low voltage
SHARP SJ-G200T Rp.- Lemon Series Refrigerator, Honeycomb Deodorizer
SHARP SJ-G220T Rp.- Lemon Series Refrigerator, Low voltage
SHARP SJ-K170T Rp.- Lemon Series Refrigerator, Anti Bacteria, Key
SHARP SJ-K190T Rp.- Lemon Series Refrigerator, Anti Bacteria, Key
SHARP SJ-K230T Rp.- Lemon Series Refrigerator, Anti Bacteria, Key
TOSHIBA GR-N9P Rp.1282 70 lt, Portable, Ultra Direct Cooling, Glacio XD7
TOSHIBA GR-N155BC Rp.1281 120 lt, 22 w, Glacio XD7
TOSHIBA GR-N175BC Rp.1422 150 lt, 25 w, Glacio XD7
TOSHIBA GR-N178JZ-T Rp.1422 Glacio Jazz series, Silver ion anti bacteria, Colour:

Titanium
TOSHIBA GR-N178JZ-W Rp.1422 Glacio Jazz series, Silver ion anti bacteria, Colour:

White
TOSHIBA GR-N185BCH Rp.1422 160 lt, 27 w, Glacio XD7
TOSHIBA GR-N188JZ-T Rp.1521 Glacio Jazz series, Silver ion anti bacteria, Colour:

Titanium
TOSHIBA GR-N188JZ-W Rp.1521 Glacio Jazz series, Silver ion anti bacteria, Colour:

White
TOSHIBA GR-N195C Rp.1477 165 lt, 27 w, Glacio XD7
TOSHIBA GR-N198 Rp.- 165 Lt, Glacio XD7, Silver Ion Anti Bacteria, 27W
TOSHIBA GR-N228 Rp.- 180 Lt, Glacio XD7, Silver Ion Anti Bacteria, 30W
TOSHIBA GR-N198W Rp.- 165 Lt, Dispenser, Glacio XD7, Silver Ion Anti Bacteria, 27W
TOSHIBA GR-N228W Rp.- 180 Lt, Dispenser, Glacio XD7, Silver Ion Anti Bacteria, 30W

= FREEZER =

BRAND TYPE Rp (000) FEATURES
SANYO HF-S4LL Rp.1929 120 lt, 4 rak
SANYO HF-S6L Rp.2229 180 lt, 6 rak
TOSHIBA GF-K149 Rp.1881 4 rak, kunci
TOSHIBA GF-K169 Rp.2021 5 rak, kunci
TOSHIBA GF-K189 Rp.2181 6 rak, kunci

= KULKAS 2 PINTU / 2 DOORS REFRIGERATOR =

BRAND TYPE Rp (000) FEATURES
ELECTROLUX ETB-1800PC Rp.2848 180 Lt, Jet Air Cooling System, Deodorizer, Door alarm
ELECTROLUX ETB-2300PC Rp.3488 230 Lt, Multi Airflow System, Deo Fresh Active, Door

alarm
ELECTROLUX ETB-2600PC Rp.4388 260 Lt, Multi Airflow System, Deo Fresh Active, Door

alarm
ELECTROLUX ETB-3200PC Rp.4888 320 Lt, Multi Airflow System, Deo Fresh Active, Door

alarm
ELECTROLUX ETE-4407SD Rp.8088 440 Lt, Jet Air Curtain System, UV Platinum deodorizer
ELECTROLUX ETM-4407PD Rp.7289 440 Lt, Jet Air Curtain System, Active Deo, Colour:

Silver
ELECTROLUX ETM-4407SD Rp.7729 440 Lt, Jet Air Curtain System, Active Deo, Colour:

Stainless
ELECTROLUX ETM-5107SD Rp.8689 520 Lt, Active Hybrid Deodorizer, Colour: Stainless
ELECTROLUX ETE-5107SD Rp.8999 522 Lt, UV Platinum Deo, LED display, Colour: Stainless
LG GN-V212RL Rp.2283 210 lt, Vit + Ion, Multi Airflow Cooling System
LG GN-V212RP Rp.2589 210 Lt, Health+ system, Vitamin+
LG GN-V212SL Rp.2179 210 lt, Multi Airflow Cooling System
LG GN-V212SLT Rp.2179 210 lt, Multi Airflow Cooling System
LG GN-V222RLT Rp.2489 220 lt, Vit + Ion, Multi Airflow Cooling System
LG GN-V222RP Rp.2839 220 Lt, Health+ system, Vitamin+
LG GN-V222SLT Rp.2289 220 lt, Vit + Ion, Multi Airflow Cooling System
LG GN-V262RLC Rp.2849 234 lt, Multi Airflow, Moist Balance Crisper
LG GN-V262RLCT Rp.2849 234 lt, Vitamin Plus, Moist Balance Crisper
LG GN-V282RLC Rp.2979 253 lt, , Multi Airflow, Moist Balance Crisper
LG GN-V282RLCT Rp.2989 253 lt, Vitamin Plus, Moist Balance Crisper
LG GN-B352CLC Rp.3849 291lt Nett capacity, Vitamin Plus, Ion Carbon Deodorizer
LG GN-M352CLN Rp.4349 288 lt Nett capacity, Bio Shield, Vitamin Plus, LED display
LG GN-B392CLC Rp.4139 321lt Nett capacity, Vitamin Plus, Ion Carbon Deodorizer
LG GN-M352CPC Rp.4241 288 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-M352CPC-APG Rp.4229 288 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-M392CPC Rp.4459 318 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-M392CPC-APG Rp.4459 288 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-B492CLC Rp.- 393 lt Nett capacity, Vitamin Plus, Ion Carbon Deodorizer
LG GN-B492GLC Rp.4689 490Lt, Fresh OZone, Bigger Fruits & Veggie Box
LG GN-M492CLN Rp.5369 388 lt Nett capacity, Bio Shield, Vitamin Plus, LED display
LG GN-M492CPC Rp.- 388 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-M492CPC-APG Rp.5239 388 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo,

Flora finishing
LG GN-M492GLH Rp.5551 490Lt, Anti-Bacterial Health Guard, Ext Temperature Control
LG GN-M492GPC Rp.5459 490Lt, Green Ion Door Cooling, External Temperature Control
LG GN-B562GLC Rp.5159 560Lt, Fresh OZone, Bigger Fruits & Veggie Box
LG GN-M562GLH Rp.6081 560Lt, Anti-Bacterial Health Guard, Ext Temperature Control
LG GN-M562GPC Rp.5682 560Lt, Green Ion Door Cooling, External Temperature Control
LG GN-B602GLC Rp.5749 600Lt, Fresh OZone, Bigger Fruits & Veggie Box
LG GN-M602GPC Rp.6172 600Lt, Green Ion Door Cooling, External Temperature Control
LG GN-M602GLH Rp.6581 600Lt, Anti-Bacterial Health Guard, Ext Temperature Control
LG GN-B702GPC Rp.7229 700Lt, Green Ion Door Cooling, External Temperature Control
LG GN-M702GLH Rp.7881 700Lt, Anti-Bacterial Health Guard, Ext Temperature Control
LG GN-M702GPH Rp.8121 700Lt, Anti-Bacterial Health Guard, Ext Temperature Control
PANASONIC NR-B222M Rp.2399 210 Lt, Eco compressor (Energy saving up to 30%),

Colour: Coral Blue, Savanna Green, Saphire Violet
PANASONIC NR-B222R Rp.2399 210 Lt, Eco compressor (Energy saving up to 30%),

Colour: Lily Starlight Silver, Lily Praline Brown
PANASONIC NR-B222S-H Rp.2399 210 Lt, Eco compressor (Energy saving up to 30%),

Colour: Iris Black Hairline
PANASONIC NR-B262M Rp.2582 223 Lt, Eco compressor (Energy saving up to 30%),

Colour: Coral Blue, Savanna Green, Saphire Violet
PANASONIC NR-B262R Rp.2659 223 Lt, Eco compressor (Energy saving up to 30%),

Colour: Lily Starlight Silver, Lily Praline Brown
PANASONIC NR-B262S-H Rp.2659 223 Lt, Eco compressor (Energy saving up to 30%),

Colour: Iris Black Hairline
SAMSUNG RT-2A SRTS1 Rp.- 196LT, Humidity adjustable for optimal freshness and nutrients
SAMSUNG RT-2B SLTS Rp.- 280 Lt, Silver Nano deodorizer, Coolever zone
SAMSUNG RT-2B SRIS Rp.- 280 Lt, Cool Pack, Silver Plus deo, Colour: inox silver
SAMSUNG RT-41TSGL Rp.5441 336 Lt, Cool Pack, Silver Plus deo, Colour: glass door
SAMSUNG RT-45USGL Rp.5781 450 Lt, Cool Pack, Silver Plus deo, Colour: glass door
SANYO SR-D225NSB Rp.2339 Nano Ferrite Filter, Carbon deodorizer
SANYO SR-D245NSB Rp.2649 Nano Ferrite Filter, Carbon deodorizer
SHARP SJ-F201C-HD Rp.2382 2337 BATIQUE Series, 173 Lt, Automatic Defrosting
SHARP SJ-F231C-HD Rp.2633 2547 BATIQUE Series, 180 Lt, Automatic Defrosting
SHARP SJ-F201S-RD Rp.2578 2387 SAMURAI series, 170 lt, Anti bacteria
SHARP SJ-F231S-RD Rp.2615 2582 SAMURAI series, 180 lt, Anti bacteria
SHARP SJ-F201G Rp.- Fresh Lemon Series Refrigerator, Low Voltage
SHARP SJ-F231G – Fresh Lemon Series Refrigerator, Low Voltage
SHARP SJ-F232G – 180 lt, Fresh Lemon Series, Low Voltage
SHARP SJ-F233G – 180 lt, Fresh Lemon Series, Low Voltage
SHARP SJ-F232K Rp.- 180 lt, Fresh Lemon Series, Low Voltage, Door key
SHARP SJ-F240G Rp.- 221 lt, Fresh Lemon Series, Low Voltage
SHARP SJ-D22LV-SL Rp.- 195 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-D27LV-SL Rp.- 210 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-D30LV-SL Rp.- 235 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-291NLV-SL Rp.- 260 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-351NLV-SL Rp.- 300 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-F420G-SS Rp.3727 310 lt, King Samurai Series, No Frost, Deodorizer
SHARP SJ-F420G-PS Rp.3927 310 lt, King Samurai Series, No Frost, Deodorizer
SHARP SJ-431NLV-SL Rp.- 320 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-P470NLV-SL Rp.5757 367 lt, Vetro Series, Plasmacluster Ion, Colour: Silver
SHARP SJ-P470NLV-B Rp.5887 367 lt, Vetro Series, Plasmacluster Ion, Colour: Black
SHARP SJ-P471NLV-GS Rp.6482 367 lt, Vetro Series, Plasmacluster Ion, Colour: Glass Silver
SHARP SJ-P471NLV-GB Rp.6682 367 lt, Vetro Series, Plasmacluster Ion, Colour: Glass Black
SHARP SJ-P570NLV-SL Rp.- 397 lt, Vetro Series, Plasmacluster Ion, Colour: Silver
SHARP SJ-P570NLV-B Rp.- 397 lt, Vetro Series, Plasmacluster Ion, Colour: Black
SHARP SJ-P571NLV-GS Rp.- 397 lt, Vetro Series, Plasmacluster Ion, Colour: Glass Silver
SHARP SJ-P571NLV-GB Rp.- 397 lt, Vetro Series, Plasmacluster Ion, Colour: Glass Black
SHARP SJ-461NLV Rp.- 367 lt, SALSA Series Refrigerator, Hybrid Cooling System
SHARP SJ-P461NLV Rp.- 443 lt, SALSA Series Refrigerator, Plasmacluster Ion System
SHARP SJ-561NLV Rp.- 397 lt, SALSA Series Refrigerator, Hybrid Cooling System
SHARP SJ-P561NLV Rp.- 478 lt, SALSA Series Refrigerator, Plasmacluster Ion System
SHARP SJ-P581NLV Rp.- 437 lt, SALSA Series Refrigerator, Hybrid Cooling System,

Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-P651NLV Rp.- 473 lt, SALSA Series Refrigerator, Hybrid Cooling System,

Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-P751NLV Rp.- 514 lt, SALSA Series Refrigerator, Hybrid Cooling System,

Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-P851NLV Rp.- 555 lt, SALSA Series Refrigerator, Hybrid Cooling System,

Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-WS400T Rp.9347 326 Lt, Dual Swing Door, Energy Saving with Inverter
TOSHIBA GR-M245E Rp.2141 180 lt, No Frost, Glacio XD7
TOSHIBA GR-M245D Rp.2391 180 lt, No Frost, Deodorizer, Glacio XD7
TOSHIBA GR-M265D Rp.2731 216 lt, No Frost, Deodorizer, Glacio XD7
TOSHIBA GR-M258 Rp.2291 216 lt Glacio Jazz, No Frost, Low Voltage
TOSHIBA GR-R21ET Rp.- Import, 180 lt, Health series, Platinum Deodorizer
TOSHIBA GR-R25ET Rp.3491 Import, 228 lt, Health series, Platinum Deodorizer
TOSHIBA GR-R35ED Rp.4551 Import, 280 lt, Hybrid Plasma Deo, AG+ Crisper
TOSHIBA GR-R42ED Rp.4921 Import, 320 lt, Hybrid Plasma Deo, AG+ Crisper
TOSHIBA GR-R48ED Rp.- Import, 401 lt, Hybrid Plasma Deo
TOSHIBA GR-R51ED Rp.5621 Import, 401 lt, Hybrid Plasma Deo, AG+ Crisper
TOSHIBA GR-R58ED Rp.7381 6661 Import/Complete Built-up, 500 lt, Hybrid Plasma Deo
TOSHIBA GR-R66ED Rp.8725 8261 Import/Complete Built-up, 590 lt, Hybrid Plasma Deo
TOSHIBA GR-RG43ED Rp.- Import, 355 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-RG46ED Rp.5621 Import, 410 lt, Hybrid Plasma Deo, AG+ Crisper, Glass door
TOSHIBA GR-RG48ED Rp.- Import, 410 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-RG51ED Rp.- Import, 500 lt, Hybrid Plasma Deo, AG+ Crisper, Glass door
TOSHIBA GR-RG58ED Rp.7851 Import, 500 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-RG66ED Rp.8961 Import, 590 lt, Hybrid Plasma Deo, Glass door

= KULKAS 3 PINTU / 3 DOORS REFRIGERATOR =

BRAND TYPE Rp (000) FEATURES
ELECTROLUX ETB-2603PC Rp.4889 Deo Fresh Active, Multi Airflow System
TOSHIBA GR-R50EDV Rp.6129 Import/Complete Built-up, 3 doors
SIDE-BY-SIDE REFRIGERATOR
ELECTROLUX ESE-5608TA Rp.13828 555 lt, Crisper with Adjustable Humidity Control
LG GC-B207BLQ Rp.9222 581 lt, Icebeam Door Cooling System, LED Display
LG GC-B207CLC Rp.8151 581 lt, Bio Shield, Moist Balance™ Crisper, Digital Sensor
LG GC-B207CPC Rp.8289 8222 581 lt, Green Health Plus, Moist Balance™ Crisper
LG GC-L207BLK Rp.12889 LED Lighting, Tall ice & water dispenser
LG GR-B207BLQ Rp.8879 581 lt, LED Temperature Control, Bio Shield, Super Cool
LG GR-B217LGJ Rp.15382 581 lt, LED Temperature Control, Bio Shield Flower

Pattern
LG GR-L207BLK Rp.- 567 lt, Icebeam Door Cooling System, Water & Ice Dispenser
MODENA RF-2561 Rp.8333 618Lt, Humidity controller crisper, Multi air flow
MODENA RF-2565 Rp.14343 608Lt, LED Temperature control, Ice & water dispenser
MODENA RF-4862 Rp.16663 610Lt, 4 Doors, Fast Freeze, Active Vita Crisper

= SHOWCASE COOLER =

BRAND TYPE Rp (000) FEATURES
DOMO DS 1200 Rp.2453 200 Lt showcase display cooler, 0 °C-10 °C
DOMO DS 1250 Rp.2757 2543 250 Lt showcase display cooler, 0 °C-10 °C
DOMO DS 1300 Rp.2853 300 Lt showcase display cooler, 0 °C-10 °C
DOMO DS 1400 Rp.3354 400 Lt showcase display cooler, 0 °C-10 °C
GEA EXPO 50 Rp.1491 50 Lt, 2°C – 8°C, fan cooling system, 1shelf
GEA EXPO 90 Rp.1991 90 Lt, 2°C – 8°C, fan cooling system, 4 shelves
GEA EXPO 136 Rp.2221 136 Lt, 2°C – 8°C, fan cooling system, 3 shelves
GEA EXPO 218HS Rp.2951 210 Lt, 2°C – 8°C, fan cooling system, 4 shelves
GEA EXPO 268HS Rp.3076 260 Lt, 2°C – 8°C, fan cooling system, 5 shelves
GEA EXPO 280P Rp.3471 280 Lt, 2°C – 8°C, No Frost Premium series, 4 shelves
GEA EXPO 368HS Rp.3481 360 Lt, 2°C – 8°C, fan cooling system, 5 shelves
GEA EXPO 450P Rp.5476 400 Lt, 2°C – 8°C, No Frost Premium series, 5 shelves
GEA EXPO 480 Rp.6332 6221 480 Lt, 2°C – 8°C, No Frost Premium, 6 shelves
GEA EXPO 200 Rp.- 200 Lt, 2°C – 8°C, fan cooling system, 3 shelves
GEA EXPO 250 Rp.- 250 Lt, 2°C – 8°C, fan cooling system, 5 shelves
GEA EXPO 350 Rp.- 350 Lt, 2°C – 8°C, fan cooling system, 5 shelves
GEA EXPO 420DD Rp.- 420 Lt, 2°C – 8°C, fan cooling system, 5 shelves
MODENA SC-1130 Rp.2048 130 Lt showcase display cooler, 0 °C-10 °C
MODENA SC-1150 Rp.2281 150 Lt showcase display cooler, 0 °C-10 °C
MODENA SC-1180 Rp.2423 180 Lt showcase display cooler, 0 °C-10 °C
MODENA SC-1200 Rp.- 200 Lt showcase display cooler, 0 °C-10 °C
MODENA SC-1260 Rp.3740- 2953 260 Lt showcase display cooler, 0 °C-10 °C
MODENA VM-1320 Rp.- 320 Lt showcase display cooler, 0 °C-10 °C
MODENA VM-1350 Rp.3583 350 Lt showcase display cooler, 0 °C-10 °C
MODENA VM-1380 Rp.- 380 Lt showcase display cooler, 0 °C-10 °C
MODENA VM-1410 4982 4084 410 Lt showcase display cooler, 0 °C-10 °C
POLYTRON SCP-122LE Rp.2328 Big capacity, Non CFC, Low energy consumption
POLYTRON SCP-123 Rp.2448 Big capacity, Non CFC, Low energy consumption, Bottle

opener
POLYTRON SCP-150 Rp.2528 180 Lt, Non CFC, Low energy consumption, 540x660x1525mm
POLYTRON SCP-151 Rp.2559 Big capacity, Non CFC, Low energy consumption, Bottle

opener
POLYTRON SCP-156T Rp.2480 170Lt, IPM LED Timer, 3 Shelves
POLYTRON SCP-157T Rp.2580 170Lt, IPM LED Timer, 3 Shelves, Bottle opener,

Door handle
POLYTRON SCP-161 Rp.2728 180 Lt, 3 Shelves, Bottle opener, No Frost
POLYTRON SCP-1170 Rp.2687 230 Lt, Non CFC, Low energy consumption,

540x660x1785mm
POLYTRON SCP-1171 Rp.2788 Big capacity, Non CFC, Low energy consumption, Bottle

opener
POLYTRON SCP-1181 Rp.2968 230 Lt, 4 Shelves, Bottle opener, No Frost
SANSIO SAN-238SC Rp.3543 4 Shelves, 55 x 54 x 177 cm
SANSIO SAN-288SC Rp.3853 4 Shelves, 58 x 61 x 182 cm
SANSIO SAN-368SC Rp.4283 4 Shelves, 58 x 61 x 198 cm
SANSIO SAN-278SC Rp.4543 4 Shelves Premium series display showcase cooler
SANSIO SAN-378SC Rp.4993 5 Shelves Premium series display showcase cooler
SANSIO SAN-248 Rp.- 248 Lt, 4 Shelves, Premium series display showcase cooler
SANSIO SAN-338 Rp.- 338 Lt, 5 Shelves, Premium series display showcase cooler
SANSIO SAN-428SC Rp.5733 408 Lt, 5 Shelves, Premium series display showcase cooler
SANSIO SAN-888 Rp.8943 888 Lt, 2 Doors, 10 Shelves, 0° to +10°C
SANSIO SAN-1188 Rp.9953 1188 Lt, 2 Doors, 10 Shelves, 0° to +10°C
SANSIO SAN-1488 Rp.1488 Lt, 2 Doors, 10 Shelves, 0° to +10°C
Back to top

= CHEST FREEZER =

BRAND TYPE Rp (000) FEATURES
DOMO DF 1100 Rp.1644 100 Lt chest freezer, – 18°C
DOMO DF 1155 Rp.1829 155 Lt chest freezer, – 18°C
DOMO DF 1205 Rp.2044 205 Lt chest freezer, – 25°C
DOMO DF 1300 Rp.2734 300 Lt chest freezer, – 25°C
GEA AB-108 Rp.1972 105 Lt, – 28°C, Lock
GEA AB-201TX Rp.2629 194 Lt, – 28°C, Lock
GEA AB-201TC Rp.3081 194 Lt, – 28°C, Lock, suhu bisa dirubah ke chiller +2°

s/d +8ºC
GEA AB-271 Rp.3151 295 Lt, – 28°C, Lock
GEA AB-396T Rp.4121 386 Lt, – 28°C, Lock
GEA AB-506T Rp.4831 492 Lt, – 28°C, Lock
GEA AB-600T Rp.5341 607 Lt, – 28°C, Lock
GEA AB-600TC Rp.6521 607 Lt, – 28°C, Lock
GEA AB-750T Rp.5961 750 Lt, – 28°C, Lock
MODENA MD-10 Rp.2188 100 Lt chest freezer, – 25°C
MODENA MD-15 Rp.2383 155 Lt chest freezer, – 25°C
MODENA MD-20A Rp.2695 205 Lt chest freezer, – 25°C
MODENA MD-30 Rp.3883 300 Lt chest freezer, – 25°C
MODENA MD-45 Rp.5033 450 Lt chest freezer, – 25°C
MODENA MD-60 Rp.5433 600 Lt chest freezer, – 25°C
MODENA MD-75 Rp.6783 750 Lt chest freezer, – 25°C
MODENA MD-95 Rp.8983 950 Lt chest freezer, – 25°C
SANSIO SAN-148F Rp.2033 142 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-218F Rp.2543 215 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-318F Rp.3343 318 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-418F Rp.4543 418 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-518F Rp.5653 518 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-618F Rp.5399 618 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-818F Rp.7273 818 Lt, Temperatur range: -25° to -32°C
SANSIO SAN-1288F Rp.- 1188 Lt, Temperatur range: -25° to -32°C
SANYO SF-C11KW Rp.1939 108 Lt, Key lock, Non CFC
SANYO SF-C15KW Rp.2039 150 Lt, Key lock, Non CFC
SANYO SF-C18KW Rp.2139 178 Lt, Key lock, Non CFC
SANYO SF-C21KW Rp.2439 208 Lt, Key lock, Non CFC
SANYO SF-C24KW Rp.2669 245 Lt, Key lock, Non CFC
SANYO SF-C30KW Rp.3249 298 Lt, Key lock, Non CFC
Back to top

= SLIDING GLASS FREEZER =

BRAND TYPE Rp (000) FEATURES
GEA SD-100 Rp.1871 Sliding flat glass,100 Lt, -18 to – 25°C
GEA SD-132P Rp.2191 Sliding flat glass,132 Lt, -18 to – 25°C
GEA SD-186 Rp.2371 Sliding flat glass,186 Lt, -18 to – 25°C
GEA SD-260BY Rp.3891 Sliding curve glass, 260 Lt, -15 to – 20°C
GEA SLD-200 Rp.3172 Sliding curve glass, 200 Lt, -18 to – 25°C
GEA SLD-258 Rp.- Sliding curve glass, 258 Lt, -18 to – 25°C
GEA SLD-308 Rp.4122 Sliding curve glass, 308 Lt, -18 to – 25°C
GEA SLD-388 Rp.4922 Sliding curve glass, 388 Lt, -18 to – 25°C
MODENA MC-23 Rp.4012 Sliding curve glass, 230 Lt freezer, – 25°C
MODENA MC-30 Rp.4627 Sliding curve glass, 300 Lt freezer, – 25°C
SANSIO SAN-268SF Rp.3683 Sliding curve glass, 268 Lt, -18° to -25°C
SANSIO SAN-308SF Rp.4383 Sliding curve glass, 308 Lt, -18° to -25°C
LG GN-V262RVC 260 lt, Vit + Ion, Multi Airflow Cooling System
LG GN-V282RLC 290 lt, , Multi Airflow, Moist Balance Crisper –
LG GN-V282RLCT 253 lt, Vitamin Plus, Moist Balance Crisper
LG GN-V282RVC 290 lt, Vit + Ion, Multi Airflow Cooling System –
LG GN-V282RNB 290 lt, Vit + Ion, Multi Airflow Cooling System –
LG GN-B352CLC 291lt Nett capacity, Vitamin Plus, Ion Carbon Deodoriser
LG GN-B352YVC 350 lt, Bio Shield, Green Ion Door Cooling, Vitamin Plus
LG GN-B392CLC 321lt Nett capacity, Vitamin Plus, Ion Carbon Deodoriser
LG GN-B392YLC 380 lt, Bio Shield, Vitamin Plus, Green Ion deodorizer
LG GN-B492CLC 393 lt Nett capacity, Vitamin Plus, Ion Carbon Deodoriser
LG GN-M352CLN 288 lt Nett capacity, Bio Shield, Vitamin Plus, LED display
LG GN-M352CPC 288 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo, Flora finishing
LG GN-M352YPC 315 lt, Bio Shield, Vitamin Plus, Green Ion deodorizer –
LG GN-M392CPC 318 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo, Flora finishing
LG GN-M392YLQ 346 lt, Bio Shield, Vitamin Plus, Green Ion door cooling –
LG GN-M392YPC 346 lt, Bio Shield, Vitamin Plus, Green Ion deodorizer –
LG GN-M492CLN 388 lt Nett capacity, Bio Shield, Vitamin Plus, LED display
LG GN-M492CPC 388 lt Nett capacity, Door Cooling, Vit Plus, Green Ion Deo, Flora finishing
LG GN-M492YPC 422 lt, Bio Shield, Vitamin Plus, Green Ion deodorizer –
LG GR-B352CLC 350 lt, Bio Shield, Vitamin Plus, Z-Deodoriser
LG GR-B392YLC 339 lt, Green Ion Door Cooling, Vitamin Plus, Deo –
LG GR-B492CLC 470 lt, Bio Shield, Vitamin Plus, Z-Deodoriser
LG GR-B492YLC 393 lt, Bio Shield, Vitamin Plus, Z-Deodorizer –
LG GR-B562YLC 428 lt, Bio Shield, Vitamin Plus, Carbon deodorizer
LG GR-B602YLC 660 lt, Bio Shield, Vitamin Plus, Carbon deodorizer
LG GR-M562YSQ 423 Lt netto, Wide LED Temperature Control, Vitamin Plus, Green ion Deodorizer
LG GR-M602YSQ 463 Lt netto, Wide LED Temperature Control, Vitamin Plus, Green ion Deodorizer
LG GR-M652YSQ 566 Lt, Wide LED Temperature Control, Vitamin Plus, Green ion Deodorizer
LG GR-M712YLA 710 Lt, Wide LED Temperature Control, Vitamin Plus, Green ion Deodorizer, Door Alarm –
LG GR-M712YSQ 640 Lt, Wide LED Temperature Control, Vitamin Plus, Green ion Deodorizer
PANASONIC NR-B21KX 200 lt, 99w, Organix Antibacteria Cassette,
PANASONIC NR-B23CF-S 195 lt, 99w, DEON (Honey Comb Deodorizer & Ion)
PANASONIC NR-B25BF-S 229 lt, 110w, DEON (Honey Comb Deodorizer & Ion)
PANASONIC NR-B25GF-S 229 lt, 110w, DEON (Honey Comb Deodorizer & Ion)
PANASONIC NR-B203G 204 lt, MagicTop, N- Bio Deodorizer
PANASONIC NR-B243G 234 lt, MagicTop, N-Bio Deodorizer
PANASONIC NR-B283G 279 lt, MagicTop, N-Bio Deodorizer
PANASONIC NR-B363M 355 lt, Multi Hygienic System , MagicTop
PANASONIC NR-B403V Import/Complete Built-up, 395lt, MagicTop, Inventer
PANASONIC NR-B591 Import/Complete Built-up, 506 lt, MagicTop –
PANASONIC NR-BW414VSWA 418 lt, Inverter – saving 40% energy, MagicTop
PANASONIC NR-BW464VSWA 463 lt, Inverter – saving 40% energy, MagicTop
PANASONIC NR-BY551XSWA 495 lt, Inverter – saving 40% energy, MagicTop
PANASONIC NR-BW601XSWA 546 lt, Inverter – saving 40% energy, MagicTop
SAMSUNG RT-2A SDIS 230 Lt, Cool Pack, Silver Nano deodorizer
SAMSUNG RT-2A SATS 230 Lt, Cool Pack, Silver plus deodorizer
SAMSUNG RT-2A SDSS 230 Lt, Cool Pack, Silver Nano deodorizer
SAMSUNG RT-2A SDTS 230 Lt, Cool Pack, Silver plus deodorizer
SAMSUNG RT-2B SATS 280 Lt, Cool Pack, Silver Plus deodorizer, Coolever zone
SAMSUNG RT-2B SDTS 280 Lt, Cool Pack, Silver Nano deodorizer, Coolever zone
SAMSUNG RT-30SCTS 300 Lt, Big Plus, Cool Pack, Silver Plus deodorizer
SAMSUNG RT-30SSIS 300 Lt, Evergreen Zone, Cool Pack, Silver Plus deodorizer
SAMSUNG RT-30SSPN 300 Lt, Evergreen Zone, UV Chilled Room, Silver Plus deo
SAMSUNG RT-37SCTS 370 Lt, Big Plus, Cool Pack, Silver Plus deodorizer
SAMSUNG RT-37SSPN 370 Lt, Evergreen Zone, UV Chilled Room, Silver Plus deo
SAMSUNG RT-41MAIS 410 Lt, i-Cool, Coolever Zone, Silver Nano deodorizer
SAMSUNG RT-45MAIS 450 Lt, i-Cool, Coolever Zone, Silver Nano deodorizer
SANYO SR-D225N 179 lt, Nano Ferrite Filter, Carbon deodorizer
SANYO SR-D245N 216 lt, Nano Ferrite Filter, Carbon deodorizer
SHARP SJ-F201S-RD SAMURAI series, 170 lt, Anti bacteria
SHARP SJ-F231S-RD SAMURAI series, 180 lt, Anti bacteria
SHARP SJ-F200G Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-F200M Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-F201G Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-F201M Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-F231G Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-F231M Fresh Lemon Series Refrigerator, Low Voltage –
SHARP SJ-D22LV-SL 195 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-D27LV-SL 210 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-D30LV-SL 235 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-291NLV-SL 260 lt, Lemon Series Refrigerator, Low Voltage –
SHARP SJ-351NLV-SL 300 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-431NLV-SL 320 lt, Lemon Series Refrigerator, Low Voltage
SHARP SJ-460NLV 367 lt, SALSA Series Refrigerator, Nano Deodorizer –
SHARP SJ-461NLV 367 lt, SALSA Series Refrigerator, Hybrid Cooling System
SHARP SJ-P450NLV 370 lt, Plasmacluster Ion System
SHARP SJ-P461NLV 443 lt, SALSA Series Refrigerator, Plasmacluster Ion System
SHARP SJ-560NLV 367 lt, SALSA Series Refrigerator, Nano Deodorizer –
SHARP SJ-561NLV 397 lt, SALSA Series Refrigerator, Hybrid Cooling System
SHARP SJ-P510NLV 409 lt, Plasmacluster Ion System
SHARP SJ-P561NLV 478 lt, SALSA Series Refrigerator, Plasmacluster Ion System
SHARP SJ-580NLV 437 lt, SALSA Series Refrigerator, Hybrid Cooling System –
SHARP SJ-P580NLV 375 lt, Lemon Series no frost with plasma cluster
SHARP SJ-P581NLV 437 lt, SALSA Series Refrigerator, Hybrid Cooling System, Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-650NLV 473 lt, SALSA Series Refrigerator, Hybrid Cooling System –
SHARP SJ-P651NLV 473 lt, SALSA Series Refrigerator, Hybrid Cooling System, Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-750NLV 514 lt, SALSA Series Refrigerator, Hybrid Cooling System –
SHARP SJ-P750NLV 514 lt, SALSA Series Plasmacluster Refrigerator –
SHARP SJ-P751NLV 514 lt, SALSA Series Refrigerator, Hybrid Cooling System, Plasmacluster, Advance LEC Control, Nano Deodorizer
SHARP SJ-P812NLV 524 lt, Plasmacluster Ion System –
SHARP SJ-850NLV 555 lt, SALSA Series Refrigerator, Hybrid Cooling System –
SHARP SJ-P851NLV 555 lt, SALSA Series Refrigerator, Hybrid Cooling System, Plasmacluster, Advance LEC Control, Nano Deodorizer
TOSHIBA GR-K242 180 lt, 75W
TOSHIBA GR-K242PD 180 lt, 75W, Platinum Deodorizer
TOSHIBA GR-K262 216 lt, 90W
TOSHIBA GR-K262PD 216 lt, 90W, Platinum Deodorizer
TOSHIBA GR-M245E 180 lt, No Frost
TOSHIBA GR-M245D 180 lt, No Frost, Deodorizer
TOSHIBA GR-M265D 216 lt, No Frost, Deodorizer
TOSHIBA GR-R21ET Import, 180 lt, Health series, Platinum Deodorizer
TOSHIBA GR-R25ET Import, 228 lt, Health series, Platinum Deodorizer
TOSHIBA GR-R34ED Import/Complete Built-up, 280 lt, Hybrid Plasma Deo
TOSHIBA GR-R39ED Import/Complete Built-up, 320 lt, Hybrid Plasma Deo
TOSHIBA GR-RG43ED Import, 355 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-R48ED Import, 401 lt, Hybrid Plasma Deo
TOSHIBA GR-RG48ED Import, 410 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-R58ED Import/Complete Built-up, 500 lt, Hybrid Plasma Deo
TOSHIBA GR-R66ED Import/Complete Built-up, 590 lt, Hybrid Plasma Deo
TOSHIBA GR-RG58ED Import, 500 lt, Hybrid Plasma Deo, Glass door
TOSHIBA GR-RG66ED Import, 590 lt, Hybrid Plasma Deo, Glass door

KULKAS 3 PINTU / 3 DOORS REFRIGERATOR
ELECTROLUX ETB-2603PC Deo Fresh Active, Multi Airflow System
TOSHIBA GR-R47EDV Import/Complete Built-up, 3 doors, 470 lt

SIDE-BY-SIDE REFRIGERATOR
ELECTROLUX ERE-6100SX 580 lt, Fully Electronic Control with LCD Display, Wine rack
LG GR-A207WPJ 581 lt, Green LED, In-Door Ice Maker
LG GR-B207FLC 581 lt, Bio Shield, Moist Balance™ Crisper
LG GR-B207WLQ 581 lt, LED Temperature Control, Bio Shield
LG GR-B217LGJ 581 lt, LED Temperature Control, Bio Shield Flower Pattern
LG GR-L207WLK 567 lt, Tall Ice & Water Dispenser
LG GR-R207WTC 584 lt, Electric Control with 6 Sensor

Mbsm_dot_pro_private_PDF_lg-gr-b562ylc-owner-s-manualTélécharger
Application Deep Freezer MA88LAEP
Fridge Compressor – Capacity 410 – 450 liters
Displacement 8.8
Cooling Capacity 235 (kcal/h), 273W, 933 (Btu/h), 0.367HP
Input Power 227W
COP W/W 1.2
EER Btu/Wh 4.11
Motor type CSIR-Relay
Starting Device (PTC) QL2-5-55
Motor Protector (OLP) 4TM314TFB
(Capacitor) Starting/Surge Voltage 50 / 275
(OIL) Viscosity cst/ Qty(cc) 22/220
Cooling type FC
Compressor Height 177mm
Net Weight 9.3 kg.


Compressor, LG, GK113P, R410A, 220-240V, 50Hz, 9600 Btu / h, capacitor 35 uF, 1Piston

written by Lilianne | 20 December 2021
Refrigerant Type Frequency Voltage Series Model Cooling  Capacity Input EER COP Test
Condition
Btu/hr Watts Watts Btu/W.hr W/W
R410A 1piston 50Hz 1Φ, 220/240V GA GA066P 5,270 1,544 555 9.5 2.78 ASHRAE
GA080P 6,550 1,919 668 9.81 2.87 ASHRAE
GA086P 7,050 2,066 735 9.59 2.81 ASHRAE
GAB GAB040P 3,130 917 340 9.2 2.7 ASHRAE
GAB042P 3,410 999 355 9.6 2.81 ASHRAE
GAB048P 3,985 1,168 403 9.9 2.9 ASHRAE
GAB072P 5,950 1,744 590 10.08 2.95 ASHRAE
GK GK086P 6,900 2,022 726 9.5 2.79 ASHRAE
GK094P 7,700 2,256 794 9.7 2.84 ASHRAE
GK102P 8,250 2,418 841 9.81 2.87 ASHRAE
GK113P 9,000 2,637 914 9.85 2.89 ASHRAE
GK120P 9,700 2,842 1,010 9.6 2.81 ASHRAE
GK141P 11,350 3,326 1,170 9.7 2.84 ASHRAE
GK151P 12,200 3,575 1,245 9.8 2.87 ASHRAE
GKS GKS094P 7,700 2,256 755 10.2 2.99 ASHRAE
GKS108P 8,700 2,549 838 10.38 3.04 ASHRAE
GKS113P 8,750 2,564 920 9.51 2.79 ASHRAE
GKS134P 10,900 3,194 1,100 9.91 2.9 ASHRAE
GKS141P 11,500 3,370 1,116 10.3 3.02 ASHRAE
GKS151P 12,230 3,584 1,245 9.82 2.88 ASHRAE
GJ GJ176P 14,400 4,220 1,485 9.7 2.84 ASHRAE
GJ196P 16,500 4,835 1,705 9.68 2.84 ASHRAE
GJ208P 17,500 5,128 1,750 10 2.93 ASHRAE
GJ222P 18,500 5,421 1,867 9.91 2.9 ASHRAE
GJ230P 19,100 5,597 1,949 9.8 2.87 ASHRAE
Mbsm_dot_pro_private_PDF_gk113pTélécharger
