Mbsm.pro, compressor, Hermetic, Tecumseh, 2 HP, Tecumseh Refrigeration Compressor, Fh4524f, r22, MHBP, ++big

Category: compressor
written by Lilianne | 16 May 2022

Size and Dimensions

Connection Size (Liquid) 1/2″ Valve
Connection Size (Suction) 5/8″ Valve

Inclusions and Exclusions

Inclusions Anti-Vibration mounts supplied
Crankcase Heater
Oil Sight Glass
Suction and Discharge Rotalock Valves

Features

Anti-Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Fan cooling required on all models
All models suit capillary tube or expansion valve operation
Rotalock suction and discharge valves on FH/TFH and TAG models
Model Number FH4524F
Compressor Model FH4524F
Product Range FH Series

Technical Information

General Information

Refrigerant Type R417A, R422B
Application MHBP
Motor Type CSR
Compressor Horsepower 2 HP
Compressor Displacement 43.5 cm3/rev
Oil Charge 1330 ml
Specifications Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.
VBIS Tag RE-Co-He

Power Information

Compressor Phase 1
Compressor Electrical Supply 240V
Compressor Hertz 50Hz
Compressor MOC 15.9 A
Power Supply 240V

R22 Capacity Data

-15 Deg C 1841 W
-10 Deg C 2456 W
-5 Deg C 3219 W
0 Deg C 4131 W
15 Deg C 7759 W

Mbsm_dot_pro_private_PDF_fh4524f-1Télécharger


Mbsm.pro, Condensing unit, 114E2134, Compressor Danfoss  TL3GXN0, COND.UNIT 220V, 1/8 hp, Mhbp, Hbp, r134a

Category: Archivation,compressor
written by Lilianne | 16 May 2022

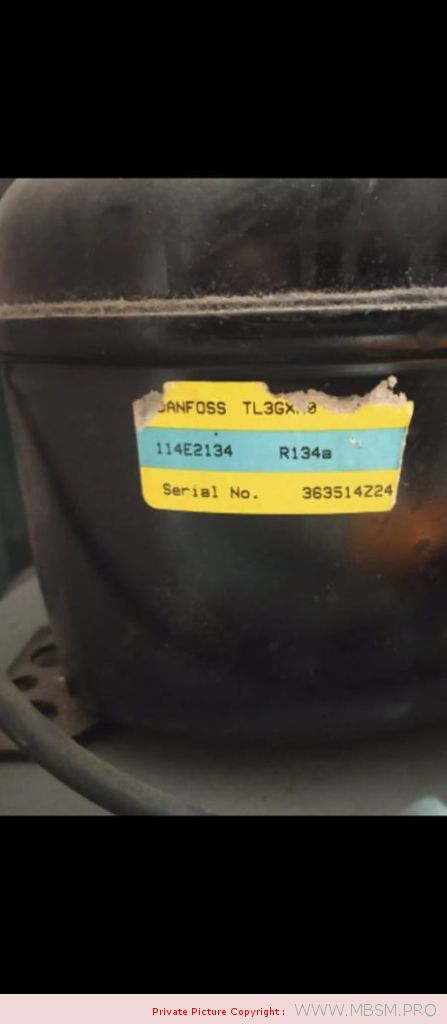

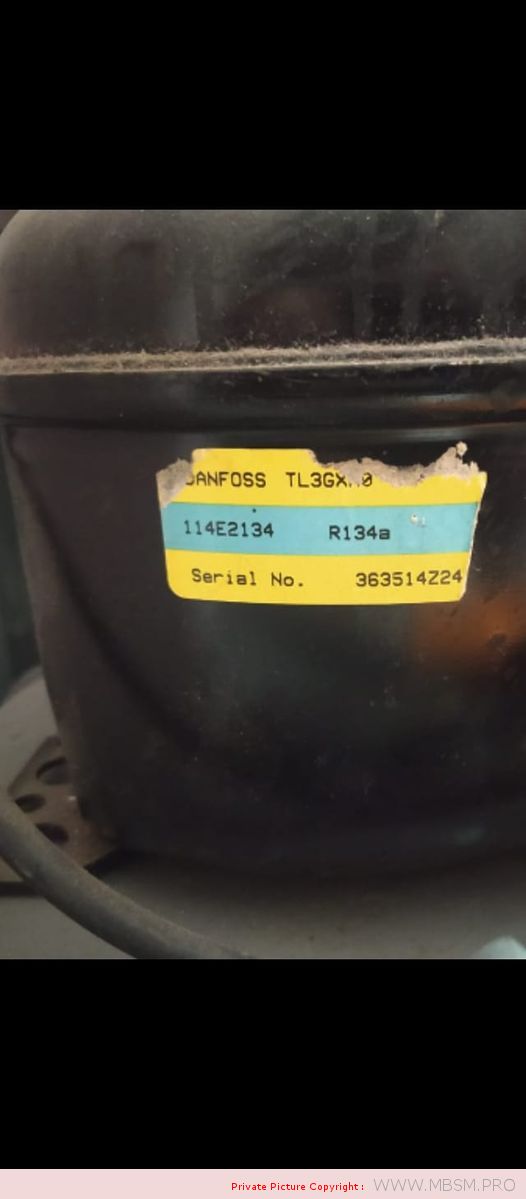

114E2134  Danfoss  TL3GXN0 COND.UNIT 220V

Compressor Danfoss Secop TL3G, TL3GX, 101GL4350 MBP / HBP -R134a, 220-240V/1/50/60Hz, discharge 3.13 cm3, motor type RSCR / CSIR, oil type POE, oil charge 280 cm3, 40.9 W at -25 / 55° C, LRA 5.1 A, maximum refrigerant charge 400 g, height: 163 mm, weight 6.8 kg

refrigerant R134a
cooling capacity* 108W
power consumption* 97 w
power consumption* 0.70A
supply voltage* 230VAC / 50Hz
Pipe connection suction side 6mm
Pipe connection pressure side 5mm

 Supplied complete with start-up electronics and mounting kit (including rubber dampers).

* Information at: Evaporation temperature (To): -10°C, condensing temperature: 55 °C, suction gas temperature: 32 °C, subcooling: 0K, frequency: 50 Hz, refrigerant: R 134a

Refrigerant: R134a max 400g
Power range(W): 0 – 108 W
Working area: HBP MBP
Design type: Hermetic
Model series: TL
Power supply: 230 V
Oil type: POE
Engine type: CSIR RSCR
Article condition: New
Info: Oil filled
Shipping weight: 8,50 Kg
Contents: 1,00 Pieces
Dimensions ( height ): 16,30 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: Danfoss Secop
Model: TL3G
Modelname: 101GL4350
Modellname 3: TL3GX
Stroke volume (cm3): 3,86
Cooling capacity (W): 58
Max. Starting current (A): 5,1
Engine type: RSCR
Note: Maximum refrigerant amount 400 g
Oil quantity (l): 0,28
Compressor type: Piston
Alternative: BP5128Z, B5128Z, PW3.5HK9



Mbsm.pro, Compressor, Danfoss, 1/4hp++, mhbp, Gl90an, R134a, 220-230v, 1ph, 50hz , Csir

Category: compressor
written by Lilianne | 16 May 2022

Technical data

  • Model: GL90TB
  • Refrigerant Gas: R-134a
  • Pression/temperature: MHBP
  • Power: 1/4 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 8.85 cm³
  • Power Cons. -25°C: 165 W
  • Power Cons. -10°C: 230 W
  • Power Cons. -5°C: 252 W
  • Efficiency 0°C: 276 W
  • Power Cons. +5°C: 299 W
  • Power Cons. +10°C: 324 W
  • T° Condensation: 40 °C
  • Cooling Cap. -25°C: 175 Kcal/h
  • Cooling Cap. -20°C: 242 Kcal/h
  • Cooling Cap. -15°C: 322 Kcal/h
  • Cooling Cap. -10°C: 416 Kcal/h
  • Cooling Cap. -5°C: 523 Kcal/h
  • Cooling Cap. 0°C: 643 Kcal/h
  • Cooling Cap. 5°C: 777 Kcal/h
  • Cooling Cap. 7.2°C: 840 Kcal/h
  • Cooling Cap. 10°C: 924 Kcal/h
  • Test Type: Ashare 46

Extra data

Length (L): 240mm
Length (L1): 192mm
Width (W): 162mm
Height (h): 191mm

Mbsm_dot_pro_private_PDF_GL90ANTélécharger



Mbsm.pro, compressor, Toshiba compressor, GMCC, Air Conditioner Rotary ,Toshiba, rotary compressor, PH420G2CS, PH420G2CS-4KU1, 1 PH – 50Hz – 220/240V, 25317 Btu/h, 7420w, 3 Hp++, r22 / 410A, MHBP, Fixed speed

Category: air conditioner,compressor
written by Lilianne | 16 May 2022

Voltage: 1Φ – 50Hz – 220/240V

Model Displ.(cm3/rev) Cooling capacity Power (W) COP (W/W) Capacitor
W Btu/h
PH420G2CS-4KU1 42.3 7420 25317 2390 3.10 50/400


Data Sheet

Power supply 220/240 V-50 Hz-1 Ph
Displacement 42,3 cm3
Cooling capacity at ASHRAE HT conditions, R22 7,42 kW
Refrigerant R22
Suction pipe 1/2″
Discharge pipe 3/8″
Weight 20,2 kg
Rated current 11,8 A
LRA 65 A
MCC 17,12 A
Type of oil SUNISO 4GSD / NM56EP
Sound level ≤72 dB
Application MHBP
Technology Fixed speed
Maximum discharge temperature 125 ºC
Maximum shell bottom temperature 115 ºC
Resistance of coils Main:1,24 Ω/ Aux:2,77 Ω
Type of motor cooling Suction gas
Motor type 1-Ph Induction motor (PSC)
Motor protection type UP3-68 / HPA754
Speed 2900 rpm
Vibration 3,8 m/s2

PH420G2CS-4KU1 Air Conditional Compressor

Product Introduction:

Model PH420G2CS-4KU1
Voltage 220/240V/1ph/50Hz
Refrigerant gas R22
Displ. 30.8
Cooling capacity(Btu/h) 20370
COP(W/W) 4.52
Capacitor(μF/V) 55/400
Compressor Height(mm) 310
Dischargr Pipe ID (mm) 9.8
Sucition Pipe ID(mm) 12.9
Weight 23.3kg
Package 48sets/pallet

Application:
This compressor is mainly used in household air conditional.
Characteristics:
(A)Turbine anxial and redial flexibility techonology ensures reliability and efficiency of compressors.
(B)Wide range of rpoduct capacity.
(C)Lower cycle oil rate.
(D)Lower noise and vibration levels.

Mbsm_dot_pro_private_PDF_ph420G2CSTélécharger

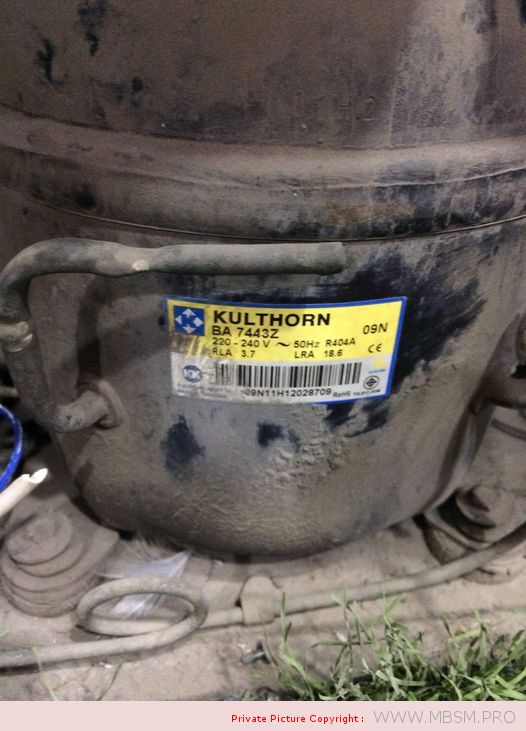

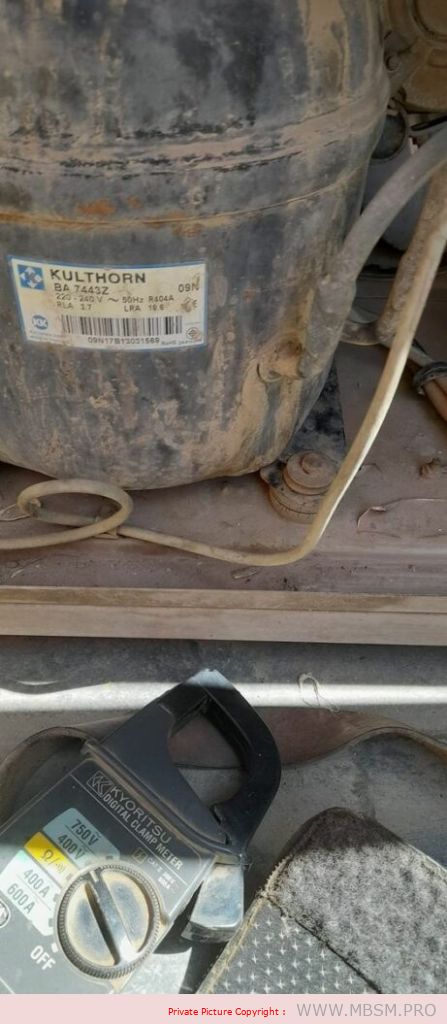

Mbsm.pro, Compressor, Kulthorn, BA Series, BA7443Z, 5/8 hp++, MHBP, R404A, 770 W, 3900 Btu, 1/2 hp–, 1 PH, 220 V, Water Coolers

Category: compressor
written by Lilianne | 16 May 2022

Fiche technique

Alimentation 220/240 V-50 Hz-1 Ph
Déplacement 14,14 cm3
Capacité frigorifique en conditions ASHRAE MT, R404A 1,14 kW
Réfrigérant R404A
Aspiration 3/8″
Refoulement 1/4″
Poids 13,10 kg
Courant nominal 3,70 A
LRA 22,00 A
Type d\’huile Polyolester
Huile de recharge 467 ml
Accessories Condensateur de démarrage 88-106 μF 330 V, Condensateur permanent 20 μF 440 V (RCDC0052), Condensateur permanent 20 μF/440 V, Relais de démarrage
Application MHBP
Résistance à bobines Main:7,24 Ω/ Aux:3,26 Ω
Type de refroidissement moteur Gaz d’aspiration
Type moteur CSR
Type protection moteur External

Mbsm_dot_pro_private_PDF_ba7443ZTélécharger
Stock Code BA7443Z2
Brand Supco
Voltage (V) 208 / 230 VAC
Phase Single Phase
HP Rating: 5 / 8 HP
Oil Charge (oz.) 467 cc.
Motor High Start Torque

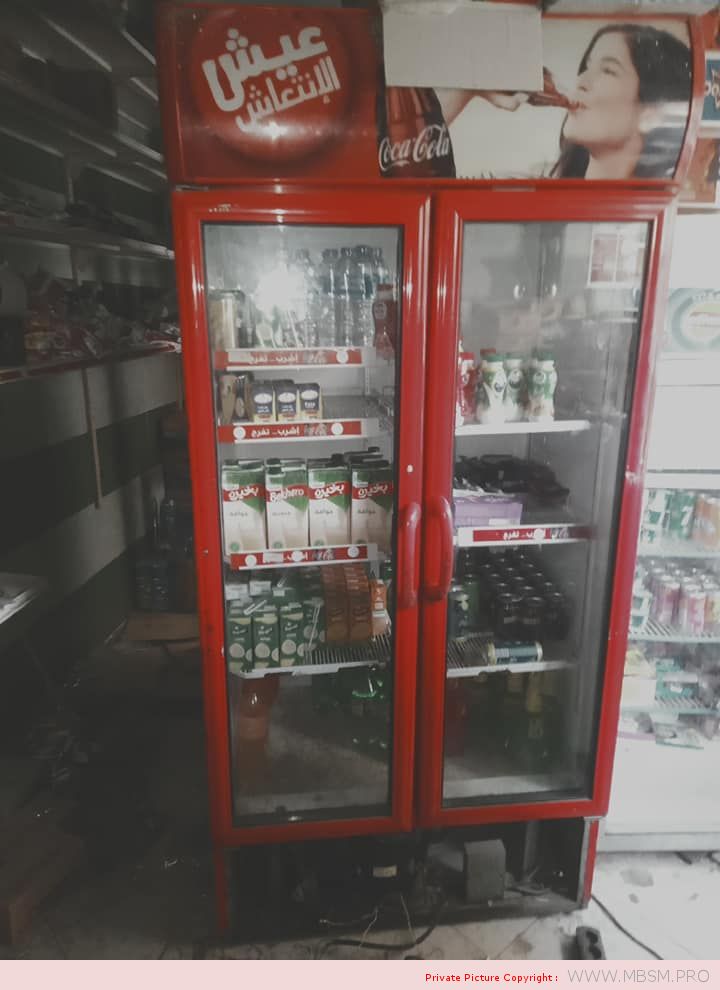

Operates Refrigerators； Water Coolers

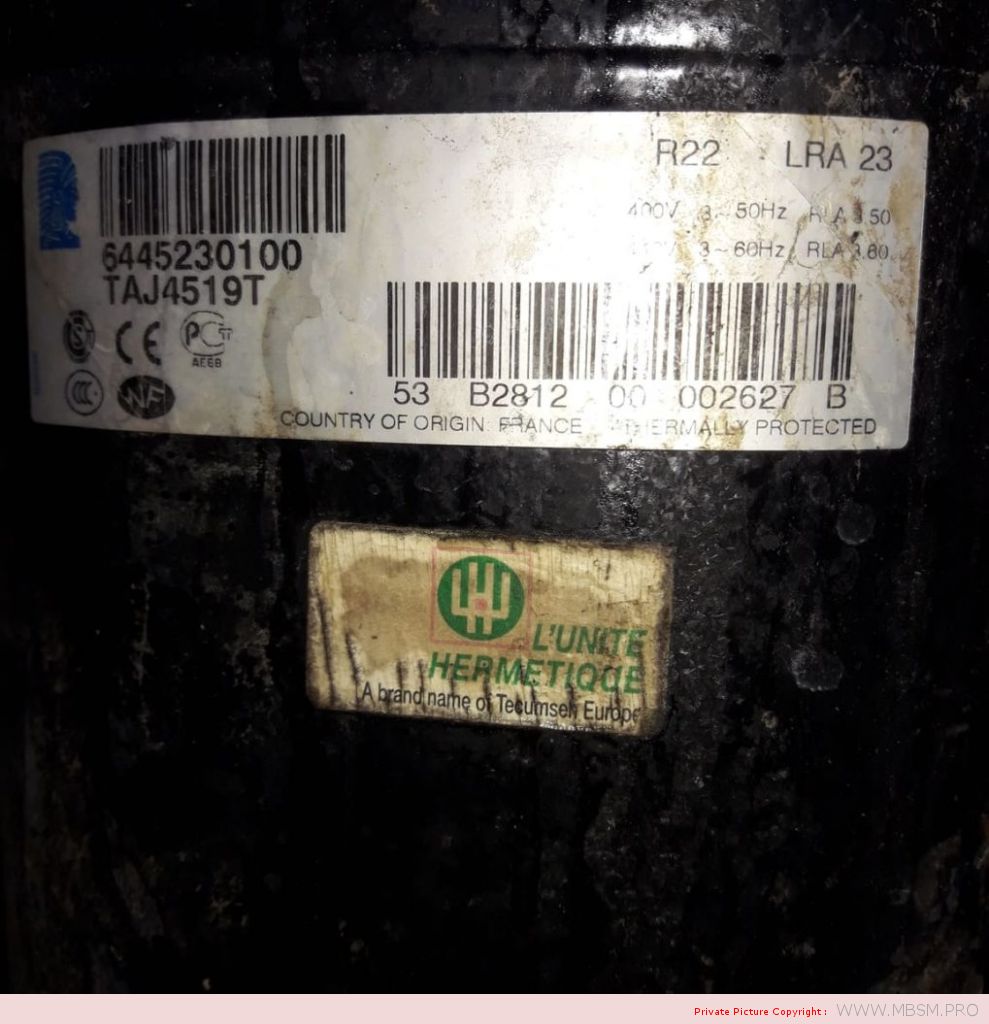

Mbsm.pro, Compressor, Tecumseh, TAJ4519T, 16157 Btu/h, 1 1/2 hp, 1.5 hp, big++, MHBP, 34.45m3, 380V/50Hz, R22, 3 PH

Category: compressor
written by Lilianne | 16 May 2022

DESCRIPTION 220V

Engine type: 1 1/2 CV , 3 ph

Type of ventilation: Fan

Voltage code: KZ

Displacement: 34.4

Oil type: Mineral

Viscosity: 68

Oil load: 475 ml

Application: HBP

Voltage: 220V3_60HZ

LRA: 38

DESCRIPTION 440V

Mbsm_dot_pro_private_PDF_taj4519t_www_mbsm_pro_48091_htmlTélécharger
Mbsm_dot_pro_private_PDF_taj4519tTélécharger

Engine type: 1 1/2 CV, 3 ph

Type of ventilation: Fan

Voltage code: TZ

Displacement: 34.4

Oil type: Mineral

Viscosity: 68

Oil load: 475 ml

Application: HBP

Voltage: 440V3_60HZ

LRA: 23

Size and Dimensions

Connection Size (Discharge) 1/2″ Valve
Connection Size (Suction) 5/8″ Valve
R22 Capacity @ -15 Deg C 1780 W
R22 Capacity @ -10 Deg C 2304 W
R22 Capacity @ -5 Deg C 2911 W
R22 Capacity @ 0 Deg C 3601 W
R22 Capacity @ 7.2 Deg C 4738 W
R22 Capacity @ 15 Deg C 6162 W



Mbsm.pro, Compressor, Embraco, Aspera, MA8DCV04, NT6220GK, Hermetic reciprocating compressor , R404a, MHBP, 17.4CC, 3/4Hp, ++big, 240V~50Hz

Category: compressor
written by Lilianne | 16 May 2022

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 3/4 hp
Displacement 14,50 cm3
Application MHBP ++
Cooling capacity at ASHRAE conditions, R404A/R507 2,12 kW
Cooling capacity at EN12900 MT conditions, R404A/R507 1,10 kW
Refrigerant R404A, R452A, R507A
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 220 mm
LRA 29,50 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

Télécharger


Mbsm.pro, Compressor, Embraco, Refrigeration, NT6215Z, 1/2 Hp, MHBP, Big ++, R134A, CSIR, 115 V

Category: compressor
written by Lilianne | 16 May 2022

This is an EMBRACO Refrigeration Compressor NT6215Z1 1/2 HP that can be used as as replacement for a True Part# 842405.  This compressor comes with a start capacitor, relay, and overloard and comes pre-charged with oil.
H.P.  1/2
Volts  115
Phase  1
Hertz  60
Refrigeration  R-134

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 1/2 hp
Displacement 17,39 cm3
Application MHBP
Cooling capacity at ASHRAE conditions, R134a 1,62 kW
Cooling capacity at EN12900 HT conditions, R134a 1,25 kW
Cooling capacity at EN12900 MT conditions, R134a 0,80 kW
Refrigerant R134a
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 207 mm
LRA 21,00 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External

Mbsm_dot_pro_private_PDF_compresseur-embraco-aspera-NT6215ZTélécharger
