Mitsubishi, Electric, fixed frequency, NH41VNHT 2.55HP, single-phase, 220V, rotary, air condition, 26000 btu/h
Mbsm.pro, Compressor, an36vbfmt, Mitsubishi, 3.55 hp, r140a, 33000 btu, 220 v, 1ph
R410a refrigeration compressor mitsubishi scroll
|
Brand
|
Mitsubishi
|
|
Model
|
AN36VBFMT
|
|
TYPE
|
Mitsubishi RotatifCompresseur
|
|
horse power
|
3.55hp
|
|
Power supply
|
220v -240v
|
|
Phase
|
1
|
|
Frequency
|
50hz
|
|
Refrigerant
|
R410a
|
|
Black color
|
Noir
|
|
Minimum order quantity
|
1
|
|
Year
|
2020
|
Mbsm.pro, R-410A, Fixed Speed, Rotary, Compressor, Mitsubishi, NN21YDAMT, 1.74 hp, 18000 btu, 3 Ph, 380 v
Basis Info.
Nn21ydamt Mitsubishi Origin Japan
Product Description
Mitsubishi Refrigeration Compressor Nn21ydamt
| Brand | Mitsubishi |
| model | Nn21ydamt |
| Horse power | 1.74HP |
| power (kw) | 4.85 |
| Refrigeration capacity (kw) | 6.5 |
| Refrigeration capacity (kcal/h) | 17.1 |
| MOQ | 1 piece |
| color | black |
| place of orignal | japan |
| package | wooden case |
| certificate | THIS |
| frequency | 50hz |
- TECHNICAL DATA 2
Mbsm_dot_pro_private_PDF_nn21ydamt
| Weight | 29,9 kg |
|---|---|
| Dimensions | 28 × 28 × 38 cm |
| Voltage | 380/415 V / 50 hz / 3 ph |
| Power | 5.5 kW |
| Refrigerant | R410A |
| BTU | 18772 |
| Horse power | 1.74 hp |
| Displacement | 21 cm3 |
| COP | 3.09 |
| Current | 3 A |
| Tecnology | On/Off |
R-410A Fixed Speed Rotary Compressor
| Models | Capacity | Input | Norminal Output | COP | EER | Run Cap | Weight | Oil | ||||
| W | Kcl/hr | Btu/hr | Watt | Amps | HP | kW | W/W | Btu/hr* w | mF/VAC | kgs | cc | |
| NN21YDAMT | 5200 | 4471 | 17742 | 1840 | 3.00 | 1.7 | 1.30 | 2.83 | 9.64 | – | 20.4 | 1200 |
Mbsm.pro, Compressor, Mitsubish, Mitsubishi, Rotary, TS31VAEC, R22, 1.5 Ton, 18000BTU, 1 PH, 220 v
Product Specification
| Horse Power | 1.5 Ton |
| Brand | Mitsubish |
| Compressor Technology | Rotary Compressor |
| Model Name/Number | TS31VAEC |
| Rental Available | No |
| Spares Available | No |
| Is It Portable | Yes |
| Installation/After Sales Service Available | No |
| btu | 18000 btu |
| Phase | Single |
| No. Of Cylinder | 1 |
| Cylinder Type | Round |
| Voltage | 220 V |
| Material | Copper |
| Accessories | No |
| Usage/Application | AC |
| Color | Black |
| Horse Power | 1.5 Ton |
| Brand | Mitsubish |
| Compressor Technology | Rotary Compressor |
| Model Name/Number | TS31VAEC |
Air conditioner
Power supply 1Ph / 220-240V/50HZ
Cooling Capacity 4800
Capacity tolerance
Input 2020
Rated current 8.8
EER 2.38
Heating Capacity 5300
Capacity tolerance
Input 1880
Rated current 8.5
COP 2.82
Max. input consumption 2500
13
Starting current 37 .6
Compressor Model TS31VAEC
Type Rotary
Brand mitsubishi
Capacity 5340
Input 1728
Rated current(RLA) 7.8
Locked rotor Amp(LRA) 37.6
Thermal protector INTERNAL
Capacitor 50
Refrigerant oil 1160
Indoor unit Indoor fan motor Model YFNPG25-4
Brand BAOLI
Output Power 25
Capacitor 1.5
Speed (Hi/Mi/Lo) 1300/1150/1000
Indoor coil a.Number of row 2
b.Tube pitch(a )x row pitch(b) 21×12.7
c.Fin spacing 1.5
d.Fin material Hydrophilic
e.Tube outside dia.and material ?7?inner Grooved
f.Coil length x height x width 680*336*25.4
Indoor air flow (Hi/Mi/Lo) 850/700/650
Rated input Power(cooling/heating) 50
Rated current (cooling/heating) 0.25
Moisture Removal 1.8
Noise level(Hi/Mi/Lo) 43/40/ 37
Unit dimension (W*H*D) 860x292x205
Packing (W*H*D) 930X365X280
Net weight 12
Gross weight 14
Outdoor unit Outdoor fan motor Model GAL6P38A-KWD
Brand GALANZ
Output Power 38
Capacitor 2.5
Speed 830±30
Outdoor coil a .Number of row 2
b.Tube pitch(a)x row pitch(b) 21×12.7
c.Fin spacing 1.5mm
d.Fin material Hydrophilic
e.Tube outside dia.and material ?7/24U?inner Grooved
f.Coil length x height x width 680(730)*508*44
Noise level 56dB(A)
Unit dimension (W*H*D) 770x520x280
Packing (W*H*D) 910X620X380
Net weight 41
Gross weight 44.5
Refrigerant type R22
Refrigerant charge 1140
Design pressure 2.7
Refrigerant pipe Liquid side 6.35
Gas side 12.7
Max. refrigerant pipe length 10
Max. difference in level 5
Operation temperature range 16?43
Ambient temperature range -7~48
Application area 20-32

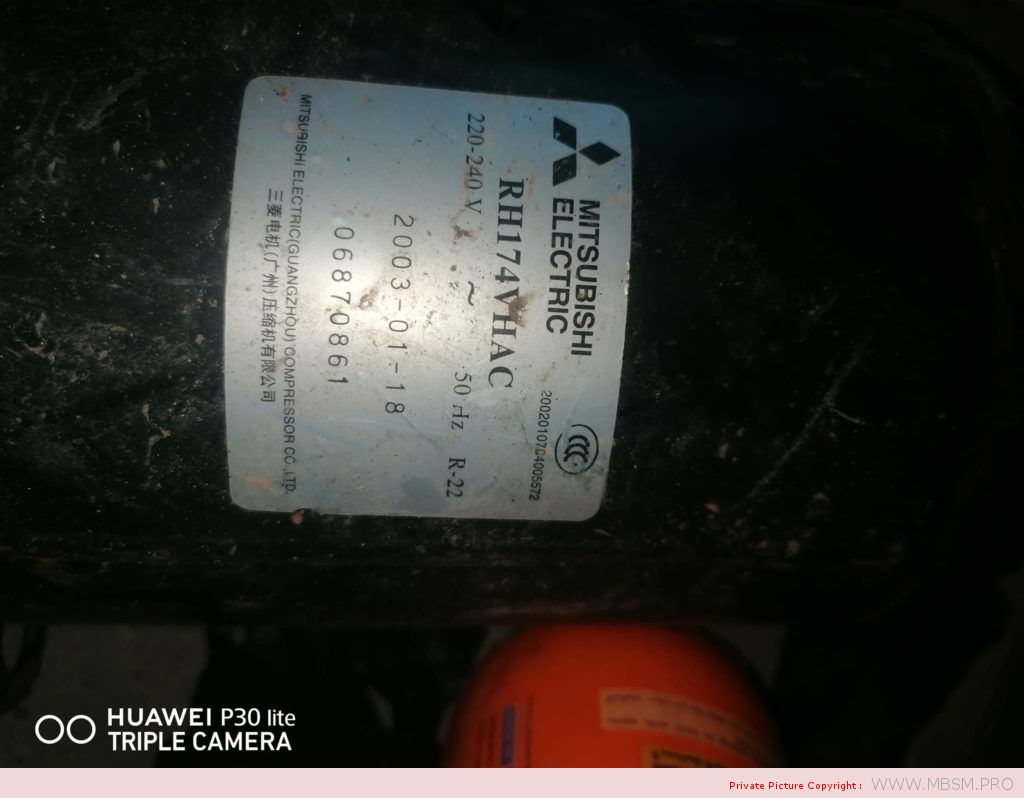

Compresseur, Mitsubishi, Electric MITSUBISHI, RH174VHAC, 9000 BTU/heure (2,6 kW), 220-240V 50Hz, R22
Modèle – Mitsubishi Electric RH 174 VHAC (9000Btu)
Productivité – 9000 BTU/heure (2,6 kW)
Alimentation – 220-240V 50Hz
Réfrigérant (fréon) – R22
Entre vannes – 15 cm
Hauteur compresseur – 22 cm
Diamètre compresseur – 13 cm
Specification for r-22 Compressor, Ph Rotary Models Specification, PH41VPJT, 2 Ton, Mitsubishi Rotary Compressor, 24000BTu
Product Specification
| Horse Power | 2 Ton |
| Brand | Mitsubishi |
| Compressor Technology | Rotary Compressor |
| Rental Available | No |
| Spares Available | No |
| Is It Portable | Yes |
| Installation/After Sales Service Available | No |
| Cylinder | 1 |
| Warranty | 1 Year |
| Phase | Single |
| Weight | 28 Kg |
| No. Of Cylinder | 1 |
| Cylinder Type | Round |
| Voltage | 220 V |
| Material | Copper |
| Accessories | No |
| Application | AC |
| Color | Black |

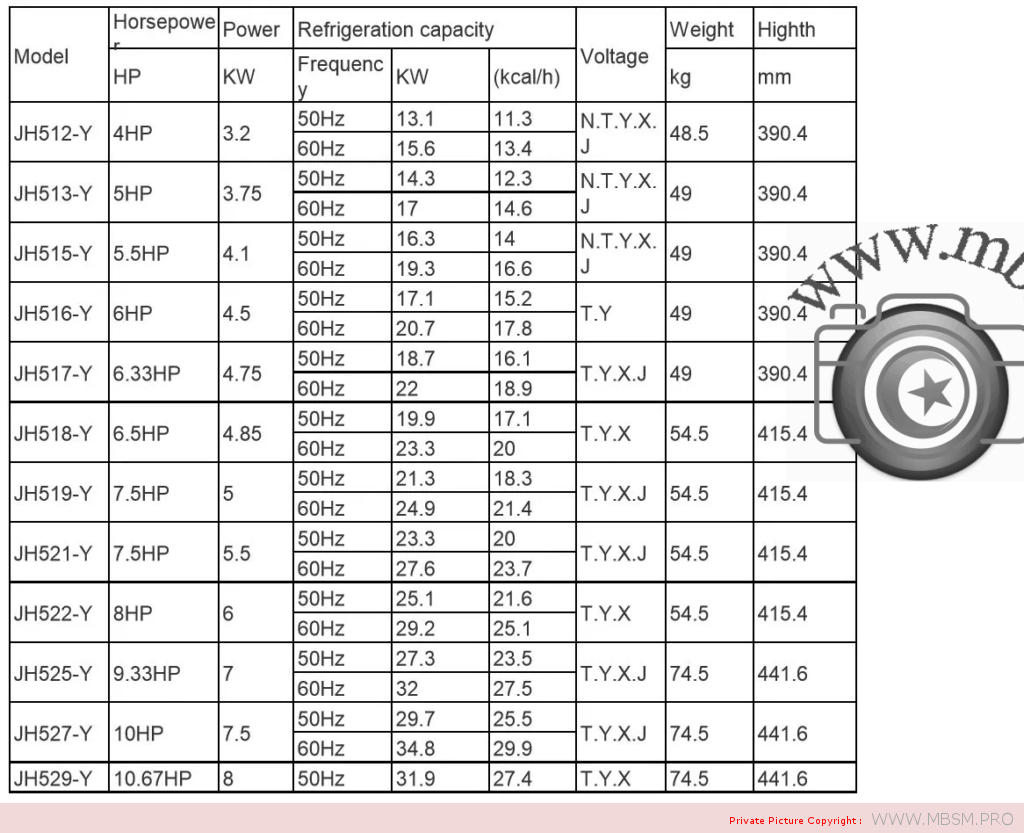

Mitsubishi, Refrigeration, Compressor, for chiller, JH527YEB, 10HP, 380 à 420 V 50 Hz, 460 V 60 Hz, 29,7 kW, 74 kg, R22
Mitsubishi Refrigeration Compressor JH527YEB 10HP
Données techniques
compresseur de réfrigération mitsubishi modèle JH527YEB pour refroidisseur
| Modèle | jh527yeb |
| Puissance en chevaux (Hp) | 10,0 |
| Réfrigérant | R22 |
| An | 2019 |
| Couleur | Noir |
| Moq | 1 |
| type | Piston |
| Poids (kg) | 74,5 |
| Origine | JAPON |
| Emballage | Dessin animé / caisse en bois |
