Mbsm.pro, Compressor, SAMSUNG, MKV190GL2J, Bldc, Inverter, from 93 to 210 w, lbp, r134a, from 560 btu/h to 1167 btu/h
Mbsm.pro, Samsung, inverter, Bldc, Compressor, variable speed, ENV4A5G-L2B, 1/5 Hp, R600a, ENV4A5GL2J/ASH, ENV4A5GL2J, ENV4A5G-L2J, 1/4 hp, LBP, From 1650 rpm to 3600 rpm, from 127 to 271 kcal/hr, from 78 w to 193 w, from 504 to 1076 BTU
The ENV4A5G-L2J is a compressor model used in refrigerators, particularly in Samsung refrigerators like the RSA1 model. This compressor is available from various sources like Sidem 81, Mister Pièces, SEM Boutique, and Amazon. It is a specific part with details such as power (1/4 CV), gas type (R600), and voltage (220-240V)
Mbsm.pro, R134A, 50Hz/ 60Hz, Samsung, Refrigerator, Compressor, SD152H, 1/6 hp, SD162H, 1/5 hp, lbp
Characteristics:
1. Strong load capacity
2. High efficiency & reliability
3. Reliable starting performance
4. Low noise
| Rated voltage | Item No. | Description | ASHARE | Cooling Type | Motor Type | ||||
| Capacity at 50Hz | COP (W/W) at 50Hz |
Current (A) at 50Hz |
Power Input (W) | ||||||
| W | Btu | ||||||||
| AC 220-240V/ 50Hz | MSA141Q-S1A | Refrigerator Compressor R134a LBP | 122 | 416 | 1.27 | 0.67 | 96 | Static | PTC-RSIR |
| MSA143Q-S1Z | 112 | 381 | 1.34 | 0.69 | 83 | Static | PTC-RSIR | ||
| SD151Q-L1UB | 140 | 478 | 1.27 | 0.52 | 110 | Static | RSCR | ||
| SD162Q-L1UA | 170 | 580 | 1.36 | 0.59 | 125 | Static | PTC-RSCR | ||
| MSA170Q-L1B | 201 | 686 | 1.56 | 0.63 | 129 | Static | RSCR | ||
| AC 200-220V/ 50Hz or 220V/ 60Hz |
SD152H-S1UB | Refrigerator Compressor R134a LBP | 134 | 457 | 1.17 | 0.66 | 114 | Static | RSCR |
| SD162H-L1UB | 170 | 580 | 1.22 | 0.82 | 139 | Static | PTC-RSCR | ||
| MSA170H-L1B | 201 | 686 | 1.43 | 0.87 | 141 | Static | RSCR | ||
Mbsm.pro, Refrigerator, No frost, RT32K510058, SAMSUNG, 16 feet, 320L, MADE IN THAILAND, Compressor, 1/5 hp, lbp, R-600a, 50 g (1.76 oz.)

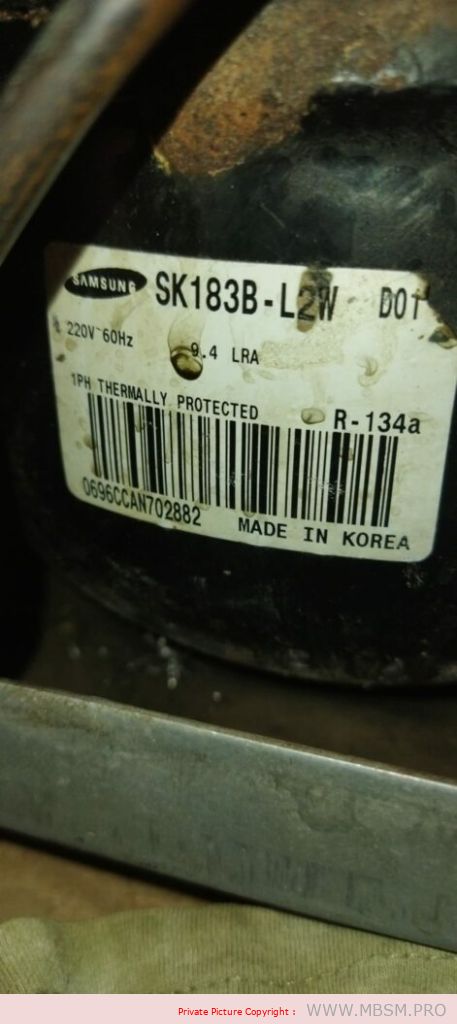

Mbsm.pro, Samsung, SK183B-L2W, Compressor, 1/3 hp, Lbp, r134a, 236 W, 806 btu, 203 kcal/h, 220 v 50 hzt, lra 9.4 a

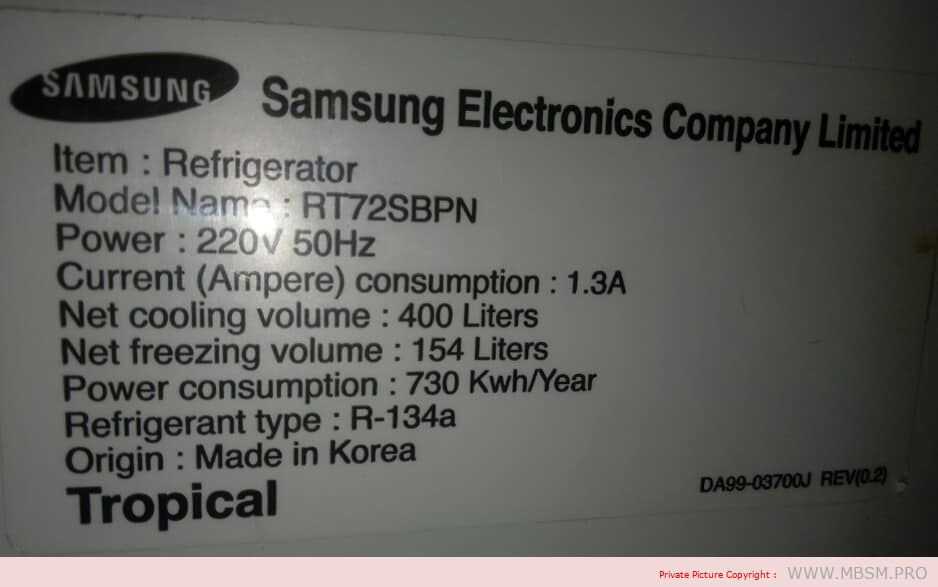

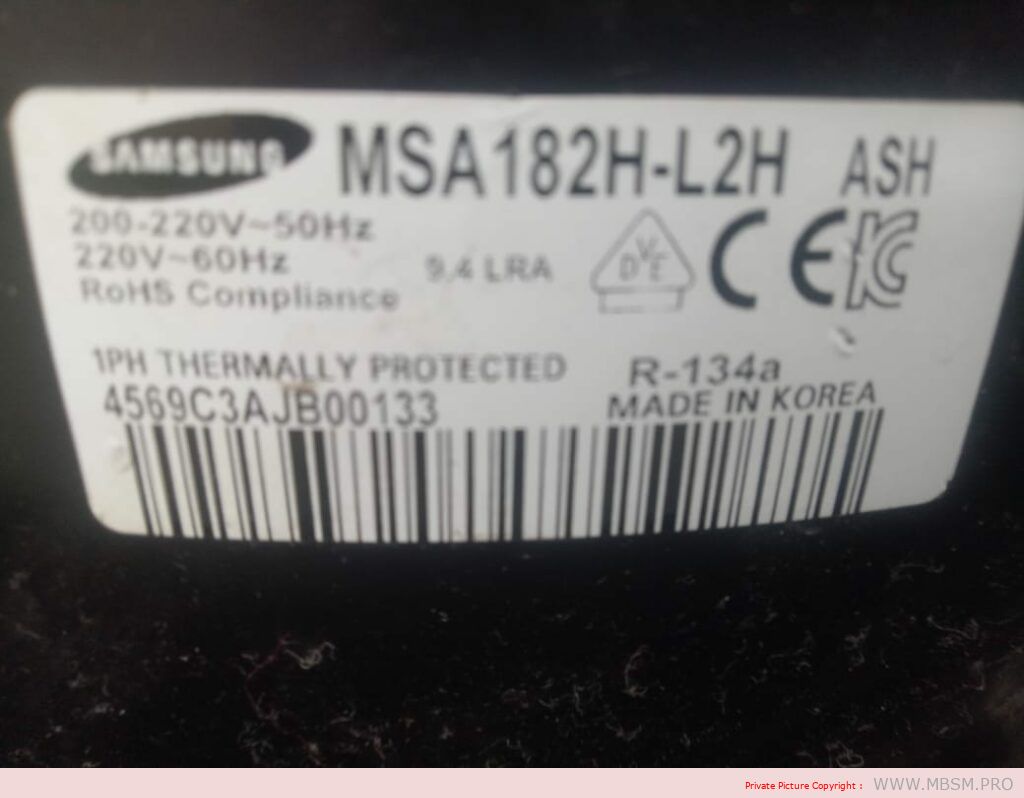

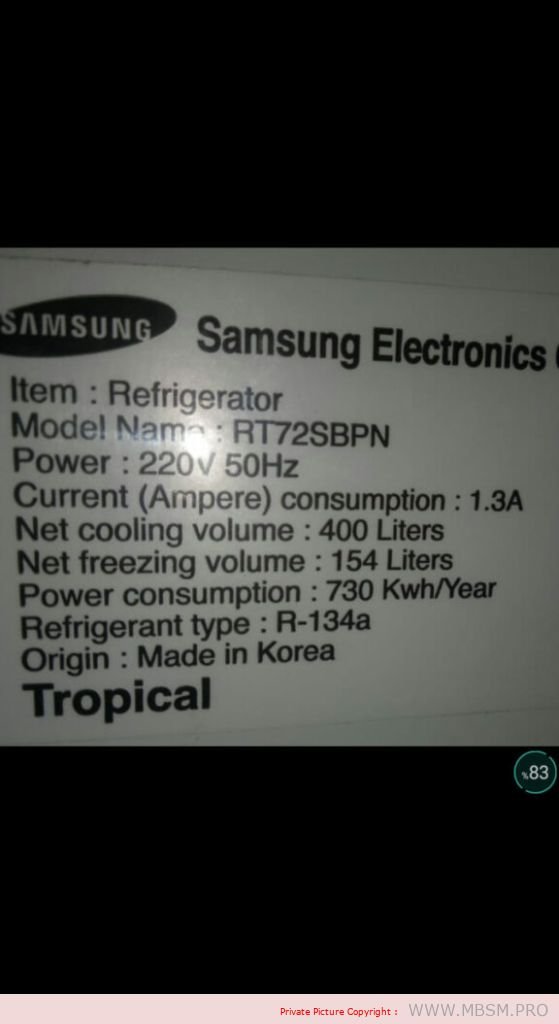

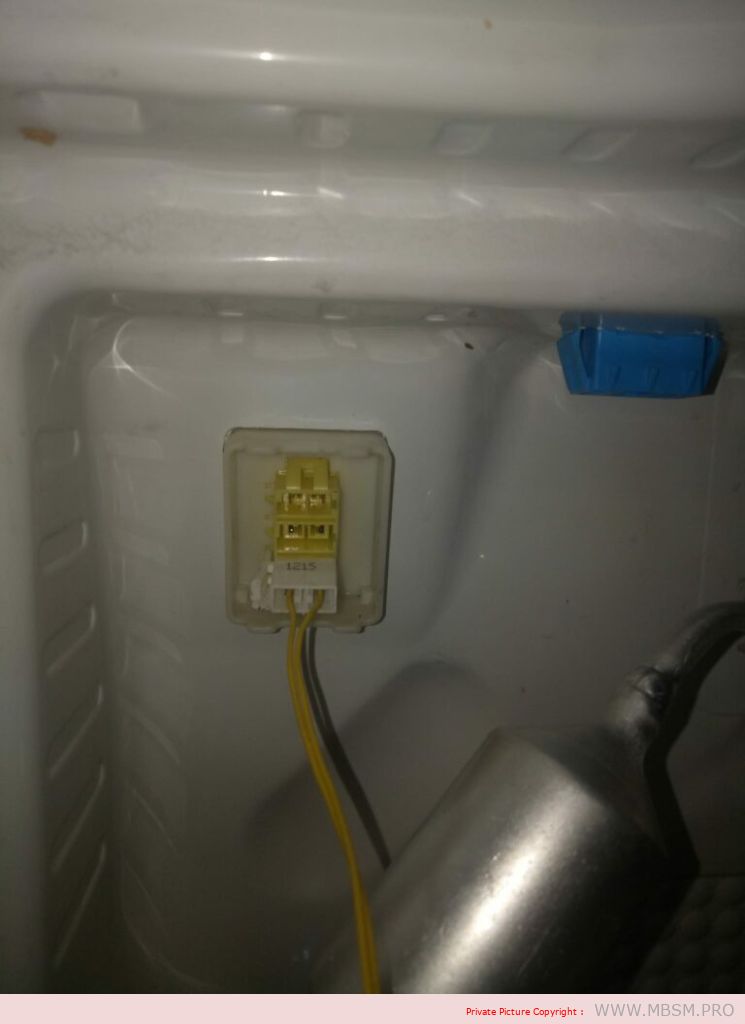

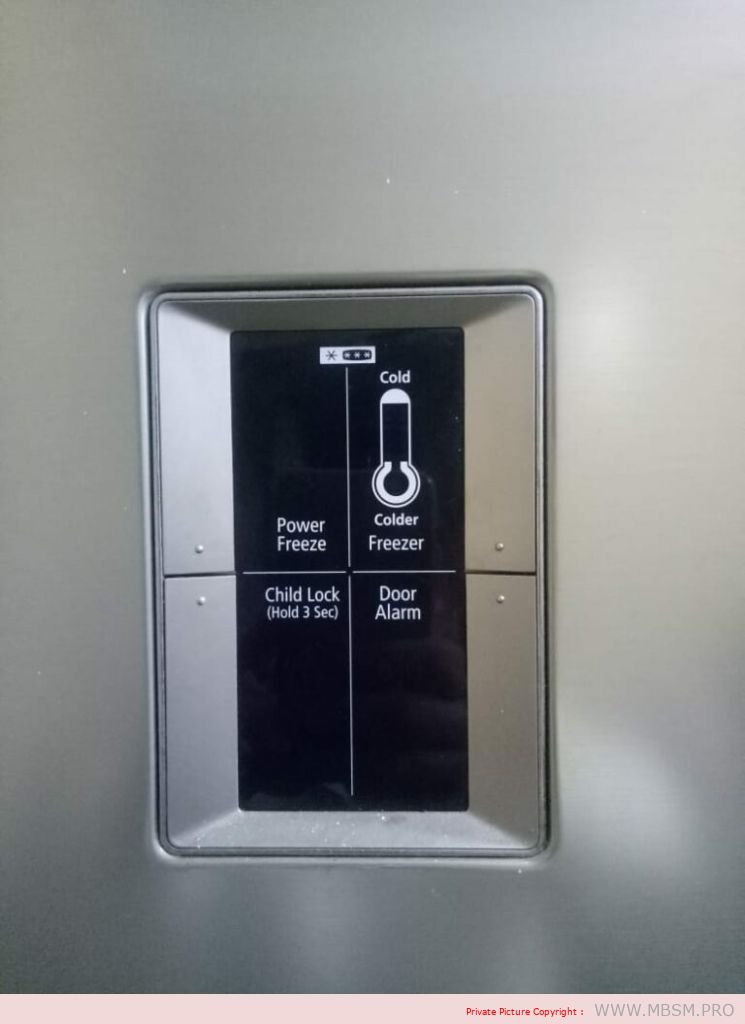

Compressor, Samsung, MSA182Q-L2H, 1/3 hp, Lbp, 264 Kcal, 307 W, 1048 Btu, r134a, refregerator, RT72SBPN, 1.3 A, 554 L, 2 Doors
Mbsm.pro, Compressor, Samsung, Nc4av80alr, 1/4 hp, Displacement 8.08cc, Inverter, type Nc, R600a, Lbp, serie AV, Blcd Control 9 slot
Mbsm.pro, Compressor, Samsung, Nc4av80alr, 1/4 hp, Displacement 8.08cc, Inverter, type Nc, R600a, Lbp, serie AV, Blcd Control 9 slot
The NC4AV80ALR compressor is a compressor manufactured by Samsung. It is used in refrigerators and other cooling systems. The compressor has the following specifications
- Model: NC4AV80ALR
- Displacement: 8.0 ST
- Rated voltage and frequency: 220V~60Hz, 115V~60Hz, 115-127V~60Hz, 100V~50/60Hz, 110V~60Hz.
- Refrigerant: R-600A
- Weight: 70.6 kg
- Courant : 1,40 A
- Power consumption: 1.63 kW
- COP : 5,55
Mbsm_dot_pro_private_PDF_Compresseur NC4AV80ALR ch
Mbsm.pro, Compresor, Samsung, HK6A3C2W, R134a, 1/3 hp++, 690 w , hbp, SDxx-SKxx-HKxx Series
Condensation temperature: 54.4 degrees Celsius
Liquid temperature: 32.2 Celsius
| Model | Type | Cooling capacity BTU/H | refrigeration capacity W | Input power W | EER efficiency | current RLA |
| SD643Q-H222 | RSIR | 1469 | 430 | 197 | 746 | 1.01 |
| SD652Q-H222 | RSIR | 1787 | 523 | 220 | 812 | 1.30 |
| SK670Q-H2S | CSIR | 2383 | 698 | 310 | 768 | 1.84 |
| SK670Q-H2Z | RSIR | 2362 | 692 | 310 | 762 | 1.84 |
| SK682Q-H2Z | RSIR | 2779 | 814 | 365 | 761 | 2.16 |
| SK6A1Q-S2S | CSIR | 4573 | 1047 | 480 | 744 | 2.85 |
| HK672Q2Z | RSIR | 2422 | 709 | 305 | 794 | 1.81 |
| HK680Q2Z | RSIR | 2779 | 814 | three hundred fifty | 794 | 2.07 |
| HK690Q2Z | RSIR | 3097 | 907 | 380 | 815 | 2.25 |
| HK6A1Q2Z | RSIR | 3613 | 1058 | 465 | 777 | 2.76 |
| HK6A3Q2U | RSCR | 4169 | 1221 | 535 | 779 | 3.17 |
Mbsm_dot_pro_private_PDF_HK6A3Q2U

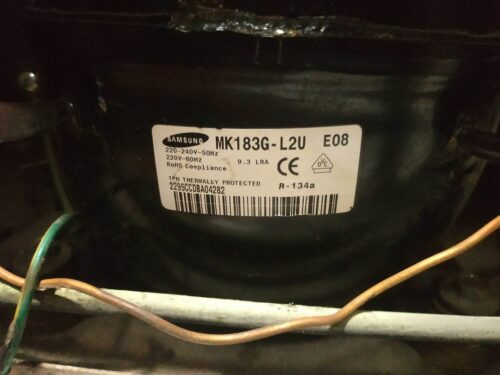

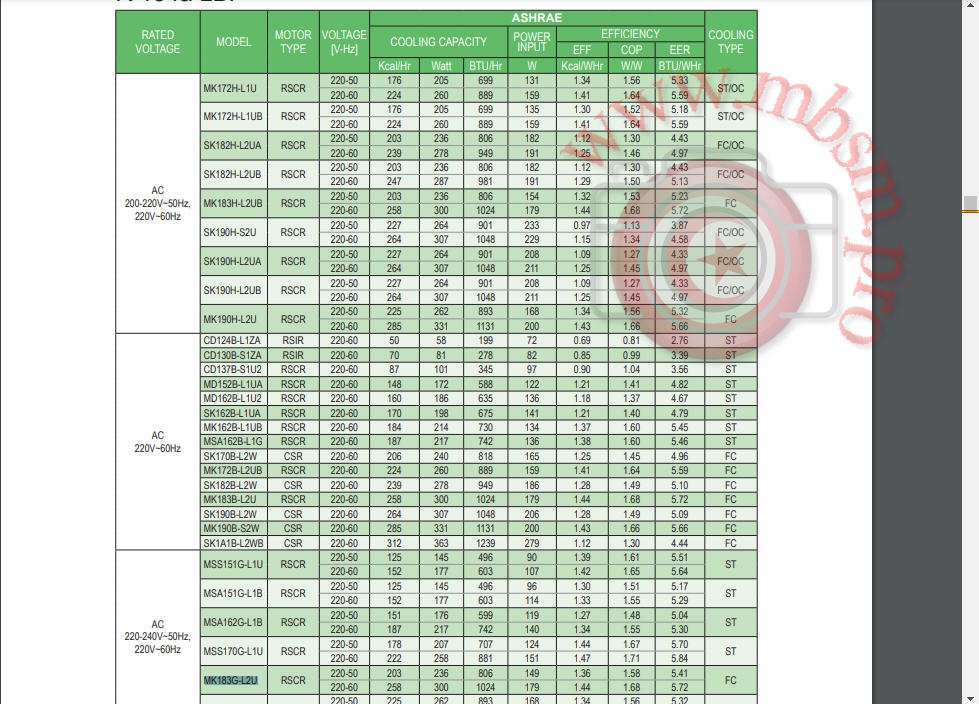

Compressor Mk183g-l2u

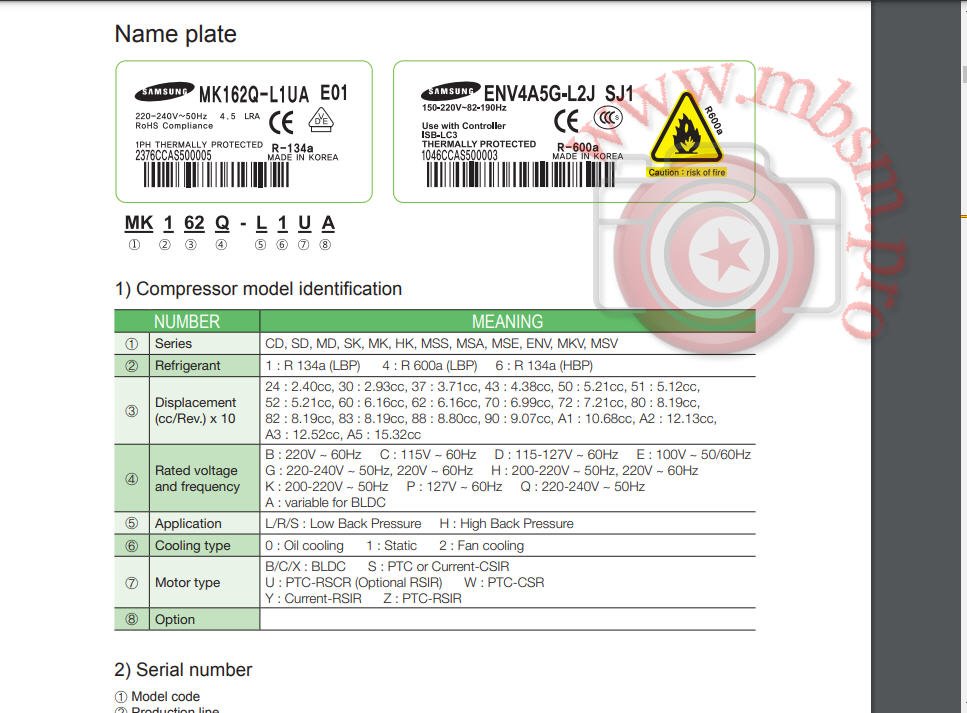

Mbsm.pro, Compressor, Samsung, mk183g-l2u, series MK, 1/3 hp, 236 w, Lbp, 203 KCL, 806 BTU, r134a, 3.8 cc, 220-240V ~ 50Hz, Low Back Pressure, compressor static without fan, PTC-RSCR (Optional RSIR)
Mbsm_dot_pro_private_PDF_MK183G-L2UR
