Mbsm.pro, Tecumseh, AZ1330Y, Compressor, 1/10 hp, lbp, R134a, 90w

written by Lilianne | 9 April 2023

Marque Modèle Puissance Réfrigérant Huile Volume Huile Puissance Frigo
à -25°C
Aspera B1116A 1/4 CV R12 Minérale N/A 186 W
Aspera B1116B 1/5 CV R12 Minérale N/A 170 W
Aspera B1134A 1/2 CV R12 Minérale 600 mL 393 W
Aspera E1118A 1/4 CV R12 Minérale 440 mL 209 W
Danfoss NL6F 1/5 CV R134a Polyolester N/A 109 W
Danfoss NL7F 1/4 CV R134a Polyolester N/A 134 W
Danfoss PW11K22 1/4 CV R12 Minérale 475 mL 195 W
Danfoss TL4F 1/8 CV R134a Polyolester N/A 61 W
Danfoss TL5A 1/6 CV R12 Minérale 280 mL 96 W
Danfoss TLS5F 1/6 CV R134a Polyolester N/A 93 W
Danfoss TLS7F 1/4 CV R134a Polyolester N/A 134 W
Danfoss TSL6F 1/5 CV R134a Polyolester N/A 105 W
Electrolux (ZEM) GL90AA 1/4 CV R134a Polyolester 345 mL 193 W
L’Unité Hermétique AE1410A RH 1/3 CV R12 Minérale N/A 255 W
L’Unité Hermétique AE1410Y 1/3 CV R134a Polyolester N/A 294 W
L’Unité Hermétique AE4ZF 1/4 CV R12 Minérale N/A 165 W
L’Unité Hermétique AEZ1365Y 1/5 CV R134a Polyolester N/A 165 W
L’Unité Hermétique AEZ1380A 1/4 CV R12 Minérale 420 mL 185 W
L’Unité Hermétique AEZ1380Y 1/4 CV R134a Polyolester N/A 195 W
L’Unité Hermétique AZ1320Y 1/12 CV R134a Polyolester N/A 60 W
L’Unité Hermétique AZ1330Y 1/10 CV R134a Polyolester N/A 90 W
L’Unité Hermétique AZ1335Y 1/8 CV R134a Polyolester N/A 98 W
L’Unité Hermétique AZ1350Y 1/6 CV R134a Polyolester N/A 115 W
Matsushita FN73F13S 1/5 CV R12 Minérale 250 mL 160 W
AZ1335Y1/8HP ,317BTU./93W. ,4.00CCข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a
Specification : 1/8HP ,317BTU./93W. ,4.00CC
Power supply : 1PH-220V-50Hz.
Dimension : mm. A: 172 B: 126 C: 155 D: 165 E: 102
AZ1330Y1/10HP ,270BTU./79W. ,3.59CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a
Specification : 1/10HP ,270BTU./79W. ,3.59CC.
Power supply : 1PH-220V-50Hz.
Dimension : mm. A: 168 B: 126 C: 155 D: 165 E: 102
AZ1327Y1/12HP ,229BTU./67W. ,3.28.CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a
Specification : 1/12HP ,229BTU./67W. ,3.28.CC.
Power supply : 1PH-220V-50Hz.
Dimension : mm. A: 168 B: 126 C: 155 D: 165 E: 102
AZ1320Y1/15HP ,194BTU./57W. ,2.73CC.ข้อมูลทางเทคนิคDescription : LBP.-APP.Reciprocating,R-134a
Specification : 1/15HP ,194BTU./57W. ,2.73CC.
Power supply : 1PH-220V-50Hz.
Dimension : mm. A: 162 B: 126 C: 155 D: 165 E: 102
Mbsm_dot_pro_private_PDF_az1339y1Télécharger


Mbsm.pro, compressor, AWZ5538EXN, 3 hp, 1 ph, TECUMSEH

written by Lilianne | 9 April 2023

Product Specifications

Mbsm_dot_pro_private_PDF_AWZ5538EXN

Performance

Condition Test Voltage (R) Btu/h (R) kcal/h (R) W (I) W (E) Btu/Wh (E) kcal/Wh W/W EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
ASHRAE 230V ~ 60HZ 38000 9576 11137 3800 10 2.52 2.93 7.2?C (45?F) 54?C (130?F) 35?C (95?F) 35?C (95?F) 46?C (115?F)
ASHRAE 230V ~ 60HZ 38000 9576 11137 3800 10 2.52 2.93 7.2?C (45?F) 54?C (130?F) 35?C (95?F) 35?C (95?F) 46?C (115?F)
(R) Refrigeration Capacity
(I) Input Power
(E) Efficiency

General

Evaporating Temp. Range:

 -23.3°C to 12.8°C (-10°F to 55°F)

Motor Torque:

 Low Start Torque (LST)

Compressor Cooling:

 Fan

Mechanical

Weight:

 30

Weight Unit of Measure:

 KG

Displacement (cc):

 63

Oil Type:

 Mineral

Viscosity (cSt):

 37

Oil Charge (cc):

 1140

Electrical

Voltage Range (50 Hz):

 N/A

Voltage Range (60 Hz):

 197-254

Locked Rotor Amps (LRA):

 110

Rated Load Amps (RLA 50 Hz):

 0

Rated Load Amps (RLA 60 Hz):

 18.3

Max. Continuous Current (MCC in Amps):

 29.5

Motor Resistance (Ohm) – Main:

 0.52

Motor Resistance (Ohm) – Start:

 2.32

MotorType:

 PSC

Overload Type:

 N/A

Relay Type:

 N/A

Agency Approval



Mbsm.pro, Files, Pdf, analog, TECUMSEH, EUROPE, R12

written by Lilianne | 9 April 2023

Mbsm.pro, Files, PDF, analog, TECUMSEH, EUROPE, R12

Mbsm_dot_pro_private_PDF_analog TECUMSEH EUROPE R12







Mbsm.pro, Fridge Compressor, Tecumseh, AZ Freezer, AE, R134a, AE4460YFZ1C, ae8284br, ae4460y, ae 8284 br, ae 4460 y, 1/2 hp, hbp

written by Lilianne | 9 April 2023

Read first: https://www.mbsm.pro/49528.html

Mbsm_dot_pro_private_PDF_ae4460y



  • AE4460YFZ1C  / AE4460Y Tecumseh compresseur hermétique

    • pour la réfrigération
    •  application : H/MBP,
    •  Description du produit : R-134 a
    •  Tension/fréquence : 230V-50Hz-1
    •  Version standard : connexion à souder
    •  HP : 1/2
    •  bataille-volume cm³ 15.09
    •  expansion : valve d’expansion thermostatique-injection capillaire
    •  taille hauteur : 211 mm
    •  taille pieds dimensions : 178 x 114,3 mm
    •  succion de pouce de la connexion : 3/8 “
    •  presse de connexion pouce : 1/4 “
    •  poids net kg. : 12.2
    •  température de condensation = 45 ° c.
    •  L’unite Hermetique précédemment. AE 4460Y

Midium Temperature is used with R-22 refrigerant.

Model HP RLA/LRA Capacity (kW)
-15˚C -5˚C
AE 4450E  3/8  3/4.9 0.47 0.71
AE 9415ES  1/4  -/15.5 0.20 0.50
FIELD 9460T  1/2 2.9/15.2 0.57 0.90
AE 4460E-FZ1B  1/3 3.7/18 0.56 0.95

Remark : Use electrical system 220V/1Ph/50Hz
Capacity at 54.5°C condensing temp.

Midium Temperature Use with refrigerant R-134a.

Model HP RLA/LRA Capacity (kW)
-15˚C -5˚C
AEZ 4425Y ‘F’ TUBE  1/5 1.9/2.8 0.25 0.43
AE 4430Y-FZ1A  1/4 2.2/3.1 0.28 0.48
AE 4440Y-FZ1A  1/3 2.51/3.51 0.42 0.58
AE 4440YS ‘F’ TUBE  1/3 2.51/3.51 0.42 0.58
AE 4448YS  1/3 4.6/- 0.44 0.55
AE 4450Y-FZ1C  3/8 3.23/- 0.54 0.89
AE 4456Y-FZ1C  1/2 3.66/17.5 0.55 0.89

Remark : Use electrical system 220V/1Ph/50Hz
Capacity at 54.5°C condensing temp.

Midium Temperature Use with refrigerant R-404A

Model HP RLA/LRA Capacity (kW)
-15˚C -5˚C
AE 4450Z-FZ1A  3/8  3.4/17.5 0.62 0.73
AE 4470Z-FZ3C  3/4 3.9/18.2 0.81 1.24

Remark : Use electrical system 220V/1Ph/50Hz
Capacity at 54.5°C condensing temp.

Low Temperature Use with refrigerant R-404A

Model HP RLA/LRA Capacity (kW)
-25˚C -15˚C
AE 2415Z-FZ1B  3/8 1.9/12.5 0.39 0.74
AE 1417Z  1/2 2.6/17.7 0.44 0.75
AE 1420Z  1/3 2.55/18.5 0.30 0.50
AE 2425Z  5/8 3.48/19.5 0.60 0.95

Remarque : Use electrical system 220V/1Ph/50Hz
Capacity at 54.5°C condensing temp.

AZ Fridge Freezer Compressor Model AE R134



MODEL HP BTU/h APPL. ENGINE LRA FLORIDA PRICE
AZ1327Y 1/15 229 PSL RSIR 6,70 0,50 N / A
AZ1320Y 1/20 194 PSL RSIR 5:30 p.m. 0,48 N / A
AZ1330Y 1/8 270 PSL RSIR 6.46 0,55 N / A
AZ1335Y 1/8 317 PSL RSIR 8:30 am 0,73 N / A
AZ1340Y 1/5 358 PSL RSIR 6,90 0,75 N / A
AZ1350Y 1/5 409 PSL RSIR 8.70 0,77 N / A
AE1320Y 1/20 194 PSL RSIR 5.40 0,54 N / A
AE1330Y 1/8 270 PSL RSIR 5.44 0,55 N / A
AE1340Y 1/6 375 PSL RSIR 7.00 0,77 N / A
AE1350Y 1/6 461 PSL RSIR 12h00 0,90 N / A
AE1360Y 1/5 539 PSL RSIR 10.00 1,00 N / A
AE1370Y 1/5 635 PSL RSIR 12h60 1.17 N / A
AE1390Y 1/4 860 PSL RSIR 14.10 1.28 N / A
AE2370Y 1/5 631 PSL CSIR 6,50 1.18 N / A
AE2390Y 1/4 809 PSL CSIR 9h20 1.40 N / A
AE2410Y 1/3 921 PSL CSIR 12.75 2,00 N / A
AE2413Y 3/8 1 126 PSL RSE 12,90 1.40 N / A
AEA2415Y 1/2 1 262 PSL RSE 11h60 1.34 N / A
AE2417Y 1/6 1 706 RAP RSIR 11:50 a.m. 1,60 N / A
AE2425Y 1/5 2 491 RAP RSIR 13h60 2.20 N / A
AE3440Y 3/8 3 634 RAP RSIR 11:30 a.m. 3,00 N / A
AE4425Y 1/5 2 388 RAP CSIR 10h70 2.15 N / A
AE4430Y 1/3 2 798 RAP CSIR 12h00 2,50 N / A
AE4435Y 3/8 3 078 RAP CSIR 14.10 2,70 N / A
AE4440Y 1/2 3 668 RAP CSIR 14h70 3.10 N / A
AE4448Y 1/2 4 060 RAP CSIR 23,90 3.45 N / A
AE4459Y-SR 1/2 4 947 RAP RSE 15h70 3,00 N / A
AE7415Y 1/4 1 259 MBP CSIR 11:50 a.m. 1,82 N / A
AE7423Y 1/3 1 958 MBP CSIR 18h50 2.28 N / A
AE7430Y 1/2 2 542 MBP RSE 12.75 2.18 N / A
AE9437Y-SR 5/8 3 139/5 732 MBP/RAP RSE 16h30 2,64/3,50 N / A

Tecumseh Reciprocating Model Compressors :

MODEL DIPLACEMENT (Cm3) CURRENT AMPS DIAMETER CONNECTION (INCH) BERAT (KG)
I NOM I MAX SUCTION DISCHARGE
AE1390Y-FZ 8.02 1.4 1.7 1/4 3/16 9.5
AE2390Y-FZ 8.02 1.3 1.7 1/4 3/16 9.5
AE2410Y-FZ 9.39 1.4 1.7 5/16 1/4 9.5
AE2413Y-FZ 12.01 1.8 2.8 5/16 1/4 11.2
AE2415Y-GH 12.48 1.8 3 5/16 1/4 12.1
AE4425Z-FZ 4.24 1.8 2.8 1/4 3/16 9.9
AE4430Z-FZ 5.16 2.1 2.9 1/4 3/16 10.2
AE4440Z-FZ 6.69 2.7 3.7 3/8 1/4 10.5
AE4450Z-FZ 8.85 3.4 5.1 3/8 1/4 10.8
AE4460Z-FZ 10.33 4.3 5.9 3/8 1/4 11.6
AE4470Z-FZ 12.01 3.7 5.3 3/8 1/4 12.4
AE4425Y-FZ 6.69 1.6 2.4 1/4 3/16 9.2
AE4430Y-FZ 8.02 2.1 3.1 1/4 3/16 9.7
AE4440Y-FZ 10.33 2.5 3.7 5/16 1/4 9.8
AE4450Y-FZ 13.24 3.1 4.6 3/8 1/4 11.5
AE4456Y-FZ 14.51 3.6 8 3/8 1/4 11.5
AE4460Y-FZ 15.09 3 4.7 3/8 1/4 12.2
AE4425E-FZ 4.24 1.7 2.7 1/4 3/16 9.6
AE4430E-FZ 5.16 2 2.8 1/4 3/16 10
AE4440E-FZ 6.69 2.4 3.4 3/8 1/4 10.2
AE4450E-FZ 8.02 3 4.7 3/8 1/4 11.2
AE4460E-FZ 10.33 3.7 5.3 3/8 1/4 11.2
AE4470E-FZ 12.01 3.8 5.4 3/8 1/4 11.1



Mbsm.pro, compressor, Tecumseh, R22, AEZ3440E, 1/3hp–, 1/4 hp++

written by Lilianne | 9 April 2023

Mbsm.pro, Compressor, AGB4573ZKZ , TAG4573Z , 6.5HP, R404A, MHBP, TAG4573Z-V, Compresseur Hermétique, Tecumseh

Name: Piston for refrigeration
Model Number: AEZ3440E
Place of origin : France
Brand: Tecumseh
tension: 220V
Minimum temperature: -15℃
Driving Mode: AC power
Performance: low noise
Lubrication style: lubricated
type of connection: solder
Horsepower : 1/3HP
Refrigerant: R22
Power: 358W

Product Description

Mbsm_dot_pro_private_PDF_aez3430e

Piston for refrigeration compressor Tecumseh R22 AEZ3440E 1/3P 220V to be welded

Tecumseh compressor:

alternative for commercial and domestic refrigeration and air conditioning applications.

Rotary for air conditioning and commercial refrigeration applications.

Compressor Tecumseh AEZ3430E

More product details below:

THE HERMETIC UNIT HERMETIC COMPRESSORS
MODEL CV TEMP REFRIGERANT
AEZ2415Z 7/16 L R404
CAE2417Z 7/16
CAE2420Z 1/2
CAE2424Z 5/8
CAJ2428Z 3/4
TAJ2428Z 3/4
CAJ2432Z 3/4
CAJ2440Z 1
CAJ2446Z 1
TAJ2446Z 1
CAJ2464Z 1-1/2
TAJ2464Z 1-1/2
CAJ2480Z 2
TAJ2480Z 2
FH2511Z 3
TFH2511Z 3
LABEL/2516Z LABEL 4
LABEL/2522Z LABEL 6
TAGD2532Z 8
TAGD2544Z 12
AEZ4440Z 1/3 M/H
AEZ9440Z 1/3
AE3450Z 3/7
CAE4450Z 3/7
CAE9450Z 3/7
CAE9460Z 1/2
CAE9470Z 9/16
CAJ9480Z 5/8
TAJ9480Z 5/8
CAJ9510Z 1
TAJ9510Z 1
CAJ9513Z 1-1/8
TAJ9513Z 1-1/8
CAJ4517Z 1-1/4
TAJ4517Z 1-1/4
CAJ4519Z 1-3/4
TAJ4519Z 1-3/4
FH4522Z 2
TFH4522Z 2
FH4524Z 2
TFH4524Z 2
FH4531Z 2-3/4
TFH4531Z 2-3/4
FH4540Z 3-1/2
TFH4540Z 3-1/2
AEZ4430Y 1/4 M/H R134a
AE3440Y 1/3
CAE4440Y 1/3
CAE4448Y 3/7
CAE4456Y 7/16
CAJ4452Y 3/7
CAJ4461Y 1/2
TAJ4461Y 1/2
CAJ4476Y 5/8
CAJ4492Y 3/4
TAJ4492Y 3/4
CAJ4511Y 1
TAJ4511Y 1
FH4518Y 1-1/2
TFH4518Y 1-1/2
FH4525Y 2
TFH4525Y 2
CAE2417L 1/2 L R502
CAJ2428L 5/8
TAJ2428L 5/8
CAJ2432L 3/4
CAJ2446L 1
TAJ2446L 1
CAJ2464L 1-1/2
TAJ2464L 1-1/2
TAH2480J 2
TAH2511K 3
TAHD2516J 4
TAHD2522K 6
TAG2516K 4
TAG2522K 6
AEZ4430E 1/4 M/H R22
AEZ3430E 1/4
AEZ3440E 1/3
AEZ4440E 1/3
AEZ9440T 1/3
AE3450E 3/7
CAE4450E 3/7
CAE9450E 3/7
CAE9460E 1/2
CAJ9480T 5/8
TAJ9480T 5/8

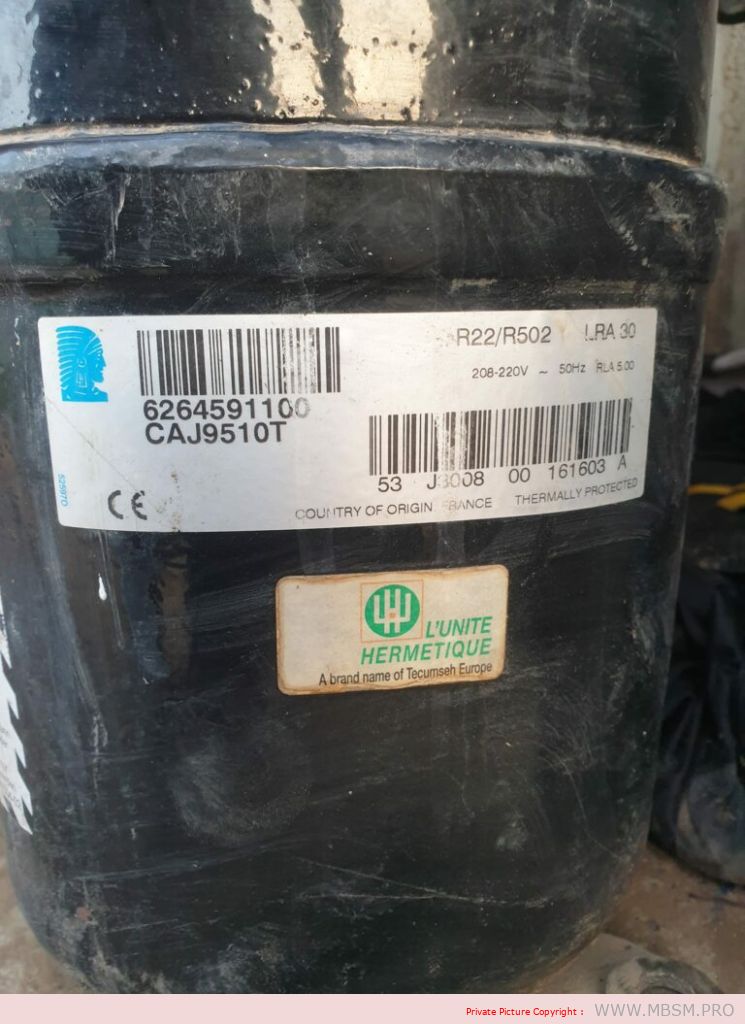

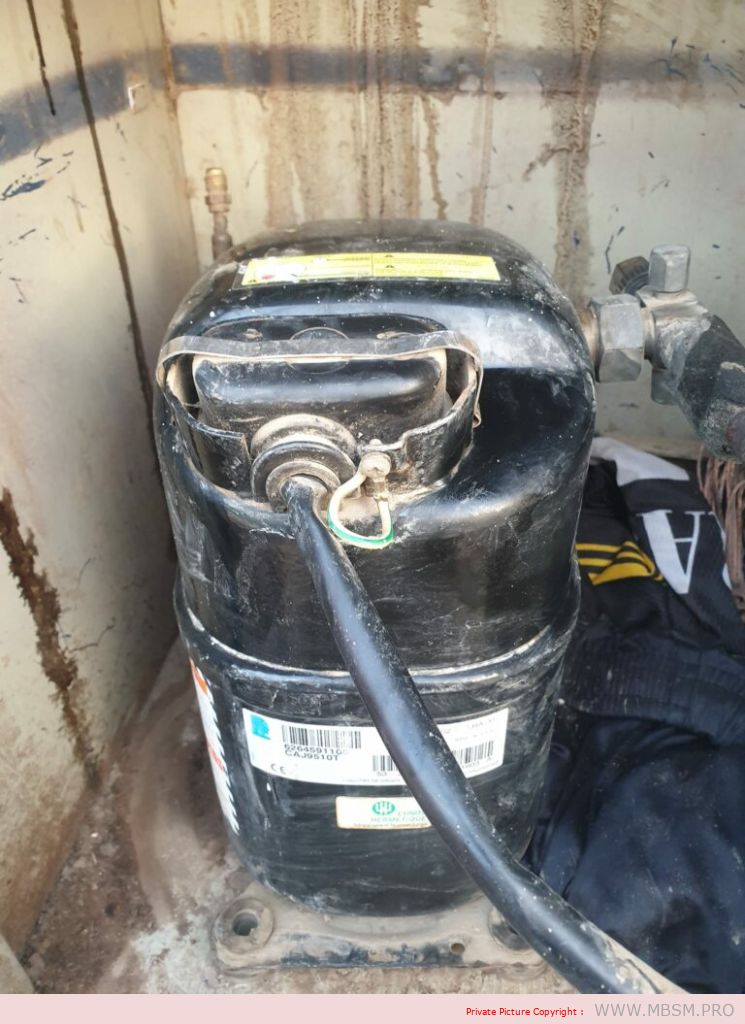

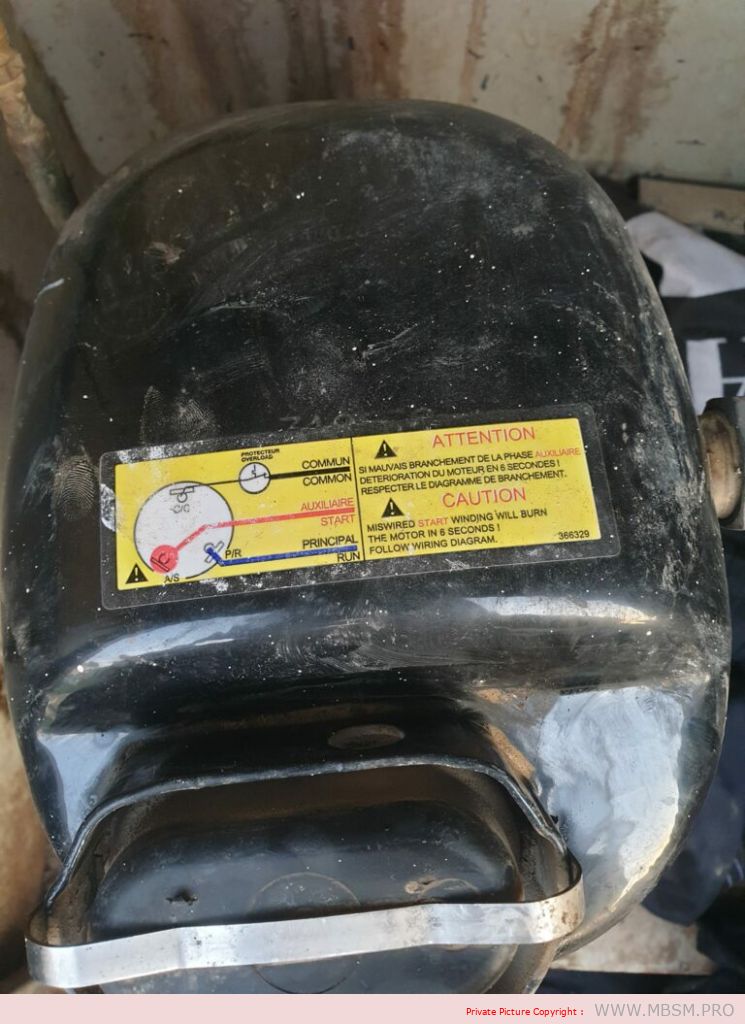

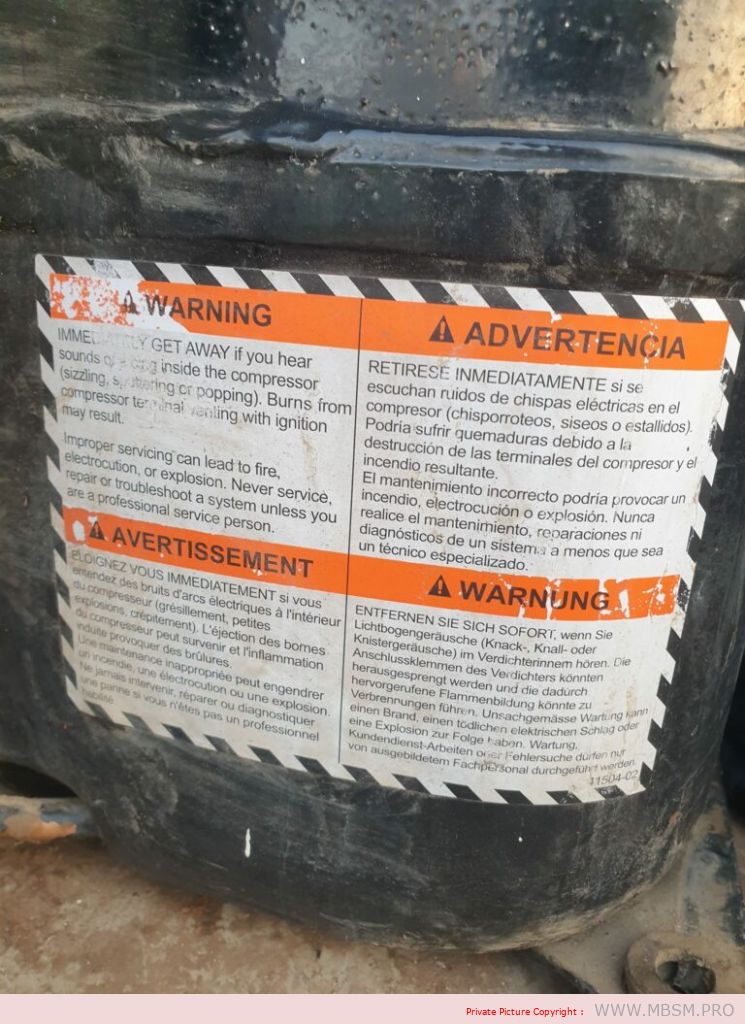

CAJ9510T 1
TAJ9510T 1
CAJ9513T 1-1/8
TAJ9513T 1-1/8
CAJ4517E 1-1/4
CAJ4519T 1-3/4
TAJ4519T 1-3/4
FH4522F 2
TFH4522F 2
FH4524F 2
TFH4524F 2
FH4531F 2-3/4
TFH4531F 2-3/4
TFH4538E 3
TFH4540F 3-1/2
ÉTIQUETTE/ÉTIQUETTE 4546T 4
LABEL/LABEL 4553T 4-1/2
LABEL/LABEL 4561T 5
LABEL/LABEL 4568T 6
LABEL/LABEL 4573T 6
TAGD4590T 7-1/2
TAGD4610T 9
TAGD4612T dix
TAGD4614T 12

R 404 A Commercial Basse Temp. Réfrigération

CACHER

Modèle Taille (CV) Cylindrée (cm3)
AEZ 2411Z 1/4 7.6
AEZ 2415Z 3/8 8.1
CAE 2417Z 4/9 11.3
CAE 2420Z 1/2 12.6
CAE 2424Z 3/5 15.1
CAJ 2428Z 7/10 15.2
TAJ 2428Z 7/10 15.2
CAJ 2432Z 3/4 18.3
TAJ 2432Z 3/4 18.3
CAJ 2440Z 1 21
CAJ 2446Z 1 26.15
TAJ 2446Z 1 26.15
CAJ 2464Z 1 1/2 34.45
TAJ 2464Z 1 1/2 34.45
FH 2480Z 2 53.2
TFH 2480Z 2 53.2
FH 2511Z 2 3/4 74,25
TFH 2511Z 2 3/4 74,25
TAG 2516Z 4 112,5
TAG 2522Z 5 1/2 134,8



Modèle Taille (CV) Cylindrée (cm3)
ZAE 4425 E 1/5 4.5
AEZ 3430E 1/4 5.7
AEZ 4430 E 1/4 5.7
AEZ 3440E 1/3 7.6
AEZ 4440 E 1/3 7.6
ZAE 9440 T 1/3 7.6
AE 3450E 3/8 9.4
CAE 4450 E 3/8 9.4
CAE 9450T 3/8 9.5
CAE 9460 T 1/2 11.3
CAJ 9480 T 2/3 15.2
TAJ 9480 T 2/3 15.2
CAJ 9510 T 1 18.3
TAJ 9510 T 1 18.3
CAJ 9513 T 1 1/8 24.2
TAJ 9513 T 1 1/8 24.2
CAJ 4517 F 1 1/2 25,95
TAJ 4517 T 1 1/2 25,95
CAJ 4519 T 1 4/7 34.45
TAJ 4519 T 1 4/7 34.45
FH 4522F 1 5/6 39,95
TFH 4522 F 1 5/6 39,95
FH 4524 F 2 43,5
TFH 4524 F 2 43,5
FH 4531 F 2 1/2 56,65
TFH 4531 F 2 1/2 56,65
TFH 4540 F 3 1/3 74,25



Mbsm.pro, Compressor, Tecumseh, AJA4492YXA, High Back Pressure, 3/4 hp, R-134a/R-12++, 9000 BTU, CSIR

written by mahdi miled | 9 April 2023

Type: Reciprocating

Application: HBP – High Back Pressure

Voltage/Frequency: 115V ~60Hz 100V ~50Hz

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)

Motor Torque: High Start Torque (HST)

Compressor Cooling: Fan

Oil Type: Polyolester

Viscosity (cSt): 32

Oil Charge (cc): 782

Voltage Range (50Hz): 90-110

Voltage Range (60Hz): 103-127

Locked Rotor Amps (LRA): 69

Rated Load Amps (RLA 50Hz): 0

Rated Load Amps (RLA 60Hz): 13

Max. Continuous Current (MCC in Amps): 17.9

Motor Resistance (Ohm) – Main: .433

Motor Resistance (Ohm) – Start: 3.085

Motor Type: CSIR

cURus Recognized

Refrigerant: R-134a

SPECIFICATIONS

More Information
Capacity air conditioning @ 45 °F BTU/H 8800
Application High temperature
Compressor type Reciprocating
Discharge size type 5/16″ sweat
Motor power range 0.75 (3/4) HP
Suction size type 1″ rotolock
Brand Tecumseh
Origin country United States – US
Package Weight 49
Product Weight 49
Manufacturer part number AJ4YL1AF643J70
MASTER part number AJA4492YXA
Characteristics Capacity air conditioning @ 45 °F BTU/H: 8800
Supply Voltage 115VAC
Nominal Capacity 9 000 BTU
Product Family Compressors
Capacity: 9000 BTU


Mbsm.pro, AJA4461AXA, Tecumseh, Compressors, AJ311AT-141-J7, 115V, 1/2HP, R12, high temperature, 6100 BTU,

written by Jamila | 9 April 2023

Tecumseh® Reciprocating Compressor, Series: AJ, Model: AJA4461AXA, 6100 BTU/hr, 115 VAC, 9.1 Amp, 60 Hz, 1 PH, 1/2 hp, 900 Watt, R-12 Refrigerant, Synthetic Alkylate Oil, 3/4 inch suction, 5/16 inch discharge, 45 degree F evaporator, 130 degree F condensing, 95 degree F return gas, ambient temperature, 115 degree F liquid, 11.774 inch length x 6.594 inches x 10.219 inches tall

Mbsm_dot_pro_private_PDF_aj311at-141-p2-

Mbsm_dot_pro_private_PDF_aj311at-141-p2



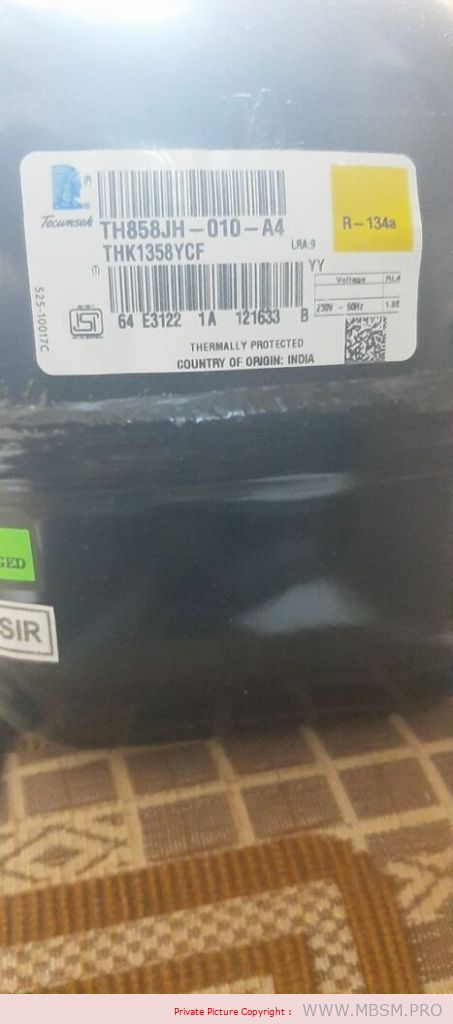

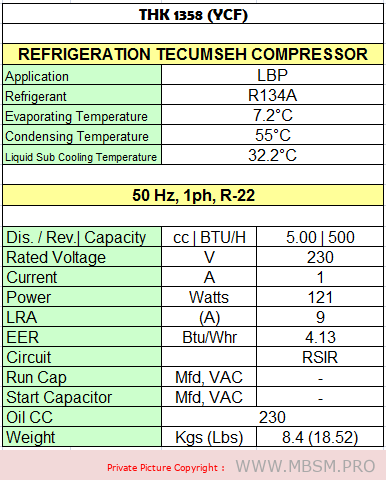

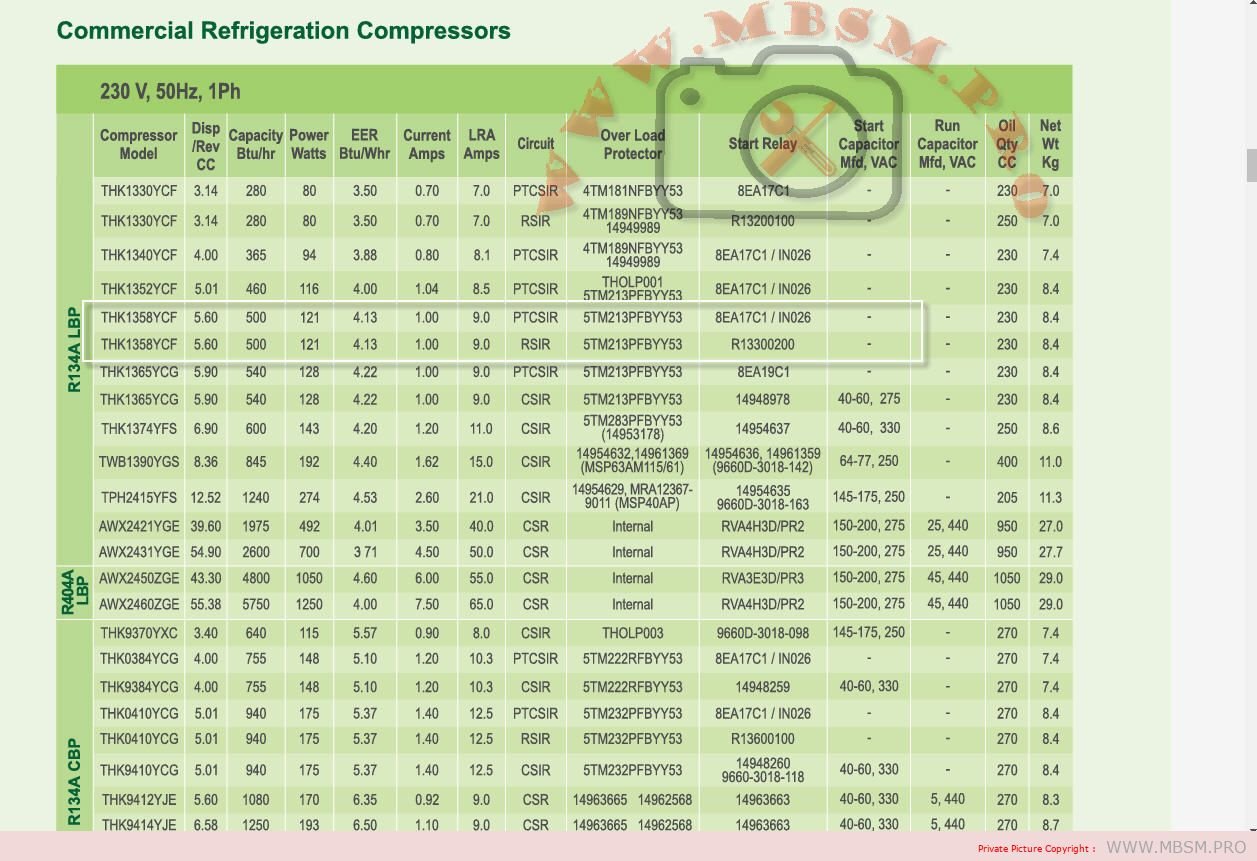

Mbsm.pro, Compressor, n1110dy, 1/5 Hp, 123 W, R134a, Freezer, Refrigerator, Tecumseh

written by Jamila | 9 April 2023

The TECUMSEH Compressor is specially developed for domestic and small commercial refrigeration. The great differential of the TECUMSEH compressor is that it has the lowest noise levels and reduced energy consumption. The compressor’s electric motor is equipped with reinforced internal protection. It has a compact and very resistant design. Technical Specifications of the Compressor Motor TECUMSEH R134: Brand: TECUMSEH; Model TA1360Y; HP: 1/5; Gas: R134. Modelos compatíveis: BRD32B BRD33A BRO31A BRO35A BVG24D BVG24FB BVG24GB BVS26B CHA22C CRD33A CRD33B CRD34B CRD35DB CRD35DC CRD36FB CRD36FC CRD36GB CRD37EB CRD37ZB CVU18EB CVU18FB CVU26B CVU26C CVU26DB CVU26DC Itens inclusos do produto: 01 Motor Compressor TECUMSEH 1/5 HP THG1352YDS R134 Imagem ilustrativa.



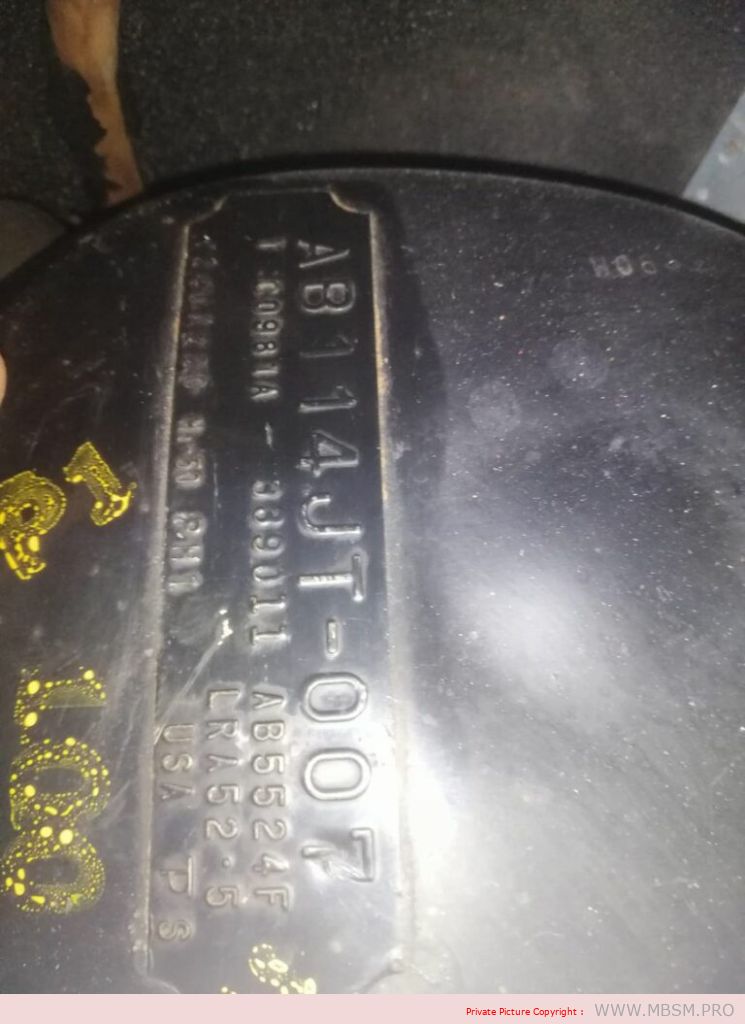

Mbsm.pro, Compressor, Tecumseh, aw807jt-139-a4, aw807jt, 29700 btu, Awj5530AVA, 3.5 hp, R22, 1900 g, 4 to 5 bar

written by Lilianne | 9 April 2023

Mbsm.pro, Compressor, Tecumseh, aw807jt-139-a4, aw807jt, 29700 btu, Awj5530AVA, 3.5 hp, R22, 1900 g, 4 to 5 bar

Mbsm.pro, Compressor, Tecumseh, aw807jt-139-a4, aw807jt, 29700 btu, Awj5530AVA, 3.5 hp, R22, 1900 g, 4 to 5 bar
Mbsm_dot_pro_private_PDF_tecumseh_to_tecumseh_cross_refTélécharger


Mbsm.pro, compressor, cae2412y, Tecumseh, 1/3 hp, 306 w, 236 kcal/h, 1043 btu/h, Lbp, r134a

written by Lilianne | 9 April 2023


Technical data

  • Model: CAE2412Y
  • Refrigerant Gas: R-134a
  • Pression/temperature: LBP
  • Power: 1/3 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 14.20 cm³
  • Power Cons. -35°C: 191 W
  • Power Cons. -25°C: 270 W
  • Power Cons. -10°C: 397 W
  • T° Condensation: 40 °C
  • Cooling Cap. -35°C: 116 Kcal/h
  • Cooling Cap. -30°C: 195 Kcal/h
  • Cooling Cap. -25°C: 287 Kcal/h
  • Cooling Cap. -20°C: 392 Kcal/h
  • Cooling Cap. -15°C: 509 Kcal/h
  • Cooling Cap. -10°C: 639 Kcal/h
  • Test Type: Standard TE

Product Description

Tecumseh Hermetique R134a / R404a/ R22 reciprocating compressor

Hermetique R22 HBP
For Air Conditioning Applications.
Features:
Anti Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Crankcase heater on TAG models
Fan cooling required on all models
Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46.2°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature.
Motor Types:
PSC = Permanent Split Capacitor, 1 Phase, 50 Hz. 220-240 Volt
3Ø: 3 Phase, 50 Hz, 400 Volt
Expansion Device:
C = Capillary Tube
C/V = Capillary Tube or Expansion Valve
R22 Hermetic
Model No. Nominal HP Displ. cm³/rev Motor Type Nominal Current FLA Exp. Device Oil Charge cm³ Connections: inches
cm³ Discharge Proc.
AE 5465E 1/2 12.05 PSC 3.2 C 450 3/8 Tube 1/4 Tube 3/8 Tube
AJ 5510F 3/4 18.6 PSC 5.2 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5512E 1 21.75 PSC 5.9 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5513E 1 24.2 PSC 6 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5515E 1 1/4 25.95 PSC 7.2 C 887 1/2 Tube 5/16 Tube 1/4 Tube
AJ 5518E 1 1/2 32.7 PSC 9.3 C 887 1/2 Tube 5/16 Tube 1/4 Tube
AJ 5519E 1 1/2 34.45 PSC 9.96 C 887 1/2 Tube 5/16 Tube 1/4 Tube
FH 5522E 1 3/4 39.95 PSC 9 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5522E 1 3/4 39.95 3Ø 3.8 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube

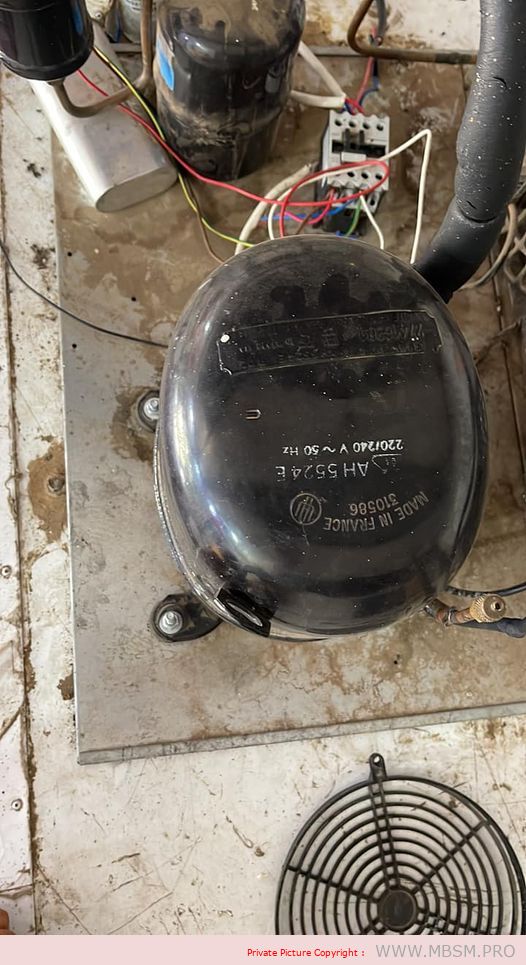

FH 5524E 2 43.5 PSC 10 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5524E 2 43.5 3Ø 4 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube
FH 5527E 2 1/4 49.1 PSC 12 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5527E 2 1/4 49.1 3Ø 4.2 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube
FH 5531E 2 1/2 56.65 PSC 14.1 C 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5531E 2 1/2 56.65 3Ø 8 C/V 1330 3/4 Tube 3/8 Tube 5/16 Tube
FH5540E 3 74.25 PSC 18.6 C 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 78 1/2 Valve 5/16 Tube
TAG 5546E 3 3/4 90.2 3Ø 6.6 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5553E 4 100.7 3Ø 7.4 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5561E 5 112.5 3Ø 9 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5568E 6 124.4 3Ø 9.6 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5573E 6 1/2 134.8 3Ø 11 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube

Hermetique R22 M/HBP
For Medium / High Temperature Applications
Features:
Anti-Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Rotalock suction valve on CAJ/TAJ models
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Fan cooling required on all models
All models suit capillary tube or expansion valve operation
Rotalock suction and discharge valves on FH/TFH and TAG models
Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C evaporating temperature.
Motor Types:
CSIR: Capacitor start, Induction run } 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
3Ø: 3 Phase, 50 Hz, 400 Volt
Conversion: Watts x 3.412 = BTU/Hr BTU/Hr x 0.293 = Watts
R22 Hermetic
Model No. Nominal HP Displ. cm³/rev Motor Type Nominal Current FLA Oil Charge cm³ Connections: inches
Suction Discharge
AEZ 4425E 1/5 4.5 CSIR 1.75 450 1/4 Tube 3/16 Tube
AEZ 4430E 1/4 5.7 CSIR 2.2 450 1/4 Tube 3/16 Tube
AEZ 4440E 1/3 7.55 CSIR 2.6 450 1/4 Tube 3/16 Tube
AEZ 9440T 1/3 7.55 CSR 2.03 450 3/8 Tube 1/4 Tube
CAE 4450E 3/8 9.4 CSIR 3.3 450 3/8 Tube 1/4 Tube
CAE 9450T 3/8 9.5 CSR 2.6 450 3/8 Tube 1/4 Tube
CAE 9460T 1/2 11.3 CSR 3.2 450 3/8 Tube 1/4 Tube
CAJ 9408T 5/8 15.2 CSR 3.68 887 1/2 Valve 5/16 Tube
CAJ 9510T 1 18.3 CSR 4.8 887 5/8 Valve 5/16 Tube
CAJ 9513T 1 1/8 24.2 CSR 5.9 887 5/8 Valve 5/16 Tube
CAJ 4517E 1 1/4 25.95 CSR 6.1 887 5/8 Valve 3/8 Tube
TAJ 4517T 1 1/2 25.95 3Ø 2.5 887 5/8 Valve 3/8 Tube
TAJ 4519T 1 1/2 34.45 3Ø 3.5 887 5/8 Valve 1/2 Valve
FH 4524F 2 43.5 CSR 9.55 1480 5/8 Valve 1/2 Valve
TFH 4524F 2 4.35 3Ø 3.9 1480 7/8 Valve 1/2 Valve
FH 4531F 2 1/2 56.65 CSR 12.6 1480 7/8 Valve 1/2 Valve
TFH4531F 2 1/2 56.65 3Ø 4.75 1480 7/8 Valve 1/2 Valve
TFH 4540F 3 74.25 3Ø 6.08 1480 7/8 Valve 1/2 Valve
TAG 4546T 4 90.2 3Ø 6.6 1960 7/8 Valve 5/8 Valve
TAG 4553T 4 1/2 100.7 3Ø 7.4 1960 7/8 Valve 5/8 Valve
TAG 4561T 5 112.5 3Ø 9 1960 1 7/8 Valve 5/8 Valve
TAG 4568T 6 124.4 3Ø 9.6 1960 1 7/8 Valve 5/8 Valve
TAG 4573T 6 1/2 134.8 3Ø 11 1960 1 7/8 Valve 5/8 Valve


Tecumseh Hermetique R134a
The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Charged with polyolester oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Rotalock valves are included for all valve connection compressors
Anti-vibration mounts supplied
Single Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAJ4476Y 5/8 21.75 Fan 887
CAJ4492Y 3/9 25.95 Fan 887
CAJ4511Y 1 32.7 Fan 887
FH4518Y 1 1/2 53.2 Fan 1480
FH4525Y 2 74.25 Fan 1480

Three Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ4511Y 1 32.7 Fan 887
TFH4518Y 1 1/2 53.2 Fan 1480
TFH4525Y 2 74.25 Fan 1480
TAG4528Y 2 1/2 90.2 Fan 1960
TAG4534Y 2 3/4 100.7 Fan 1960
TAG4537Y 3 112.5 Fan 1960
TAG4543Y 3 1/2 124.4 Fan 1960

Superceded Models
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
AEZ4425Y 1/5 7.55 Fan 450
AEZ4430Y 1/4 8.85 Fan 450
CAE4440Y 3/8 12.05 Fan 450
CAE4448Y 1/3 14.15 Fan 450
CAJ4452Y 1/3 15.2 Fan 887
CAE4456Y 1/2 16 Fan 450
CAJ4461Y 1/2 18.3 Fan 887

Tecumseh Hermetique R404A
The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh.
Features:

Charged with polyolester oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Rotalock valves are included for all valve connection compressors
Anti-vibration mounts supplied

Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature.
Motor Types:
CSIR: Capacitor Start, Induction Run 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor Start and Run
3Ø: 3 Phase, 50 Hz, 400 Volt
All models are also suitable for operation with R507
Single Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAJ9480Z 5/8 15.2 Fan 887
CAJ9510Z 1 18.3 Fan 887
CAJ9513Z 1 1/8 24.2 Fan 887
CAJ4517Z 1 1/4 25.95 Fan 887
CAJ4519Z 1 1/2 34.45 Fan 887
FH4522Z 1 3/4 39.95 Fan 1480
FH4524Z 2 43.5 Fan 1480
FH4531Z 2 1/2 56.65 Fan 1480
FH4540Z 3 74.25 Fan 1480


Three Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ9480Z 5/8 15.2 Fan 887
TAJ9510Z 1 18.3 Fan 887
TAJ9513Z 1 1/8 24.2 Fan 887
TAJ4517Z 1 1/4 25.95 Fan 887
TAJ4519Z 1 1/2 34.45 Fan 887
TFH4522Z 1 3/4 39.95 Fan 1480
TFH4524Z 2 43.5 Fan 1480
TFH4531Z 2 1/2 56.65 Fan 1480
TFH4540Z 3 74.25 Fan 1480
TAG4546Z 4 90.2 Fan 1960
TAG4553Z 4 1/2 100.7 Fan 1960
TAG4561Z 5 112.5 Fan 1960
TAG4568Z 6 124.4 Fan 1960
TAG4573Z 6 1/2 134.8 Fan 1960

Single Phase – Low SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAE2417Z 1/3 11.3 Fan 450
CAE2420Z 1/2 12.54 Fan 450
CAE2424Z 5/8 15 Fan 450
CAJ2428Z 1/2 15.2 Fan 887
CAJ2432Z 5/8 18.3 Fan 887
CAJ2446Z 3/4 26.15 Fan 887
CAJ2464Z 1 1/2 34.45 Fan 887
FH2480Z 2 53.2 Fan 1625
FH2511Z 2 1/2 74.25 Fan 1625

Three Phase – Low SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ2464Z 1 1/2 34.45 Fan 887
TFH2480Z 2 53.2 Fan 1625
TFH2511Z 2 1/2 74.25 Fan 1625
TAG2516Z 4 112.5 Fan 1960
TAG2522Z 5 1/2 134.8 Fan 1960

Three Phase – Parallel Applications
Model No. Nominal HP Displacement: cm3/rev Application: SST Cooling Oil Charge: ml
TAGP4546Z 4 90.2 Medium Fan 1960
TAGP4553Z 4 1/2 100.7 Medium Fan 1960
TAGP4561Z 5 112.5 Medium Fan 1960
TAGP4568Z 6 124.4 Medium Fan 1960
TAGP4573Z 6 1/2 134.8 Medium Fan 1960
TAGP2516Z 4 112.5 Low Fan 1960
TAGP2522Z 5 1/2 134.8 Low Fan 1960



Mbsm_dot_pro_private_PDF_cae2412yTélécharger

EN12900 ASERCOM 220V ~ 60HZ 877 221 257 321 2.73 .69 .8 -25° C ( -13° F) 55° C ( 131° F) 32° C ( 90° F) 32° C ( 90° F) 55° C ( 131° F)
General
Evaporating Temp. Range:
-40° C to -12.2° C ( -40° F to 10° F)
Motor Torque:
High Start Torque ( HST)
Compressor Cooling:
Fan
Mechanical
Weight:
10.81
Weight Unit of Measure:
KG
Displacement ( cc) :
14.15
Oil Type:
Polyolester
Viscosity ( cSt) :
32
Oil Charge ( cc) :
250
Electrical
Voltage Range ( 50 Hz) :
N/ A
Voltage Range ( 60 Hz) :
187-242
Locked Rotor Amps ( LRA) :
17
Rated Load Amps ( RLA 50 Hz) :
2.3
Rated Load Amps ( RLA 60 Hz) :
2.3
Max. Continuous Current ( MCC in Amps) :
4
Motor Resistance ( Ohm) – Main:
3.8
Motor Resistance ( Ohm) – Start:
23.2
Motor Type:
CSIR
Overload Type:
EXTERNAL
