Mbsm.pro, Refrigerator, Mini compressor, GMCC, C Series, TOSHIBA, SZ55C1J, 75 w, 1/10 hp, LBP, r600a, Refrigerator-Freezer, HRD-071S, 64 L

written by Lilianne | 20 August 2023

Parameter

Series	C Series
Application Type	LBP
Refrigerant	R600a
Displacement	5.5 cc
Cooling Type	ST
Motor Type	RSIR
Voltage	220V
Frequency	50Hz
Cooling Capacity (W)	85
Cooling Capacity (Kcal/h )	73
Cooling Capacity (Btu/h)	290
COP (W/W )	1.37
COP (Btu/Wh)	4.67

Mbsm_dot_pro_private_PDF_sz55c1y

Mbsm.pro, Toshiba, R22, pH170g1c-4dzde, Air Conditioner, Compressor, 1 ton, 12000 btu, 1.5 hp

written by Lilianne | 20 August 2023

SPECIFICATIONS FOR PH170G1C-3FTDU1
Products Details	Models: PH170G1C-3FTDU1	Type	Hermetic
	Power	Phase	1
	Horse Power	HP	1.5
Main performance parameters	Input Power	W	208-230/1/60
	REFRIGRANT		R22
	SIZE		54.0/35.0
Physcial parameters	Height	MM	285
	Weight	KG	160
	Q’ty / Pallet	PIECE	18

• Température d’évaporation : 7,2 °/45 °F
• Temp. de condensation : 54,4 °/ 130 °F
• Temp. de gaz de retour : 35,0 °/ 95 °F
• Temp. ambiante : 35,0 °/ 95 °
F 115 °F
• Table de conversion : Kcal/hx 1,163 = W W x 3,412 = Btu/h

Mbsm_dot_pro_private_PDF_ph170g1c

Gr-ef31

written by Lilianne | 20 August 2023

Mbsm_dot_pro_private_PDF_GR-EF31-SL Mbsm.pro, Toshiba, no frost, refrigerator, Gr-ef31

Capacity: Net: 277
Number of Doors:2
Shelf :Plastic
Origin:Egypt
Deodorizer filter (refrigerator)
Nofrost
Colors:
White: GR-EF31-W
Gold: GR-EF31-G
Silver: GR-EF31-S
Dimensions: Wide:60.4 – Height:150.1 – Depth:68.1

Model	GR-EF31 W
Size	11 feet
Color	White
Warrantee	10 Years
Width	60.4 cm
Depth	68.1 cm
Height	150.1 cm
Dispenser	No
Liters	296
Digital	No
Shelves	Plastic
No Frost	Yes

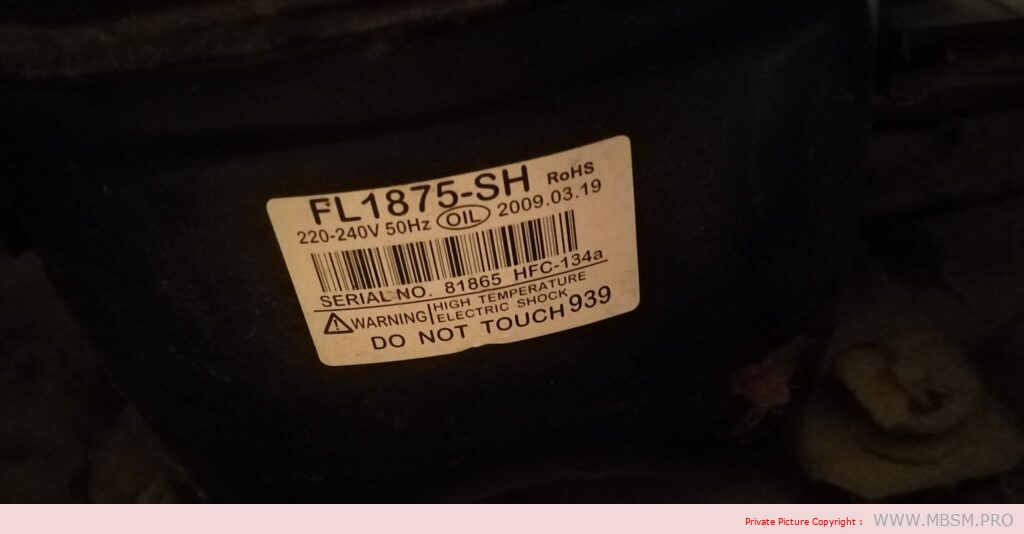

Mbsm.pro, Toshiba, refrigerator, freezer, GR-Y70UD, classT, Compressor, FL1875-SY, 1/4 hp, lbp, r134a, 170g

written by mahdi miled | 20 August 2023

Mbsm.pro, Hitachi, compressor, for refrigerator water, FL1875-SY, FL1875, 1/4 Hp, Lbp, 717btu

Mbsm.pro, Toshiba, refrigerator, freezer, GR-Y70UD, classT, Compressor, FL1875-SY, 1/4 hp, lbp, r134a, 170g

GR-Y70UD

Mbsm.pro, Compressor, Toshiba, ph441x3cs-4kts1, 3 hp, 1 PH, 50Hz-220V/240V, R22

written by Lilianne | 20 August 2023

Product Details

AC refrigeration compressor for Toshiba is famous for its reliable quality and high performance when using in the conditioning system.

Toshiba was the first company to incorporate inverter technology into air conditioning systems in 1981, and since then it has always maintained a technological advantage over its competitors. The development of the new and exclusive DC hybrid inverter system has reaffirmed this ability to innovate and maintain technological leadership in a fast-growing market.

Air treatment, low sound levels, guaranteed energy savings and easy installation of the indoor units make the Toshiba air conditioners compressor the top choice for any home and office. Solutions that are studied and verified in every tiny element are recognized universally by air conditioning professionals for their total reliability. Toshiba leads in technology and in applying technology to your greatest advantage!

R22 220~240V HZ 1PH
Model	Displ. (m3/rev)	Capacity		Power (W)	COP(W/W)	Capacitor (μ F/V)	Height ( mm )
		W	Btu/h
PH60G0C-4BZDE	6	985	3361	345	2.86	20/370	241
PH104G0C-4BZDE	10.4	1745	5954	580	3.01	25/370	259
PH108G0C-4BZDE	10.8	1820	6214	590	3.1	25/370	270
HSM140V1UFZ	13.9	2425	8274	735	3.3	25/370	292
HSM150V5UFZ	15.1	2640	9008	800	3.3	25/370	292
HSM165V3UDZ	16.4	2855	9741	915	3.12	30/370	292
HSM165V1UFZ	16.4	2845	9741	915	3.12	30/370	292
HSM220V1UFT	20.1	3480	11874	1070	3.25	35/370	300
HSM210V1UFT	20.9	3650	12454	1170	3.12	35/370	300
HSM215V1UFT	21.4	3710	12659	1215	3.05	35/370	300
HSM215V4UFTA	21.4	3700	12624	1140	3.25	40/370	300
HSM190V1UFT	19.2	3340	11396	1010	3.31	35/370	300
PH210M2A-4FTS1	20	3752	12830	1154	3.25	35/370	392
PH225X2C-4FT	22.4	3890	13273	1205	3.23	35/370	292
PH240M2C-4FT1	24	4225	14416	1340	3.15	35/370	292
PH250M2C-4FT1	25	4310	14706	1370	3.15	30/370	292
PH290M2C-4FT1	28.8	5090	17367	1650	3.08	35/370	311
PH300G2C-4KU1	29.8	5340	18220	1645	3.25	55/400	297
PH310M2AS-4KTS1	31	5560	18971	1765	3.15	50/370	348
PH310G2C-4FT1	30.8	5440	18561	1635	3.33	55/400	310
PH320M2AS-4KUH	31.8	5570	19005	1690	3.3	55/400	310
PH340G2C-4KU	33.7	6050	20643	1805	3.35	60/400	324
PH340G2C-4KTS1	33.7	6050	20643	1915	3.16	60/400	310
PHPH360G2C-4FTS1	36	6455	22024	2015	3.2	60/400	324
PH370G2CS-4MU1	37	6650	22690	2065	3.22	50/400	324
PH400G2CS-4MU1	39.8	7100	24225	2255	3.15	50/400	354
PH420G2CS-4KU1	42.3	7420	25317	2390	3.1	50/400	354
PH440G2CS-4MU	43.5	7810	26648	2390	3.27	50/400	345
PH440G2CS-4KTS1	43.5	7685	26221	2500	3.07	60/400	354
PH460X3CS-4MU1	45.9	8080	27569	2600	3.11	55/400	397
PH480X3CS-4MU1	47.9	8460	28866	2730	3.1	55/400	397
R22 220~240V HZ 1PH
Model	Displ. (m3/rev)	Capacity		Power (W)	COP (W/W)	Capacitor (μ F/V)	Height ( mm )
Model	Displ. (m3/rev)	W	Btu/h	Power (W)	COP (W/W)	Capacitor (μ F/V)	Height ( mm )
PH120M1C-3DZDU1	12.2	2490	8496	790	3.15	30/370	266
PH130M1C-3DZDU1	13.1	2660	9076	850	3.13	30/370	270
PH160G1C-3DZDU1	16	3280	11190	1040	3.15	35/370	285
PH180G1C-3FTU2	18.1	3795	12949	1225	3.1	35/370	294
PH195G1C-3FTU1	19.6	4155	14177	1310	3.17	40/370	294
PH225M2C-3FTU1	22.4	4770	16275	1505	3.17	40/370	292
PH240M2C-3FTU1	20	5140	17538	1580	3.25	40/370	292
PH250M2C-3KUU1	24.8	5285	18032	1625	3.25	40/370	292
PH260M2AS-3KUU1	26.1	5625	19193	1815	3.1	40/370	333
PH330G2C-3MUU1	32.8	7050	24055	2200	3.2	55/400	297
PH370G2CS-3KTS1	37	7885	26967	2540	3.1	55/400	354
PH401X3CS-3MTU	40.2	8735	29804	2705	3.23	60/400	372
PH441X3CS-3MUU	43.5	9470	32312	2915	3.25	60/400	372
R22 220~240V HZ 1P
Model	Displ. (m3/rev)	Capacity		Power (W)	COP(W/W)	Capacitor (μ F/V)	Height ( mm )
Model	Displ. (m3/rev)	W	Btu/h	Power (W)	COP(W/W)	Capacitor (μ F/V)	Height ( mm )
PA108M1C3FZDU	10.8	3110	10611	1045	2.98	35/370	279
PA118M1C-3FZU	11.8	3390	11567	1125	3.01	35/370	279
PA140G1C-3FTU1	13.9	4240	14458	1402	3.03	40/370	298
PA150G1C-3FTU1	15.1	4445	15157	1505	2.95	40/370	298
PA160X2CS-3KUU	16	4785	16325	1570	3.05	40/370	303
PA160M3A-3ETU	16	4785	16325	1570	3.05	40/370	303
PA170M2C-3ETU	17	5800	19790	1940	2.99	50/370	303
PA200M2CS-3MUU1	19.8	5800	19790	1940	2.99	50/370	344
PA210M2CS-3KTU2	20.8	6155	21001	2015	3.05	50/370	344
PA240M2C-3MTU2	22	7160	24430	2365	3.03	55/370	322
PA250M2CS-3MUU1	25	7445	25402	2500	2.98	60/370	344
PA270X3CS-3MUU	26.9	8155	27825	2640	3.09	55/400	382
PA291X3CS-3MTU	28.8	8850	30196	2805	3.08	55/400	382

Hot

Mbsm.pro, compressor, pH210X2C-4FT1, Gmcc, Toshiba, R22, 900 G, 1pH, 50Hz 220-240V, Rotary Compressor, Air Conditioner, 12000 btu, 1 ton, 1.5 hp

written by Lilianne | 20 August 2023

GMCC(Toshiba) R22 1pH. 50Hz/220-240V rotary compressor for air conditioner Specification:
Model: pH210X2C-4FT1
pH. 1
Displacement: 20.8cm3/rev
Cooling capacity: 3620W 12344BTU/wh
Power: 1130W
Cop: 3.2W/w
Capacitor: 35UF/370V&

Toshiba model PH215X2C-4FT

Quick Details

Place of Origin:China (Mainland)                                                                     Brand Name: GMCC
Model Number:PH215X2C-4FT                                                                       Type:Refrigeration Compressor
Application:Refrigeration Parts                                                                        Certification:CE
Name:Toshiba compressor floor Split air conditioner                                       oil (ml):480
cooling capacity(w):3750                                                                                   Displacement(cm3/rev):21.6
power(w):1210                                                                                                   COP:3.1
capacity(btu/h):12788                                                                                         MOQ:1
Refrigerant:R22                                                                                                  Voltage:220v/1/50Hz

Other models of Toshiba rotary refrigetation compressors
Technical Datas:

NO	Model Name	Displ.	Capacity	Power	COP	Current	Noise	Capacitor	Oil	R22 Max	Wt.	Sizes Refer to Table 10
					COP				(POE)
		(cm3/rev)	(±5%W)	(±5% W)	(±5%)	(A)	±3dB(A)	μF-V	(ml)	(kg)	(kg)
1	PH108X1CY-8BGD2	10.8	1820	595	3.06	2.7	59	25/370	350	0.7	10.7	No.1
2	PH120X1CY-8BGD2	12.2	2090	675	3.1	3.1	59	25/370	350	0.7	10.7	No.1
3	PH135X1C-8DZD2	13.6	2280	750	3.04	3.4	59	25/370	400	0.85	12	No.6
4	PH150X1C-8DZD2	14.8	2500	820	3.05	3.8	60	25/370	400	0.85	12	No.6
5	PH155X1C-8DZD2	15.4	2600	850	3.06	4	59	25/370	400	0.85	12	No.6
6	PH160X1C-8DZD2	16.1	2720	890	3.06	4.1	59	25/370	400	0.85	12	No.6
7	PH165X1C-8DZD2	16.5	2810	920	3.05	4.2	59	25/370	400	0.85	12	No.6
8	PH170X1C-8DZD2	17.1	2920	960	3.04	4.5	59	25/370	400	0.85	12	No.6
9	PH180X1C-8DZD2	17.8	3050	1025	2.98	4.8	59	25/370	400	0.85	12	No.6
10	PH195X2C-8FTC	19.3	3330	1080	3.08	5	61	25/370	480	1.1	15.1	No.16
11	PH200X2C-8FTC	20	3470	1135	3.06	5.2	61	25/370	480	1.1	15.1	No.16
12	PH215X2C-8FTC	21.6	3750	1210	3.1	5.6	61	35/370	480	1.2	15.8	No.16
13	PH225X2C-8FTC	22.4	3870	1250	3.1	5.7	61	35/370	480	1.2	15.8	No.16
14	PH230X2C-8FTC	23.1	3990	1310	3.05	6	61	35/370	480	1.2	15.8	No.16
15	PH240X2C-8FTC	23.9	4140	1355	3.06	6.2	61	35/370	480	1.2	15.8	No.16
16	PH260X2C-8FTC1	26.2	4600	1510	3.05	7.3	63	35/370	520	1.3	16.3	No.21
17	PH280X2C-8FTC1	28	4900	1570	3.12	7.5	64	35/370	520	1.3	17.1	No.21
18	PH290X2C-8FTC1	29	5110	1650	3.1	8	64	35/370	520	1.3	17.1	No.21
19	PH295X2C-8FTC1	29.4	5180	1670	3.1	8	64	35/370	520	1.3	17.1	No.21
20	PH295X2CS-8KUC1	29.4	5200	1700	3.06	8	65	35/370	750	1.8	17.7	No.22
21	PH310X2CS-8KUC1	30.8	5410	1815	2.98	9.5	64	40/370	750	1.8	17.7	No.22
22	PH330X2CS-8KUC3	32.8	5720	1920	2.98	10	64	40/370	750	1.8	17.7	No.22
23	PH340X2CS-8KUC1	33.8	5860	1890	3.1	9	66	45/400	750	1.8	18.1	No.23
24	PH340X3C-8KUC1	34.2	5950	1945	3.06	9.1	66	50/400	750	1.8	20.6	No.25
25	PH360X3C-8KUC1	35.7	6220	2040	3.05	9.6	66	50/400	750	1.8	20.6	No.25
26	PH400X3C-8KUC1	40.2	6920	2245	3.08	10.5	66	50/400	950	2.1	23.3	No.27
27	PH420X3C-8KUC1	42	7400	2370	3.12	11.1	66	50/400	950	2.1	23.3	No.28
28	PH440X3C-8KUC1	43.5	7650	2510	3.05	12.3	66	50/400	950	2.1	23.3	No.28
29	PH460X3C-8KUC1	45.9	8060	2600	3.1	12.5	68	55/400	1100	2.45	25.2	No.29
30	PH480X3C-8KUC1	47.9	8460	2730	3.1	13	67	55/400	1100	2.45	25.2	No.29

Compresseur à fréquence fixe 1 & phi;-50Hz-220V/240V,R22
PH104G0C-4BZDE	10.4	1740	5935	580	259
PH108G0C-4BZDE	10.8	1830	6245	590	259
PH108X1C-4DZDE2	10.8	1820	6206	595
PH135G1C-4DZDE1	13.3	2270	7748	725	285
PH150G1C-4DZDE
PH150G1C-4DZDE1
PH150G1C-4DZH	15.1	3555	12130	885	285
PH150G1C-4FZDE
PH160G1C-4DZDE1	16	2740	9350	870	285
PH165G1C-4DZDE1	16.4	2775	9470	895	285
PH165G1C-4DZH	16.4	3725	12710	945	285
PH165X1C-4DZDE2	16.5	2810	9582	920		12
PH170G1C-4DZDE1	16.8	2865	9775	910	285
PH180X1C-4DZDE3	17.8	3015	10281	965		12
PH185G1C-4DZ	18.6	3200	10920	1015	294
PH190M2A-4FTL1
PH190M2C-4FT3	19.1	3330	11360	1025	292
PH200M2C-4FT1	19.8	3360	11465	1050	292
PH200X2C-4FT
PH200X2C-8FTC	20	3470	1135	3.05	480
PH210M2A-4FTS1	19.9	3555	12123	1095	292
PH210M2C-4FT3	20.8	3570	12180	1100	292
PH210X2C-4FT1
PH215G1C-4DZ1
PH215M1A-4FT	21.3	3715	12675	1160	293
PH215M2C-4FT	21.4	3710	12660	1195	292
PH215M2C-4FT3	21.4	3720	12695	1145	292
PH215X2C-4FT1
PH225M2C-4FT3	22.4	3895	13290	1200	292
PH225X2C-4FT	22.4	3870	13197	1250
PH225X2C-4FT1
PH230X2C-4FT	23.1	3990	13606	1310
PH240X2C-4FT	23.9	4140	14117	1355
PH240X2C-4FT1
PH260X2C-4FT1	26.2	4600	15686	1510
PH260X2C-4FT3	26.2	4530	15447	1440
PH290G2C-4KUL	28.7	5715	19500	1285	297
PH290X2C-4FT1
PH295X2CS-8KTC1
PH310G2C-4KN1
PH310G2C-4KU1	30.8	5450	18595	1675	310
PH310G2C-4KUL	30.8	6145	20965	1365	310
PH310X2CS-4KVH
PH330X2CS-8KUC1
PH340G2C-4KTS1	33.7	5990	20440	1870	310
PH340G2C-4KU1	33.7	5960	20335	1835	310
PH340X2CS-4KU2
PH360G2C-4MU1	36	6450	22010	2015	324
PH360X3C-4FTS1
PH370G2CS-4MU1	37	6630	22620	2070	324
PH371X3CS-4MU1
PH400G2CS-4KTS1	42	7408	25335	2350	354
PH400G2CS-4KU1	39.8	7015	23935	2260	354
PH400M3CS-4MUL	39.8	7990	27260	1815	362
PH400X3CS-4KU1
PH420G2CS-4KU1	42.3	7530	25690	2390	354
PH420X3CS-4KU1
PH440G2CS-4KTS1	43.6	7680	26205	2515	354
PH440X3CS-4KU1
PH441X3CS-4MU1	42	7400	25250	2310	382
PH460X3CS-4MU1	45.9	8060	27500	2600	397
PH480X3CS-4MU1	47.9	8460	28865	2730	397
PH480X3CS-8MUC1
PH60G0C-4BZDE	6	985	3360	345	241

R22 1 & phi;-60Hz-208/230V, compresseur à fréquence fixe
PH150G1C-3DZDU2	15.1	3135	10695	995	3.15	35/370	285
PH170G1C-3DZDU1
PH180G1C-3FTU2	18.1	373012725	1205	3.1	35/370	294	8.2
PH180X1C-3FTU2
PH195G1C-3FTU1	19.6	4145	14145	1315	3.15	40/370	294
PH225M2C-3FTU1	22.4	4770	16275	1515	3.15	40/370	292
PH225X2C-3FTU1
PH240M2C-3FTU1	23.9	5015	17110	1565	3.2	40/370	292
PH240X2C-3FTU1
PH250M2C-3FTU1	25	5365	18305	1650	3.25	40/370	292
PH250X2C-3FTU
PH260X2CS-3KUU1	26.1	5625	19193	1815	3.1	40/400	333
PH280M2AS-3KTS1	27.9	6025	20556	1910	3.15	40/400	311
PH290X2C-3FTU1
PH290X2CS-3KUU1	29	5100	17391	1670	3.05	35/370
PH330G2C-3MUU1	32.8	7040	24020	2200	3.2	55/400	297
PH331X3C-3MTU1
PH331X3C-3MUU1
PH360X3CS-3KUU1
PH361X3CS-3KTU
PH371X3C-3MUU1
PH400X3CS-3MTU
PH400X3CS-3MUU

Model	Displ.	Cooling Capacity		Input Power	COP	Capacitor
Model	cm³/rev	W	BTU	W	W/W	μF/V
R22 1φ-50HZ-220V/240V FIXED FREQUENCY COMPRESSOR 定频压缩机
R22 1φ-50HZ-220V/240V FIXED FREQUENCY COMPRESSOR 定频压缩机
PH200X2C-4FT	20	3470	11833	1135	3.06	25/370
PH200X2C-8FTC	20	3470	11833	1135	3.06	25/370
PH210M2C-4FT3	20.8	3570	12180	1100	3.25	35/370
PH210X2C-4FT1	20.8	3620	12344	1130	3.2	35/370
PH215G1C-4FTA1	21.3	3665	12497	1210	3.03	35/370
PH215G1C-4DZ1	21.3	3645	12429	1215	3	35/370
PH215M1A-4FT	21.3	3715	12675	1160	3.2	35/370
PH215M2C-4FT	21.4	3710	12660	1195	3.1	35/400
PH215M2C-4FT3	21.4	3720	12695	1145	3.25	35/370
PH215X2C-4FT	21.6	3720	12685	1180	3.15	35/370
PH215X2C-4FT1	21.6	3720	12685	1180	3.15	35/370
PH225M2C-4FT3	22.4	3895	13290	1200	3.25	35/370

Mbsm.pro, Compressor, PH440G2CS-4KUS1, 26000 Btu, 3 Hp, GMCC, Toshiba, 220/240v 50hz, T3, 2490 W, r22

written by Lilianne | 20 August 2023

		Specification		Capacity		Input power	COP/EER	Capacity
NO	Model No	HZ	Applicable Model	W	BTU/H	W	W/W	μF/V
24	PH420X3CS-4KU1	50HZ	24000BTU	7400	25234	2370	3.12	50/400
25	PH340X3C-4KUS1	50HZ	T3 18000BTU	5965	20341	1990	3.0	50/400
26	PH400X3CS-4KUS1	50HZ	T3 24000BTU	7030	23972	2320	3.03	55/400
27	PH440X3CS-4KUS1	50HZ	T3 30000BTU	7560	25780	2490	3.04	60/400
28	PH400X3C-4FVS1	50HZ	T3 window type24000BTU
29	PH135X1C-3DZDU2	60HZ	9000BTU	2830	9650	920	3.08	35/370
30	PH180X1C-3FTU2	60HZ	12000BTU	3760	12822	1220	3.08	35/370
31	PH260X2CS-3KUU1	60HZ	18000BTU	5550	18770	1790	3.10	40/370
32	PH280X2CS-3KTS1	60HZ	T3-18000BTU	5925	20204	1895	3.13	60/400
33	PH330X3C-3MUU	60HZ	24000BTU	6980	23802	2180	3.20	55/400
34	PH370X3C-3KUS1	60HZ	T3 30000BTU	7960	27165	2420	3.30	55/400
35	PH330X3C-3FVS1	60HZ	window type 24000BTU	6900	23529	2255	3.06	55/400

https://www.mbsm.pro/wp-content/uploads/2022/04/Mbsm_dot_pro_private_PDF_Catalogo-Compresores-Rotativos-GMCC.pdf

Mbsm.pro, Compressor, Ph310M2A-4FTS2, T3, R22, Toshiba, Gmcc, Rotary Compressor, for Air Conditioner, 1765 w, 19000 btu/h, 50HZ-220/240V, 2.3 hp

written by Lilianne | 20 August 2023

GMCC Rotary Compressor

R410A

1φ-50Hz-220/240V

Model	Displ.	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	(cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
ASN46V1VAZ1	4.6	1250	4265	320	3.90	15/370	238	8.1	9.8
ASN58V1VZZ1	5.8	1625	5545	411	3.95	20/370	238	8.1	9.8
ASM89V1VFZ	8.9	2485	8479	592	4.20	20/370	290	8.1	12.9
ASM93V11VDZ	9.3	2570	8769	615	4.18	25/370	290	8.1	9.8
ASM99V1VFZ	9.8	2780	9485	650	4.28	25/370	292	8.1	12.9
ASM103V11VDZ	10.3	2900	9895	675	4.30	25/370	292	8.1	9.8
ASM106V1VFT	10.6	3040	10372	710	4.28	25/370	292	8.1	12.9
ASM113V1VDZ	11.3	3215	10970	745	4.32	30/370	292	8.1	9.8
ASM120V1VFT	12.0	3445	11754	805	4.28	30/370	292	8.1	12.9
ASM125V1VFT	12.5	3610	12317	845	4.27	35/370	292	8.1	12.9
ASM130V1VDZ	13.0	3760	12829	885	4.25	35/370	292	8.1	9.8
ASM135V1VFT	13.3	3870	13204	900	4.30	35/370	295	8.1	12.9
ASM140V1VFT	13.9	4060	13853	945	4.30	35/370	292	8.1	12.9
PA150M2A-4FTL	15.0	4300	14672	1025	4.20	35/370	300	8.1	12.9
PA190M2AS-4KUL1	18.9	5460	18630	1270	4.30	45/370	340	8.1	12.9
PA190M2A-4EUL1	18.9	5480	18698	1290	4.25	45/370	325	8.1	12.9
PA200M2A-4EUL	19.9	5760	19653	1405	4.10	50/370	325	8.1	12.9
PA205M2AS-4MUL	20.4	5965	20353	1420	4.20	50/370	345	9.8	16.2
PA196G2C-4MUL	19.6	5665	19329	1335	4.24	55/400	310	9.8	16.2
PA206G2C-4KUL	20.8	5990	20438	1410	4.25	55/400	310	9.8	12.9
PA216G2C-4FTL	21.6	6165	21035	1440	4.28	55/400	310	9.8	12.9
PA231G2C-4MUL	23.1	6760	23065	1565	4.32	50/400	345	9.8	16.2
PA250G2CS-4MUL	25.1	7315	24959	1695	4.32	50/400	345	9.8	16.2
PA270G2CS-4MUL1	27.0	7845	26767	1805	4.35	60/400	345	9.8	16.2
PA280G2CS-4MUL	27.9	8165	27859	1898	4.30	60/400	345	9.8	16.2
PA290G2CS-4MUL	28.7	8485	28951	1975	4.30	60/400	345	9.8	16.2
ASG195V1VMU	19.6	5700	19448	1310	4.35	40/400	310	9.8	16.2
ASK40V11UAZ	4.0	930	3173	365	2.55	15/370	230	8.1	9.8
ASK60V1UAZ	6.0	1475	5033	542	2.72	25/370	230	8.1	9.8
ASN68V1UZZ1	6.8	1695	5783	585	2.90	20/370	250	8.1	9.8
ASN71V1UDD1	7.1	1735	5920	582	2.98	20/370	250	8.1	9.8
ASN76V1UDZ1	7.6	1890	6449	630	3.00	25/370	250	8.1	9.8
ASN82V1UDZ	8.2	2035	6943	690	2.95	25/370	250	8.1	9.8
ASN86V1UDZ	8.6	2140	7302	725	2.95	25/370	250	8.1	9.8
ASN89V1UDZ	8.9	2260	7711	765	2.95	25/370	250	8.1	9.8
ASM99V2UDZ	9.8	2395	8172	788	3.04	25/370	292	8.1	9.8
PA170M2C-4ET2	17.1	4190	14296	1385	3.03	35/400	300	8.1	12.9
PA185M2C-4FT2	18.5	4495	15337	1500	3.00	35/400	300	8.1	12.9
PA200M2A-4ET2	20.0	5000	17060	1695	2.95	40/370	314	9.8	12.9
PA215M2AS-4KU	21.5	5355	18271	1845	2.90	50/400	314	9.8	12.9
PA225M2CS-4KU2	22.4	5500	18766	1835	3.00	50/370	340	8.1	12.9
PA240M2CS-4KU1	23.9	5840	19926	1980	2.95	50/370	340	8.1	12.9
PA260G2C-4FU	26.0	6500	22178	2130	3.05	65/400	310	9.8	12.9
PA270G2CS-4MU1	27.0	6825	23287	2235	3.05	60/400	345	9.8	16.2
PA290G2CS-4MU1	28.7	7295	24891	2410	3.03	50/400	345	9.8	16.2
ATQ375V1UMU	37.7	9615	32806	3255	3.05	75/400	405	9.8	16.2
ATQ390V1UMT	38.9	9825	33523	3190	3.08	70/400	405	9.8	16.2

R410A

1φ-60Hz-208~230V

Model	Displ.	Capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	(cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
ASN53N1UAJ3	5.3	1570	5357	520	3.02	15/370	230	8.1	9.8
ASN58N11VDZ1	5.8	1965	6705	510	3.85	15/370	250	8.1	9.8
ASN68N1UDZ	6.8	2060	7029	676	3.05	20/370	250	8.1	9.8
ASN68N2VDZB1	6.8	2320	7916	568	4.08	20/370	250	8.1	9.8
ASN76N1VDZ1	7.6	2600	8871	650	4.00	20/370	250	8.1	9.8
ASN82N1UDZ	8.2	2515	8581	853	2.95	25/370	250	8.1	9.8
ASN82N2VDZ1	8.2	2815	9605	690	4.08	20/370	250	8.1	9.8
ASN84N1VBZB1	8.3	2865	9775	695	4.12	20/370	250	8.1	9.8
ASN89N1UDZ	8.9	2730	9315	895	3.05	25/370	250	8.1	9.8
ASM103N11UFZ	10.3	3075	10492	975	3.15	35/370	297	8.1	12.9
ASM103N11VEZ	10.3	3565	12164	838	4.25	35/370	290	8.1	12.9
ASM106N1UFT	10.6	3200	10918	1015	3.15	35/370	297	8.1	12.9
ASM106N1VEZ	10.6	3680	12556	860	4.28	35/370	297	8.1	12.9
ASM113N1UFZ	11.3	3380	11533	1073	3.15	40/370	292	8.1	12.9
ASM120N1VDZ	12.0	4160	14194	990	4.20	40/370	292	8.1	9.8
ASM130N1UDZ	13.0	3870	13204	1270	3.05	40/370	292	8.1	9.8
ASM135N1UEZ	13.3	4060	13853	1290	3.15	40/370	297	8.1	12.9
ASM140N1UFT	13.9	4175	14245	1355	3.08	40/370	292	8.1	12.9
PA140M2A-3ET	13.9	4155	14177	1375	3.02	45/400	299	8.1	12.9
PA150M2AS-3KU	15.0	4500	15354	1450	3.10	45/370	321	8.1	12.9
ASF155N1VKP	15.5	5420	18493	1260	4.30	45/400	340	8.1	12.9
PA155M2A-3ETL1	15.7	5395	18408	1250	4.32	45/370	303	9.8	12.9
ASF160N1UEP	16.0	4865	16599	1530	3.18	55/400	314	9.8	12.9
PA160M2A-3ETL	16.0	5630	19210	1325	4.25	45/400	303	9.8	12.9
ASF165N02UFT	16.5	5000	17060	1670	3.00	40/370	340	9.8	12.9
PA165M2A-3ETL	16.5	5760	19653	1355	4.25	45/400	303	9.8	12.9
PA170M2A-3FT1	17.1	5155	17589	1662	3.10	45/370	303	9.8	12.9
ASF200N1UKP	19.9	5930	20233	1900	3.12	55/400	340	9.8	12.9
PA216G2C-3KU	21.5	6620	22587	2150	3.08	60/400	310	9.8	12.9
PA226G2C-3MT	22.3	6790	23167	2220	3.06	60/400	310	9.8	16.2
PA225M2A-3MTU1	22.4	6715	22912	2240	3.00	55/370	322	9.8	16.2
ASG235N1VMT	23.5	8350	28490	1920	4.35	40/400	310	9.8	16.2
PA240M2A-3MTU2	24.0	7220	24635	2475	2.92	55/370	322	9.8	16.2
PA241G2C-3MT3	24.0	7300	24908	2315	3.15	60/400	310	9.8	16.2
PA290G2CS-3MU	28.7	8870	30264	2880	3.08	60/400	344	9.8	16.2
ATG330N1UMU	32.7	10080	34393	3365	3.00	65/400	400	9.8	16.2
ASQ330N1UMU	33.1	9950	33949	3230	3.08	60/400	380	9.8	16.2

R22

1φ-60Hz-208~230V

Model	Displ.	Capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	(cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
HSN76N1UZJ1	7.6	1645	5613	530	3.10	15/370	240	8.1	9.8
HSM130N12UEZ	13.0	2750	9383	846	3.25	30/370	292	8.1	12.9
HSM165N11UEZ	16.5	3500	11942	1060	3.30	40/370	292	8.1	12.9
HSM170N2UFZ	16.9	3540	12078	1115	3.17	40/370	292	8.1	12.9
PH210M2A-3FT	20.9	4610	15729	1365	3.38	45/370	292	8.2	12.9
PH250M2A-3FTU2	24.8	5285	18032	1625	3.25	40/370	292	8.2	12.9
PH260M2AS-3KUU1	26.1	5625	19193	1815	3.10	40/370	333	9.8	12.9
PH300G2C-3KU	29.8	6465	22059	1900	3.40	55/400	310	9.8	12.9
PH310G2C-3KUU	30.8	6780	23133	2085	3.25	55/400	310	9.8	12.9
PH340G2C-3MUU	33.8	7400	25249	2275	3.25	55/400	310	9.8	16.2
PH360G2C-3KUU1	36.0	7775	26528	2550	3.05	55/400	310	9.8	12.9
PH370G2C-3MUU1	37.0	8110	27671	2655	3.05	55/400	310	9.8	16.2
HSN98N2VBZ1	9.8	2305	7865	560	4.12	20/370	250	8.1	9.8
HSN102N1VDZ	10.2	2415	8240	575	4.20	15/370	255	8.1	9.8
HSM145N2VDT	14.6	3480	11874	830	4.19	35/370	292	8.1	9.8

R22

1φ-50Hz-220/240V

Model	Displ.	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	(cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
HSM135V1UDZ	13.3	2335	7967	708	3.30	25/370	292	8.1	9.8
HSM145V1UFZ	14.6	2568	8762	783	3.28	25/370	292	8.1	12.9
HSM150V5UFZ	15.1	2640	9008	800	3.30	25/370	292	8.1	12.9
HSM155V1UFZ	15.3	2665	9093	815	3.27	25/370	292	8.1	12.9
HSM160V5UFZ	15.8	2755	9400	840	3.28	25/370	292	8.1	12.9
HSM165V1UFZ	16.4	2845	9707	870	3.27	30/370	292	8.1	12.9
HSM165V3UDZ	16.4	2855	9741	915	3.12	30/370	292	8.1	9.8
HSM170V1UFZ	16.9	2920	9963	885	3.30	30/370	292	8.1	12.9
HSM190V1UFT	19.2	3340	11396	1010	3.31	35/370	300	8.1	12.9
HSM195V1UFT	19.7	3400	11601	1045	3.25	35/370	300	8.1	12.9
HSM200V1UFT	20.1	3480	11874	1070	3.25	35/370	300	8.1	12.9
HSM205V1UFT	20.5	3510	11976	1090	3.22	35/370	300	8.1	12.9
HSM210V2UFT	20.9	3650	12454	1170	3.12	35/370	300	8.1	12.9
HSM215V3UFT	21.4	3710	12659	1195	3.10	35/370	300	8.1	12.9
HSM220V3UFT	22.3	3880	13239	1220	3.18	40/370	300	8.1	12.9
PH300G2C-4KU1	29.8	5340	18220	1645	3.25	55/400	297	9.8	12.9
PH310G2C-4KUA	30.8	5440	18561	1635	3.33	55/400	310	9.8	12.9
PH330G2C-4KU	32.8	5845	19943	1745	3.35	60/400	324	9.8	12.9
PH340G2C-4KU	33.7	6050	20643	1805	3.35	60/400	324	9.8	12.9
PH360G2C-4MU1	36.0	6475	22093	2005	3.23	50/400	324	9.8	16.2
PH370G2CS-4MU1	37.0	6650	22690	2065	3.22	50/400	324	9.8	16.2
PH400G2CS-4MU1	39.8	7100	24225	2255	3.15	50/400	354	9.8	16.2
PH420G2CS-4KU1	42.3	7420	25317	2390	3.10	50/400	354	9.8	12.9
PH440G2CS-4MU	43.5	7810	26648	2390	3.27	50/400	354	9.8	16.2

T3-Tropical Condition

R22

1φ-50Hz-220/240V

Model	Displ (cm3/rev)	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	Displ (cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
PH200M2A-4FTS1	19.9	3555	12130	1095	3.25	35/370	292	8.2	12.9
PH210M2A-4FTS2	20.9	3765	12846	1160	3.25	35/370	292	8.2	12.9
PH310M2AS-4KTS1	31.0	5620	19175	1755	3.20	50/370	348	9.8	12.9
HSG290V1TKT	29.0	5200	17742	1520	3.42	50/400	310	9.8	12.9
HSG310V1TKT	30.9	5540	18902	1630	3.40	45/400	324	9.8	12.9
PH400G2CS-4KTS1	39.8	7080	24157	2250	3.15	60/400	354	9.8	12.9
PH420G2CS-4KTS1	42.3	7540	25726	2370	3.18	60/400	354	9.8	12.9

R22

1φ-60Hz-230V

Model	Displ (cm3/rev)	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	Displ (cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
PH185M2A-3FTS1	18.5	4050	13819	1245	3.25	40/370	292	8.2	12.9
PH240M2A-3FTS1	24.0	5260	17947	1740	3.02	40/370	292	8.2	12.9
PH260M2AS-3KTS2	26.1	5680	19380	1765	3.22	40/400	333	9.8	12.9
PH280M2AS-3KTS1	27.9	6085	20762	2025	3.00	40/400	333	9.8	12.9

DC Inverter Single Cylinder

R410A

Model	Displ (cm3/rev)	capacity		Power (W)	COP (W/W)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	Displ (cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
ASK75D43UEZ	7.5	2225	7592	582	3.82	238	8.1	9.8
ASK89D53UEZ	8.9	2670	9110	688	3.88	258	8.1	9.8
ASK98D50UFZ	9.8	2930	9997	768	3.82	260	8.1	9.8
ASK103D53UFZ	10.3	3120	10645	805	3.88	258	8.1	12.9
ASK103D59UFZ	10.3	3120	10645	790	3.95	260	8.1	12.9
ASK103D33UEZ3	10.3	3130	10679	786	3.98	260	8.1	12.9
ASK103D43UEZ3	10.3	3130	10679	779	4.02	260	8.1	12.9

T3 Compressor 50HZ-220/240V

Series

Representative model

Displacement

(cm3/rev)

Refrigerating capacity

（W）

Refrigerating capacity

（Btu/h）

Power

（W）

Performance Ratio

（W/W）

Capacitor

（μF/V）

Height Of Compressor

（mm）

Inside diameter of exhaust pipe（mm）

Inside diameter of suction pipe（mm）

Remarks

50HZ-220/240V

M2

PH200M2A-4FTS1

19.9

3555

12130

1095

3.25

35/370

292

8.2

12.9

—-

M2

PH210M2A-4FTS2

20.9

3765

12846

1160

3.25

35/370

292

8.2

12.9

—-

M2

PH310M2AS-4KTS1

31.0

5560

18971

1765

3.15

50/370

348

9.8

12.9

—-

G2

PH340G2C-4KTS1

33.7

6050

20643

1915

3.16

60/400

310

9.8

12.9

—-

G2

PH360G2C-4FTS1

36.0

6455

22024

2015

3.20

60/400

324

9.8

16.2

—-

G2

PH400G2CS-4KTS1

39.8

7115

24276

2235

3.18

60/400

354

9.8

12.9

—-

G2

PH420G2CS-4KTS1

42.3

7540

25726

2370

3.18

60/400

354

9.8

12.9

—-

G2

PH440G2CS-4KTS1

43.5

7685

26221

2500

3.07

60/400

354

9.8

12.9

—-

TQ

HTQ540V1TMT

54.0

9720

33165

3240

3.00

70/400

406

9.8

16.2

▲

TQ

HTQ610V1TMT

61.0

11040

37668

3742

2.95

70/400

406

9.8

16.2

▲

M2

G2

TQ

R22

1φ-50Hz-220/240V

Model	Displ (cm3/rev)	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	Displ (cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
PH200M2A-4FTS1	19.9	3555	12130	1095	3.25	35/370	292	8.2	12.9
PH210M2A-4FTS2	20.9	3765	12846	1160	3.25	35/370	292	8.2	12.9
PH310M2AS-4KTS1	31.0	5620	19175	1755	3.20	50/370	348	9.8	12.9
HSG290V1TKT	29.0	5200	17742	1520	3.42	50/400	310	9.8	12.9
HSG310V1TKT	30.9	5540	18902	1630	3.40	45/400	324	9.8	12.9
PH400G2CS-4KTS1	39.8	7080	24157	2250	3.15	60/400	354	9.8	12.9
PH420G2CS-4KTS1	42.3	7540	25726	2370	3.18	60/400	354	9.8	12.9

R22

1φ-60Hz-230V

Model	Displ (cm3/rev)	capacity		Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
Model	Displ (cm3/rev)	w	Btu/h	Power (W)	COP (W/W)	Capacitor (uF/V)	Height (mm)	Discharge Pipe ID (mm)	Suction Pipe ID (mm)
PH185M2A-3FTS1	18.5	4050	13819	1245	3.25	40/370	292	8.2	12.9
PH240M2A-3FTS1	24.0	5260	17947	1740	3.02	40/370	292	8.2	12.9
PH260M2AS-3KTS2	26.1	5680	19380	1765	3.22	40/400	333	9.8	12.9
PH280M2AS-3KTS1	27.9	6085	20762	2025	3.00	40/400	333	9.8	12.9

Mbsm_dot_pro_private_PDF_Ph310M2A-4FTS2 Télécharger

Mbsm.pro, compressor, Toshiba compressor, GMCC, Air Conditioner Rotary ,Toshiba, rotary compressor, PH420G2CS, PH420G2CS-4KU1, 1 PH – 50Hz – 220/240V, 25317 Btu/h, 7420w, 3 Hp++, r22 / 410A, MHBP, Fixed speed

written by Lilianne | 20 August 2023

Voltage: 1Φ – 50Hz – 220/240V

Model	Displ.(cm3/rev)	Cooling capacity		Power (W)	COP (W/W)	Capacitor
		W	Btu/h
PH420G2CS-4KU1	42.3	7420	25317	2390	3.10	50/400

Data Sheet

Power supply	220/240 V-50 Hz-1 Ph
Displacement	42,3 cm3
Cooling capacity at ASHRAE HT conditions, R22	7,42 kW
Refrigerant	R22
Suction pipe	1/2″
Discharge pipe	3/8″
Weight	20,2 kg
Rated current	11,8 A
LRA	65 A
MCC	17,12 A
Type of oil	SUNISO 4GSD / NM56EP
Sound level	≤72 dB
Application	MHBP
Technology	Fixed speed
Maximum discharge temperature	125 ºC
Maximum shell bottom temperature	115 ºC
Resistance of coils	Main:1,24 Ω/ Aux:2,77 Ω
Type of motor cooling	Suction gas
Motor type	1-Ph Induction motor (PSC)
Motor protection type	UP3-68 / HPA754
Speed	2900 rpm
Vibration	3,8 m/s2

PH420G2CS-4KU1 Air Conditional Compressor

Product Introduction:

Model	PH420G2CS-4KU1
Voltage	220/240V/1ph/50Hz
Refrigerant gas	R22
Displ.	30.8
Cooling capacity(Btu/h)	20370
COP(W/W)	4.52
Capacitor(μF/V)	55/400
Compressor Height(mm)	310
Dischargr Pipe ID (mm)	9.8
Sucition Pipe ID(mm)	12.9
Weight	23.3kg
Package	48sets/pallet

Application:
This compressor is mainly used in household air conditional.
Characteristics:
(A)Turbine anxial and redial flexibility techonology ensures reliability and efficiency of compressors.
(B)Wide range of rpoduct capacity.
(C)Lower cycle oil rate.
(D)Lower noise and vibration levels.
