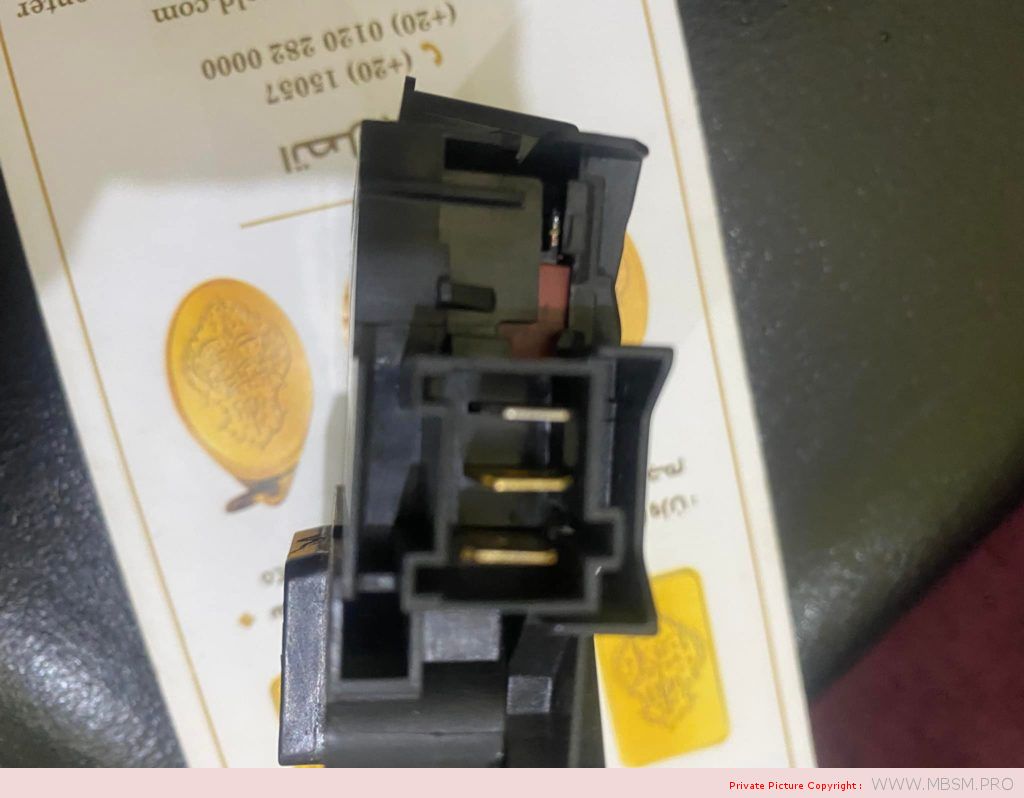

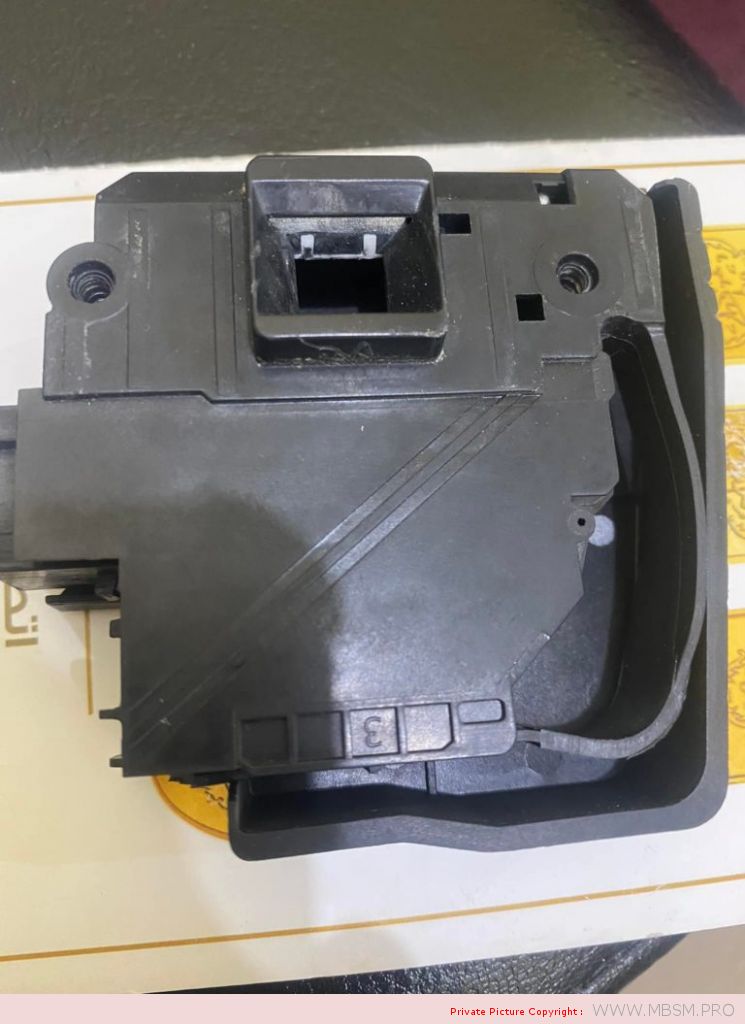

White whale look machine a laver

Category: Pictures
written by Lilianne | 29 December 2021


Mbsm.pro, Compressor, JIAXIPERA, ND1080Y, 1/8HP, ND1090Y, 1/8+HP, ND1110Y, 1/7HP, ND1111Y, 1/6-HP, ND1112Y, 1/6+HP, NX1080Y, 1/8HP, NX1090Y, 1/8+HP, NX1110Y, 1/7HP, NX1111Y, 1/6HP, NX1112Y, 1/6+HP, NX1113Y, 1/5HP, NX1114Y, 1/5+HP, NX1116Y, 1/4HP, NX1117Y, 1/4HP, NX1119Y, 1/4+HP, NX1120Y, 1/4+HP, TB1080Y, 1/8HP, TB1090Y, 1/8+HP, TB1110Y, 1/7HP, TB1111Y, 1/6HP, TB1112Y, 1/6+HP, TB1113Y, 1/5HP, TB1114Y, 1/5+HP, TX1080Y, 1/8HP, TX1090Y, 1/8+HP, TX1110Y, 1/7HP, TX1111Y, 1/6HP, TX1112Y, 1/6+HP, TX1113Y, 1/5HP, TX1114Y, 1/5+HP, VNX1111Y, 1/6HP, VNX1113Y, 1/5HP, VNX1116Y, 1/4HP, ZBX1117CY, 1/4HP, ZBX1119CY, 1/4+HP, ZBX1121CY, 1/4+HP

Category: compressor
written by Lilianne | 29 December 2021

Mbsm.pro, Compressor, JIAXIPERA, ND1080Y, 1/8HP, ND1090Y, 1/8+HP, ND1110Y, 1/7HP, ND1111Y, 1/6-HP, ND1112Y, 1/6+HP, NX1080Y, 1/8HP, NX1090Y, 1/8+HP, NX1110Y, 1/7HP, NX1111Y, 1/6HP, NX1112Y, 1/6+HP, NX1113Y, 1/5HP, NX1114Y, 1/5+HP, NX1116Y, 1/4HP, NX1117Y, 1/4HP, NX1119Y, 1/4+HP, NX1120Y, 1/4+HP, TB1080Y, 1/8HP, TB1090Y, 1/8+HP, TB1110Y, 1/7HP, TB1111Y, 1/6HP, TB1112Y, 1/6+HP, TB1113Y, 1/5HP, TB1114Y, 1/5+HP, TX1080Y, 1/8HP, TX1090Y, 1/8+HP, TX1110Y, 1/7HP, TX1111Y, 1/6HP, TX1112Y, 1/6+HP, TX1113Y, 1/5HP, TX1114Y, 1/5+HP, VNX1111Y, 1/6HP, VNX1113Y, 1/5HP, VNX1116Y, 1/4HP, ZBX1117CY, 1/4HP, ZBX1119CY, 1/4+HP, ZBX1121CY, 1/4+HP



Mbsm.pro, Compressor, cubigel, huayi, ACC, Electrolux, HPY14AA, LBP, R600a, 1/5HP, 220-240V/1/50Hz, 166 W

Category: compressor
written by Lilianne | 29 December 2021

Compressors/Compressors ACC – Electrolux HP14AH, LBP – R600a, Power consumption 1/5HP, 220-240V/1/50Hz, Motor type RSIR, Injection: Capillary operation, Displacement 14.32 cm3, Oil type ISO VG10 Mineral oil, Oil quantity 300 cm3, Power 147 W at -25 / +55 °C, Power consumption 166 W, Power 0.0 W,Cooling capacity

–10 °C –15 °C –20 °C –25 °C –30 °C –35 °C
344 276 216 166 124 92
Shipping Class Standard
Scope Of Application LBP
Lieferzeit 2-3 Wochen
Type Of Construction Piston
Condensation Temperature 55°C
Maker ACC
Manufacturer No. HPY14AA
Displacement In Cm3 14.32
Measuring Requirements Ashrae
Refrigerants R600a
Series HPY
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 13

Compressor ACC Cubigel Huayi Electrolux ZEM HPY14AA, LBP -R600a, 220- 240V/1/50Hz, 1/5 HP, discharge 14.32 cm3, motor type RSIR, oil type ISO VG10 mineral, oil charge 300 cm3, 166 W at -25 / +55 °, input power, current 147 W, 0.96 A, expansion device: capillar, cooling: static, weight 11 kg , the statutory warranty period shall apply (24 months), Delivery time Info: with “immediately available” and “scarce stock”, usually delivery within 2 days. For “currently not available” delivery time usually 2 weeks or delivery time in urgent cases contact us.

Refrigerant: R600a
Power range(W): 101 – 200 W
Performance range (C): -35 C to -10 C
Connecting size: 6,5 mm
Suction: 8,1 mm
Working area: LBP
Design type: Hermetic
Model series: HPY
Use with: Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: ISO VG 10 Mineral
Engine type: RSIR
Article condition: New
Info: Oil filled
Shipping weight: 13,00 Kg
Dimensions ( length × width × height ): 20,40 × 16,20 × 19,60 cm
customs tariff number: 84143081
Cooling capacity condition: T0 -25 C, Tk +55 C
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: HPY14AA
Modelname: HP14AH
Stroke volume (cm3): 14,32
Cooling capacity (W): 147
Power (HP): 0,25
Max. Starting current (A): 11,5
Max. Operating current (A): 0,96
Engine type: RSIR
Note: Static cooling
Oil quantity (l): 0,3
Compressor type: Piston
Power range: -35 C to -10 C
Alternative: NBM1118Y , EMX70CLC , NBM1116Y
Pressure line (mm): 6,5
Suction line (mm): 8,1
Mbsm_dot_pro_private_PDF_HPY14AA-1Télécharger
Mbsm_dot_pro_private_PDF_HPY14AATélécharger


HGX12P/75-4, R410A, compressor, semi-hermétique, BOCK, 25,0 hp

Category: Chaud&Froid,compressor
written by Lilianne | 29 December 2021
HGX12P/75-4 R410A

Data Sheet

Power supply 220/240 V-380/420 V-50 Hz-3 ph (265/290 V-440/480 V-60 Hz-3 ph) Δ Y
Horsepower 25,0 hp
Displacement 6,70 m3
Cooling capacity at Refrigeration conditions, R407C 3,39 kW
Cooling capacity at Refrigeration conditions, R404A 3,97 kW
Refrigerant R134a, R404A, R407C, R407F, R448A, R449A, R507, R513A
Suction pipe 5/8″
Discharge pipe 1/2″
Weight 49 kg
LRA (Δ/y) 43/25 A
MCC (Δ/y) 8,0/4,6 A
Type of oil FUCHS Reniso Triton SE 55
Other remarks Available in ATEX version, Electronic frequency control (30-70 Hz), Equipped with oil pump without connections to the differential oil pressure switch
Accessories Control Capacity 50/100%, Crankcase heater 50-120 W, Thermal protection thermostat (PTC sensor)
Application MHBP
Technology Fixed speed
Lubrication mode Oil pump
Low pressure design 19 bar
High pressure design 28 bar
Type of motor cooling Suction gas
Protection type IP 66
Motor protection type INT69 G
Speed 1450 rpm
Number of cylinders / Bore / Stroke  2 / 38 mm / 34 mm
Displacement 50/60 Hz (1450/1740 ¹/min)  6,70 / 8,10 m³/h
Voltage 1) 220-240V Δ / 380-420V Y -3- 50Hz
  265-290V Δ / 440-480V Y -3- 60Hz
Max. working current 2) 7.1 / 4.1 A
Max. power consumption 2) 2.3 kW
Starting current (rotor blocked) 2) 40.0 / 23.0 A
Motor protection  INT69 G
Protection terminal box  IP 66
Weight  49 kg
Max. permissible pressure (LP/HP) 3) 19 / 28 bar
Connection suction line SV  16 mm – 5/8 “
Connection discharge line DV  12 mm – 1/2 “
Lubrication  Oil pump
Oil type R290, R600a, R1270  FUCHS Reniso SYNTH 68
Oil charge  0,8 Ltr.
Dimensions Length / Width / Height  411 / 223 / 280 mm
1)
Mbsm_dot_pro_private_PDF_HGX12PTélécharger


Neon compressor, QD128H(360W), 1/3Hp, QD158H(450W), 3/8+, QD142H(395W), 3/8+, QD168H (322W), 1/2Hp, R134a

Category: compressor
written by Lilianne | 29 December 2021

Refrigerant：R22, R134a, R406a ,R600a

Refrigerant
Model

Power Supply

Displacement  (cm³)

Cooling Capacity (W)
Rated Power(W)

Nominal power(HP)
COP (W/W)
R134a
QD110H
220-240V/50Hz
11.0
280
233
1/3
1.2
R134a
QD128H
220-240V/50Hz
12.8
325
240
1/3
1.35
R134a
QD142H
220-240V/50Hz
14.2
360
266
1/3
1.35
R134a
QD150H
220-240V/50Hz
15.0
255
259
1/3
0.98
R134a
QD153H
220-240V/50Hz
15.3
390
288.8
2/5
1.35
R134a
QD168H
220-240V/50Hz
16.8
323
310
2/5
1.04
R134a
QD180H
220-240V/50Hz
18.0
392
351
1/2
1.11
R134a
QD210H
220-240V/50Hz
21.0
456
404
1/2
1.12
R134a
QD2511H
115V/60HZ
2.5
70
67
1/11
1.05
R134a
QD25H
220V/50-60HZ
2.5
65/78
62/72
1/12*1/10
1.05/1.08
R134a
QD65H
220V/50HZ
6.5
168
140
1/5
1.2
R134a
QD75H
220V/50HZ
7.5
180
150
1/5+
1.2
R134a
QD91H
220V/50HZ
9.1
208
173
1/4
1.2
R134a
QV10H
220V/50-60HZ
1
35/43
46/53
1/16*1/14
0.76/0.8
R134a
QV15H
220V/50-60HZ
1.5
48/57
53/60
1/14*1/12
0.9/0.95
R134a
QV20H
220V/50-60HZ
2
56/64
56/62
1/13*1/12
1/1.03
R134a
QV3011H
115V/60HZ
3
90
86
1/9
1.05
R134a
QV30H
220V/50-60HZ
3
75/88
71/81
1/11*1/9
1.05/1.08
R134a
WS103H
220V/50HZ
10.3
260
186
1/4
1.4
R134a
WS3911H
115V/60HZ
3.9
120
80
1/9
1.5
R134a
WS50H
220V/50HZ
5.0
152
97
1/8
1.57
R134a
WS5211H
115V/60HZ
5.2
180
115
1/7
1.57
R134a
WS52H
220V/50HZ
5.2
160
100
1/7-
1.6
R134a
WS5711H
115V/60HZ
5.7
195
126
1/6
1.55
R134a
WS57H
220V/50HZ
5.7
170
120
1/6
1.42
R134a
WS60H
220V/50HZ
6.0
180
109
1/7+
1.65
R134a
WS7011H
115V/60HZ
7
245
181
1/4
1.35
R134a
WS70H
220V/50HZ
7.0
197
131
1/6
1.42
R134a
WS70H
220V/50HZ
7.0
197
138.7
1/6
1.42
R134a
WS75H
220V/50HZ
7.5
200
144
1/5
1.4
R134a
WT52H
220V/50HZ
5.2
130
108
1/7
     1.2
R134a
WV4311H
115V/60HZ
4.3
130
118
1/6
1.1
R134a
WV5211H
115V/60HZ
5.2
160
133
1/6
1.2
R134a
WS45H
220V/50-60HZ
4.5
130/150
97/105
1/7
1.34/1.43
R134a
WS57H
220V/50-60HZ
5.7
170/195
120/130
1/6
1.42/1.50
R134a
WS75H
220V/50-60HZ
7.5
200/232
144/157
1/5
1.39/1.48
R134a
QV30H
220V/50-60HZ
3
75/88
71/81
1/11*1/9
1.05/1.08
R134a
QD52H
220-240V/50Hz
5.2
130
113
1/7
1.15
R134a
QD43H
220-240V/50Hz
4.3
111
97
1/8
1.15



Model Displ.  (cm3) 商业标称
POWER
HP		 Motor Type Cooling Capacity(W)54.4℃/ 130℉ Condensing  Temp.                                         制冷量 COP W/W                   Input Power             (W)   Oil Charge
型号 气缸容积 电机类型 冷却方式 能效比 输入功率
          一35℃ 一30℃ 一25℃ 一23.3℃ 一20℃ 一15℃ 一10℃ 一6.7℃ 一5℃ 0℃ 一23.3℃ 一6.7℃ 一23.3℃ 一6.7℃
DW MAWQD25HHP 2.5     1/12 RSIR S 30 40 52 58 75 93 126 140 156 175 0.85 1.9 68 74 140
MAWQD30HHP 3.0     1/10 RSIR S 35 49 63 70 90 112 152 170 188 210 0.85 1.9 82  89  140
MAWQD35HHP 3.5     1/8 RSIR S 40 56 72 80 105 128 176 220 242 275 0.9 1.98 89  111  140
DM MAMQD43HHP 4.3  1/7 RSIR S 47 65 83 110 121 149 216 270 297 338 0.95 2.01 116  134  160
DF MAFQD52HHP 5.5  1/7 RSIR S 70 95 123 136 177 218 280 350 385 438 1.15 2.01 118  174  180
MAFQD59HHP 6.2  1/6 RSIR S 85 115 149 165 215 265 312 390 430 488 1.16 2.01 142  194  180
MAFQD65HHP 6.6  1/5 RSIR S 95 129 167 185 241 297 350 430 473 538 1.18 2.02 157  193  180
MAFQD75HHP 7.6  1/5+ RSIR S/F 105 147 190 210 273 337 387 495 545 618 1.2 2.05 175  241  180
MAFQD91HHR 8.8  1/5+ RSIR S/F 112 155 200 230 285 350 405 520 570 642 1.22 2.06 189  252  180
DL MALQD75HHR 7.2  1/5+ RSIR S/F 100 140 160 200 260 320 366 470 518 588 1.3 2.06 154  228  220
MALQD75HGR 7.6  1/5+ RSIR S/F 105 147 190 220 273 337 387 495 545 618 1.36 2.11 162  235  220
MALQD91HHR 8.8  1/5+ RSIR S/F 115 160 207 245 300 368 425 530 583 655 1.37 2.12 179  250  220
MALQD91HGR 9.3  1/4- RSIR S/F 127 176 228 270 330 405 468 580 640 720 1.41 2.15 191  270  220
MALQD110HHR 10.0  1/4 RSIR F 136 190 245 300 375 460 470 650 718 820 1.37 2.12 219  307  220
MALQD110HGR 11.1  1/4+ RSIR F 150  210  270  330  410  510  520  725  790  905  1.41 2.15 234  337  220
DQ MAQQD128HHR 12.3  3/8 RSIR F 180  252  324  360  468  576  740  925  1018  1156  1.31 2 275  463  250
MAQQD142HHM 13.5  3/8+ CSIR F 195  273  351  390  507  624  800  1000  1100  1250  1.3 2 300  500  250
MAQQD158HHM 15.3 3/8+ CSIR F 215 300 387 430  560 690 890 1120 1230 1400 1.3 2 331  560  250
MAQQD168HHM 16.3 1/2 CSIR F 230 322 415 460  598 736 976 1220 1340 1530 1.3 2 354  610  250


  • Qd52h power 120w cold capacity 134w
  • Qd59h power 145w cooling capacity 145wQd59h power 145w cooling capacity 145w
  • Qd91h power 189w cooling capacity 220wQd91h power 189w cooling capacity 220w
  • Qd110h power 240w cooling capacity 285wQd110h power 240w cooling capacity 285w
  • Qd158h power 330w cooling capacity 450wQd158h power 330w cooling capacity 450w
  • Qd168h power 360w cooling capacity 500wQd168h power 360w cooling capacity 500w
  • Qd65h power 157w cooling capacity 170wQd65h power 157w cooling capacity 170w
  • Qd142h power 290w cooling capacity 395wQd142h power 290w cooling capacity 395w
  • Qd128h power 260w cooling capacity 360wQd128h power 260w cooling capacity 360w
  • Qd59 (r406a refrigerant)Qd59 (r406a refrigerant)
  • Qd75h power 175w cooling capacity 185wQd75h power 175w cooling capacity 185w

Mbsm_dot_pro_private_PDF_QD168HTélécharger
Neon compressor, QD128H(360W), 1/3Hp, QD158H(450W), 3/8+, QD142H(395W), 3/8+, QD168H (322W), 1/2Hp, R134a


Compresseur, Mitsubishi, Electric MITSUBISHI, RH174VHAC, 9000 BTU/heure (2,6 kW), 220-240V 50Hz, R22

Category: compressor
written by Lilianne | 29 December 2021

Modèle – Mitsubishi Electric RH 174 VHAC (9000Btu)
Productivité – 9000 BTU/heure (2,6 kW)
Alimentation – 220-240V 50Hz
Réfrigérant (fréon) – R22
Entre vannes – 15 cm
Hauteur compresseur – 22 cm
Diamètre compresseur – 13 cm

#mbsmpro

Mbsm_dot_pro_private_PDF_pdf_RH174VHACTélécharger
Mbsm_dot_pro_private_picture_RH174VHACTélécharger


Bitzer, Compressor, S6F-30.2Y-40P, Compressor Selection, Semi-hermetic Reciprocating, 1450 min-1 , 101,1 (LP) , 30hp

Category: compressor
written by Lilianne | 29 December 2021

BITZER is raising the bar in terms of technology and capacity for expanded low temperature applications with the 2nd generation of 2-stage compressors. This series is the result of extensive research on the basis of years of experience in the construction of highly efficient and solid reciprocating compressors. The gas flow control and working valves are specially adapted for low temperature applications.

  • Displacement at 1450 min-1 : 101,1 (LP) 50,5 (HP)
  • Number of cylinders : 6
  • Oilcharge : 4,75 dm3

Displacement (1450 RPM 50Hz):101.10 / 50.50 m^3/h Displacement (1750 RPM 60Hz):122.02 / 60.95 m^3/h

The Bitzer Compressor is high quality!
Displacement (1450 RPM 50Hz):101.10 / 50.50 m^3/h
Displacement (1750 RPM 60Hz):122.02 / 60.95 m^3/h
No. of cylinder x bore LP/HP x stroke:6+6 x 82/ 82 mm x 55 mm
Max. pressure (LP/MP/HP):19 / 19 / 28 bar
Connection suction line:42 mm – 1 5/8 inch
Connection discharge line:35 mm – 1 3/8 inch
Oil type R404A/R507A:BSE32 (Standard)
Oil type R448A/R449A:BSE32 (Standard)
Oil type R22:B5.2 (Option) We can also provide the following models
4JTE-15K
GYD80485VAYB4
GED60235VLB332
GMD60137VBYR632
GED60485VBYR3-1
CSH7573-70Y-40P
GYD80182VLYB632
GYD60385VLYR2-2
GED80154VLR332
GYU80295VLR4-2
GSU60120VLB6-2
GED60137VAYB3-1
GUU60154VLR532
GUD80295VLR232
GSD80295VLR6-1
GTU60137VLYB3-1
GUD60137VBYR5-1
GYD80235VBYB332
GYD60421VAYR332
GMD60295VBR3-1
GED80154VBYB6
4NEH-14-40S
GMU60154VLY
GYD60154VAB4-2
GYD80182VAYR4-2
GYD80421VBR5-1
GYD60385VLYR4-1
4TE-9.F3Y-40S
GMD60182VBYB3-2
GMD80120VLR232
GUD60120VBYR5-2
GSD60154VAYR232
GMD60154VBYR632
44EES-12-40S
GMD60154VBB432
GUD80421VWR4-2
GYD80385VAYR2-2
GTD60385VLB632
GED60235VLB2
GED60154VAYR4
GSD80421VWR5-2
GUD60421VBR5
GYD80182VBYB5-1
GED60295VBB5
GED80421VAR4-1
GED60385VLYB3
GYU80421VLR2
GSD80485VBB5-1
GED60120VLB2
GUD60421VBR332
GTD60154VAB4-2
GED60421VAYB6-1
GMD60485VBB5-1
GSD60485VAYR4
GED80295VLYR6-1
GSD60235VAYB232
GTD60385VBYR3-1
GUD60154VBB3-2
GUD80295VWB6-2
GED60421VAR5
GMD80421VBR4
GED80182VLR532
GSD60154VBYB6-1
GTD80421VBYR332
GSD60182VAYB4-1
GUD80485VWYR5-2
GSU80295VLYR6-1
GSD80182VLYR2-2
GSU80385VLB432
GED80295VAY
GED80295VAB3-2
GYD60120VAR4

With liquid subcooling 50Hz (R404A/R507A)

Compressor type Cond.temp. Qo / Pe Evaporating temperature °C
[°C] -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S6F-30.2Y 30 Qo 43400 37400 31750 26500 21700 17420 13690 10540 7920 5800
Pe 2,53 0,65 8,78 16,94 15,15 13,42 11,77 10,20 8,74 7,40
35 Qo 42500 36600 31050 25900 21200 17030 13420 10340 7780 5680
Pe 3,85 1,86 9,89 7,94 6,04 4,21 12,45 10,78 9,23 7,80
40 Qo 41500 35700 30300 25300 20700 16680 13170 10150 7590
Pe 25,20 23,10 21,01 18,96 16,95 15,00 13,14 11,37 9,72
45 Qo 40450 34800 29550 24700 20300 1660 12930 9920
Pe 26,59 24,37 22,16 19,98 17,86 15,80 13,83 11,96
50 Qo 39500 34000 28850 24100 19870 16060 12650
Pe 28,07 25,69 23,33 21,01 18,75 6,57 14,49
55 Qo 38800 33250 28200 23600 19490 15740
Pe 29,64 27,06 24,51 22,03 19,63 17,32

Qo – Cooling capacity [Watt], Pe – Power consumption [kW]

Without liquid subcooling 50Hz (R404A/R507A)

Compressor type Cond.temp. Qo / Pe Evaporating temperature °C
[°C] -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S6F-30.2Y 30 Qo 38050 31700 26050 21000 16620 12880 9790 7280 5300 3760
Pe 1,26 18,81 16,61 14,64 12,90 11,37 10,02 8,86 7,85 7,00
35 Qo 36000 29950 24500 19710 15570 12070 9180 6840 4980 3510
Pe 22,11 19,66 17,41 15,37 13,53 11,88 10,42 9,13 8,02 5,72
40 Qo 33800 28000 22900 18390 14530 11280 8590 6400 4620
Pe 22,95 20,53 18,26 16,15 14,20 12,42 10,82 9,41 8,18
45 Qo 31450 26050 21250 17080 13510 10500 8000 5920
Pe 23,82 21,42 19,12 16,94 14,89 13,00 11,26 9,71
50 Qo 28950 24000 19590 15770 12490 9710 7370
Pe 24,72 22,31 19,98 17,74 15,61 13,61 11,76
55 Qo 26400 21900 17890 14430 11440 8880
Pe 25,67 23,19 20,80 18,52 16,34 14,27

Qo – Cooling capacity [Watt], Pe – Power consumption [kW]

Mbsm_dot_pro_private_PDF_S6F-30.2Y-40PTélécharger

Compressor typeDisplacement at 1450 min-1Number of cylindersOil chargeWeightPipe connectionsMotorMax. operating currentMax. power consumptionStarting current(lockedrotor)LPHPDLSLdm3KgmmpoucemmpouceAmpkWAmp. Y/YYS6F-30.2Y101,150,567.752343513/842
5415/8
21/8380 ..420YY/3/50
440 ..480 YY/3/605131,9135/220



GP14TB, R-134a, 3/8HP++, 230V, Haute Pression, CUBIGEL/HUAYI, Décalage: 14.17 cm³

Category: compressor
written by Lilianne | 29 December 2021
  • CUBIGEL/HUAYI
  • Original

Données techniques

  • Modèle: GP14TB
  • Gaz: R-134a
  • Température/Pression: Haute Pression
  • Puissance: 3/8 HP
  • Type De Courant: Monophasé
  • Fréquence: 50 Hz
  • Type De Compresseur: Hermétique
  • Décalage: 14.17 cm³
  • Cons.Énergie -10ºC: 366 W
  • Cons.Énergie -5ºC: 406 W
  • Cons.Énergie 0ºC: 448 W
  • Cons.Énergie +5ºC: 491 W
  • Cons.Énergie +10ºC: 536 W
  • T° De Condensation: 40 °C
  • Capacidad Frigorífica -15°C: 489 Kcal/h
  • Capacidad Frigorífica -10°C: 634 Kcal/h
  • Capacidad Frigorífica -5°C: 800 Kcal/h
  • Capacidad Frigorífica 0°C: 986 Kcal/h
  • Capacidad Frigorífica 5°C: 1193 Kcal/h
  • Capacidad Frigorífica 7.2°C: 1291 Kcal/h
  • Capacidad Frigorífica 10°C: 1421 Kcal/h
  • Tipo Test: Ashare 46
Mbsm_dot_pro_private_PDF_gp14tb-3Télécharger
Mbsm_dot_pro_private_PDF_gp14tb-1Télécharger
Mbsm_dot_pro_private_PDF_gp14tbTélécharger


Compressor, hermetic, medium temperature, 7 HP, r22, POE, MT80HP4, MT80 HP4, 400/3/50, 460/3/60 volt, 1-3/4″ RL – 1-1/8″ x 1-1/4″ RL – 3/4″

Category: compressor
written by Lilianne | 29 December 2021

Product details

Gross weight 41.58 kg
Net weight 39.1 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 Nm
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 Nm
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 Nm
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm

Description

Product details

Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525
Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm

Refrigerant: R22, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Product details

Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525
Gross weight 44.5 kg
Net weight 42 kg
EAN 5702428839525



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description MT080-4
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code B
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 0.6 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP55 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 16.5 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 80 A
MCC 18.5 A
Model number MT80HP4AVE
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity 60 kBTU/h 80.2 kBtu/h
Nominal cooling capacity at 50Hz 17.8 kW
Nominal cooling capacity at 60Hz 23.5 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 160P
Packaging height [mm] 455 mm
Packaging length [mm] 395 mm
Packaging weight [Kg] 44 kg
Packaging width [mm] 365 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Spade
Refrigerant R22
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 135.78 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.94 Ohm
Mbsm_dot_pro_private_PDF_MTZ80HP4-1Télécharger
Mbsm_dot_pro_private_PDF_MTZ80HP4Télécharger

Compresseur à piston Danfoss Maneurop MT22JC5PVE (2.0HP / 1PH) Compresseur à piston Danfoss Maneurop MT22JC4AVE (2.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT28JC5PVE (2.3HP / 1PH) Compresseur à piston Danfoss Maneurop MT22JC4AVE (2.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT28JC5PVE (2.3HP / 1PH) Compresseur à piston Danfoss Maneurop 3PH (2.3HP / 1PH) 2.6HP / 1PH) Compresseur à piston Danfoss Maneurop MT32JF4DVE (2.6HP / 3PH); Compresseur à piston Danfoss Maneurop MT36JG5CVE (3.0HP / 1PH) Compresseur à piston Danfoss Maneurop MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Danfoss Maneurop Compresseur à piston MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Danfoss Maneurop Compresseur à piston MT36JG4FVE (3.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT40JH4EVE (3.3HP / 3PH) Compresseur à piston Danfoss Maneurop 3KFHB4 (3.6PH) 4.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT56HL4BVE (4. 6HP / 3PH) Compresseur à piston Danfoss Maneurop MT64HM4DVE (5.3HP / 3PH) Compresseur à piston Danfoss Maneurop MT72HN4AVE (6.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT80HP4AVE (6.6HP / 3PH) Compresseur à piston Danfoss Maneurop MT72HN4AVE (6.0HP / 3PH) Compresseur à piston Danfoss Maneurop MT80HP4AVE (6.6HP / 3PH) Compresseur à piston Danfoss Maneurop4.0 Compresseur à piston MT144HV4AVE (12,0HP / 3PH) Compresseur à piston Danfoss Maneurop MT160HW4EVE (13.3HP / 3PH) Compresseur à piston Danfoss Maneurop MTZ22JC5VE (2.0HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ22JC4AVE (2.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ28JE5AVE (2,3 HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ28JE4AVE (2,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ32JF5AVE (2,6 CV / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ32JF4BVE (2.6HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ36JG5AVE (3.0HP / 1PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ36JG4BVE (3.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ40JH4AVE (3,3 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ50HK4CVE (4,0 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ56HL4BVE (4,6 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ64HM4CVE (5,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ72HN4AVE (6,0 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ80HP4AVE (6,6 CV / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ100HS4VE (8,3 CV / 3 PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ125HU4VE (10.0HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ144HV4AVE (12,0 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop MTZ160HE4AVE (13,3 HP / 3PH); [R134A, R404] Compresseur à piston Danfoss Maneurop NTZ048A4LR1A (2.0HP / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ068A4LR1A (3,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ096A4LR1A (4,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ108A4LR1A (5,0 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ136A4LR1A (6,5 CV / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ215A4LR1A (10,0 HP / 3PH); [R134A, R404, R507] Compresseur à piston Danfoss Maneurop NTZ271A4LR1A (13.0HP / 3PH); [R134A, R404, R507] COMPRESSEUR MANEUROP 2.0HP MT22 MANEUROPE 2.0HP MT22 COMPRESSEUR MANEUROP COMPRESSEUR MTZ-22JE-4VE R404A MANEUROPE 2.30HP MT28JE-5PVE MT28-5VI / MT28-5VM COMPRESSEUR MANEUROP 2.30HP MT28JE-5PVE MT28-5VI / MT28-5VM COMPRESSEUR MANEUROPEUR 2.30H5 / R404A) COMPRESSEUR MANEUROP 2.8HP MTZ32-5VM (R134a / R404A / R507) COMPRESSEUR MANEUROP MT32JF5MVE 2-3 / 4HP ((R22) COMPRESSEUR MANEUROP 3.0HP MT36JG4FVE (MT36-4VI / MT36-4VM) (R22) COMPRESSEUR 3.0HP COMPRESSEUR MT36 MANEUROP 3.3HP MT40JH4EVE COMPRESSEUR MANEUROP 3.3HP MTZ40-JH4AVE COMPRESSEUR (R407A / C / F / R134A / R404A / R507) Compresseur MANEUROP MTZ-36-JG4AVE (R407C / R134a / R404A-R407C / R134a / R404A) -Compresseur JH4AVE (R134a / R404A) – Compresseur 3.3HP 3PH MANEUROP MTZ-44-HJ4AVE (R134a / R404A) – 3. 5HP 3PH MANEUROP 4HP MTZ-50HK-4CVE (MTZ50-4VI / MTZ50-4VM) COMPRESSEUR (R134A / R404A) MANEUROP MTZ56HL3BVE R407c, R134a, R507a, R404a compresseur MANEUROP MT-64-4VM COMPRESSEUR MANEUR 64-4VM COMPRESSEUR MANEUR COMPRESSEUR MT72-4VM COMPRESSEUR MANEUROP MT-80-4VM (6.5HP) Compresseur MANEUROP 6.6HP MT81HP4AVE COMPRESSEUR MANEUROP MTZ80HM4DVE COMPRESSEUR MANEUROP 8.5HP MT100-4VM COMPRESSEUR MANEUROPE 10HP MT100-4VM (MT100HS4DVE) COMPRESSEUR 10HP MT100-4VM (MT100HS4DVE) COMPRESSEUR MT12M10 MANHOP 4-COMPRESSEUR 10HP R22) COMPRESSEUR MANEUROP 10HP MTZ125HW4AVE (R404A / R134A / R507 / R407C) COMPRESSEUR MANEUROPE 12HP MT144-4VM COMPRESSEUR MANEUROPE 13.3HP MT160-4VM (MT160HW4DVE) COMPRESSEUR MANZVMER 10 COMPRESSEUR MANZVM4 (MT160HW4DVE) / 2 ‘) SER. KIT POUR MT-28 MANEUROP 7703009 (1-1 / 8 ‘& 3/4’) SER.



Compressor, LG, GK113P, R410A, 220-240V, 50Hz, 9600 Btu / h, capacitor 35 uF, 1Piston

Category: compressor
written by Lilianne | 29 December 2021
Refrigerant Type Frequency Voltage Series Model Cooling  Capacity Input EER COP Test
Condition
Btu/hr Watts Watts Btu/W.hr W/W
R410A 1piston 50Hz 1Φ, 220/240V GA GA066P 5,270 1,544 555 9.5 2.78 ASHRAE
GA080P 6,550 1,919 668 9.81 2.87 ASHRAE
GA086P 7,050 2,066 735 9.59 2.81 ASHRAE
GAB GAB040P 3,130 917 340 9.2 2.7 ASHRAE
GAB042P 3,410 999 355 9.6 2.81 ASHRAE
GAB048P 3,985 1,168 403 9.9 2.9 ASHRAE
GAB072P 5,950 1,744 590 10.08 2.95 ASHRAE
GK GK086P 6,900 2,022 726 9.5 2.79 ASHRAE
GK094P 7,700 2,256 794 9.7 2.84 ASHRAE
GK102P 8,250 2,418 841 9.81 2.87 ASHRAE
GK113P 9,000 2,637 914 9.85 2.89 ASHRAE
GK120P 9,700 2,842 1,010 9.6 2.81 ASHRAE
GK141P 11,350 3,326 1,170 9.7 2.84 ASHRAE
GK151P 12,200 3,575 1,245 9.8 2.87 ASHRAE
GKS GKS094P 7,700 2,256 755 10.2 2.99 ASHRAE
GKS108P 8,700 2,549 838 10.38 3.04 ASHRAE
GKS113P 8,750 2,564 920 9.51 2.79 ASHRAE
GKS134P 10,900 3,194 1,100 9.91 2.9 ASHRAE
GKS141P 11,500 3,370 1,116 10.3 3.02 ASHRAE
GKS151P 12,230 3,584 1,245 9.82 2.88 ASHRAE
GJ GJ176P 14,400 4,220 1,485 9.7 2.84 ASHRAE
GJ196P 16,500 4,835 1,705 9.68 2.84 ASHRAE
GJ208P 17,500 5,128 1,750 10 2.93 ASHRAE
GJ222P 18,500 5,421 1,867 9.91 2.9 ASHRAE
GJ230P 19,100 5,597 1,949 9.8 2.87 ASHRAE
Mbsm_dot_pro_private_PDF_gk113pTélécharger
