General data
Operating voltage: 220-240 volts, 50/60 Hz
Freon type: R134a
Application temperature range: -20 to plus 10°C (MHBP)

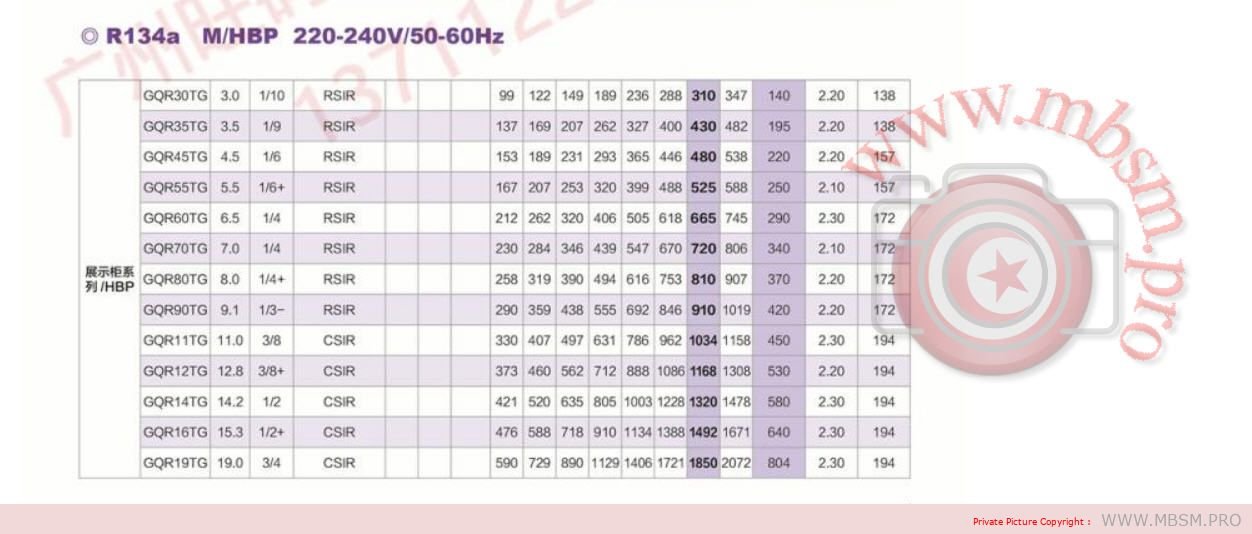

Operating data in the temperature range
| Model | offset | Engine type | HP | COP | W input | 10 | 7.2 | 5 | 0 | -5 | -10 | -15 | -20 |
| GQR3.0TG | 3.0 | RSIR | 1/10 | 2.20 | 140 | 347 | 310 | 288 | 236 | 189 | 149 | 122 | 99 |
| GQR3.5TG | 3.5 | RSIR | 1/9 | 2.20 | 195 | 482 | 430 | 400 | 327 | 262 | 207 | 169 | 137 |
| GQR4.5TG | 4.5 | RSIR | 1/6 | 2.20 | 220 | 538 | 480 | 446 | 365 | 293 | 231 | 189 | 153 |
| GQR5.5TG | 5.5 | RSIR | +1/6 | 2.10 | 250 | 588 | 525 | 488 | 399 | 320 | 253 | 207 | 167 |
| GQR6.5TG | 6.5 | RSIR | 1/4 | 2.30 | 290 | 745 | 665 | 618 | 505 | 406 | 320 | 262 | 212 |
| GQR7.0TG | 7.0 | RSIR | 1/4 | 2.10 | 340 | 806 | 720 | 670 | 547 | 439 | 346 | 284 | 320 |
| GQR8.0TG | 8.0 | RSIR | +1/4 | 2.20 | 370 | 907 | 810 | 753 | 616 | 494 | 390 | 319 | 258 |
| GQR9.1TG | 9.0 | RSIR | -1/3 | 2.20 | 420 | 1019 | 910 | 846 | 692 | 555 | 438 | 359 | 290 |
| GQR11.0TG | 11.0 | CSIR | 3/8 | 2.30 | 450 | 1158 | 1034 | 962 | 786 | 631 | 497 | 407 | 330 |
| GQR12.8TG | 12.8 | CSIR | +3/8 | 2.20 | 530 | 1308 | 1168 | 1086 | 888 | 712 | 562 | 460 | 373 |
| GQR14.2TG | 14.2 | CSIR | 1/2 | 2.30 | 580 | 1478 | 1320 | 1228 | 1003 | 805 | 635 | 520 | 421 |
| GQR15.3TG | 15.3 | CSIR | +1/2 | 2.30 | 640 | 1617 | 1492 | 1388 | 1134 | 910 | 718 | 588 | 476 |
| GQR19.0TG | 19.0 | CSIR | 3/4 | 2.30 | 804 | 2072 | 1850 | 1721 | 1406 | 1129 | 890 | 729 | 590 |
